Super Power PoE

Model: TSD-V111C-B
Input: PoE wide voltage DC 6-60V
Output: DC 12V 5A /24V 2.5A /36V 1A
conversion efficiency  > 90%
Transmission rate: 10/100/1000M /2.5G
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/4/6/8P Sockets
Size: 82*58*14 mm(L*W*H)
Weight: N.W=43 g

Model: TSD-PSE50G/9501G
Input: AC 90~240V 50/60HZ
Output: DC 52V 1.25A/1.85A and Data
PoE protocol: IEEE802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+RJ36-/RJ45+RJ78- Fully compatible
Interface: RJ45/Triangular Connector
Size: 172 *61 *31mm
Weight: N.W=240 g

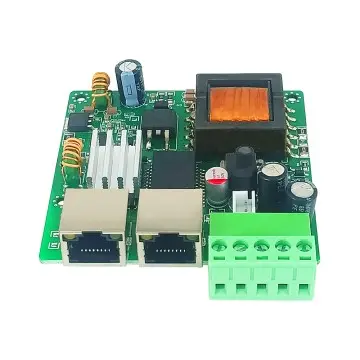

Model: TSD-PD7073
Input: PoE wide voltage DC 38-56V
Output: DC 12V 7.5A /24V 3.5A 90W
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/5P Phoenix terminal
Size: 70*73*16.5 mm(L*W*H)
Weight: N.W=75 g

Model: TSD-V192E
Input: PoE DC power supply (38V–56V)
Output: DC 12V/19V/24V/36V 75W
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/terminal block
Size: 82*58*14 mm (L*W*H)
Weight: N.W=53 g

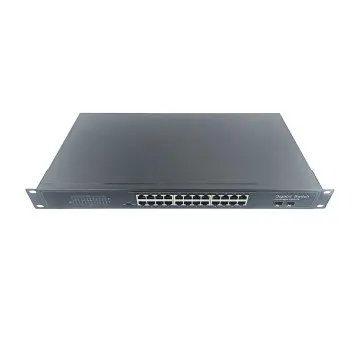

Model: TSD-PSE2400G2S
Input: AC 90-240V 50/60HZ
Output: PoE 52V
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/SFP port
Size: 440*230*44 mm (L*W*H)
Weight: N.W=3.1 kg

Model: TSD-PSE0802GS
Input: AC 90-240V 50/60HZ
Output: PoE 52V
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port
Size: 197*166*43 mm (L*W*H)
Weight: N.W=1 kg

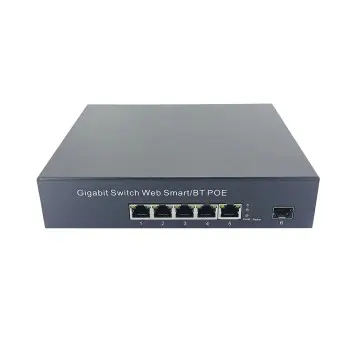

Model: TSD-PSE0401G1S
Input: AC 90-240V 50/60HZ
Output: PoE 52V
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PoE port/SFP  optical port
Size: 197*166*43 mm (L*W*H)
Weight: N.W=1 kg

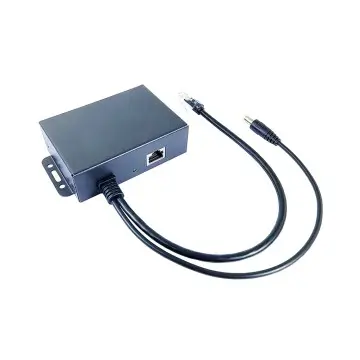

Model: TSD-PD75G
Input: PoE 48V
Output: DC 12V 6A/24V 3A/36V 2A 75W
PoE protocol: IEEE802.3af/at
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36-/RJ45+ RJ78- fully compatible
Interface: RJ45 port/DC plug
Size: 92*63.5*28.3 mm+30cm(tail cable)
Weight: N.W=204 g

Model: TSD-PD90G
Input: DC 38-56V PoE
Output: DC 12V 7.5A/24V 3.5A 90W
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36-/RJ45+ RJ78-fully compatible
Interface: RJ45 port/Phoenix terminal
Size: 118*80*34 mm (L*W*H)
Weight: N.W=298 g

Model: TSD-PSE60G
Input: AC 100-240V 50/60HZ
Output: PoE 48V 1.35A 60W
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/AC socket
Size: 147*65*43 mm (L*W*H)
Weight: N.W=196 g

Model: TSD-PSE90G
Input: AC 100-240V 50/60HZ
Output: PoE 48V 1.85A 90W
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/AC socket
Size: 190*72*38 mm (L*W*H)
Weight: N.W=374 g

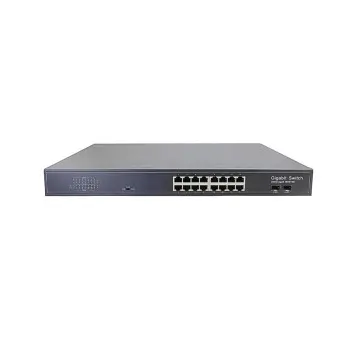

Model: TSD-PSE1600G2S
Input: AC 100-240V 50/60HZ
Output: PoE 48V 1.85A 90W
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PoE port/SFP  optical port
Size: 440*230*45 mm (L*W*H)
Weight: N.W=3.1 kg
