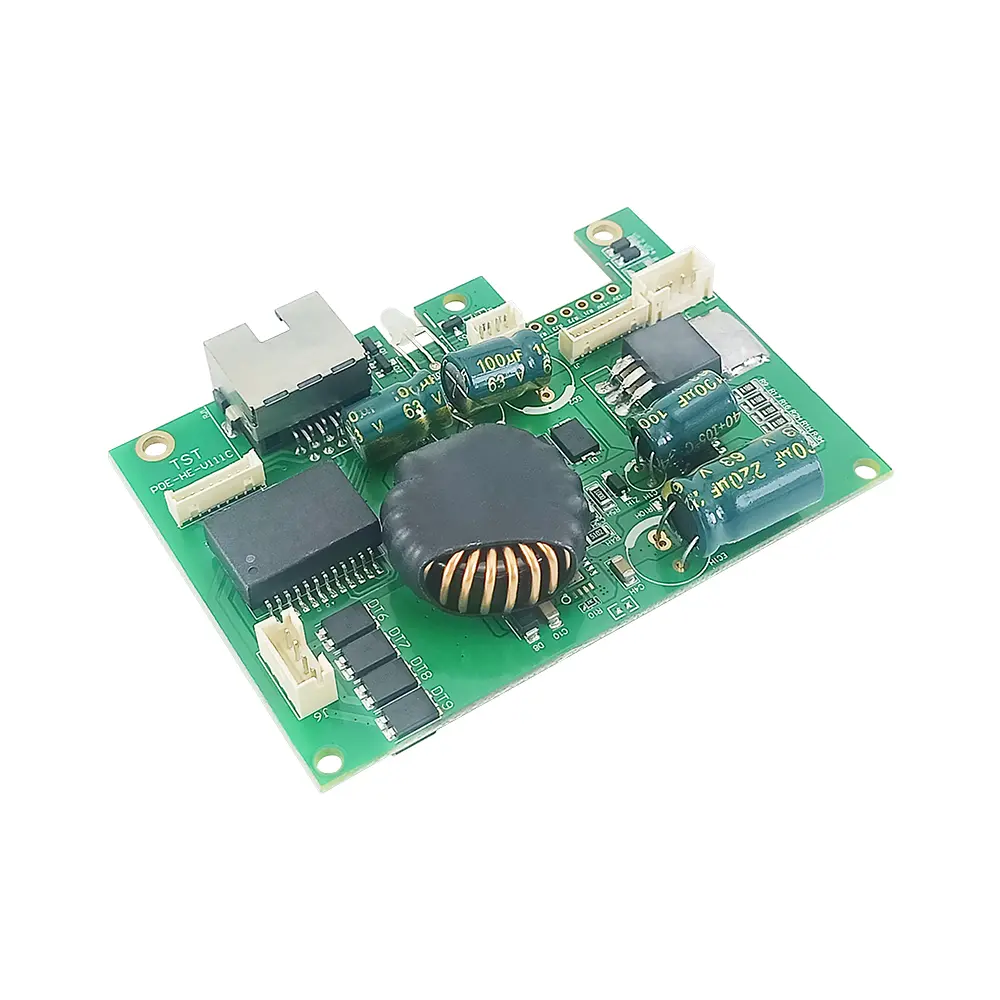

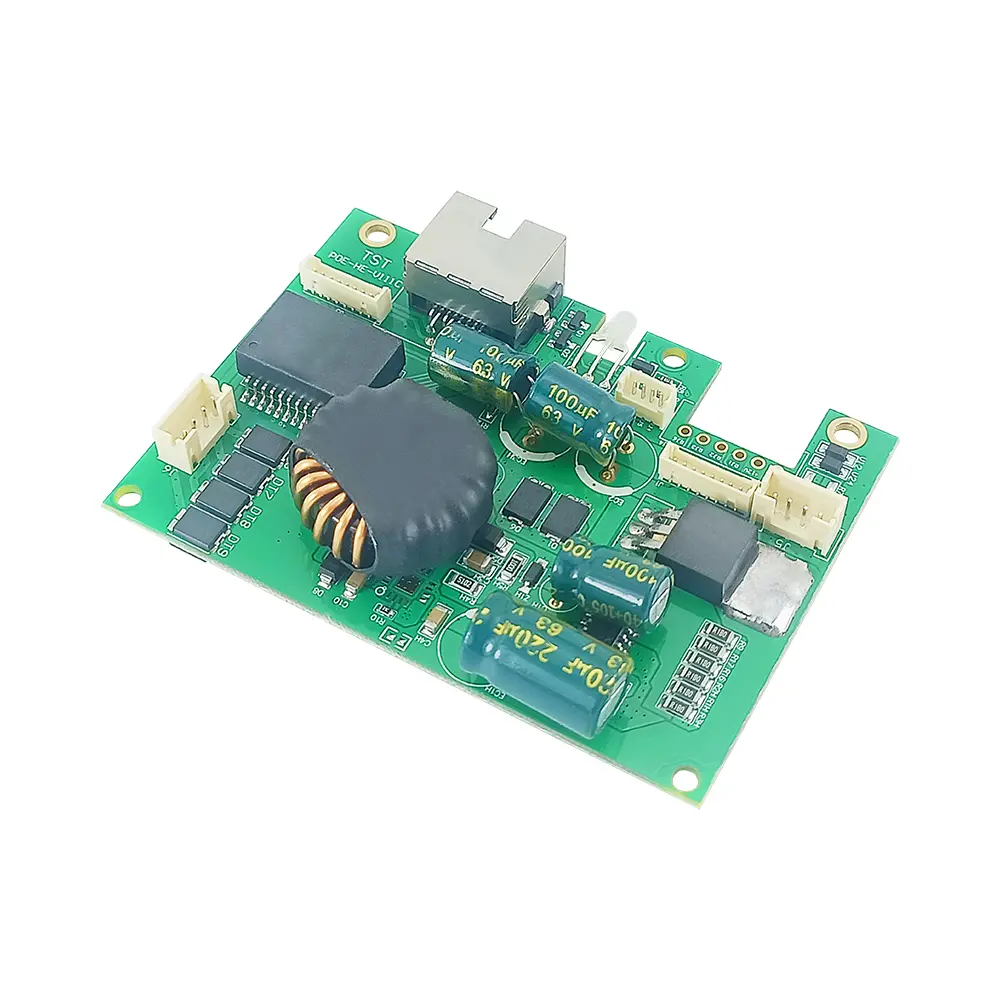

60W Passive PoE Module

Model: TSD-V111C-B

  • Input: PoE wide voltage DC 6-60V
  • Output: DC 12V 5A /24V 2.5A /36V 1A
  • conversion efficiency  > 90%
  • Transmission rate: 10/100/1000M /2.5G
  • RJ12+ RJ36- / RJ45+ RJ78-fully compatible
  • Interface: RJ45 port 4/6/8P Sockets
  • Size: 82*58*14 mm(L*W*H)
  • Weight: N.W=43 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is free &  available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

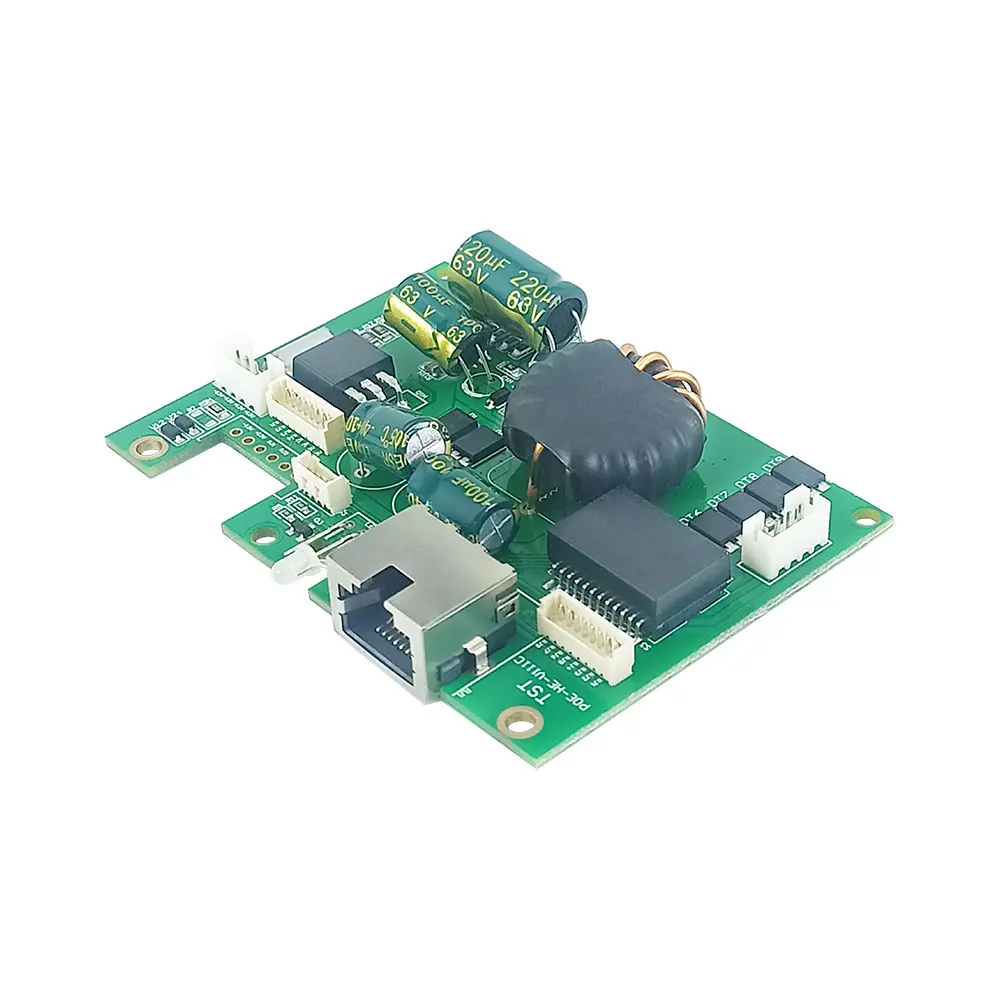

    TSD-V111C-B-4
    01

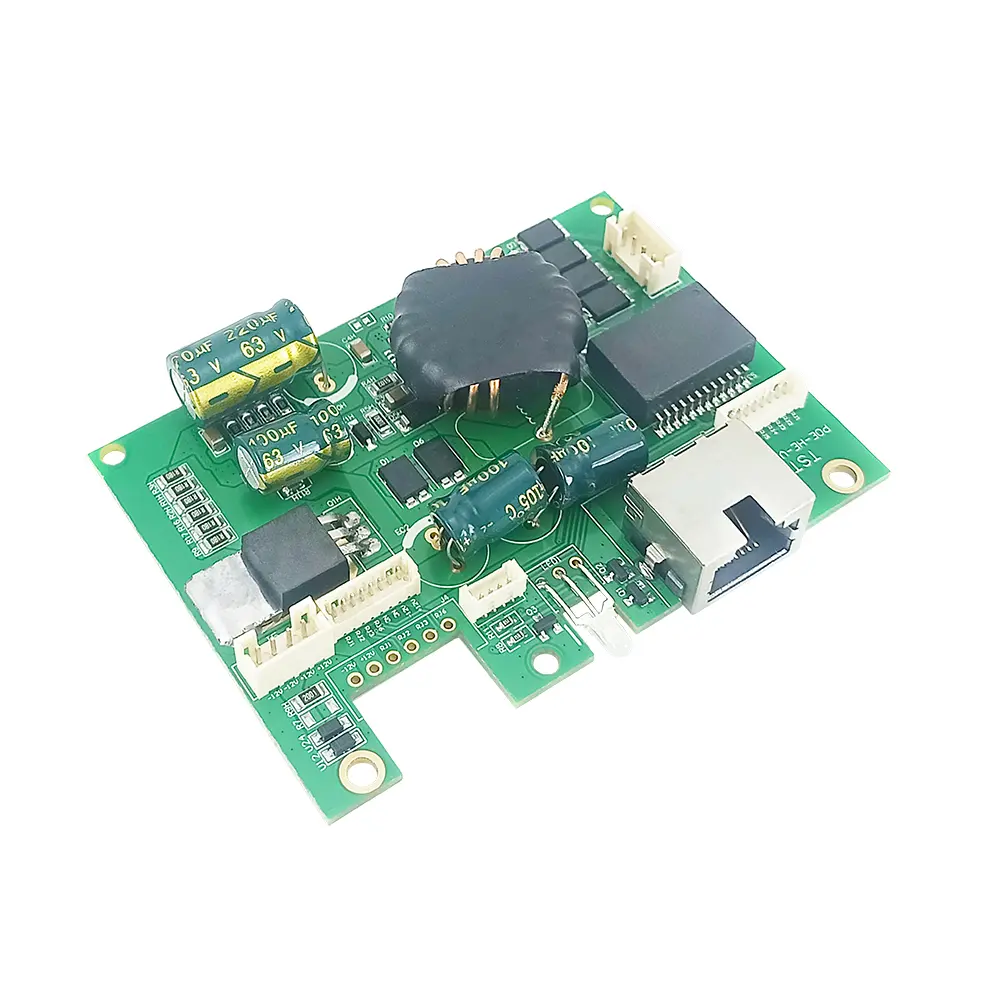

    The TSD-V111C-B module is a high-power passive PoE module with a maximum output power of 60W. It can stably output three modes of direct current: 12V/5A, 24V/2.5A, and 36V/1.5A.


    The TSD-V111C-B module is mainly used in high-power devices such as large advertising screens, high-fidelity speakers, and intelligent high-speed dome cameras. The module supports a wider range of voltage inputs to meet the diverse voltage input requirements of end users.

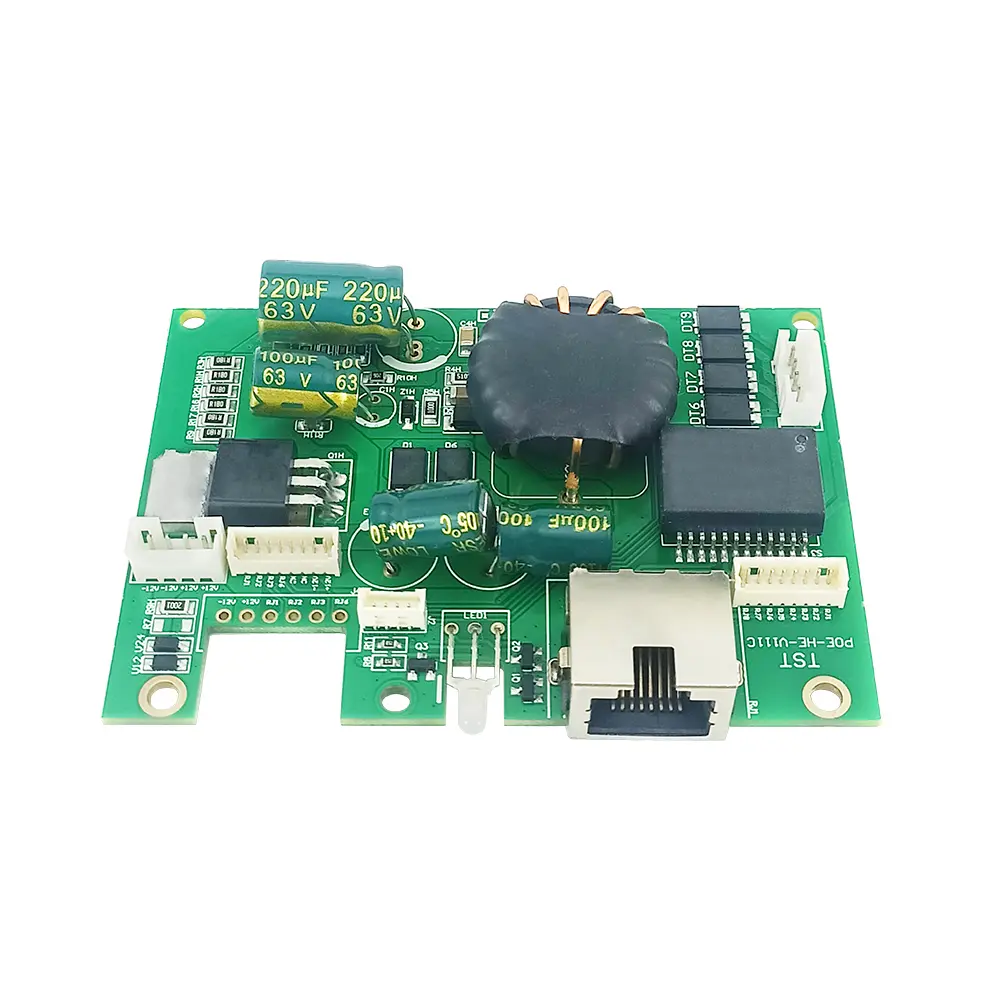

    TSD-V111C-B-1
    01

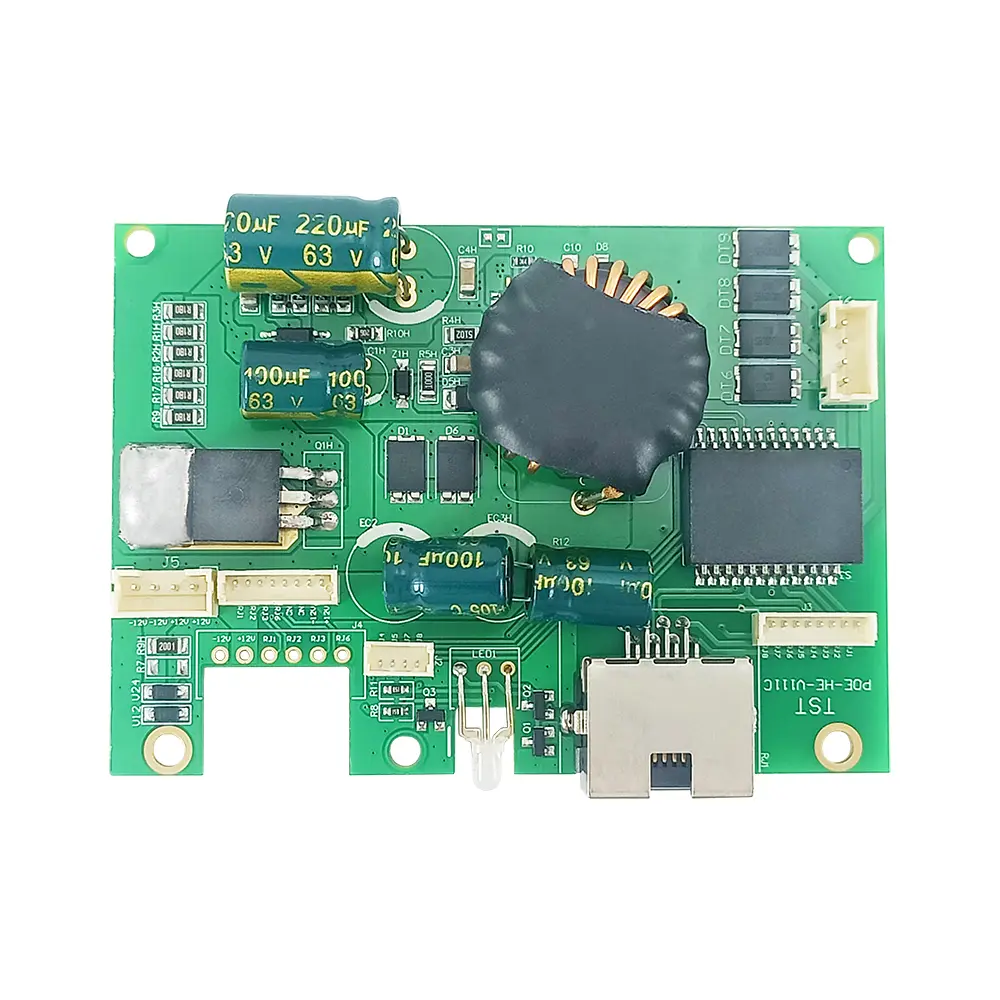

    TSD-V111C-B has two working modes. Mode 1: PoE filtering mode (PoE signal passes through the network filter). PoE input port: 8-pin PH1.25mm socket, supporting RJ12 + RJ36-, RJ45 + RJ78- power supply; RJ45 network port, RJ12 + RJ36-, RJ45 + RJ78- power supply are fully compatible. Output port: 4-pin PH1.25mm socket, gigabit expansion port (RJ45, RJ78); 8-pin PH1.25mm socket, output data signal and DC 12V power supply; 6-pin PH2.54mm solder holes, output data signal and DC 12V power supply; 4-pin PH2.0mm socket, output two sets of 12V DC signals. Mode 2: Straight-through mode (PoE signal does not pass through the network filter), 4-pin PH2.0mm socket, DC input port; 4-pin PH2.0mm socket, DC 12V output port.

    The TSD-V111C-B module has a maximum output power of 60 W and features overheat protection, overvoltage protection, overcurrent protection, and short-circuit protection. Transmission Rate: Adaptive transmission at 10/100/1000 M/2.5 G. Input Voltage: Supports wide-voltage DC 6-60 V input. Default output voltage is DC 12 V, with optional outputs of 24 V/36 V. Other voltages can be customized.


    ● Input:​​ PoE wide voltage DC 6-60V

    ● Output:​​ Voltage DC 12V MAX5A / 24V MAX2.5A / 36V MAX1.5A
    ● EMC complies with IEC 61000-4-2/3/4/5/6 standard requirements
    ● RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
    ● The conversion efficiency is more than 90%
    ● High frequency low resistance electrolytic capacitor, reduce circuit high frequency loss and heat
    ● Transmission Rate:​​ 10/100/1000Mbps / 2.5G Auto-Negotiation
    ● Protection Features:​​ Overheat protection, overload protection, overvoltage protection, short-circuit protection
    ● Surge Protection:​​ 4KV lightning surge resistance

    ● High-temperature-resistant, flame-retardant sockets to reduce safety risks

    ● Immersion Gold process, improve circuit reliability and conduction performance

    ● Eco-friendly manufacturing process

    ● The sinking design of the RJ45 Jack reduces the height of the module, and the three-dimensional integrated design of the interface saves the installation space

    ● High-temperature-resistant, flame-retardant PCB material

    ​● International famous original electronic components, high precision and high performance

    ● High power, high conduction and low impedance transistor, excellent reliability and temperature tolerance

    ● Pure copper pin connector to ensure stable contact

    ● High temperature resistant flame retardant socket, reduce security risks

    ● Two operational modes can be selected

    Product parameter table

    Product Name

    60W Passive PoE Module

    Product Model

    TSD-V111C-B

    PoE Standard

    /

    Input Voltage

    DC 6-60V

    Output

    Voltage DC 12V MAX5A/ DC 24V MAX2.5A/ DC 36V MAX1.5A

    (Other Voltage can be customized)

    Conversion Efficiency

    ≧90%

    PoE Pin

    RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

    Conversion Mode

    Non-isolated type

    Data Rate

    10/100/1000Mbps /2.5G Auto-Negotiation

    Transmission Distance

    100 meters (Category 5e network cable)

    Surge Protection

    4KV

    Circuit Protection

    Overheating Protection Overcurrent Protection

    Overvoltage Protection Short - circuit Protection

    LED Indicator

    Green: 12V, red: 24V/36V

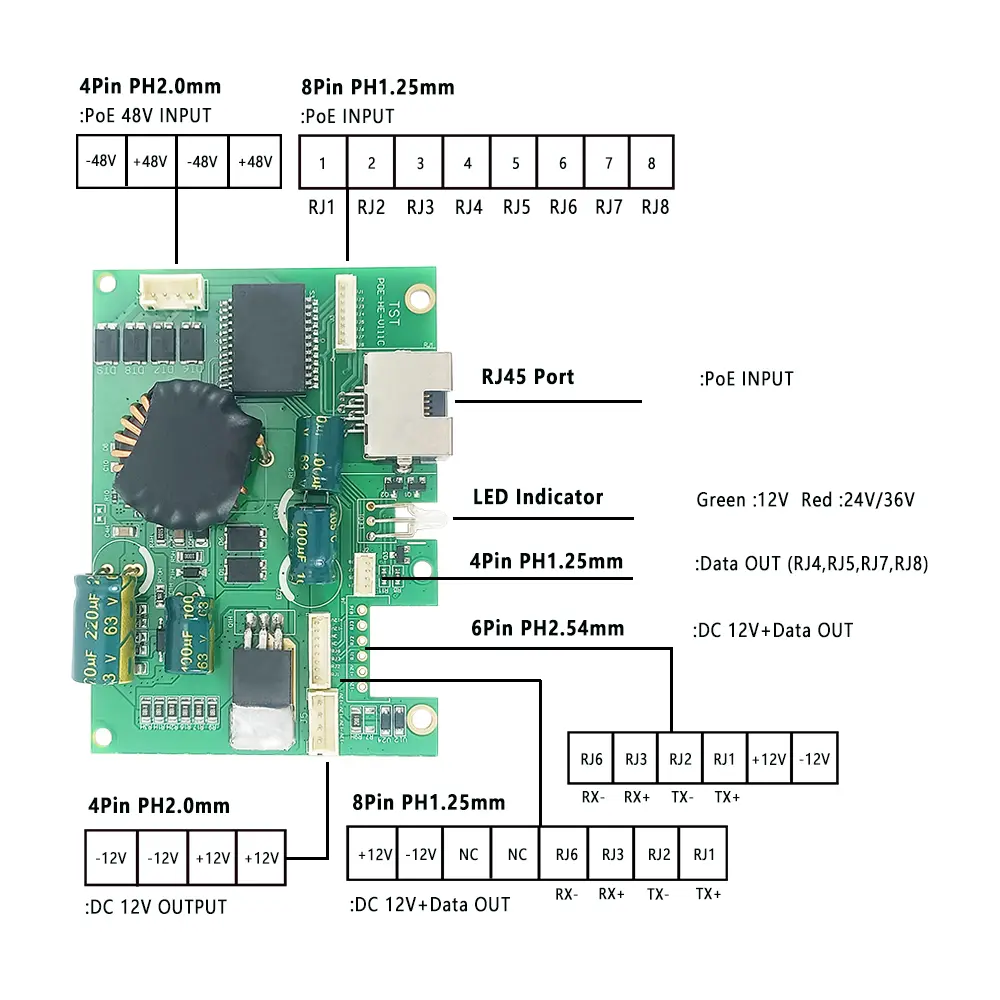

    Interface

    PoE Input Port1（8Pin PH1.25mm terminal block）：PoE (RJ1~RJ8)

    PoE Input Port2（RJ45 Jack）：PoE（RJ1~RJ8）

    PoE Input Port3（4Pin PH2.0mm terminal block）：PoE IN

    Output Port（4Pin PH1.25mm terminal block）：Data OUT(RJ4,RJ5,RJ7,RJ8)

    Output Port（8Pin PH1.25mm terminal block）：Data + DC OUT

    Output Port（6Pin PH2.54mm soldering pads）：Data + DC OUT

    Output Port（4Pin PH2.0mm terminal block）：DC 12V OUT

    Function

    /

    Material

    FR-4

    Color

    Glossy green

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～65℃ For Operating

    -40～85℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 43 g

    Dimension

    82 *58 *14 mm (L*W*H)

    Package

    Anti-static pearl cotton

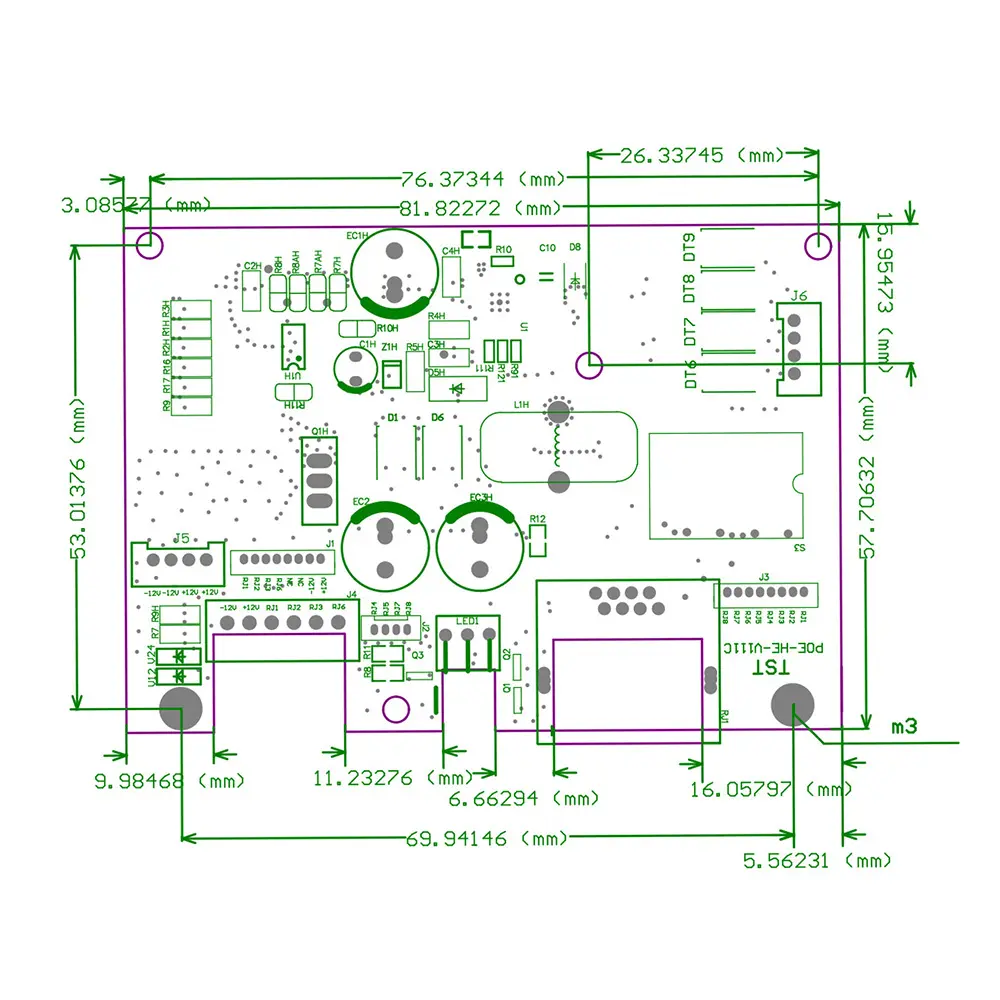

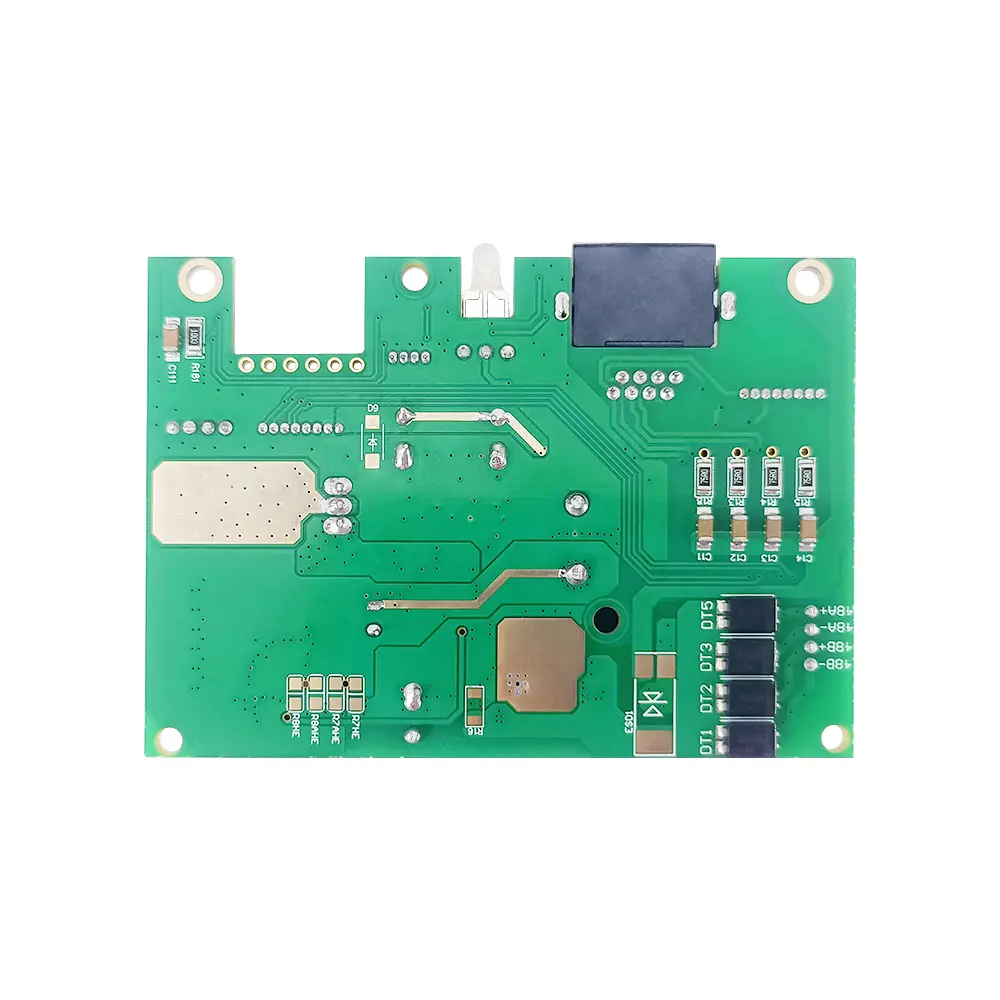

    Dimensions and Structure: Overall size: 82 * 58 * 14 mm. Screw hole diameters: Φ= 3.0 mm *3, Φ= 3.2 mm  *2.PCB thickness: 1.6 mm. Layout: Square structure. Maximum thickness: 14 mm. Solder mask color: Glossy green oil. Module design: Double-sided two-layer PCB, with large components concentrated on one side to save space and facilitate installation.

    TSD-V111C-B-Dimension

    The TSD-V111C-B is a passive PoE module with a maximum output power of 60W. The module is mainly used in high-power devices such as large advertising screens, high-fidelity speakers, and intelligent high-speed dome cameras. The TSD-V111C-B has an input voltage range of 6~60V, making it highly versatile. Since its launch, the product has been widely praised in the market.



    Precautions: The TSD-V111C-B module does not have isolation functionality. Users should avoid grounding two or more loads together during installation and use to ensure the normal operation of the equipment.

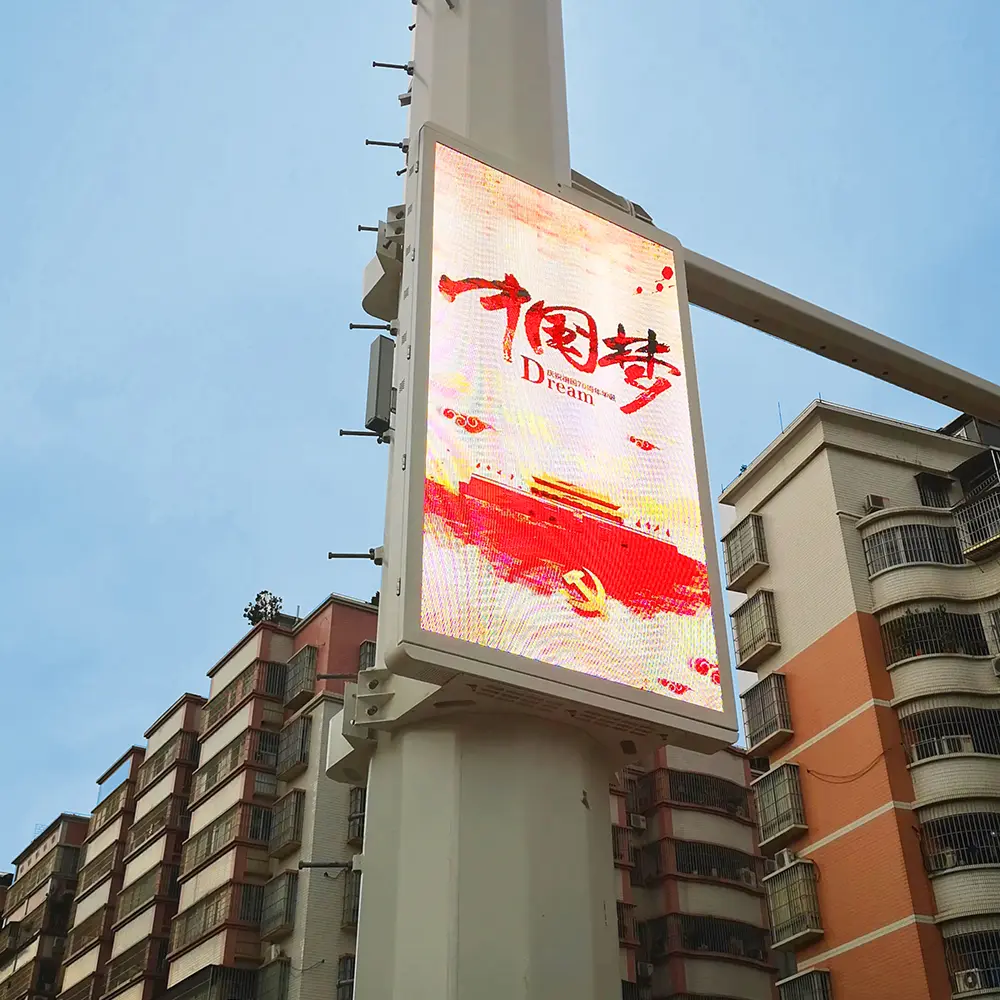

    TSD-V111C-B-Application1

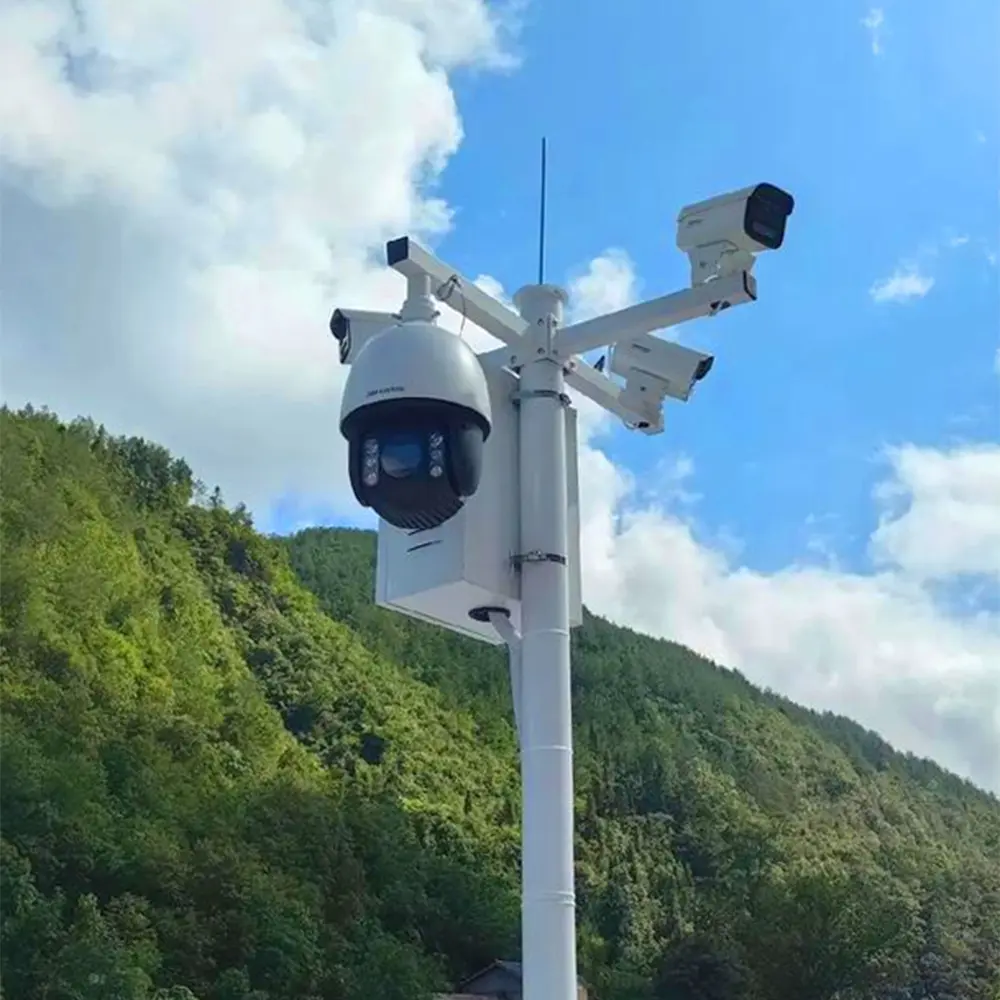

    TSD-V111C-B-Application2

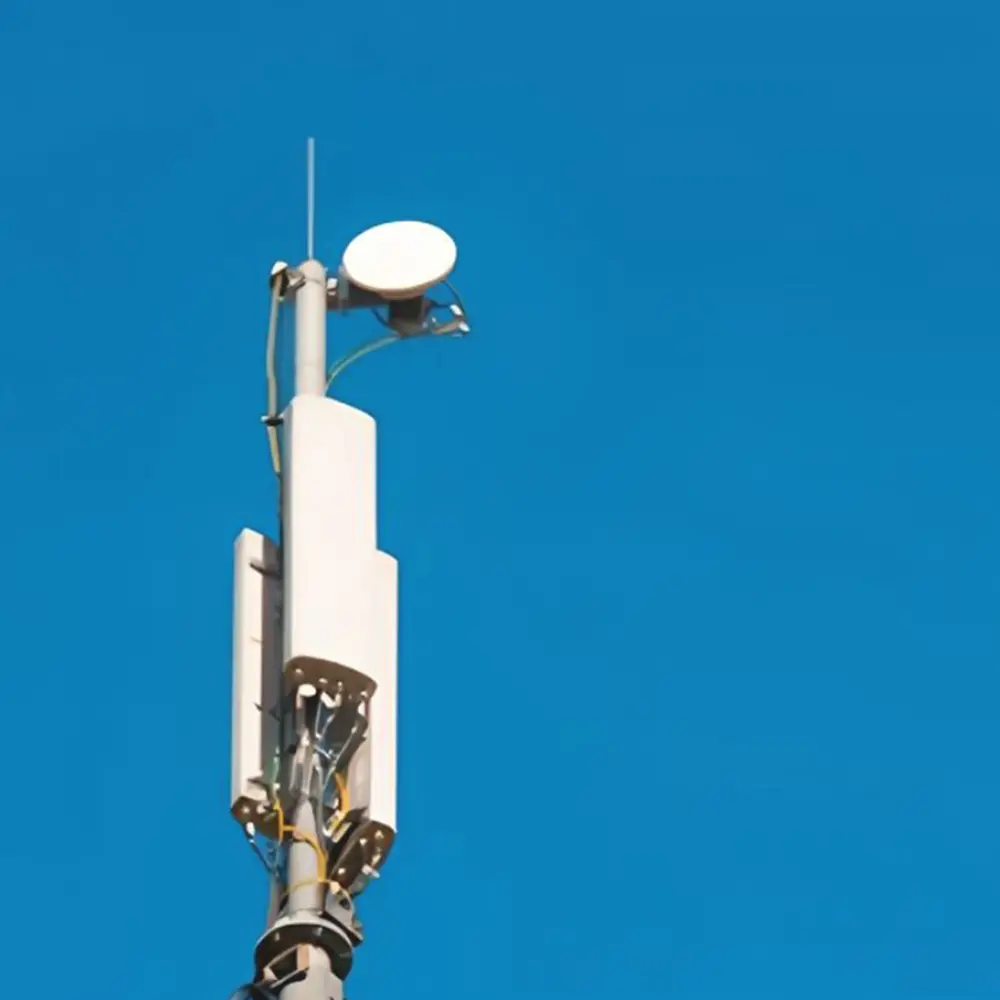

    TSD-V111C-B-Application3

    Package list
    Items Quantity
    Passive V111C-B PoE module 280 PCS
    Operation Manual /
    TSD-V111C-B-Package
    TSD-V111C-B-Interface
