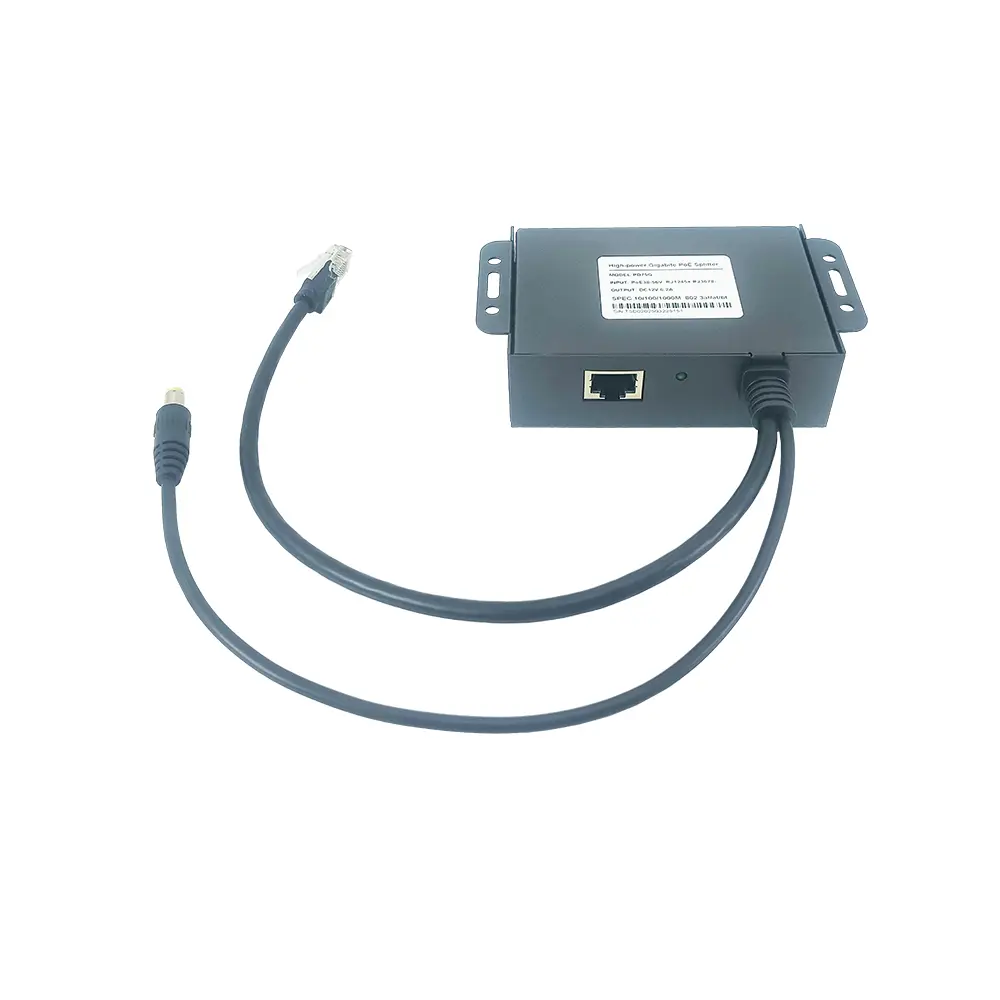

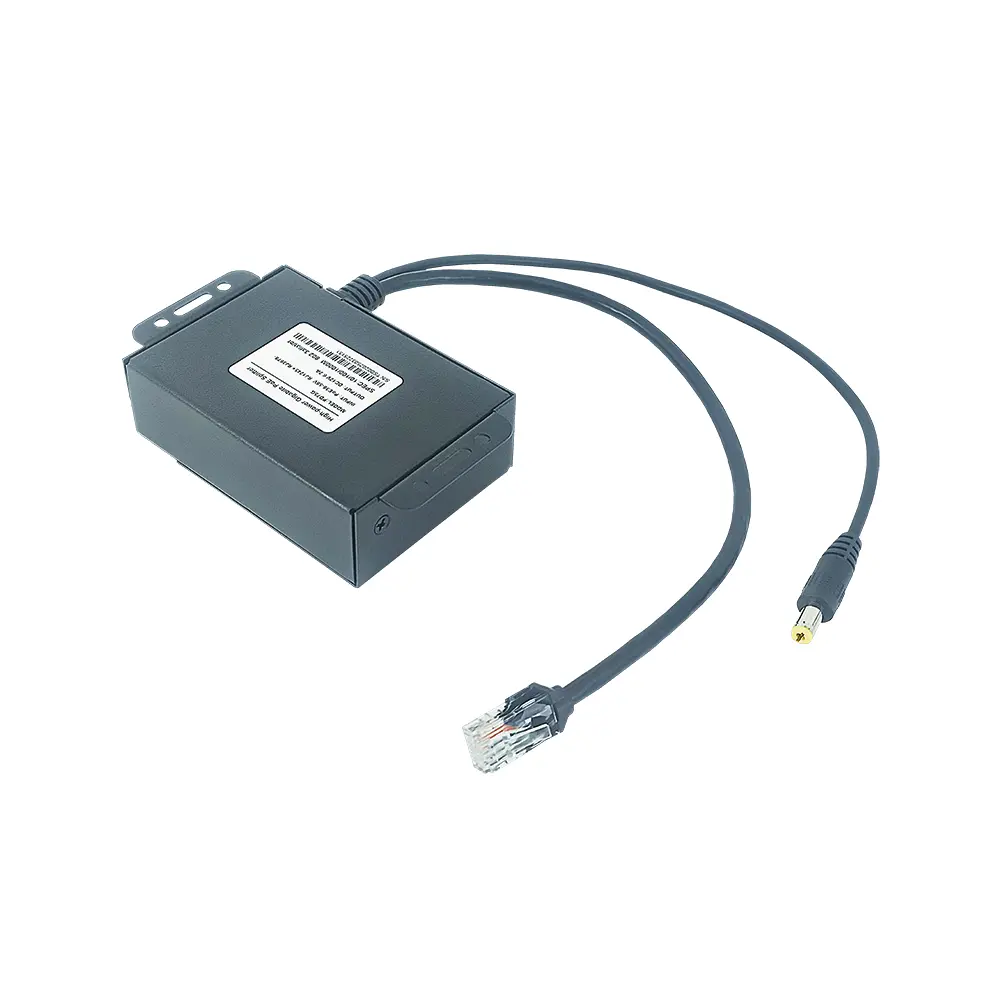

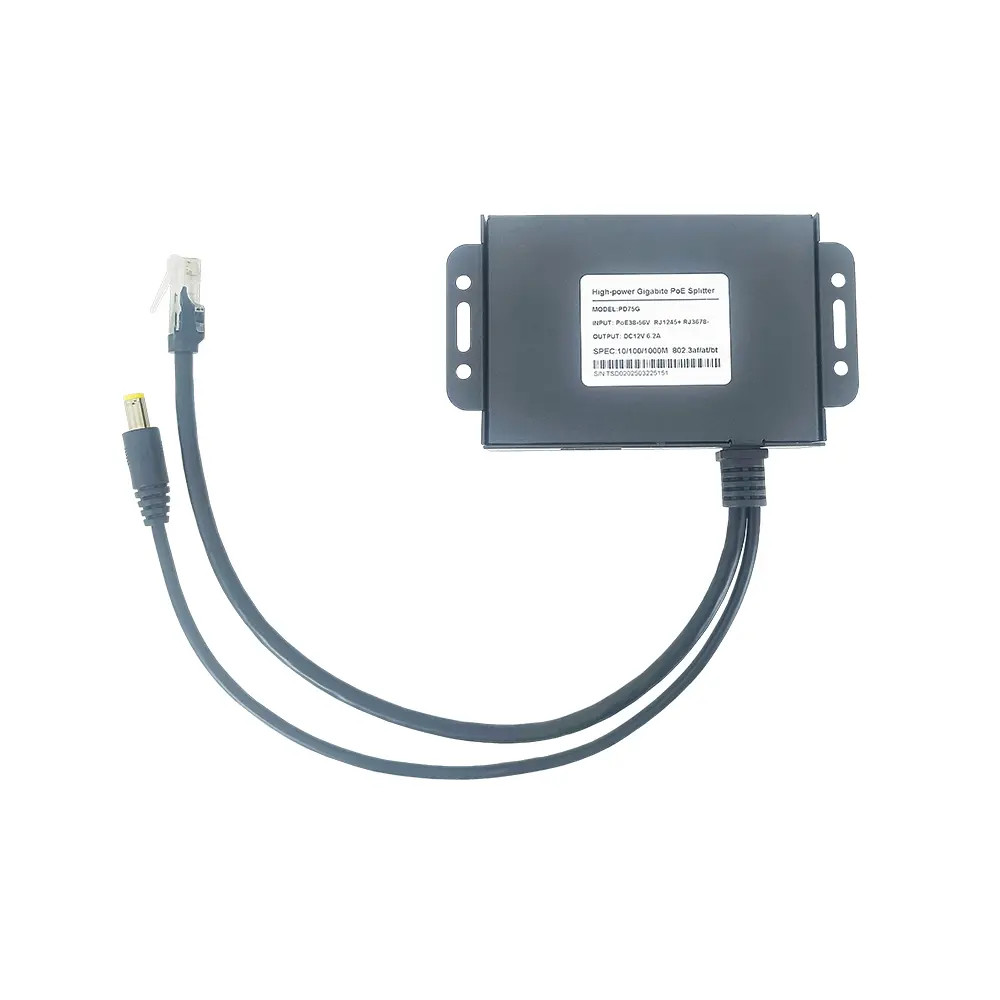

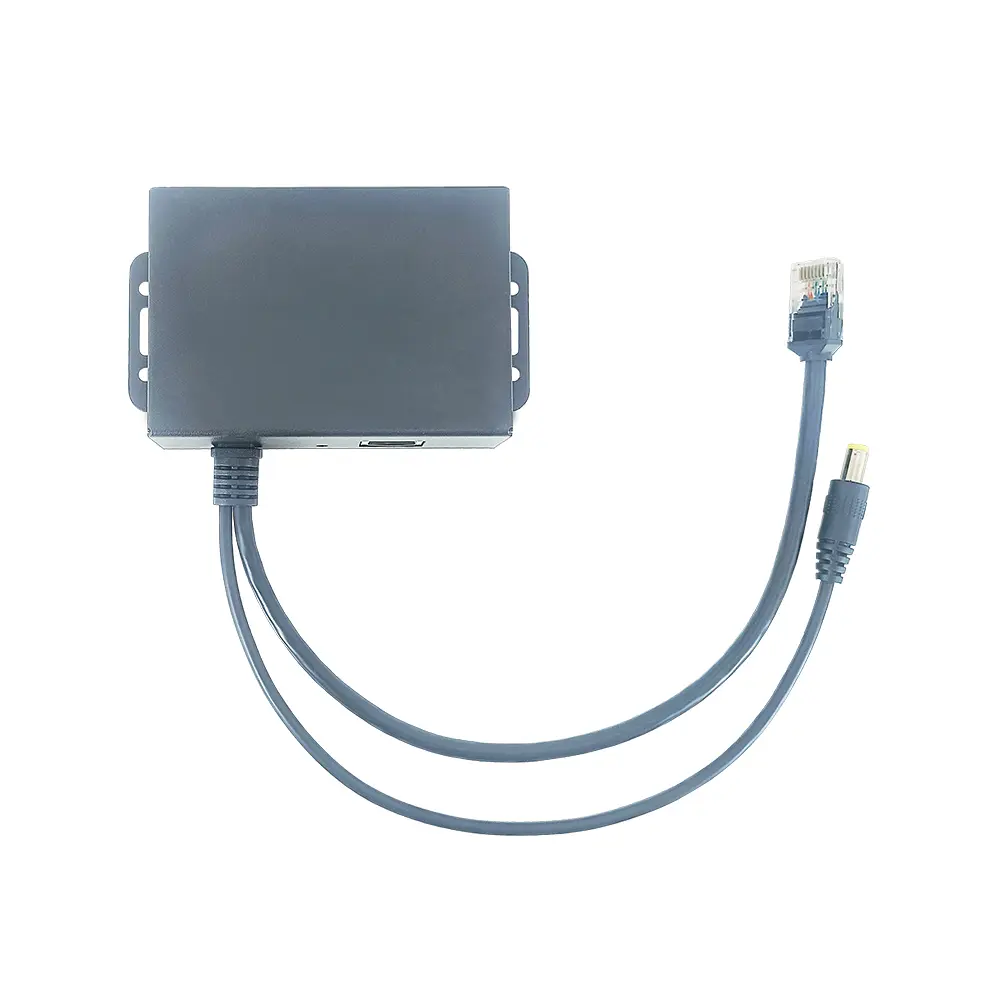

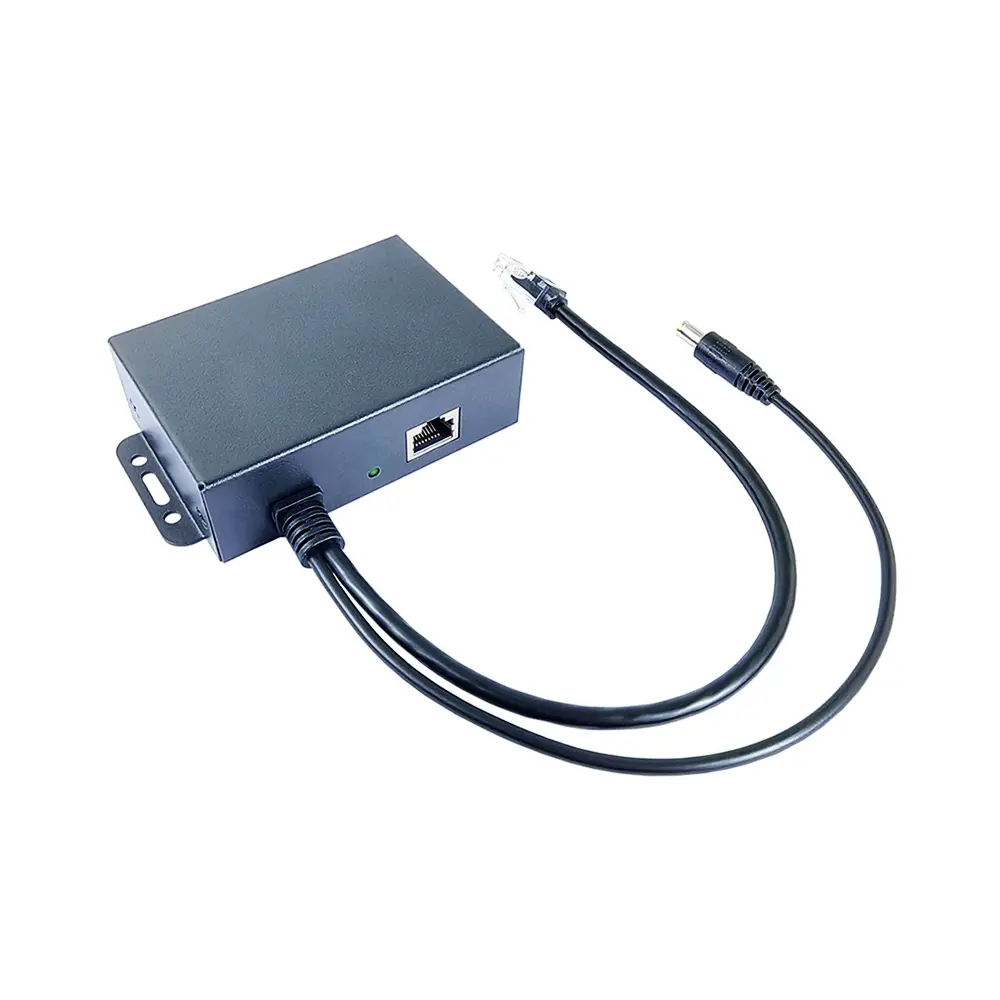

Multi-voltage output super power Gigabit PoE splitter

Model: TSD-PD75G

  • Input: PoE 48V
  • Output: DC 12V 6A/24V 3A/36V 2A 75W
  • PoE protocol: IEEE802.3af/at
  • Transmission rate: 10/100/1000Mbps
  • RJ12+RJ36-/RJ45+RJ78- Fully compatible
  • Interface: RJ45 port/DC plug
  • Size: 92*63.5*28.3 mm+300mm(tail cable)
  • Weight: N.W=204 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

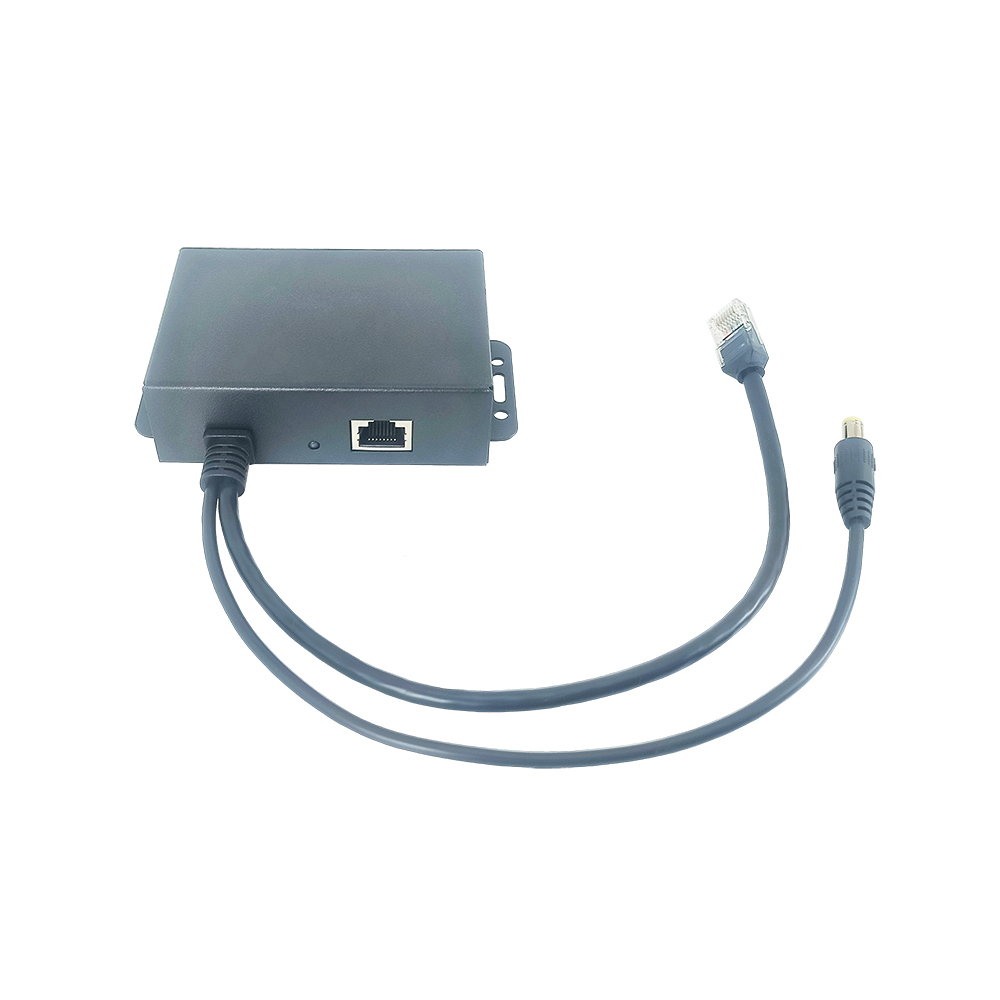

    TSD-PD75G-2
    01

    TSD-PD75G conforms to IEEE802.3af/at/bt PoE standard protocol, compatible with a variety of PoE power supply equipment, the maximum output power of 75W, suitable for 40W~70W network IP equipment.


    There are two models in this series:

    TSD-PD50G: Output voltage DC 12V 5A / 24V 2.5A / 36V 1.5A, maximum output power: 60W

    TSD-PD75G: Output voltage DC 12V 6A / 24V 3A / 36V 2A, maximum output power: 75W

    ​

    TSD-PD75G-3
    01


    The TSD-PD75G splitter has one input port and two output ports. The input port is a RJ45 Jackfor receiving PoE signals. Output port 1 is a standard RJ45 connector for outputting data signals. Output port 2 is a DC (5.5*2.1mm) straight male plug for outputting direct current.


    The TSD-PD75G complies with the IEEE802.3af/at/bt PoE standard protocol and has obtained certifications such as CE, FCC, and RoHS. Its EMC parameters meet the requirements of the IEC 61000-4-2/3/4/5/6 standards. The TSD-PD75G splitter, with a 75W super-high power output, fills the gap in the market for high-power non-PoE devices, providing users with more power supply options.

    The TSD-PD75G splitter takes in a 48V PoE signal. The DC output is 12V by default, and other voltages can be selected. The device's transmission rate is 10M/100M/1000M adaptive. It features overheat protection, overvoltage protection, overcurrent protection, short circuit protection, electric shock protection, and leakage protection, among other functions.



    ● Input:​​ PoE 48V signal
    ● Output:​​ DC 12V 6A/24V 3A/36V 2A + Data
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ meets IEC 61000-4-2/3/4/5/6 requirements
    ● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- fully compatible
    ● Transmission Rate:​​ 10/100/1000Mbps auto-negotiation
    ● Protection Features:​​ overheat protection, short circuit protection, overvoltage protection, overload protection, electric shock protection, leakage protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧90%

    ● 5.5*2.1mm DC plug

    ● Gigabit high power network filter
    ● High frequency low resistance electrolytic capacitor, reduce circuit high frequency loss and heat

    ● Original electronic components from international famous brands, with high precision and high performance

    ● High-power, high-conductivity and low-impedance transistors, featuring excellent reliability and temperature resistance

    ● Environmentally friendly and high-temperature resistant PCB material, with environmentally friendly lead-free process

    ● Pure copper pin connectors to ensure stable contact

    Product parameter table

    Product Name

    Multi-voltage output super power Gigabit PoE splitter

    Product Model

    TSD-PD50G

    TSD-PD75G

    PoE Standard

    IEEE802.3af/at

    Input Voltage

    PoE 48V

    Output

    DC 12V5A/24V2.5A/36V1.5A 60W

    DC 12V 6A/24V 3A/36V 2A 75W

    Conversion Efficiency

    ≧90%

    PoE Pin

    PoE: RJ12+RJ36-/RJ45+RJ78- Fully compatible

    Conversion Mode

    Isolated

    Data Rate

    10/100/1000Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Overheat protection, overvoltage protection

    Overcurrent protection, short circuit protection

    Electric shock protection, leakage protection

    LED Indicator

    1 PoE port indicator light(Green:12V,Red:24V)

    Interface

    DC outlet (5.5*2.1mm straight male plug) : DC OUT

    Data Outlet (standard RJ45 connector) : Data OUT

    PoE input port (RJ45Jack) : PoE IN

    Function

    /

    Material

    Hard metal materials

    Color

    Matte black

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W：204 g G.W: 250 g

    Dimension

    92*63.5*28.3 mm (L*W*H)+300mm(tail cable)

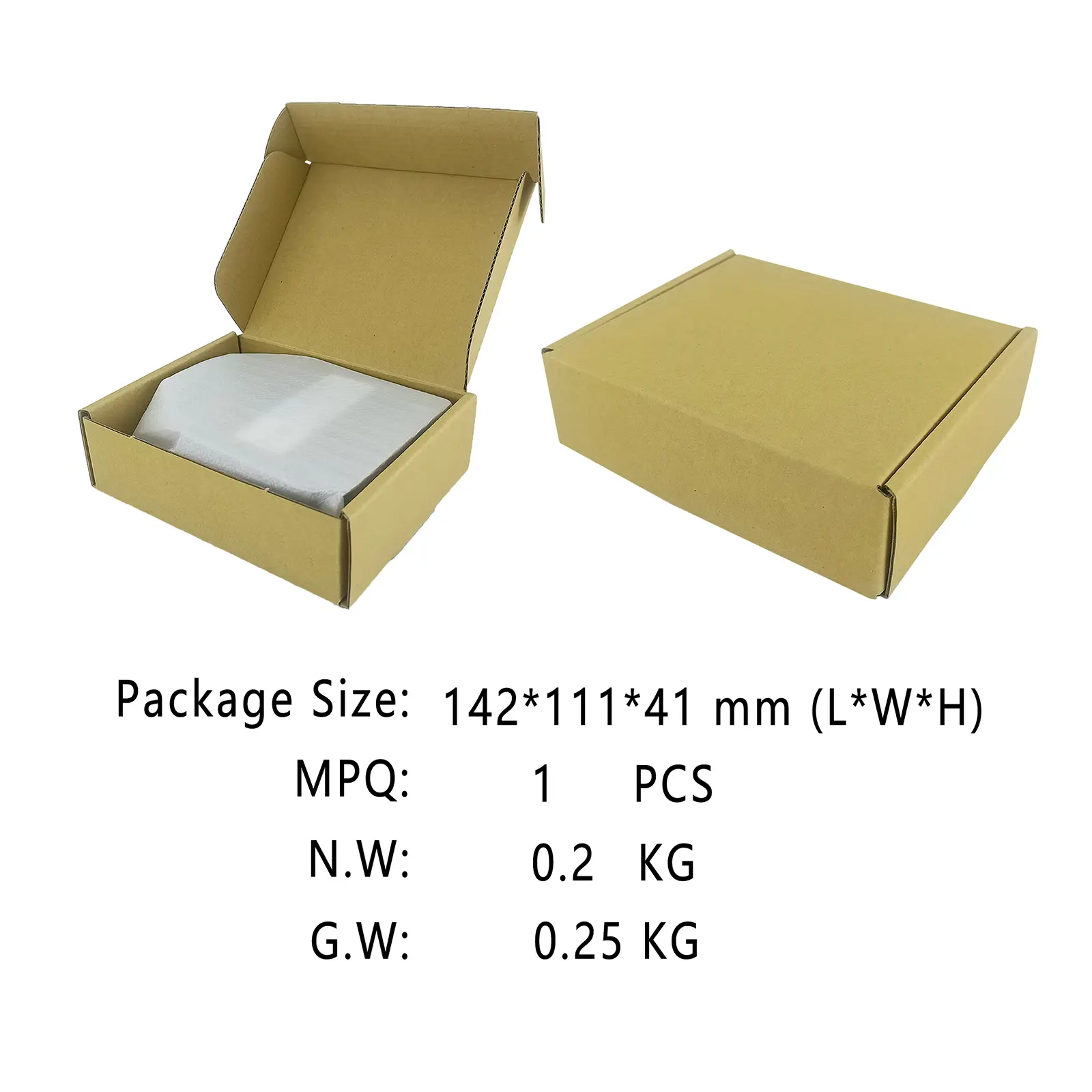

    Package

    EPE foam + Kraft cartons (142mm*111mm*41mm)

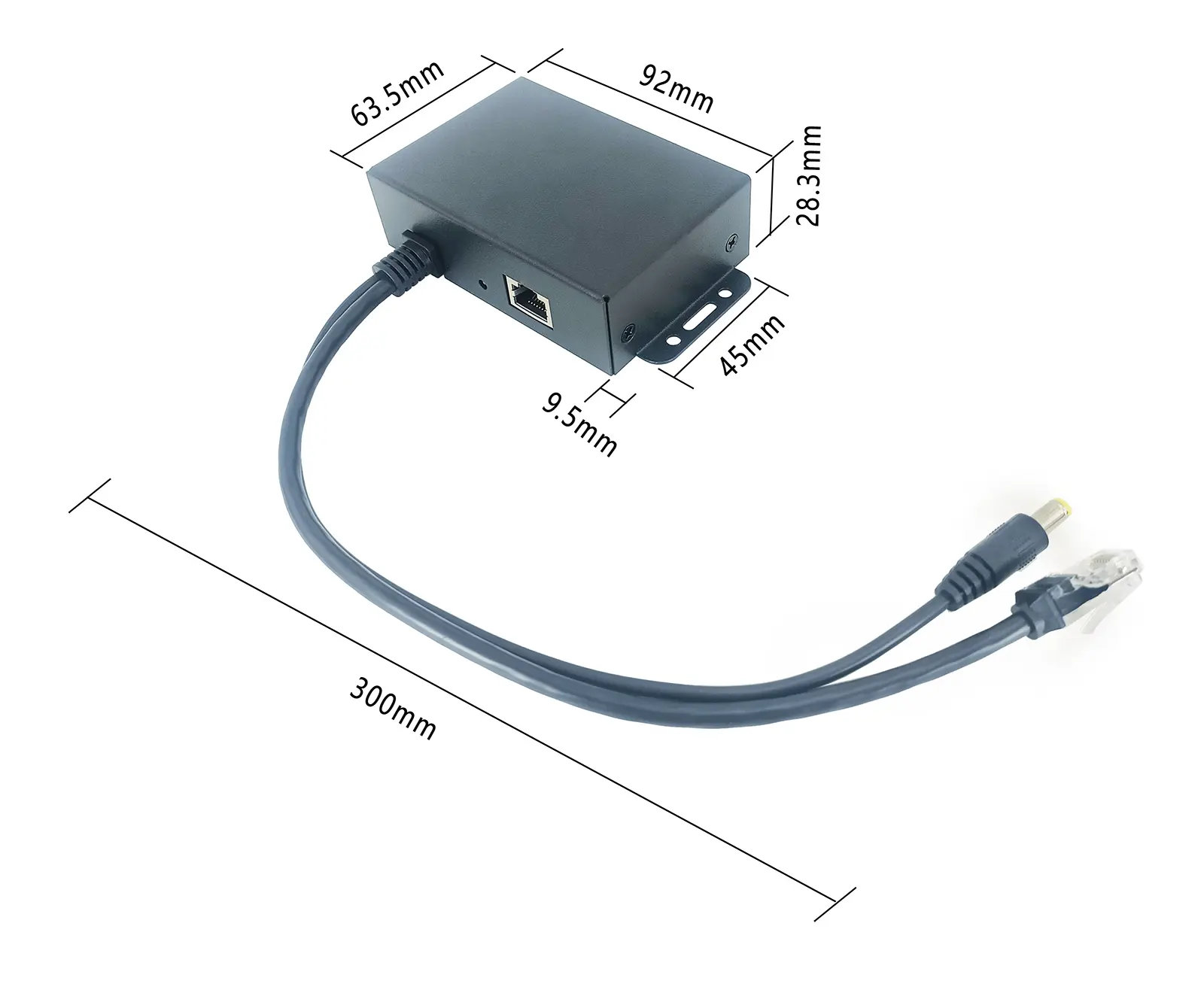

    Dimensions: 92*63.5*28.3 mm. Body: Matte black metal casing. Overall structure: A rectangular box with hanging ears on both sides, an RJ45 input interface, and a 30cm data and DC output cable concentrated on the front for easy connection by users.
    TSD-PD75G-Dimension

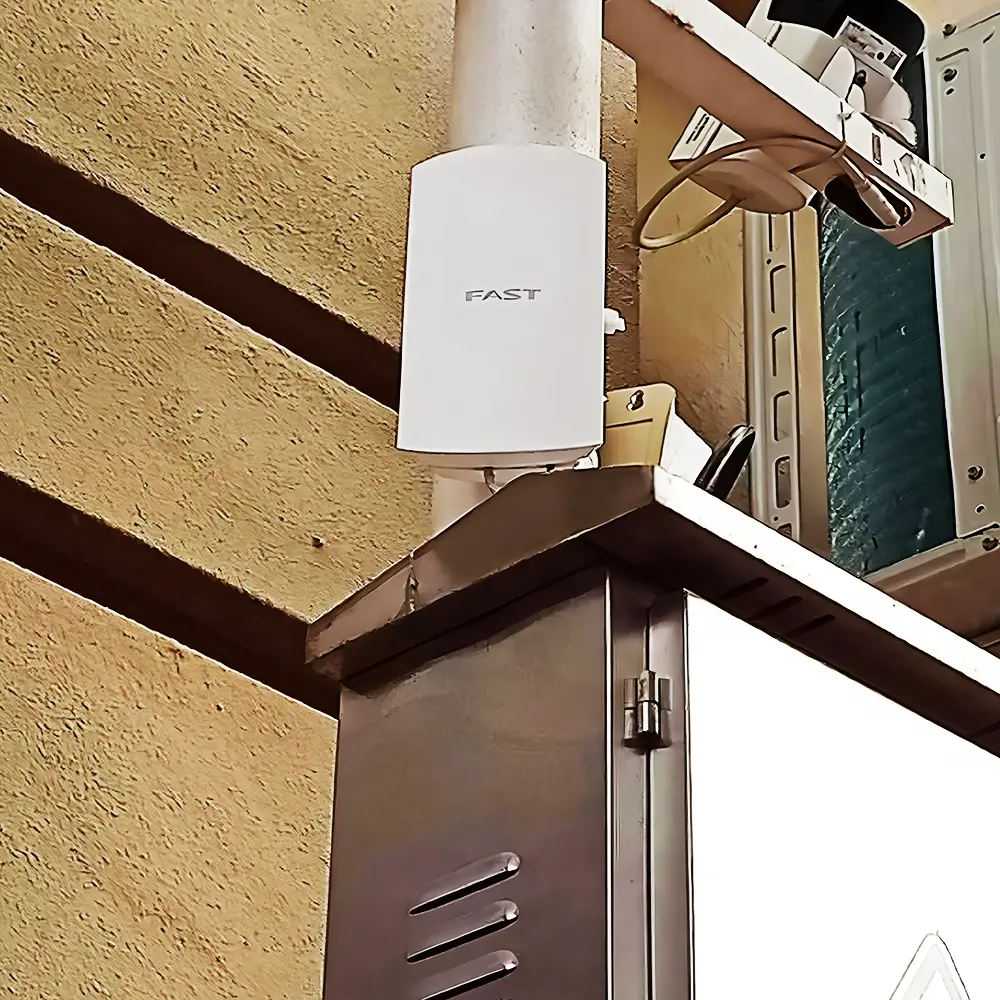

    The TSD-PD75G splitter is suitable for high-power devices that do not support PoE such as wireless AP, web camera, IP phone, and provides a power supply solution for high-power devices that are not powered by PoE to integrate into the PoE network. The TSD-PD75G splitter can also cooperate with the PoE switch to expand the coverage of the PoE network and provide flexible choices for network deployment in various scenarios.

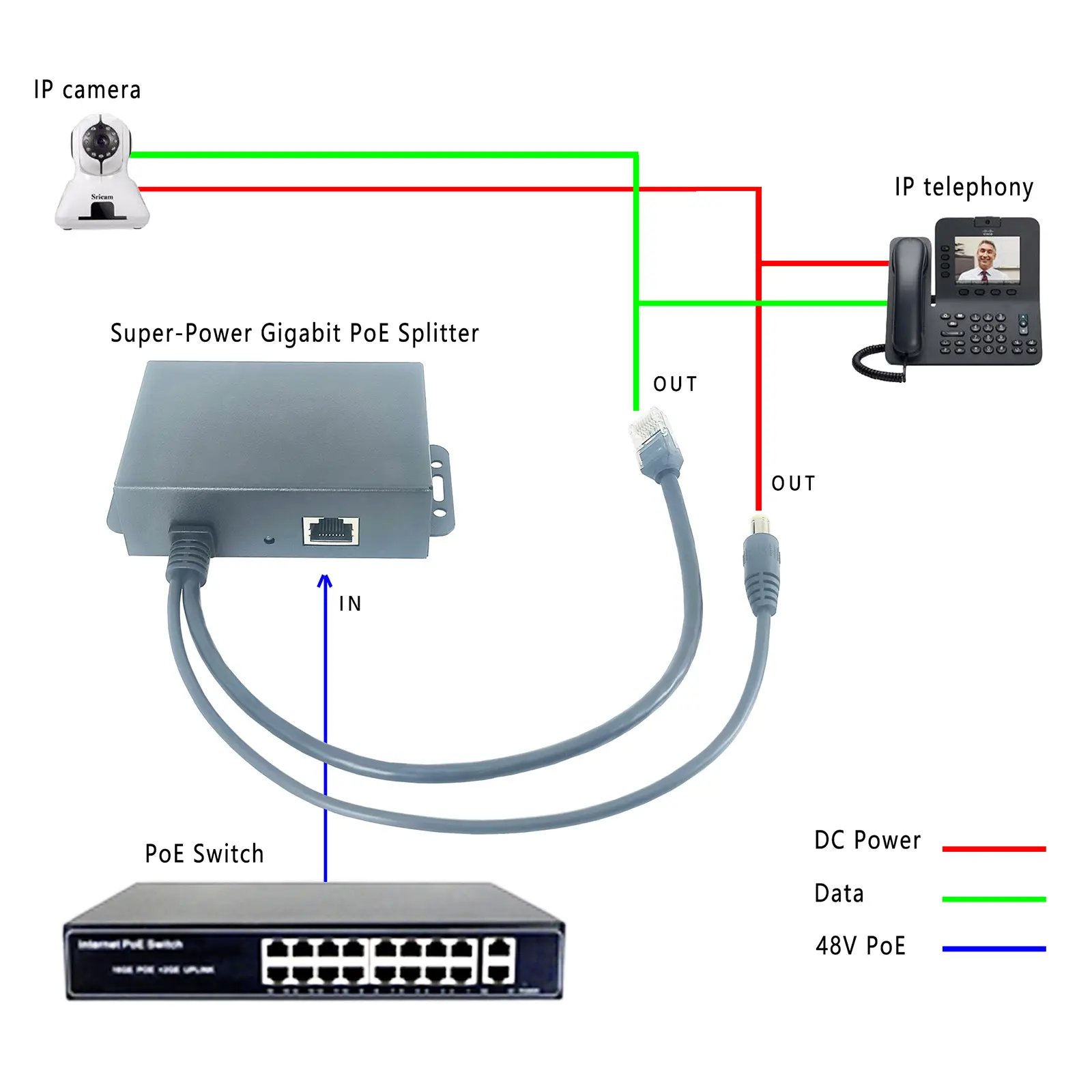

    .TSD-PD75G-Topology

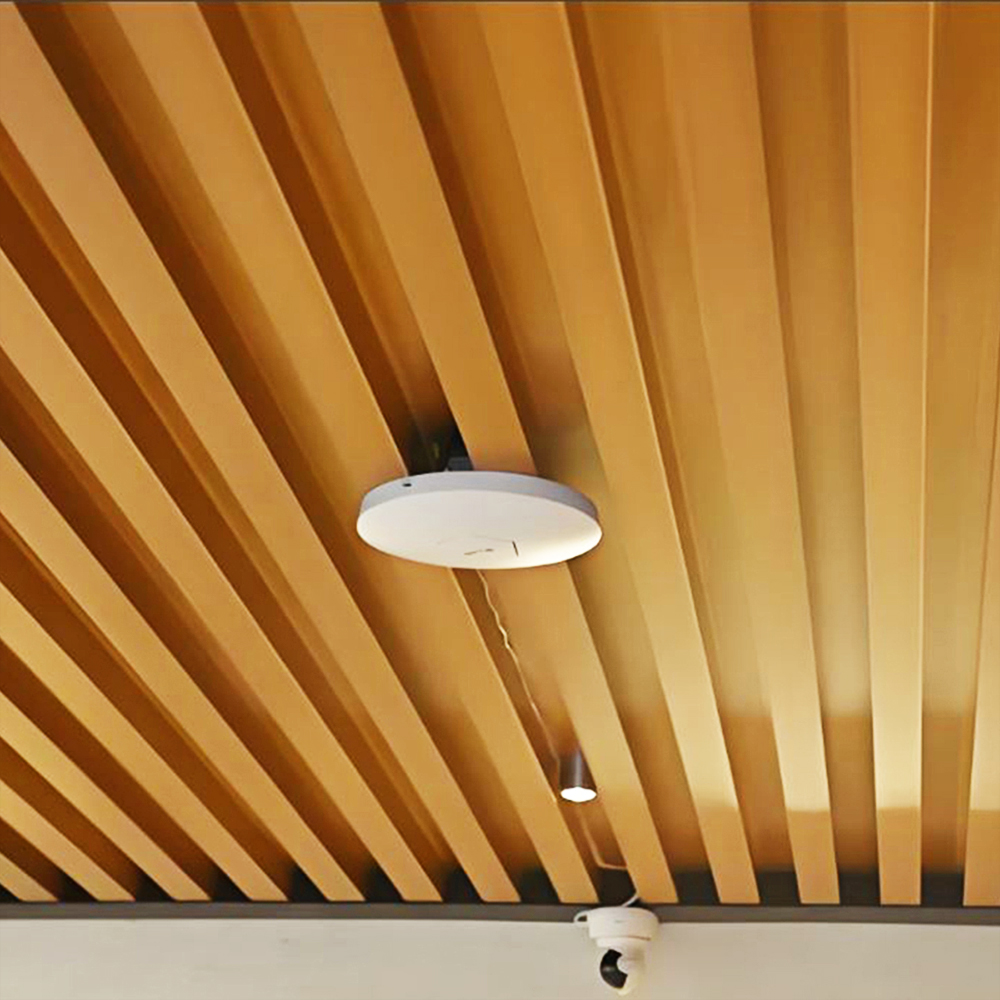

    TSD-PD75G-Application1

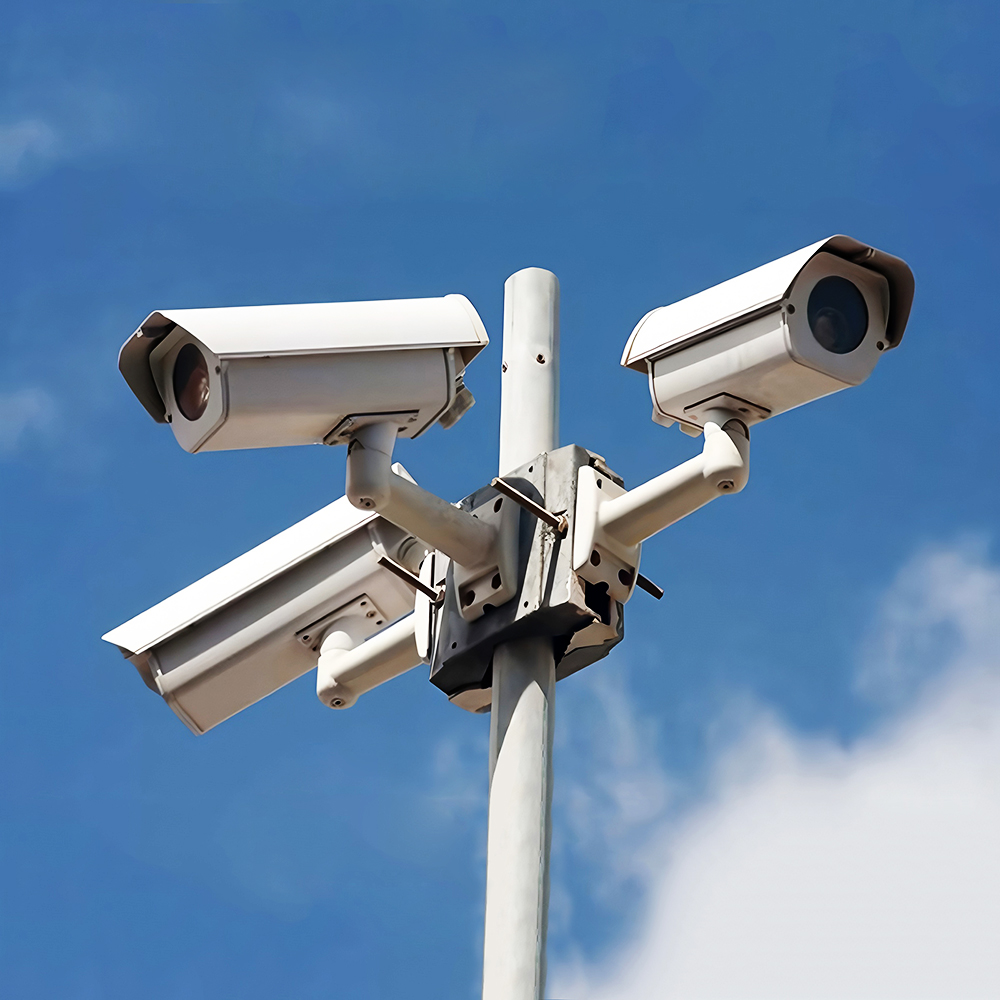

    TSD-PD75G-Application2
    TSD-PD75G-Application3

    Package list
    Items Quantity
    TSD-PD75G splitter 1
    Operation Manual /
    TSD-PD75G-Package

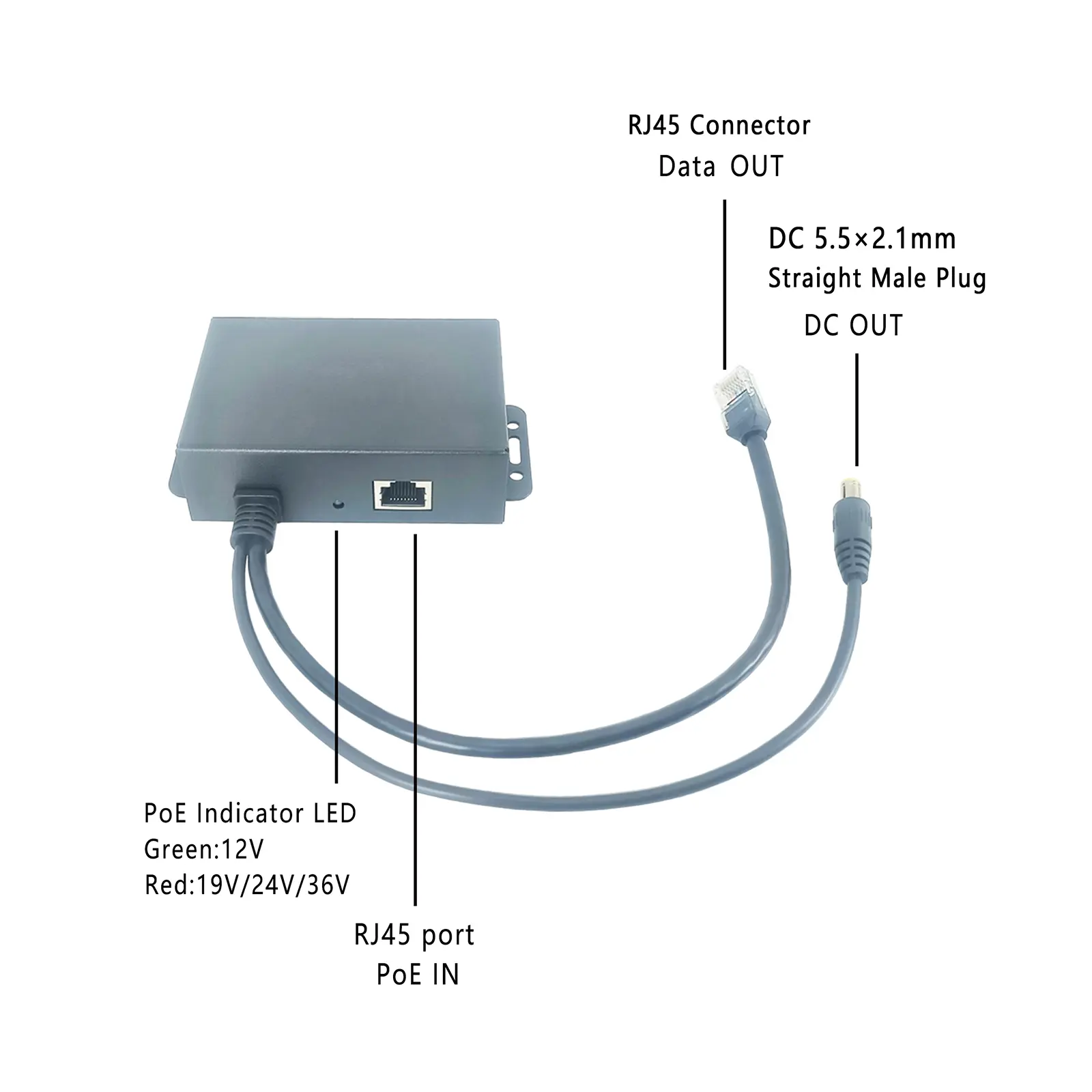

    TSD-PD75G-Interface
