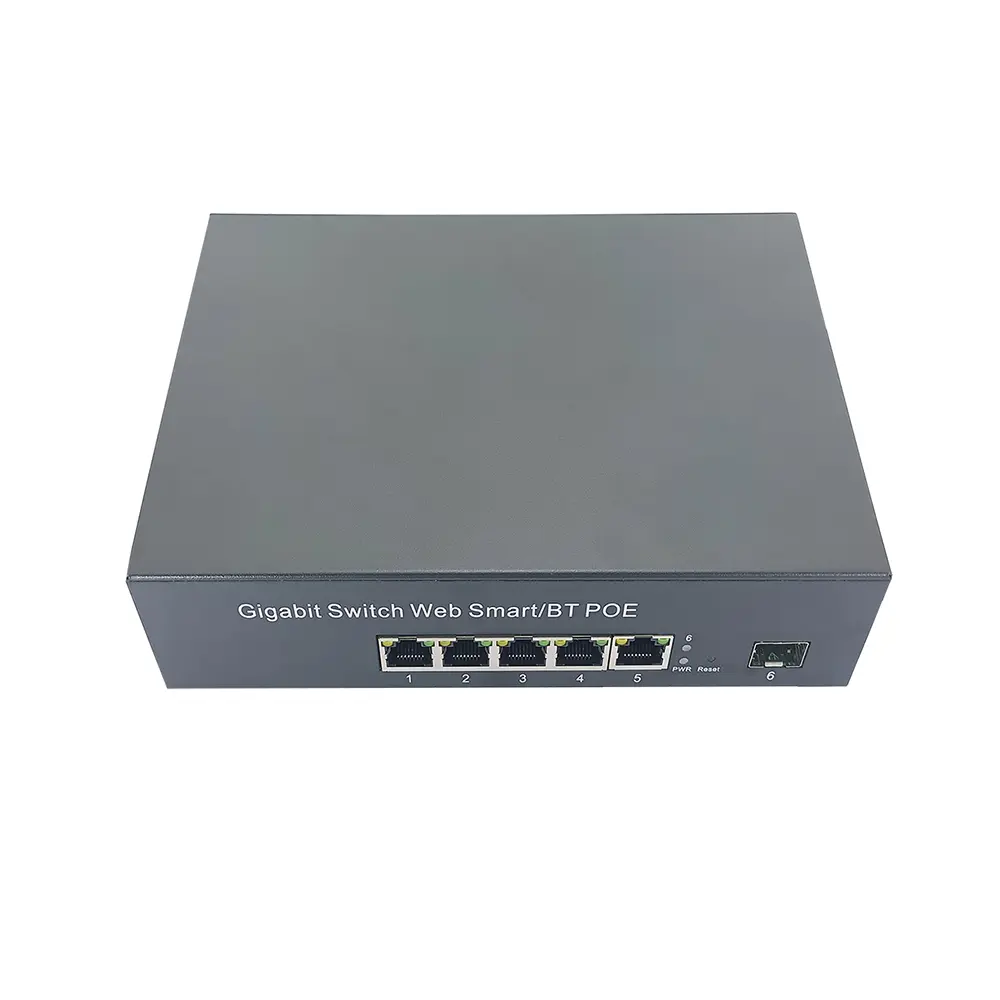

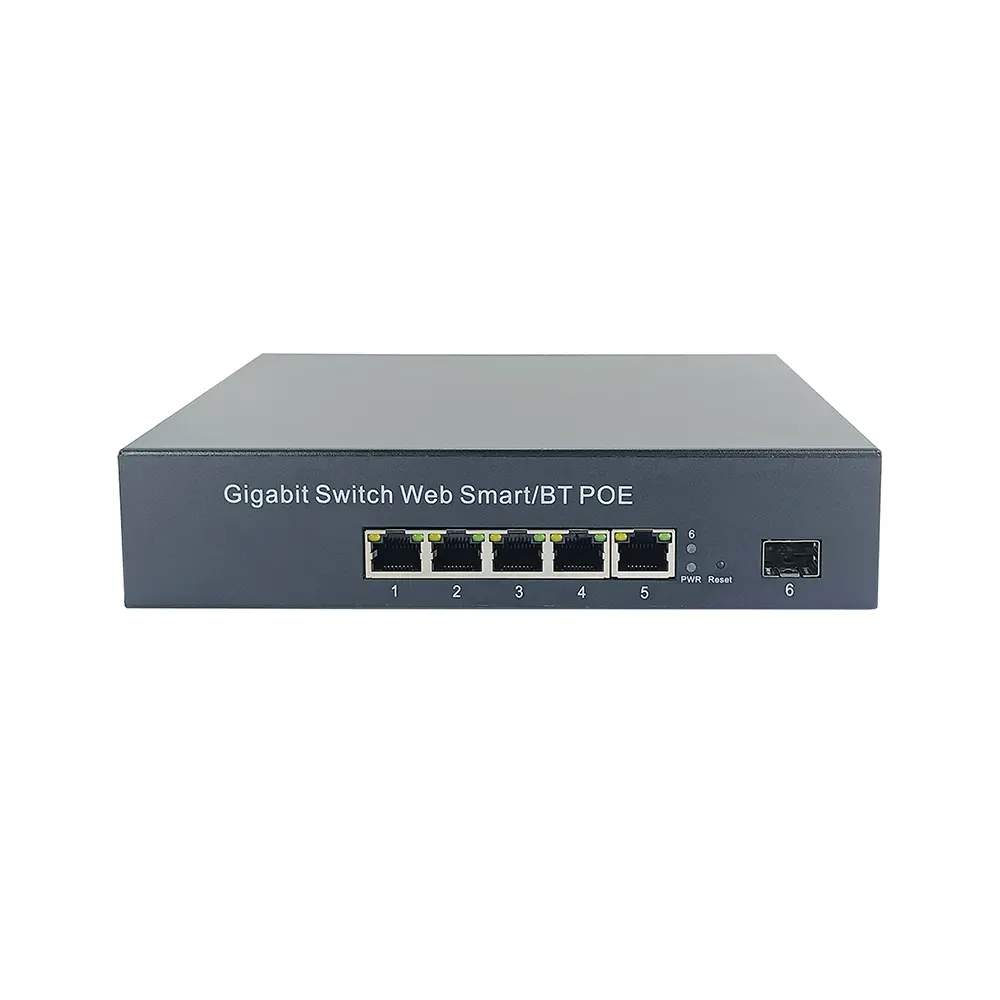

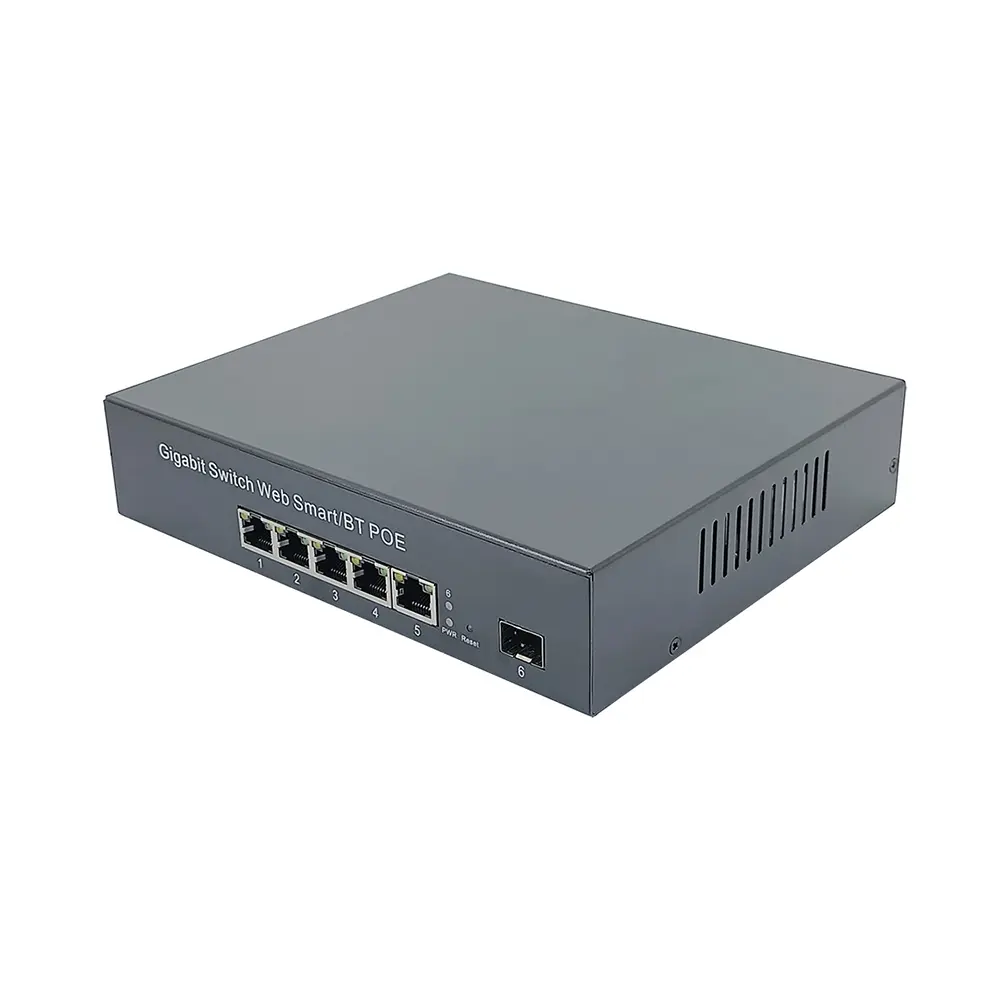

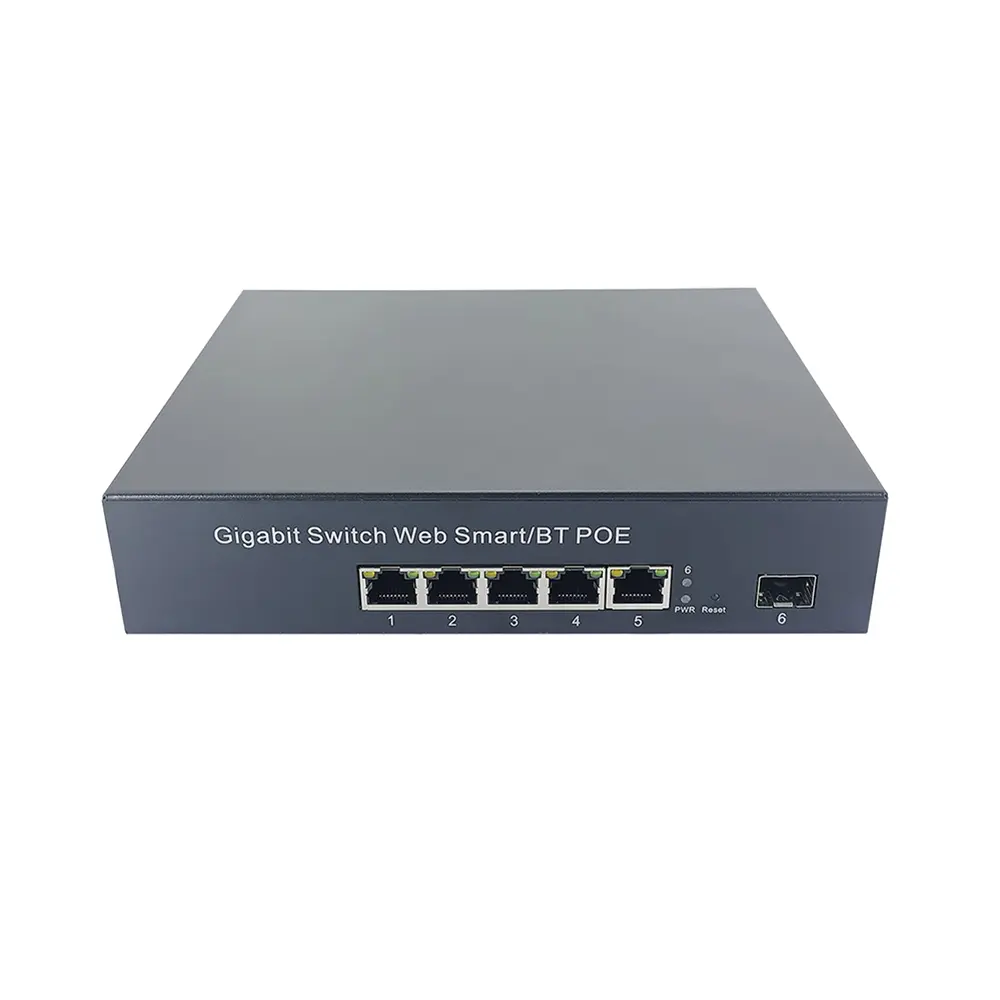

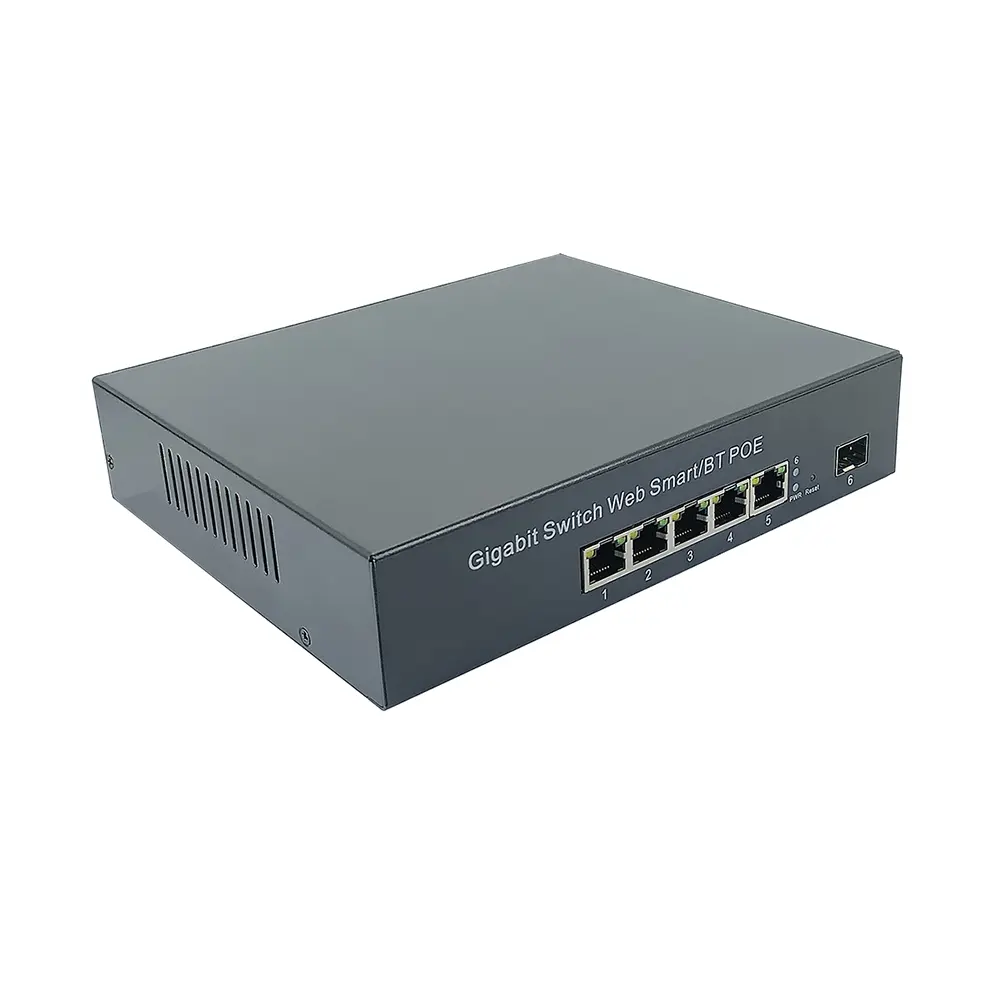

TSD-PSE0401G1S switch built-in power supply: 52V 6A 300W, backplane bandwidth: 20G, adaptive transmission rate: 10/100/1000M. TSD-PSE0401G1S inputs AC power 90~240V 50/60HZ and outputs 52V PoE signal. The product has overheat protection, overvoltage protection, overcurrent protection, short circuit protection, electric shock protection, leakage protection and other functions.

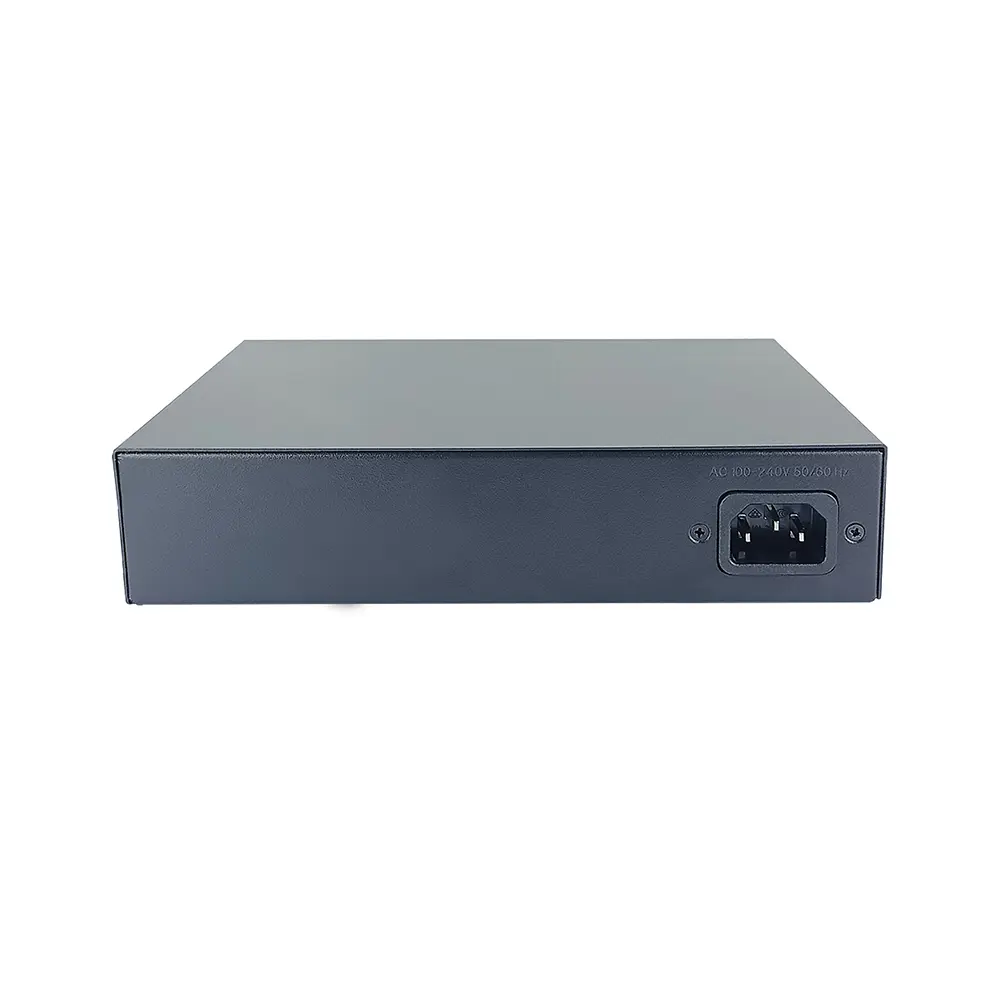

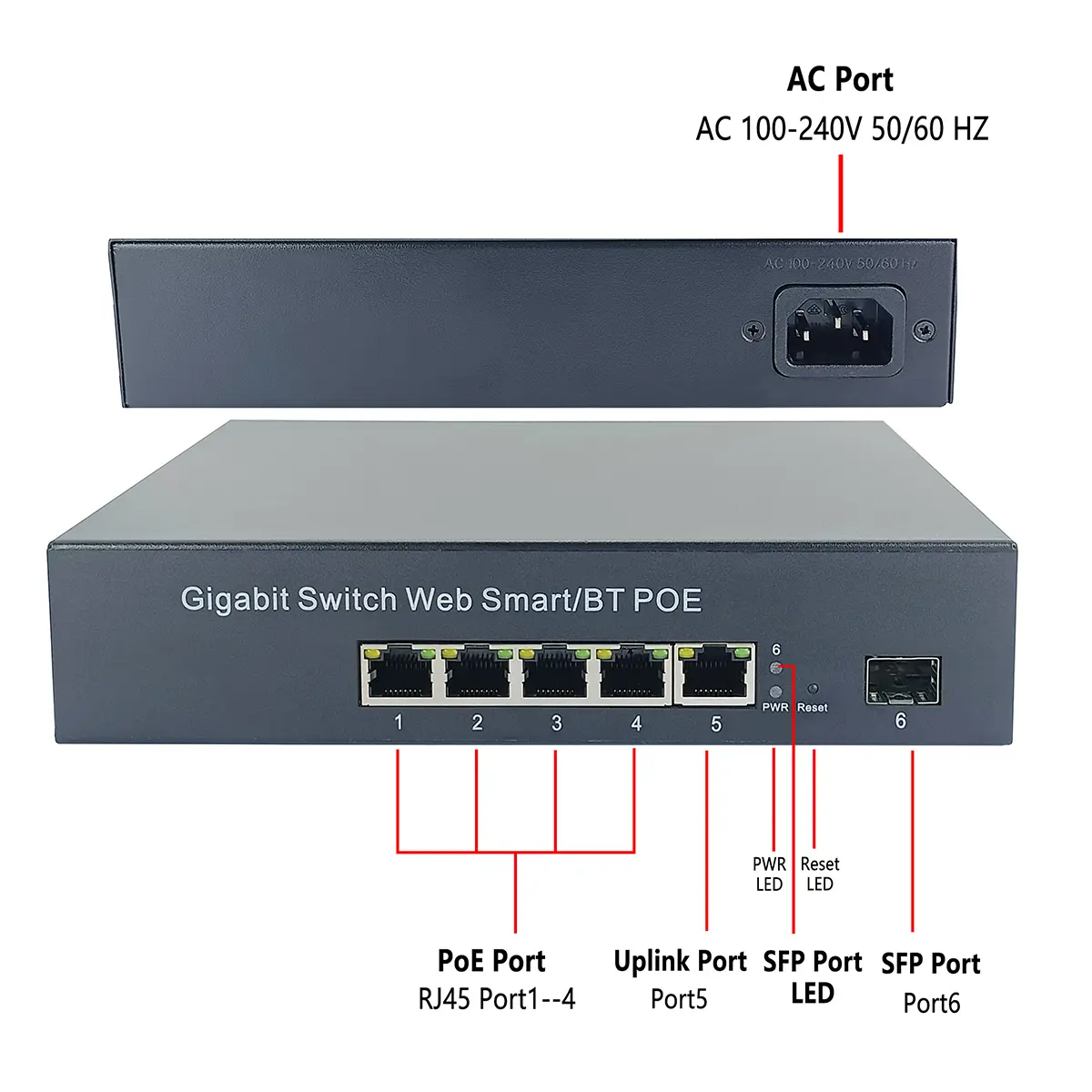

● Input: AC 90-240V 50/60HZ
● Output: 52V
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Built-in power supply: 52V 6A 300W
● Backplane bandwidth: 20G
● Maximum output power of single port: 90W
● Gigabit high-power network filter
● SMD solid capacitors, ultra-long life improves module power supply stability
● Original electronic components from international famous brands, high precision and high performance
● Pure copper pin connector to ensure safety performance
● High-frequency, low-resistance electrolytic capacitors reduce circuit high-frequency losses and heat generation
● High power, high conduction and low impedance transistor, excellent reliability and temperature tolerance
● Hard metal material shell, easy to enhance its installation robustness and heat dissipation
