60W High-power Gigabit DIN Rail PoE Injector

Model: TSD-PSE60G

Input: AC 100-240V 50/60HZ
Output: PoE 48V 1.25A 60W
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/AC socket
Size: 147*65*43 mm (L*W*H)
Weight: N.W=196 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The PSE60G is a Gigabit DIN-rail PoE injector compliant with the IEEE802.3BT protocol, offering a maximum output power of 60W. Featuring handshake recognition, the PSE60G provides secure and stable power to power-hungry PDs, including high-power dome cameras, video cameras, and large-format displays.

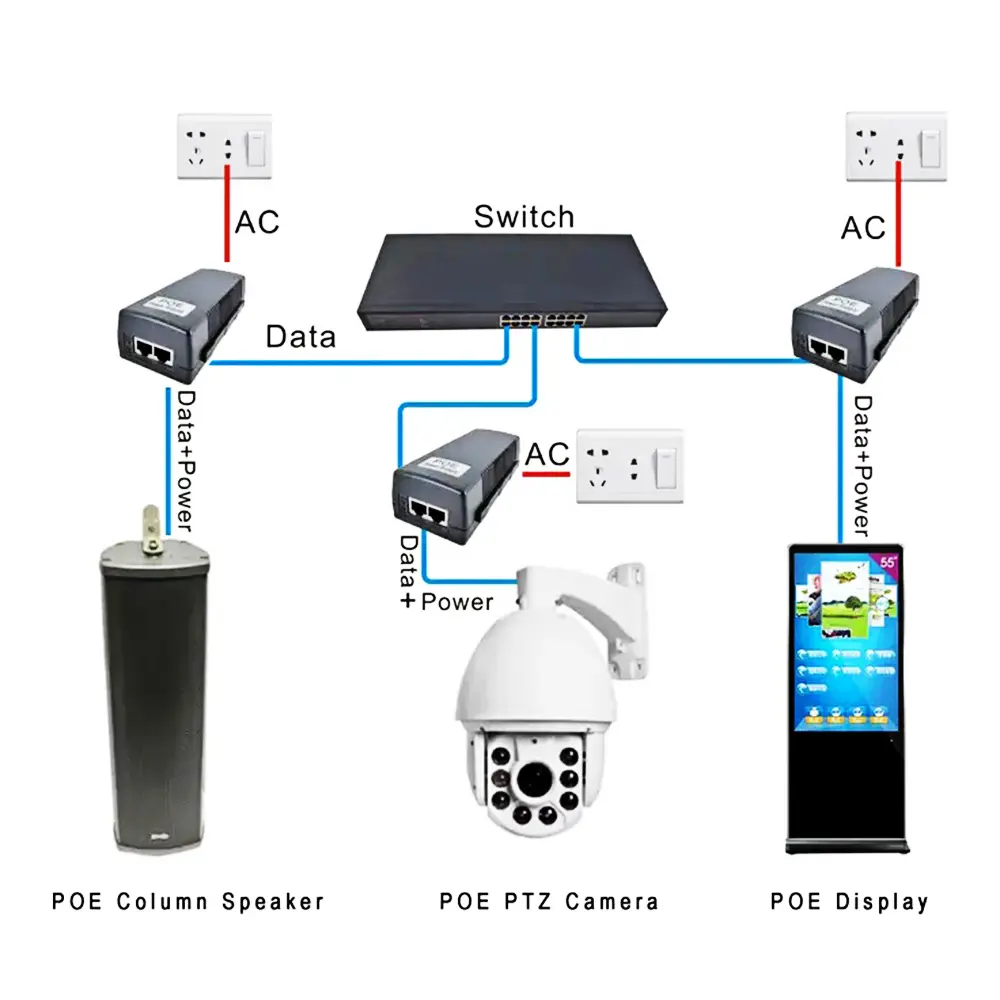

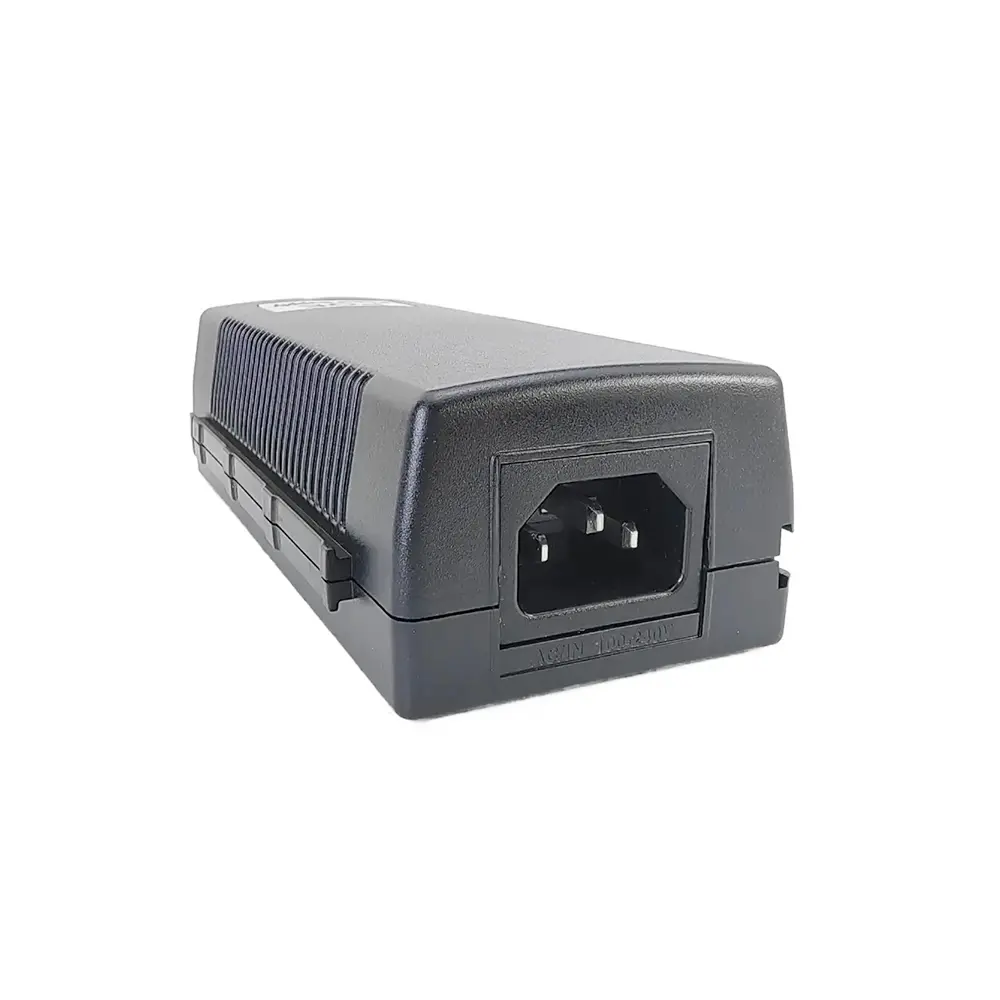

The PSE60G's input port: Data/IN, a gigabit uplink port, connects to switches, routers, and other upstream network devices for data transmission; the AC port inputs AC100-240V 50/60HZ AC power; the output port: P+D/OUT, outputs a PoE signal with a maximum power of 60W, transmitting data and powering high-power PD devices.

The PSE60G's EMC parameters meet IEC 61000-4-2/3/4/5/6 standards and are CE, FCC, and RoHS certified. The motherboard features a high-power isolation transformer with integrated heat dissipation and high-temperature resistance. The motherboard circuitry includes multiple protections, including protection against high-voltage lightning strikes, short circuits, overloads, high temperatures, electric shock, and leakage, ensuring user safety. This superior product performance and first-class quality help users solve PoE power supply challenges.

The PSE60G complies with the IEEE 802.3bt international PoE standard and is compatible with IEEE 802.3af/at protocols. It offers a maximum output power of 60W and adaptive transmission rates of 10/100/1000Mbps. It supports a wide input voltage range of AC100-240V 50/60Hz, compatible with mains voltages and frequencies worldwide. Power supply pins include RJ1245 and RJ3678, providing full power delivery and a maximum transmission rate exceeding 85%.

● Input: AC 100-240V 50/60HZ
● Output: 48V PoE MAX 1.25A 60Watt
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Anti-electric shock Protection Anti-electric leakage Protection
● Surge Protection: 6KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Rail mounting, wall mounting, desktop mounting and other installation methods

● There are heat dissipation grids on both sides for easy heat dissipation

● Small size, less space, easy to install

● International brand original electronic components, excellent precision and high performance

● Pure copper pin connector to ensure safety performance

● High temperature resistant PCB environmental protection material, lead-free environmental protection process

● High temperature resistant flame retardant interface socket, reduce security risks

● Environmental and high temperature resistant ABC plastic material

Product parameter table
Product Name	60W high power gigabit din rail PoE injector
Product Model	TSD-PSE60G
PoE Standard	IEEE802.3af/at/bt
Input Voltage	AC 100-240V 50/60HZ
Output	PoE 48V 60Watt
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated
Data Rate	10/100/1000Mbps Auto-Negotiation
Transmission Distance	100 meters
Surge Protection	6KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection Anti-electric shock Protection Anti-electric leakage Protection
LED Indicator	Power indicator1 , PoE indicator1

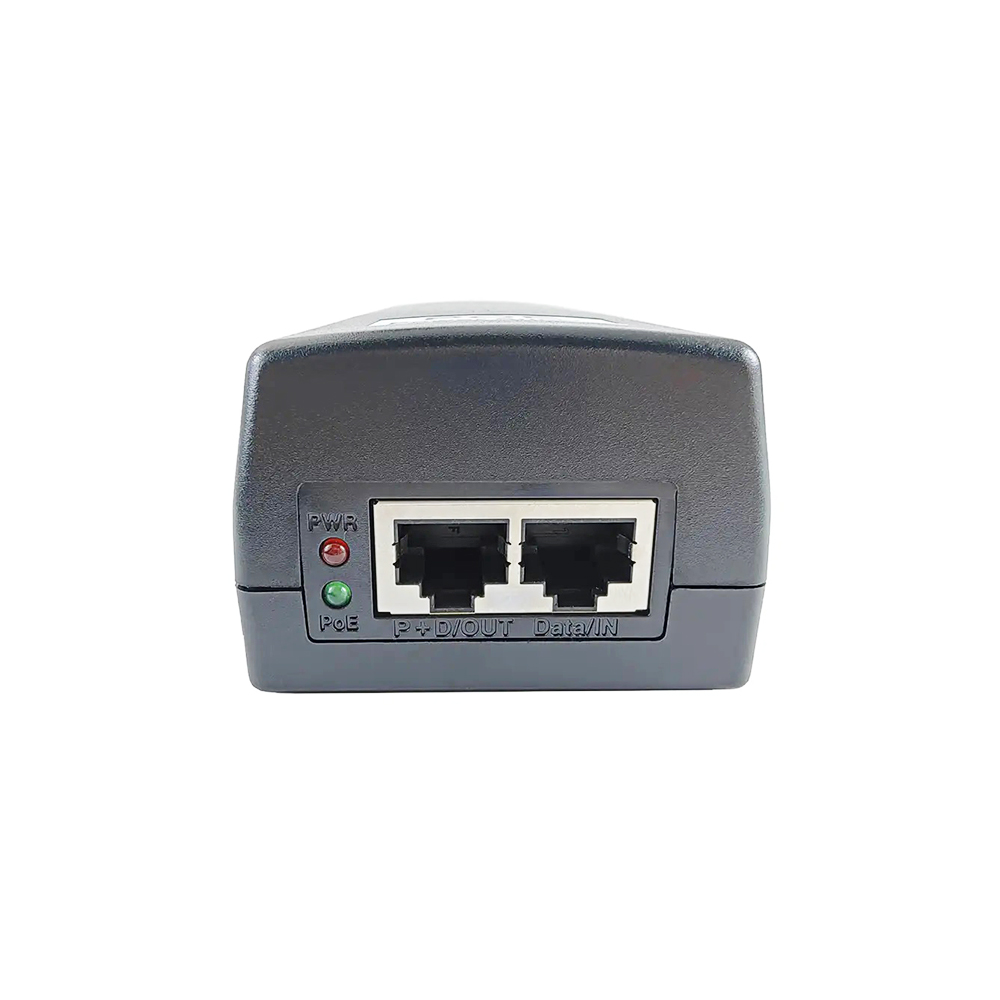

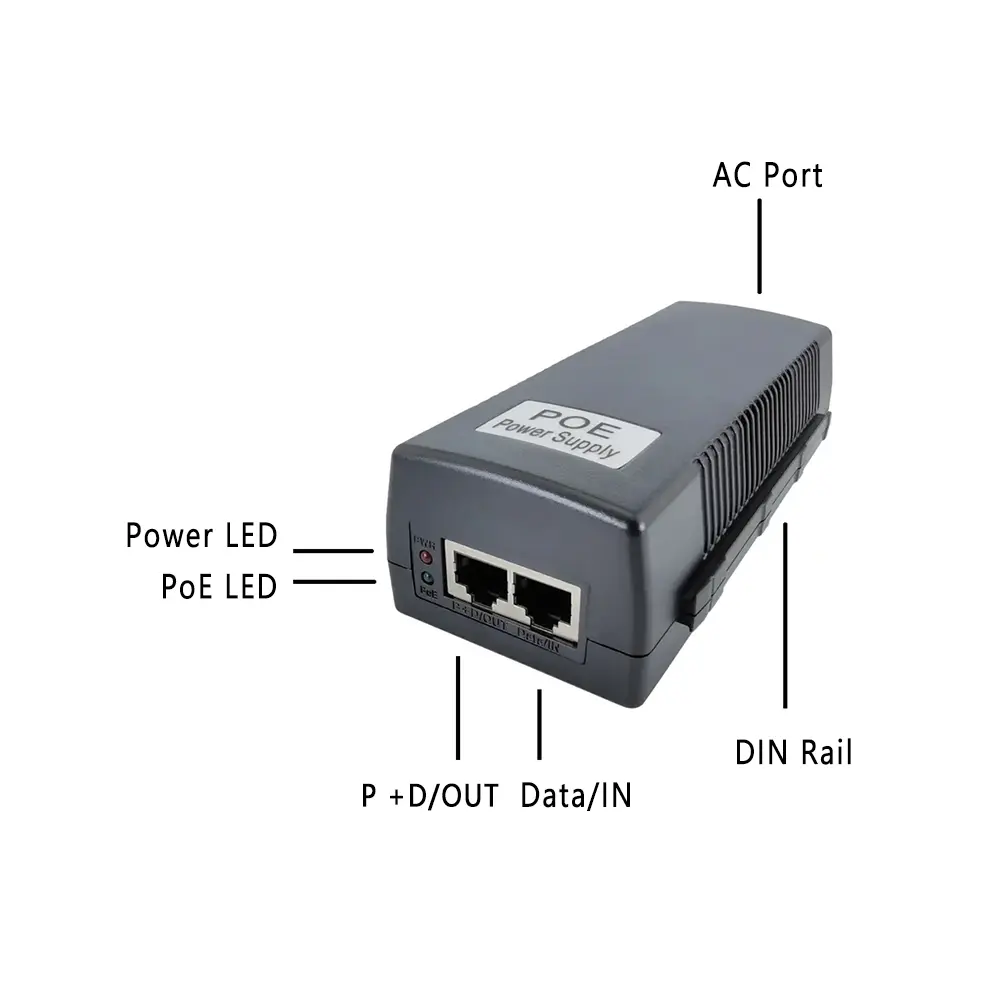

Interface	RJ45 port1 (P+D/OUT port): 48V PoE out RJ45 port2(DATA/IN): data in AC port: AC 100-240V 50/60HZ IN
Material	ABC plastic
Color	Matte black
Accessories	AC cable*1
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 196g G.W: 392 g
Dimension	Product Dimension: 1476543 mm Packing Dimension: 21012856 mm
Package	Kraft carton

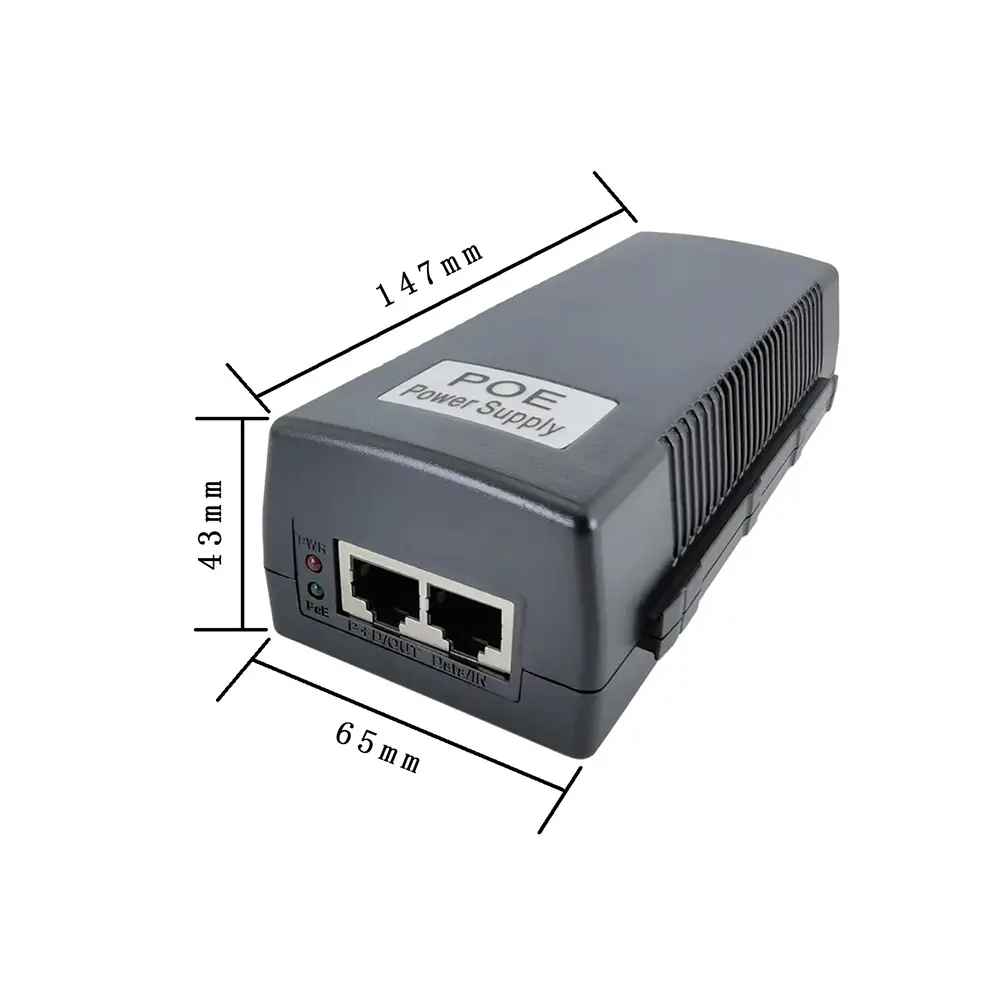

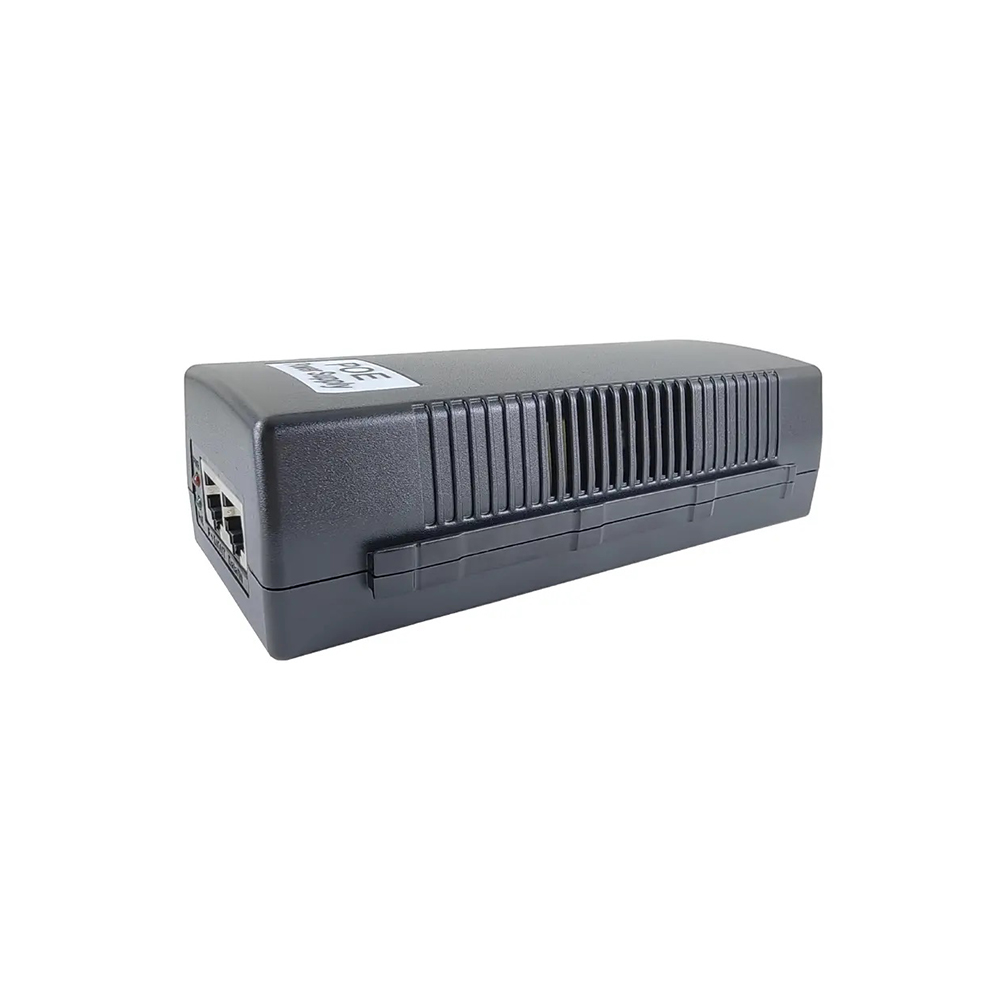

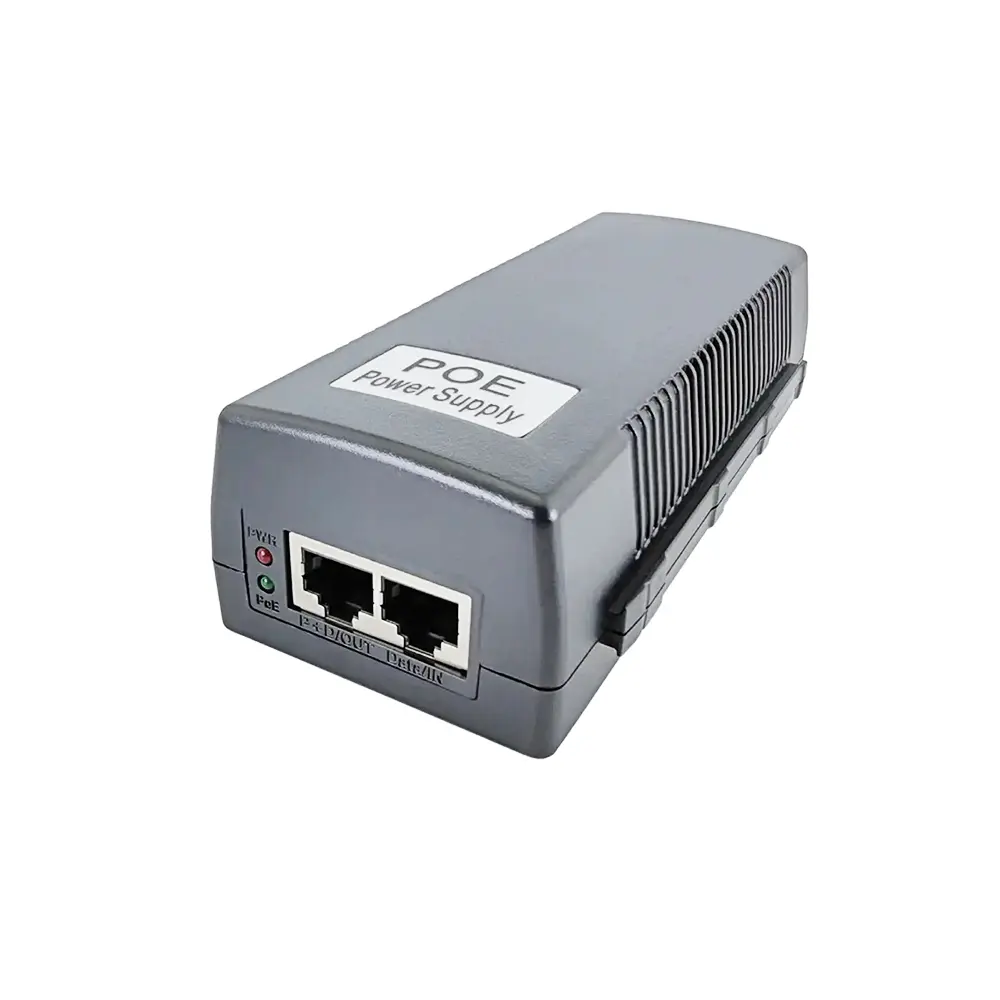

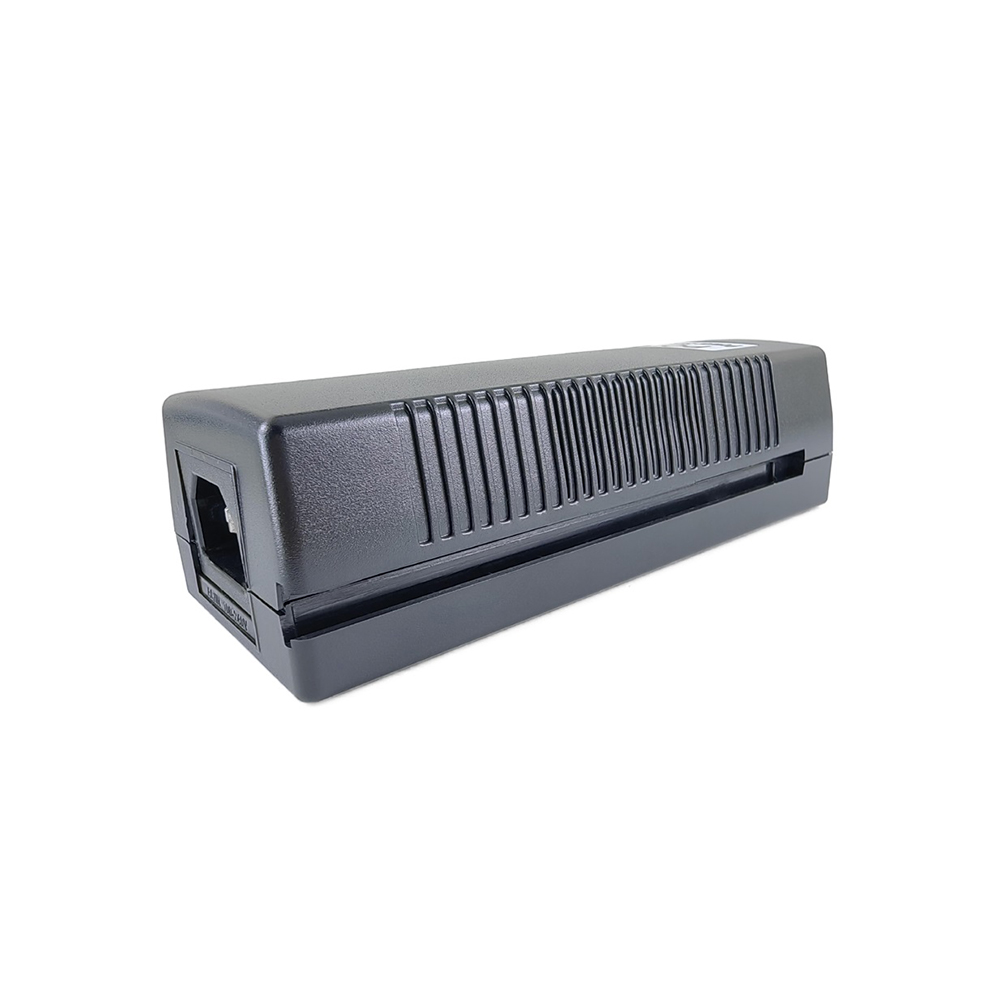

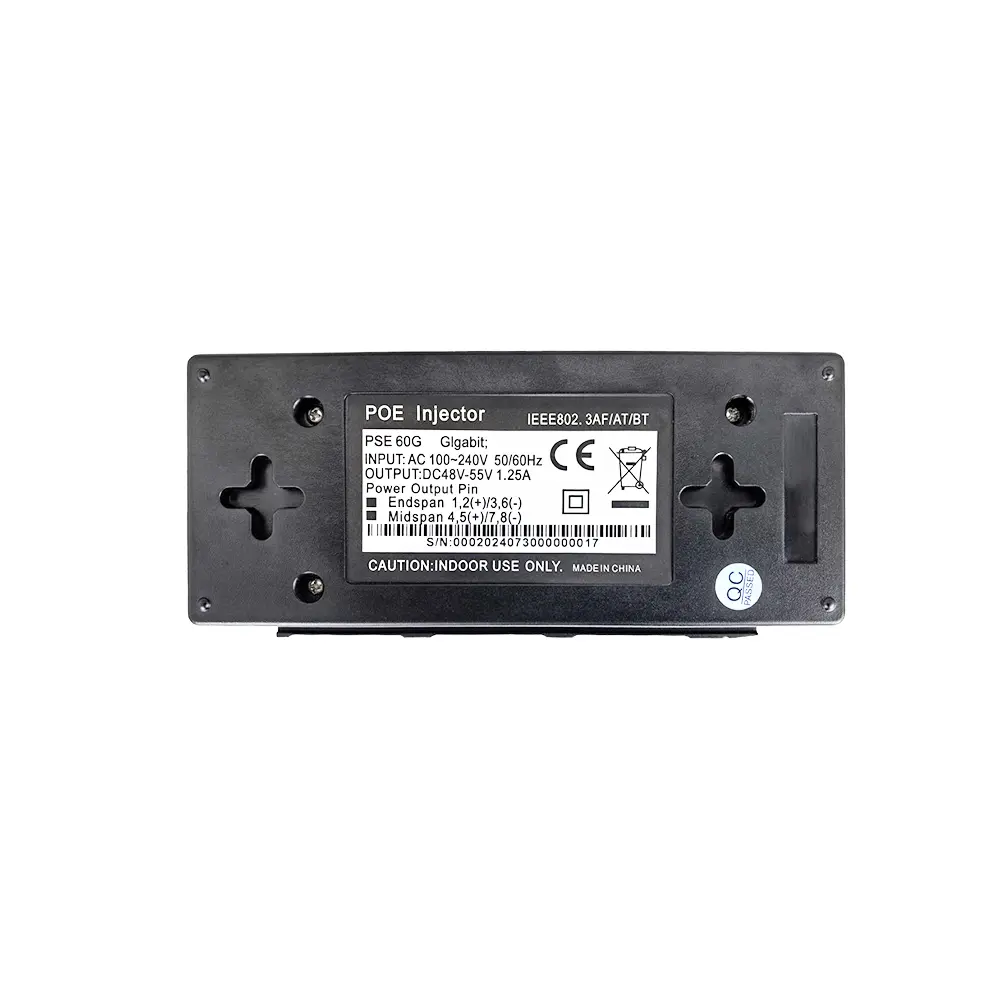

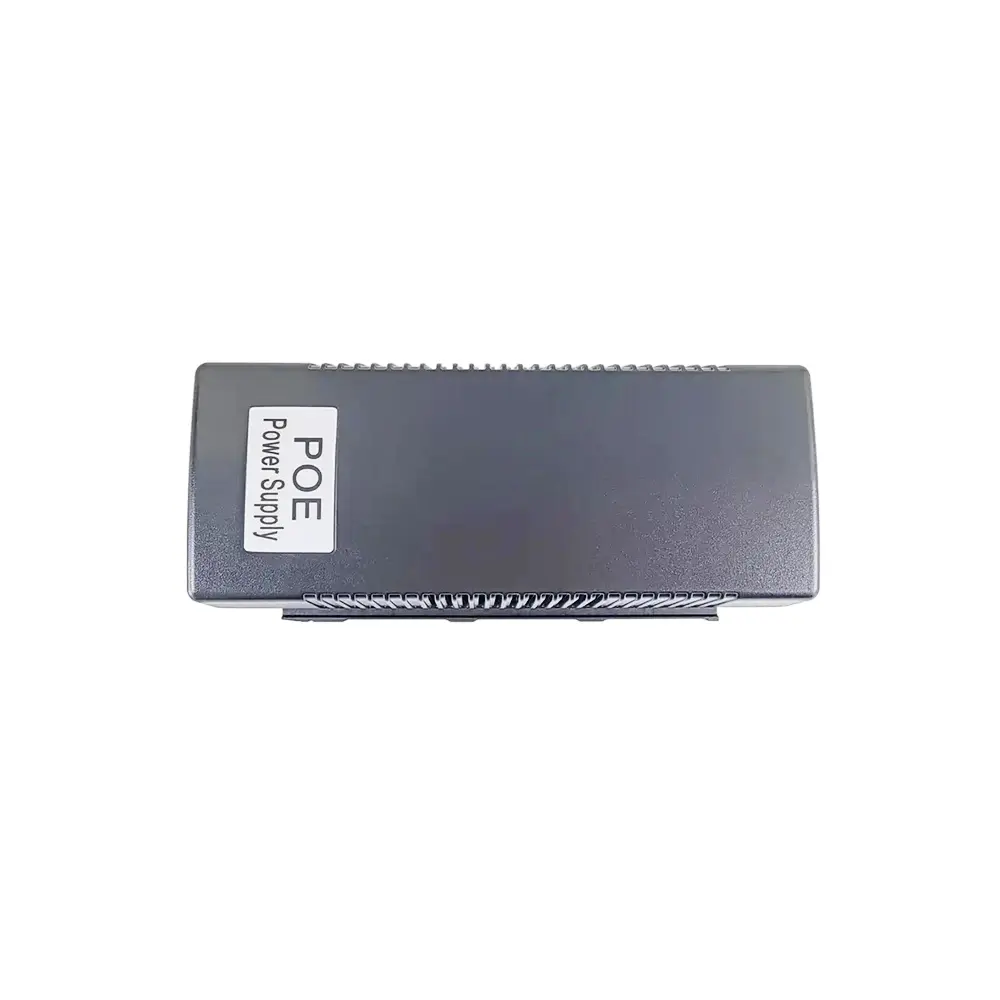

The PSE60G measures 147 x 65 x 43 mm (L x W x H) and is constructed of matte black, environmentally friendly, high-temperature-resistant ABS plastic. Side grilles enhance heat dissipation and ventilation for the motherboard. The PSE60G supports DIN-rail, wall-mount, and desktop mounting. Both a power indicator and a PoE indicator indicate the device's current operating status.

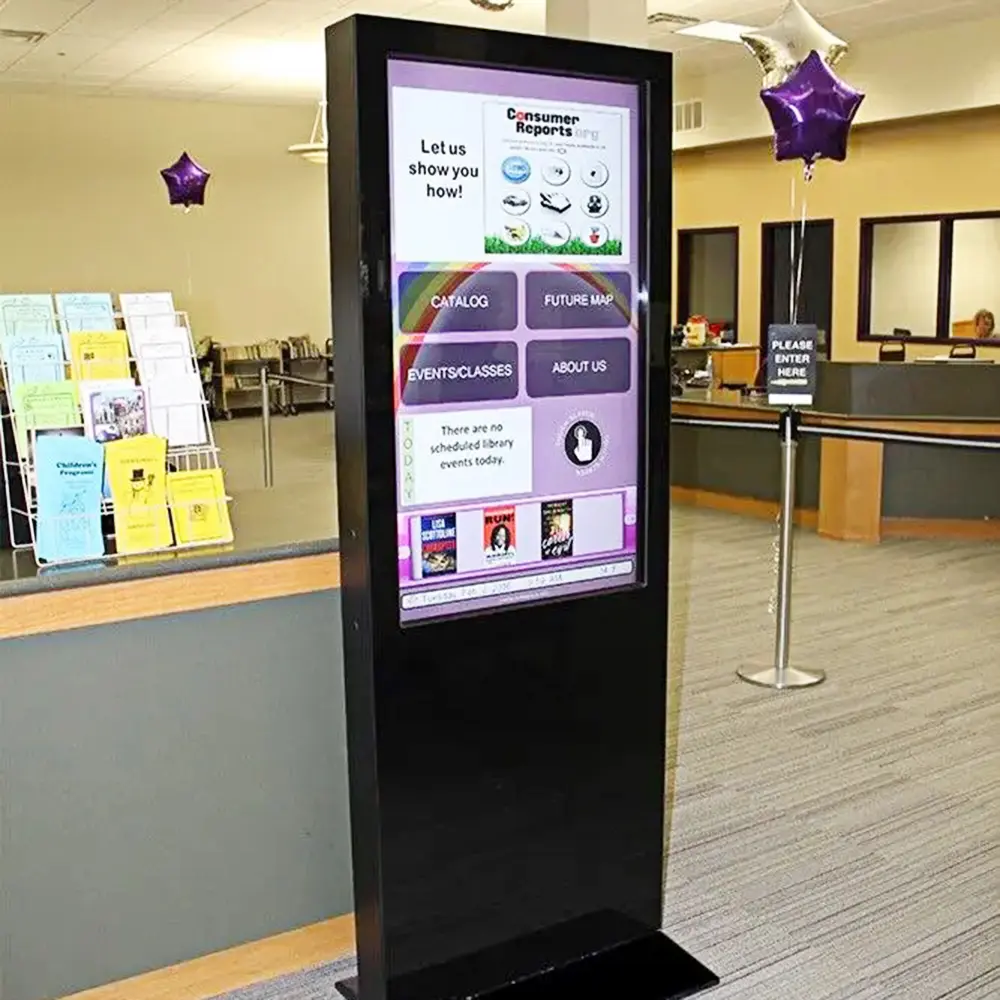

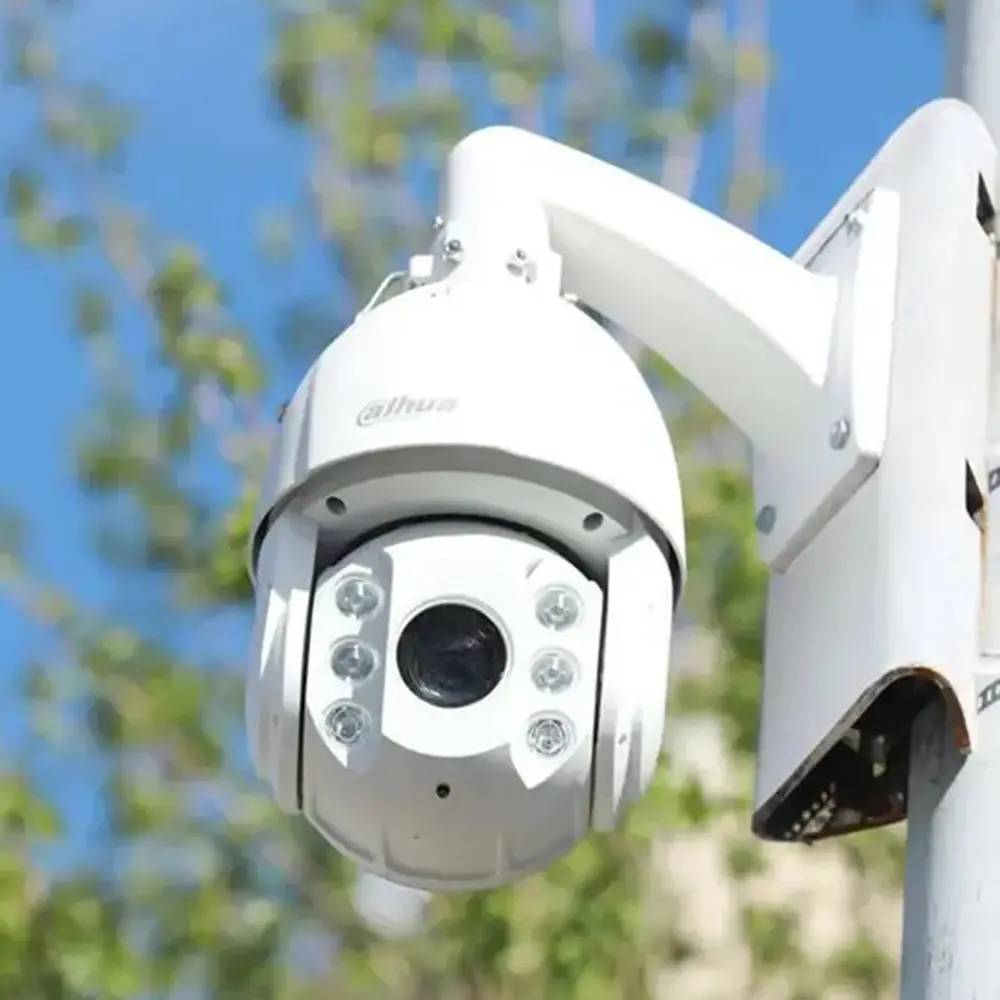

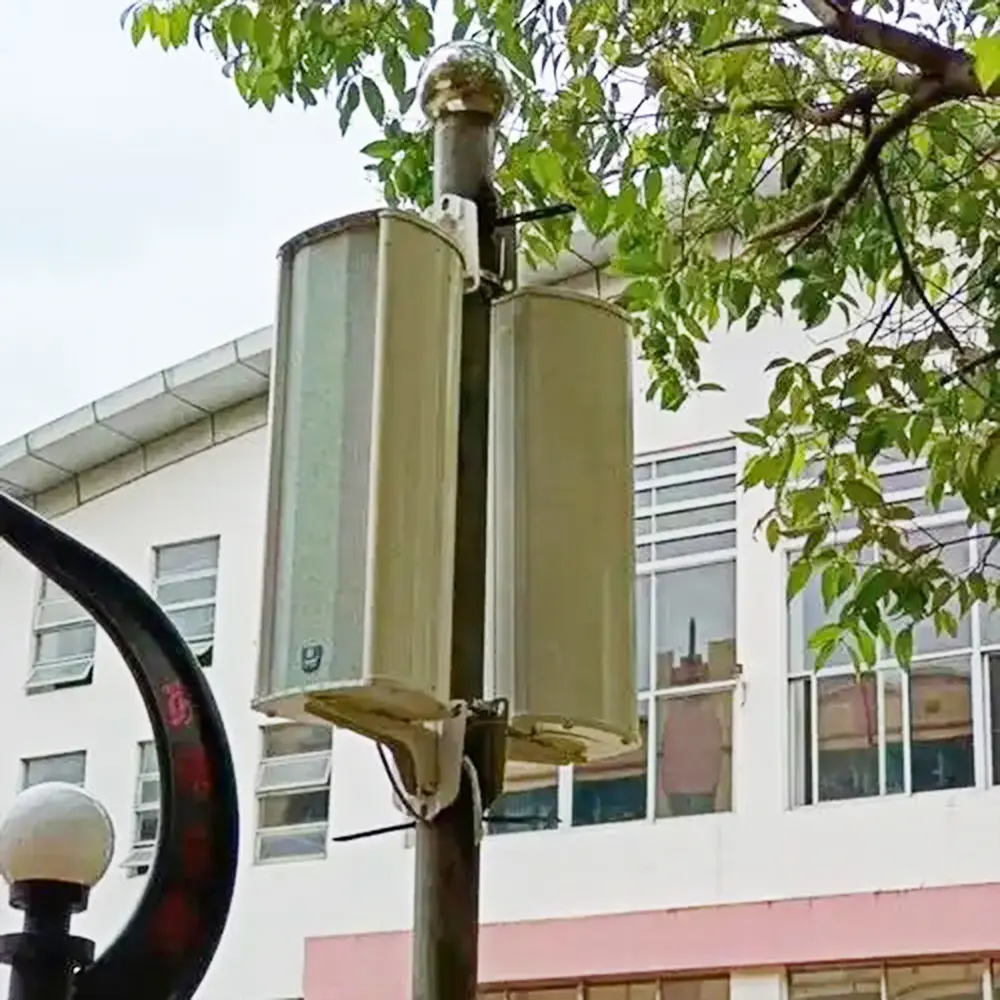

The PSE60G is a high-power, single-port POE injector designed specifically for high-power PDs while maintaining excellent compatibility with lower-power devices. It is widely used in high-power CCTV surveillance systems, high-power audio broadcast systems, large-format display screens, and other industries. This product has been on the market for many years and has demonstrated outstanding performance in high-power POE applications, earning widespread recognition and praise from customers worldwide.

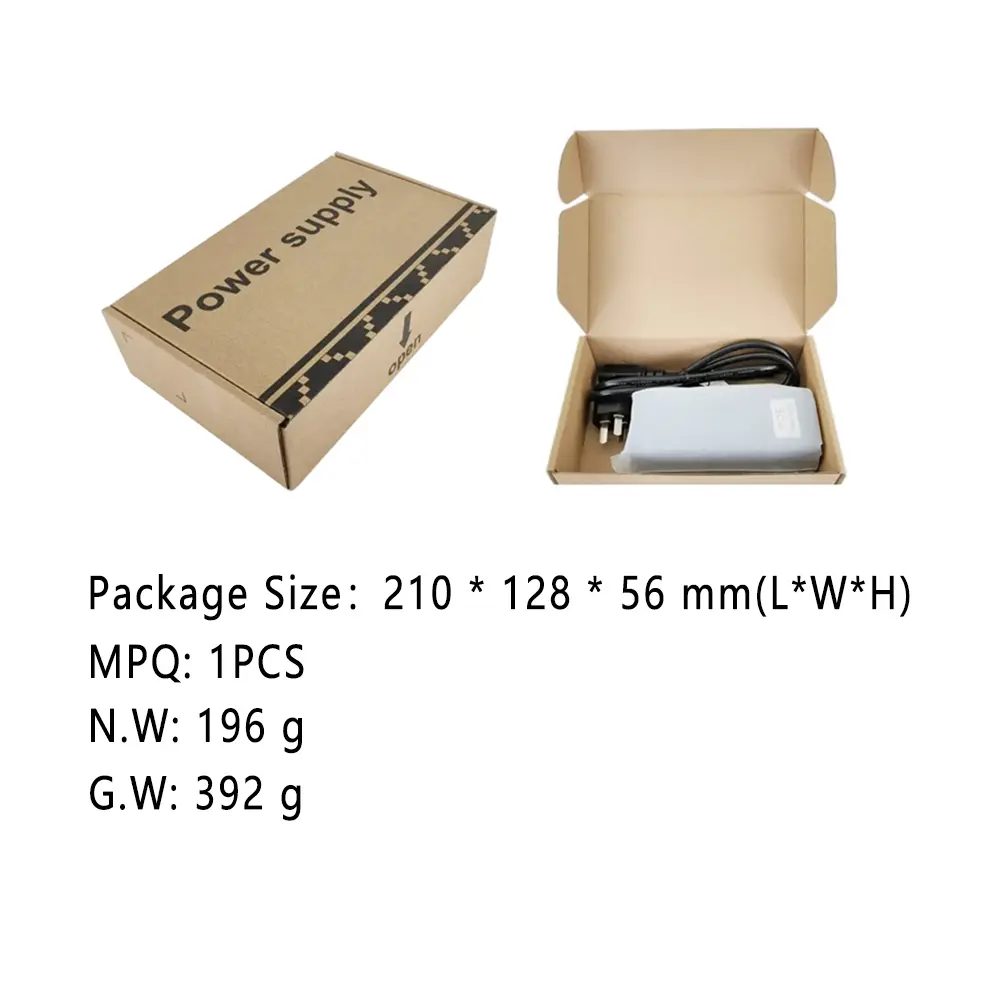

Package list
Items	Quantity
PSE60G PoE injector	1PCS
AC cable	1
Operation Manual	1
