The PSE90G has an input voltage of 100-240V AC at 50/60Hz, compatible with mains voltages and frequencies worldwide. It outputs a 48V 1.85A PoE signal with a maximum output power of 90W. It supports adaptive transmission rates of 10/100/1000Mbps, conversion efficiency exceeding 90%, and is fully compatible with RJ1245 and RJ3678 PoE power supply pins.

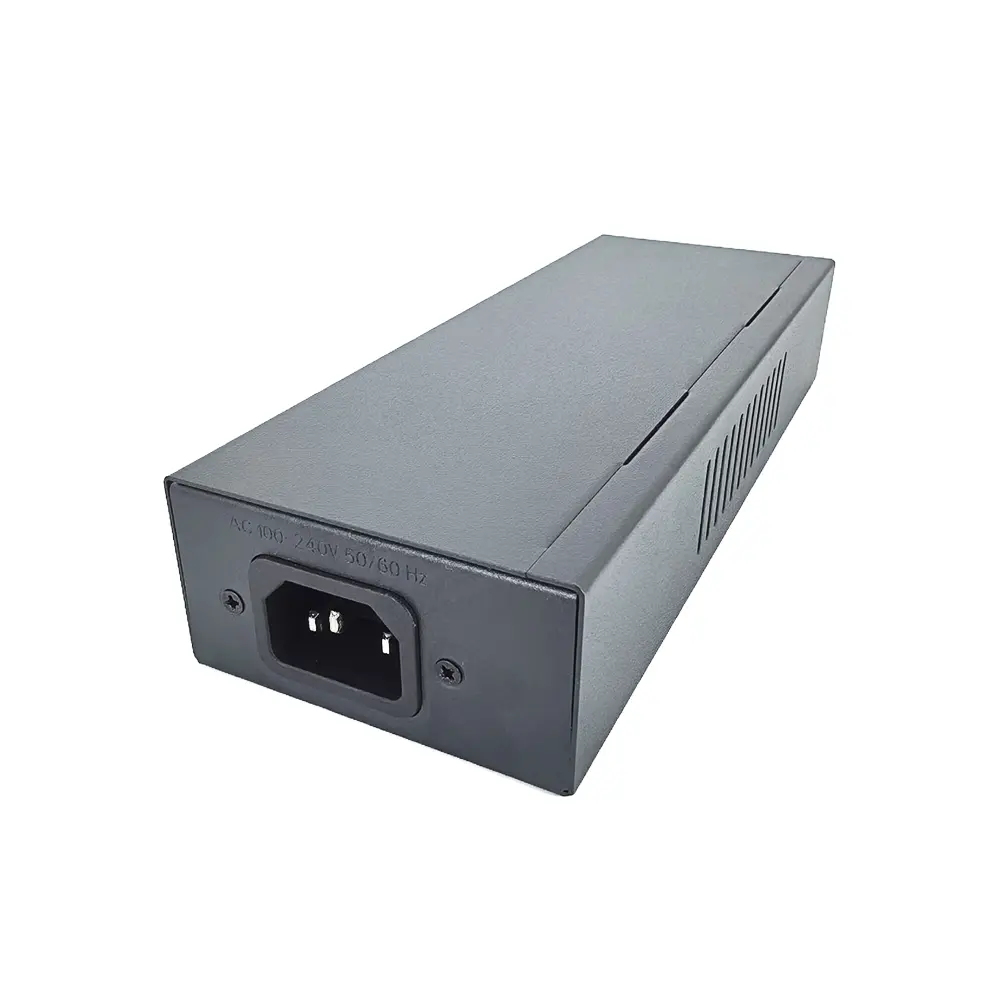

● Input: AC 100-240V 50/60HZ
● Output: 48V PoE MAX 1.85A 90Watt
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements

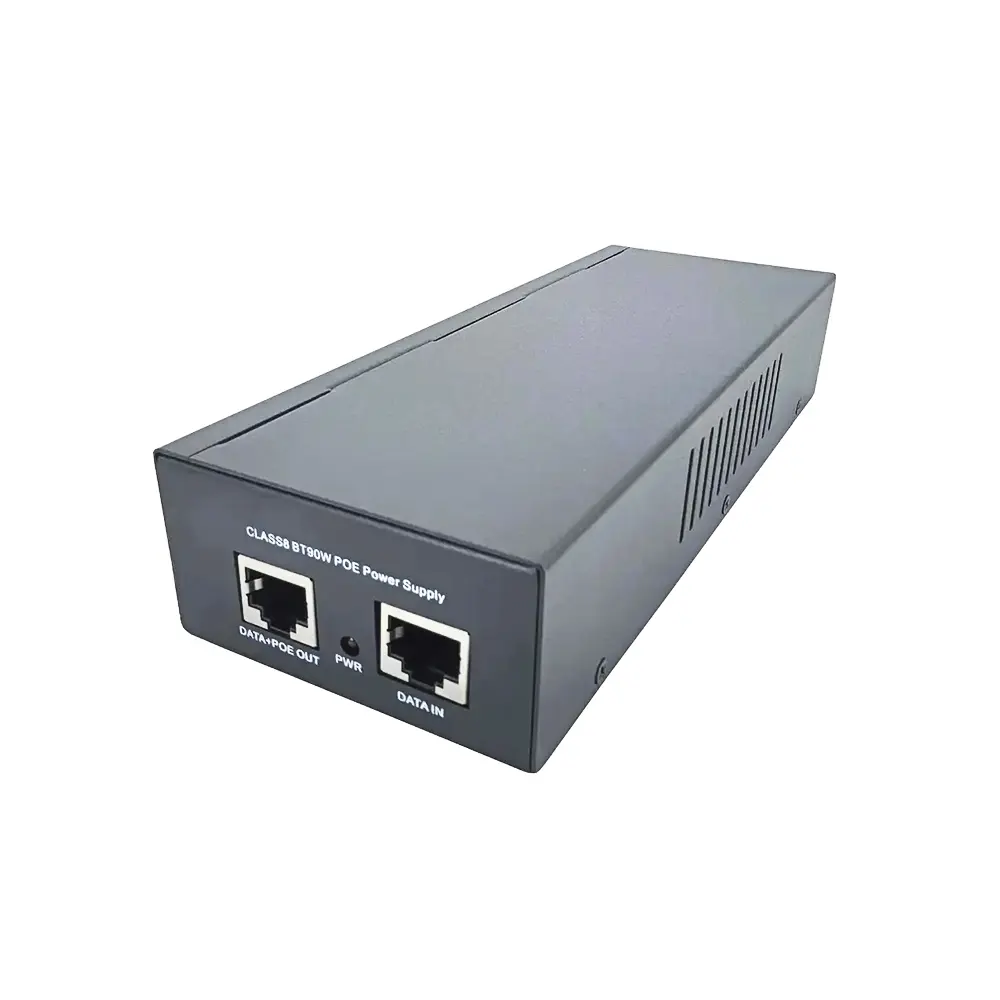

● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Anti-electric shock Protection Anti-electric leakage Protection
● Surge Protection: 6KV lightning surge resistance
● Conversion Efficiency: ≧90%

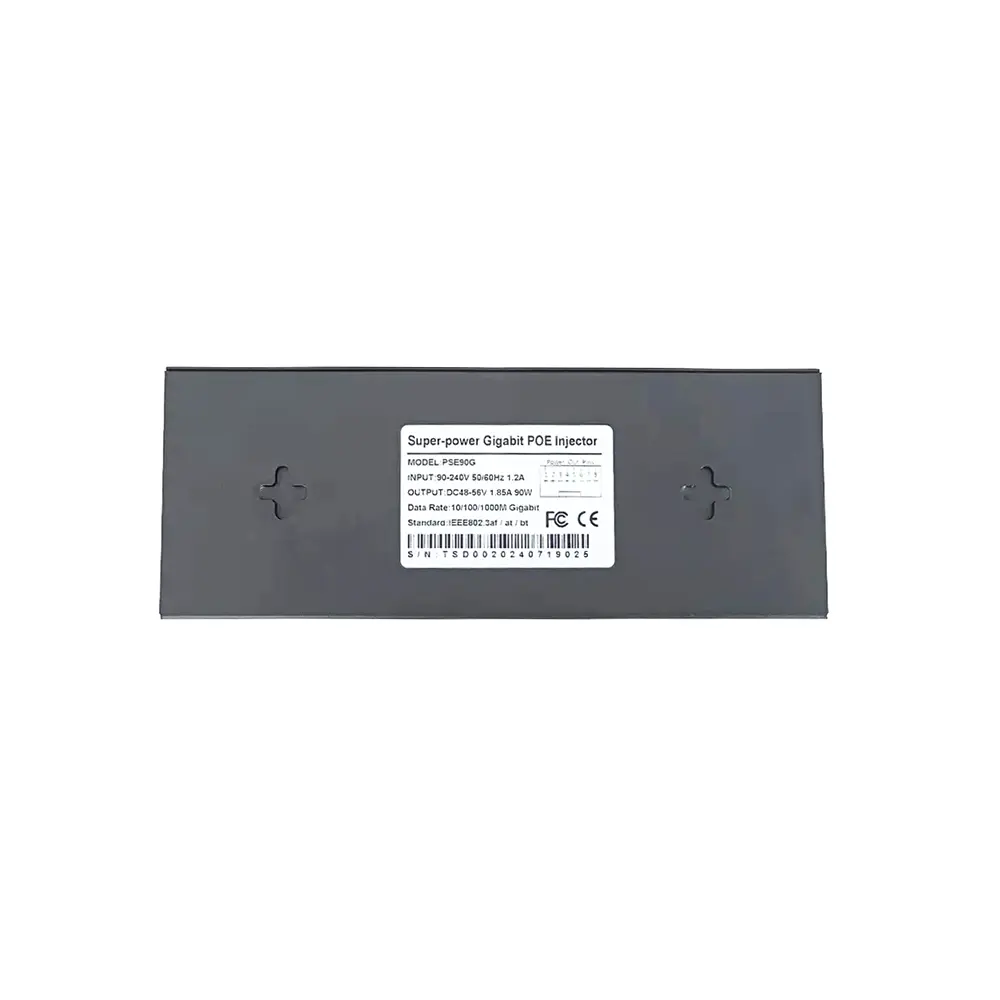

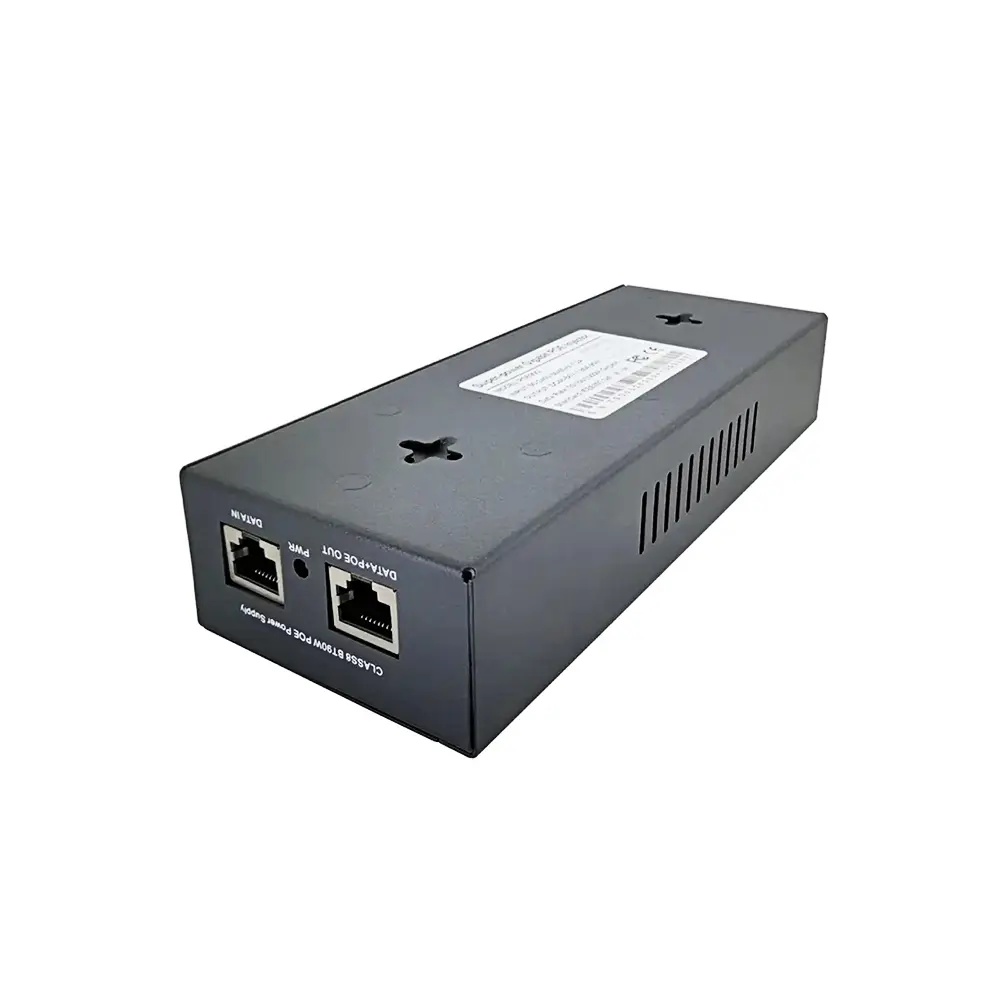

● Wall mounting, desktop mounting and other installation methods

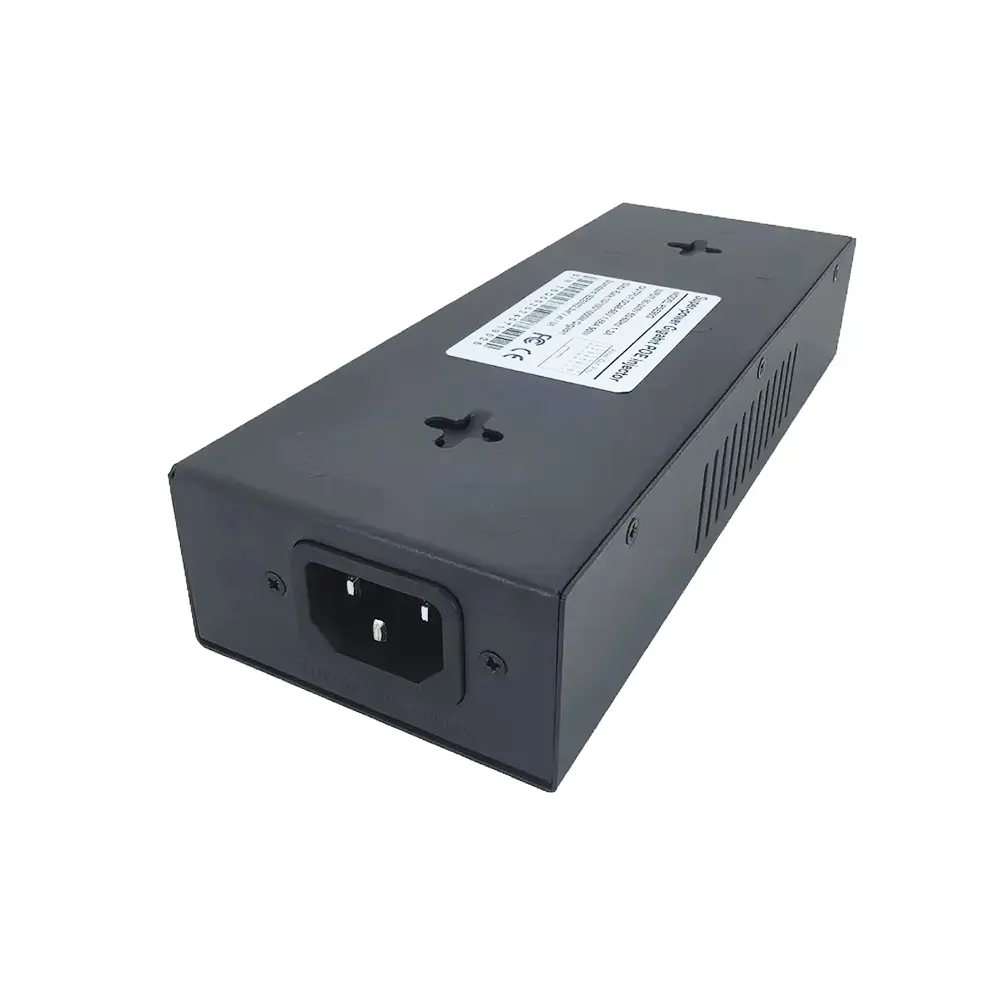

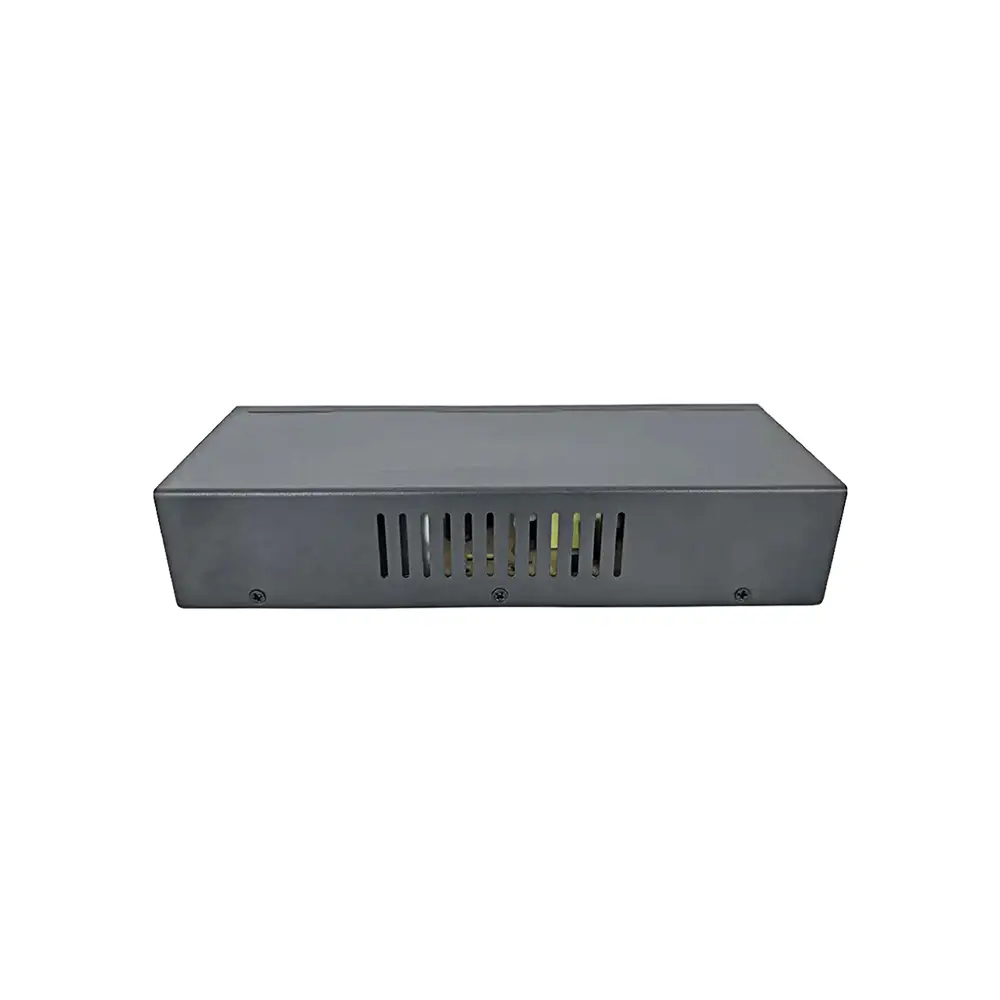

● There are cooling grates on both sides for easy heat dissipation

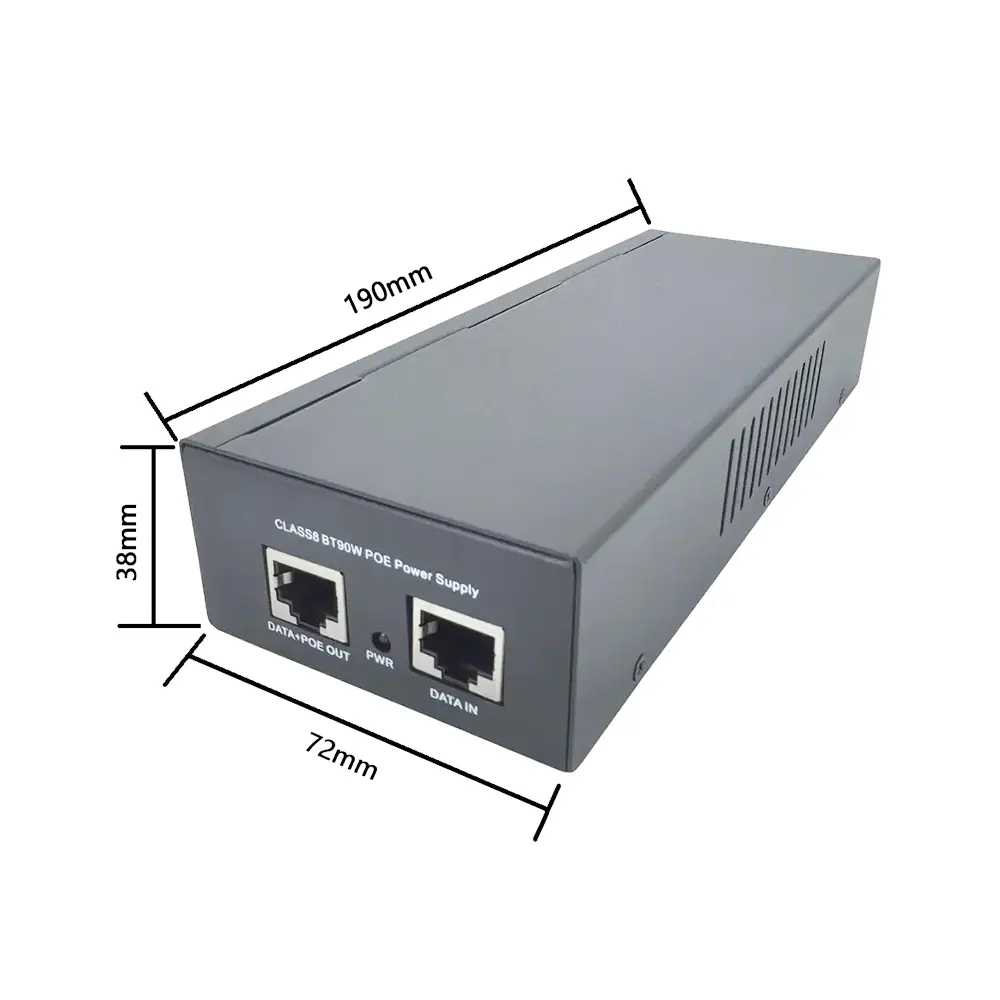

● Small size, less space, easy to install
● International brand original electronic components, excellent precision and high performance
● Pure copper pin connector to ensure safety performance
● High temperature resistant PCB environmental protection material, lead-free environmental protection process
● High temperature resistant flame retardant interface socket, reduce security risks
● Hard metal material shell, easy to enhance its installation robustness and heat dissipation
