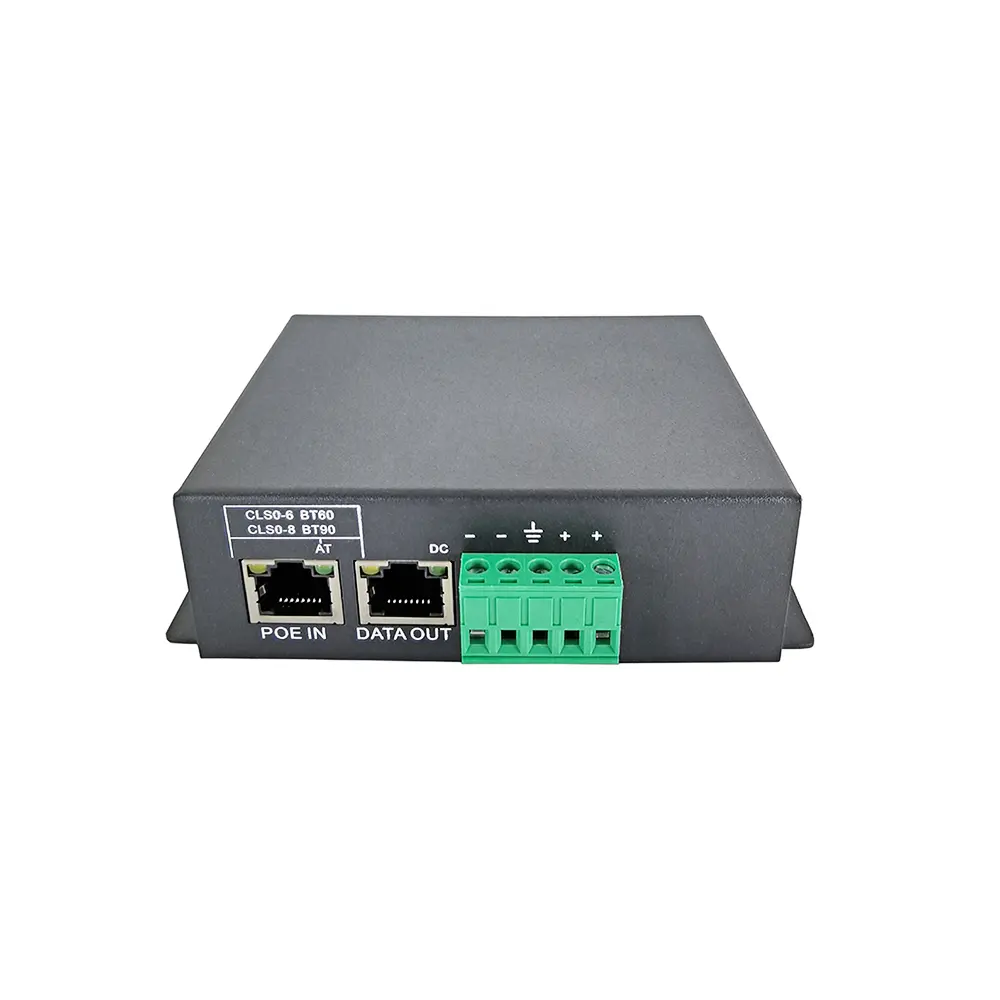

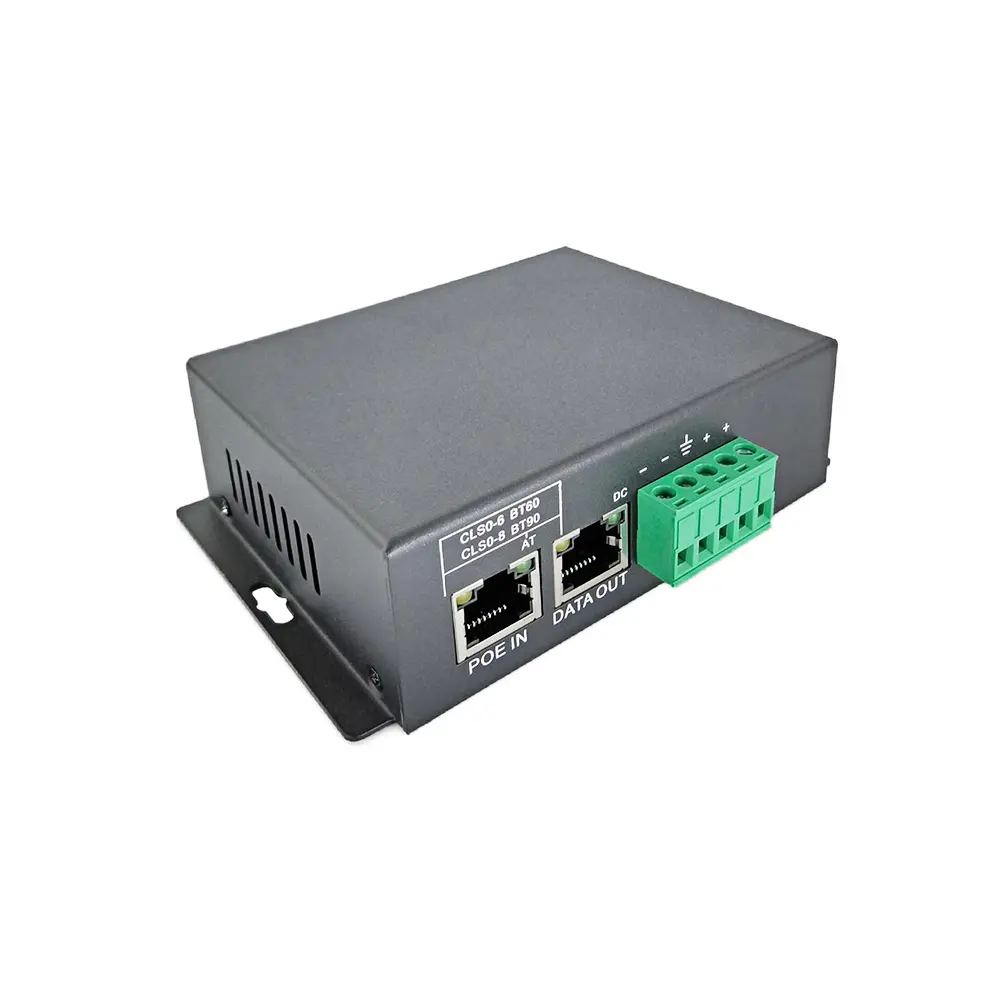

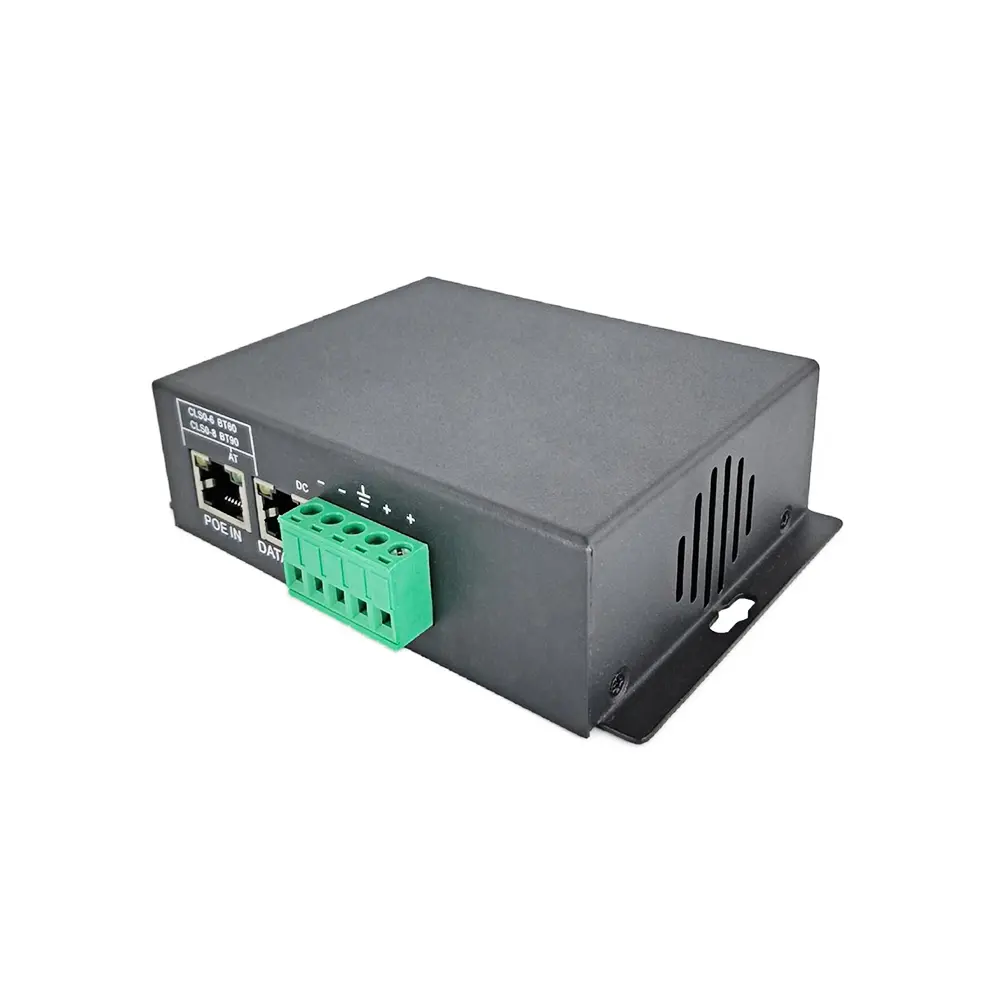

The PD90G is a super power POE Splitter, which conforms to the IEEE802.3BT high-power POE protocol, and is compatible with the IEEE802.3AF/AT POE protocol. Its maximum output power is 70-90W (IEEE802.3BT protocol CLASS8), while supporting 40-70W output (IEEE802.3BT protocol CLASS5/6/7), 25.5W output (IEEE802.3AT protocol CLASS4) and 15.4W output (IEEE802.3AF protocol CLASS3). It has a gigabit transmission rate and is compatible with 10M/100M/1000M adaptive transmission.
● Input: DC 38-56V PoE signal
● Output: DC 12V 7.5A / 24V 3.5A 90W
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements

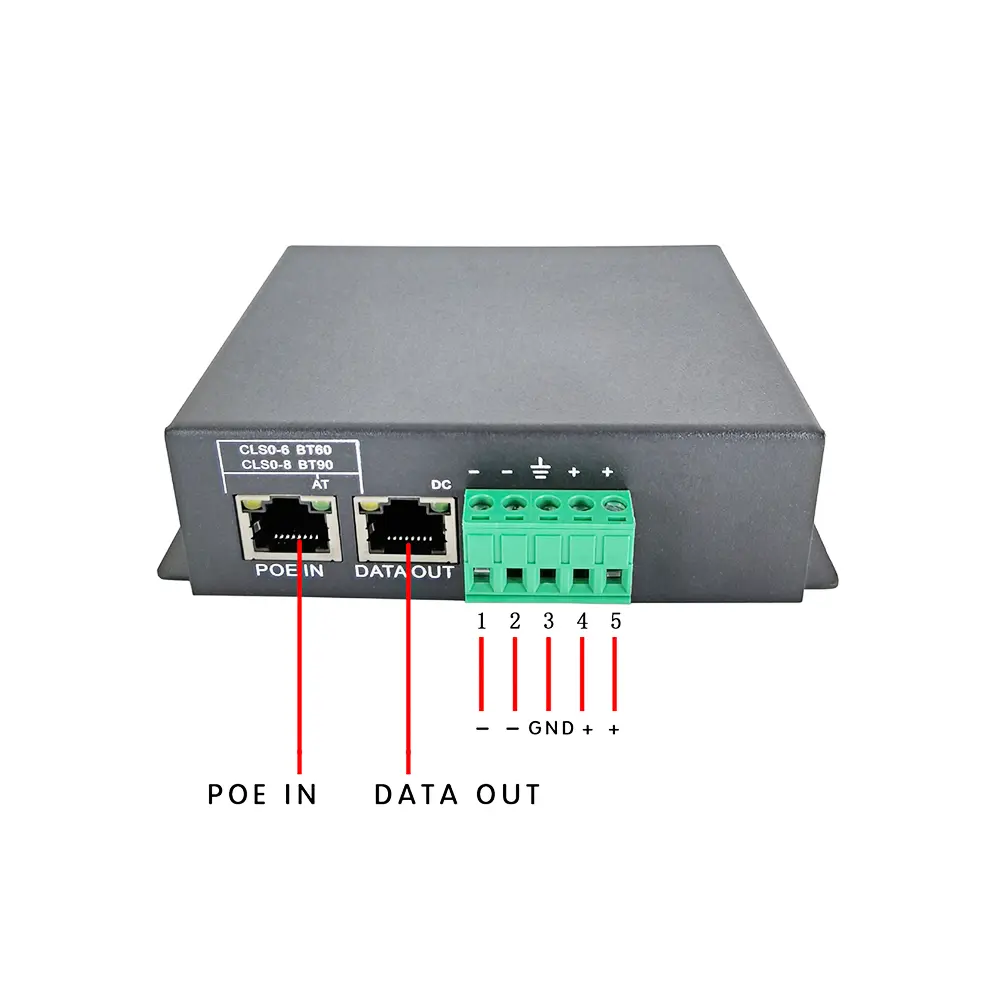

● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Wall mounting, desktop installation and other installation methods
● Pure copper pin connector to ensure safety performance
● High temperature resistant PCB environmental protection material, lead-free environmental protection process
● High temperature resistant flame retardant interface socket, reduce security risks

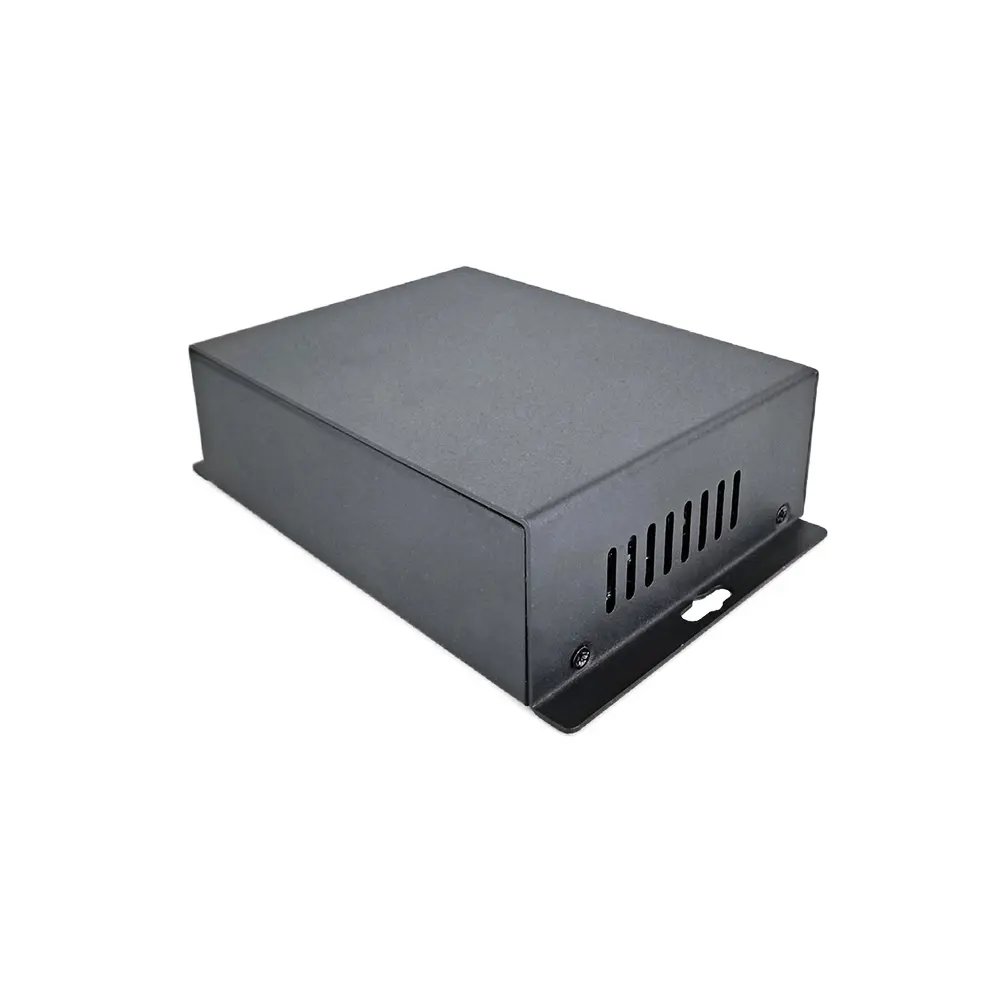

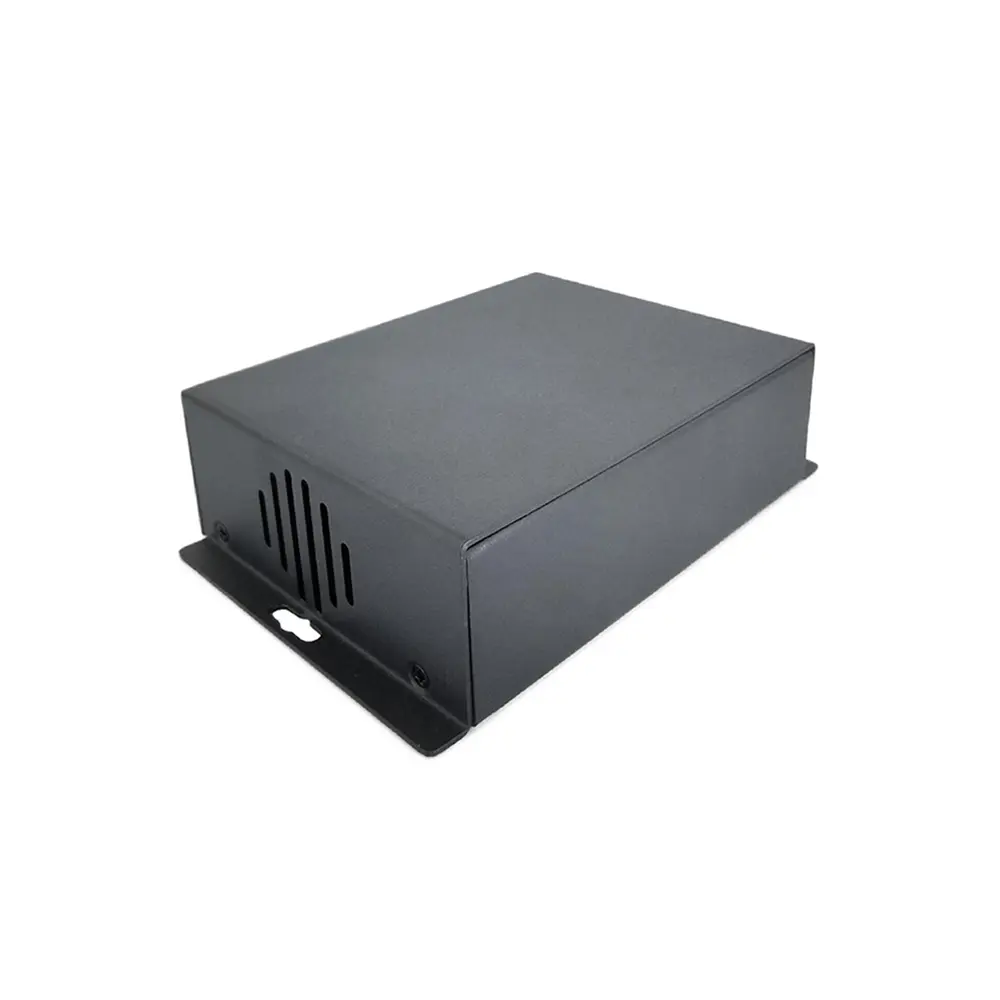

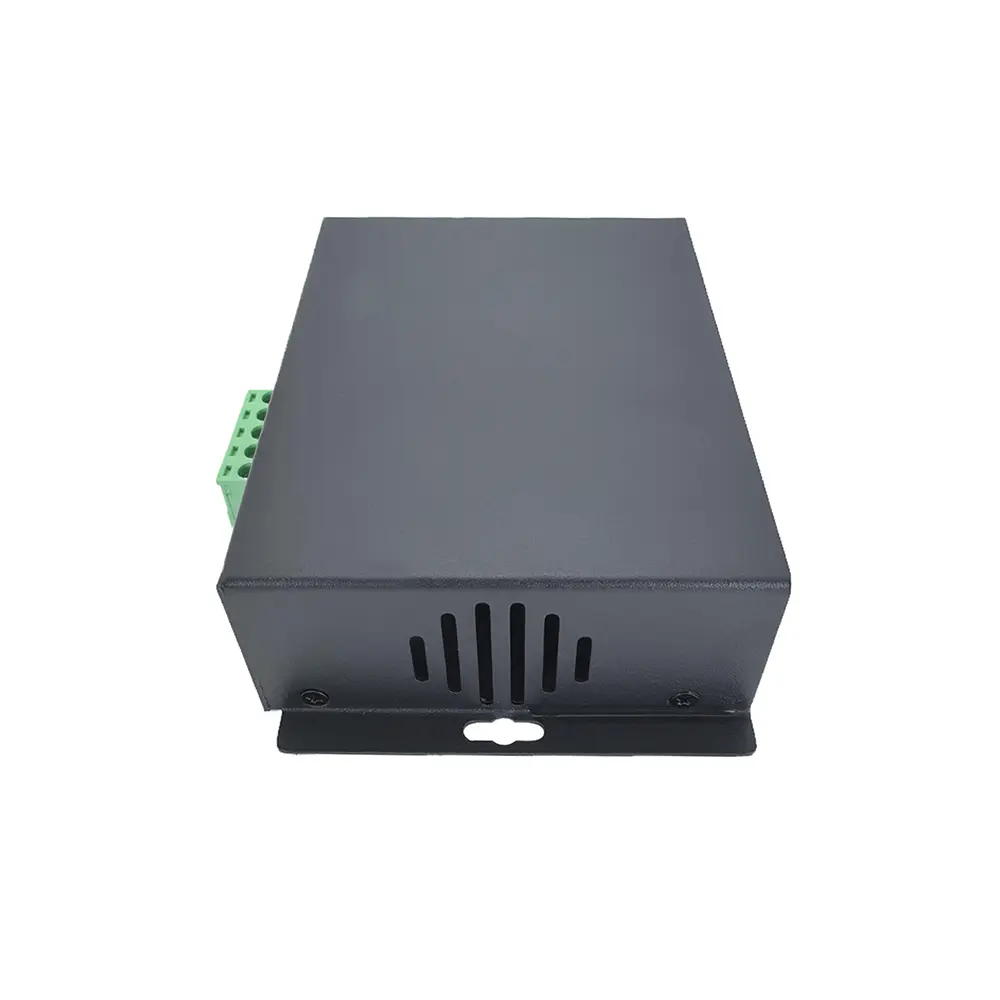

● Hard metal material shell, easy to enhance its installation robustness and heat dissipation
