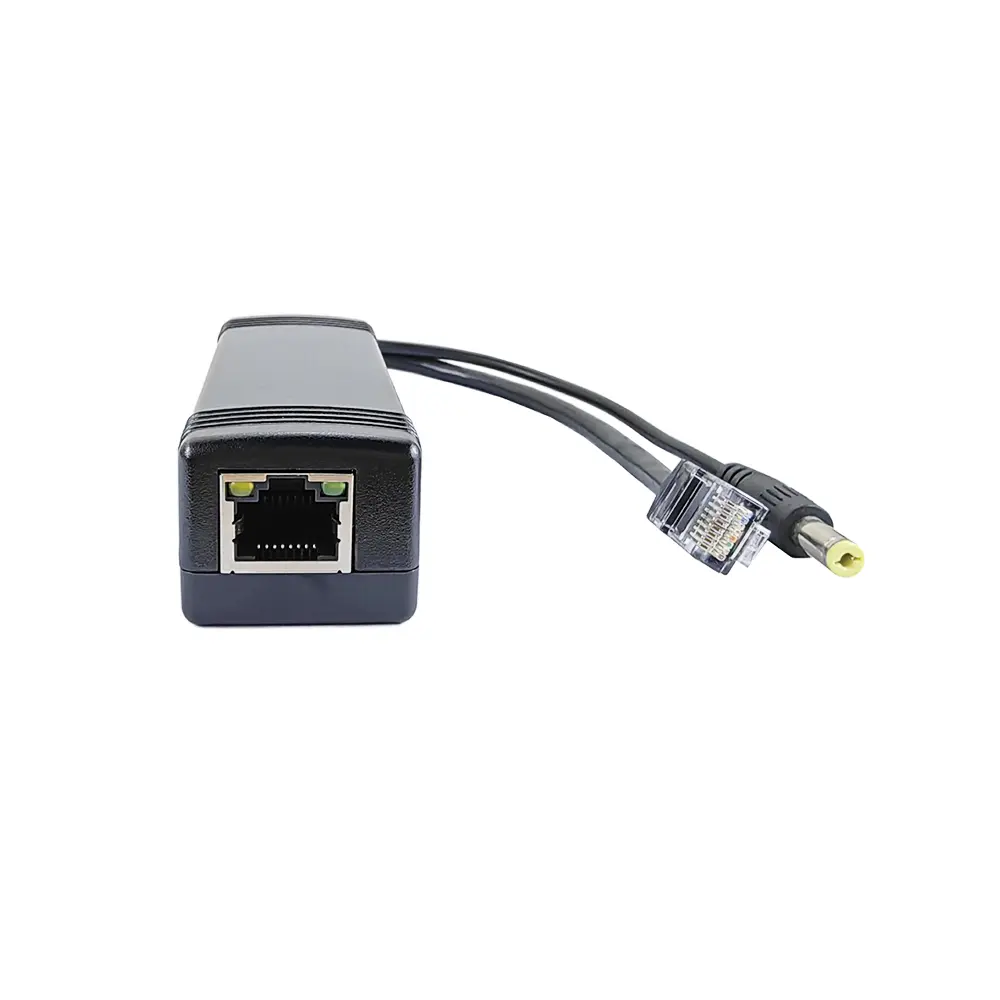

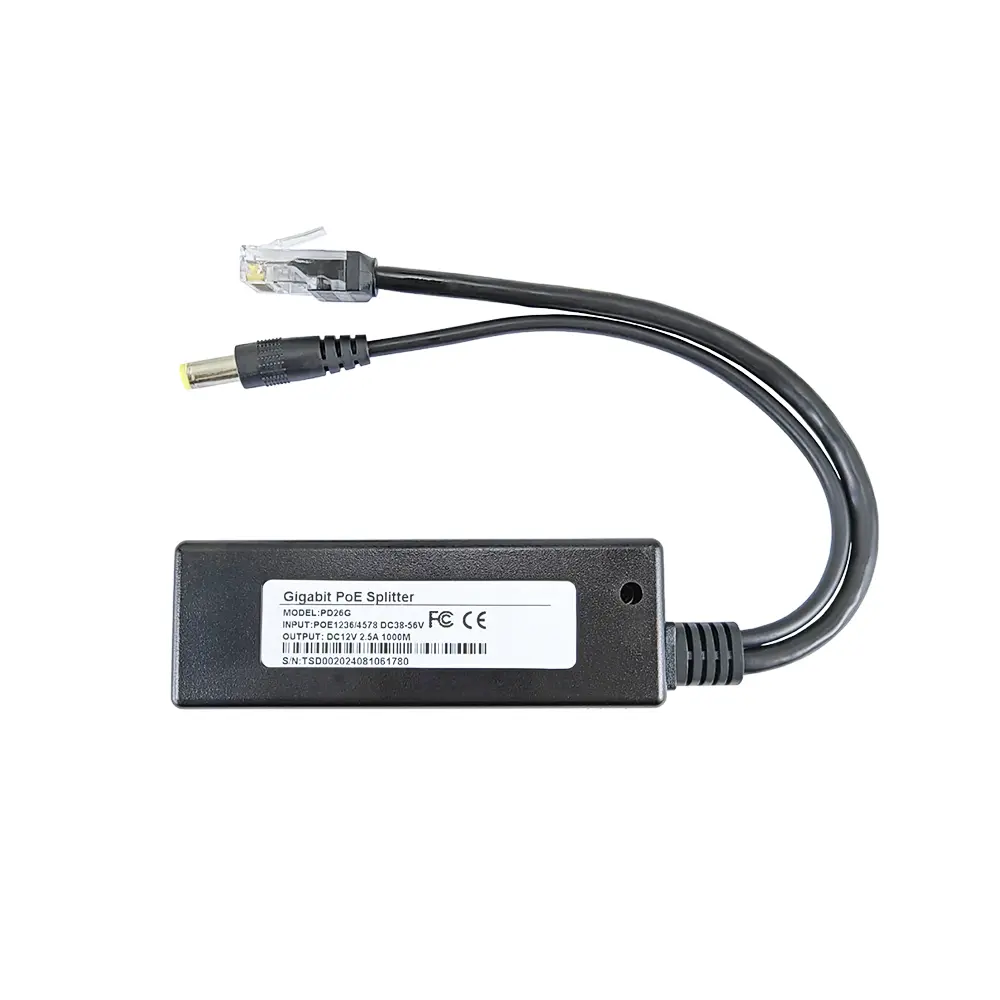

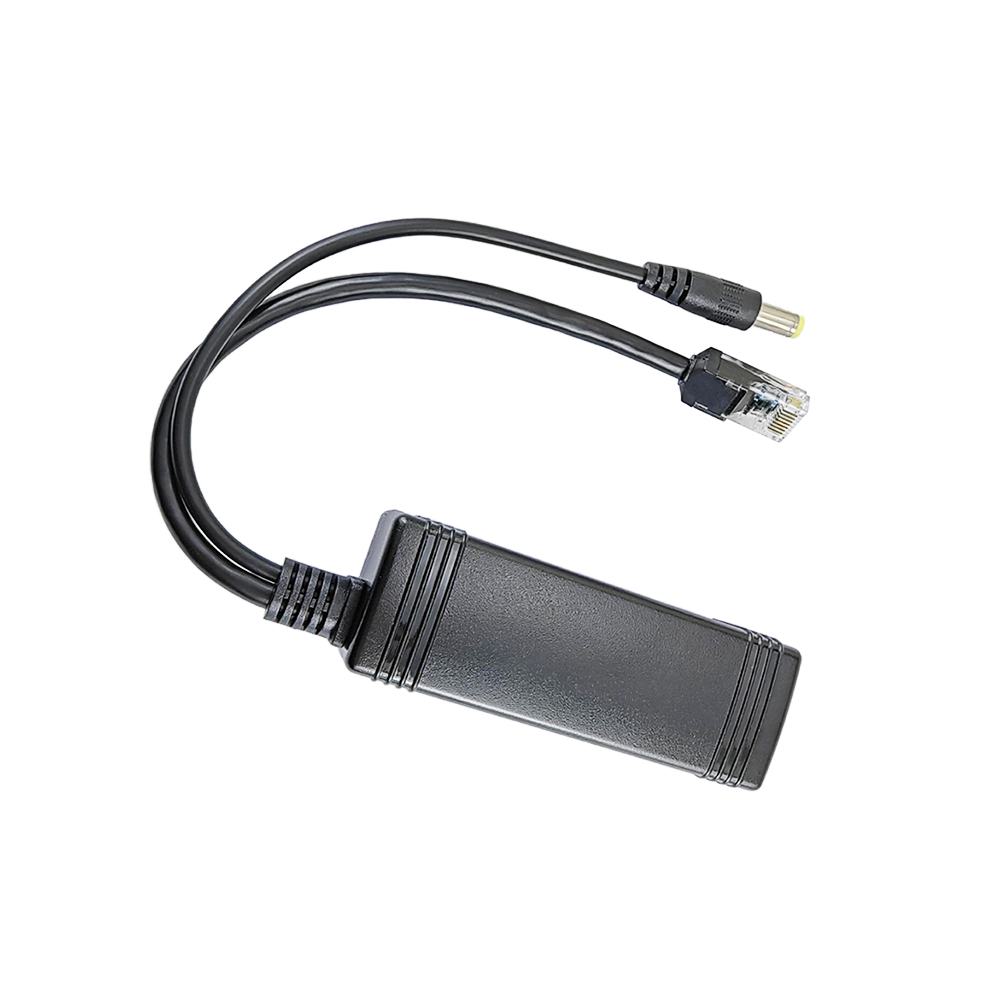

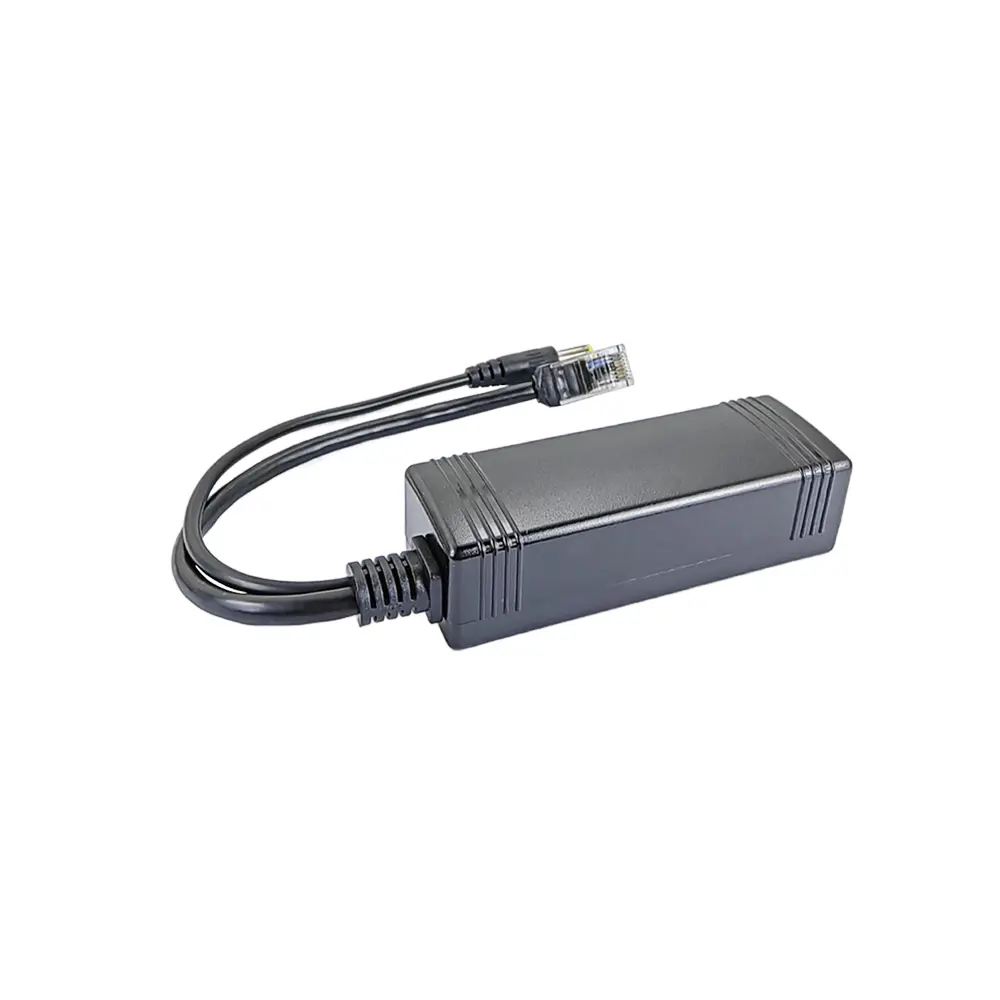

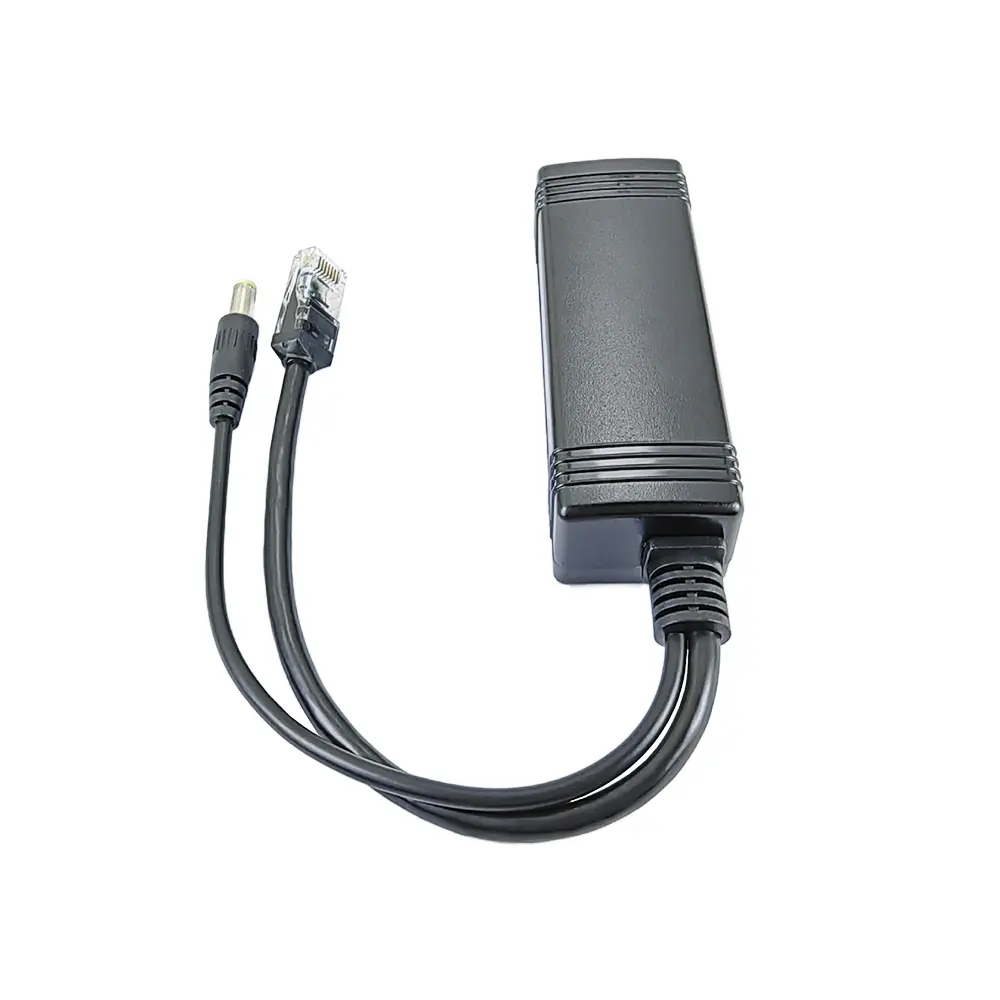

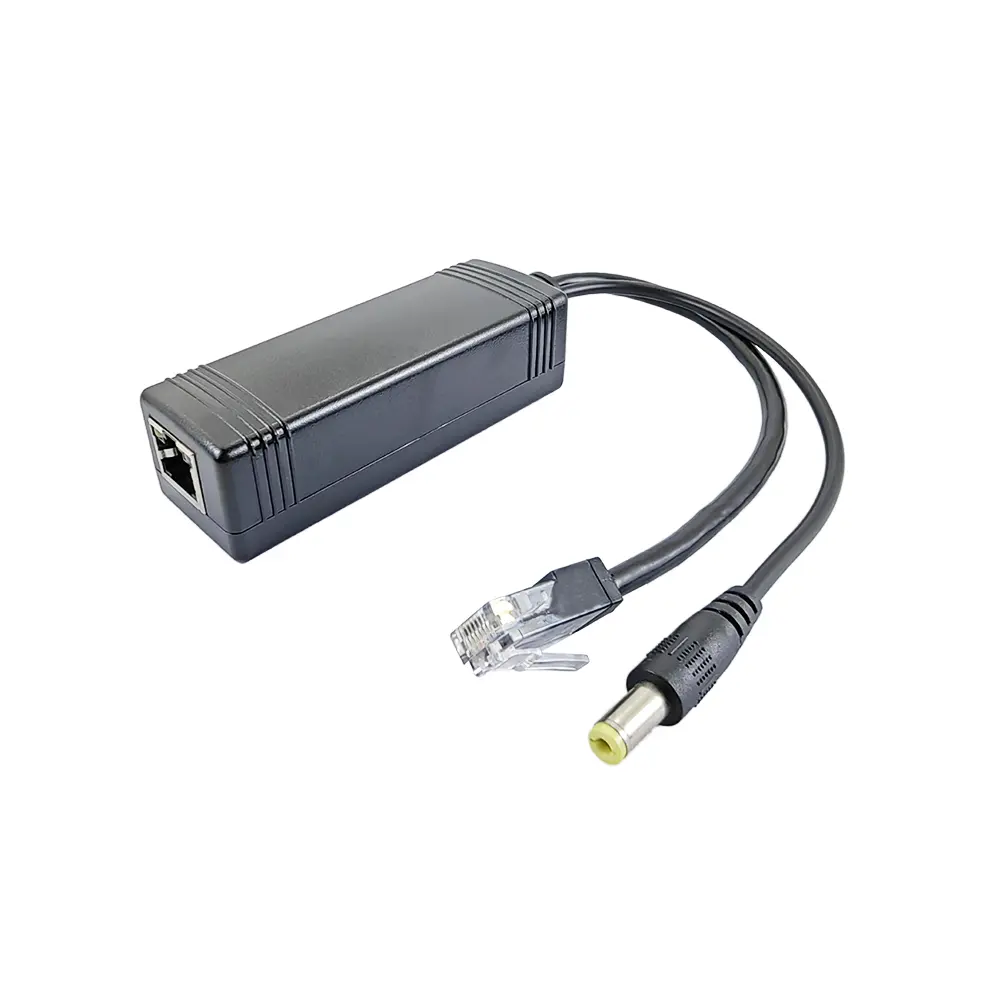

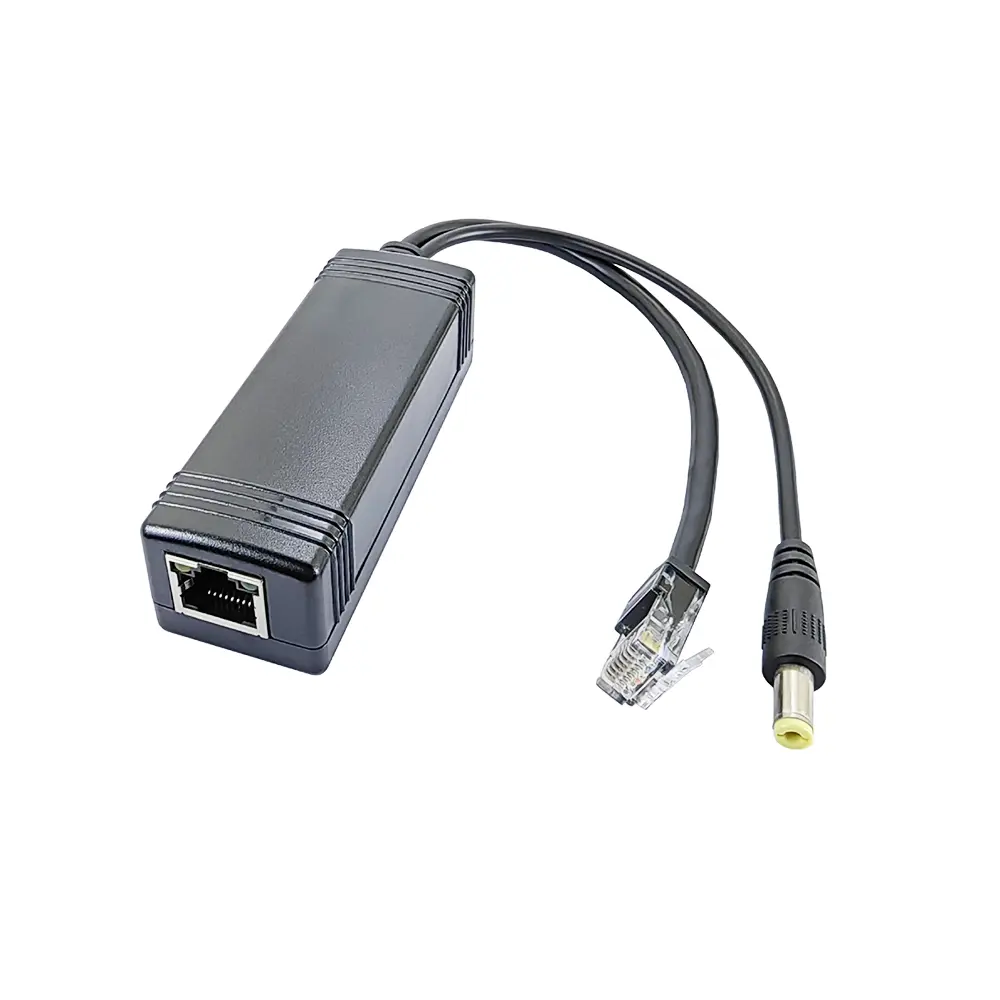

Multi-voltage output 30w high power 2.5G PoE splitter

The PD26-2.5G complies with the IEEE802.3AF/AT PoE standard, offering a maximum output power of 30W (IEEE802.3AT Class 4) and a maximum output power of 15.4W (IEEE802.3AF Class 3). It boasts a 2.5G transmission rate and is compatible with 10M/100M/1000M adaptive transmission. It has an effective transmission distance of up to 100 meters and supports 24/7 uninterrupted operation. It has a wide input voltage range of DC38-56V, and the default output voltage is DC12V; other voltages are optional.

● Input:​​ PoE DC 38-56V
● Output:​​  DC 24V MAX 1A/12V MAX 2.5A / 9V MAX 3A / 5V MAX 4A
● Certifications:​​ CE, FCC, RoHS
● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements

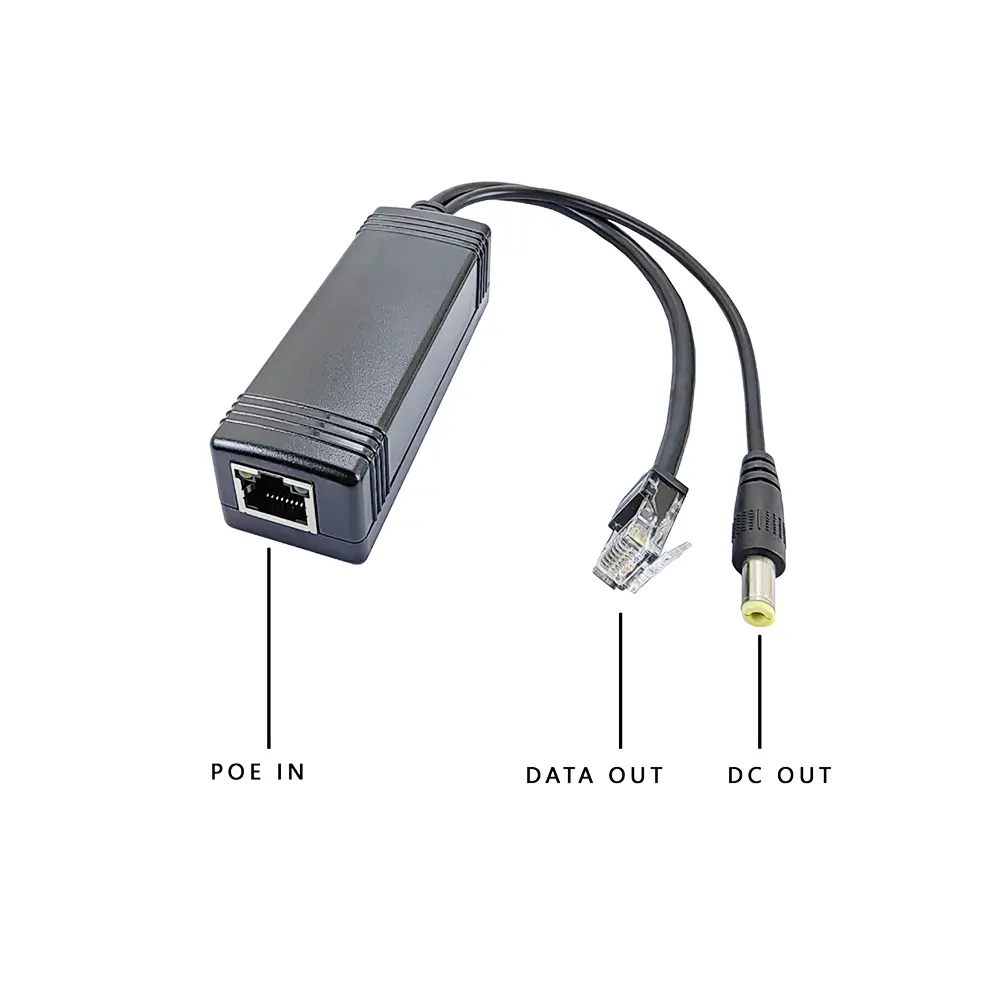

● Port Compatibility:  RJ12+ RJ36-/RJ45+ RJ78- power supply
● Transmission Rate:​​ 10/100/1000Mbps/2.5G auto-negotiation
● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection:​​ 4KV lightning surge resistance
● Conversion Efficiency: ≧90%

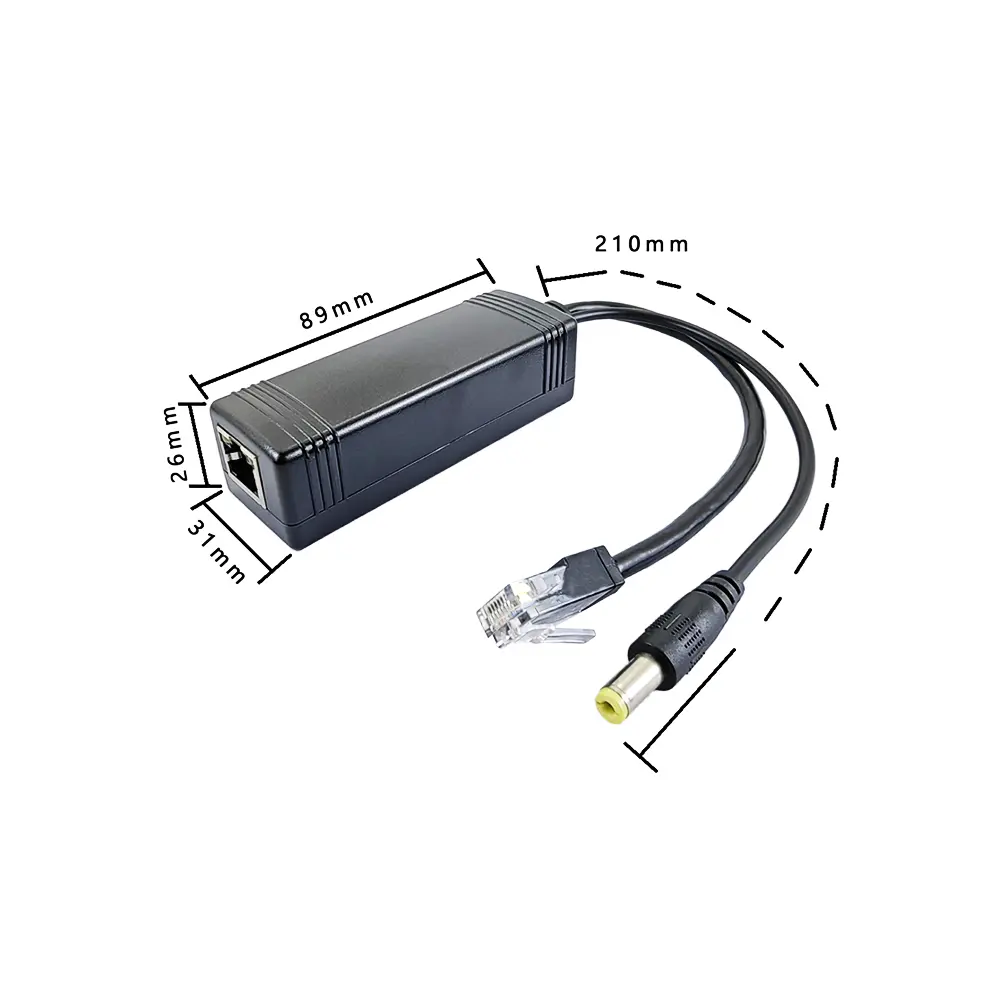

● Small size, less space, easy to install

● High-precision branded electronic components

● High-power, low-impedance transistors for superior conductivity

● Using pure copper pin connectors to avoid poor contact

● High-temperature-resistant, eco-friendly PCB material

● Lead-free manufacturing process

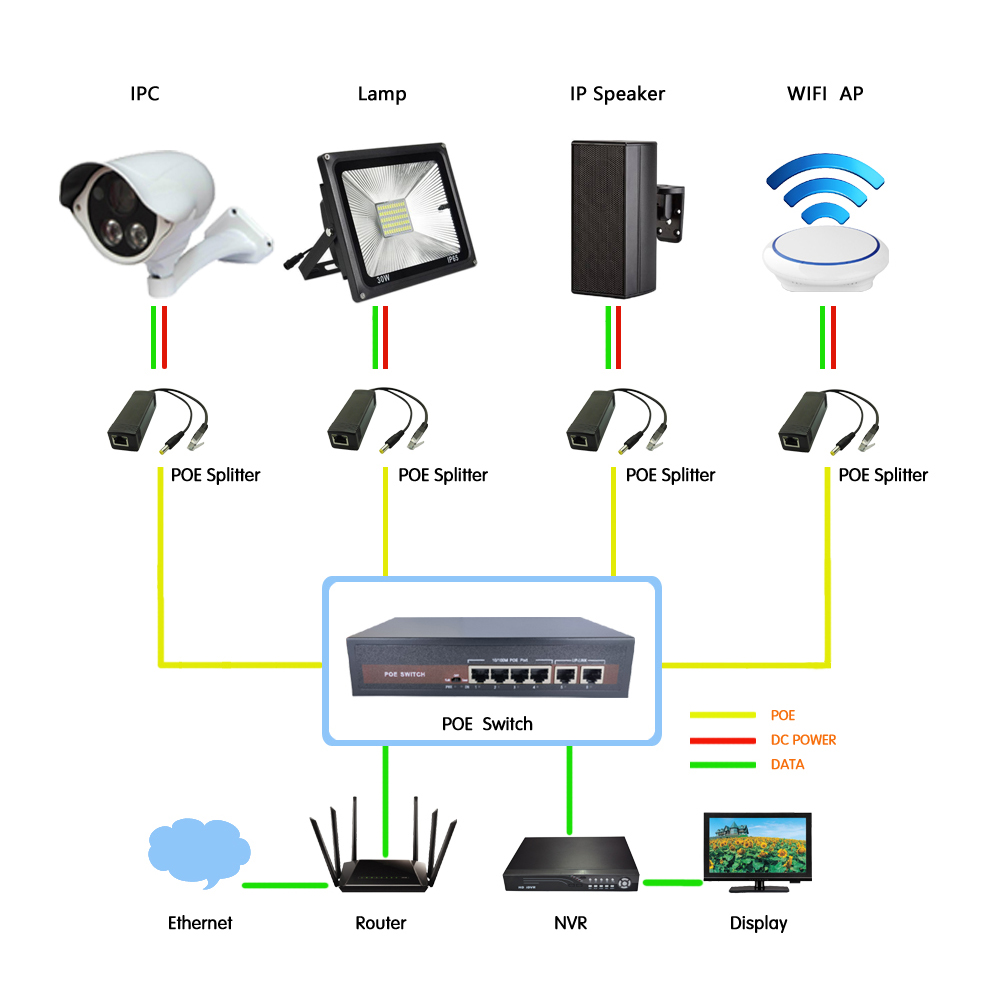

PD26-2.5G is a High-power POE Splitter, specially designed for a variety of non-POE function IP devices, so that IP devices can work normally in POE system and compatible with the original management platform and management software. It is widely used in CCTV, audio broadcasting system, display, lighting, wireless coverage and other industries. The product has been introduced to the market for many years, and has performed well in the field of POE applications, and has been widely favored and praised by global customers.
