Multi-level adjustable voltage Gigabit 30W passive PoE splitter

Model: TSD-PD4820G

  • Input: DC 12-56V passive PoE
  • Output: DC 5V 4A/9V 3A/12V 2.5A
  • Transmission rate: 10/100/1000Mbps
  • Conversion efficiency ≧90%
  • Power supply pins: RJ45+ RJ78-
  • Interface: RJ45 Port/DC plug
  • Size: 89*31*26 mm+21cm(tail cable)
  • Weight: N.W=48 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package
    pd4820g-5
    01

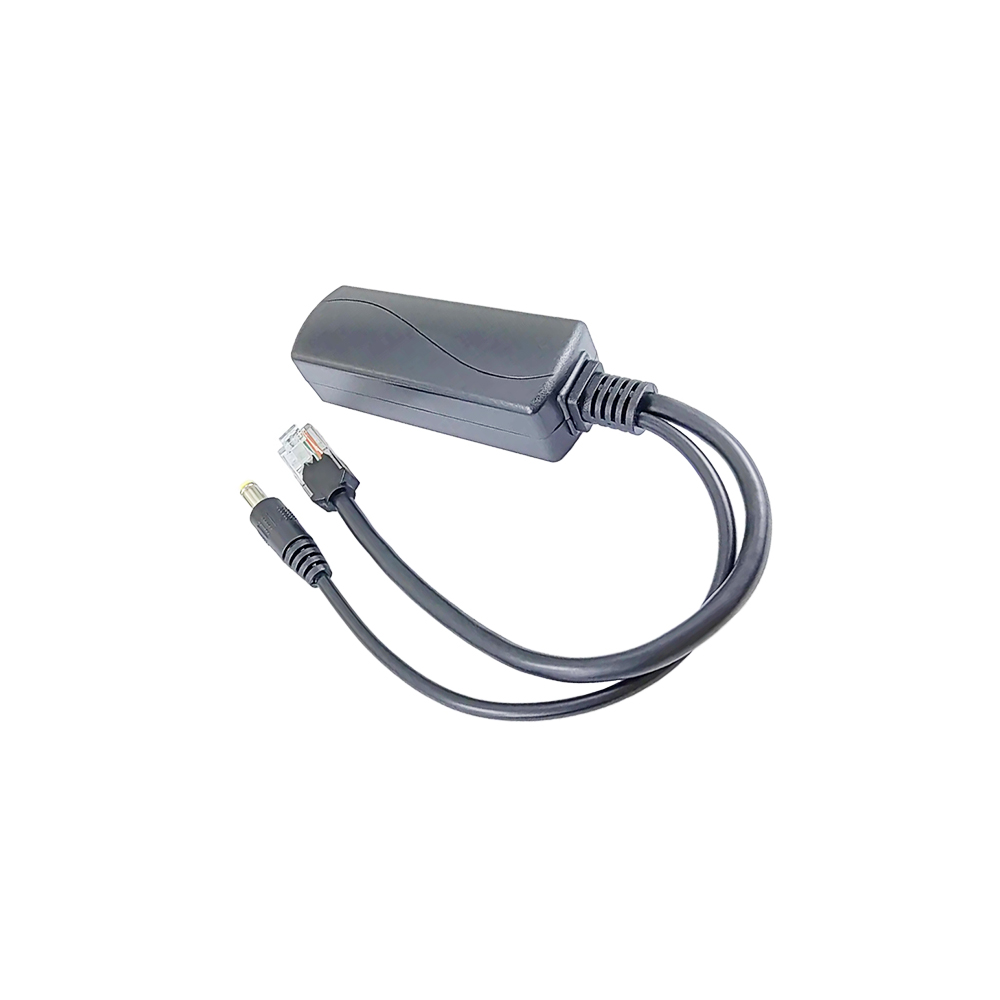

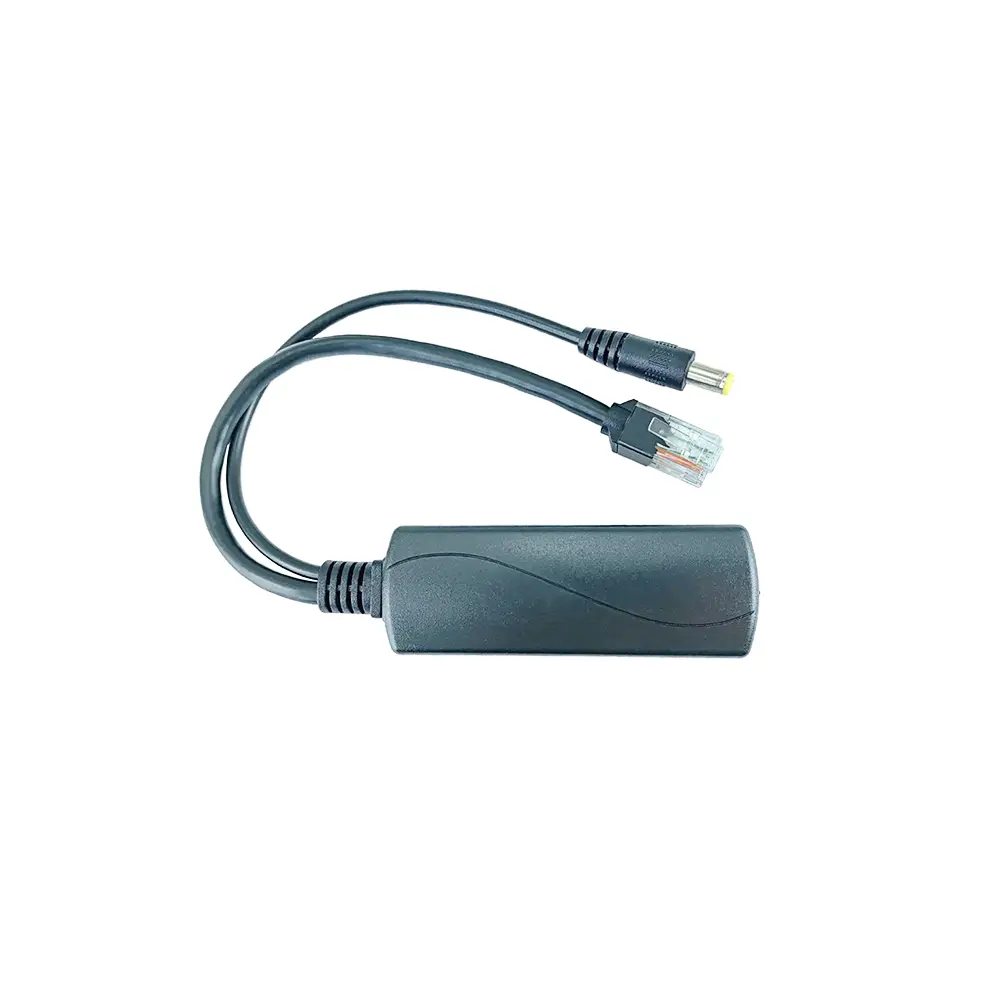

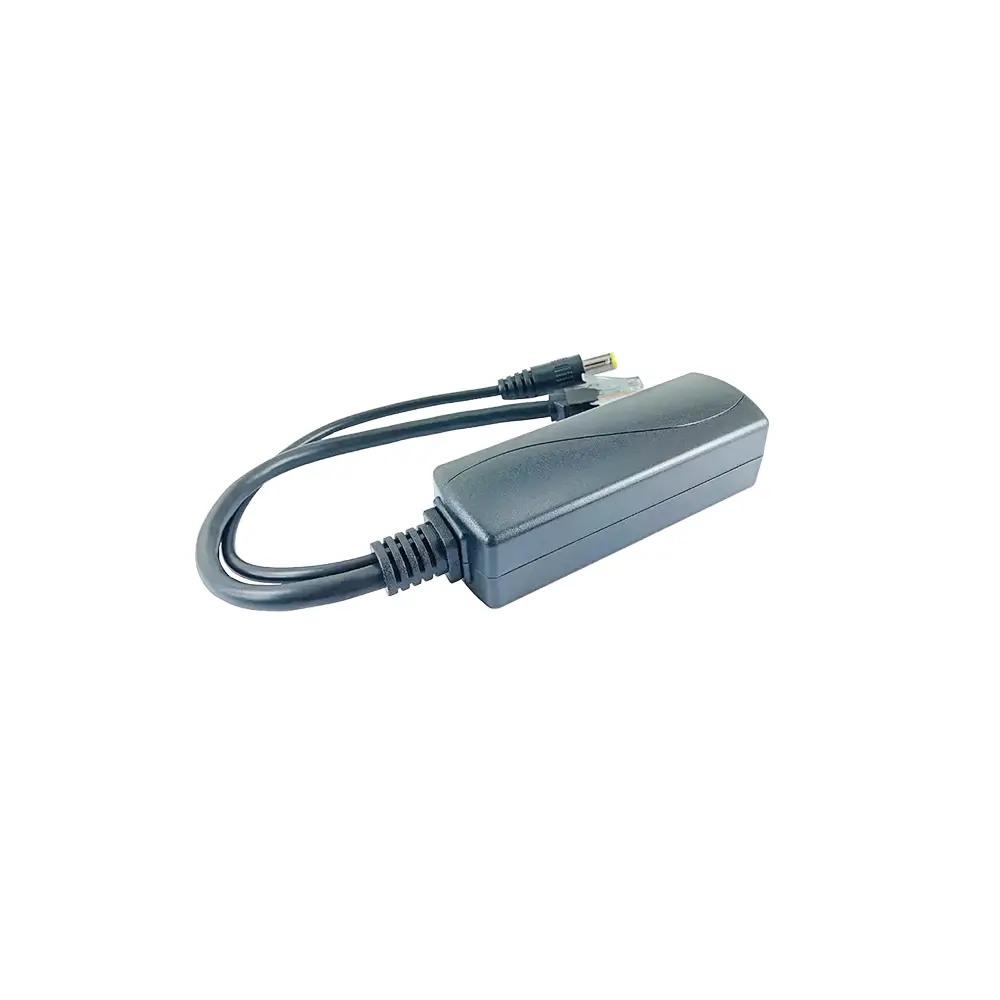

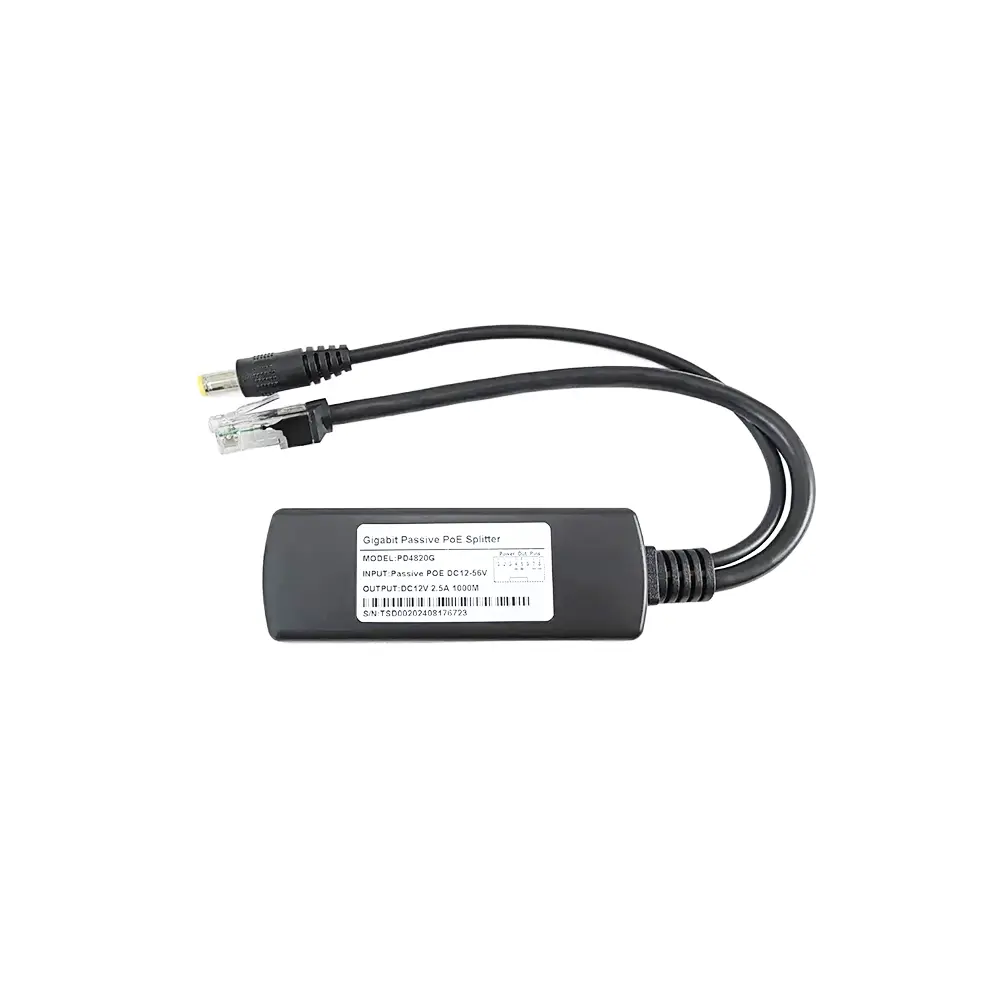

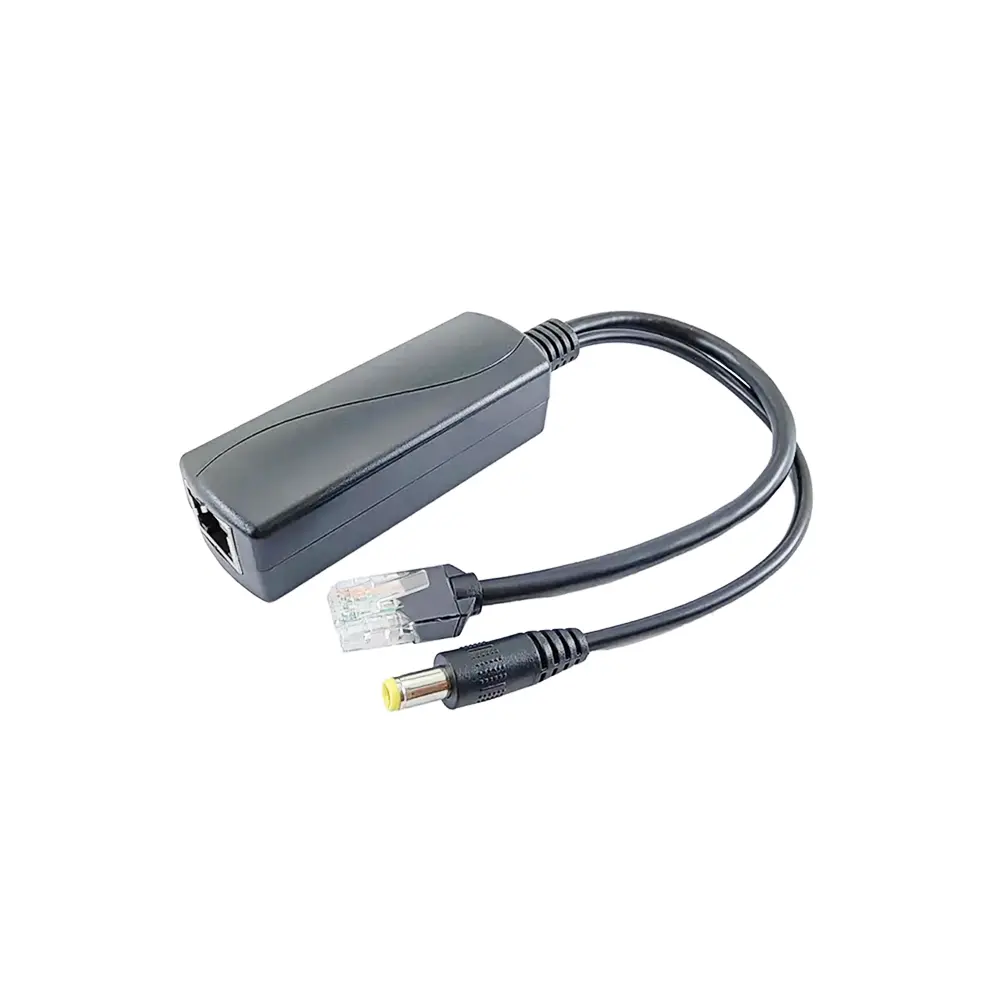

    The PD4820G is a 30W passive PoE splitter. The product does not support the IEEE802.3 international standard PoE protocol, so it can receive inputs from a variety of passive PoE signals, providing user devices with more flexible power supply and data transmission, effectively expanding the scope of use of the equipment.



    The 30W high-power passive POE splitter comes in two models:

    PD4820: 30W high-power 100Mbps passive POE splitter

    PD4820G: 30W high-power 1000Mbps passive POE splitter


    ​

    pd4820g-2
    01

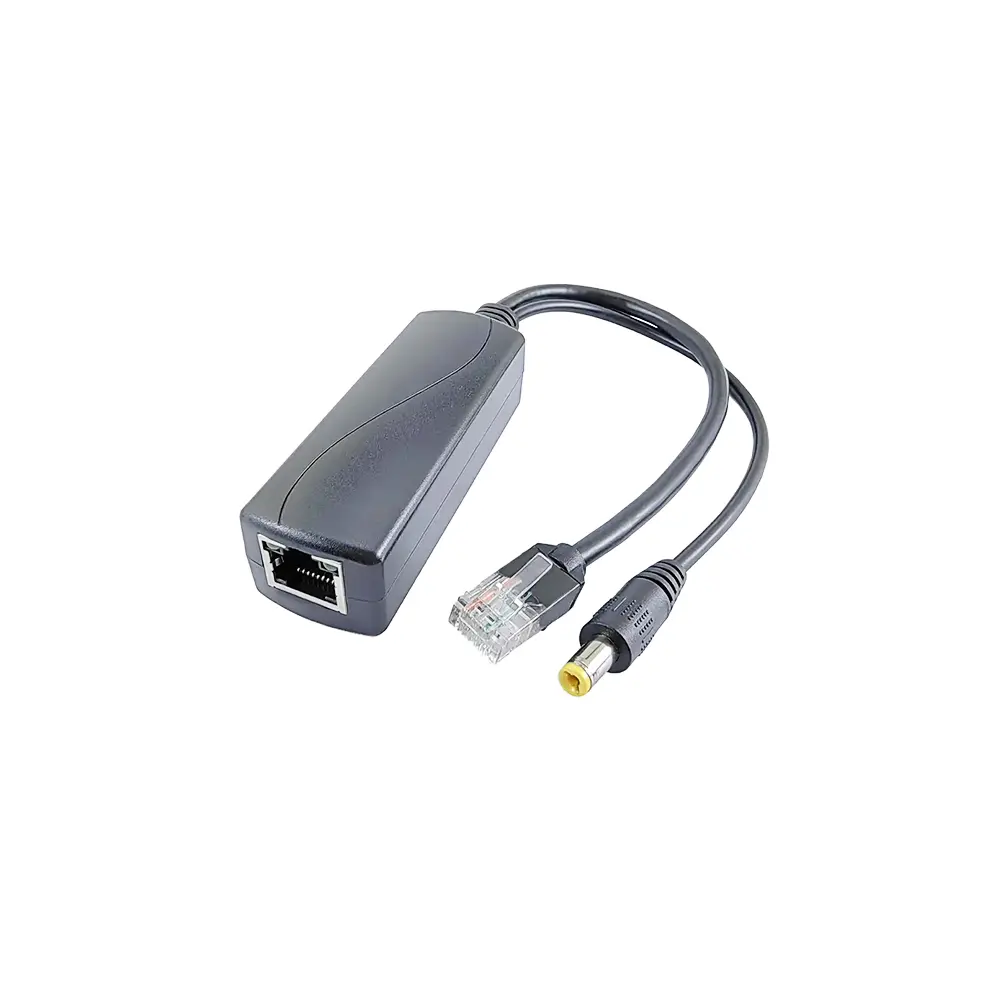

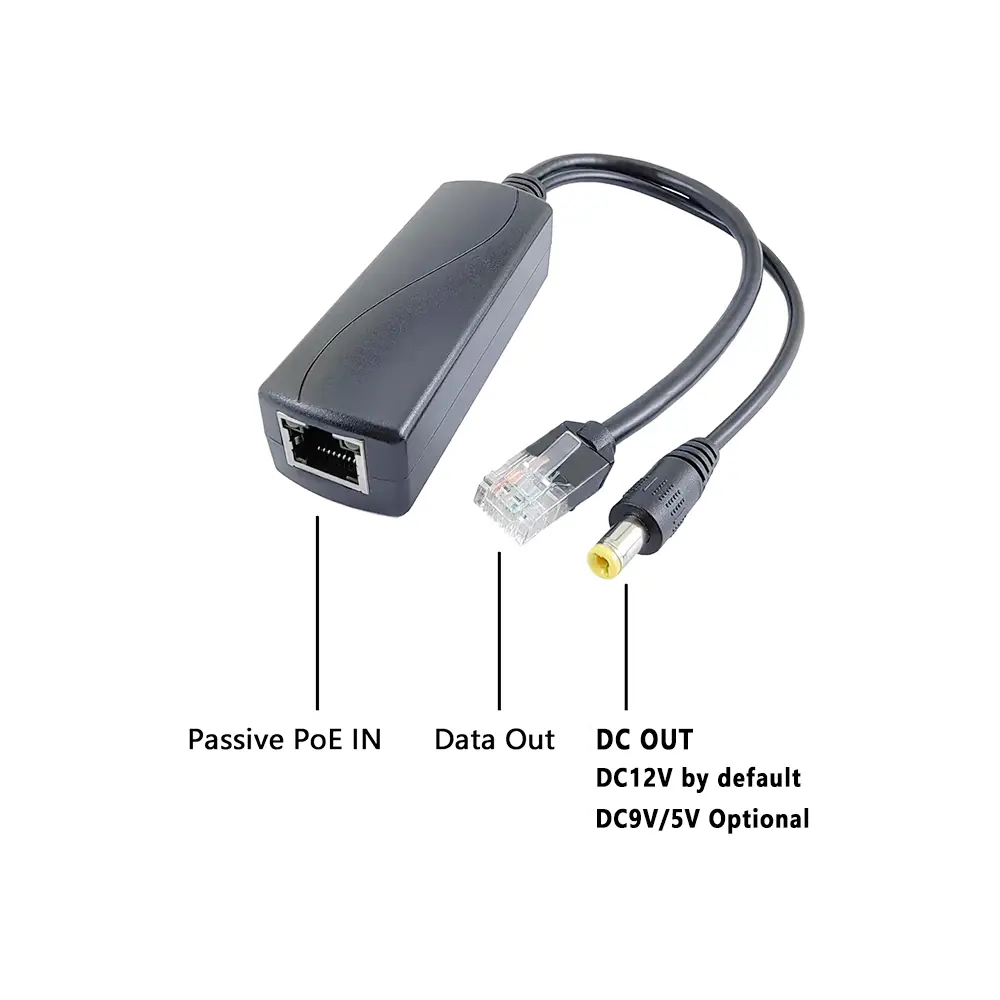

    The interface settings of PD4820G are: RJ45 network port, input non-standard PoE signal, RJ45 crystal head: data output port, 5.5*2.1mm male head, DC output port, output DC12V MAX2.5A / DC9V MAX3.0A / DC5V MAX4.0A three voltages.


    The PD4820G is a passive POE splitter. Its EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards. The product has obtained CE, FCC, RoHS and other certifications. The motherboard adopts a high-speed, low-noise design, and the circuit has lightning protection, short circuit, overload, and high-temperature protection designs. The product is lightweight and flexible, and is sold well in more than 100 countries and regions around the world.

    The PD4820G accepts a passive DC12-56V PoE signal input and outputs three voltage levels: DC12V 2.5A, DC9V 3.0A, and DC5V 4.0A. It supports RJ45 and RJ78 power supply. It boasts a transmission rate of up to 1000Mbps, an effective transmission distance of 30-100 meters, and supports 24/7 uninterrupted operation.



    ● Input:​​ passive PoE DC 12-56V
    ● Output:​​  DC 12V MAX 2.5A / 9V MAX 3A / 5V MAX 4A
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility:  RJ45+ RJ78- power supply
    ● Transmission Rate:​​ 10/100/1000Mbps auto-negotiation
    ● Protection Features:​​ Overheat protection, overload protection, overvoltage protection, short-Circuit protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧90%
    ● Small size, less space, easy to install

    ● High-precision branded electronic components

    ● High-power, low-impedance transistors for superior conductivity

    ● Using pure copper pin connectors to avoid poor contact

    ● High-temperature-resistant, eco-friendly PCB material

    ● Lead-free manufacturing process

    Items

    Specifications

    Product Name

    30W High-power Passive POE Splitter

    Product Model

    PD4820

    PD4820G

    PoE Standard

    /

    Input Voltage

    Passive POE: DC12-56V

    Output

    DC12V MAX2.5A or DC9V MAX3.0A / DC5V MAX4.0A Optional (Other Voltage can be customized)

    Conversion Efficiency

    ≧90%

    PoE Pin

    Only RJ45+ RJ78- is supported

    Conversion Mode

    /

    Data Rate

    10M/100M Adaptive

    10M/100M/1000M Adaptive

    Transmission Distance

    30-100 meters (depending on the voltage of passive poe)

    Surge Protection

    4KV

    Circuit Protection

    Short-circuit Protection Overcurrent Protection
    Overvoltage Protection Overheating Protection

    LED Indicator

    1* Output Power Indicator 1* POE Indicators

    Interface

    RJ45 female: passive PoE input
    RJ45 connector: passive PoE output
    5.5*2.1DC plug: DC 12V 2.5A / 9V 3.0A / 5V 4.0A out

    Material

    ABS plastic material

    Color

    Matte black

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 48g G.W: 58g

    Dimension

    Product Dimension: 89*31*26mm + 210mm (tail cable) Packing Dimension: 185mm*46mm*31mm

    Package

    White Carton or Plastic Bag

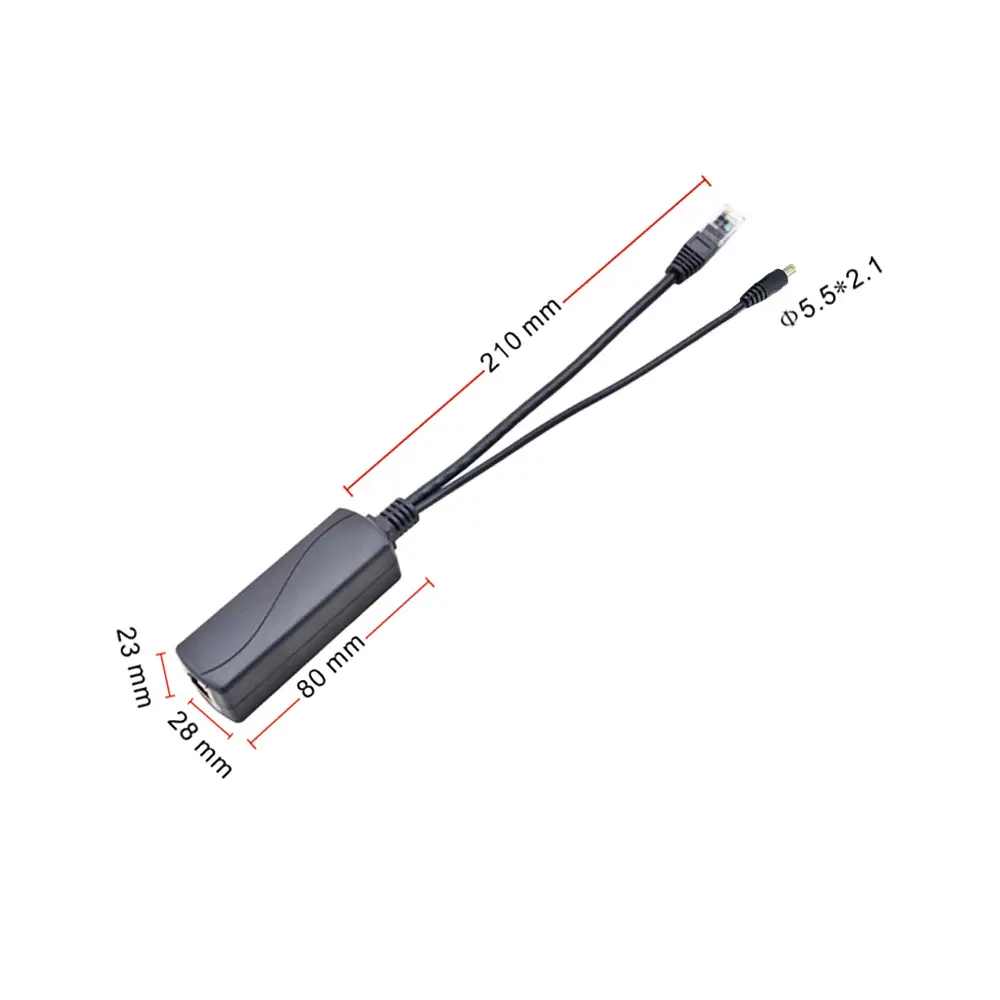

    The PD4820G's dimensions are 89*31*26mm (L*W*H) + 210mm (pipeline), making it easy to connect. The housing is made of environmentally friendly, heat-resistant ABS plastic. The default DC connector is a 5.5*2.1mm male connector; other sizes (5.5*2.5mm, 4.0*1.7mm, or 3.5*1.35mm) are available. The RJ45 connector uses an 8-pin, high-quality, pure copper connector to ensure stable and efficient data transmission.
    pd4820g-dimension

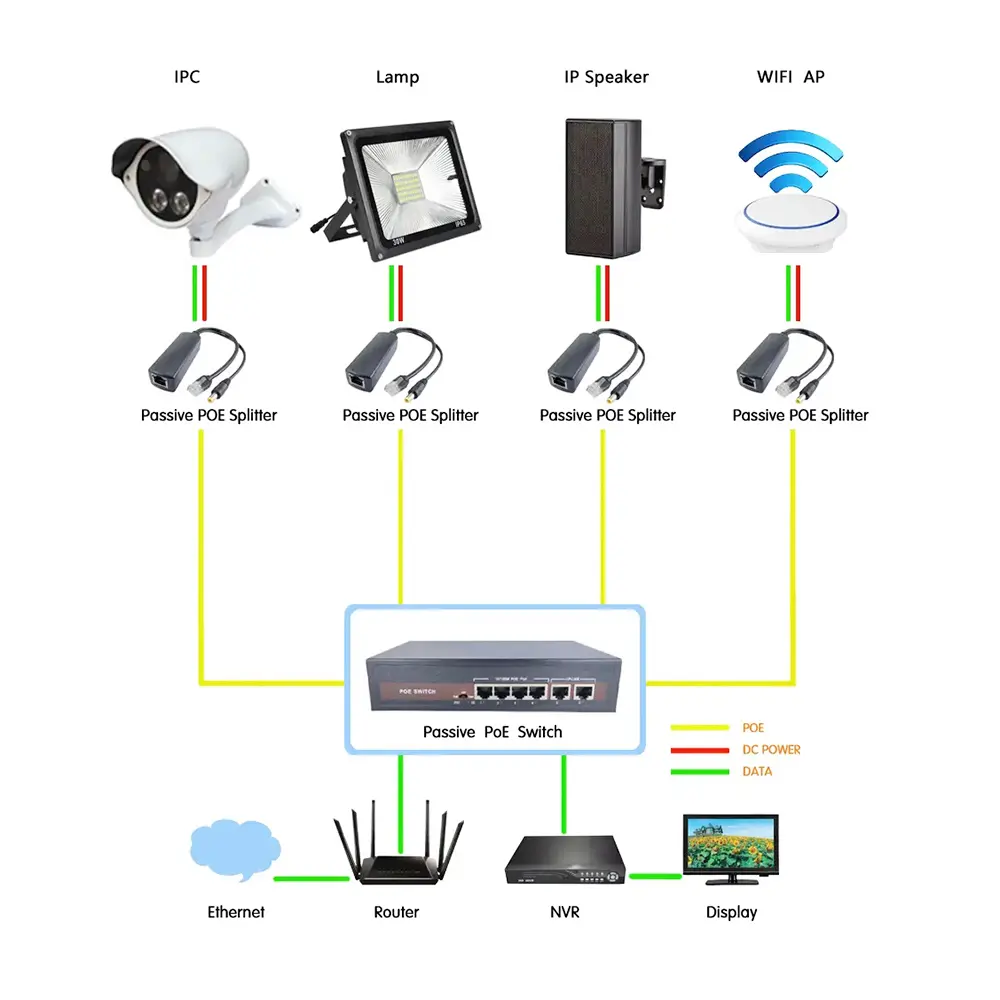

    The PD4820G is a high-power passive POE splitter designed for passive PSE devices such as passive POE power supplies, passive POE combiners, passive POE switches, and passive POE midspans. The PD4820G receives 12-56V passive POE signals from passive PSE devices, splits them, and outputs a DC12V current signal and a network signal for IP devices.

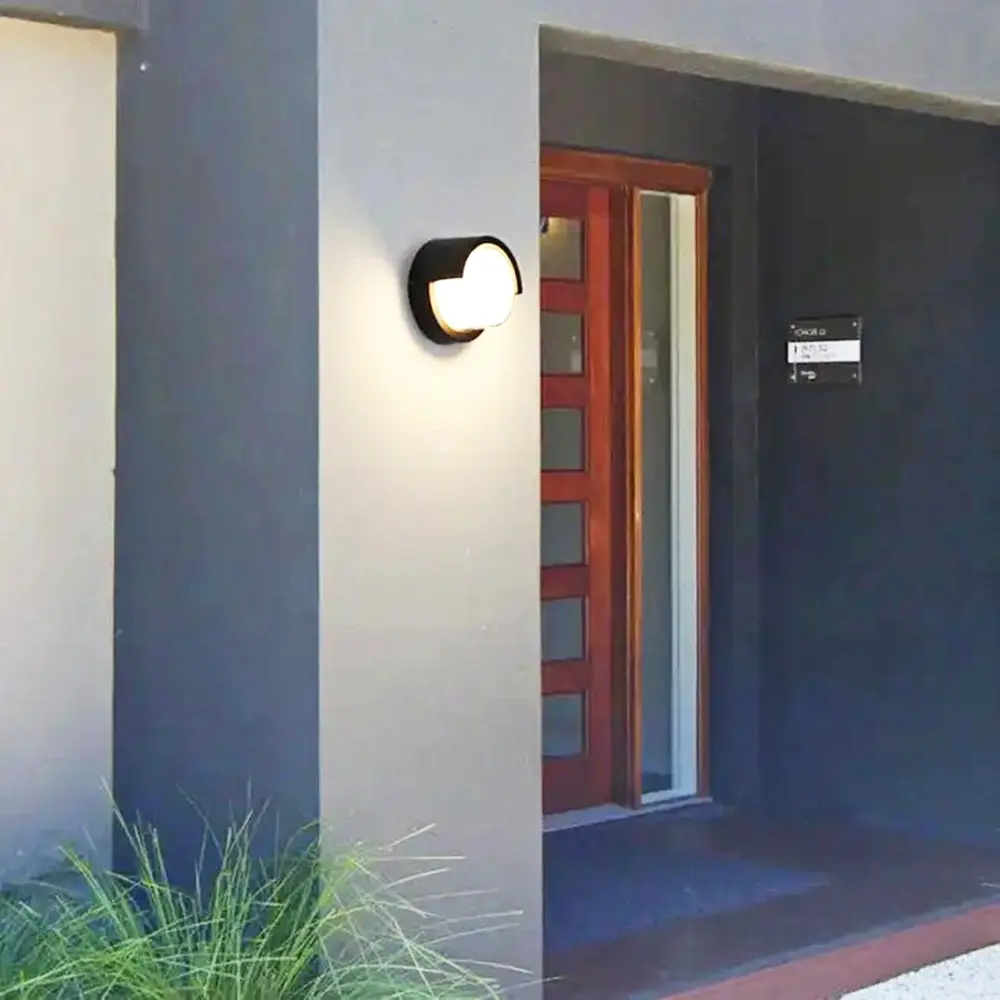

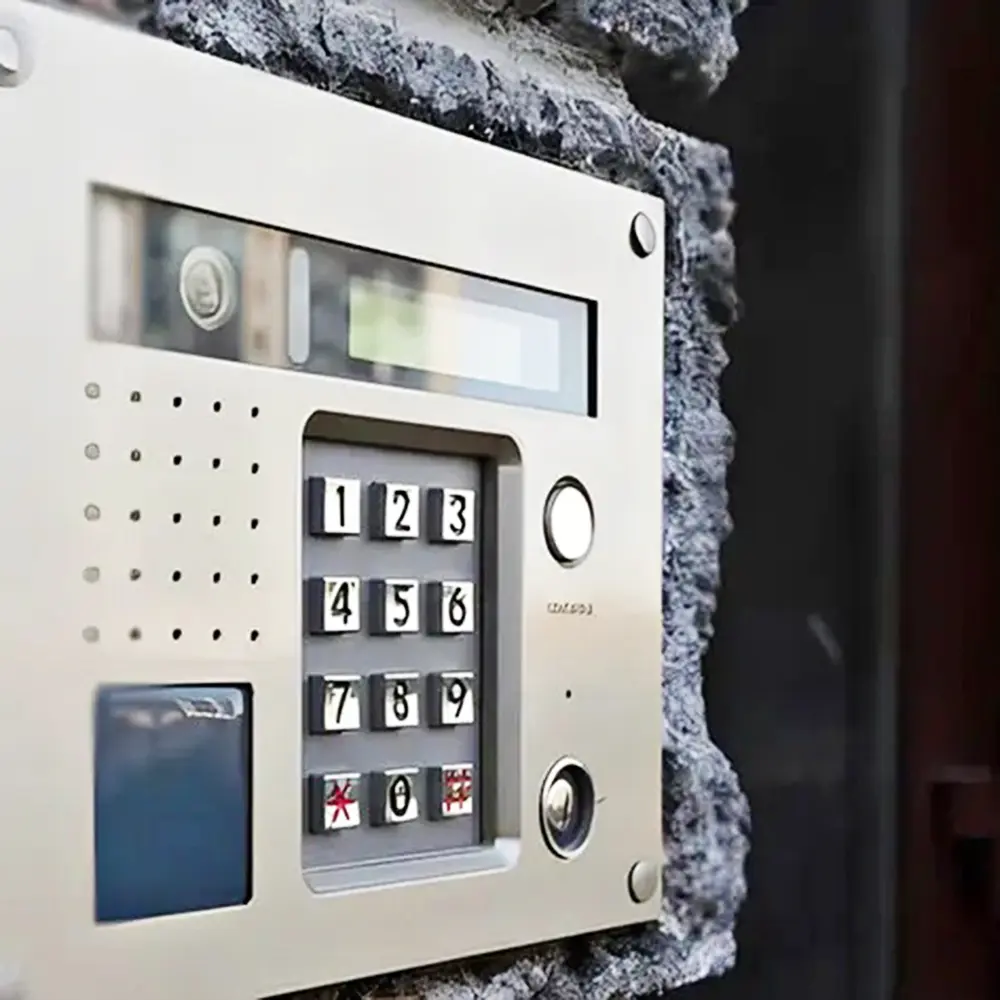

    The PD4820G is widely used in industries such as CCTV, building intercoms, access control systems, lighting, and wireless coverage. This product has been on the market for many years and has performed exceptionally well in passive POE applications, earning widespread recognition and acclaim from customers worldwide.

    pd4820g-topology
    pd4820g-application03
    pd4820g-application02
    pd4820g-application01

    Package list
    Items Quantity
    PoE Splitter: TSD-PD4820G 1 PCS
