95W Super-power Gigabit PoE Injector

Model: TSD-PSE50G/9501G

Input: AC 90~240V 50/60HZ
Output: DC 52V 1.25A/1.85A and Data
PoE protocol: IEEE802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+RJ36-/RJ45+RJ78- Fully compatible
Interface: RJ45 port/Triangular Connector
Size: 172 *61 *31mm
Weight: N.W=240 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

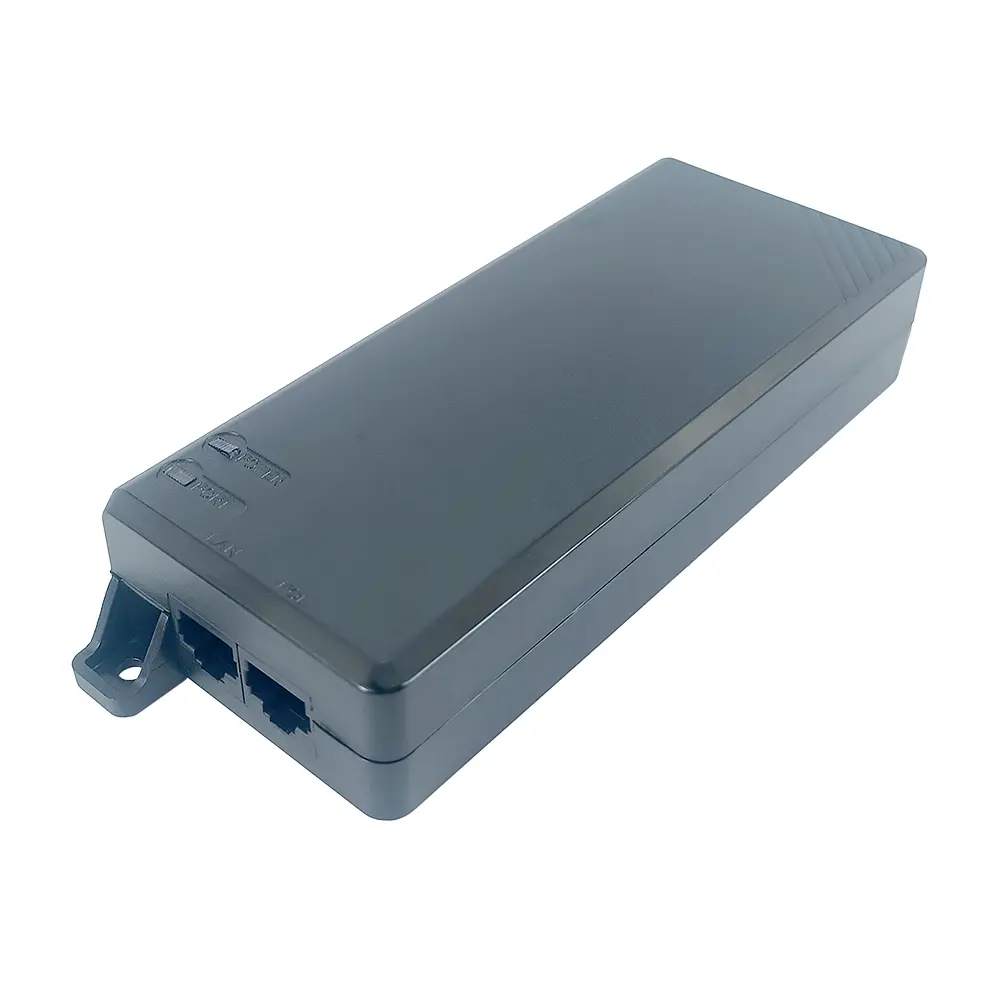

TSD-PSE9501G injector conforms to IEEE802.3af/at/bt PoE protocol, which is a super-power injector for high-power PoE receiving equipment. The maximum output power is 95W, and the transmission rate is up to gigabit. It can efficiently and stably transmit network data to provide data transmission and power supply for the receiving equipment.

There are tow models in the injector series:
TSD-PSE50G: output DC 52V 1.25A 60W;
TSD-PSE9501G: output DC 52V 1.85A 95W.

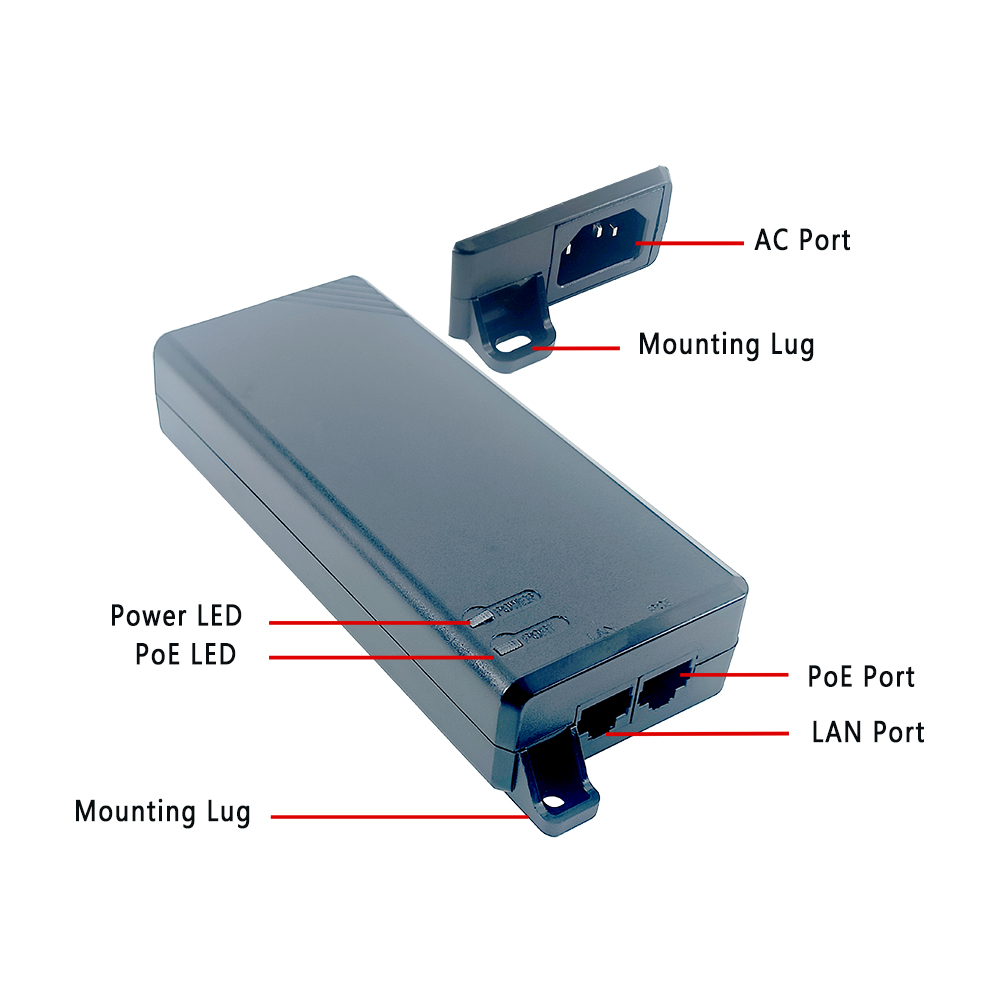

TSD-PSE9501G has a power input port: input alternating current through the power wire; One POE port: output 52V 1.85A DC and data signal; A LAN port: Connect to other devices for data exchange.

TSD-PSE9501G supports IEEE802.3af/at/bt PoE protocol, and its EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standard. The products have obtained CE, FCC, RoHS certification. The use of TSD-PSE9501G injector can simplify the installation of equipment in complex scenarios and effectively improve the flexibility of network wiring.

TSD-PSE9501G injector input AC 90~240V 50/60HZ. Output 52V 1.85A DC (other voltage can be customized according to customer requirements), the maximum output power 95W. Power supply mode: RJ12+RJ36-, RJ45+RJ78- Full power supply. Transmission rate: 10 /100 /1000M adaptive. TSD-PSE9501G has functions such as overheat protection, overvoltage protection, overcurrent protection, and short circuit protection.

● Input: AC 90~240V 50/60HZ
● Output: DC 52V 1.25A/1.85A + Data
● Certifications: CE, FCC, RoHS
● EMC Standards: meets IEC 61000-4-2/3/4/5/6 requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- fully compatible
● Transmission Rate: 10/100/1000Mbps auto-negotiation
● Protection Features: overheat protection, short circuit protection, overvoltage protection, overload protection, electric shock protection, leakage protection
● Surge Protection: 4KV lightning surge resistance

● Triangular connector socket

● Gigabit high power network filter
● Original electronic components from international famous brands, with high precision and high performance

● High-power, high-conductivity and low-impedance transistors, featuring excellent reliability and temperature resistance

● Environmentally friendly and high-temperature resistant PCB material

● Pure copper pin connectors to ensure stable contact

Product parameter table
Product Name	Super-power Gigabit PoE Injector
Product Model	TSD-PSE50G	TSD-PSE9501G
PoE Standard	IEEE802.3af/at/bt
Input Voltage	AC90~240V50/60HZ
Output	DC 52V 1.25A 60W	DC 52V 1.85A 95W
Conversion Efficiency	≧85%
PoE Pin	PoE: RJ12+RJ36-/RJ45+RJ78- Fully compatible
Conversion Mode	Isolated
Data Rate	10/100/1000Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Overheat protection, overvoltage protection Overcurrent protection, short circuit protection Electric shock protection, leakage protection
LED Indicator	PoE LED, PWR LED

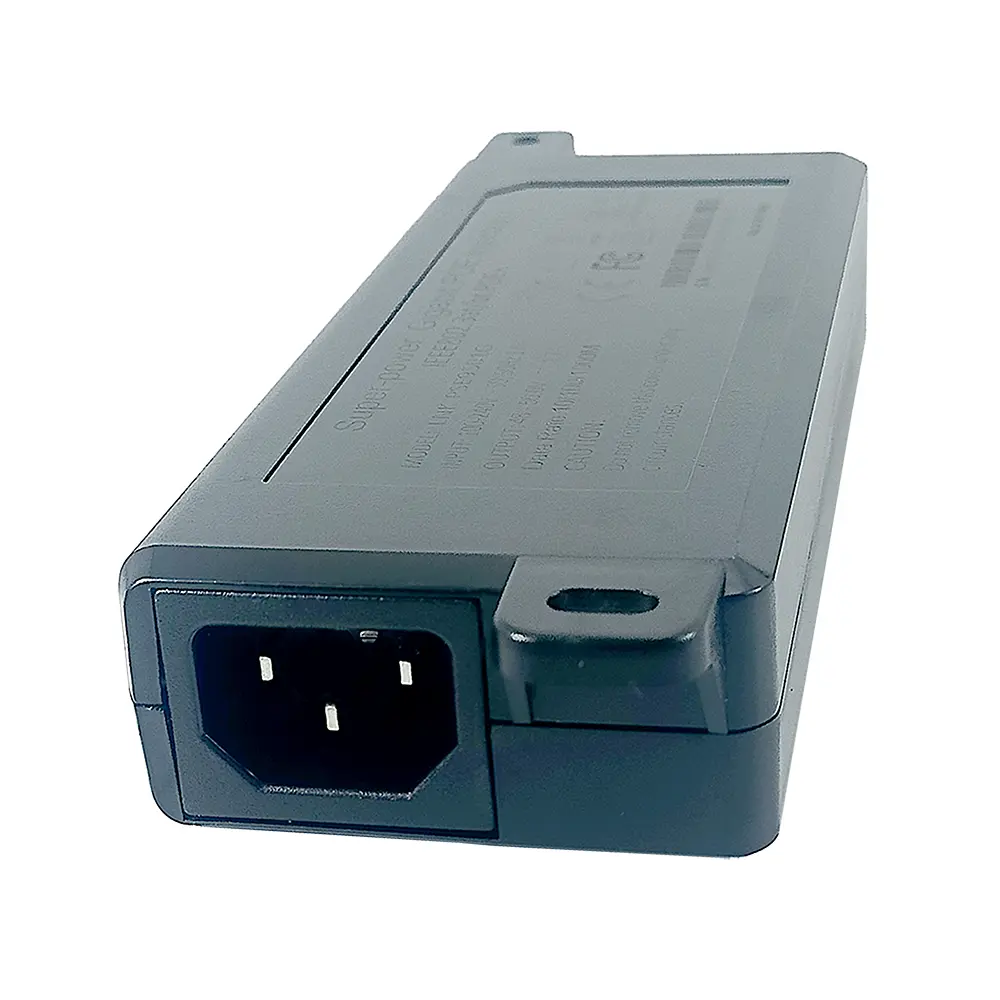

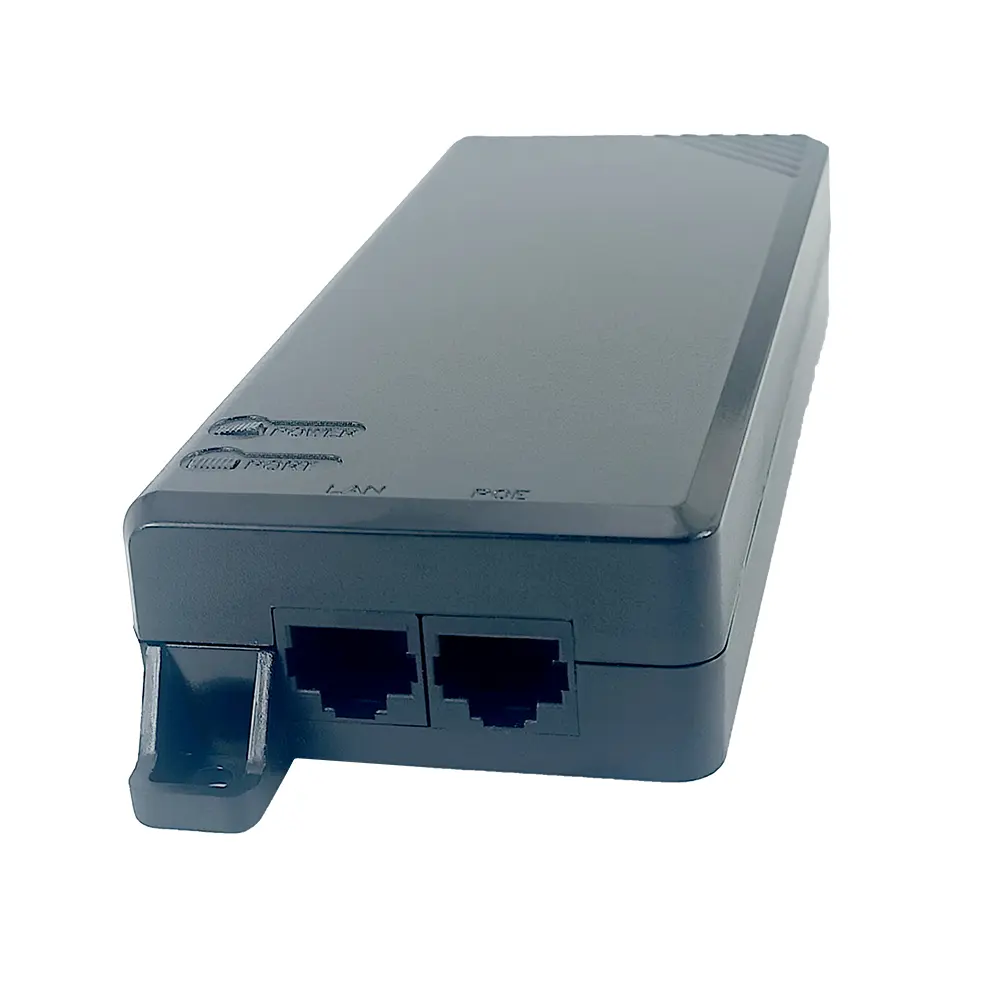

Interface	INPUT Port (Triangular Connector) : AC IN PoE Port ( RJ45Jack) : PoE OUT LAN Port ( RJ45Jack) : Data
Function	/
Material	Sustainable ABS with thermal stability material
Color	Matte black
Accessories	1 m (10A 250V) power wire, user manual
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W：240 g
Dimension	172 61 31mm (LWH)
Package	Cartons (215 131 61mm)

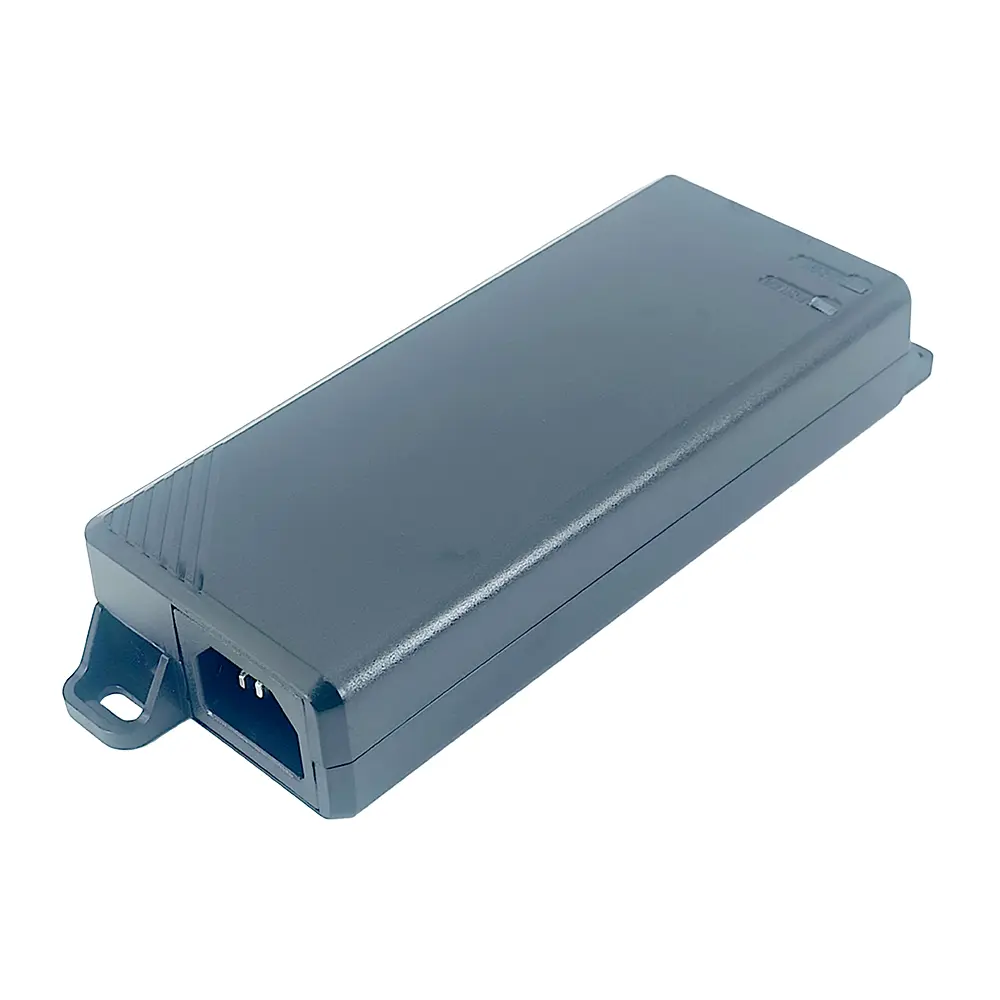

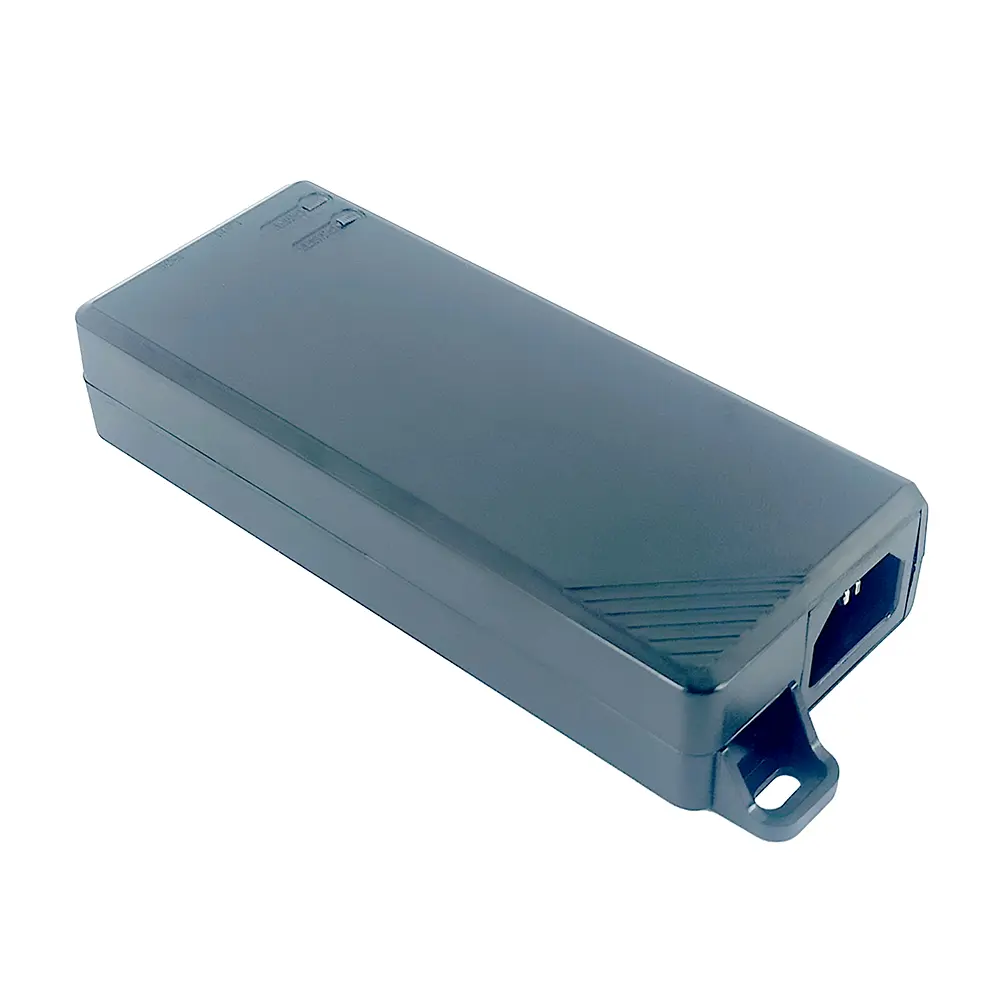

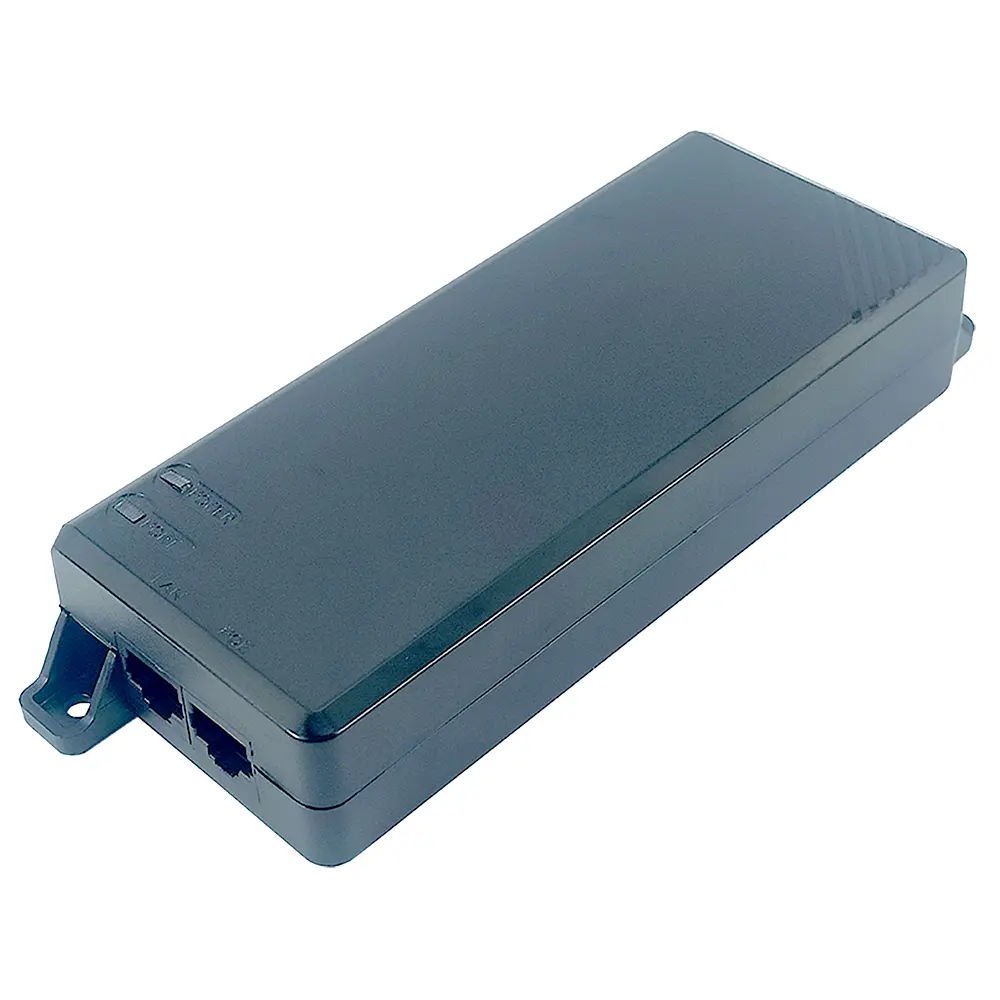

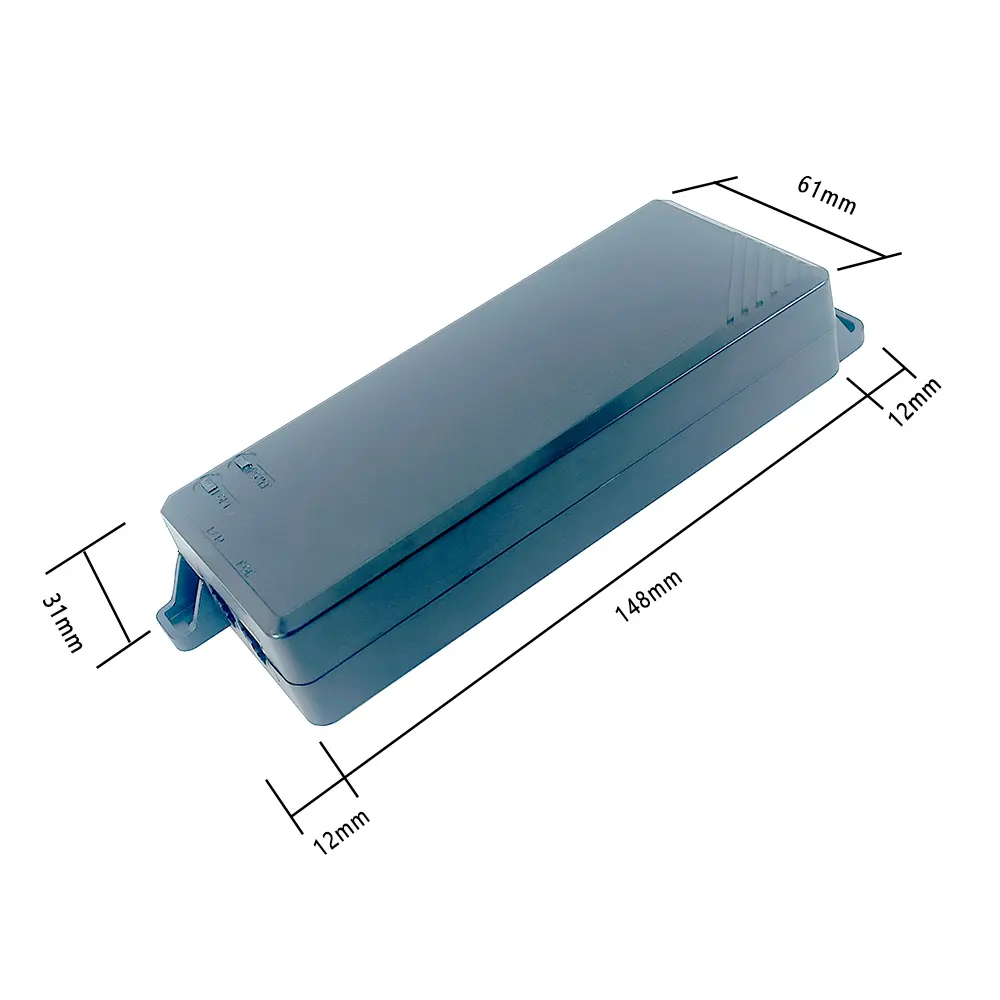

Size structure: 172 *61 *31mm (with lug). Body size: 148 *61 *31mm, body color: matte black, body material: high temperature and environmental protection ABS plastic shell. Overall structure: cuboid structure, triangular Connector, two indicator lights are set up directly above, indicating the working state of the power and PoE port, with lug on both sides for easy installation and fixation.

TSD-PSE9501G injector is mainly used in security monitoring, network equipment, education and medical and other scenarios, supporting high-power IP equipment such as webcam, access control system, IP phone and wireless AP.

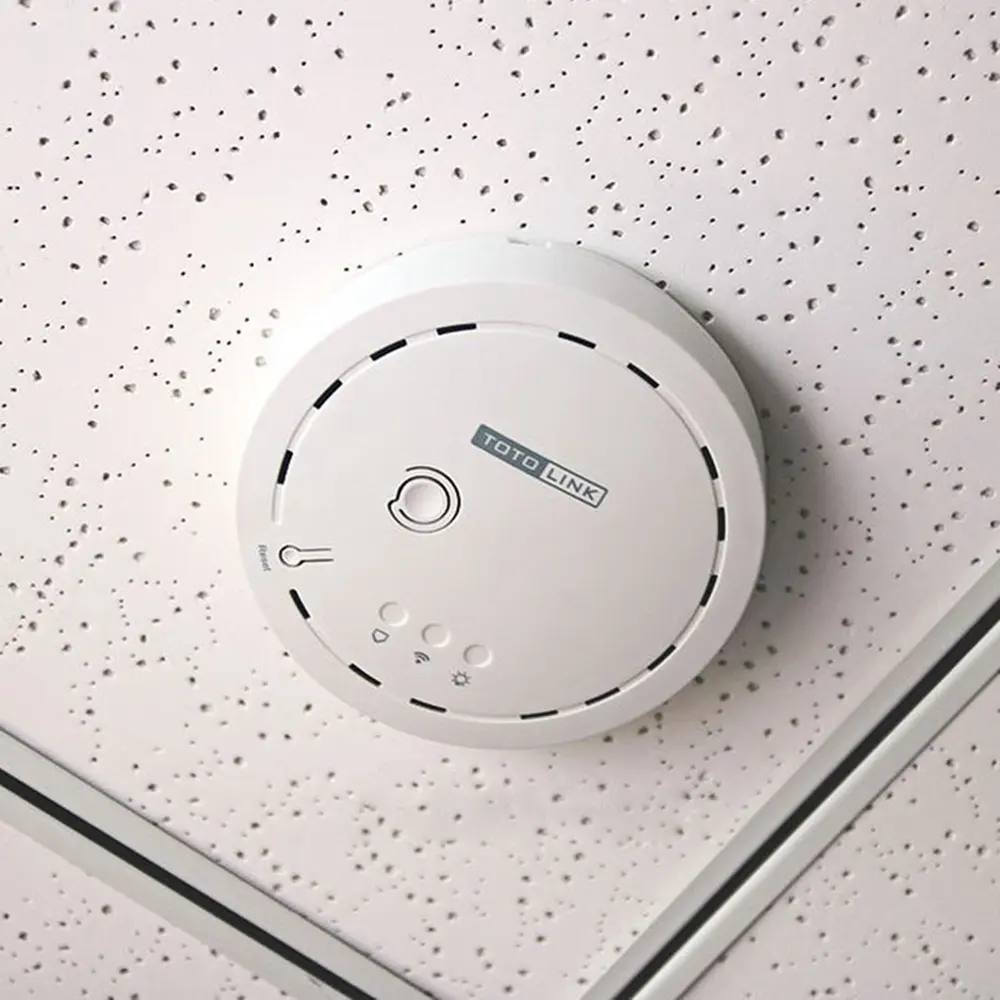

TSD-PSE9501G injector is widely used in high-power equipment such as security monitoring, access control system and wireless AP. In the scene where terminal equipment needs to be installed but the power supply from the power socket is not convenient, TSD-PSE9501G injector can provide PoE power for the equipment, effectively reduce the wiring complexity and improve network flexibility. Save time and economic costs, and allow equipment installation to be free from geographical and existing network architecture constraints.

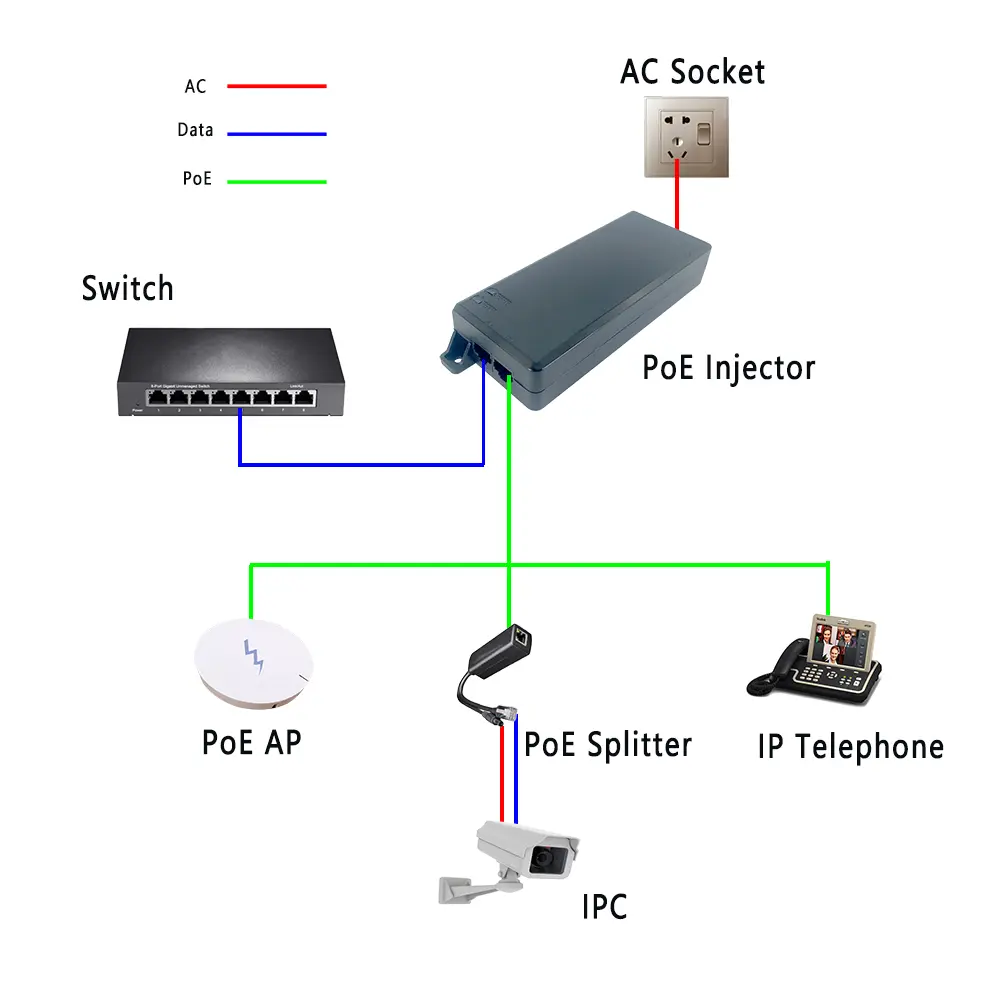

. TSD-PSE9501G-Topography

Package list
Items	Quantity
TSD-PSE9501G	1
Operation Manual	/
