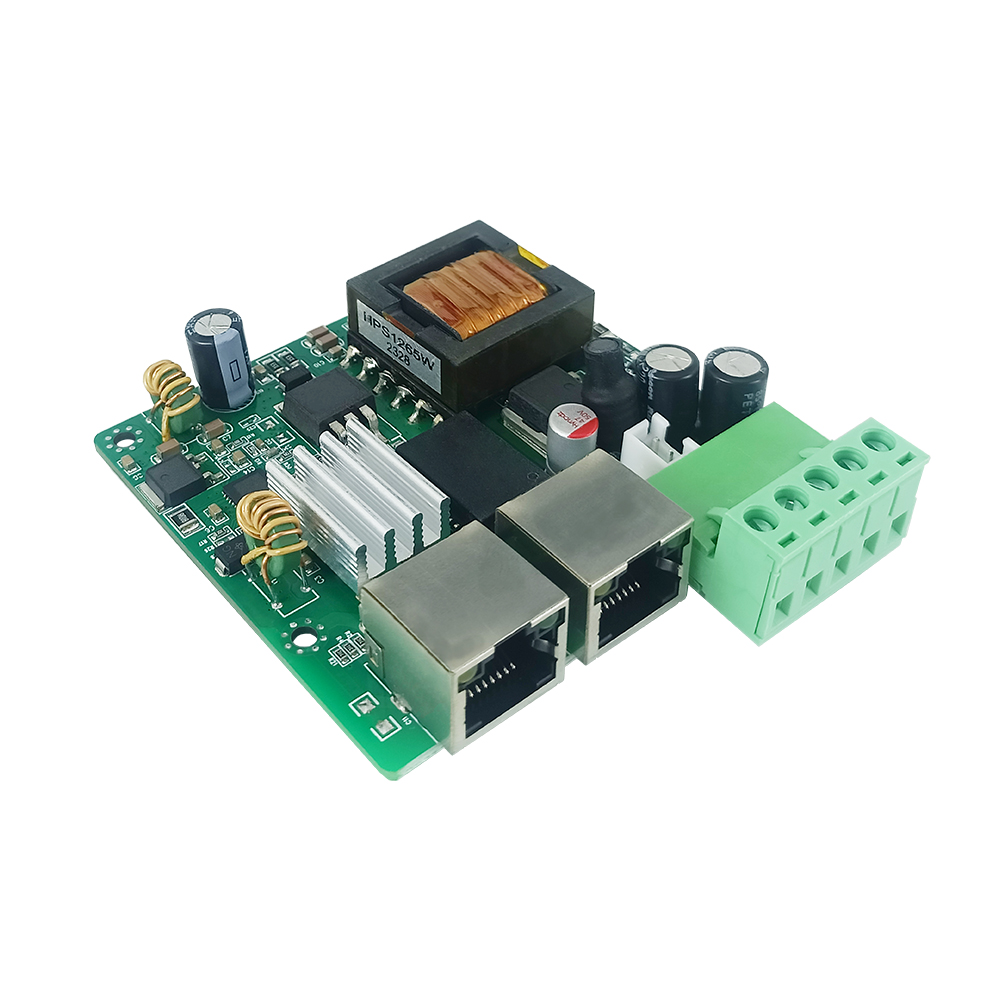

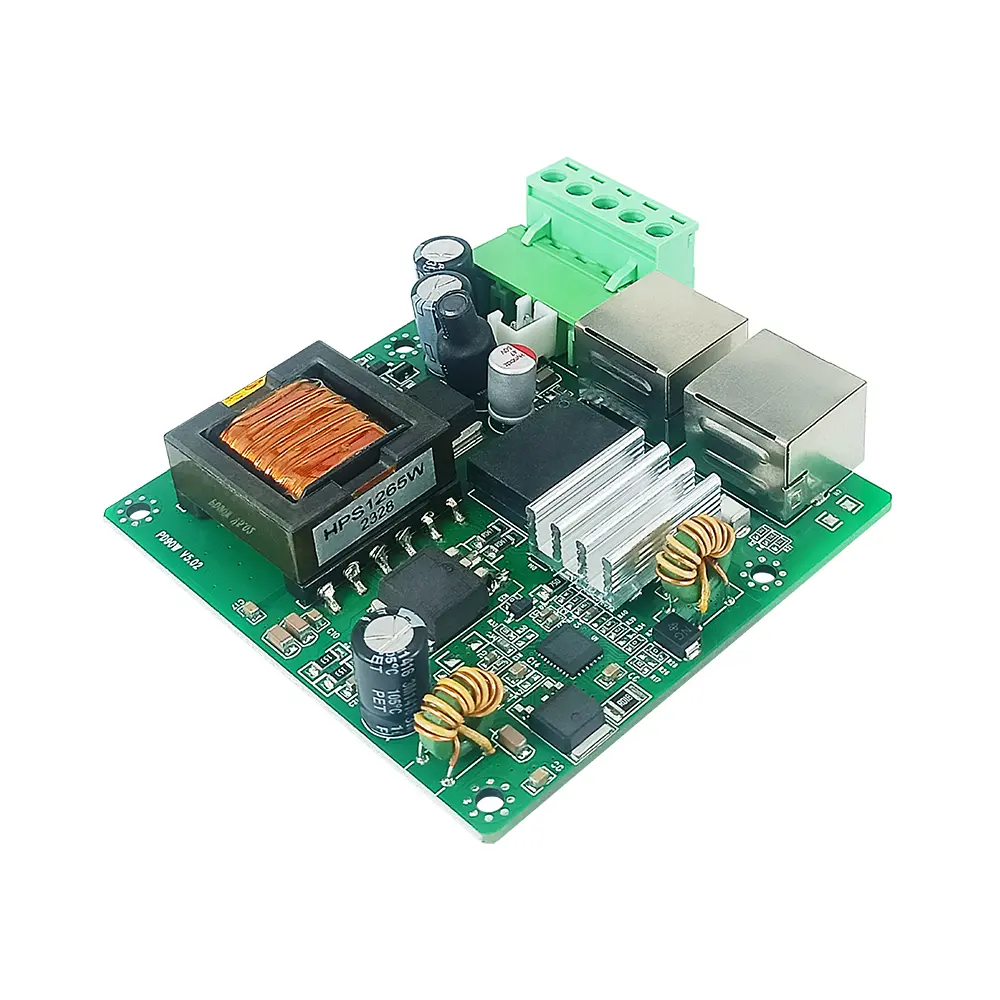

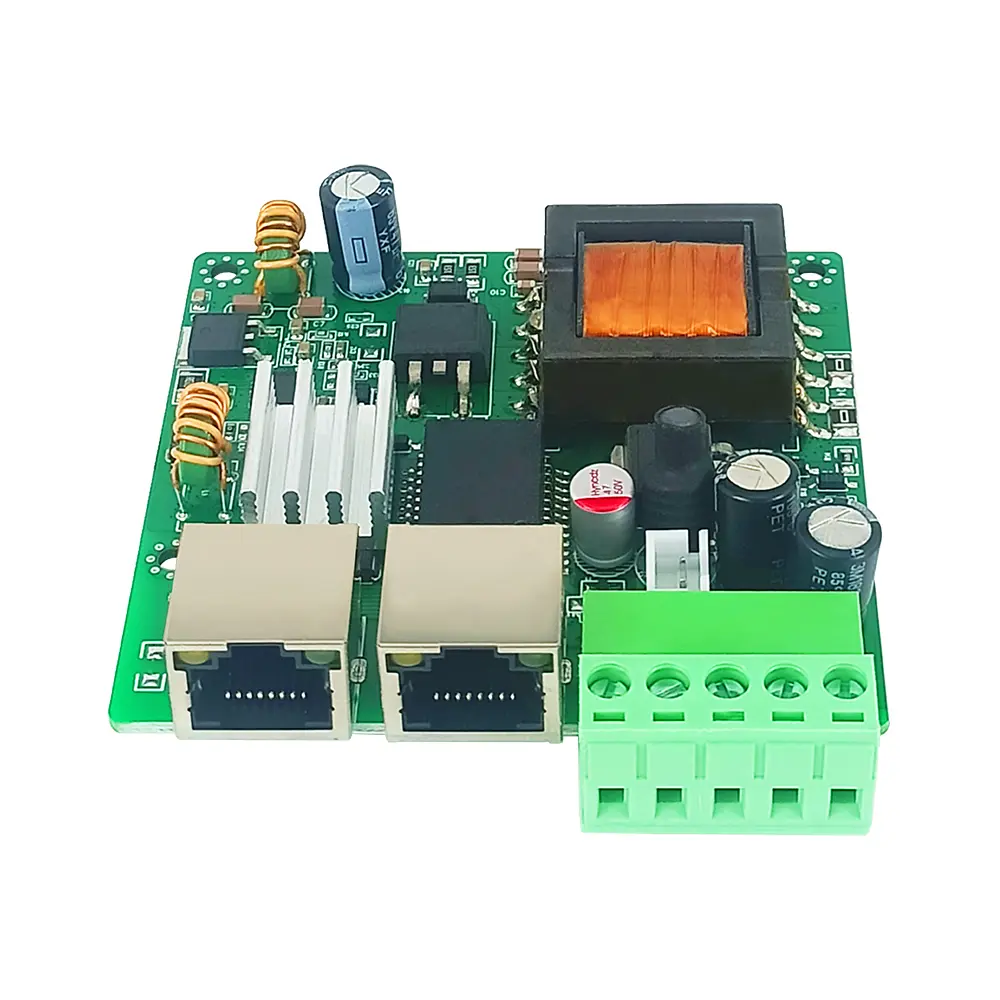

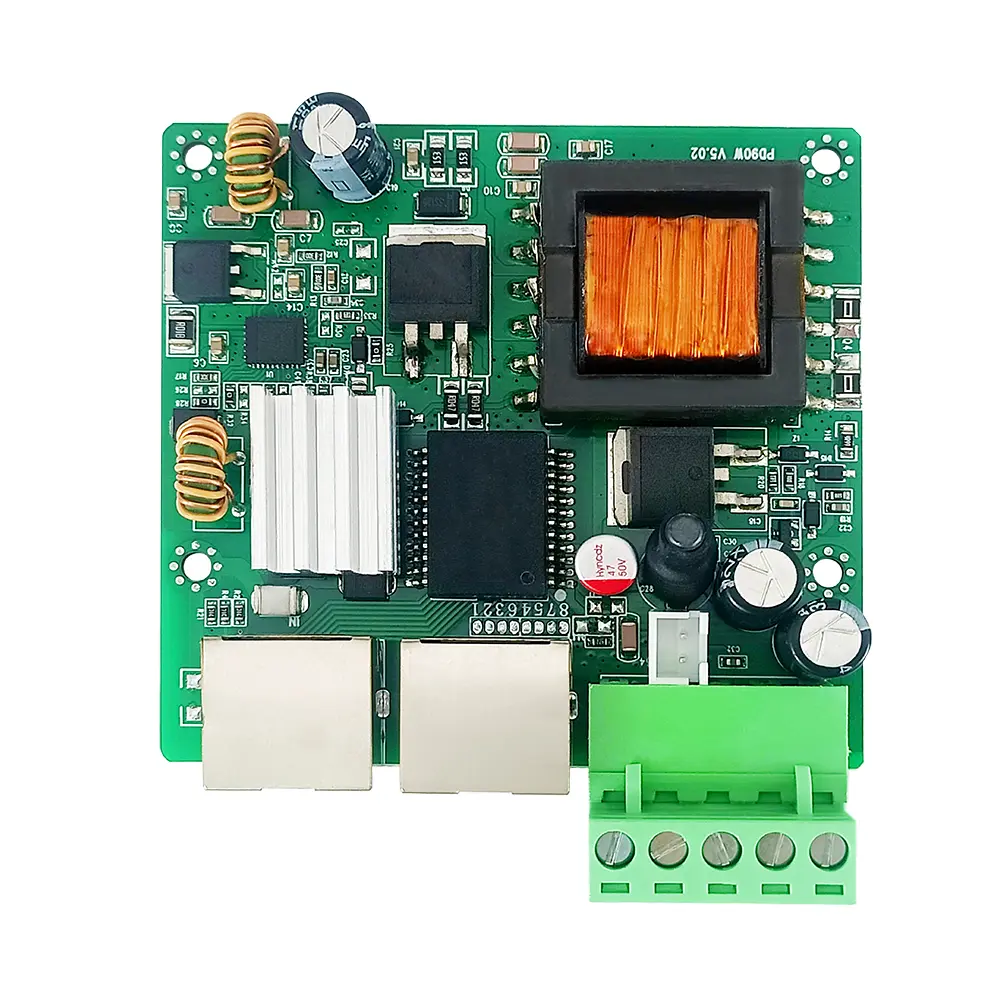

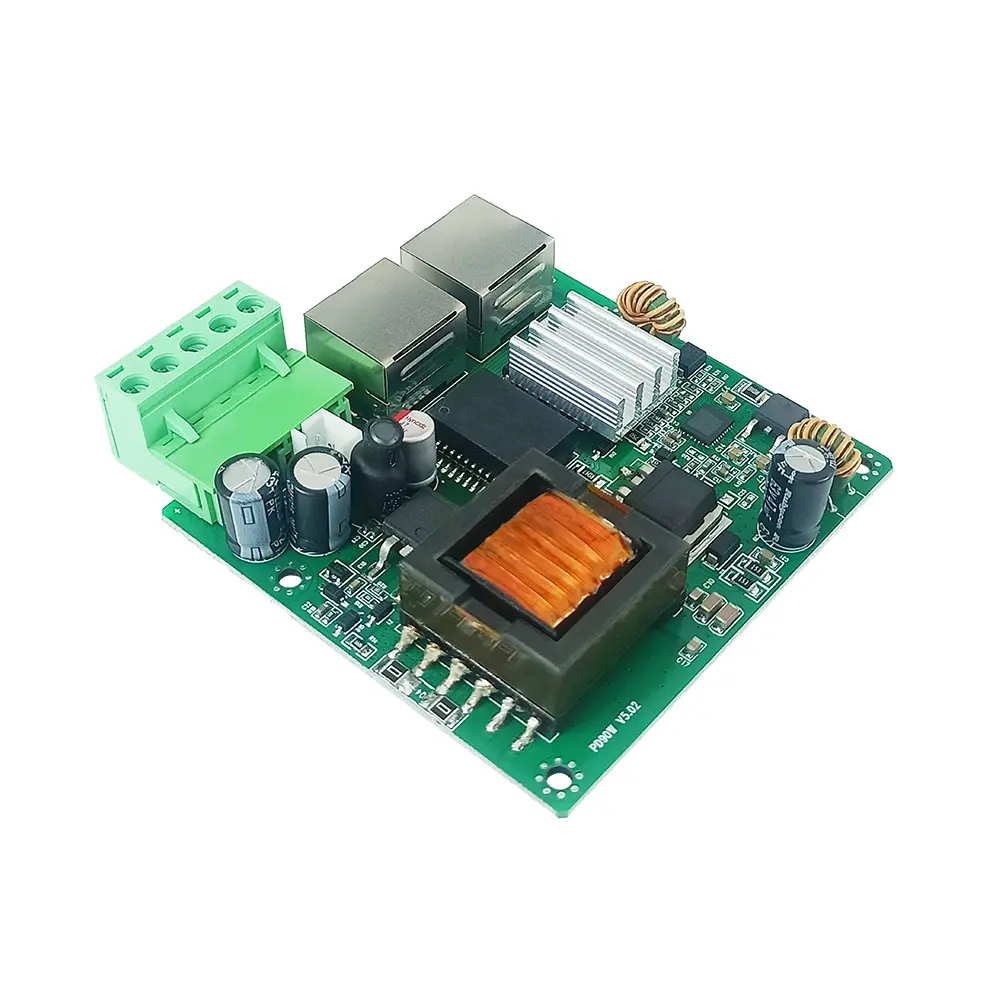

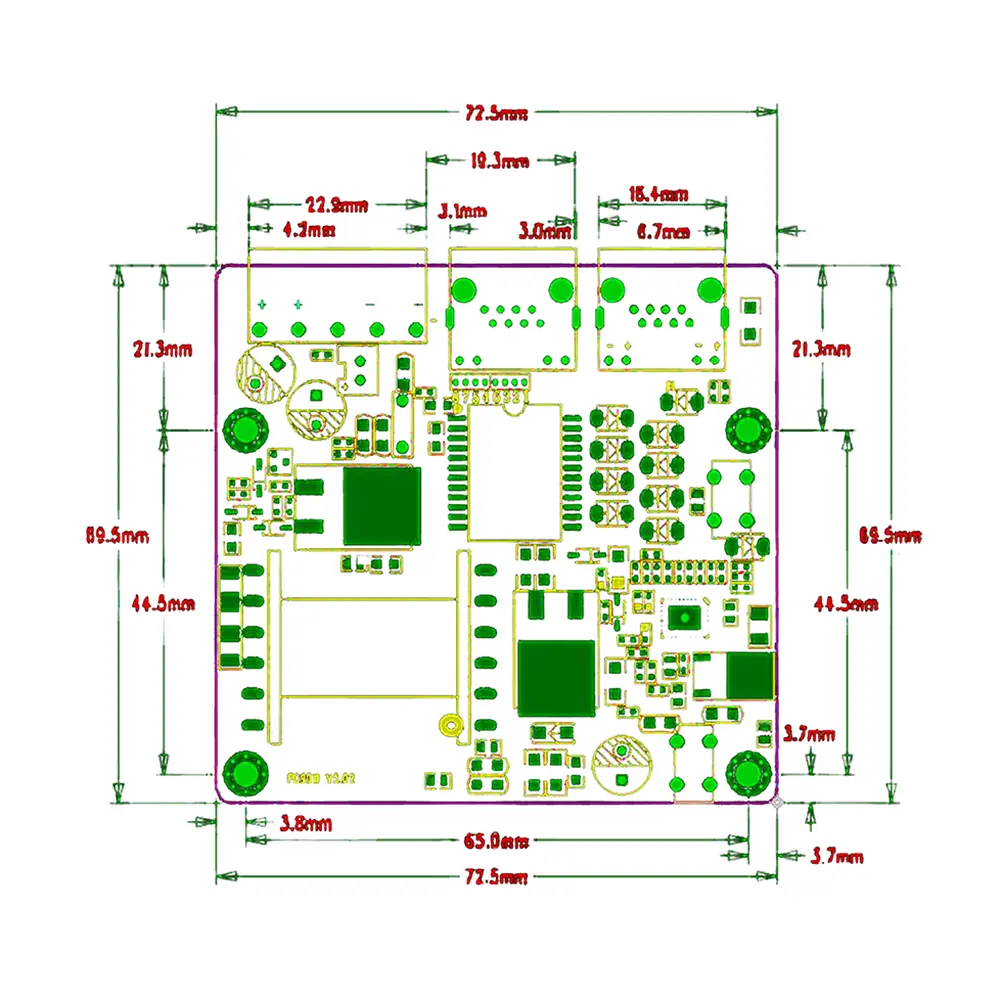

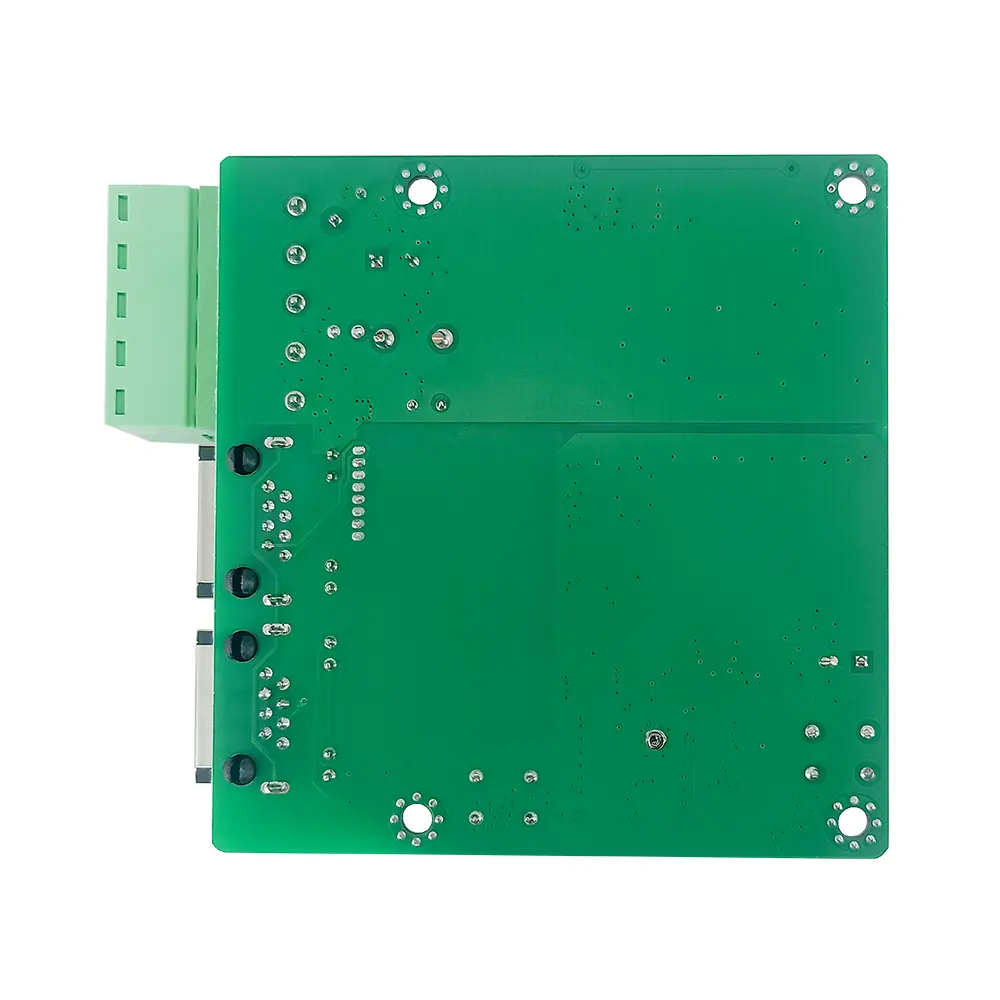

TSD-PD7073 module supports wide voltage input DC 38-56V, default output voltage DC 12V, other voltage can be customized. The circuit has the functions of overheat protection, overvoltage protection, overcurrent protection, short circuit protection and so on. Transmission rate: 10/100M/1000M adaptive. The module adopts EFD19 skeleton isolation transformer, and the circuit has the function of isolation protection, which can ensure that users have multiple loads in common ground and normal operation.
● Input: Wide-range PoE DC power supply (38V–56V)
● Output: DC 12V MAX7.5A/24V MAX3.5A
● EMC complies with IEC 61000-4-2/3/4/5/6 standard requirements

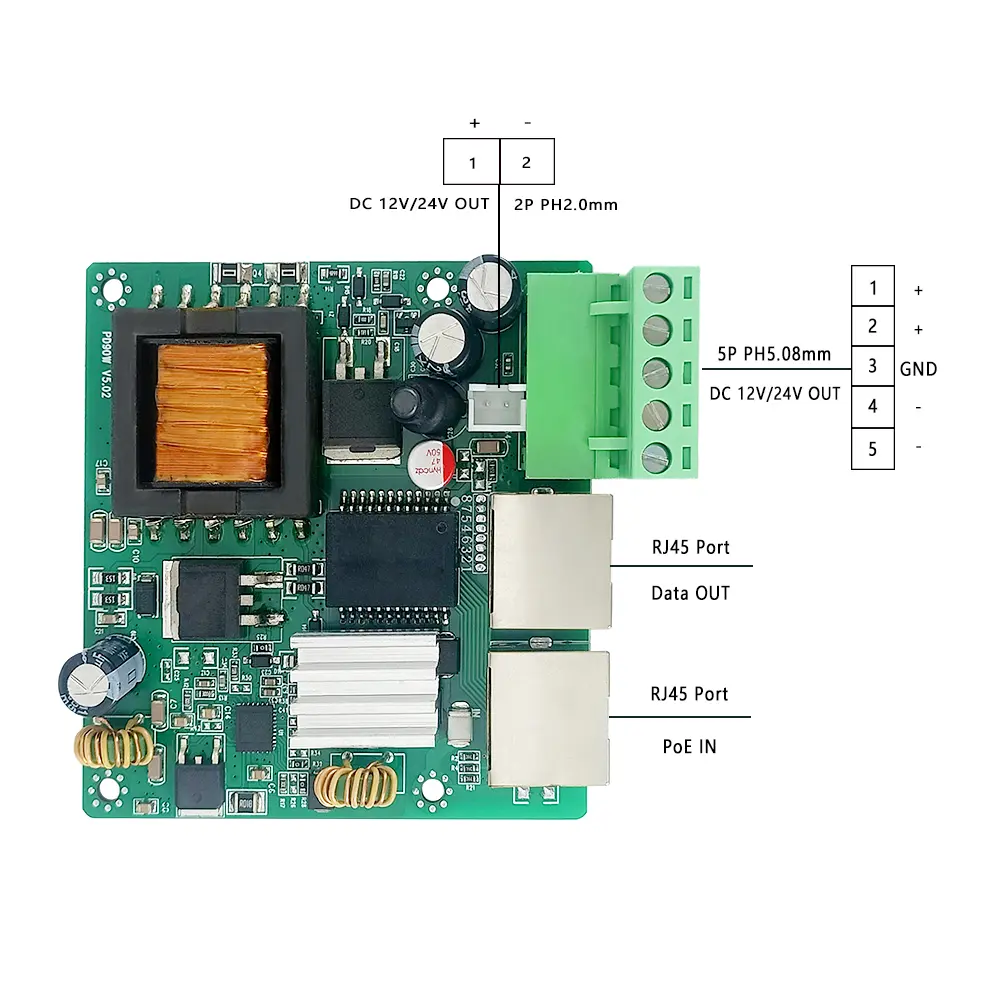

● RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
● The conversion efficiency is more than 85%
● High frequency low resistance electrolytic capacitor, reduce circuit high frequency loss and heat
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance
● High-temperature-resistant, flame-retardant sockets to reduce safety risks
● Solid-state SMD capacitors for extended life span High-frequency, low-ESR electrolytic capacitors to minimize high-frequency losses
● Eco-friendly manufacturing process
● High-temperature-resistant, flame-retardant PCB material
● International famous original electronic components, high precision and high performance
● High power, high conduction and low impedance transistor, excellent reliability and temperature tolerance
● Pure copper pin connector to ensure stable contact
● High temperature resistant flame retardant socket, reduce security risks
● EFD19 isolation transformer, improve circuit performance
