8 Port Super-power Gigabit PoE Switch

Model: TSD-PSE0802GS

Input: AC 90-240V 50/60HZ
Output: PoE 52V
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port
Size: 197*166*43 mm (L*W*H)
Weight: N.W=1 kg

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

TSD-PSE0802GS is an 8-channel super power Gigabit PoE switch designed for high-power equipment. The product can output 8 channels of 52V PoE signals, and the maximum power of a single channel is 90W, which can meet the requirements of high-power IP equipment for PoE signal power. It can support high-speed PTZ dome, large audio, Wi-Fi and other high-power equipment.

TSD-PSE0802GS conforms to IEEE802.3af/at/bt PoE standard protocol. Gigabit transmission rate is compatible with 10/100M, ensuring real-time and efficient data transmission.

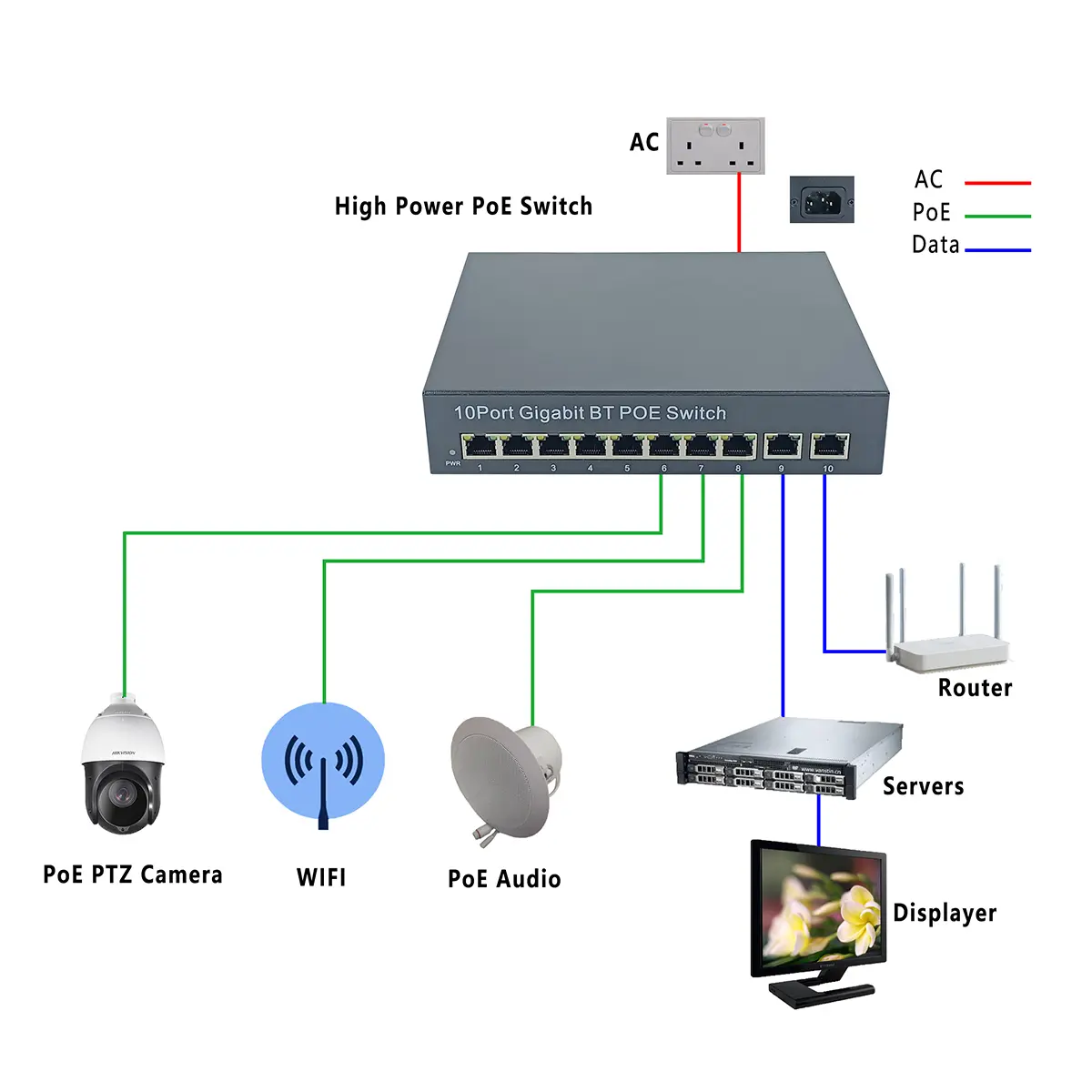

TSD-PSE0802GS switch is equipped with a power input port, through the power line input: 90~240V 50/60HZ AC. Two Gigabit uplink ports, through the network cable to connect the upper switch or other equipment. Eight gigabit PoE ports output 52V PoE signals to provide data transmission and power supply to the end devices.

TSD-PSE0802GS switch has obtained CE, FCC, RoHS and other certifications, adopts IEEE802.3af/at/bt PoE standard protocol, and EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standard. The product has a wide range of applications, super power to support multiple high-power equipment work.

The input voltage of TSD-PSE0802GS switch is AC 90~240V 50/60HZ, and the default output is 52V PoE signal. Device transmission rate: 10/100/1000Mbps adaptive, built-in power supply: 52V 6A 300W, backplane bandwidth: 20G. With overheat protection, overvoltage protection, over-current protection, short circuit protection, electric shock protection, leakage protection and other functions.

● Input: AC 90-240V 50/60HZ
● Output: 52V PoE
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance
● Built-in power supply: 52V 6A 300W

● Backplane bandwidth: 20G

● Maximum output power of single port: 90W

● Gigabit high-power network filter
● Patch solid capacitor, long life to improve module power supply stability

● Original International famous original electronic components, high precision and high performance

● Pure copper pin connector to ensure safety performance

● High-frequency, low-resistance electrolytic capacitors reduce circuit high-frequency losses and heat generation

● High power, high conduction and low impedance transistor, excellent reliability and temperature tolerance

● Hard metal material shell, easy to enhance its installation robustness and heat dissipation
● Environmental protection high temperature resistant PCB material, environmental protection lead-free process

Product parameter table
Product Name	8 Port Super-power Gigabit PoE Switch
Product Model	TSD-PSE0802GS
PoE Standard	IEEE802.3af/at/bt
Input Voltage	AC 90-240V 50/60HZ
Output	PoE 52V
Built-in power supply	52V 6A 300W
Conversion Efficiency	/
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	/
Data Rate	10/100/1000Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection electric shock protection, leakage protection
LED Indicator	Power indicator*1

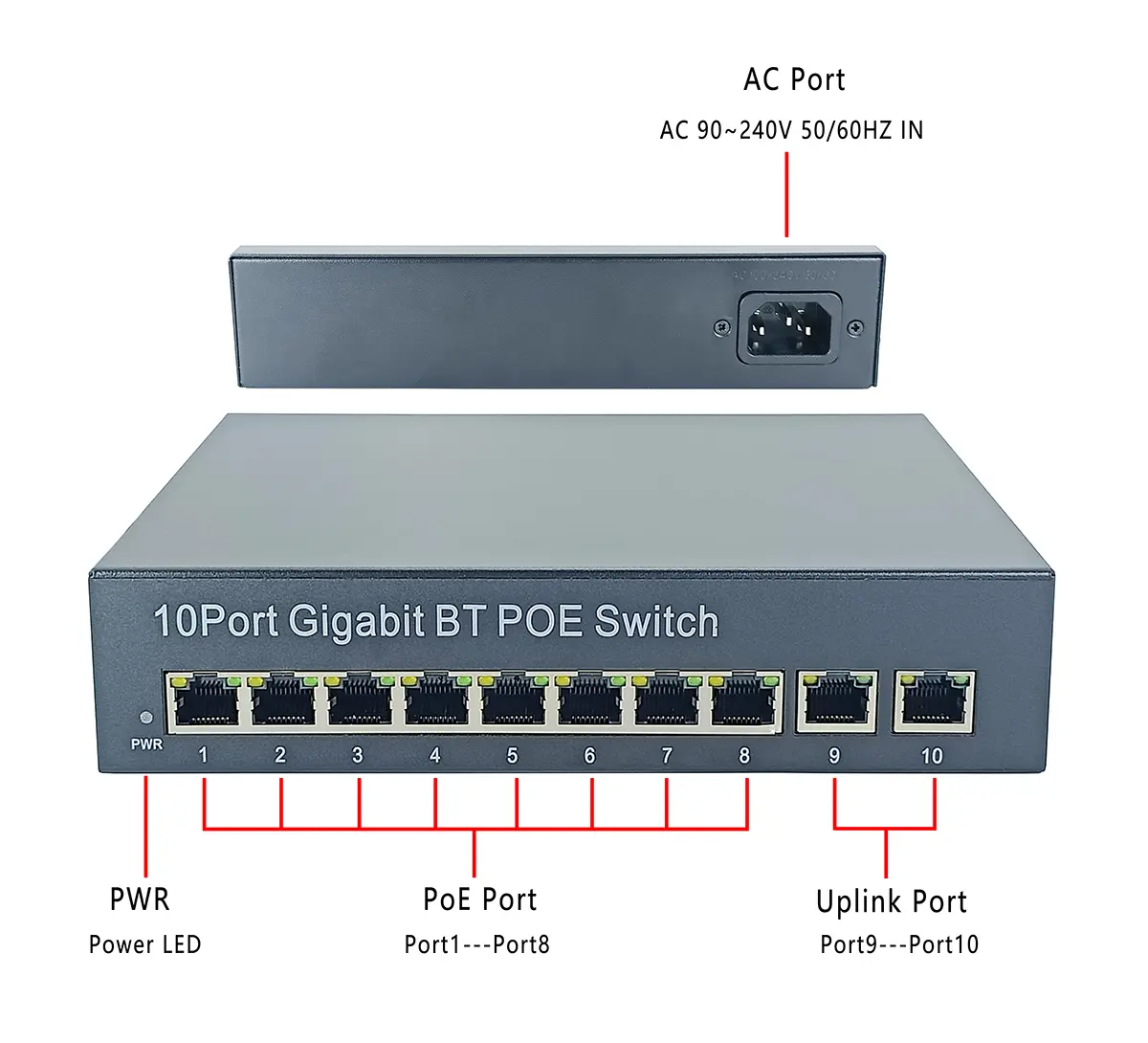

Interface	Triangular plug interface: AC 90~240V 50/60HZ input RJ45 network port 1-8 (Gigabit PoE port): output 52V PoE signal RJ45 network port 9-10 (Gigabit uplink port): data transmission
Material	Hard metal
Color	matte black
Accessories	1 meter (10A 250V) power cord, user manual
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 1 kg G.W: 1.3 kg
Dimension	19716643 mm(LWH)
Package	Kraft paper box (25021050mm LWH)

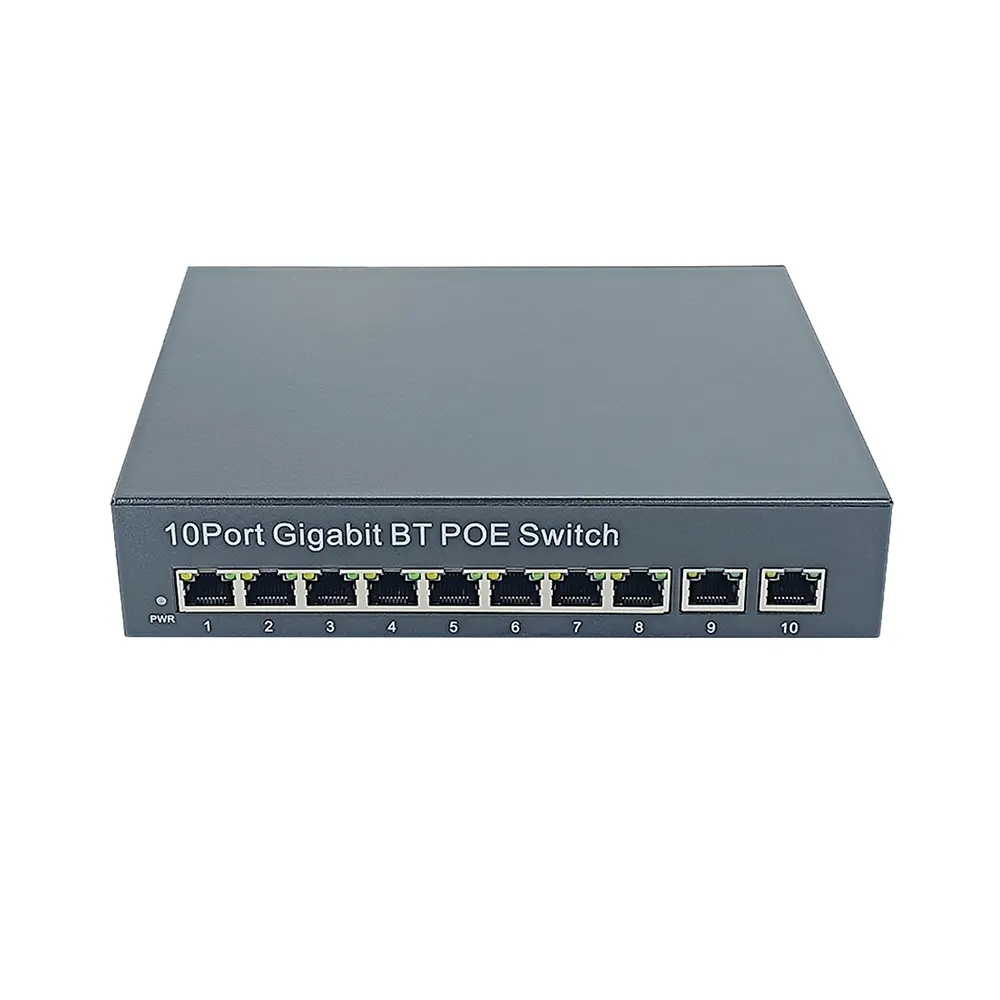

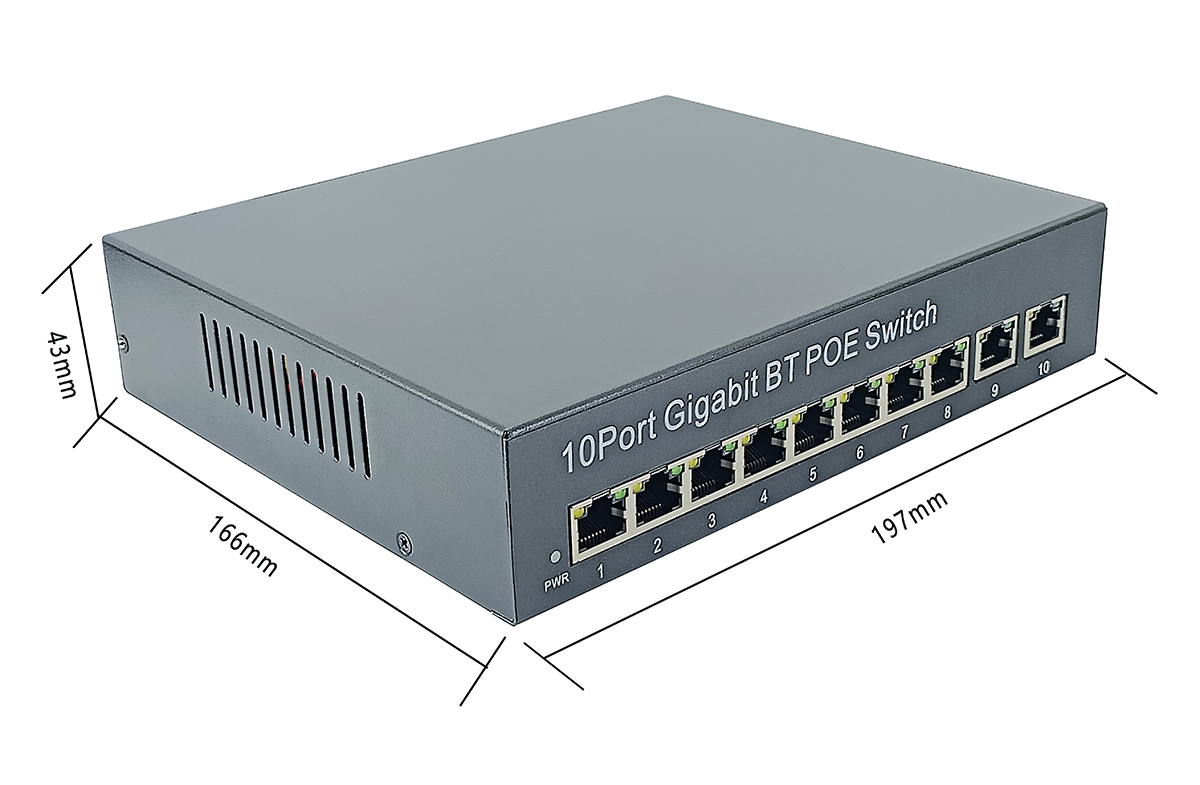

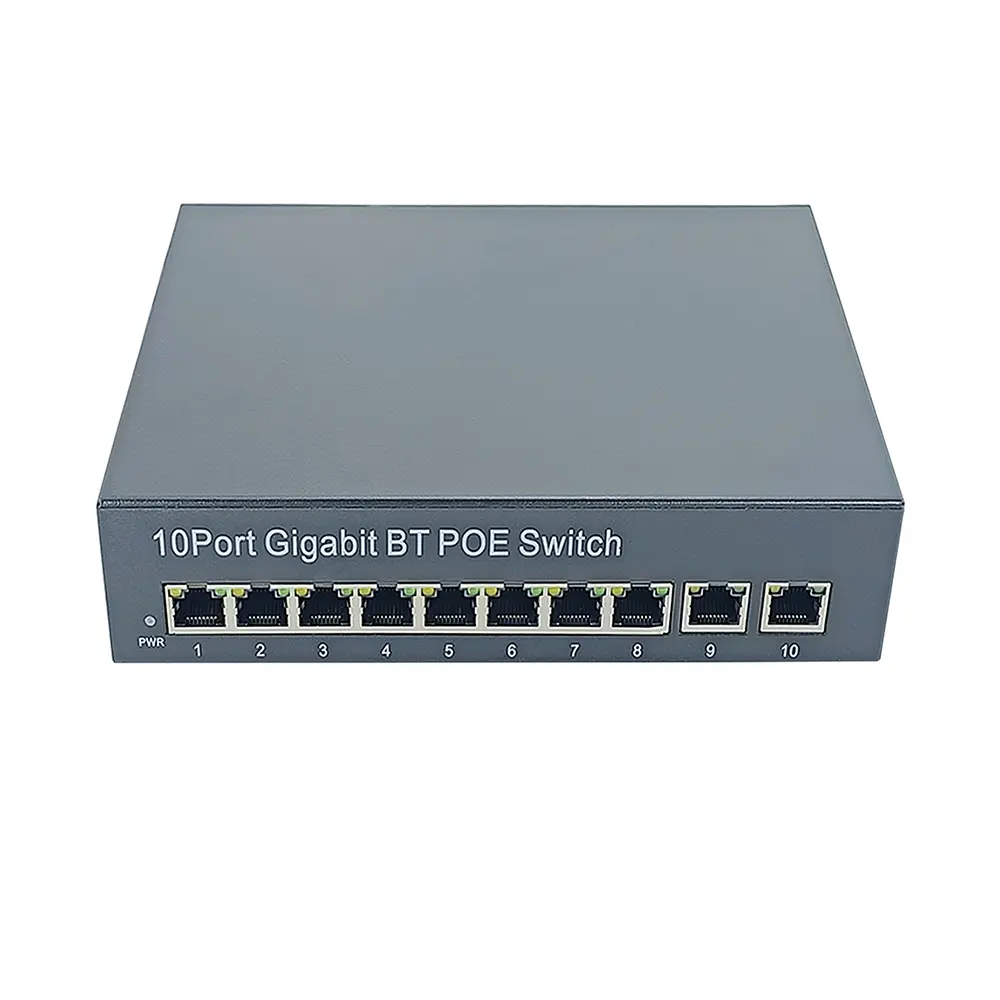

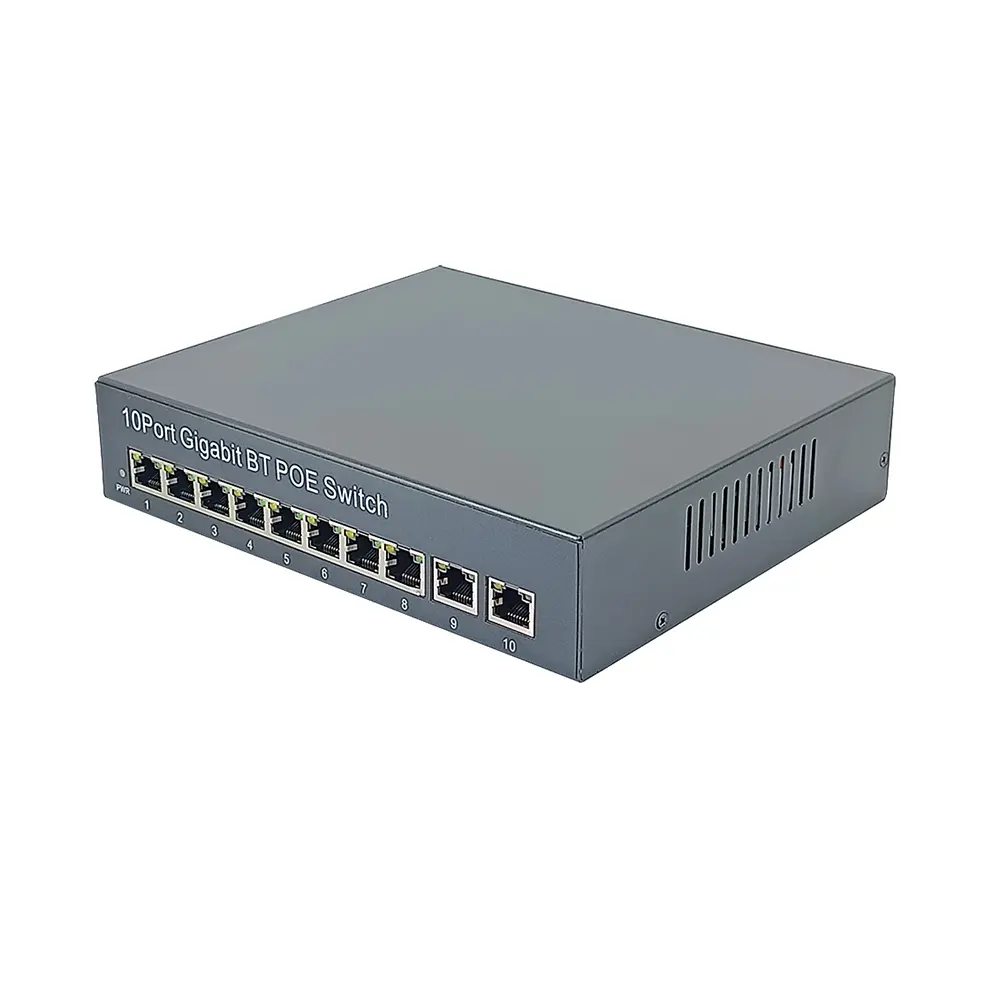

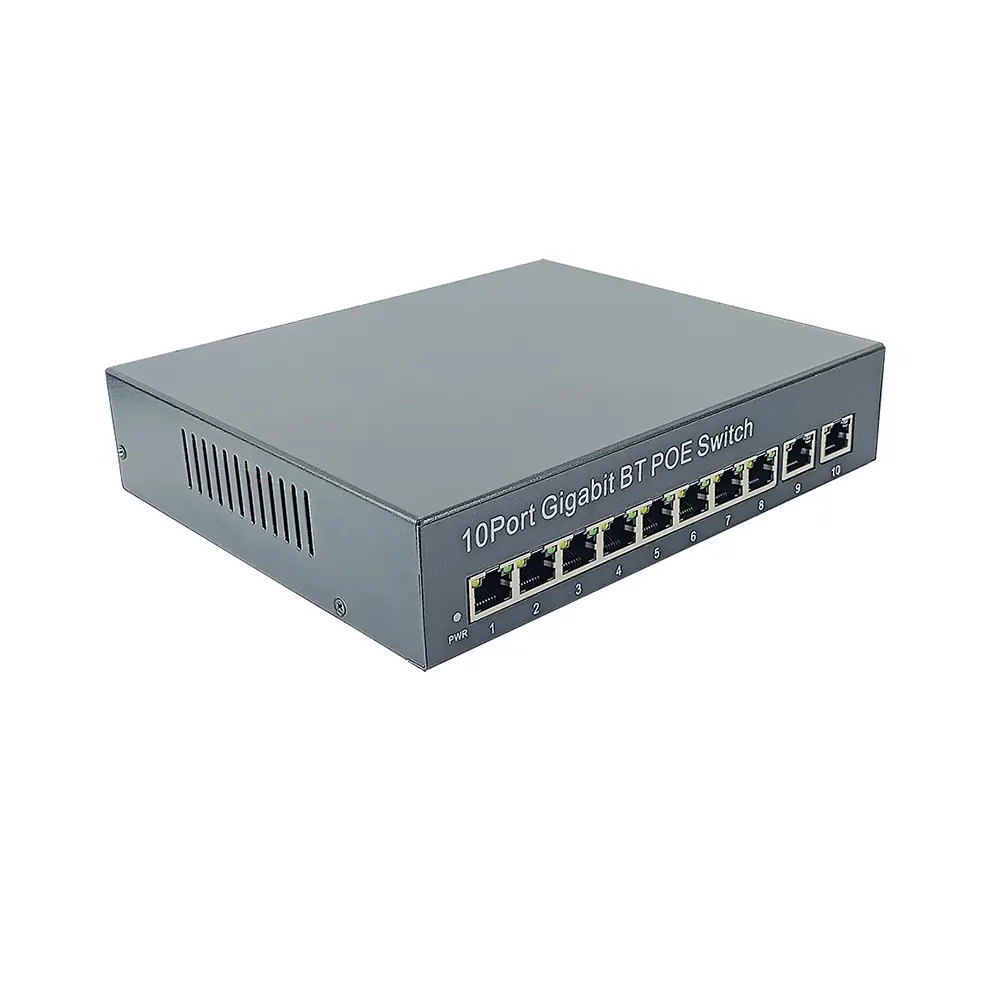

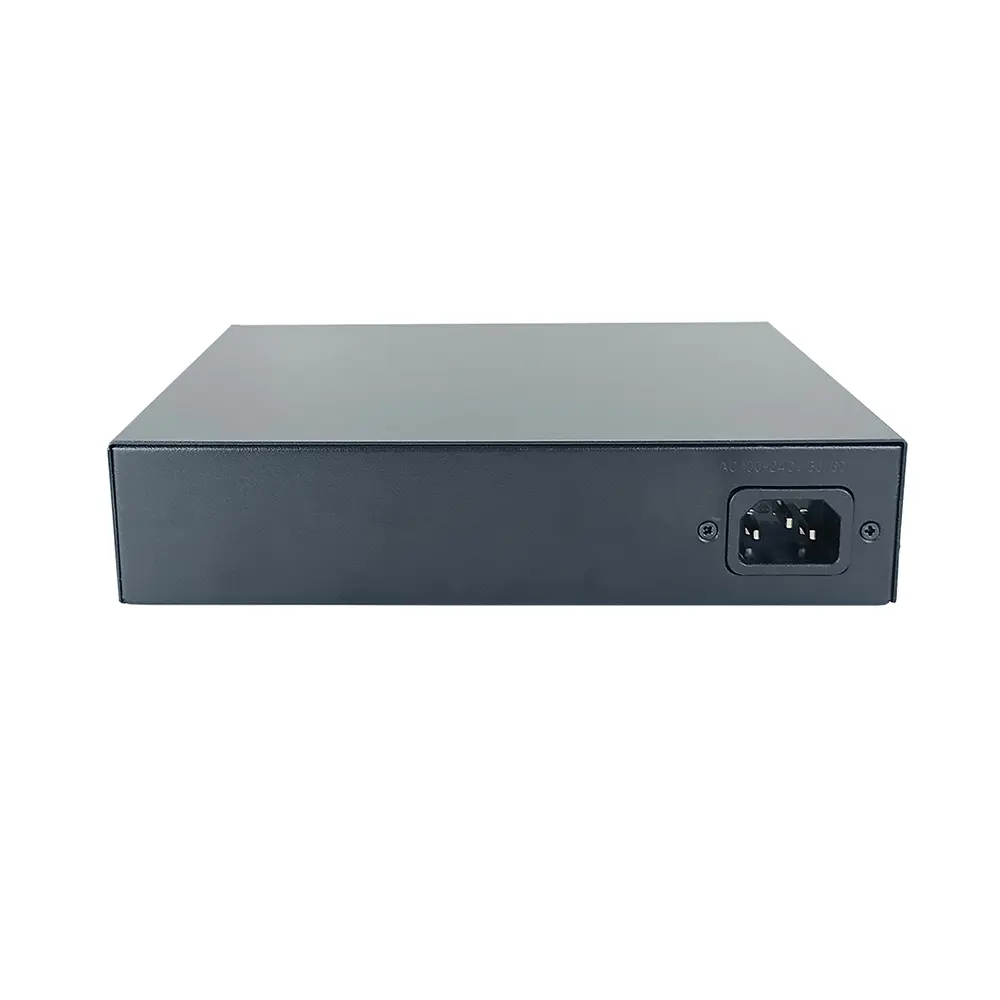

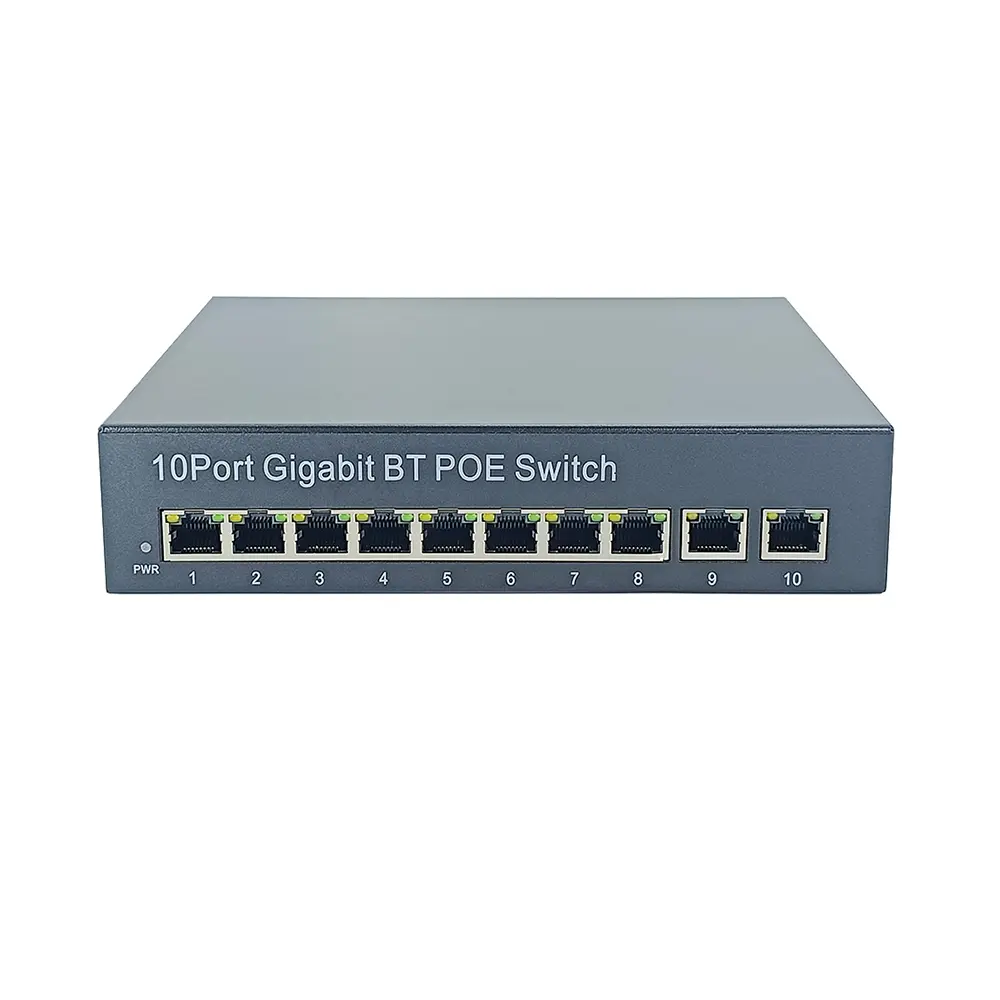

Size structure: 197*166*43 mm (L*W*H), Color and material: matte black metal housing. The front of the product is equipped with a power indicator light and 10 × RJ45 Ethernet ports; an IEC320 C14 power input connector (three-prong AC inlet) is set at the back; ventilation grilles on both left and right sides to enhance heat dissipation and maintain optimal operating temperature.

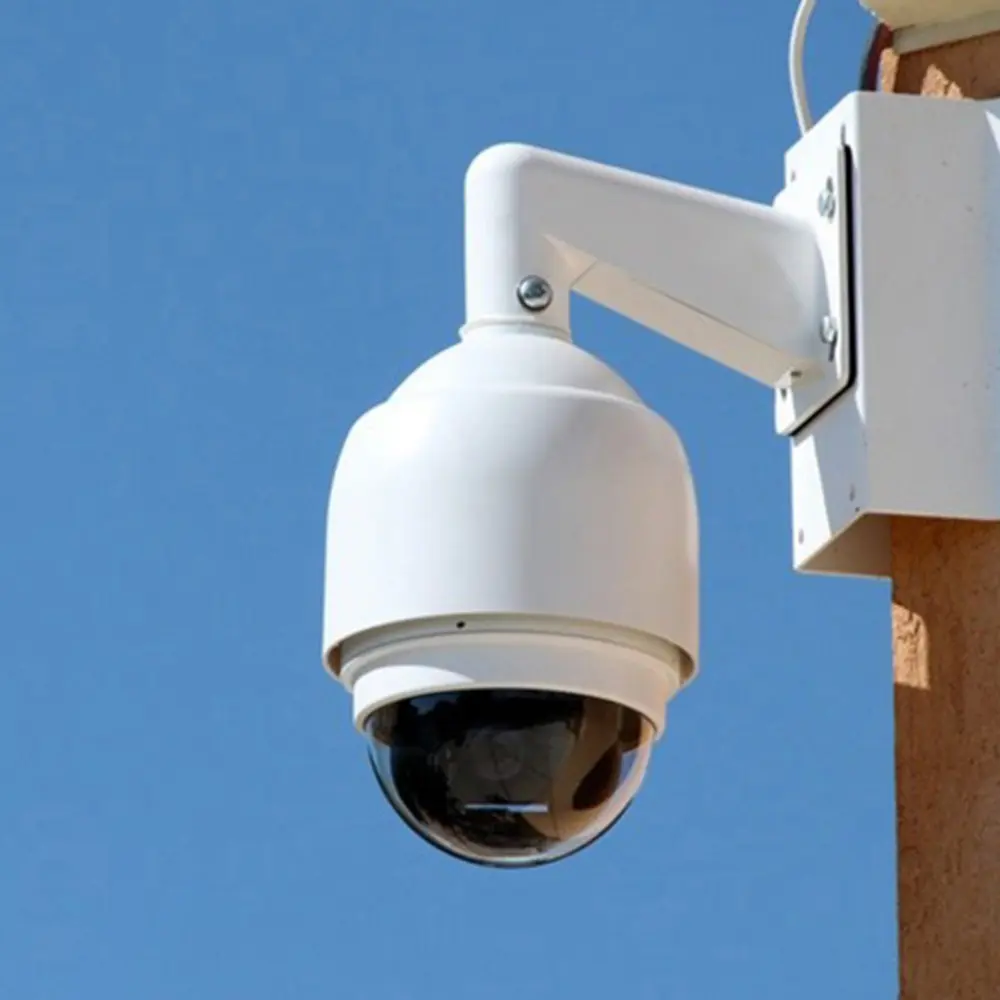

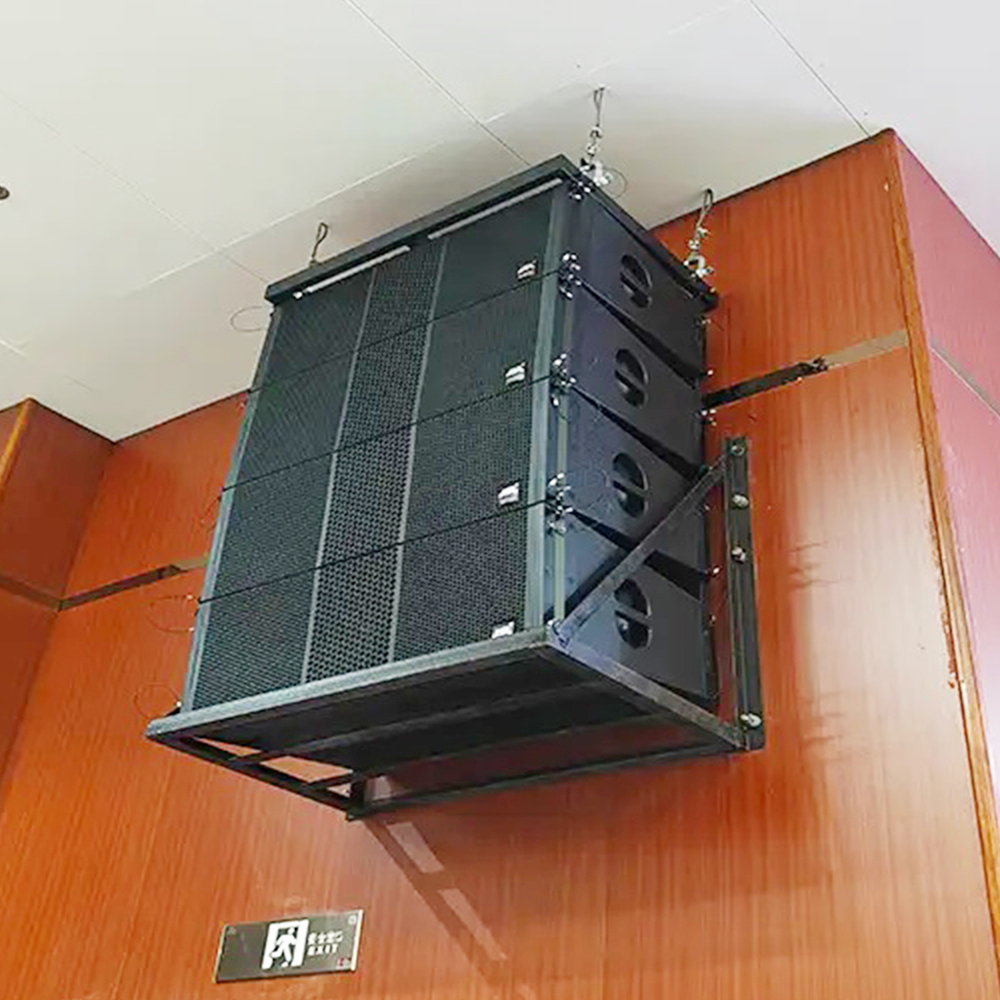

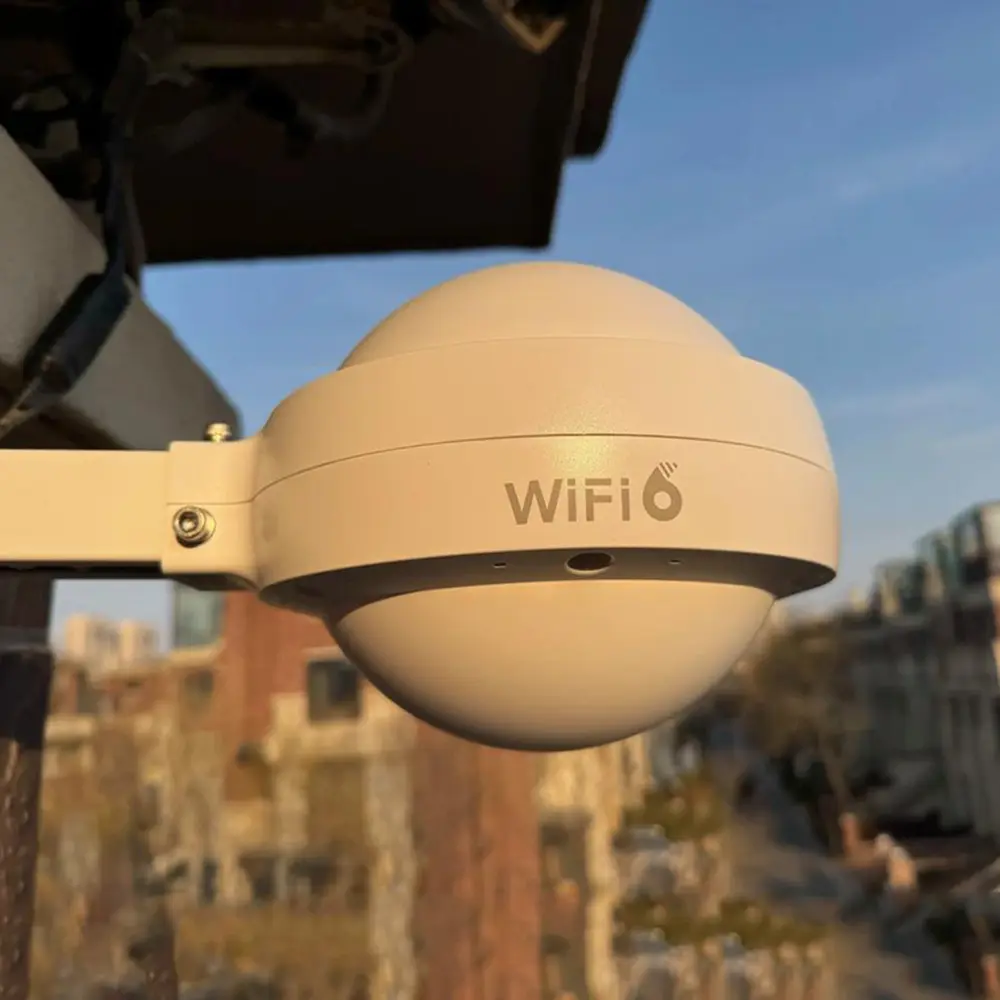

The TSD-PSE0802GS is a super-power gigabit PoE switch with 8 PoE signal output ports, each capable of delivering a maximum power of 90W. It can provide 52V PoE signal power supply for high-power devices and is also compatible with low-power devices. This product is targeted at the high-power device market and is mainly applied in IPC, Wi-Fi, high-power bridges, and large audio equipment, etc. The quality and performance of the product have been affirmed and trusted by users. The TSD-PSE0802GS offers users more power supply options.

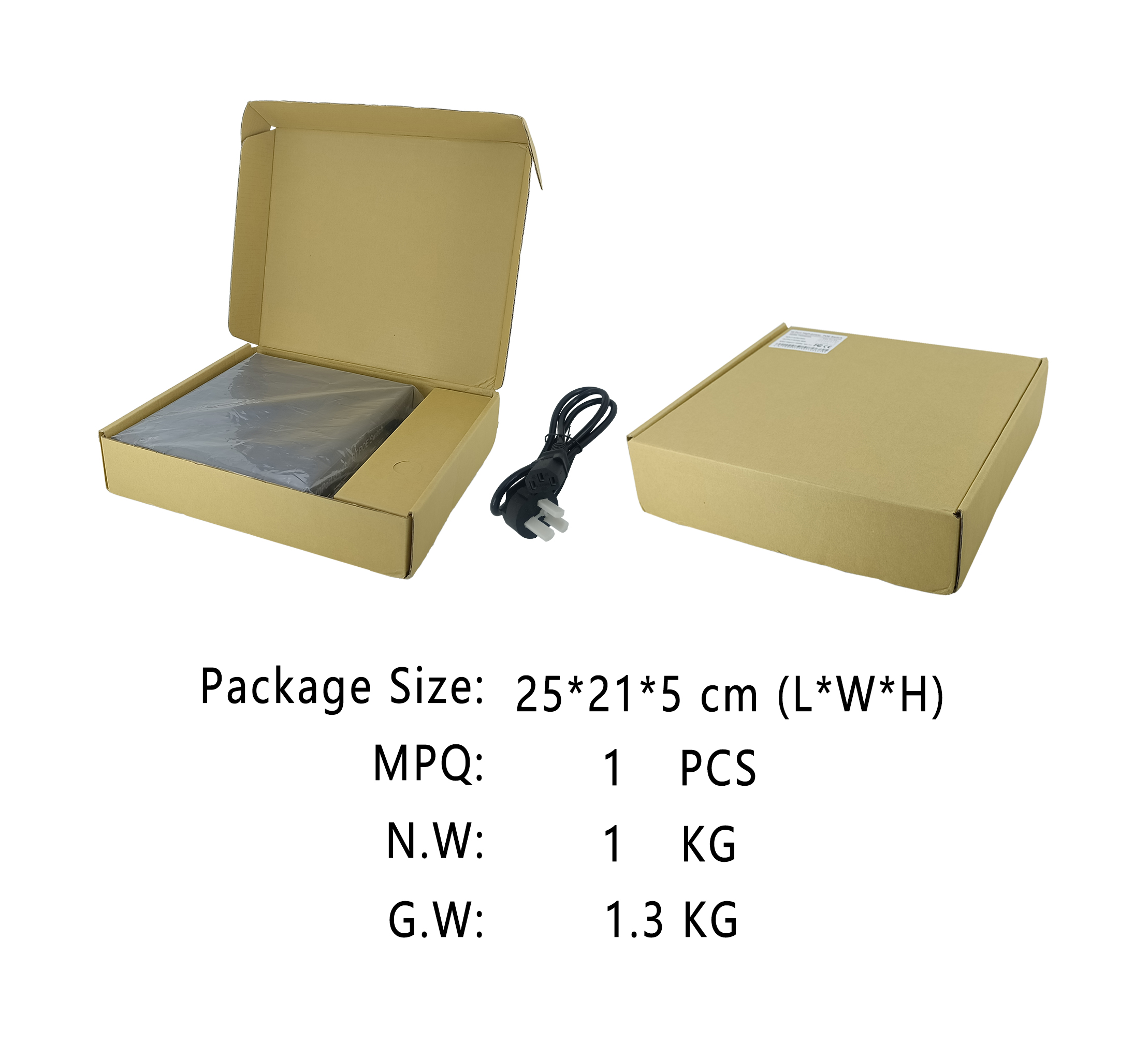

Package list
Items	Quantity
PSE0802GS PoE switch	1PCS
AC cable	1
Operation Manual	1
