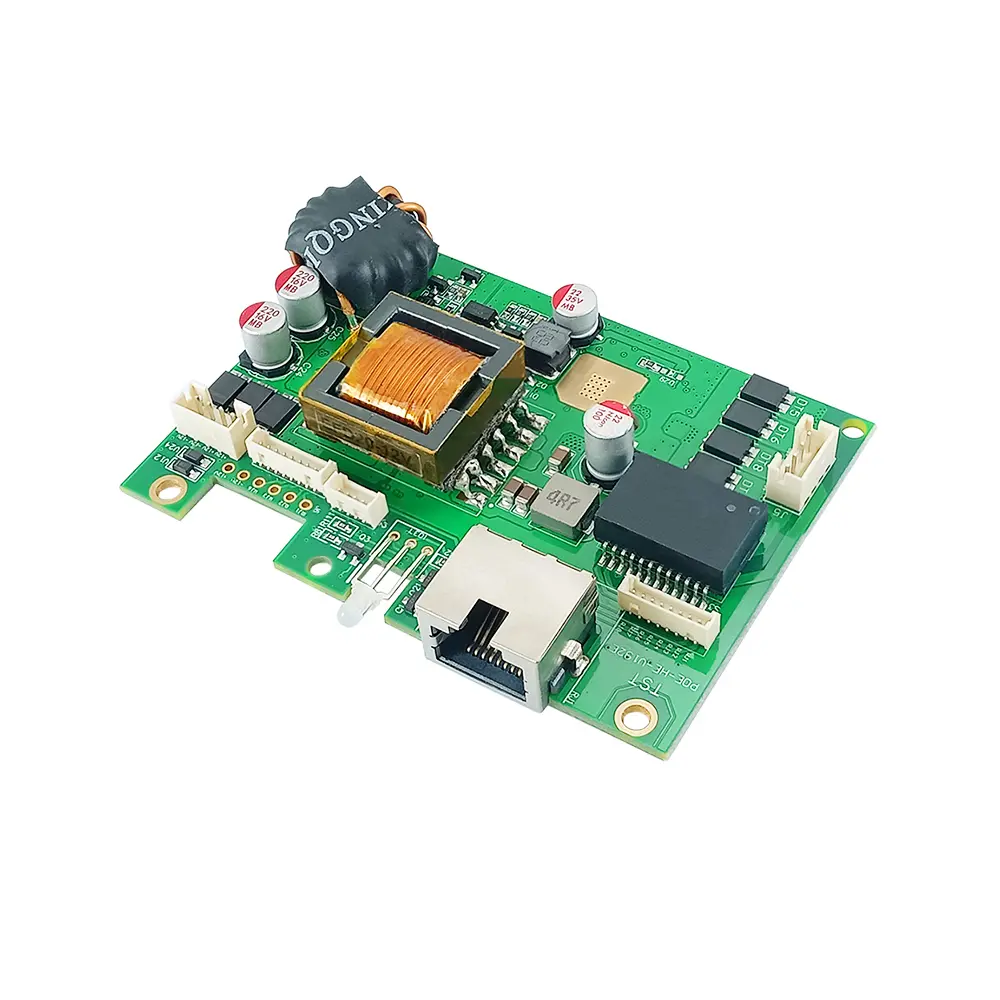

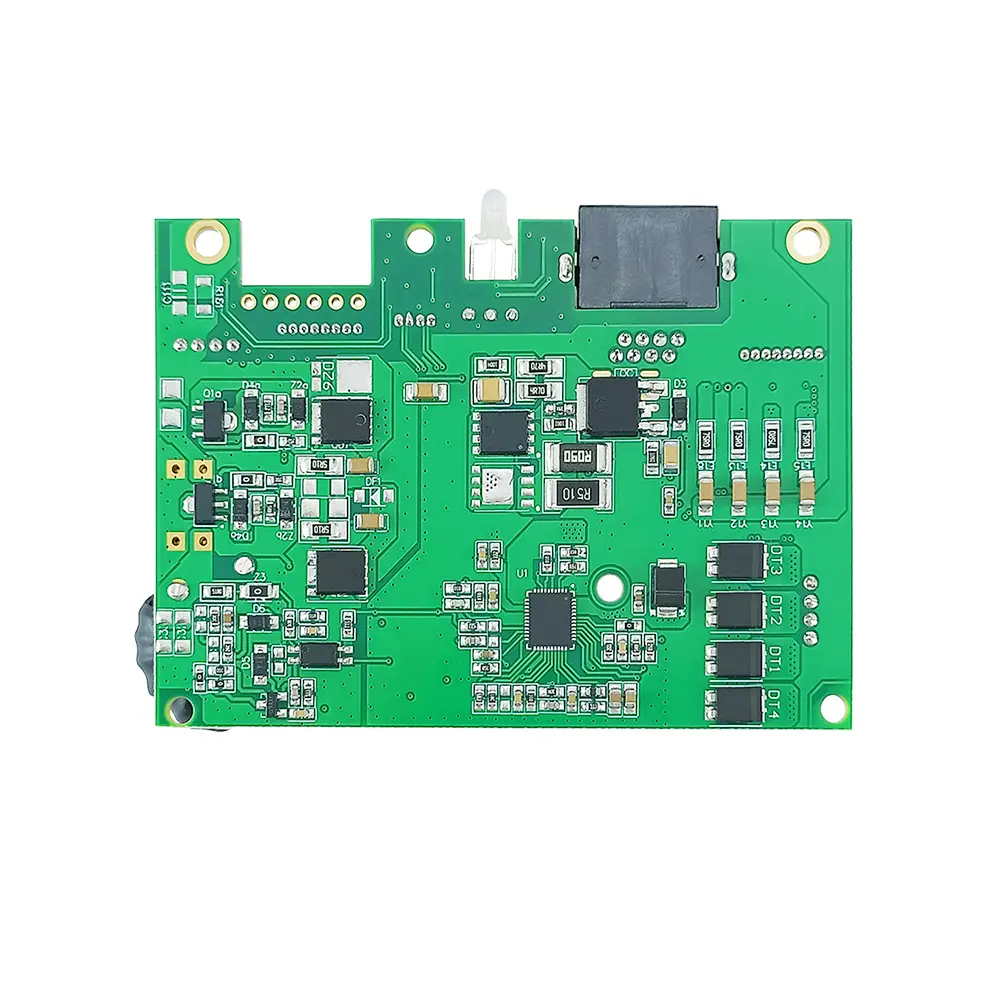

75W High-power PoE Module

Model: TSD-V192E

  • Input: PoE DC power supply (38V–56V)
  • Output: DC 12V/19V/24V/36V 75W
  • PoE protocol: IEEE 802.3af/at/bt
  • Transmission rate: 10/100/1000Mbps
  • RJ12+ RJ36- / RJ45+ RJ78-fully compatible
  • Interface: RJ45 port/terminal block
  • Size: 82*58*14 mm (L*W*H)
  • Weight: N.W=53 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

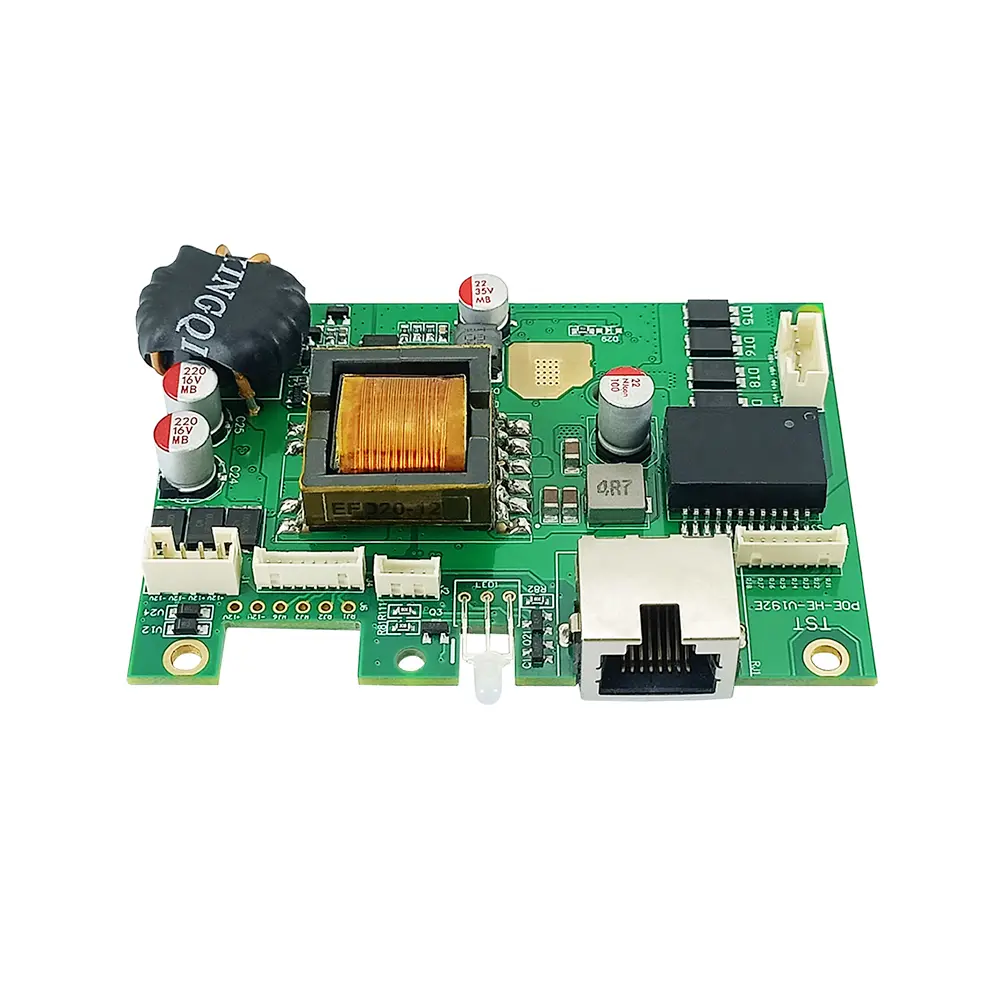

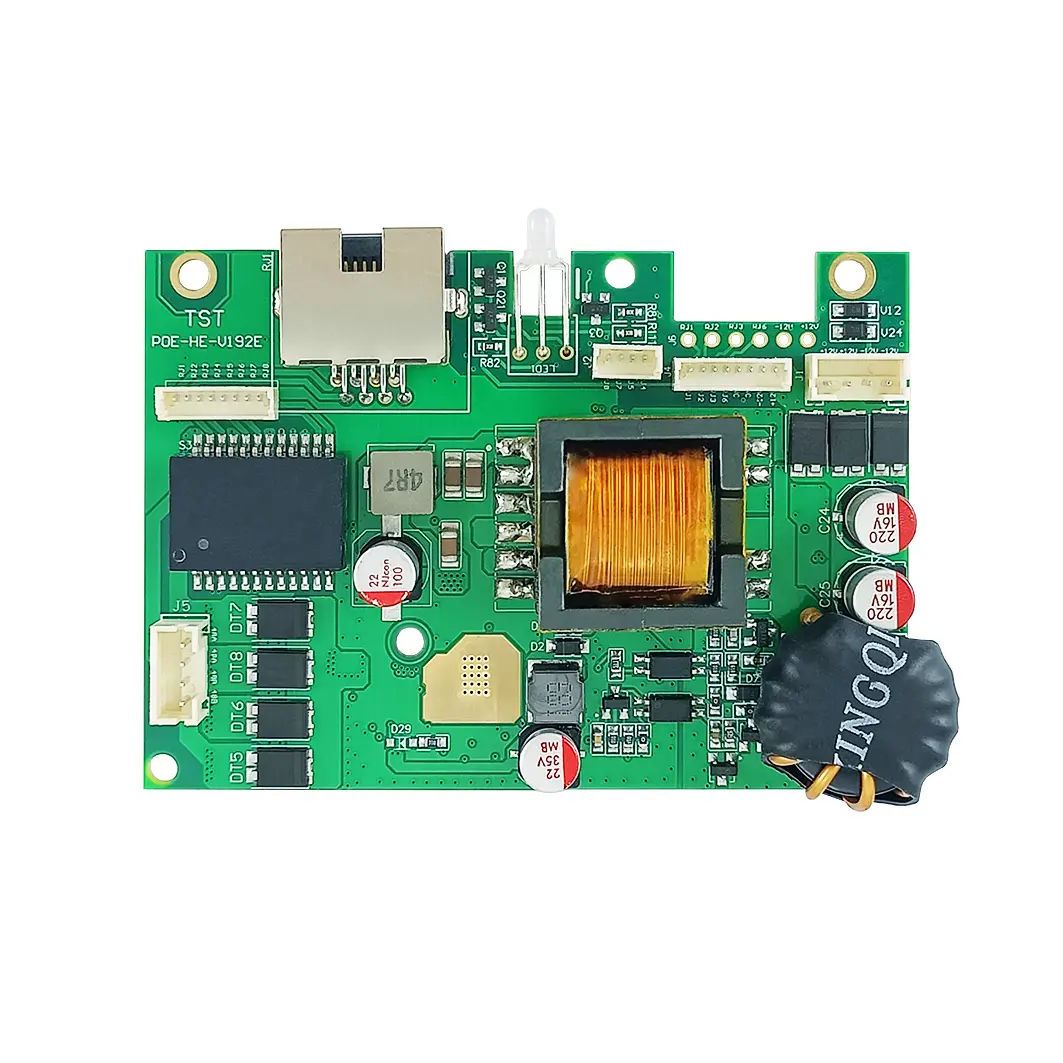

    TSD-V192E-2
    01

    The TSD-V192E module supports IEEE 802.3af/at/bt standard PoE protocols, with a maximum output power of 75W. It can stably deliver four modes of DC power: 12V/6A, 19V/3.5A, 24V/3A, and 36V/2A. The module offers two input options, allowing users to flexibly choose based on their device requirements.


    The TSD-V192E module is primarily used in large advertising screen, audio systems, high-speed cameras, and other high-power IP devices. By integrating the module into user equipment, the device gains PoE functionality, enabling both power supply and signal transmission over a single Ethernet cable, thereby reducing cabling costs.

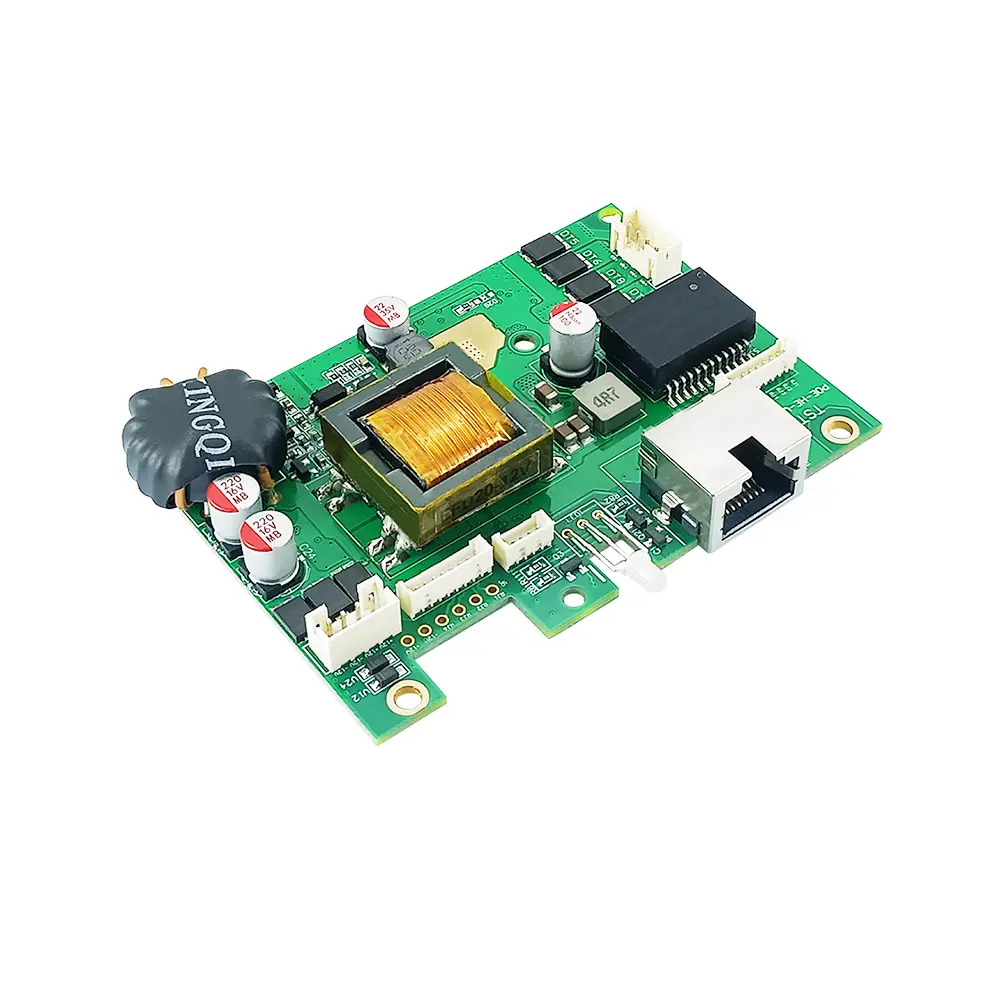

    TSD-V192E-3
    01

    The TSD-V192E module has two working modes: Mode 1: PoE filtering mode (PoE power signals pass through the module’s network filter); 8pin PH1.25mm terminal block: PoE input port, supports power supply via RJ12+ RJ36-/RJ45+ RJ78-; RJ45 Ethernet port: PoE input port, fully compatible with RJ12+ RJ36-/RJ45+ RJ78- power supply; 4pin PH1.25mm terminal block: data output port, gigabit expansion port (RJ4/5, RJ7/8); 8pin PH1.25mm terminal block: output data signal and 12V DC signal; 6pin PH2.54mm solder hole: output data signal and 12V DC signal; 4pin PH2.0mm terminal block: output two groups of 12V DC signals. Mode 2: Direct-through mode (PoE power signals bypass the module’s network filter); 4pin PH2.0mm terminal block: input DC 48V signal; 4pin PH2.0mm terminal block: output DC 12V signal.

    The TSD-V192E is a PoE module with isolation function. It has a maximum output power of 75W and features overheat protection, overvoltage protection, over current protection, and short circuit protection. The transmission rate is 10/100/1000Mbps auto-negotiation. It supports a wide voltage input of DC 38-56V and offers four output voltages to choose from: 12V, 19V, 24V, and 36V.


    ● Input:​​ Wide-range PoE DC power supply (38V–56V)

    ● Output:​​ DC 12V MAX6A/19V MAX3.5A/24V MAX3A/36V MAX2A
    ● Compliance:​​ IEEE 802.3af/at/bt PoE International Standard
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
    ● Transmission Rate:​​ 10/100/1000Mbps Auto-Negotiation
    ● Protection Features:​​ Overheat protection, overload protection, overvoltage protection, short-circuit protection
    ● Surge Protection:​​ 4KV lightning surge resistance

    ● Isolation protection

    ● High-temperature-resistant, flame-retardant sockets to reduce safety risks

    ● Gigabit high-power network filter

    ● Solid-state SMD capacitors for extended life span High-frequency, low-ESR electrolytic capacitors to minimize high-frequency losses

    ● Lead-free, eco-friendly manufacturing process

    ● High-temperature-resistant, flame-retardant PCB material

    ​● Gold-plated traces for improved circuit reliability and signal transmission

    ● Recessed RJ45 port design to reduce module height

    ● 3D-integrated interface layout to save installation space

    ● Premium-brand, high-precision electronic components

    ● High-conductivity, low-impedance power devices

    ● Two operational modes selectable

    Product parameter table

    Product Name

    75W High-power PoE module

    Product Model

    TSD-V192E

    PoE Standard

    IEEE802.3af/at/bt

    Input Voltage

    DC 38-56V

    Output

    DC 12V MAX6A/19V MAX3.5A/24V MAX3A/36V MAX2A

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

    Conversion Mode

    Isolated type

    Data Rate

    10/100/1000Mbps Auto-Negotiation

    Transmission Distance

    100 meters (Category 5e network cable)

    Surge Protection

    4KV

    Circuit Protection

    Overheating Protection Overcurrent Protection

    Overvoltage Protection Short - circuit Protection

    LED Indicator

    Green: 12V, red: 24V/36V

    Interface

    PoE Input Port1(8Pin PH1.25mm terminal block):PoE (RJ1~RJ8)

    PoE Input Port2(RJ45port):PoE(RJ1~RJ8)

    PoE Input Port3(4Pin PH2.0mm terminal block):PoE 48V IN

    Output Port1(4Pin PH1.25mm terminal block):Data OUT(RJ4,RJ5,RJ7,RJ8)

    Output Port2(8Pin PH1.25mm terminal block):Data+DC OUT

    Output Port3(6Pin PH2.54mm soldering pads):Data+DC OUT

    Output Port4(4Pin PH2.0mm terminal block):DC 12V OUT

    Function

    /

    Material

    FR-4

    Color

    Glossy green

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 53 g

    Dimension

    82*58*14 mm(L*W*H)

    Package

    Anti-static pearl cotton

    Size structure: 82*58*14mm, screw hole diameter: Φ=3.0mm*3, Φ=3.2mm*2. PCB thickness: 1.6mm. Overall layout: square structure. Maximum thickness: 14mm. Solder mask: glossy green. Module design: Double-sided, two-layer PCB with large components concentrated on the front side for space efficiency and easy installation.

    The TSD-V192E module complies with the IEEE 802.3af/at/bt international PoE standards, with EMC parameters meeting IEC 61000-4-2/3/4/5/6 requirements. It has obtained authoritative certifications such as CE, FCC, and RoHS, and is widely sold in many countries and regions around the world.

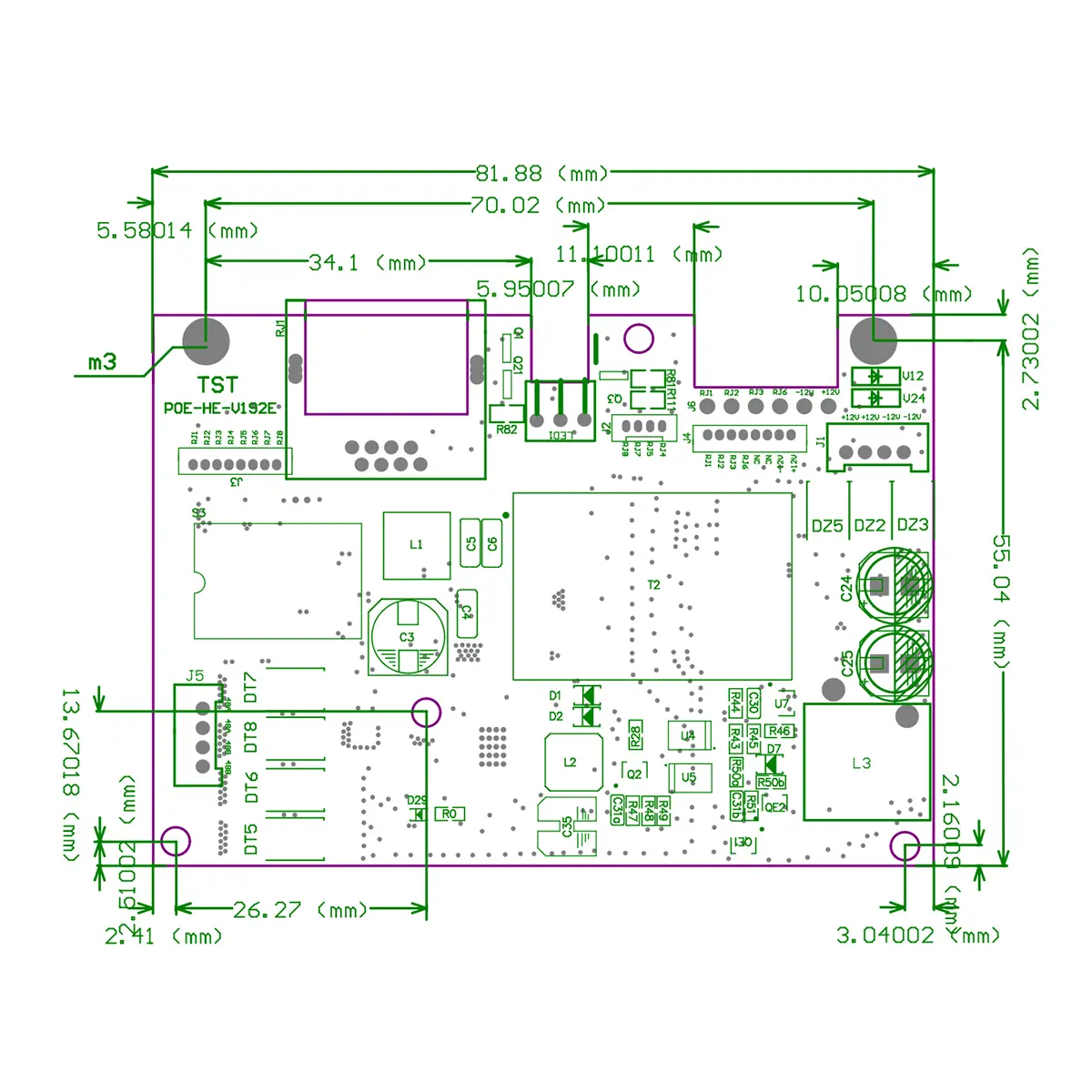

    TSD-V192E-Dimension

    The TSD-V192E delivers a maximum output power of 75W, making it capable of powering high-power IP devices such as large advertising displays, high-fidelity speakers, and intelligent high-speed PTZ cameras.

    With its simple installation and user-friendly design, the module seamlessly integrates into IP network equipment, significantly enhancing device security and management efficiency. By incorporating PoE (Power over Ethernet) functionality, it expands power supply options for user devices, ensuring greater flexibility in network deployment.

    TSD-V192E-Application1

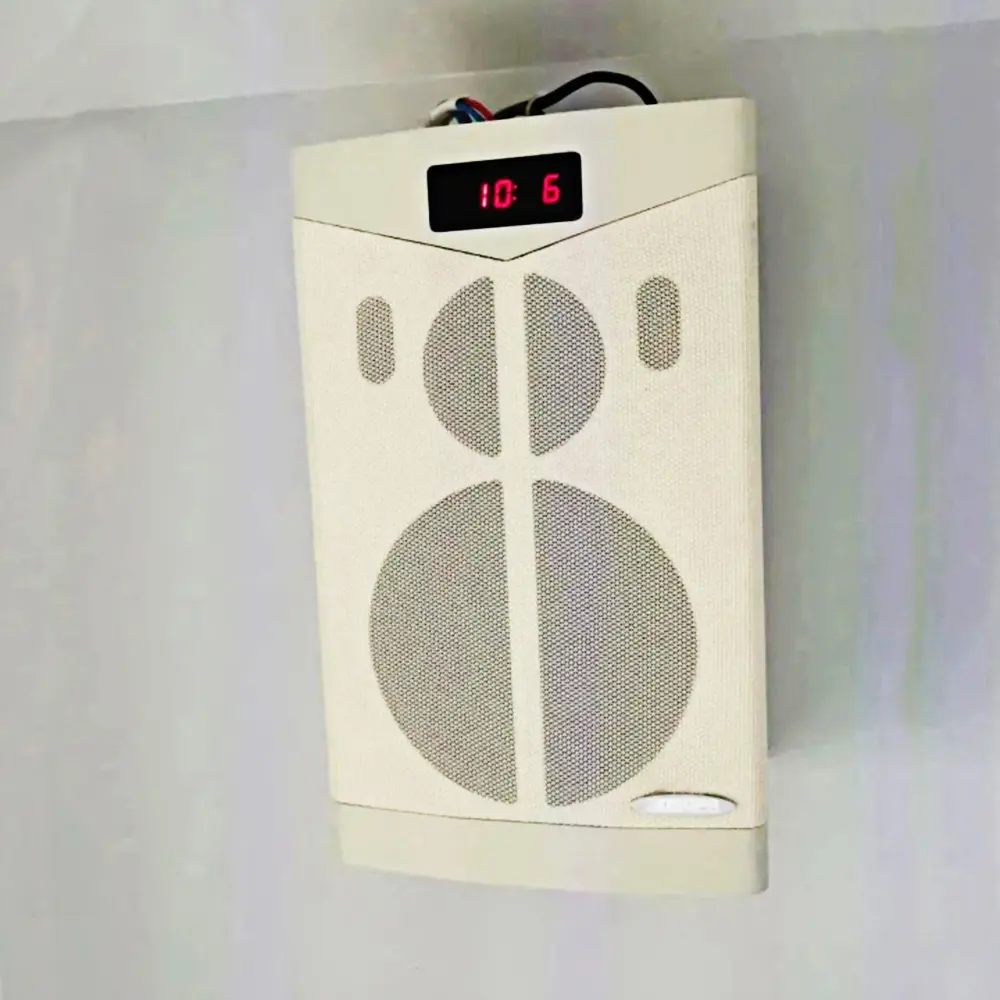

    TSD-PSE2400G2S-Application2
    TSD-V192E-Application2

    Package list
    Items Quantity
    V192E PoE module 140PCS
    Operation Manual /
    TSD-V192E-Package
    TSD-V192E-Interface
