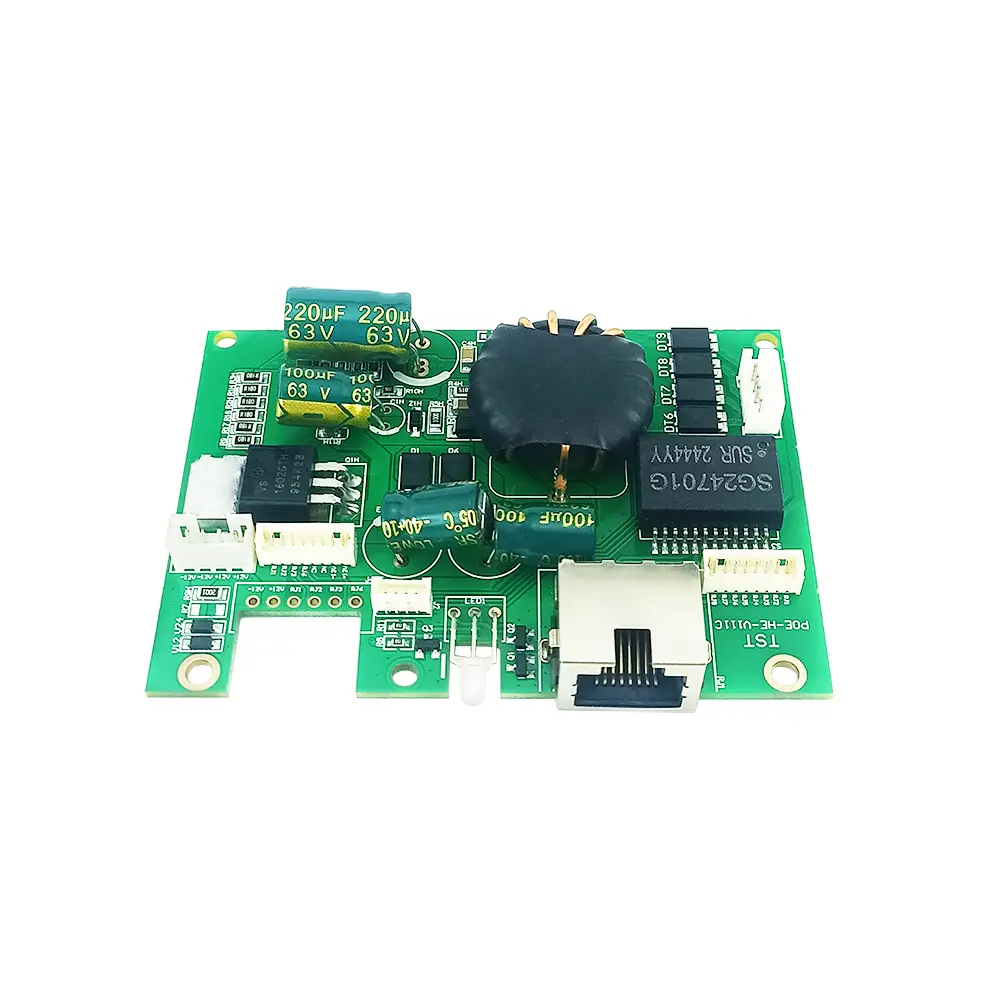

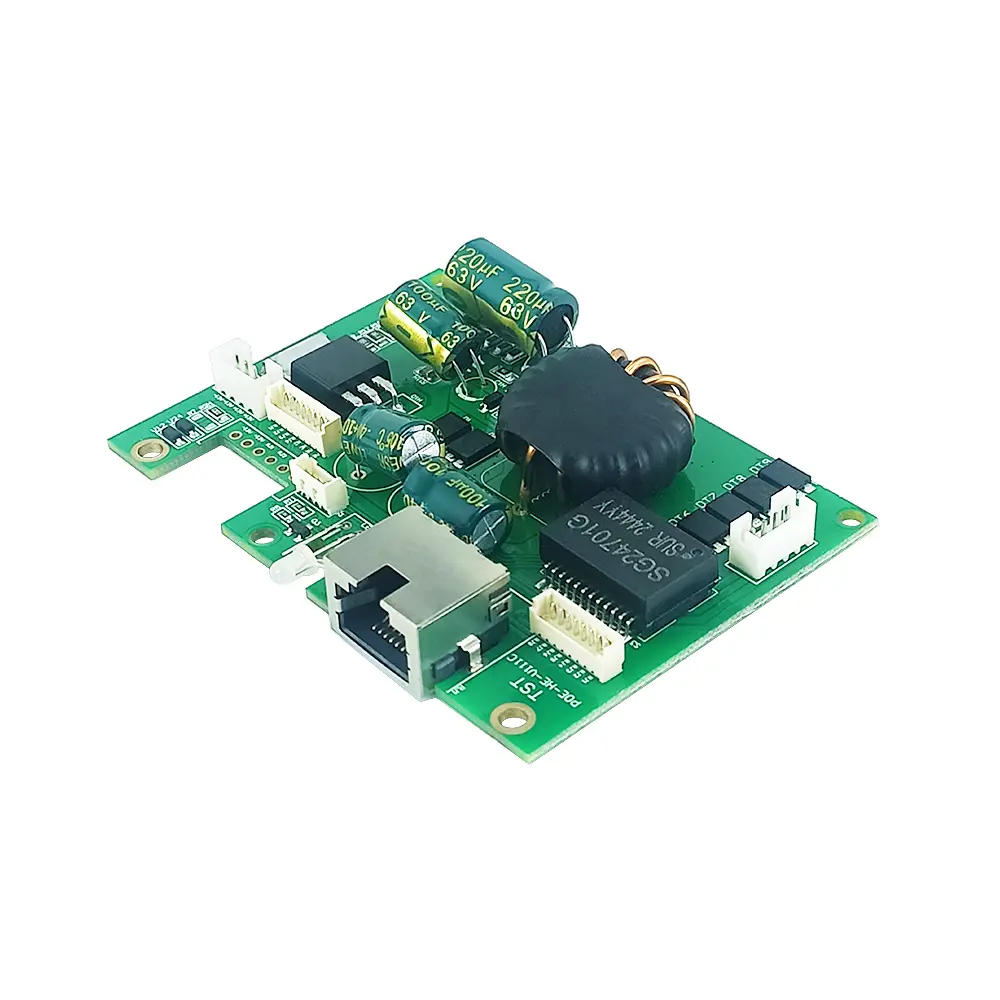

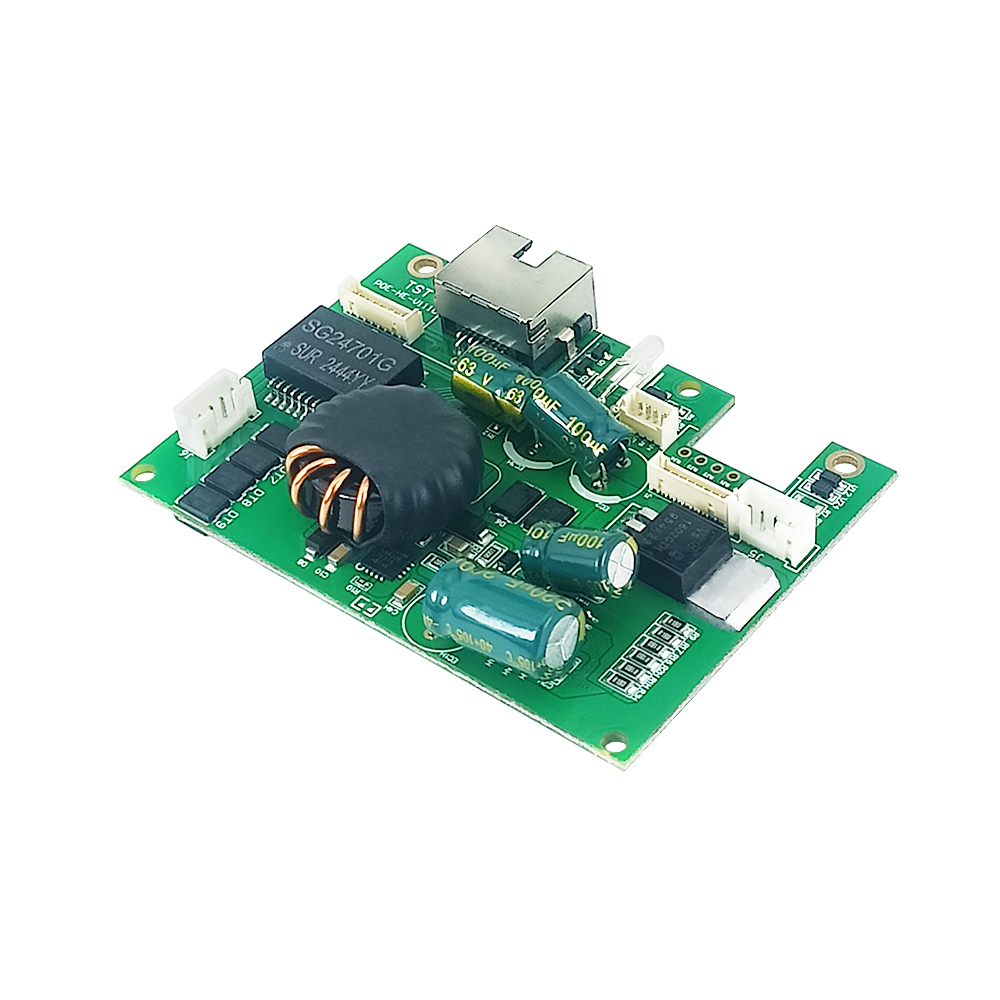

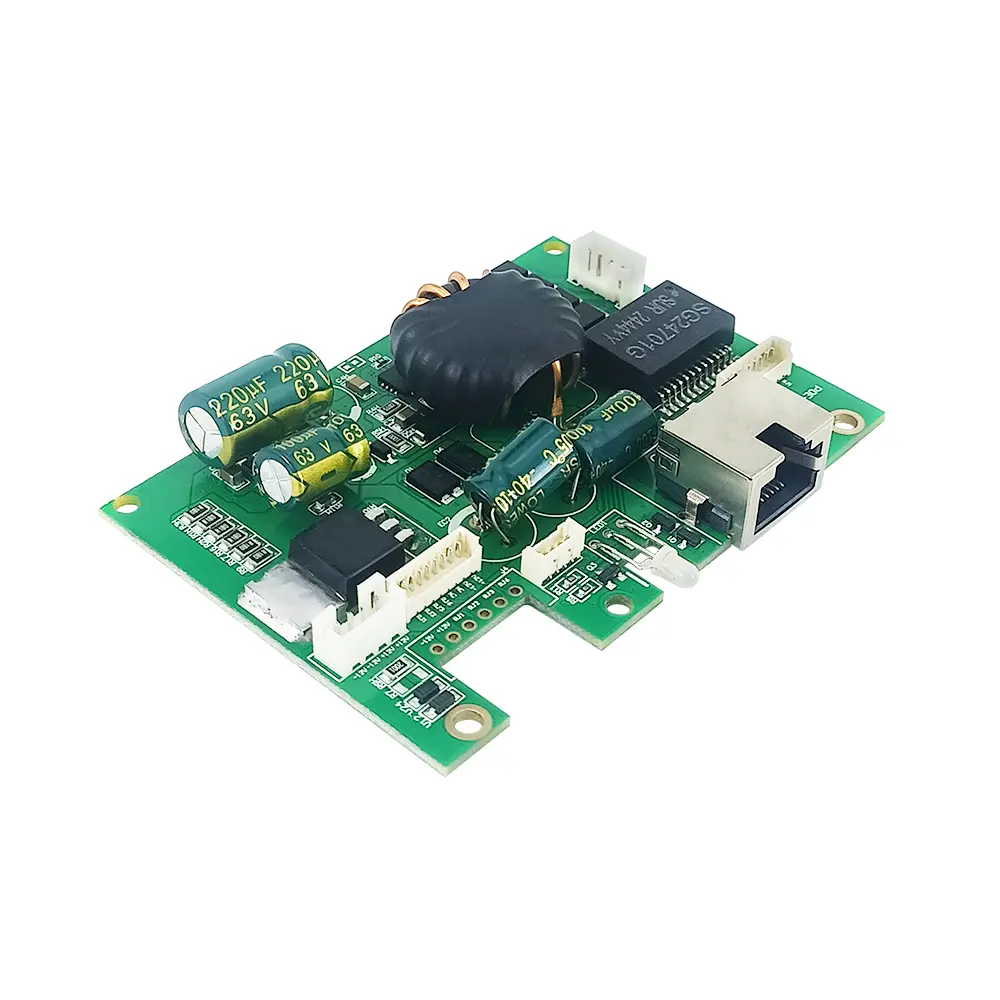

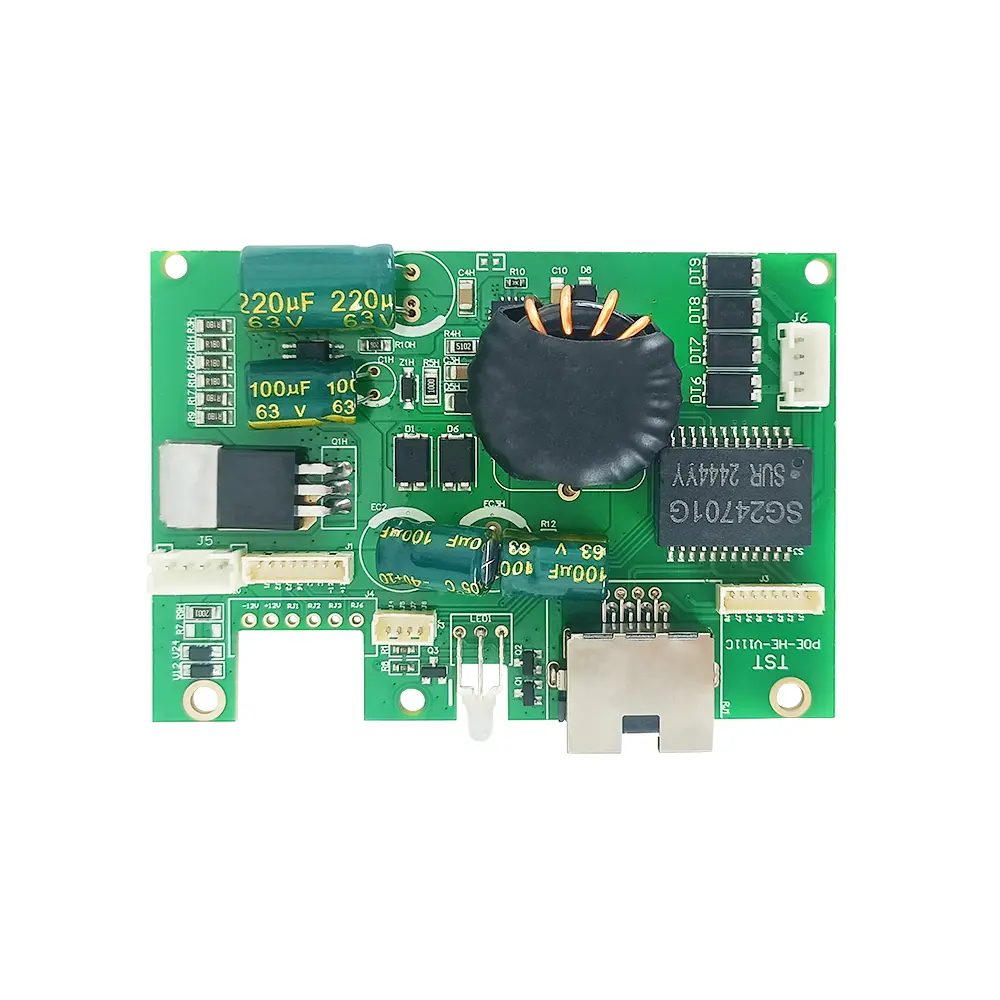

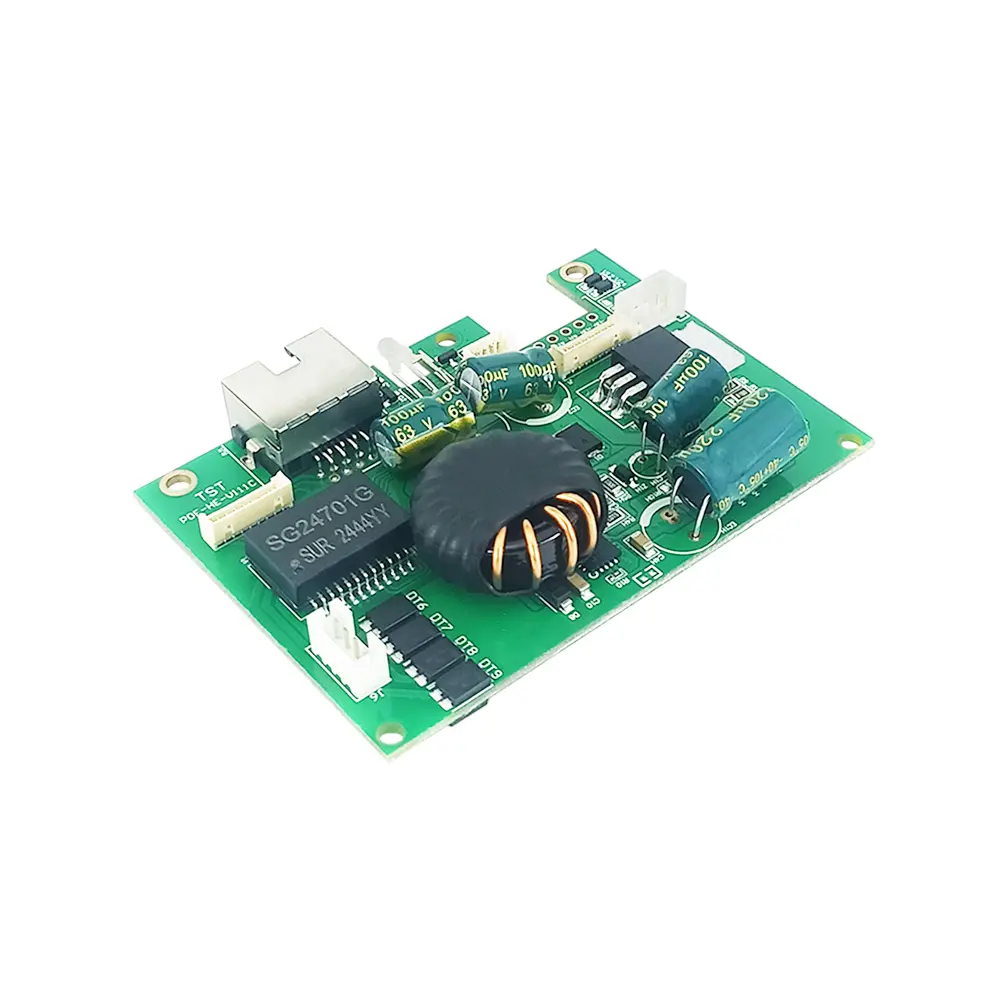

60W High-power Gigabit PoE PD Module

Model: TSD-PD8258

Input: Wide-Range PoE DC 38-56V
Output: DC 12V/24V/36V 60W
PoE protocol: IEEE 802.3af/at/bt
Data rate: 10/100/1000Mbps / 2.5G
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 Port + 4P/6P/8P Socket
Size: 82*58*14mm (L*W*H)
Weight: N.W=43g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-PD8258 module is a high-power PoE module with a maximum output power of 60W. It supports stable DC output in three modes: 12V/5A, 24V/2.5A, and 36V/1.5A.

The TSD-PD8258 module is primarily used in ultra-high-power devices such as large-scale LED displays, high-power audio systems, and intelligent high-speed PTZ (Pan-Tilt-Zoom) dome. Equipped with a handshake protocol, the module receives PoE signals from the Power Sourcing Equipment (PSE), delivering continuous DC power to terminal devices while simultaneously transmitting data signals.

The TSD-PD8258 module features seven I/O ports and supports two operational modes for flexible PoE signal routing，Mode 1: PoE Signal Filtering Mode(PoE signals pass through the module's network filter ), PoE Input Port: 8-Pin PH1.25mm terminal block, support RJ12+ RJ36- / RJ45+ RJ78- power supply; RJ45 port: full compatibility with RJ12+, RJ36- / RJ45+, RJ78- power supply. Output port: 4-Pin PH1.25mm terminal block, gigabit extension port (RJ4/5, RJ7/8); 8-Pin PH1.25mm terminal block, provides data transmission and DC 12V power; 6-Pin PH2.54mm soldering pads, delivers data signals and DC 12V power; 4-Pin PH2.0mm terminal block, dual DC 12Voutput.Mode 2: Bypass Mode (No Filtering), 4Pin PH2.0mm terminal block:DC 48V input port; 4Pin PH2.0mm terminal block: DC 12V output port.

The maximum output power of TSD-PD8258 module is 60W, which has the functions of overheating protection, overvoltage protection, overcurrent protection, short circuit protection and so on. Transmission rate: 10/100/1000M/2.5G adaptive. Support wide voltage input DC 38-56V, default output voltage DC 12V, another 24V/36V output voltage can be selected, other voltage can be customized.

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 5A / 24V MAX 2.5A / 36V MAX 1.5A
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate：10/100/1000Mbps/2.5G
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lighting surge resistance
● Conversion efficiency≧85%
● Design Features: Double side design
● High-temperature-resistant, flame-retardant sockets

● High-frequency, low-resistance electrolytic capacitors (reduces high-frequency loss)

● Pure copper thickened wire cores

● High-precision branded electronic components

● High-power, low-impedance transistors for superior conductivity

● Pure copper pin connectors (excellent electrical & thermal conductivity)

● High-temperature-resistant, eco-friendly PCB material

● Lead-free manufacturing process

TSD-PD8258 module supports IEEE802.3af/at/bt PoE international standard protocol, has obtained CE, FCC, RoHS and other authoritative certification, EMC parameters in line with IEC 6100-4-2/3/4/5/6 standard requirements, products sell well in many countries and regions around the world.

Product parameter table
Product Name	60W High-power Gigabit PoE PD Module
Product Model	TSD-PD8258
PoE Standard	IEEE802.3af/at/bt
Input Voltage	PoE: DC 38-56V
Output	DC 12V MAX 5A/24V MAX 2.5A/36V MAX 1.5A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Non-isolated type
Data Rate	10/100/1000Mbps+2.5G
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Overvoltage Protection Overheating Protection Overcurrent Protection Short - circuit Protection
LED Indicator	Green: 12V, red: 24V/36V
Interface	PoE Input Port1 (8-Pin PH1.25mm Socket): PoE (RJ1-RJ8) PoE Input Port2 (RJ45 port): PoE (RJ1~RJ8) PoE Input Port3（4Pin PH2.0mm terminal block: PoE 48V IN Output Port (4-Pin PH1.25mm Socket): Data OUT（RJ4，RJ5，RJ7，RJ8） Output Port (8Pin PH1.25mm terminal block): Data+DC OUT Output Port (6Pin PH2.54mm soldering pads): Data+DC OUT Output Port (4-Pin PH2.0mm terminal block): DC 12V OUT
Function	/
Material	FR-4
Color	glossy green solder mask
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 43g
Dimension	825814mm
Package	Anti-static pearl cotton

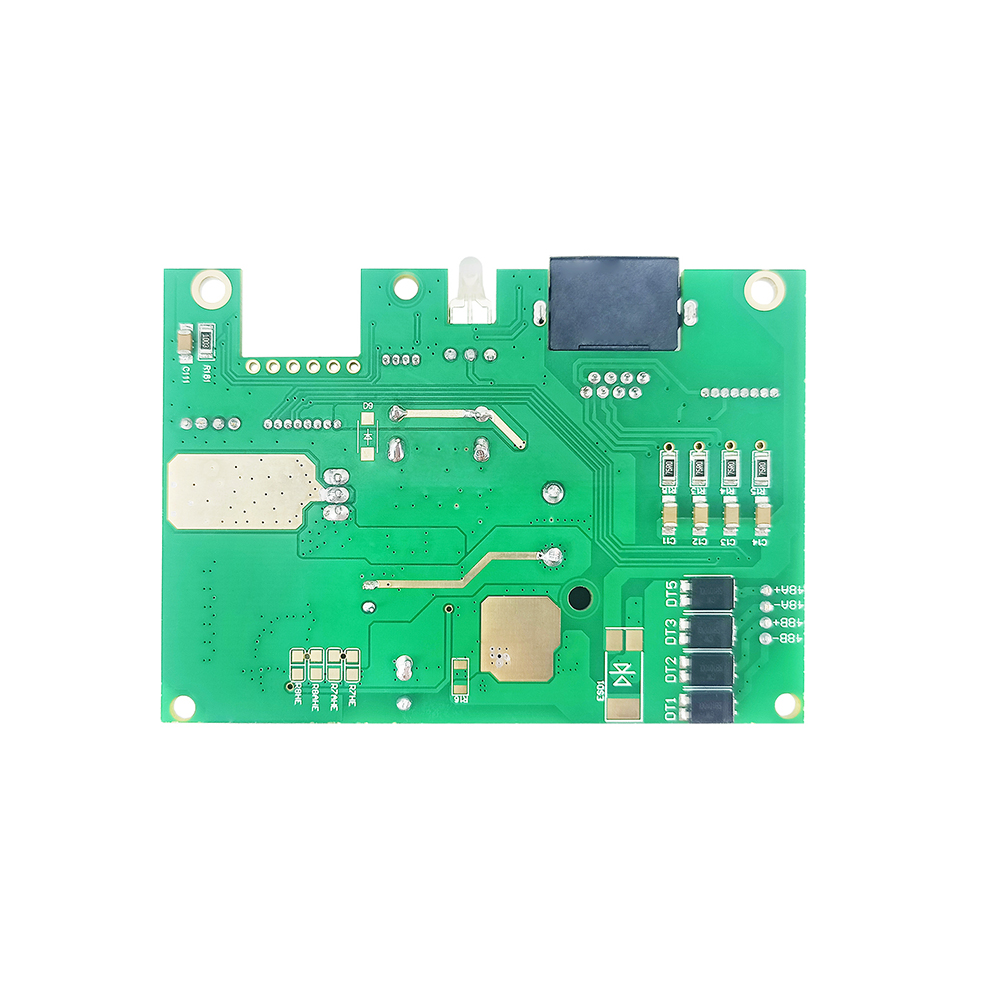

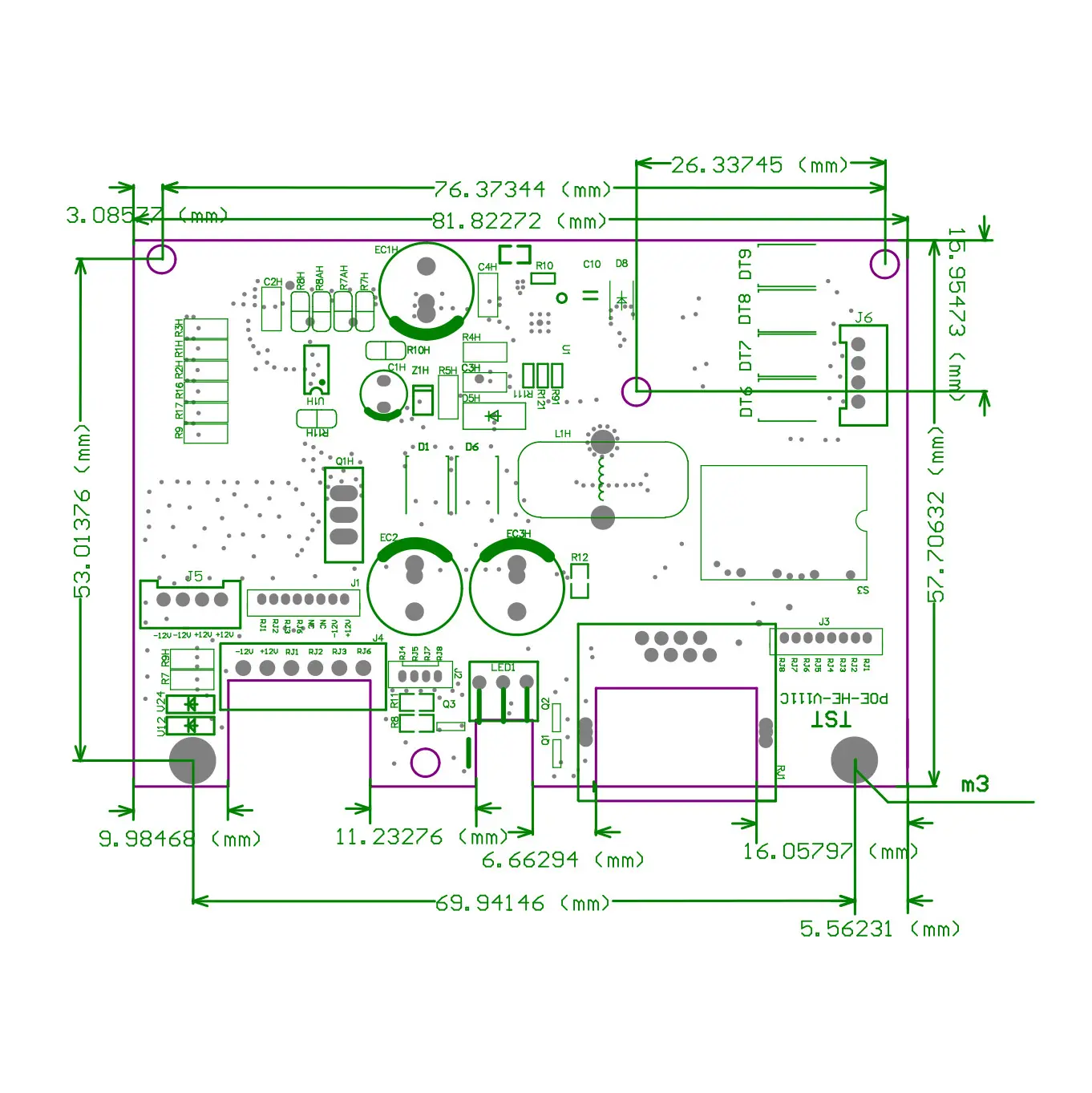

Size structure: 82*58*14mm, screw hole diameter: Φ=3.0mm*3, Φ=3.2mm*2. PCB thickness: 1.6mm. Overall layout: square structure. Maximum thickness: 14mm. Solder mask: bright green oil. Module design: two-layer board double-sided design, the whole board large components concentrated on one side, saving spaceand easy installation.

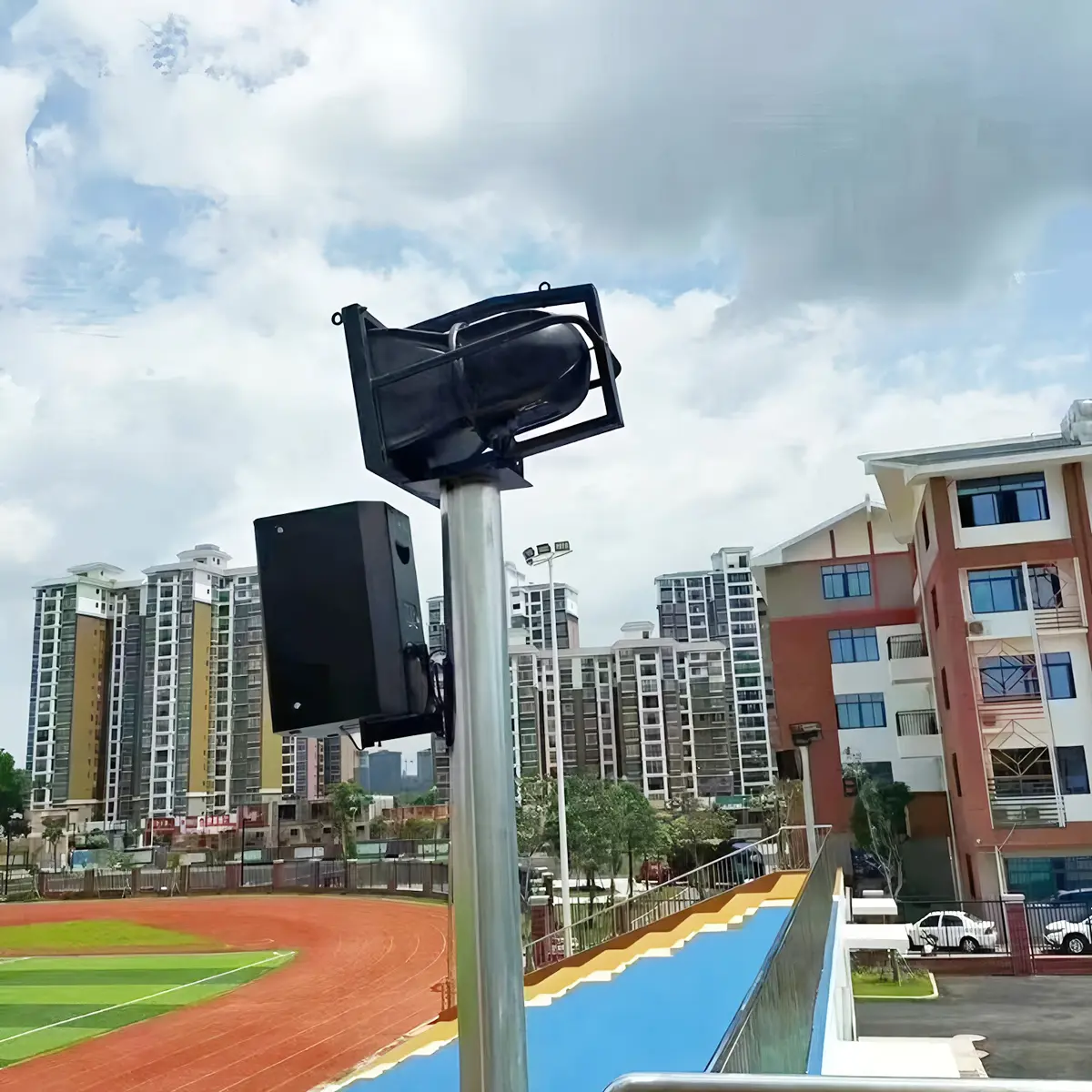

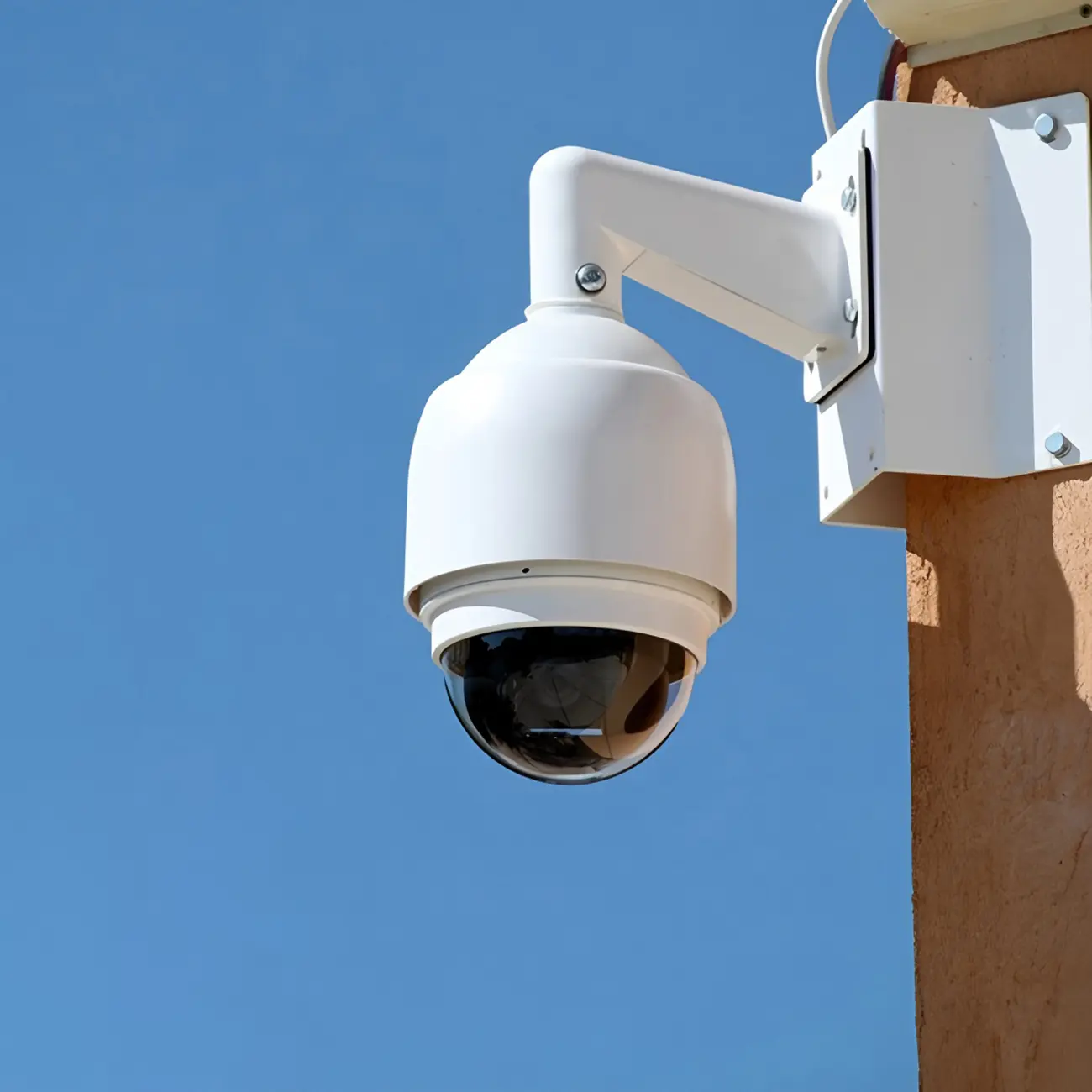

TSD-PD8258 is a PoE module with a maximum output power of 60W, primarily designed for high-power devices such as large-scale advertising screens, high-power audio systems, and intelligent high-speed PTZ (Pan-Tilt-Zoom) dome. With its high power output, strong load-bearing capacity, and wide range of applications, the TSD-PD8258 has received widespread acclaim since its launch.

Note: The TSD-PD8258 module does not have isolation functionality. Users should avoid connecting two or more loads to a common ground during installation and use to ensure proper operation of the equipment.

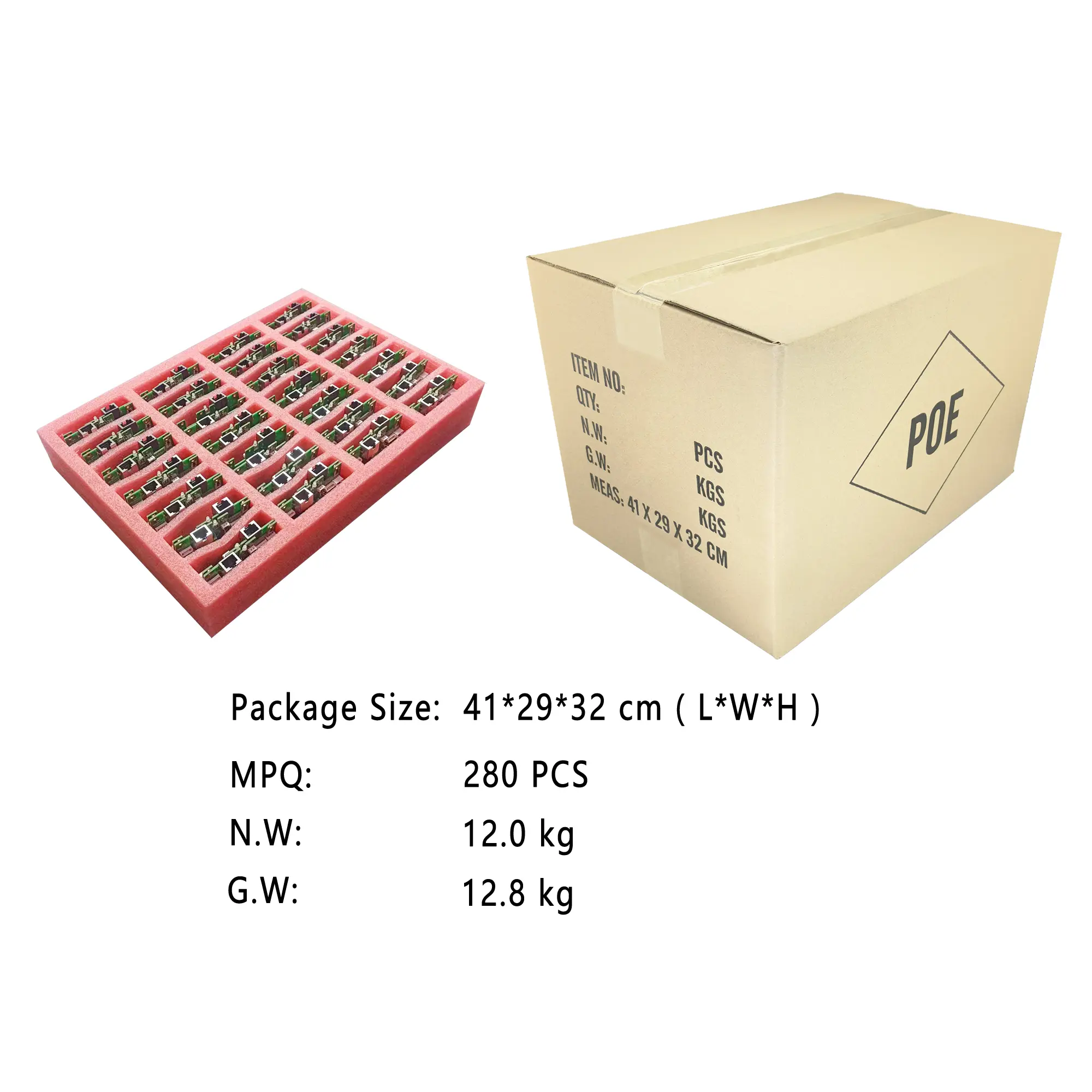

Package list
Items	Quantity
PoE PD Module	280 PCS
Operation Manual	/
