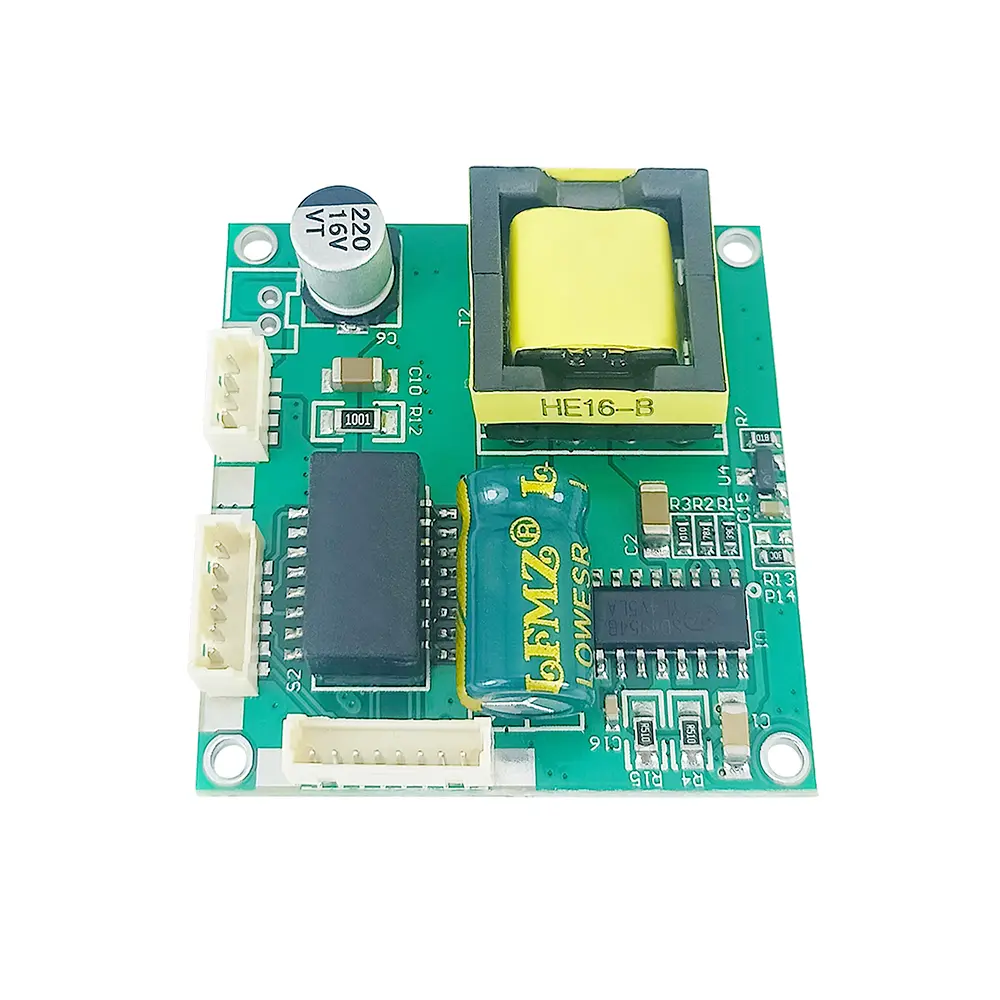

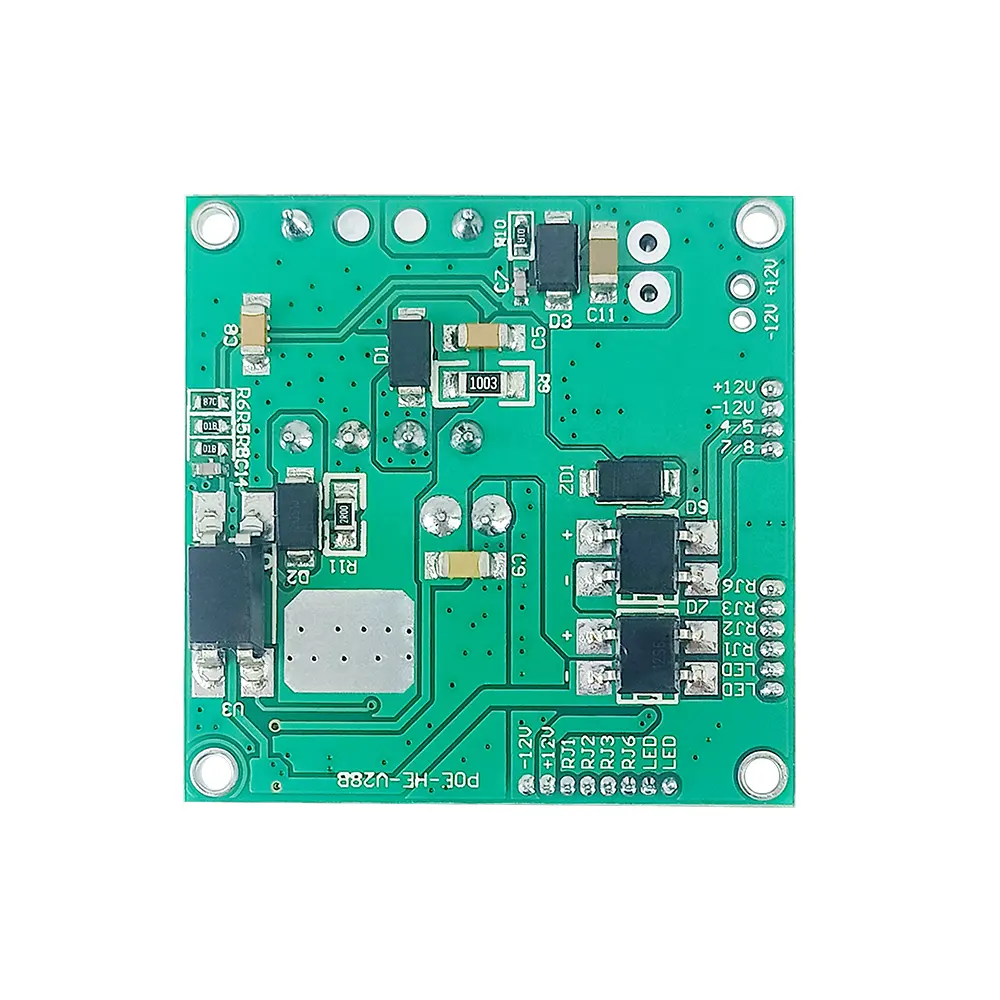

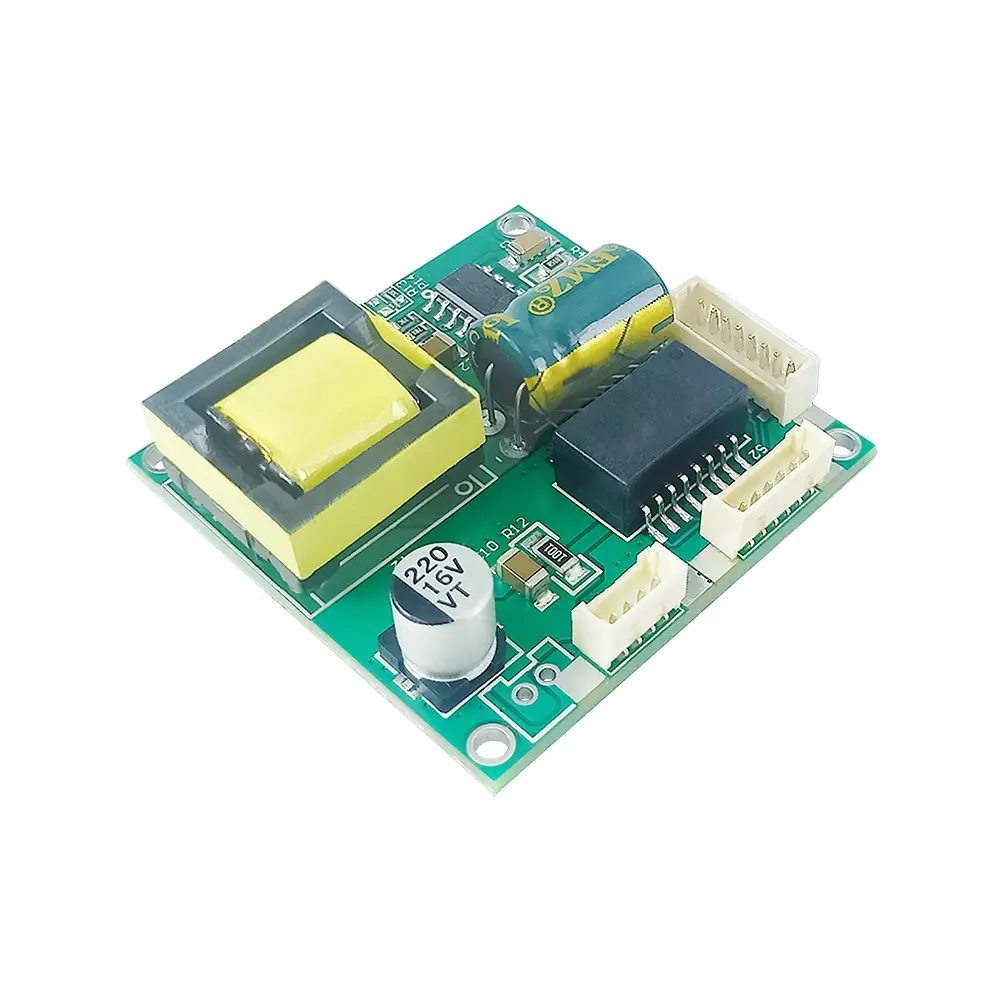

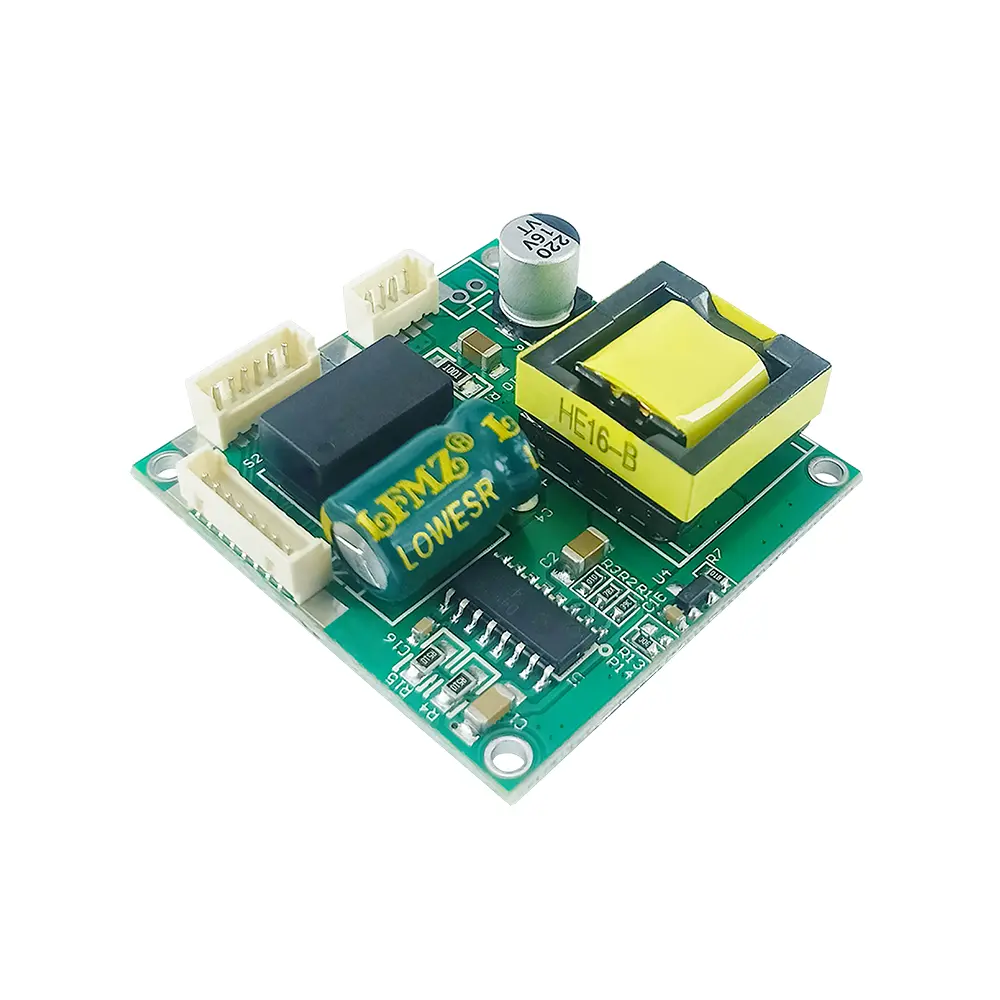

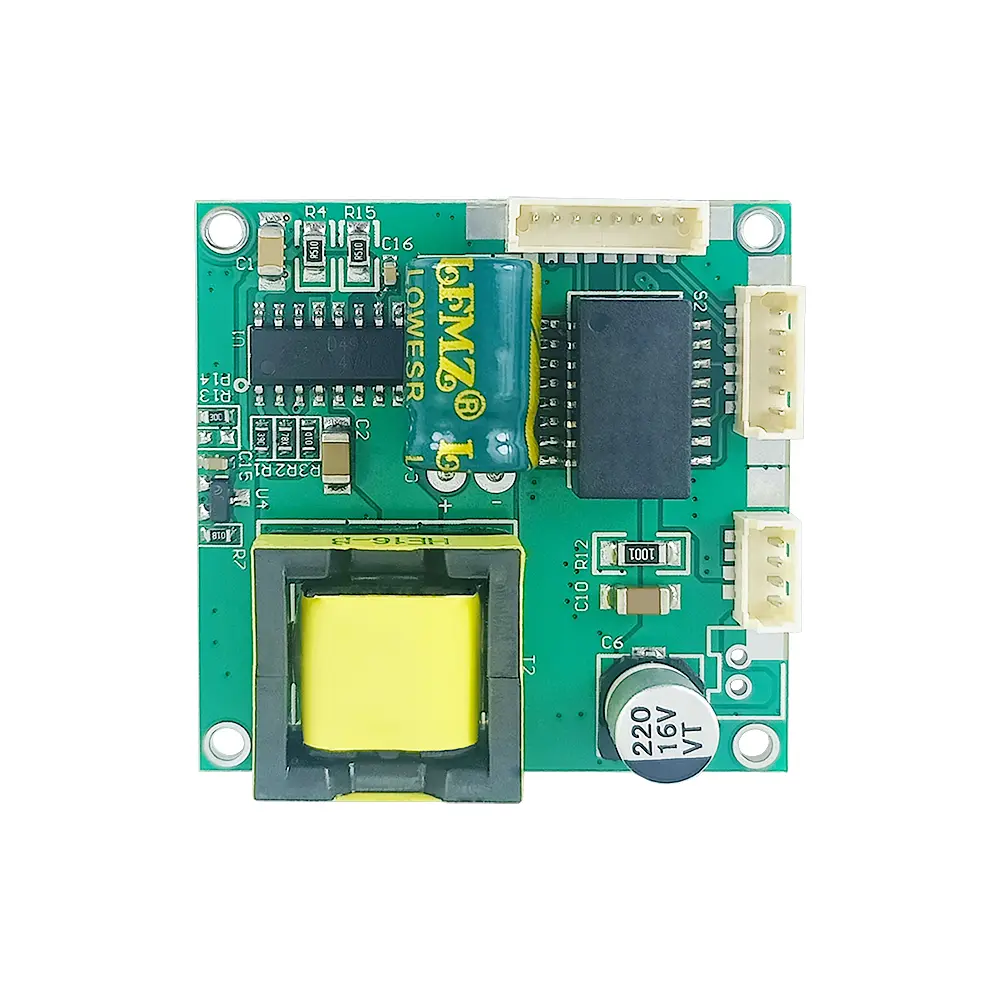

The TSD-PD3806 complies with the IEEE 802.3af PoE standard protocol, with an adaptive transmission rate of 10/100Mbps. The maximum output power is 18W. It supports a wide voltage input range of DC 38-56V, with the default output voltage being DC 12V. Other voltages can be customized.
● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 1.5A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Vertical
interface, flexible installation
● 100Mbps high frequency POE filter to ensure stable data transmission
● High frequency low resistance electrolytic capacitor, effectively reduce the circuit high frequency loss and heating
● International brand original high-precision electronic components, stable performance
● High power, high conduction and low impedance transistor, stable performance and low heat
●High temperature resistant PCB environmental protection material, lead-free environmental protection process
● Pure copper pin connector, good contact stability
● Beige high temperature flame retardant interface socket, safe and reliable quality
● EFD15 high frequency frame isolation transformer, strong reliability, high adaptability
● Equipped with 80mm connecting line, convenient for users to connect
