Equipped with an isolation transformer, TSD-V212 is an electrically isolated PD module providing safety protection. The circuit incorporates thermal overload, over-voltage, over-current, and short-circuit protection. Transmission Rate: 10/100/1000Mbps auto-negotiation, The module supports a wide DC input voltage range of 38-56V.Output Voltage: 12V DC, Output Current: 2.5A (max),Maximum Output Power: 30W.
● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000M Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● High-Temperature-Resistant Eco-Friendly PCB
● Lead-free manufacturing process
● Gigabit High-Power Network Filter, Supports High-Power Devices
● High-Frequency Low-Resistance Electrolytic Capacitors to Reduce High-Frequency Loss and Heat
● Solid Capacitors: High Stability and Long Lifespan
● High-Temperature Flame-Retardant Connector
● Premium Original High-Precision Electronic Components
● High-Power, High-Conductivity, Low-Impedance Transistors
● Pure Copper Pins for Excellent Conductivity and Heat Dissipation
● Isolation Transformer: Ensures Safety and Signal Integrity
● 80mm Connecting Cable for Easy Installation

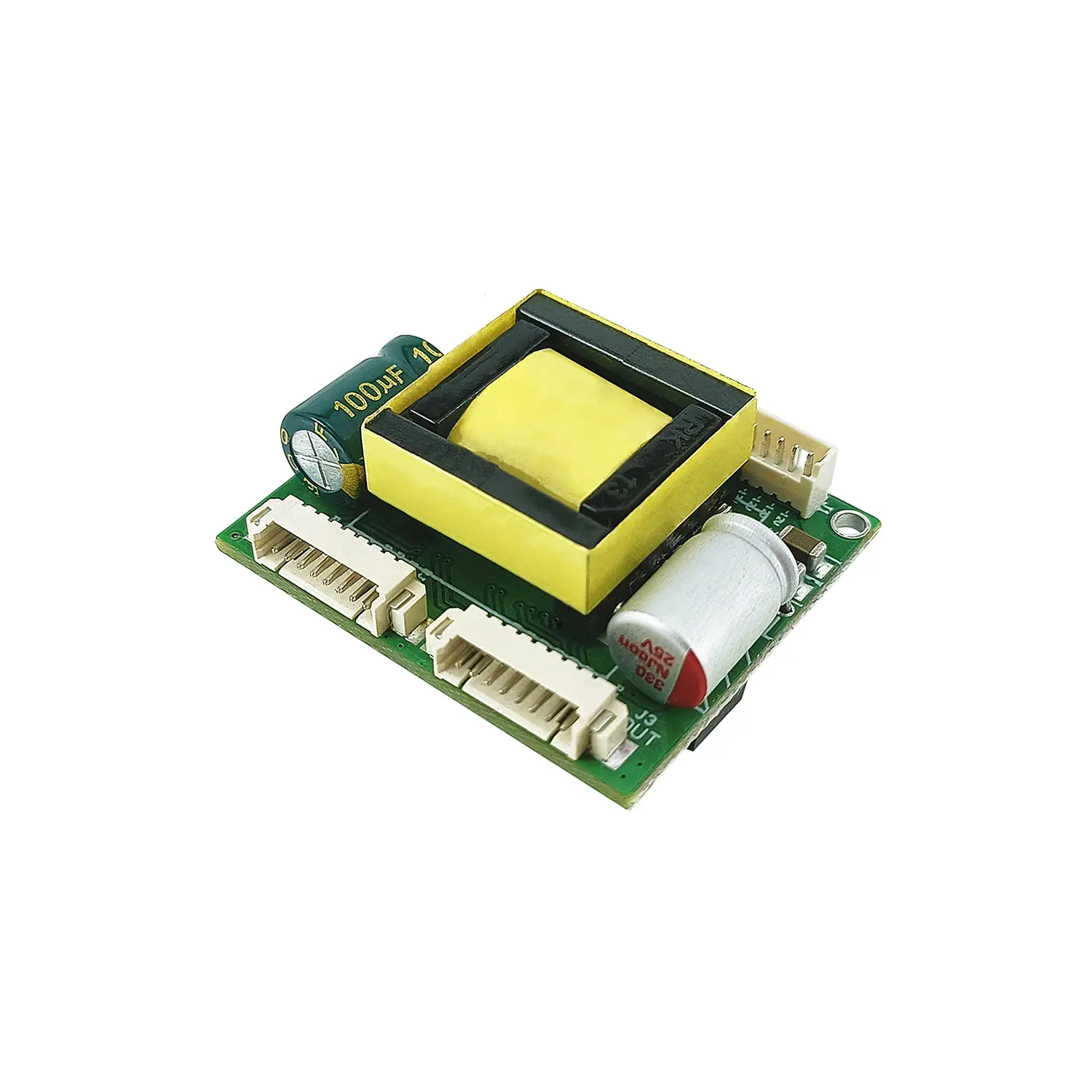

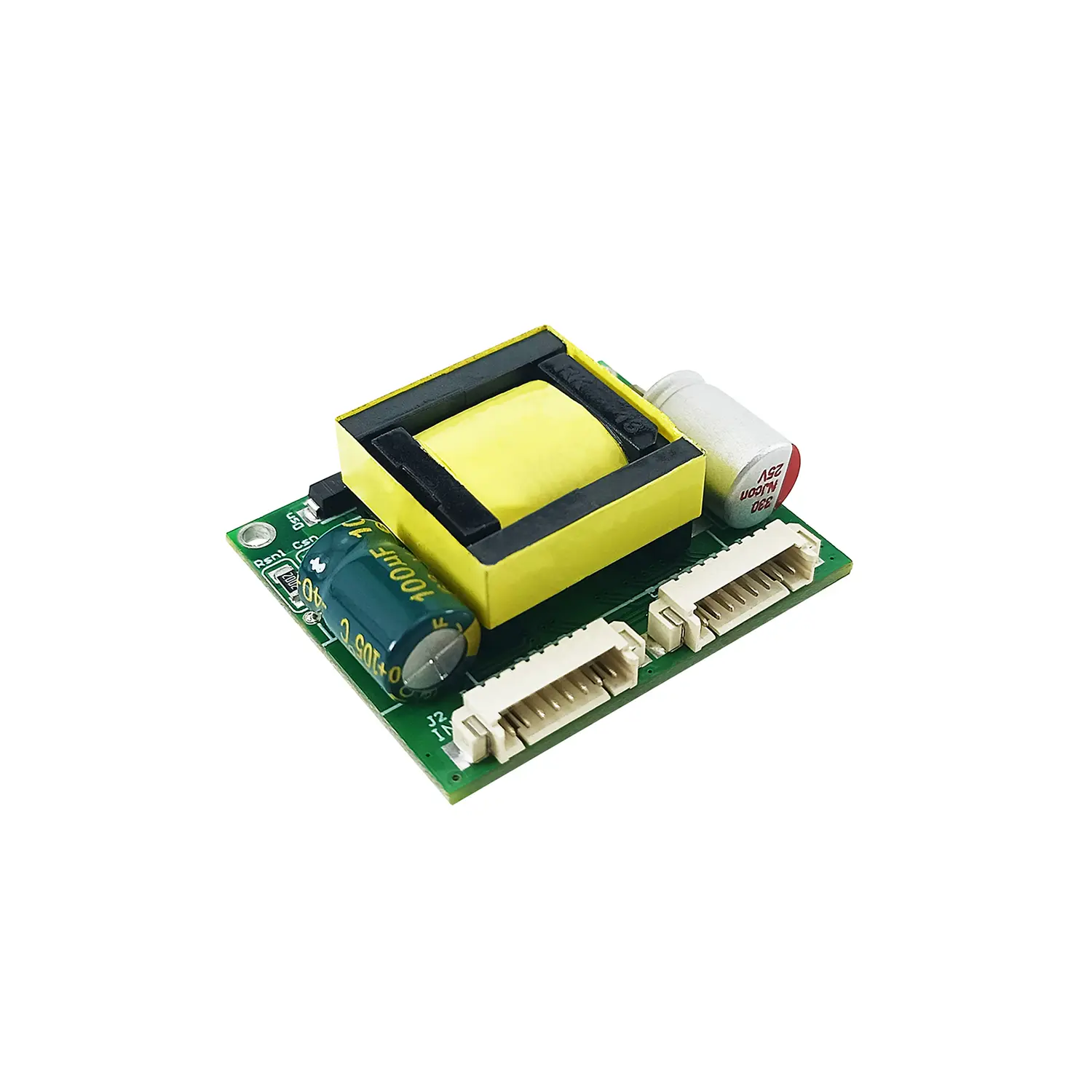

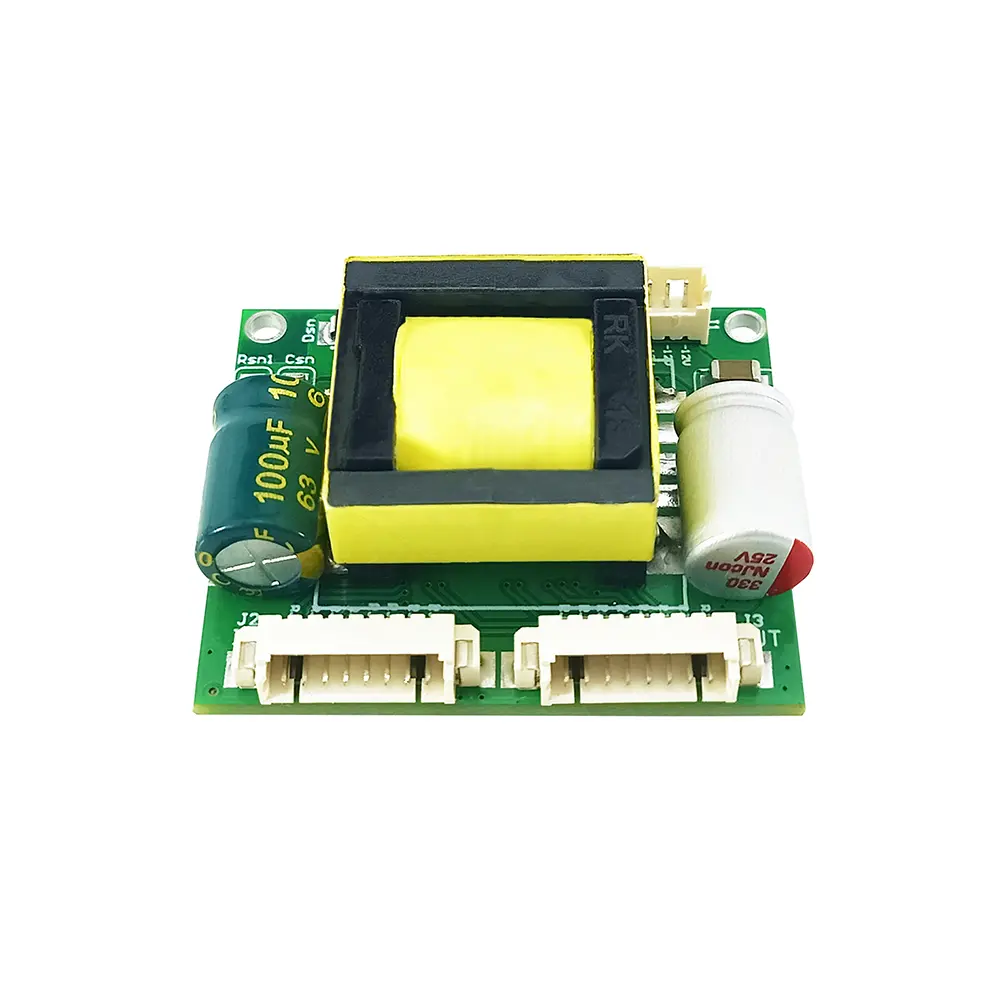

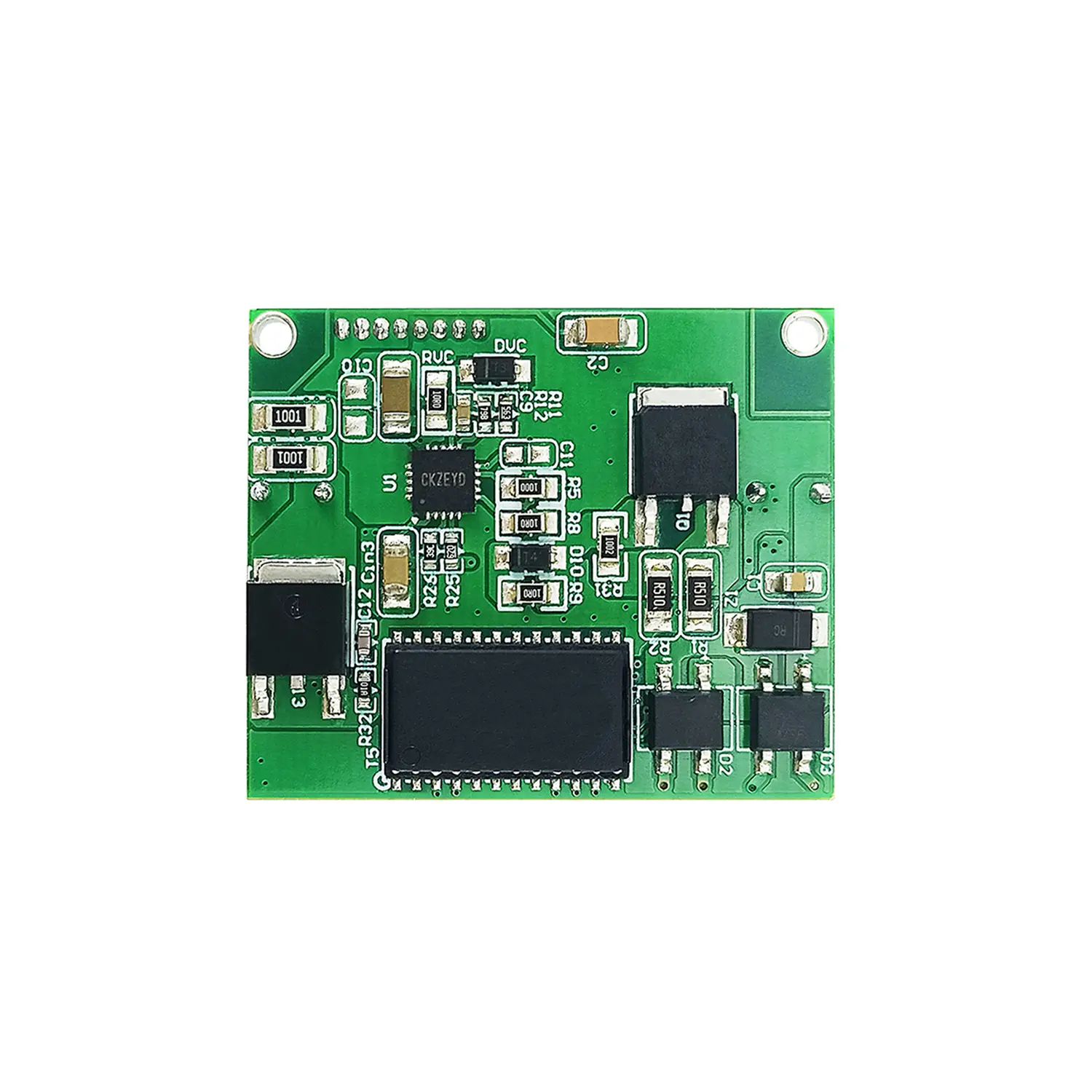

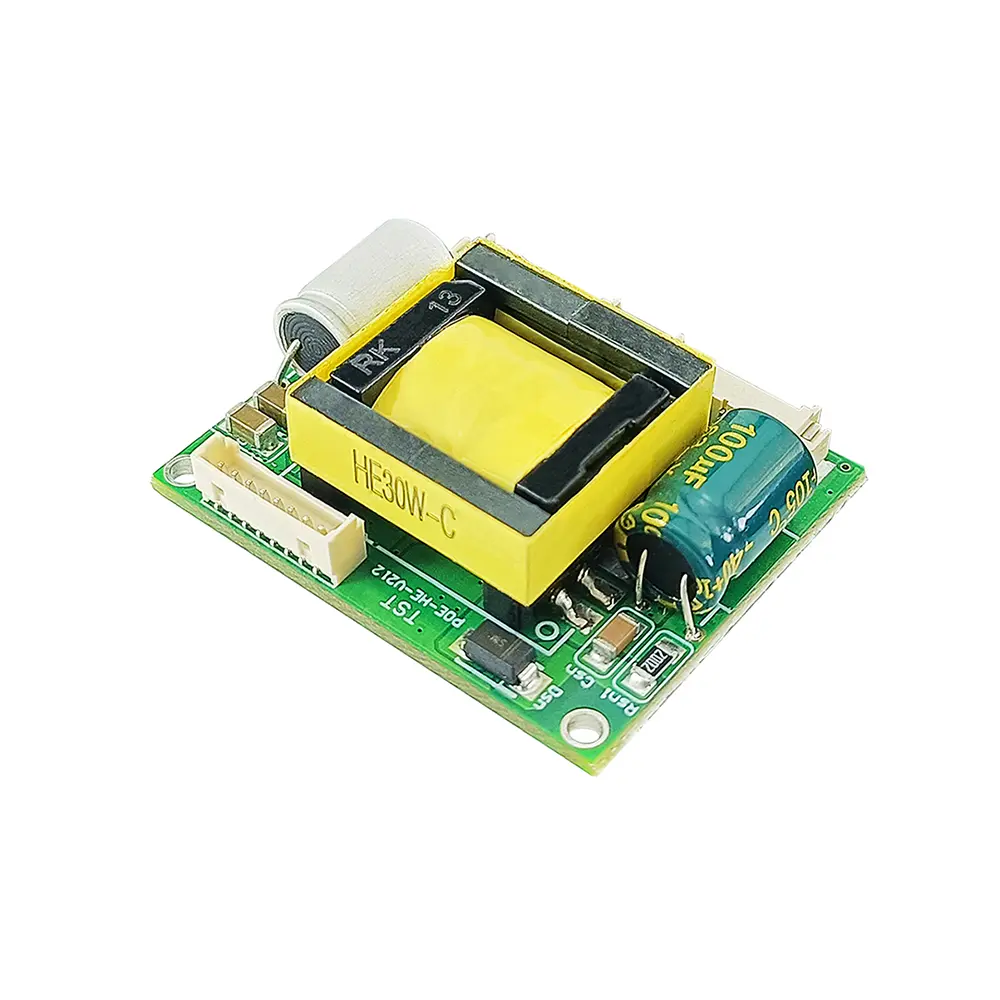

30W Small Form Factor Industrial Grade PoE PD Module 12Volt
TSD-V212 complies with the IEEE 802.3af/at PoE
international standard protocol. It can receive PoE signals from PSE devices
through handshake protocols and stably output 12V DC power, achieving
simultaneous transmission of power and data communication.

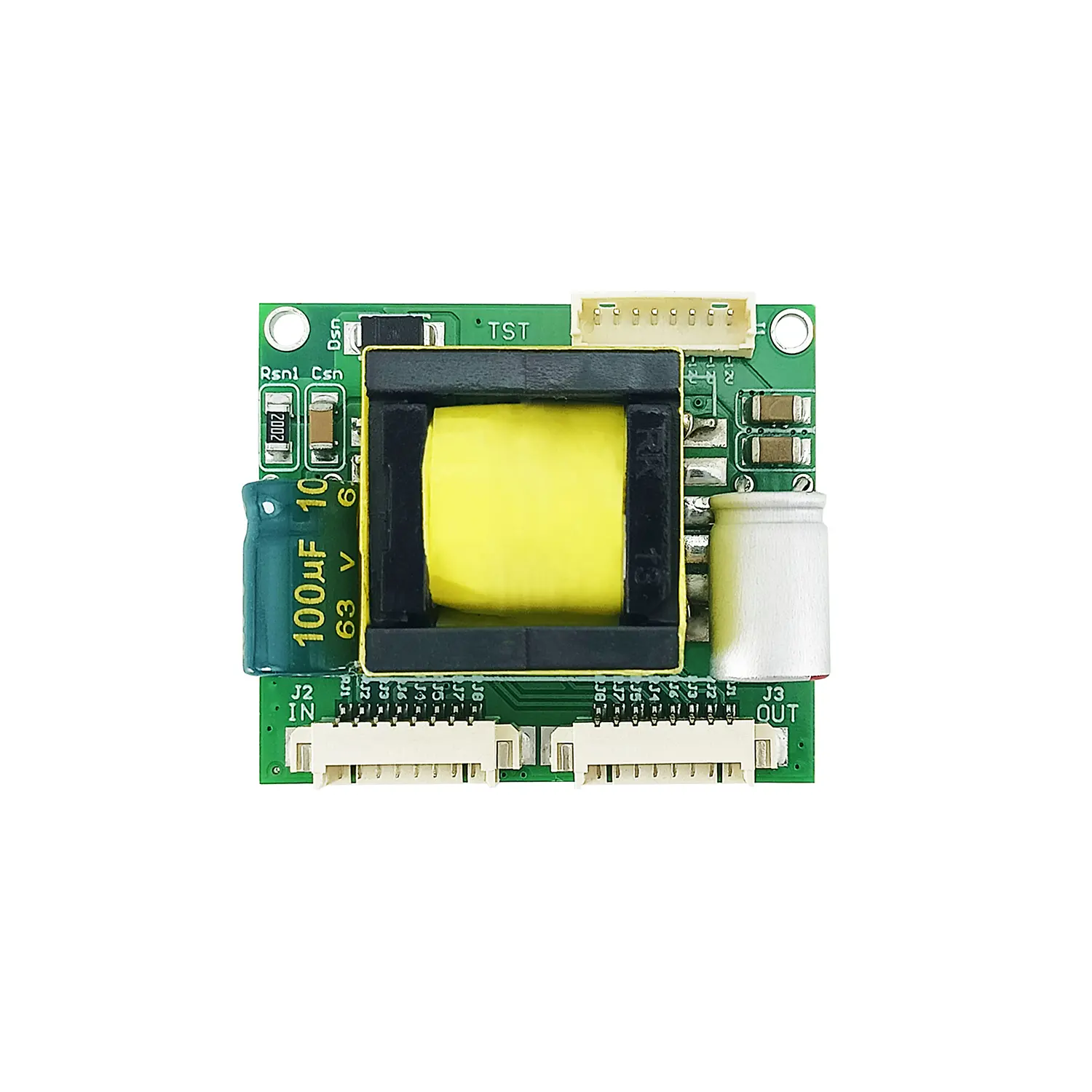

The TSD-V212 module features one input interface with an 8-pin PH1.25mm
horizontal connector for receiving 38-56V DC PoE signals, and two output
interfaces: an 8-pin PH1.25mm horizontal connector for data signals and an 8-pin PH1.25mm vertical connector for 12V DC output.
The TSD-V212 meets the EMC requirements specified in IEC 61000-4-2/3/4/5/6. It has
obtained authoritative certifications including CE, FCC, and RoHS. The compact
module enables flexible installation and rapid multi-scenario deployment.
Recognized for exceptional reliability and versatile applicability, it has
earned high acclaim from users.
|
Product parameter table |
|
|
Product Name |
30W Small Form Factor Industrial Grade PoE PD Module |
|
Product Model |
TSD-V212 |
|
PoE Standard |
IEEE802.3af/at |
|
Input Voltage |
PoE: DC 38-56V |
|
Output |
DC 12V MAX 2.5A |
|
Conversion Efficiency |
≧85% |
|
PoE Pin |
RJ12+ RJ36- / RJ45+ RJ78- Fully compatible |
|
Conversion Mode |
Isolated type |
|
Data Rate |
10/100/1000M Auto-Negotiation |
|
Transmission Distance |
100 meters(Category 5e Cable (Cat5e) ) |
|
Surge Protection |
4KV |
|
Circuit Protection |
Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection |
|
LED Indicator |
/ |
|
Interface |
Input Port (8-Pin PH1.25mm Socket): DC 38-56V IN Output Port (8-Pin PH1.25mm Socket): DC 12V OUT Output Port (8-Pin PH1.25mm Socket): Data OUT |
|
Function |
/ |
|
Material |
FR-4 |
|
Color |
glossy green solder mask |
|
Accessories |
/ |
|
EMC |
IEC 61000-4-2/3/4/5/6 |
|
Temperature |
-30～60℃ For Operating -30～80℃ For Storage |
|
Humidity |
RH95% MAX (Non-condensation) |
|
Weight |
N.W: 12g |
|

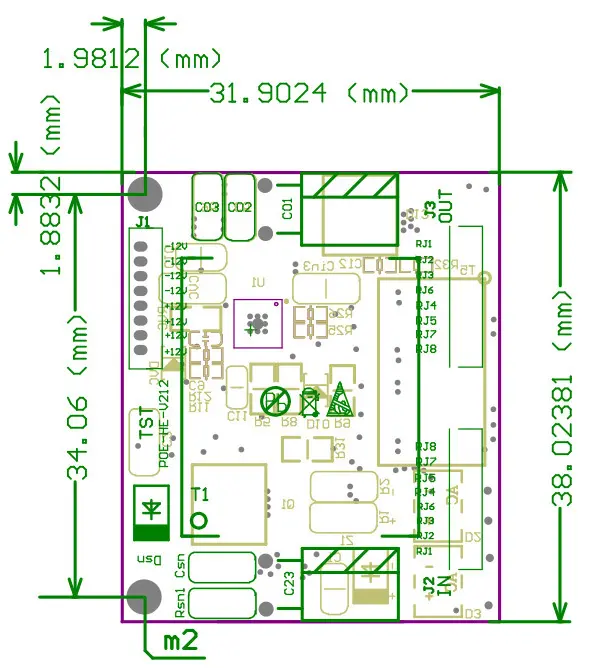

Dimension |
38*32*14.5mm |
|

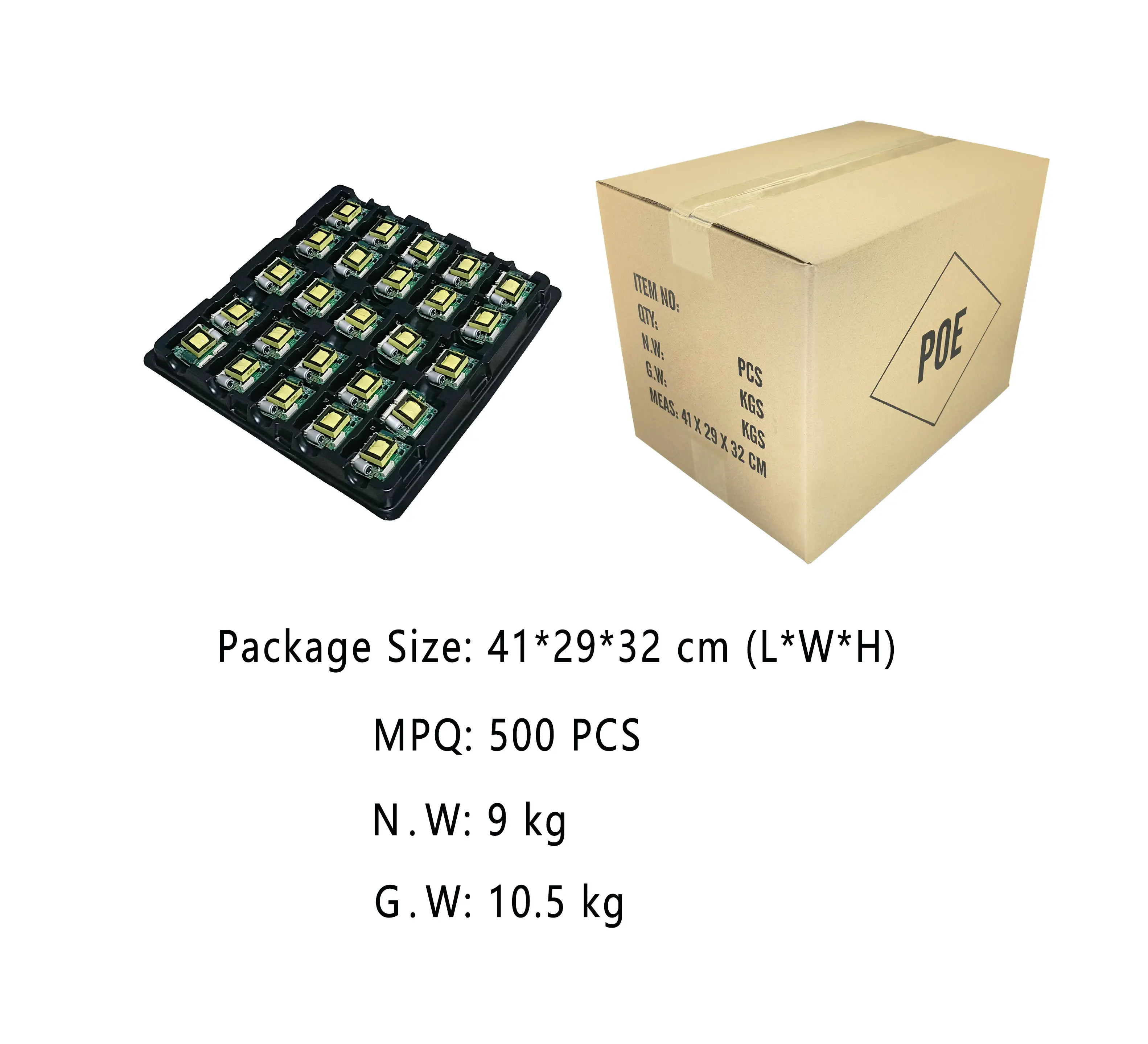

Package |
Blister packaging tray |
|
Package list |
|
| Items | Quantity |
| PoE PD Module | 500 |
| Operation Manual | / |
