30W Gigabit DIN Rail PoE Injector

Model: TSD-PSE30G

  • Input: AC 100-240V 50/60HZ
  • Output: PoE 48V 0.65A 30W
  • PoE protocol: IEEE 802.3af/at
  • Transmission rate: 10/100/1000Mbps
  • RJ12+ RJ36-/RJ45+ RJ78- fully compatible
  • Interface: RJ45 port/AC socket
  • Size: 147*65*43 mm (L*W*H)
  • Weight: N.W=180 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package
    pse60g-2
    01

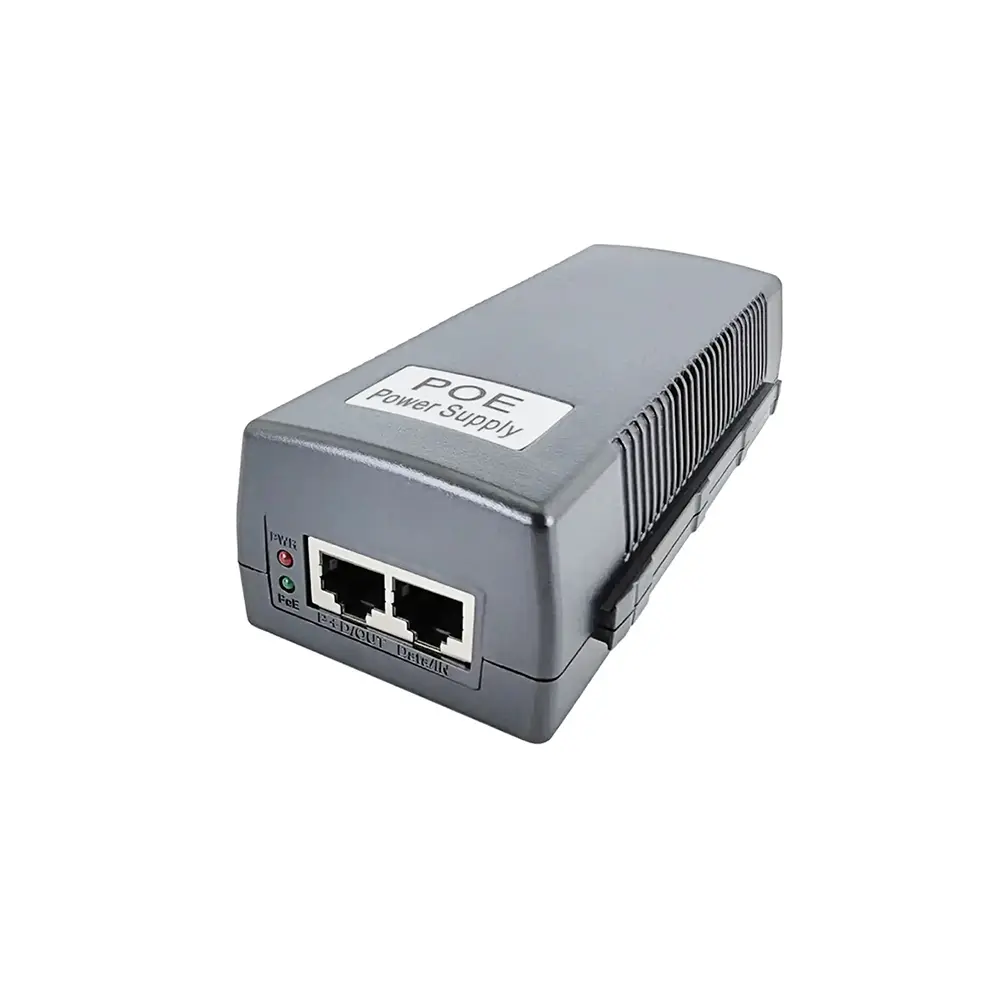

    The PSE30G is a 30W Gigabit DIN-rail PoE injector that complies with the IEEE802.3af/at PoE international standard. Equipped with handshake recognition, it delivers a stable PoE signal, providing both power and data transmission to PDs. The PSE30G is plug-and-play, simplifying wiring and significantly reducing costs in homes and small offices.

    The PSE30G's input port: Data/IN port, connects to upstream network equipment and transmits data to the PD. The AC power jack: inputs AC100-240V 50/60Hz power. The output port: P+D/OUT port, connects to the PD and outputs a 48V PoE signal.


    pse60g-3
    01


    The PSE30G supports the IEEE 802.3af/at international PoE standards. Its EMC parameters meet IEC 61000-4-2/3/4/5/6 standards and have obtained CE, FCC, and RoHS certifications. The PSE30G motherboard features an isolated design with a built-in high-power isolation transformer. It also includes built-in lightning protection, short-circuit protection, and overvoltage protection, providing a lightning protection rating of up to 6kV. The motherboard also features a wide input voltage range, compatible with AC100-240V 50/60Hz. Its reliable quality and excellent performance have earned it a global reputation in over 100 countries and regions.


    The PSE30G connects to PDs and securely powers them through handshake identification. It offers auto-sensing transmission rates of 10/100/1000 Mbps, accepts 100-240V AC 50/60Hz input, and outputs a 48V PoE signal with a maximum output power of 30W. The PoE power supply pins are fully compatible with RJ1245 and RJ3678 (eight-core). The maximum transmission distance is 100 meters.


    ● Input:​​ AC 100-240V 50/60HZ
    ● Output:​​ 48V PoE MAX 0.65A  30Watt
    ● Compliance:​​ IEEE 802.3af/at PoE International Standard
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility:  RJ12+ RJ36-/RJ45+ RJ78- Fully Compatible
    ● Transmission Rate:​​ 10/100/1000 Mbps Auto-Negotiation
    ● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 6KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● Rail installation, wall mounting, desktop installation and other installation methods

    ● Small size, less space, easy to install

    ● There are heat dissipation grids on both sides for easy heat dissipation

    ● Pure copper pin connector to ensure safety performance

    ● High temperature resistant PCB environmental protection material, lead-free environmental protection process

    ● High temperature resistant flame retardant interface socket, reduce security risks

    ​● Environmental and high temperature resistant ABC plastic material

    Product parameter table

    Product Name

    		 30W gigabit din-rail PoE injector

    Product Model

    TSD-PSE30G

    PoE Standard

    IEEE802.3af/at

    Input Voltage

    AC 100-240V 50/60HZ

    Output

    PoE 48V  0.65A 30Watt

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ12+ RJ36-/RJ45+ RJ78- Fully compatible

    Conversion Mode

    Isolated

    Data Rate

    10/100/1000Mbps Auto-Negotiation

    Transmission Distance

    100 meters

    Surge Protection

    6KV

    Circuit Protection

    Overheating Protection Overcurrent Protection

    Overvoltage Protection Short - circuit Protection

    LED Indicator

    Power indicator*1 PoE indicator*1

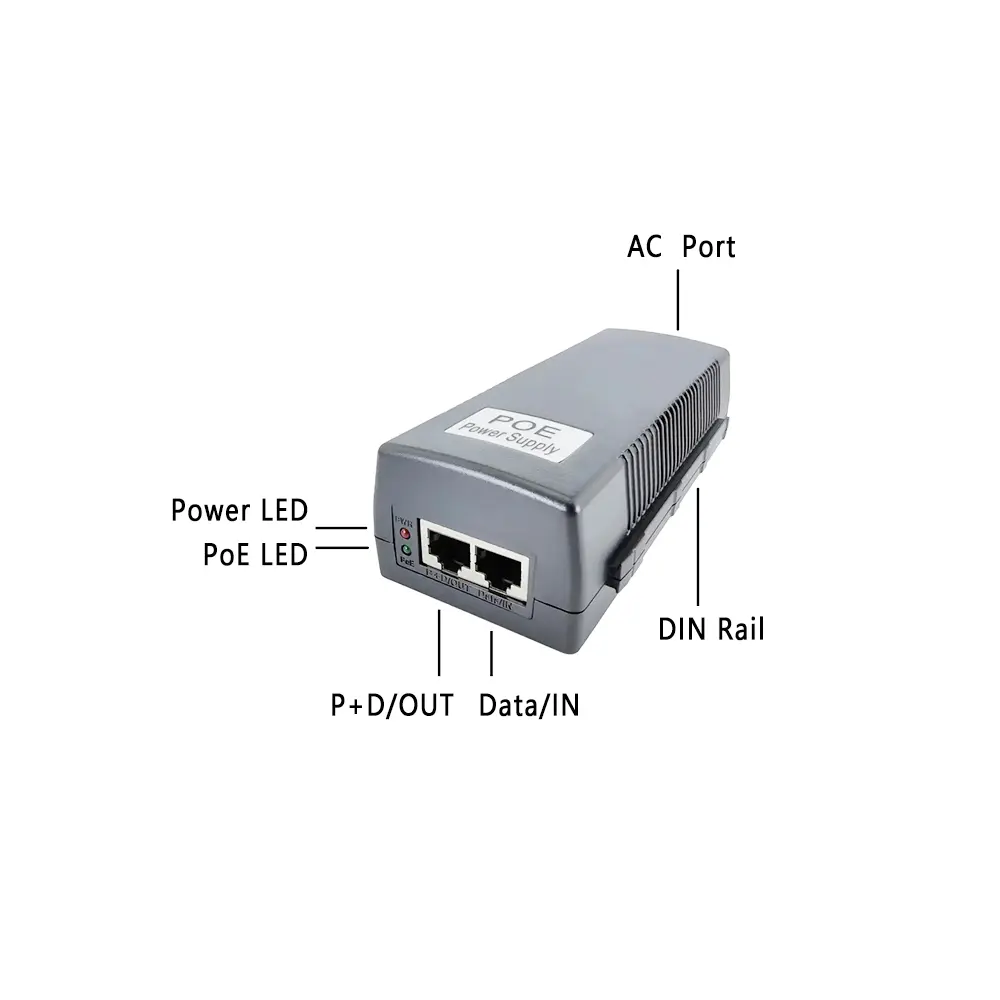

    Interface

    RJ45 port1 (P+D/OUT port): 48V PoE out

    RJ45 port2 (DATA/IN port): data in

    AC port: AC 100-240V 50/60HZ IN

    Material

    ABC plastic

    Color

    Matte black

    Accessories

    AC cable*1

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 180 g  G.W: 375 g

    Dimension

    Product Dimension: 147*65*43 mm
    Packing Dimension: 210*128*56 mm

    Package

    Kraft carton

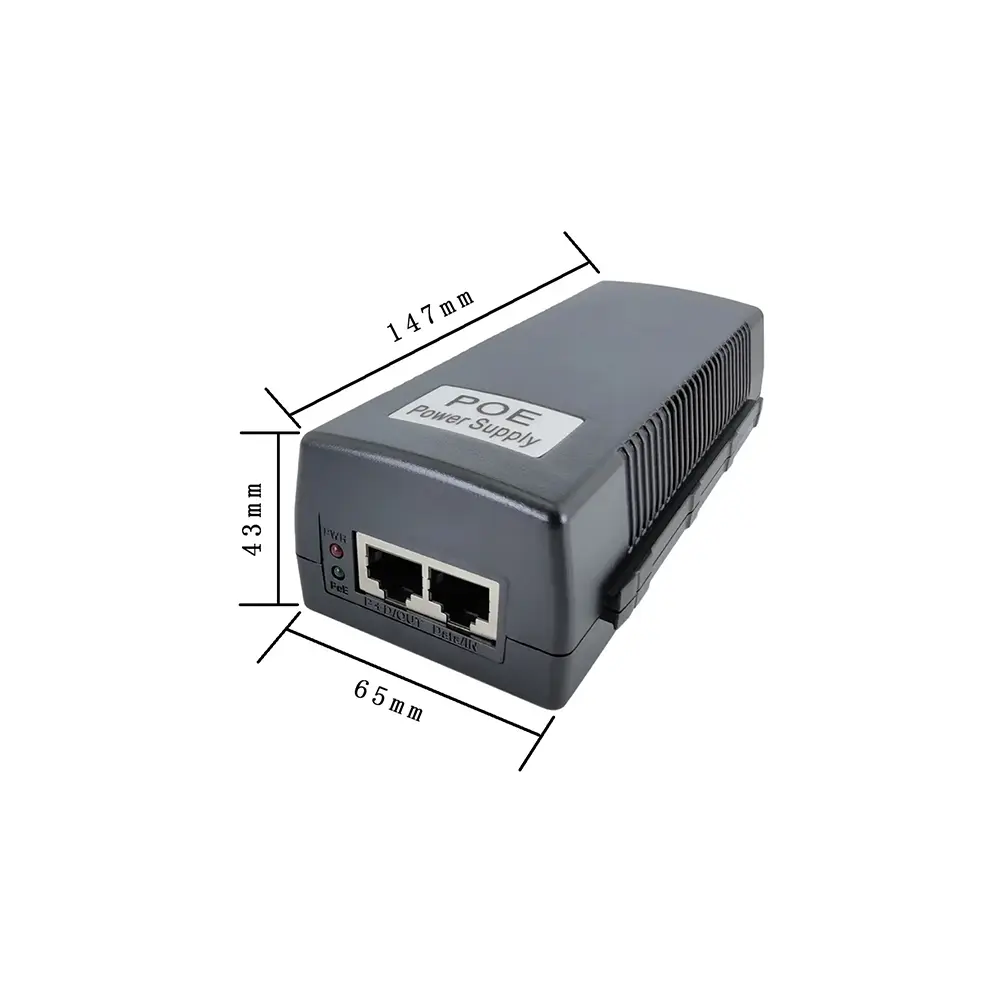

    The PSE30G is a rectangular unit measuring 147*65*43mm (L*W*H). It offers flexible installation options and can be mounted in a cabinet using the guide rails on both sides, fixed to a wall using the screw holes at the bottom, or placed on a desktop. The PSE30G has two LED indicators on one end: a red power indicator, indicating power connection status, and a green POE indicator, indicating POE operation. Heat dissipation grilles on both sides of the PSE30G reduce temperature and extend its lifespan.

    pse30g-dimension

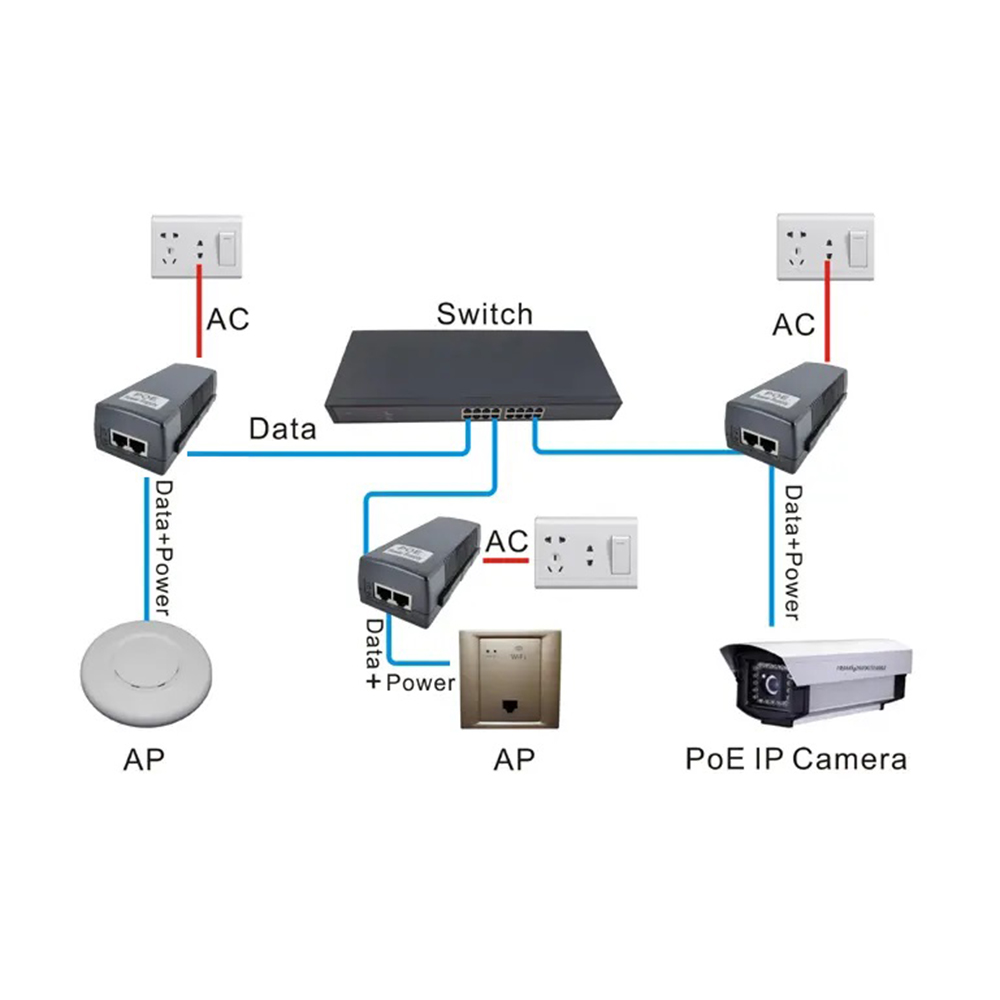

    PSE30G is a single-port POE Injector with strong compatibility, which is widely used in CCTV, Smart Home, Smart Medical Care, Audio Broadcasting and other fields. It has changed the wiring mode of traditional weak current engineering, simplifies the wiring construction steps, saves material and labor costs, and improves the stability and safety of the system.

    pse30g-application
    pse30g-application1
    pse30g-application2
    pse30g-application3

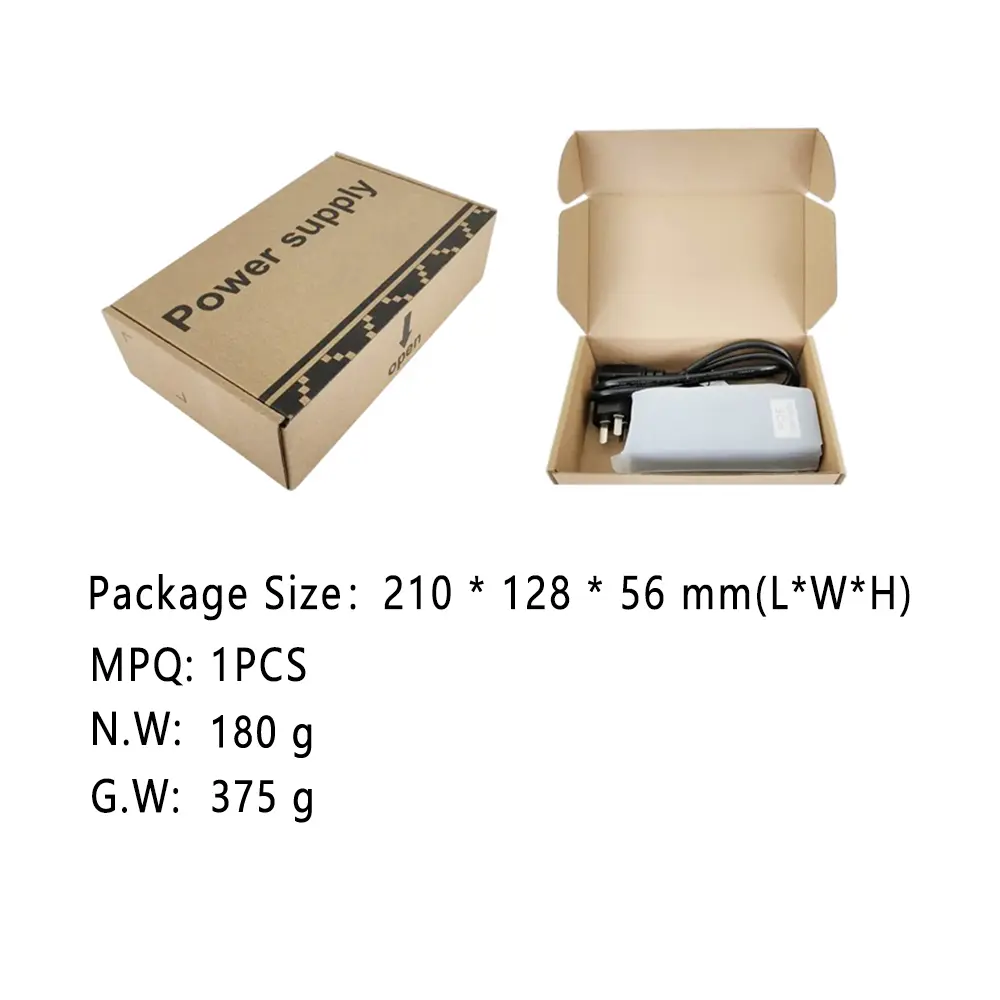

    Package list
    Items Quantity
    PSE30G PoE injector 1PCS
    AC cable 1
    Operation Manual 1
    pse30g-package
    pse30g-interface
