25W wall-mounted passive PoE power supply

Model: TSD-PSE48XG

Input: AC 90-240V 50-60HZ
Output: PoE 48V 0.5A/24V 1A/12V 2A
Transmission rate: 10/100/1000Mbps
Conversion efficiency ≧85%
Power supply pins: RJ45+ RJ78-
Interface: RJ45 Port
Size: 85.8*44*56 mm
Weight: N.W=87 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

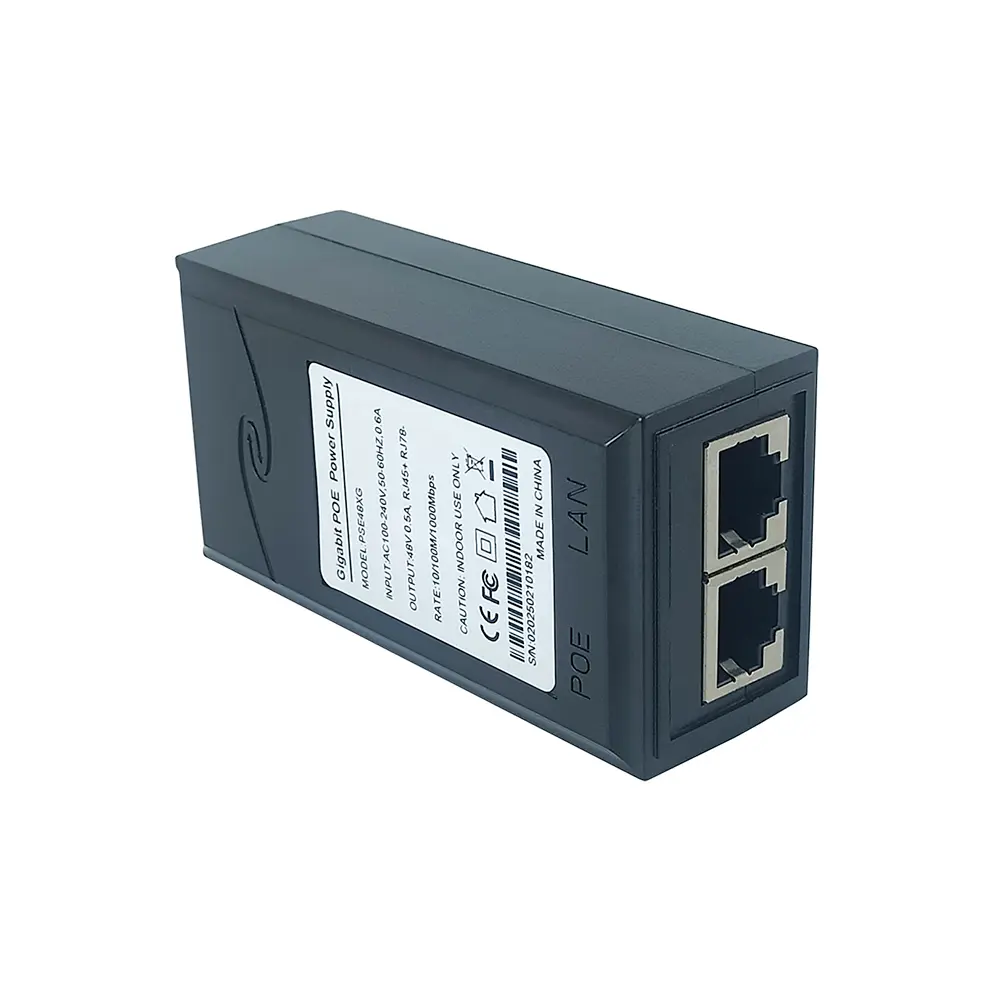

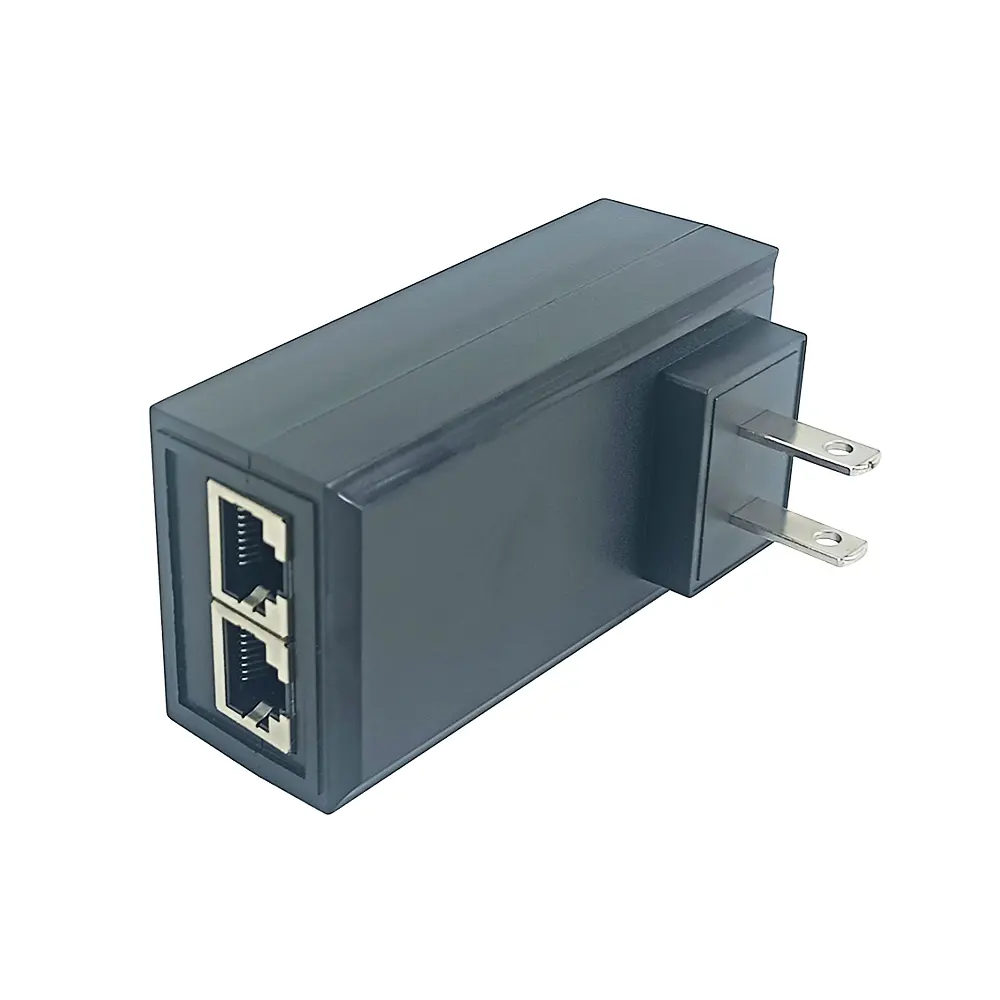

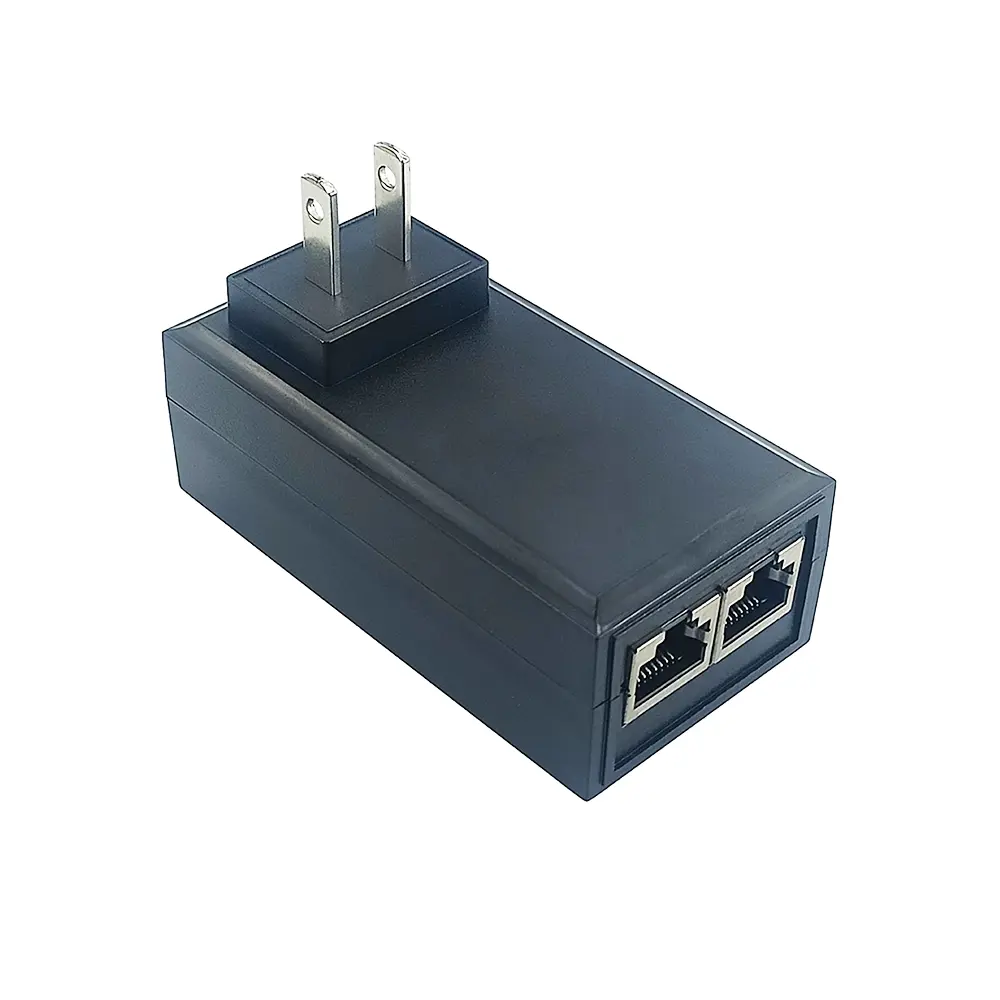

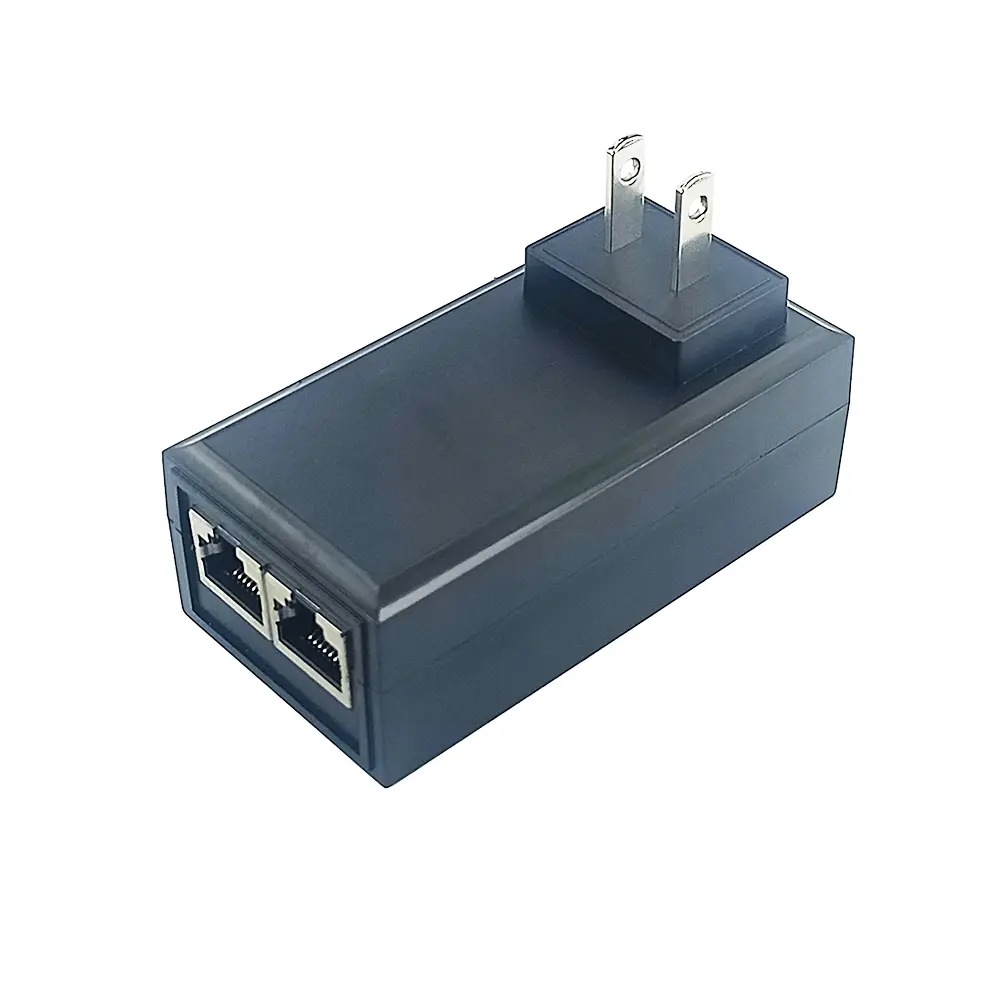

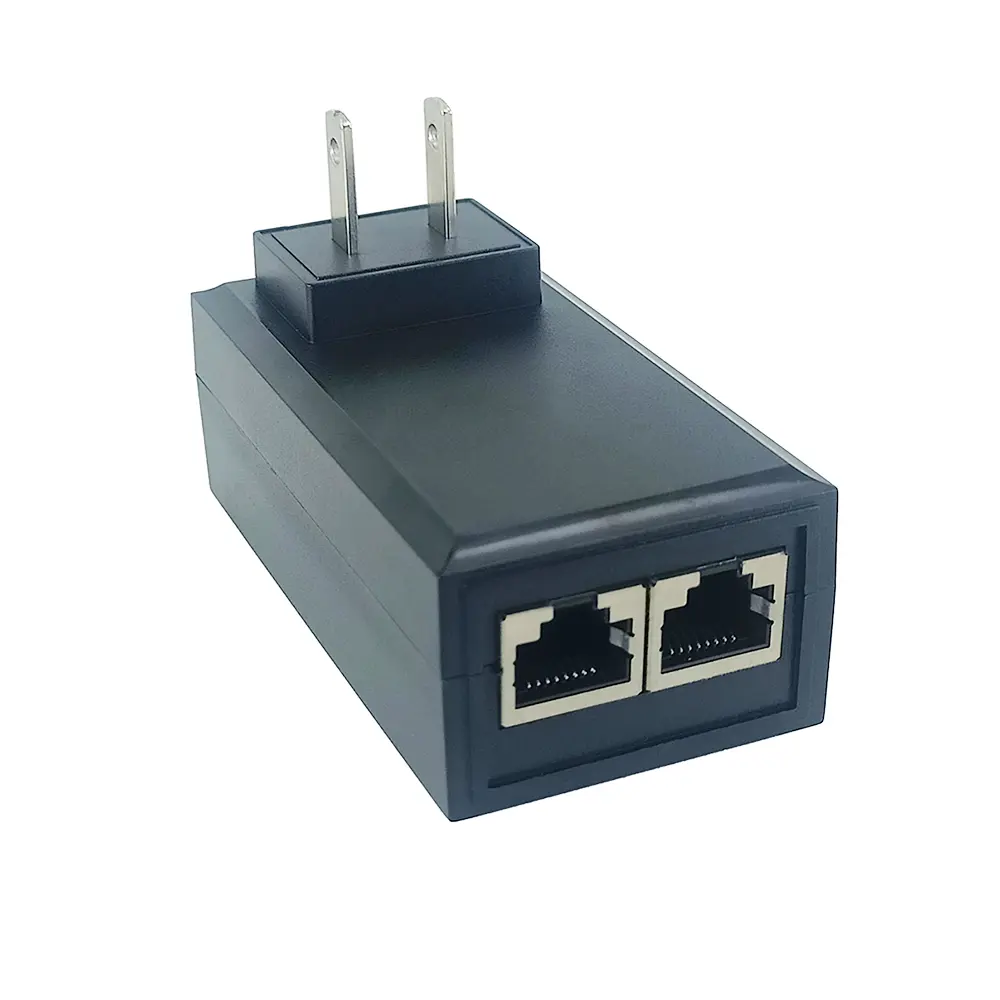

The TSD-PSE48XG is a wall-mounted gigabit non-standard PoE power supply. It accepts AC input and outputs three voltage levels: 48V 0.5A, 24V 1A, and 12V 2A, with a maximum output power of 25W.

The TSD-PSE48XG power supply is suitable for indoor scenarios with few or dispersed PD devices. It provides PoE power to PD devices while effectively saving costs. It is simple and convenient to use.

The 48X series includes two models:TSD-PSE48X: Transmission rate: 10/100 Mbps;TSD-PSE48XG: Transmission rate: 10/10/1000 Mbps.TSD-PSE48XG Power Input: Wall plug, 90-240V AC input. LAN Port: For connecting to upstream network devices for data transmission. PoE Port: Outputs 48V 0.5A / 24V 1A / 12V 2A non-standard PoE signal.

The TSD-PSE48XG's flexible output voltage and power characteristics allow for wide application in various fields such as surveillance cameras, routers, and temporary deployment scenarios. Its low cost also provides users with more power supply solutions.

TSD-PSE48XG Power Input: AC 90~240V 50/60HZ, output voltage (48V, 24V, 12V) selectable according to application scenario. Maximum output power: 25W, Power Supply: RJ45 + RJ78 forced power supply. Gigabit transmission rate. It features overheat protection, overvoltage protection, overcurrent protection, and short-circuit protection.

● Input: AC 90-240V 50-60HZ
● Output: passive PoE 48V 0.5A /24V 1A /12V 2A
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ45+ RJ78- power supply
● Transmission Rate: 10/100/1000Mbps auto-negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Multiple output voltages: 12V/24V/48V

● Frosted black high temperature resistant environmental protection ABS material shell

● USA plug, other specifications can be customized

● Gigabit high power network filter

● International famous original electronic components, high precision and high performance

● High power, high conduction and low impedance transistor, excellent reliability and temperature tolerance

● Environmental protection high temperature resistant PCB material, environmental protection lead-free process

Items	Specifications
Product Name	25W wall-mounted Passive POE power supply
Product Model	PSE48X	PSE48XG
PoE Standard	/
Input Voltage	AC 90~240V 50-60HZ
Output	Passive PoE 48V 0.5A /24V 1A /12V 2A
Conversion Efficiency	≧85%
PoE Pin	Only RJ45+ RJ78- is supported
Conversion Mode	Isolated
Data Rate	10/100 Mbps Adaptive	10/100/1000 Mbps Adaptive
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short-circuit Protecion Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	/

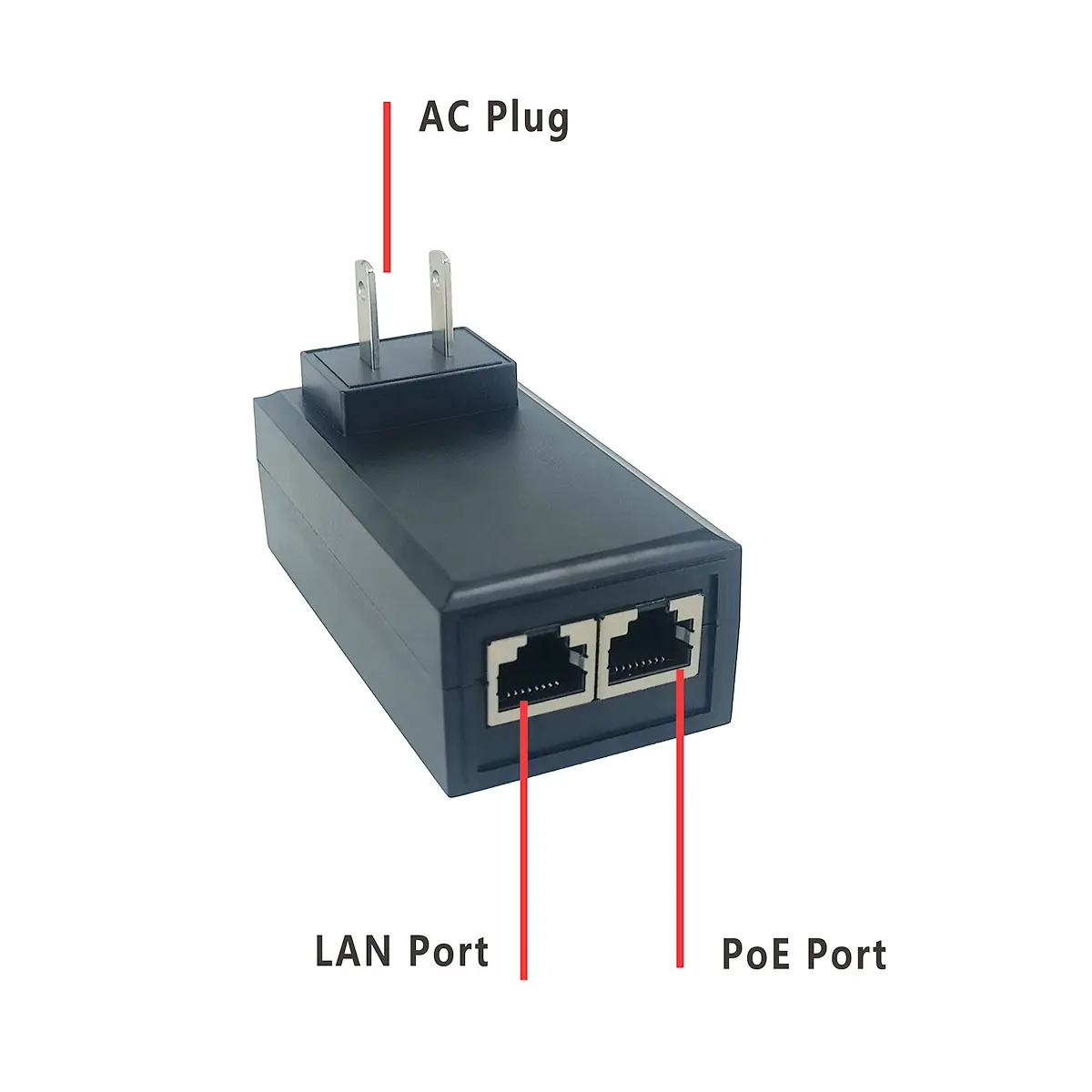

Interface	Input port (USA standard plug): AC IN LAN port (RJ45 network port): Data transmission PoE port (RJ45 network port): passive PoE OUT
Material	Sustainable ABS with thermal stability material
Color	Matte black
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 87 g G.W: 97 g
Dimension	85.54456 mm (LWH)

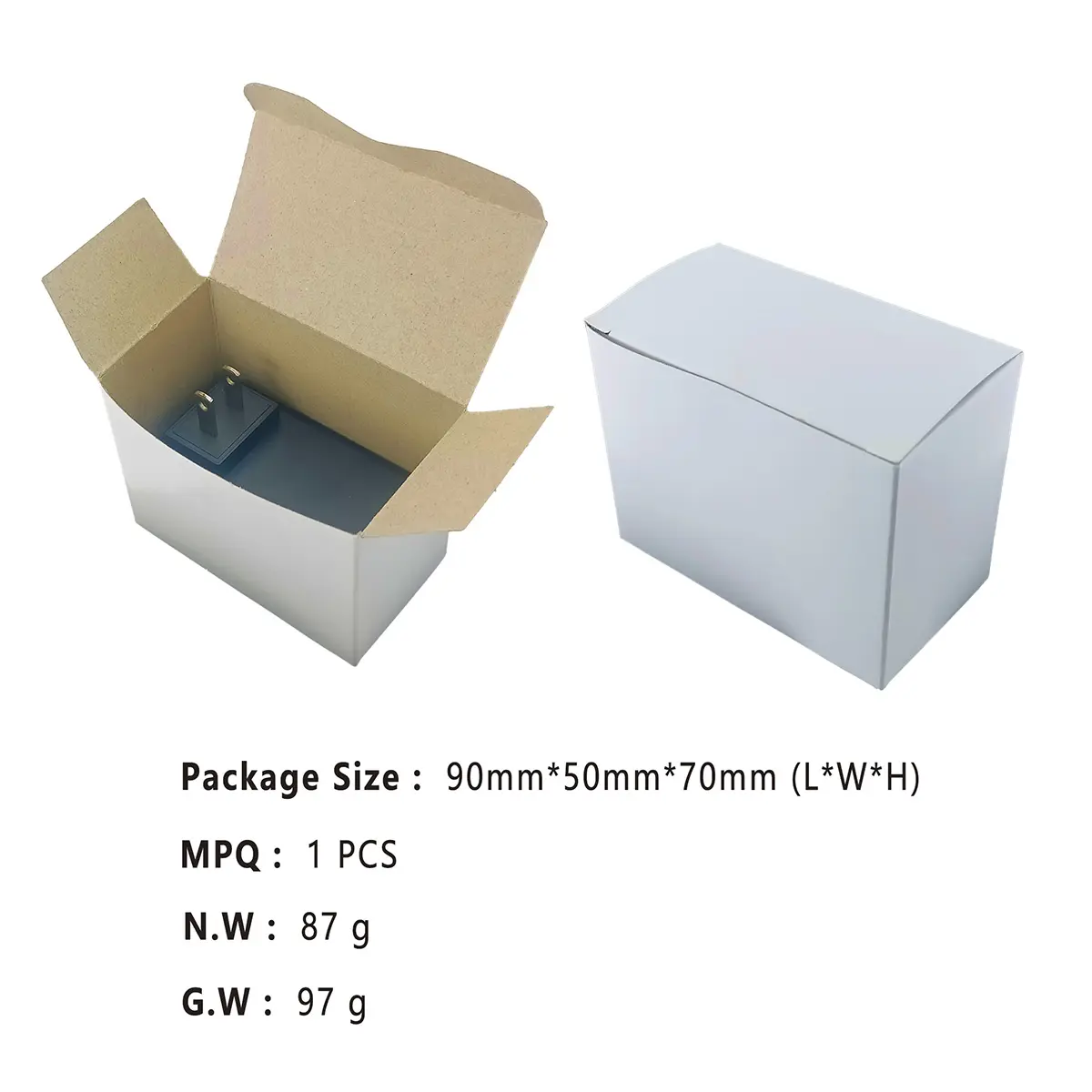

Package	Kraft paper box 905070 mm (LWH)

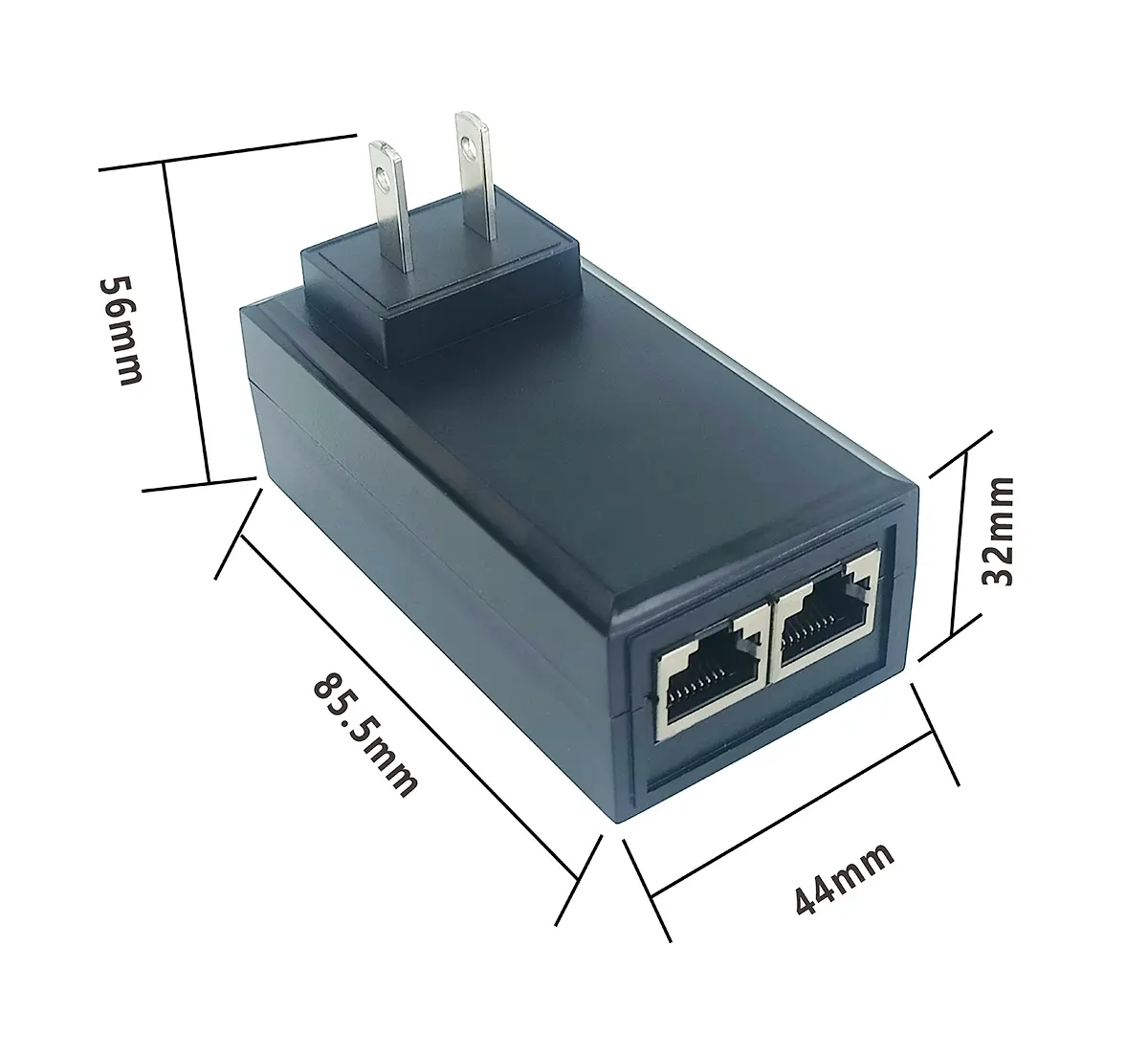

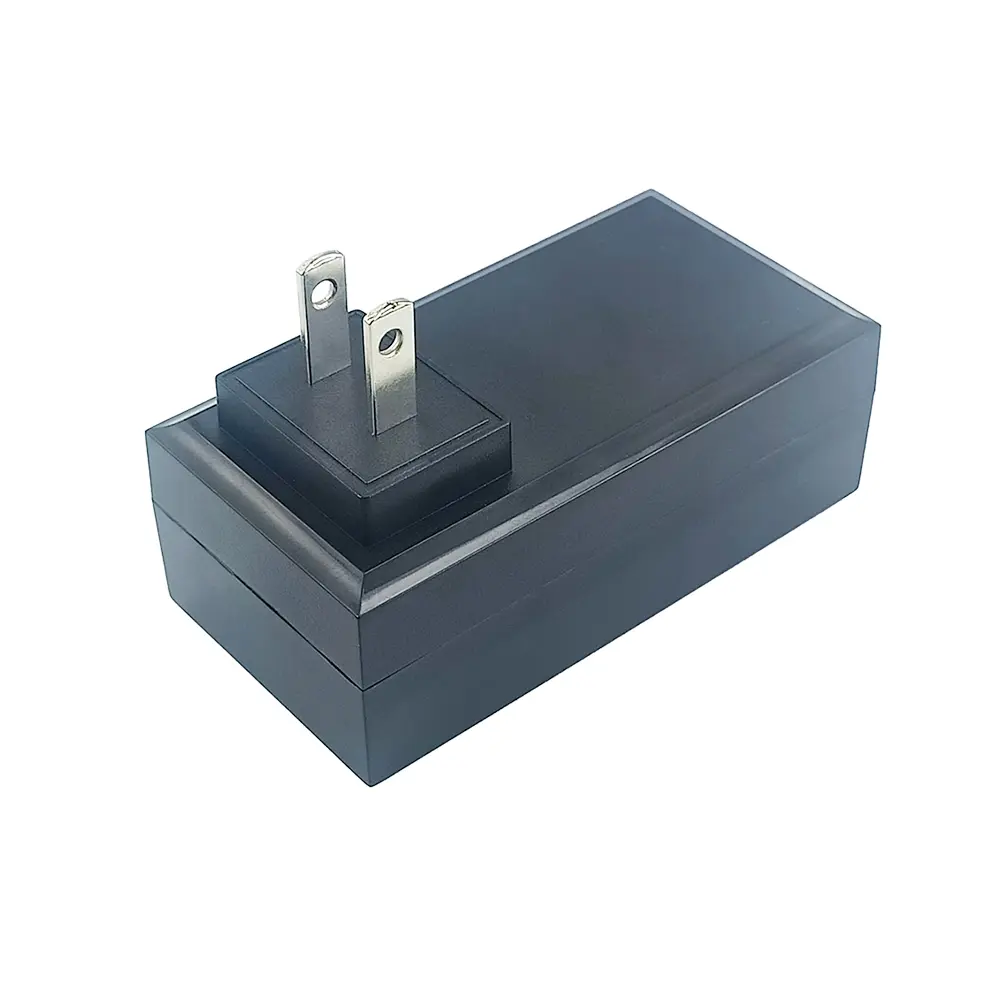

Dimensions: 85.5*44*56mm (L*W*H). Body Height: 32mm, Plug Height: 24mm, Body Color: Matte Black, Body Material: High-temperature resistant environmentally friendly ABS plastic shell. Overall Structure: Rectangular structure, USA standard plug, other specifications can be customized.
TSD-PSE48XG-Dimension

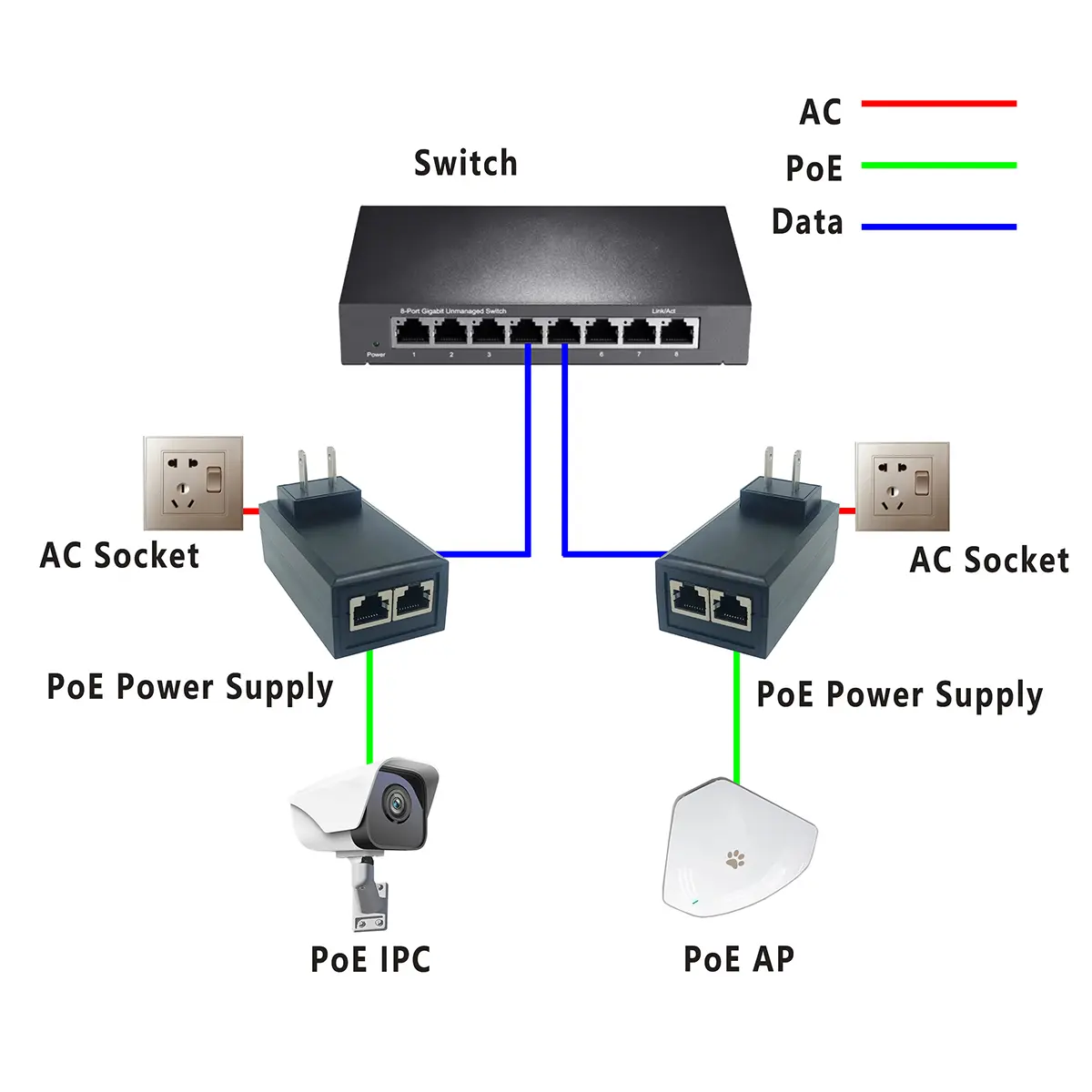

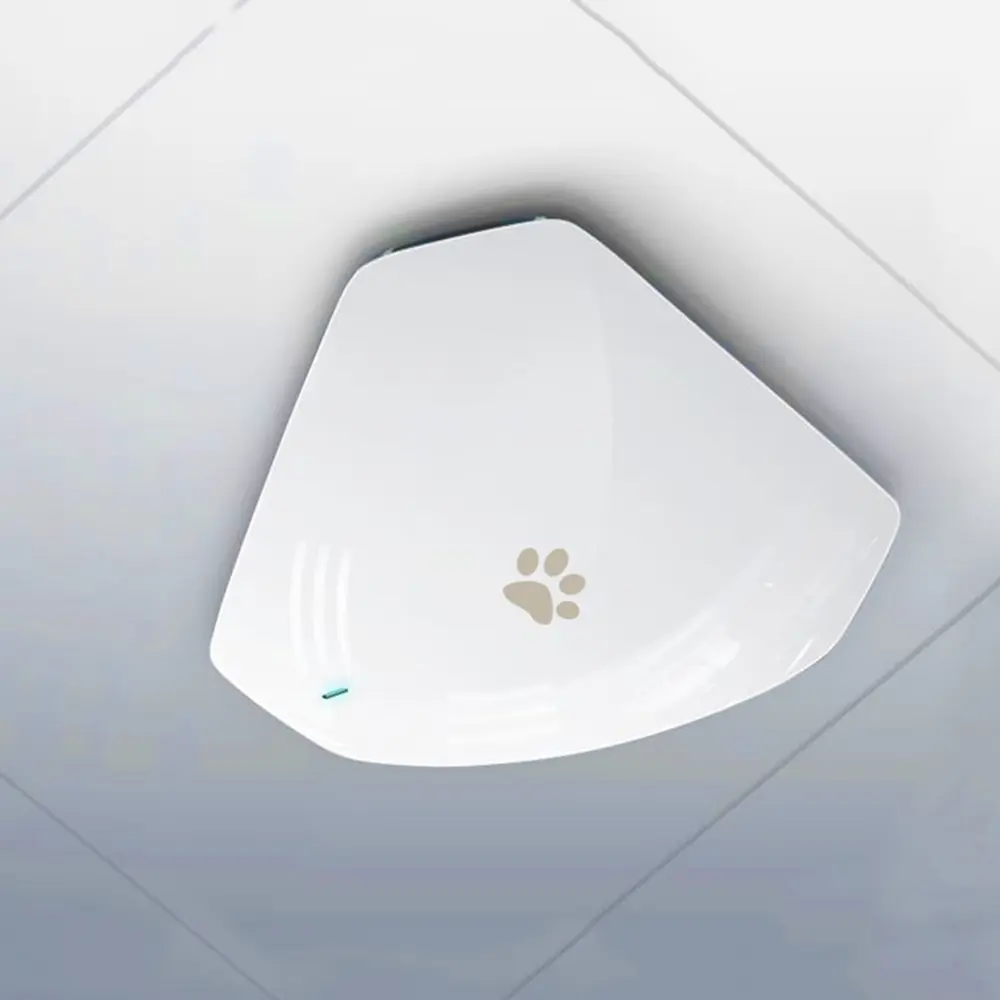

The TSD-PSE48XG power supply can provide PoE power to devices such as wireless access points, routers, and IP phones. Its simple connection and flexible installation allow devices to be installed without being limited by power source location, offering greater freedom in choosing installation sites. Note: The TSD-PSE48XG power supply does not support the IEEE 802.3af/at/bt international standard protocol. It operates without a handshake detection step, directly supplying power to terminal devices via a transformer-stepped voltage. Therefore, it is crucial to ensure that the voltage of the receiving device is strictly matched to the output voltage of the TSD-PSE48XG power supply.

Package list
Items	Quantity
PoE injector: TSD-PSE48XG	1 PCS
Operation Manual	/
