25W Desktop Gigabit PoE Injector

Model: TSD-PSE48LG

  • Input: AC 100-240V 50-60HZ
  • Output: PoE 48V 0.5A 25W
  • Transmission rate: 10/100/1000Mbps
  • Conversion efficiency is over 85%
  • Power supply pins: RJ45+ RJ78-
  • Interface: RJ45 port/AC plug
  • Size: 90*50*30 mm (L*W*H)
  • Weight: N.W=113 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package
    pse48lg-3
    01

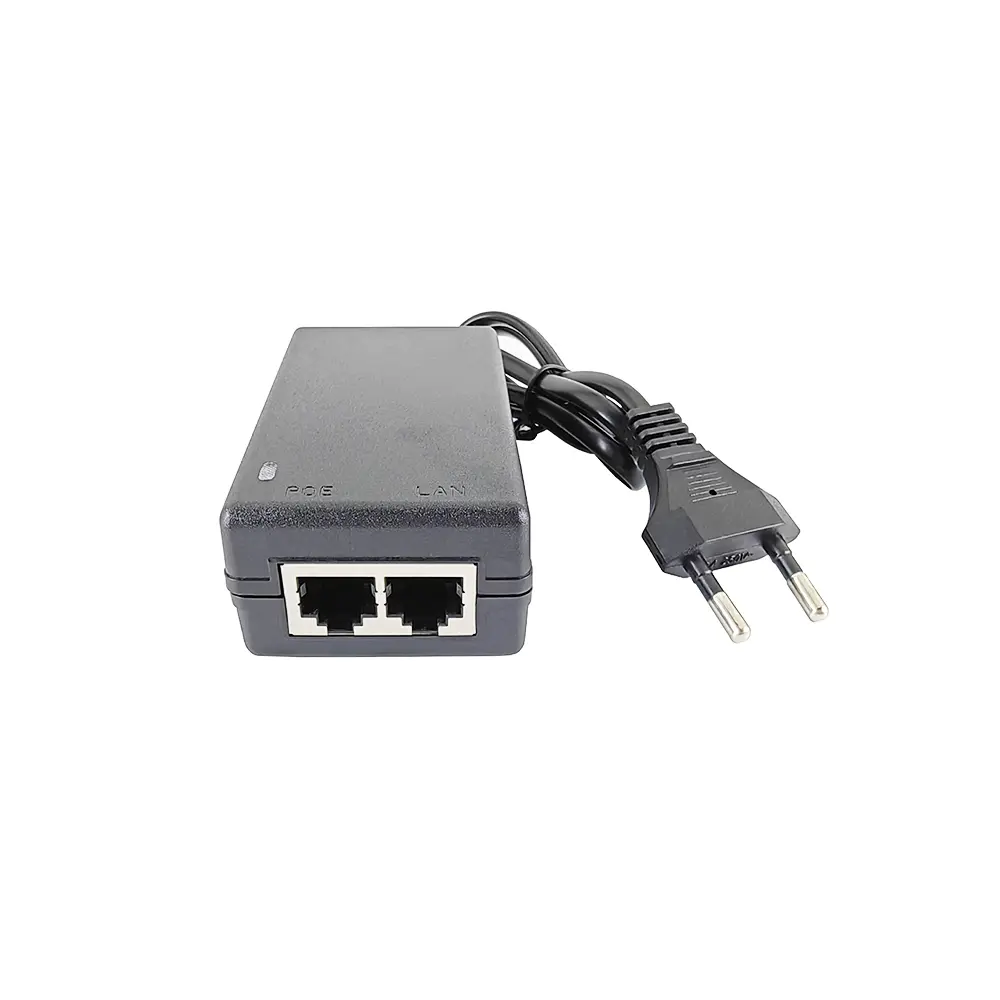

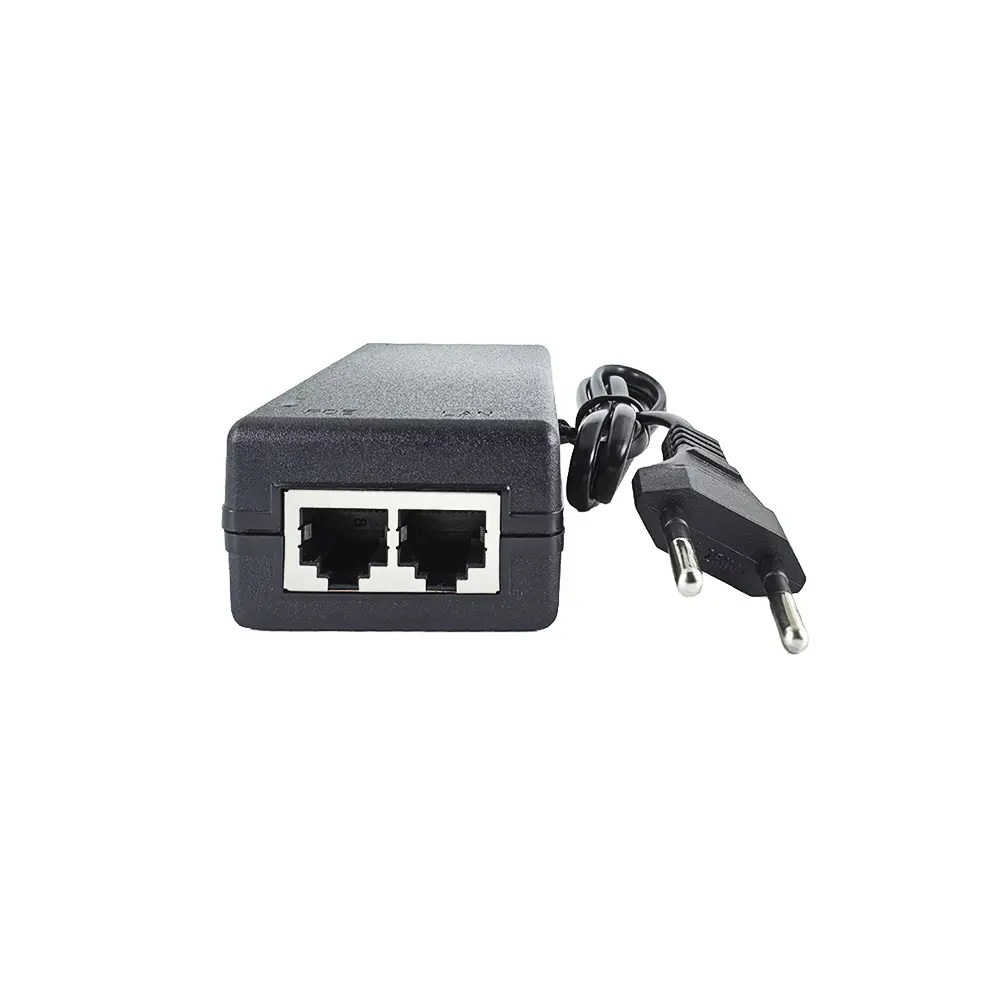

    The PSE48LG is a passive desktop PoE injector that comes with an AC power cord and a European-style AC plug for plug-and-play convenience. The PSE48LG accepts 100-240V 50-60Hz AC input and outputs a 48V 0.5A PoE signal with a maximum output power of 25W.

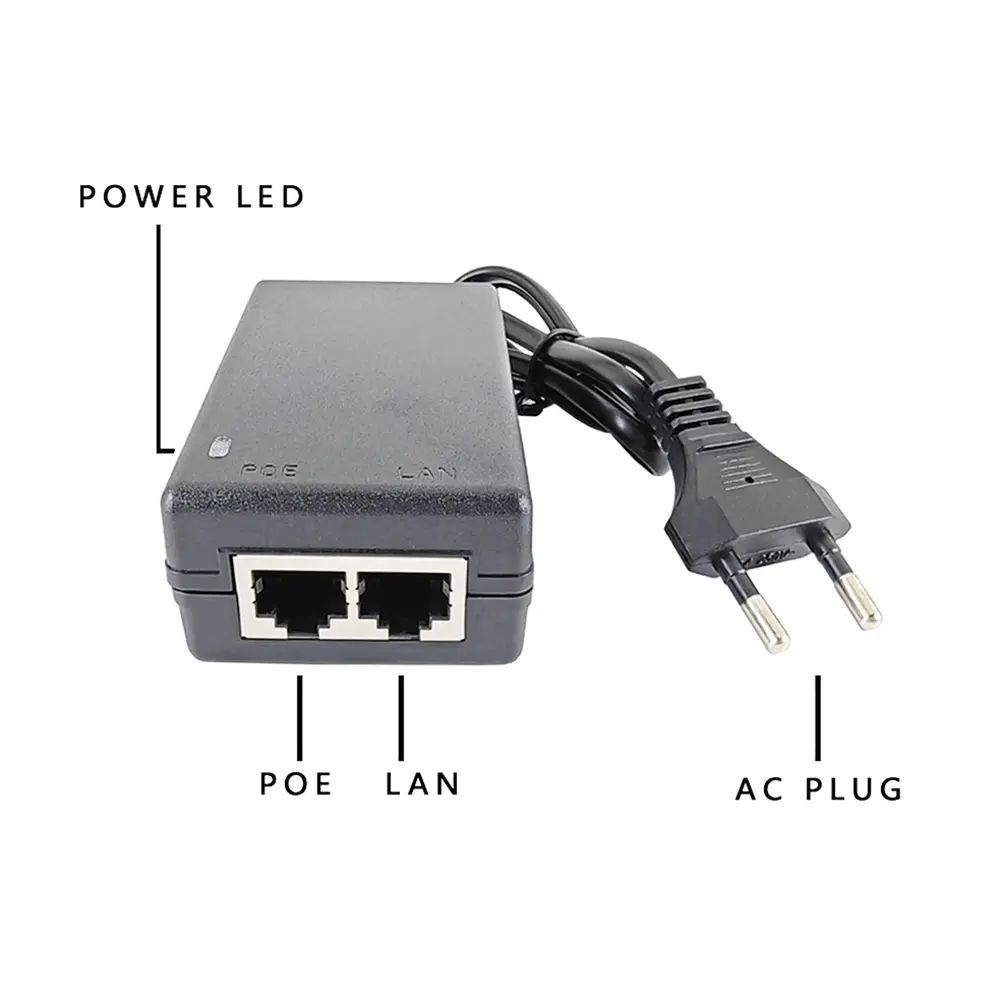

    The PSE48LG provides PoE power for PoE devices. It features one PoE port, one LAN port, and a power connector. The PoE port outputs a 25W PoE signal, powering the PD and transmitting data. The LAN port connects to a switch, router, or NVR for data exchange. The power connector connects to an AC 100-240V outlet to provide operating current for the PoE power supply.

    ​

    pse48lg-6-1
    01

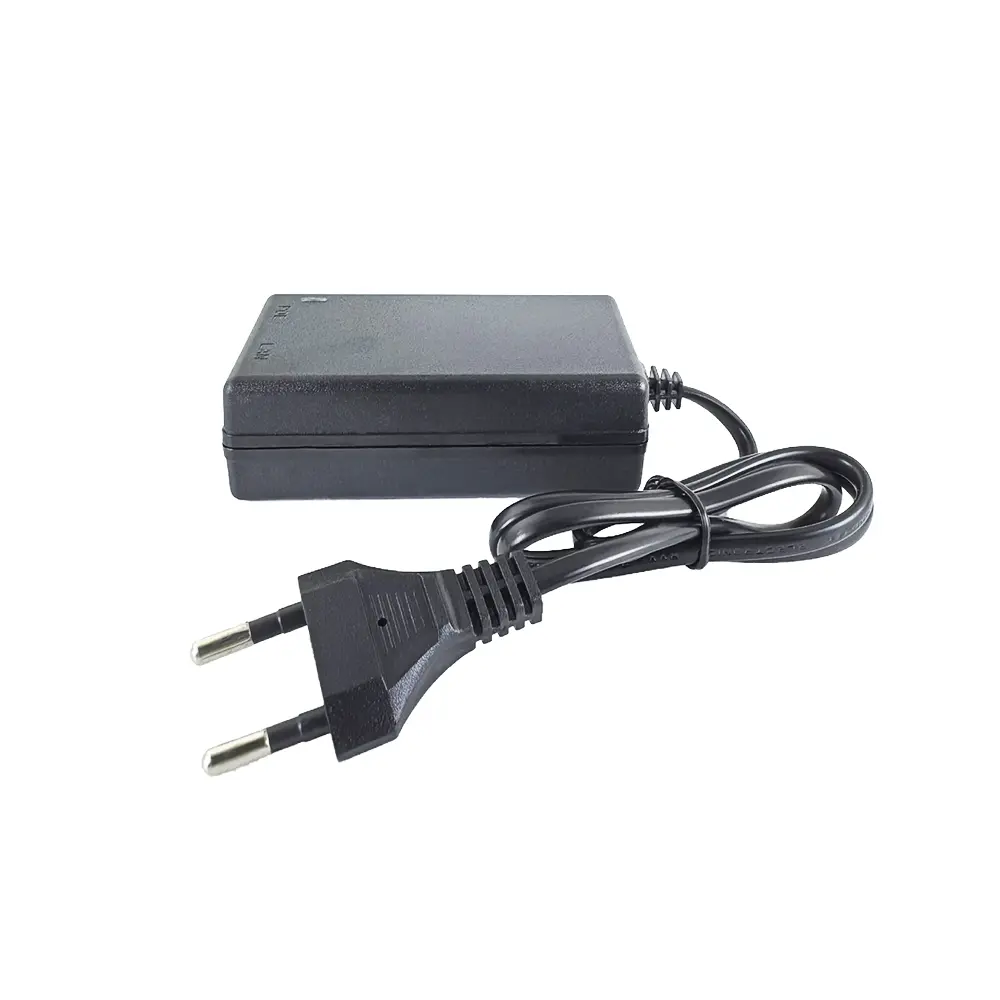

    The PSE48LG is a single-port PoE injector that can stably output a 48V 0.25A PoE signal with a maximum output power of 25W, providing power supply support for PoE devices in simple environments such as homes and offices.


    The PSE48LG motherboard utilizes an isolation transformer for circuit isolation. The internal circuitry features lightning protection, short-circuit protection, overload protection, overvoltage protection, and overtemperature protection. Its EMC parameters meet IEC 61000-4-2/3/4/5/6 standards. Its safety, stability, and ease of use have earned it widespread recognition from users.

    The PSE48LG boasts gigabit transmission speeds, ensuring efficient data transmission. Its POE port complies with IEEE802.3af/at protocols, providing a full 25W of power to fully power connected PDs. The POE power supply pins are RJ45+ and RJ78-; other power supply pin standards can be customized upon request. Using a CAT5e network cable, POE transmission distances can reach over 100 meters.



    ● Input:​​ AC100-240V 50-60HZ
    ● Output:​​ PoE 48V 0.5A 25W
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ45+ RJ78- compatible
    ● Transmission Rate:​​ 10/100/1000Mbps Auto-Negotiation
    ● Protection Features:​​ overheat protection, overload protection, overvoltage protection, short-Circuit protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%

    ● 100Mbps high frequency POE filter to ensure stable data transmission

    ● International brand original high-precision electronic components, stable performance

    ● High temperature resistant PCB environmental protection material, lead-free environmental protection process

    ● Adopt pure copper pin connector to avoid bad contact

    ● Environmental and high temperature resistant ABC plastic material

    Product parameter table

    Product Name

    25W desktop gigabit PoE injector

    Product Model

    TSD-PSE48LG

    PoE Standard

    /

    Input Voltage

    AC 100-240V 50-60HZ

    Output

    PoE 48V 0.5A 25W

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ45+ RJ78- compatible

    Conversion Mode

    Isolated type

    Data Rate

    10/100/1000Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    power indicator *1

    Interface

    LAN port : data transmission

    AC plug : AC in

    PoE port : 48V 0.5A PoE out

    Function

    /

    Material

    ABS plastic

    Color

    black

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 113 g G.W: 126 g

    Dimension

    Product Dimension: 90*50*30mm +60cm(AC power cord)
    Packing Dimension: 115*54*62mm

    Package

    White Carton

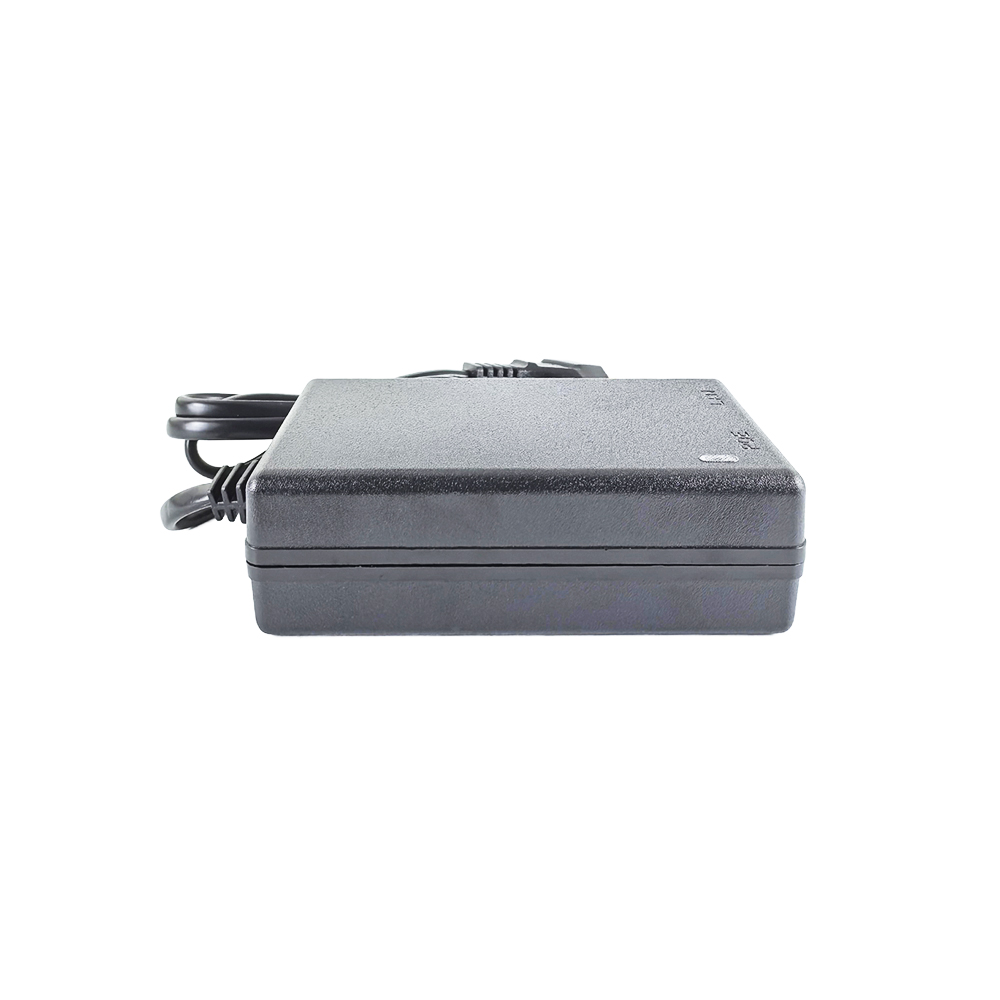

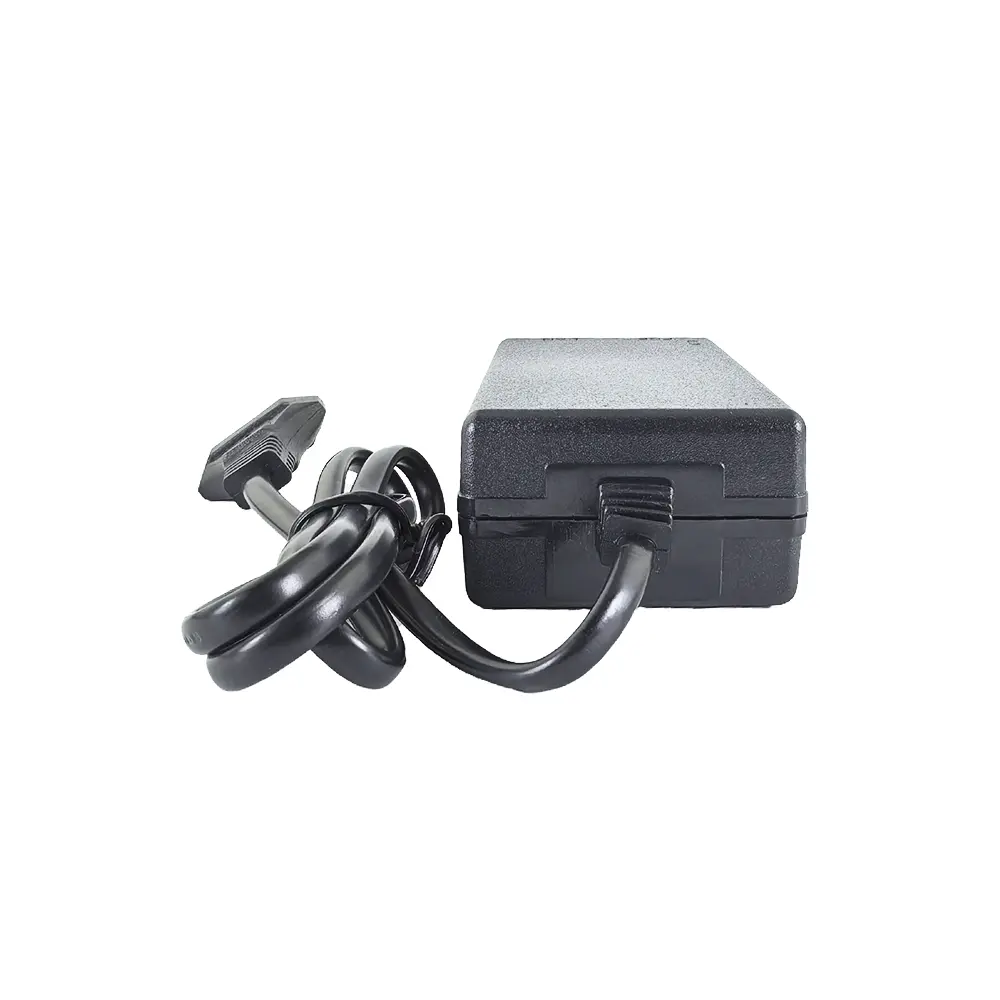

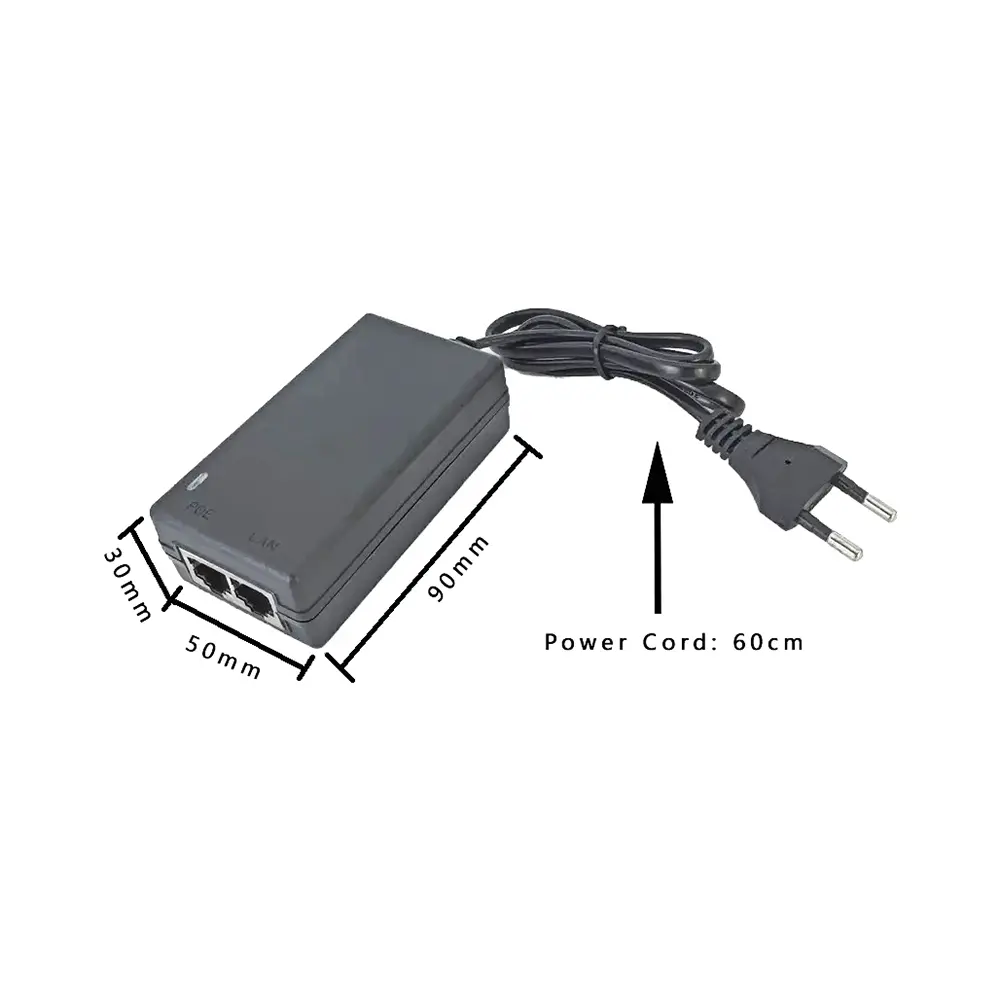

    The PSE48LG is compact (L*W*H = 90*50*30mm), taking up little space and making installation easy. It comes with a 60cm power cord, allowing it to be connected directly to an outlet. The cord length and plug specifications can be customized to suit your needs. A power indicator light indicates when the device is operating and the connection is intact. Its elegant and sleek design, constructed from heat-resistant, environmentally friendly ABS plastic, ensures both aesthetics and safety.
    pse48lg-size-1-1

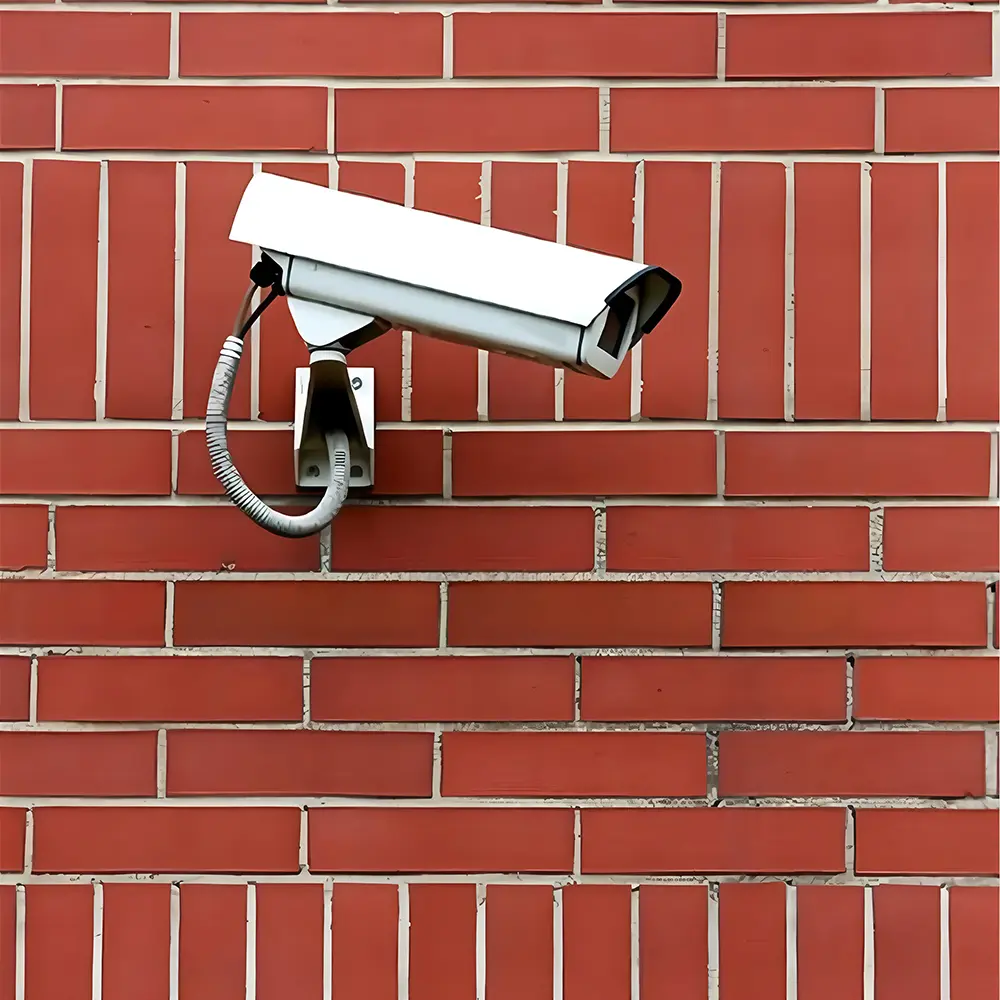

    PSE48LG is widely used in CCTV, Wireless Transmission, Building Intercom, Smart Home and other fields to provide POE signals for POE devices, or for Non-POE devices through POE Splitter. It has changed the traditional power supply mode of weak current projects, saving labor and material costs, and improving the safety and stability of the entire system.

    PSE48LG is a Passive POE Injector, the POE Port will force the output of 48V POE signal, so please do not directly connect the POE Port to non-POE equipment when installing and using. Be sure to connect the POE Port to the POE device or connect the non-POE device through PoE splitter.pse48lg-topology-11

    25w-gigabit-desktop-poe-power-supply01
    25w-gigabit-desktop-poe-power-supply02
    25w-gigabit-desktop-poe-power-supply03

    Package list
    Items Quantity
    TSD-PSE48LG injector 1 PCS
    Operation Manual /
    pse48-package
    pse48lg-interface-111-1
