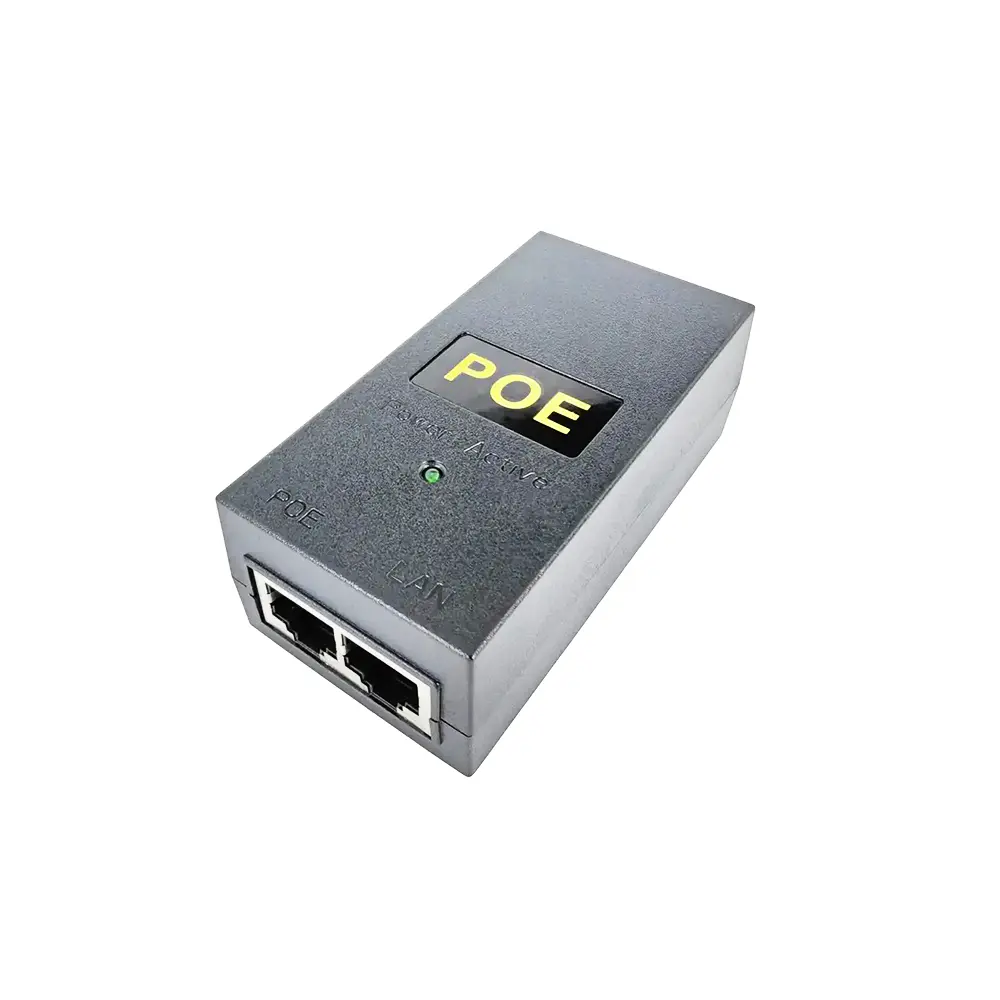

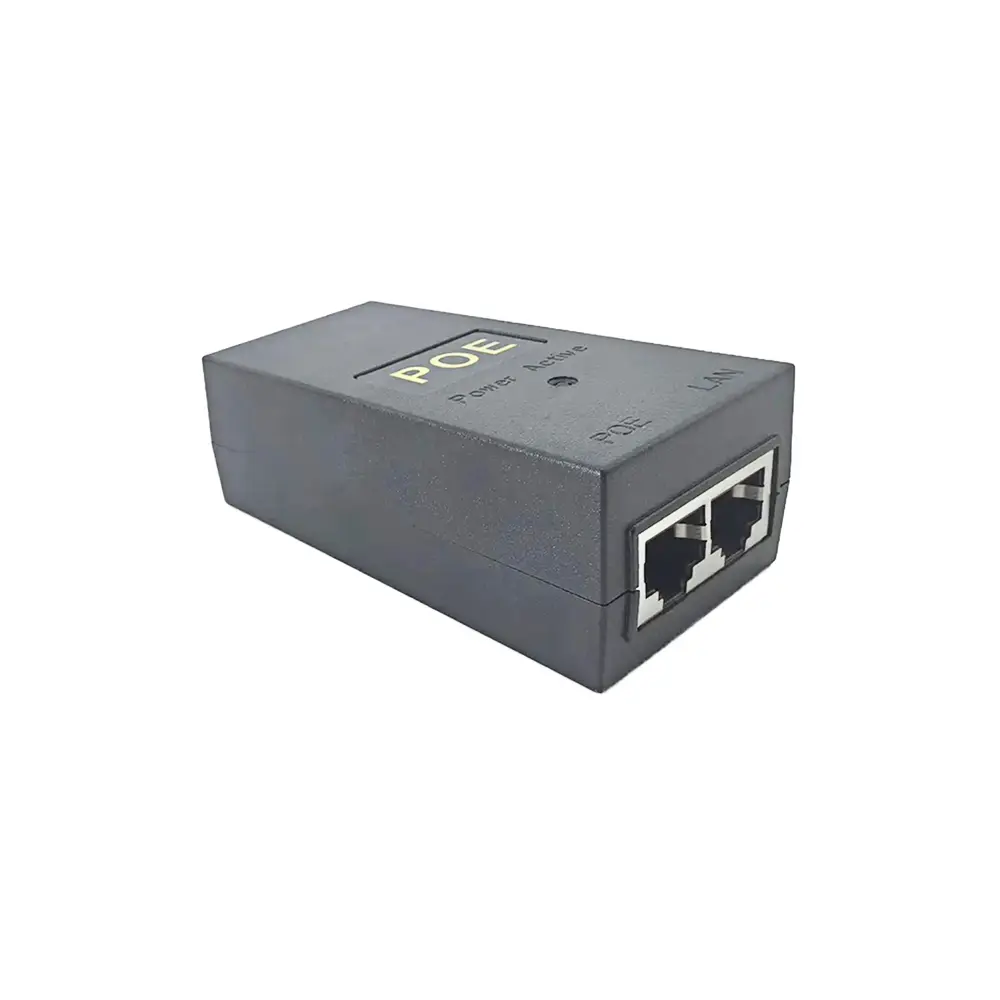

25W 100Mbps Adaptive Split-Type POE Power Supply

Model: TSD-PSE48F

Input: AC 100-240V 50/60HZ
Output: PoE 48V 0.52A 25W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100Mbps
RJ45+ RJ78-fully compatible
Interface: RJ45 port/Torx AC socket
Size: 85*44*31 mm (L*W*H)
Weight: N.W=80 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The PSE48F is a 100Mbps adaptive split-type POE power supply with a maximum output power of 25W. This single-port passive desktop POE injector is ideal for use in small spaces such as homes and offices, providing both power and data transmission for PDs, saving users money.

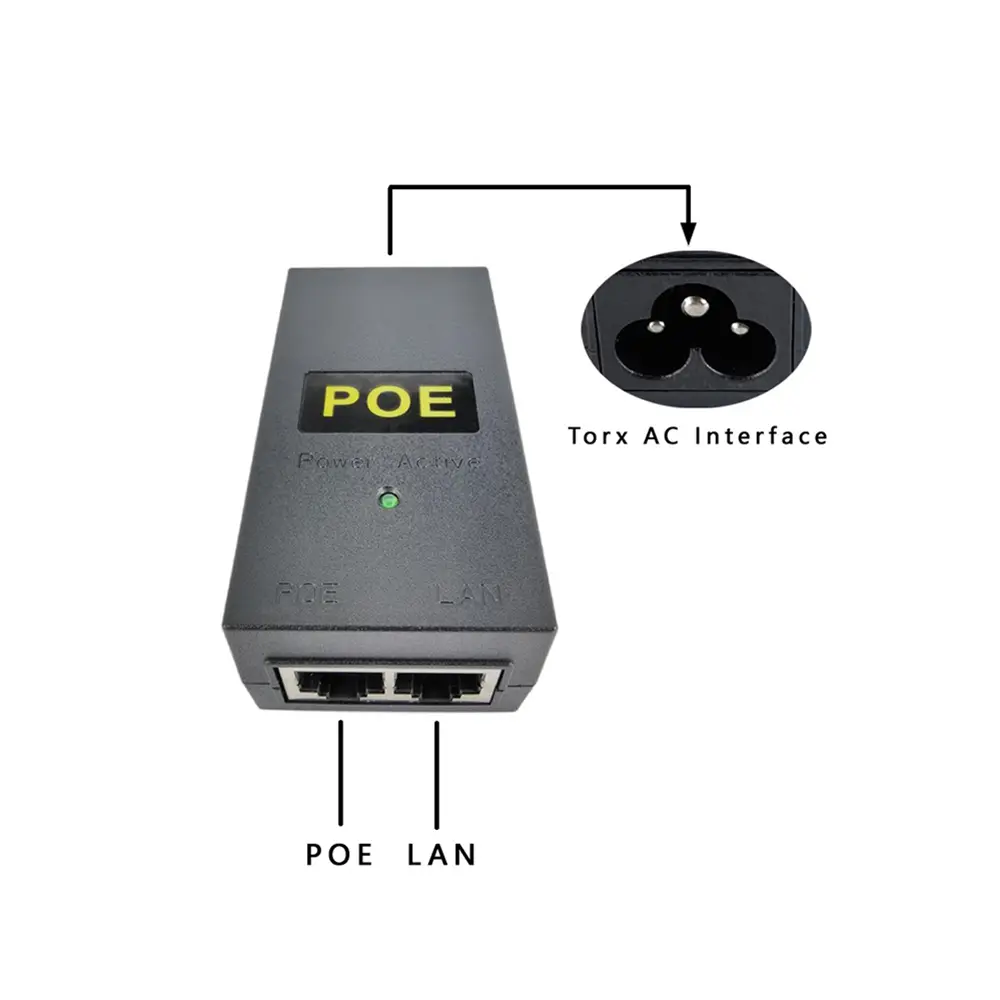

The PSE48F's input port is a LAN port, an uplink port for connecting to upstream network devices such as switches and routers. It also has a Torx AC port that inputs AC100-240V 50/60Hz. It also has a POE port that outputs a 48V POE signal.

The PSE48F supports IEEE802.3af/at standard protocols, and its EMC performance complies with IEC 61000-4-2/3/4/5/6 standards. It has obtained CE, ROHS, and FC safety certifications. Its mainboard circuitry features an isolated design and built-in protection circuits for lightning protection, overvoltage, overcurrent, overtemperature, and short-circuit protection. Its compact size and flexible operation have earned it widespread adoption in various countries and industries worldwide.

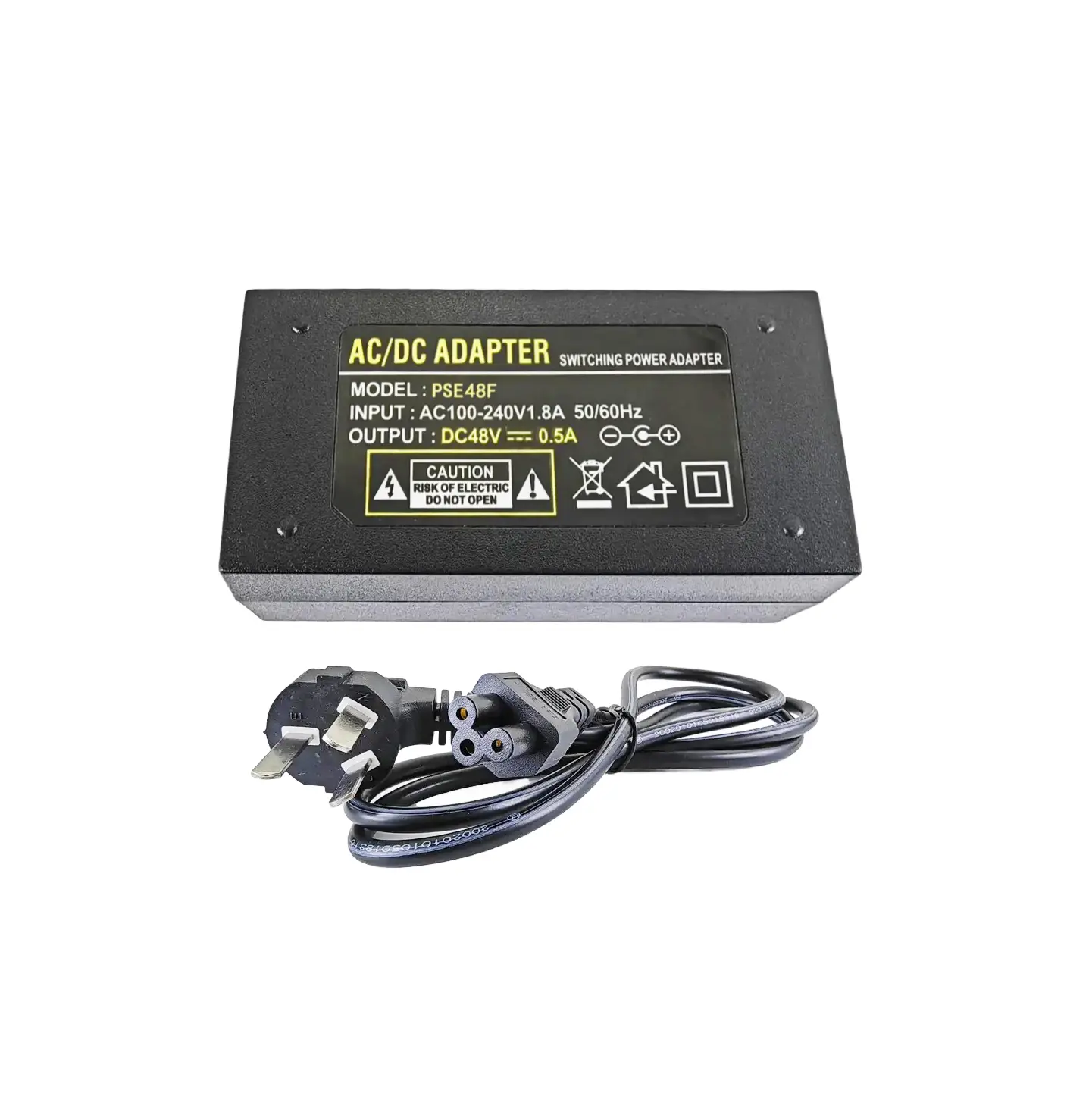

The PSE48F accepts an AC 100-240V 50/60Hz input and outputs a 48V 0.52A PoE signal with a maximum output power of 25W. Other voltages are available on request. Transmission speeds are 10/100Mbps. The default PoE power supply pins are RJ45+ and RJ78-.

● Input: AC 100-240V 50/60HZ
● Output: 48V PoE MAX 0.52 A 25Watt
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100 Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%

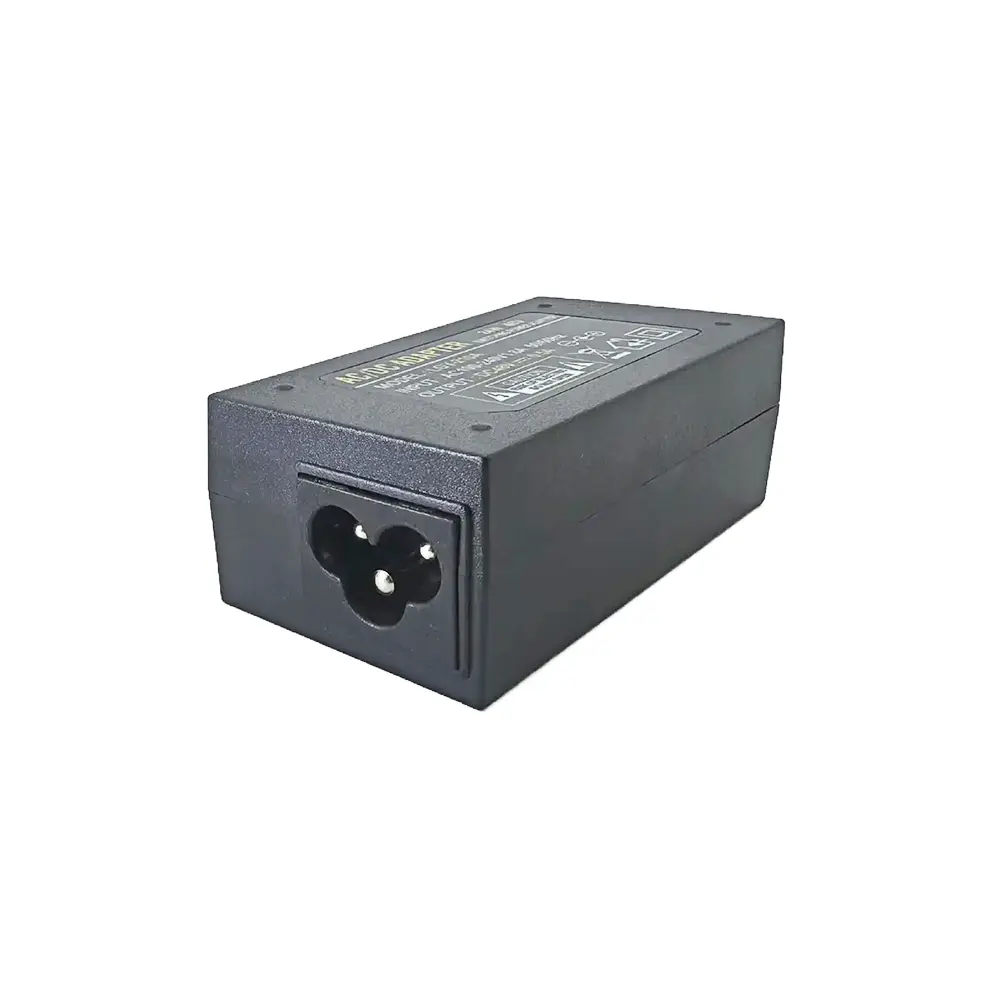

● It comes with a plum-shaped AC socket, for users in different countries, only need to change the AC tail cord of different type to facilitate use.

● Small size, less space, easy to install

● International brand original electronic components, excellent precision and high performance

● Pure copper pin connector to ensure safety performance

● High temperature resistant PCB environmental protection material, lead-free environmental protection process

● High temperature resistant flame retardant interface socket, reduce security risks

● Environmental and high temperature resistant ABC plastic material

Product parameter table
Product Name	25W 100Mbps adaptive split-type PoE power supply
Product Model	TSD-PSE48F
PoE Standard	IEEE802.3af/at
Input Voltage	AC 100-240V 50/60HZ
Output	PoE 48V 25Watt
Conversion Efficiency	≧85%
PoE Pin	RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated
Data Rate	10/100 Mbps Auto-Negotiation
Transmission Distance	100 meters
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	Power indicator*1
Interface	RJ45 port1 (PoE port): 48V PoE out RJ45 port2 (LAN port): data in Torx AC port: AC 100-240V 50/60HZ IN
Material	ABC plastic
Color	Matte black
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 80 g G.W: 195 g
Dimension	Product Dimension: 854431 mm Packing Dimension: 1608240 mm
Package	White carton

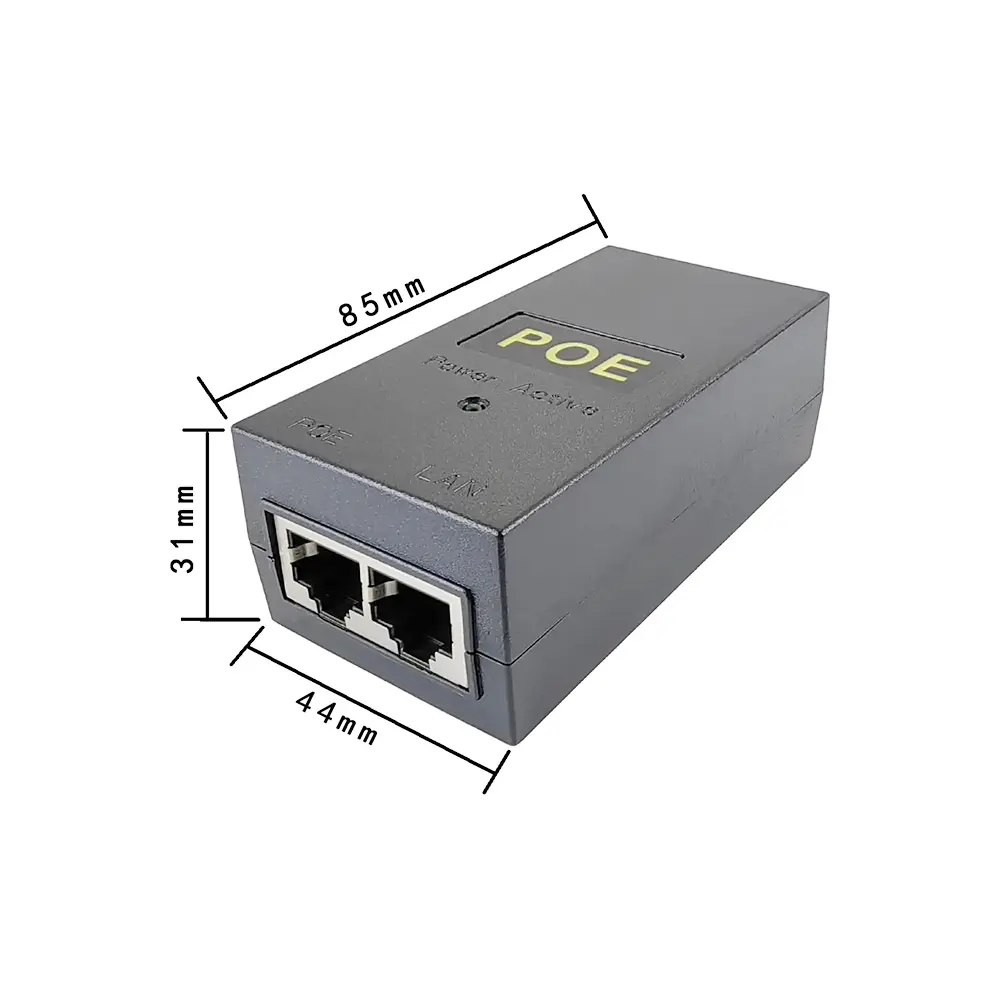

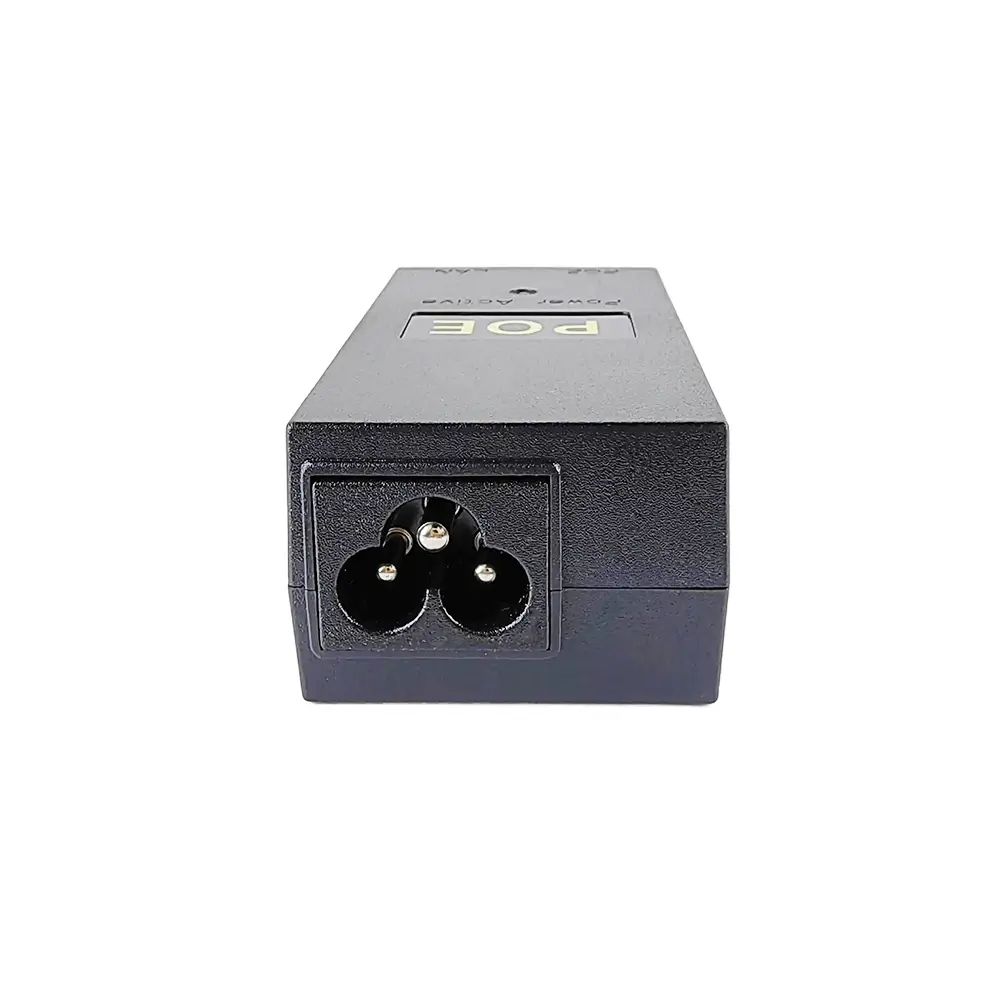

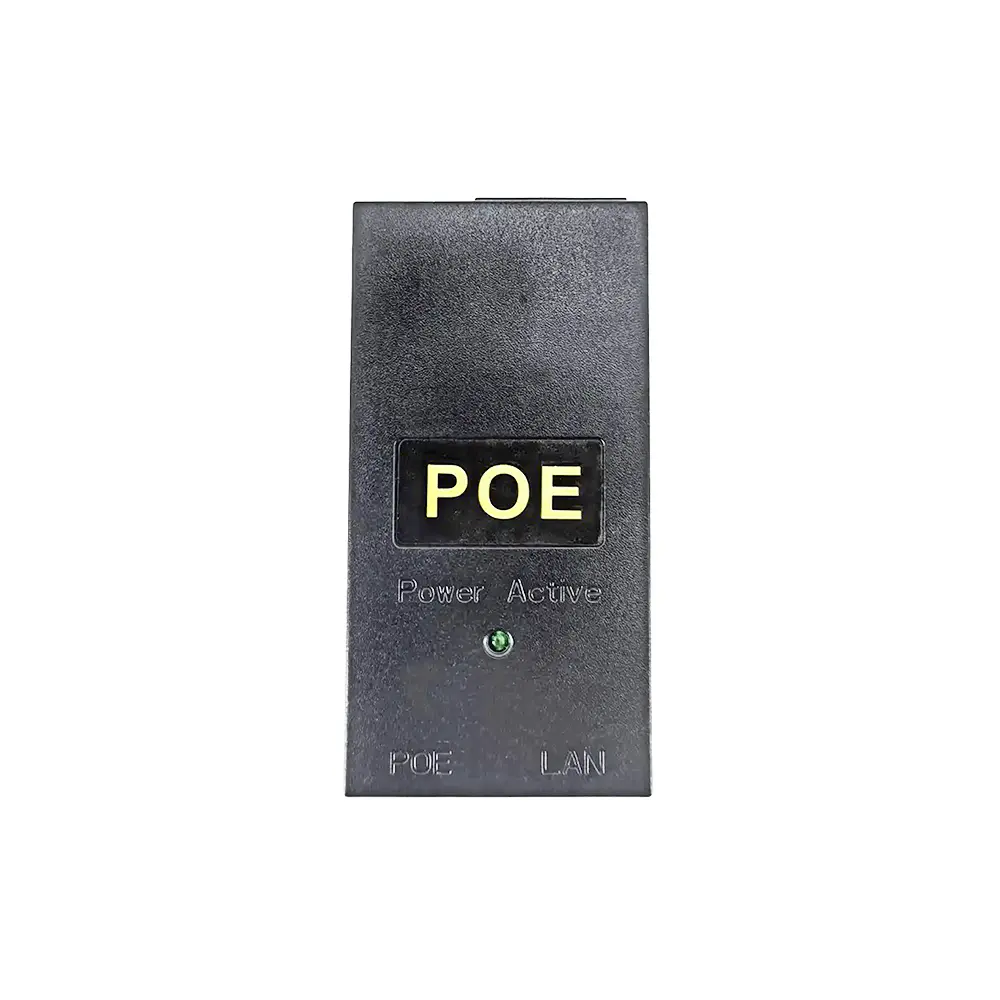

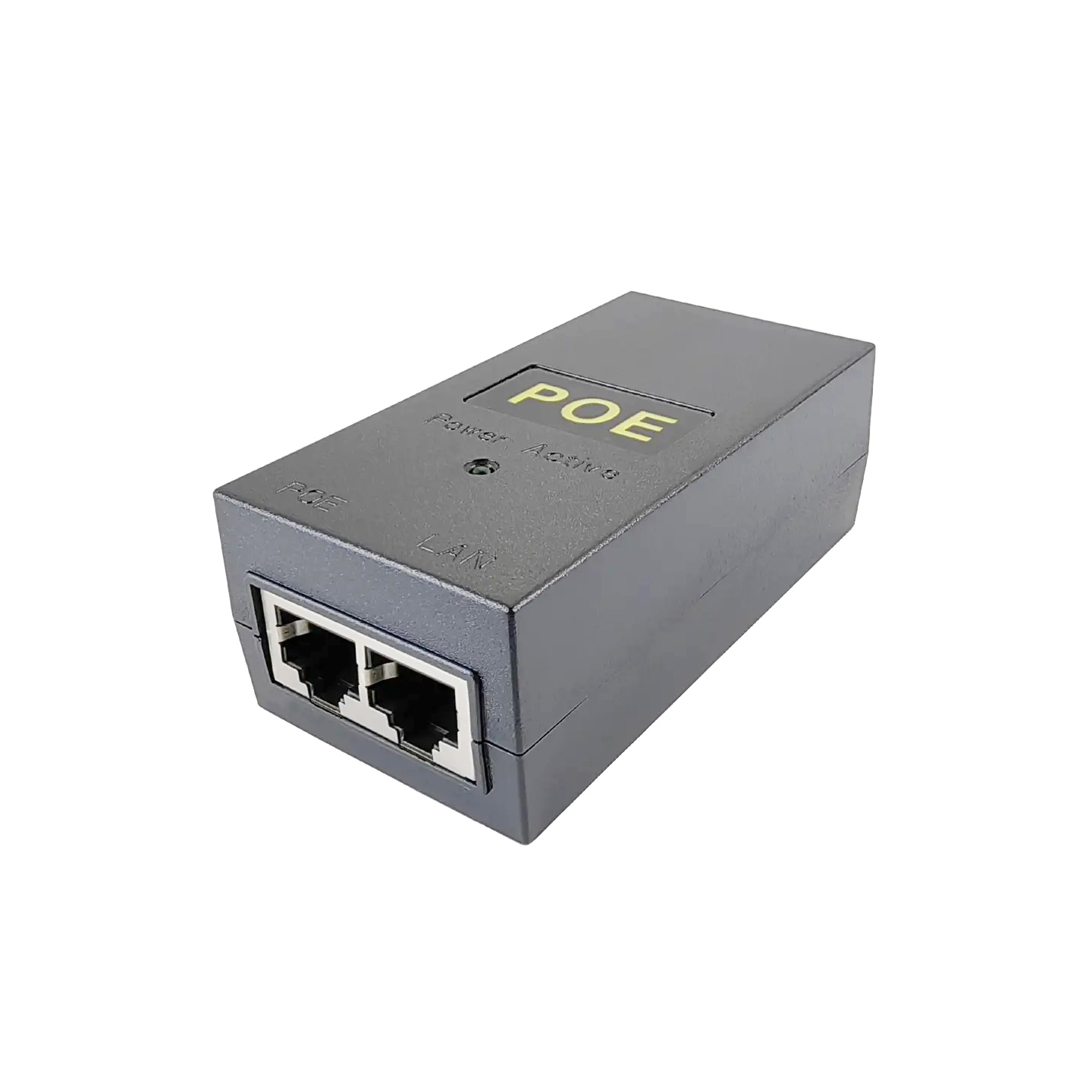

The PSE48F has dimensions of 85*44*31mm (L*W*H) and a square matte black exterior made of environmentally friendly, high-temperature-resistant ABS plastic. It's easily installed and placed anywhere, such as on a desktop. The PSE48F features a plum blossom-shaped AC power connector with a separate main unit and AC tail, compatible with various socket sizes both domestically and internationally. An LED power indicator indicates the power supply's operating status.

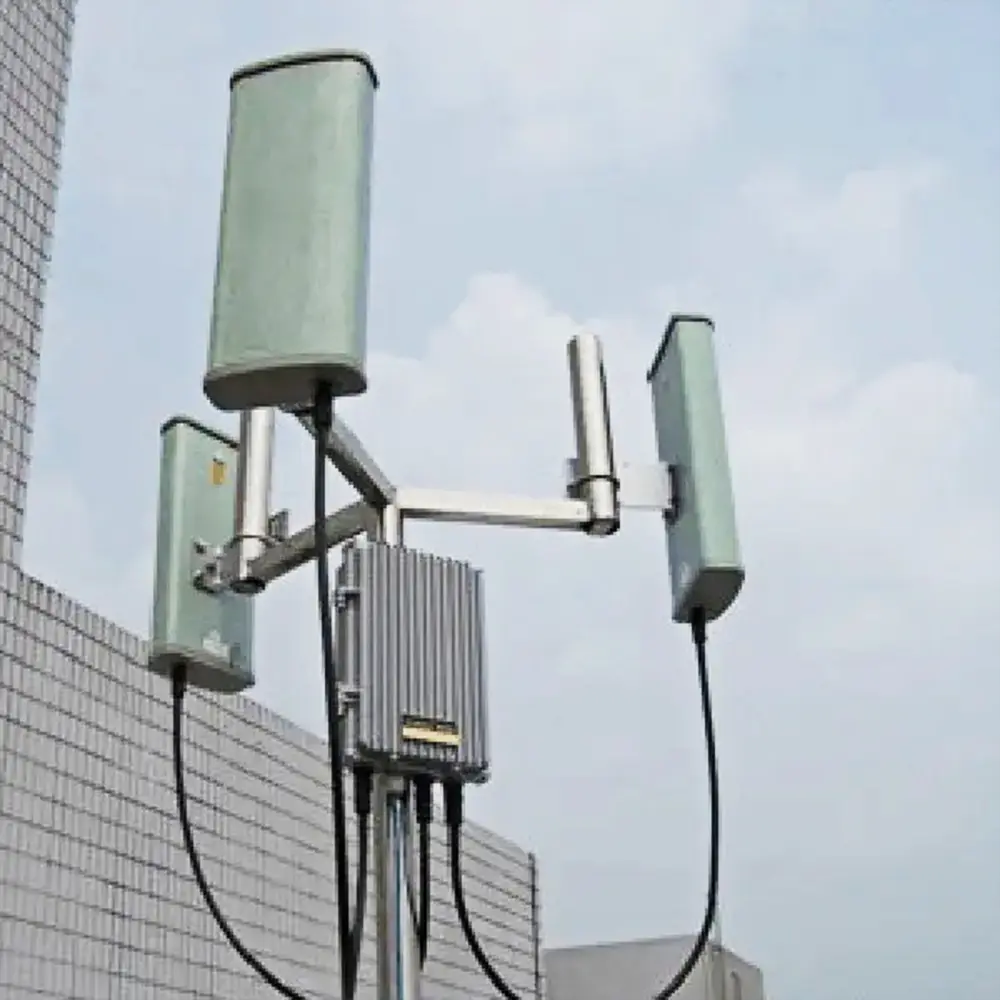

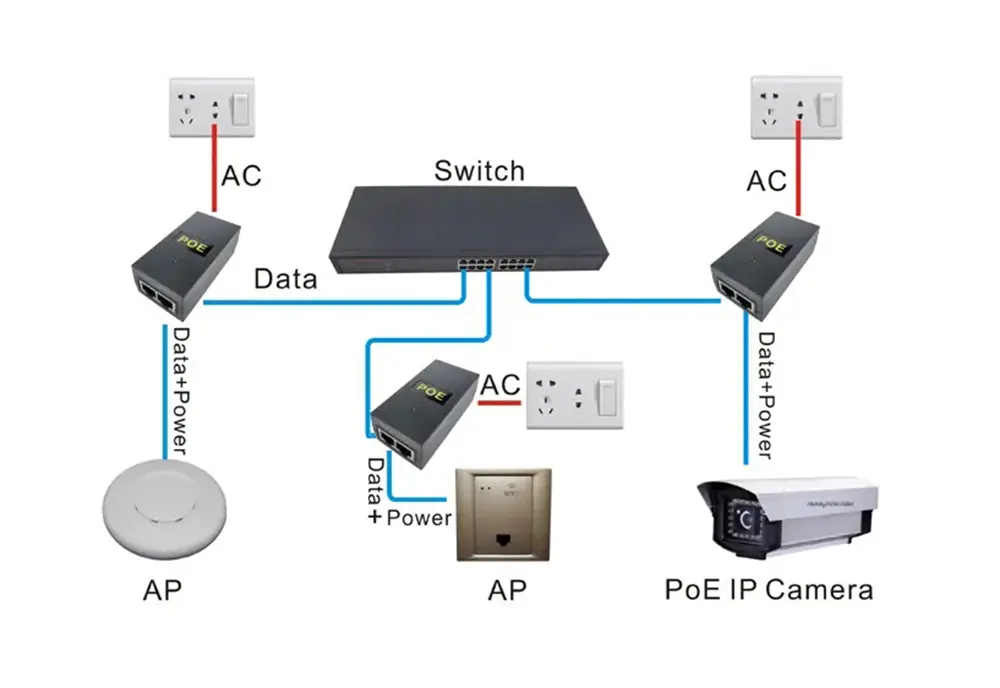

The PSE48F transforms traditional power supply methods in low-voltage projects, reducing labor and material costs while improving overall system security and stability. It can be widely used in areas such as CCTV surveillance, wireless transmission, and smart home systems.

The PSE48F is a passive POE power injector that outputs a mandatory 48V POE signal. Therefore, during installation and use, users must ensure that the PSE48F's output voltage matches the input voltage of the PD.

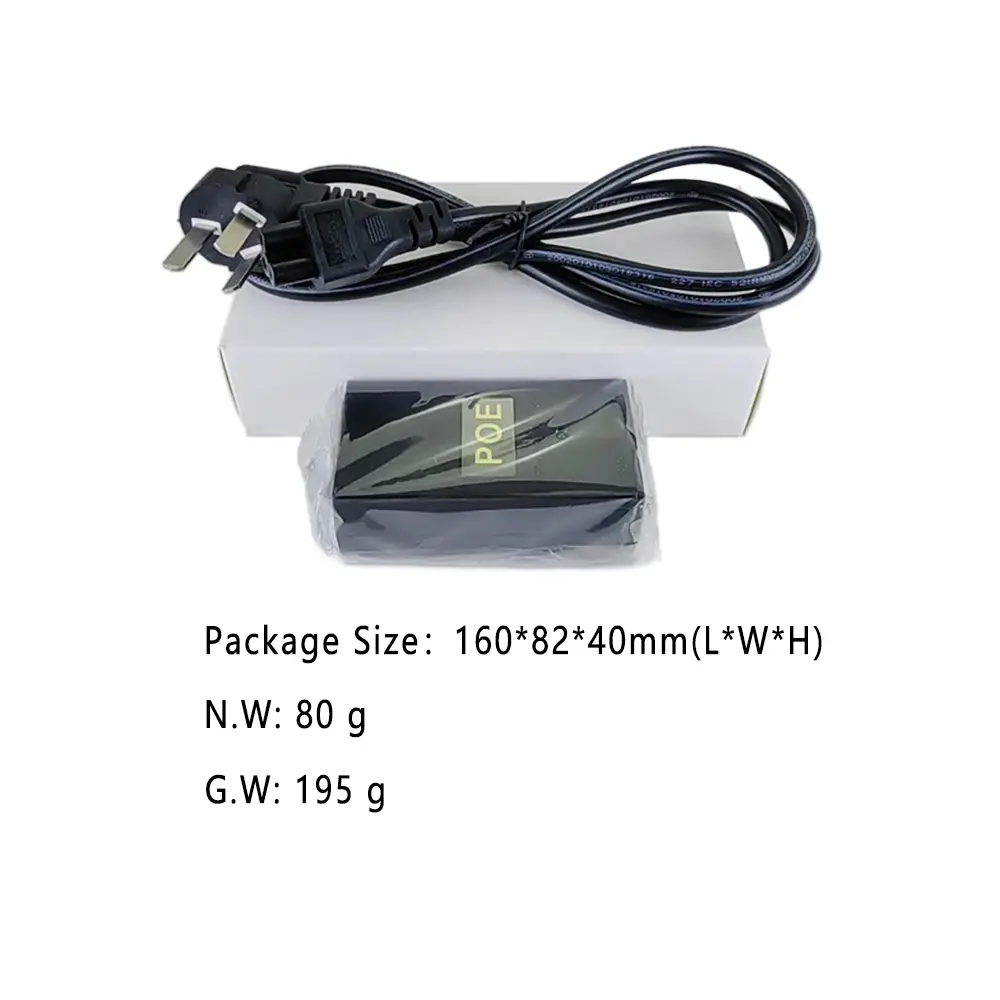

Package list
Items	Quantity
PSE48F PoE power supply	1PCS
AC cable	1
Operation Manual	1
