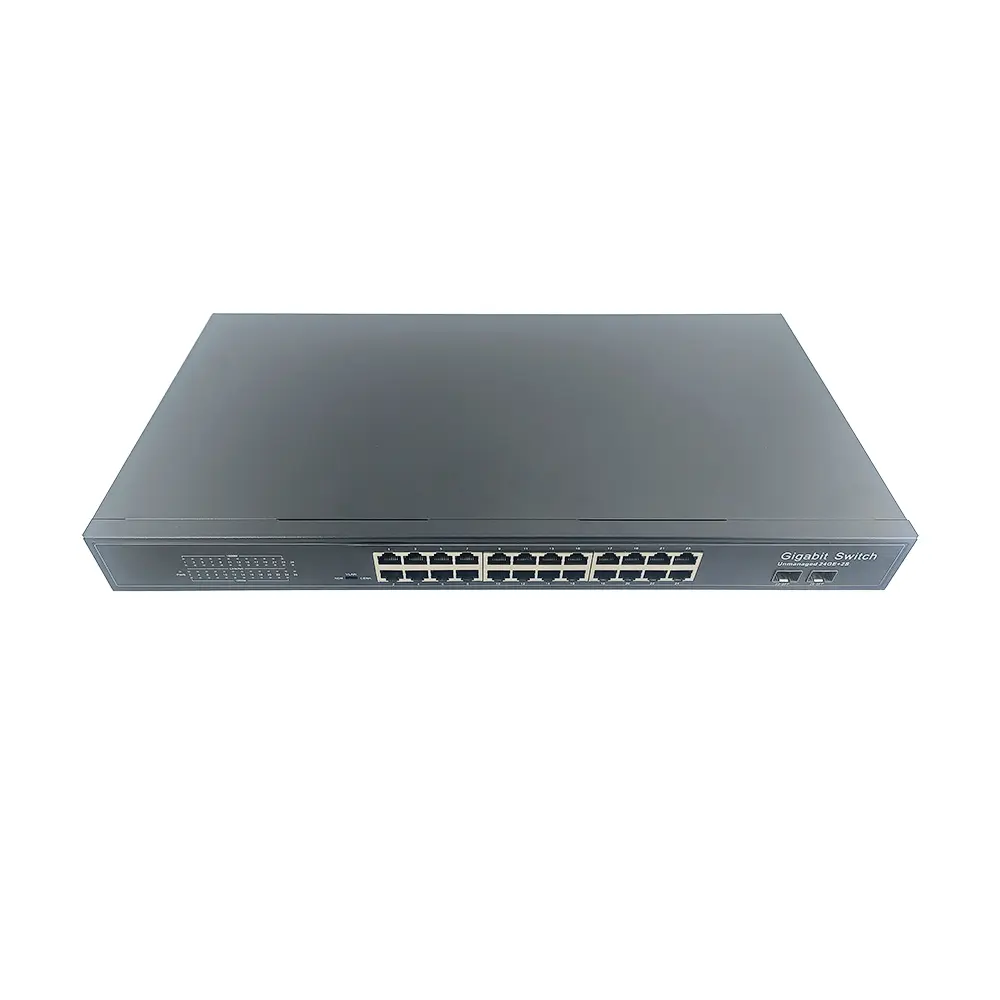

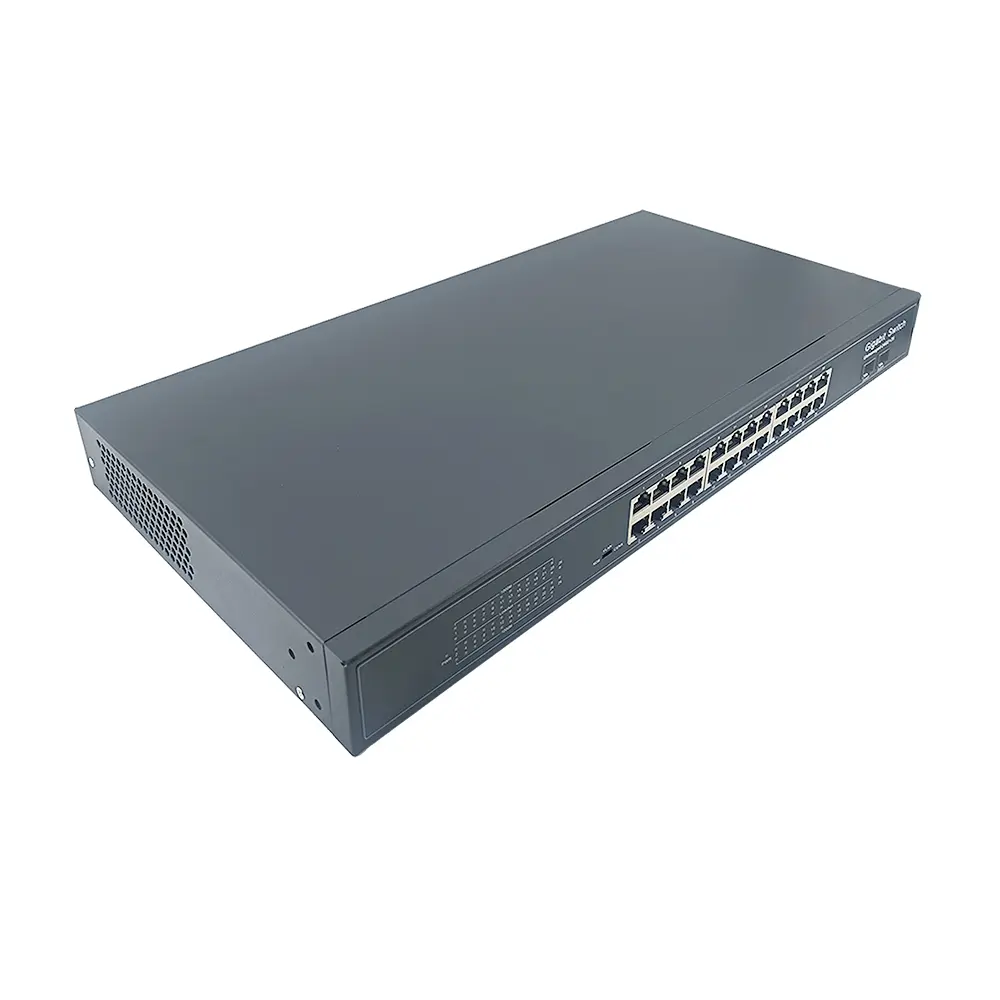

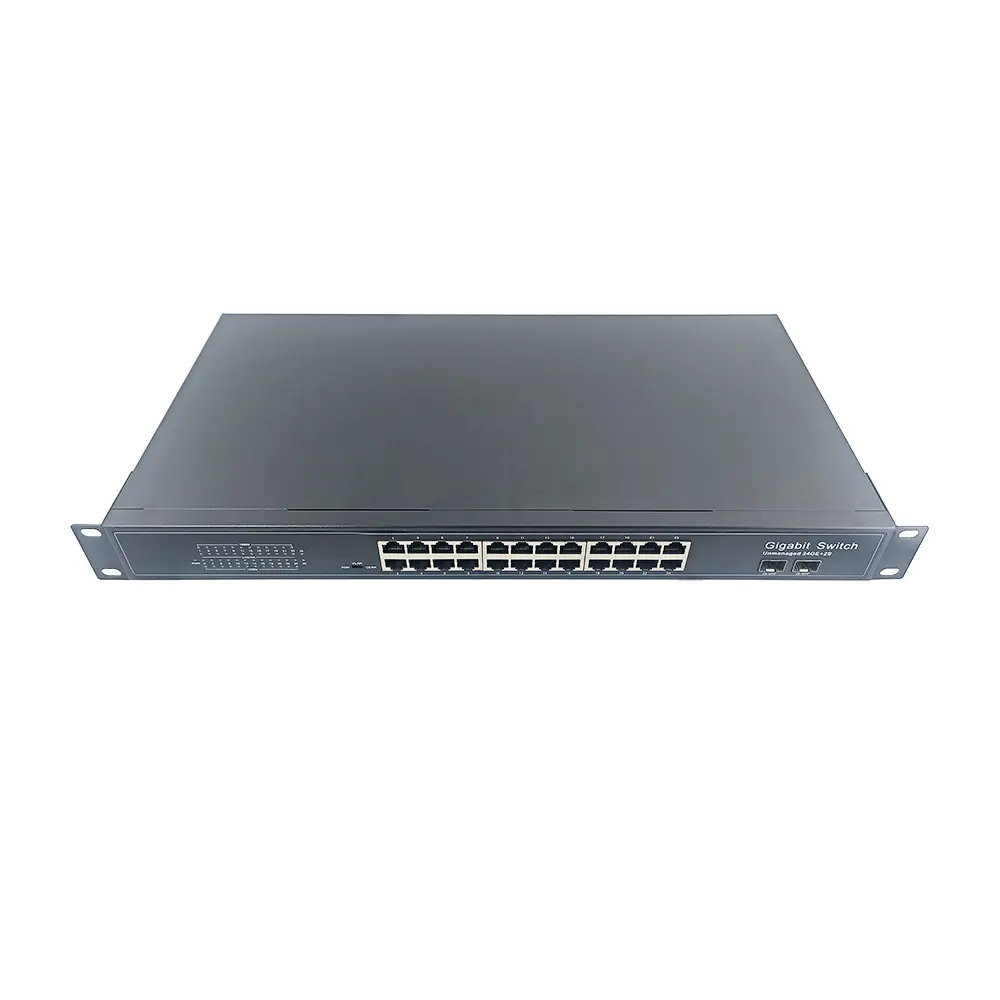

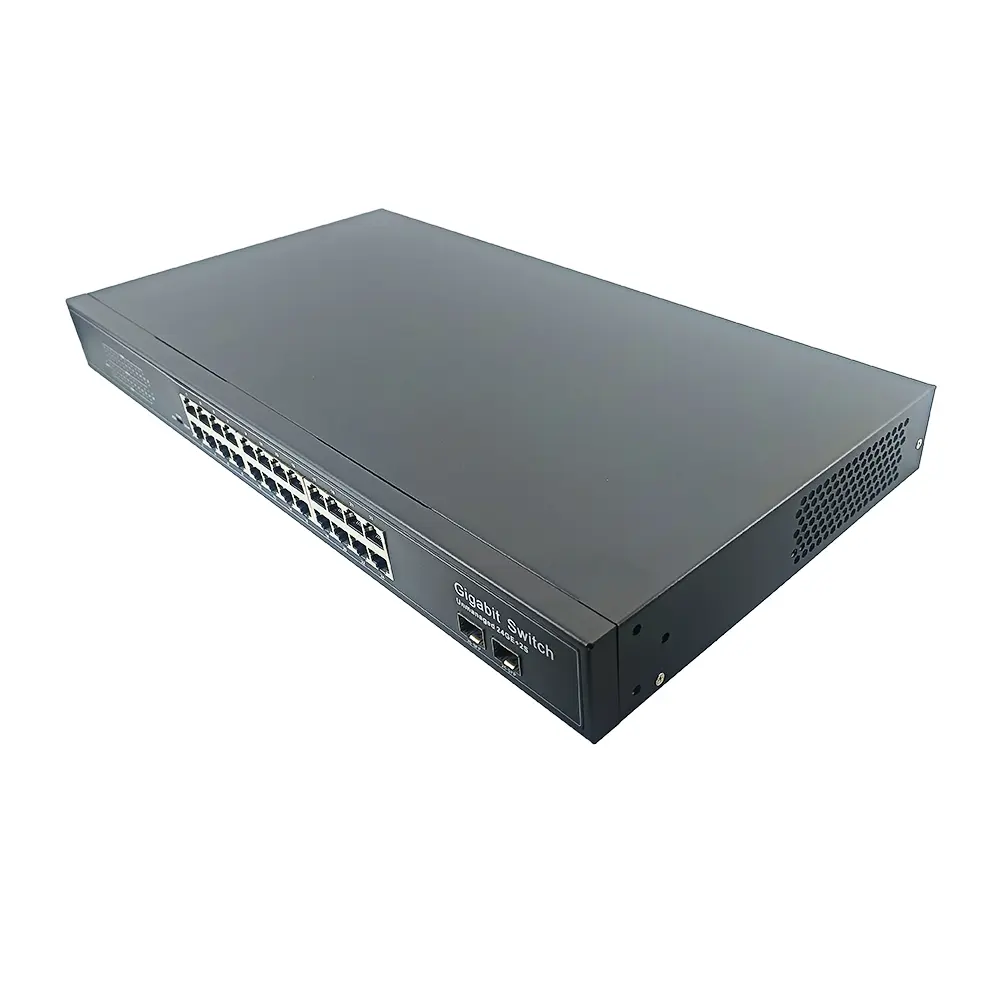

24-channel ultra-high power Gigabit PoE switch

Model: TSD-PSE2400G2S

Input: AC 90-240V 50/60HZ
Output: PoE 52V
PoE protocol: IEEE 802.3af/at/bt
Transmission rate: 10/100/1000Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/SFP port
Size: 440*230*44 mm (L*W*H)
Weight: N.W=3.1 kg

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

TSD-PSE2400G2S is an ultra-high-power Gigabit PoE switch. The product complies with the IEEE802.3af/at/bt PoE standard protocol. It can output a single PoE signal with a maximum power of 90W, and can also be connected to optical fiber for long-distance data transmission.

The TSD-PSE2400G2S switch is equipped with a power input port, which can be connected to the power cord to input 90~240V50/60HZ AC power. Two SFP optical ports enable data transmission by connecting optical fibers. 24 Gigabit PoE ports output PoE signals to provide data transmission and power supply for terminal devices.

TSD-PSE2400G2S can connect 24 high-power PD devices and supports the operation of high-power devices such as high-speed dome cameras, large speakers and Wifi.

TSD-PSE2400G2S adopts the IEEE802.3af/at/bt PoE standard protocol and has obtained CE, FC, and Rohs certifications. The EMC parameters comply with the IEC 61000-4-2/3/4/5/6 standard requirements. The product supports the operation of multiple high-power equipment, and its excellent functional performance has been recognized and supported by users.

TSD-PSE2400G2S input voltage AC 90~240V50/60HZ, default output 52V PoE signal. Default working mode: NOM (Normal). Device transmission rate: 10/100/1000Mbps adaptive transmission, built-in power supply: 52V 16A 800W, backplane bandwidth: 56G. The circuit has overheating protection, overvoltage protection, overcurrent protection, short circuit protection, electric shock protection, leakage protection and other functions.

● Input: AC 90-240V 50/60HZ
● Output: 52V PoE
● Compliance: IEEE 802.3af/at/bt PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance
● Built-in power supply: 52V 16A 800W

● Backplane bandwidth: 56G

● Maximum output power of single port: 90W

● Three working modes (NOM, VLAN, CENK)

● Desktop installation and rack installation dual modes

● Original International famous original electronic components, high precision and high performance

● Pure copper pin connector to ensure safety performance

● High-frequency, low-resistance electrolytic capacitors reduce circuit high-frequency losses and heat generation

● High power, high conduction and low impedance transistor, excellent reliability and temperature tolerance

● Hard metal material shell, easy to enhance its installation robustness and heat dissipation
● Environmental protection high temperature resistant PCB material, environmental protection lead-free process

● Hard metal shell, both beautiful and quality

Product parameter table
Product Name	24-channel ultra-high power Gigabit PoE switch
Product Model	TSD-PSE2400G2S
PoE Standard	IEEE802.3af/at/bt
Input Voltage	AC 90-240V 50/60HZ
Output	PoE 52V
Built-in power supply	52V 16A 800W
Conversion Efficiency	/
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	/
Data Rate	10/100/1000Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection electric shock protection, leakage protection
LED Indicator	Power indicator1 , Gigabit indicator lights24 Link/Act indicator lights24, SFP port indicators2
Interface	AC input port (Triangular Connector) : AC 90~240V 50/60HZ SFP port (Gigabit SFP Port): Data RJ45 port (Gigabit PoE port) : PoE OUT
Material	Hard metal
Color	matte black
Accessories	1 meter (10A 250V) power cord, user manual Mounting lug 2, screw 6
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 3.1 kg G.W: 3.4 kg
Dimension	44023044 mm(LWH)

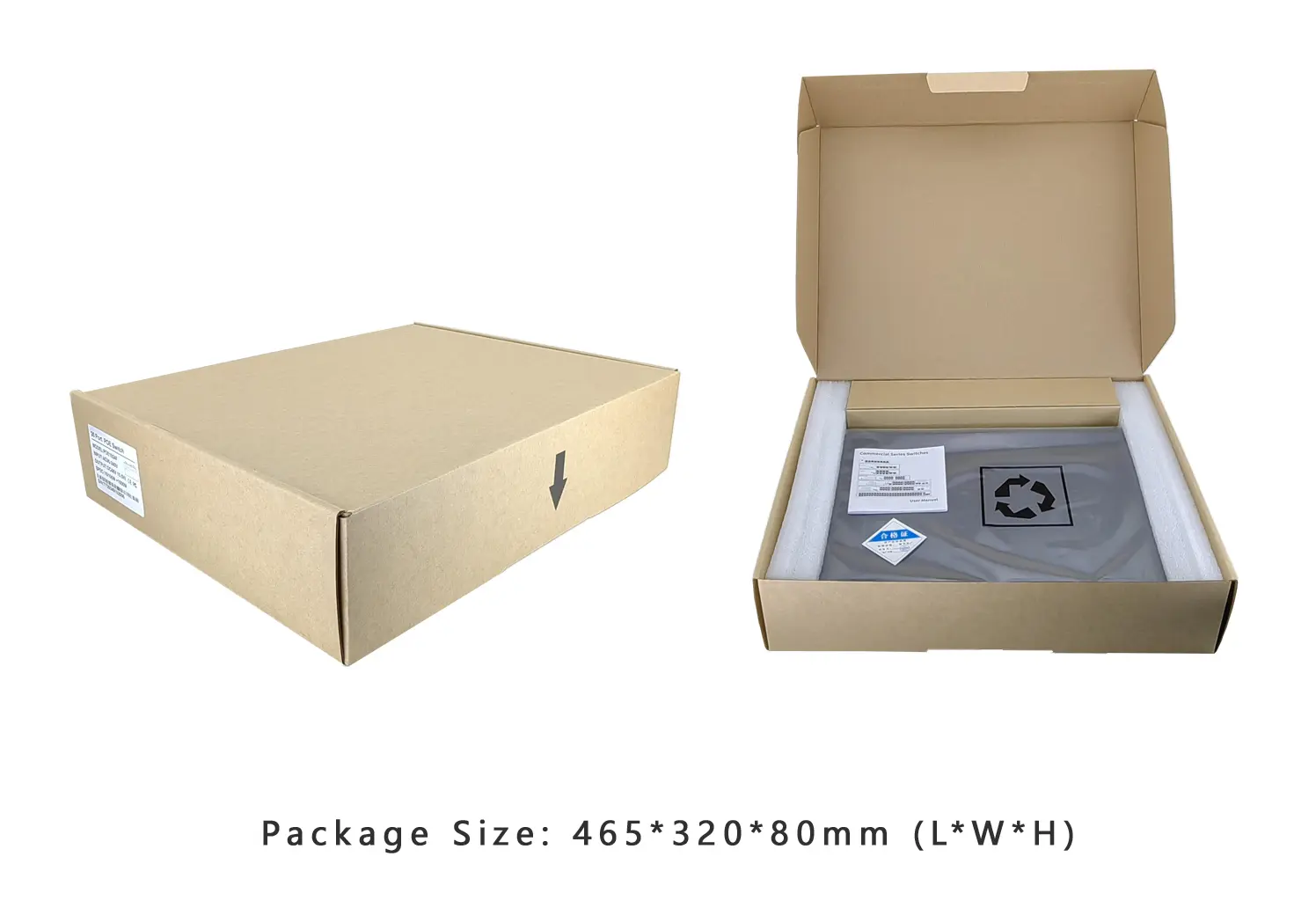

Package	Anti-static pearl cotton + Kraft cartons (46532080mm(LWH))

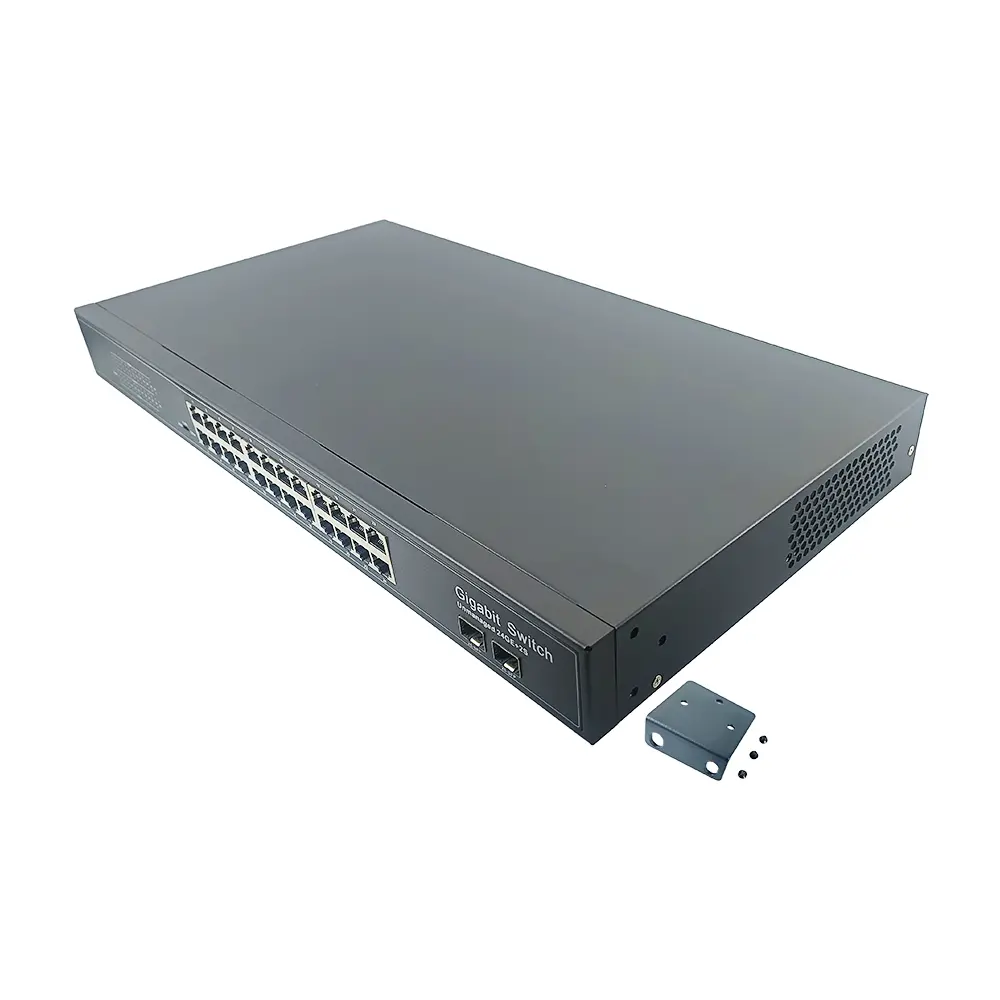

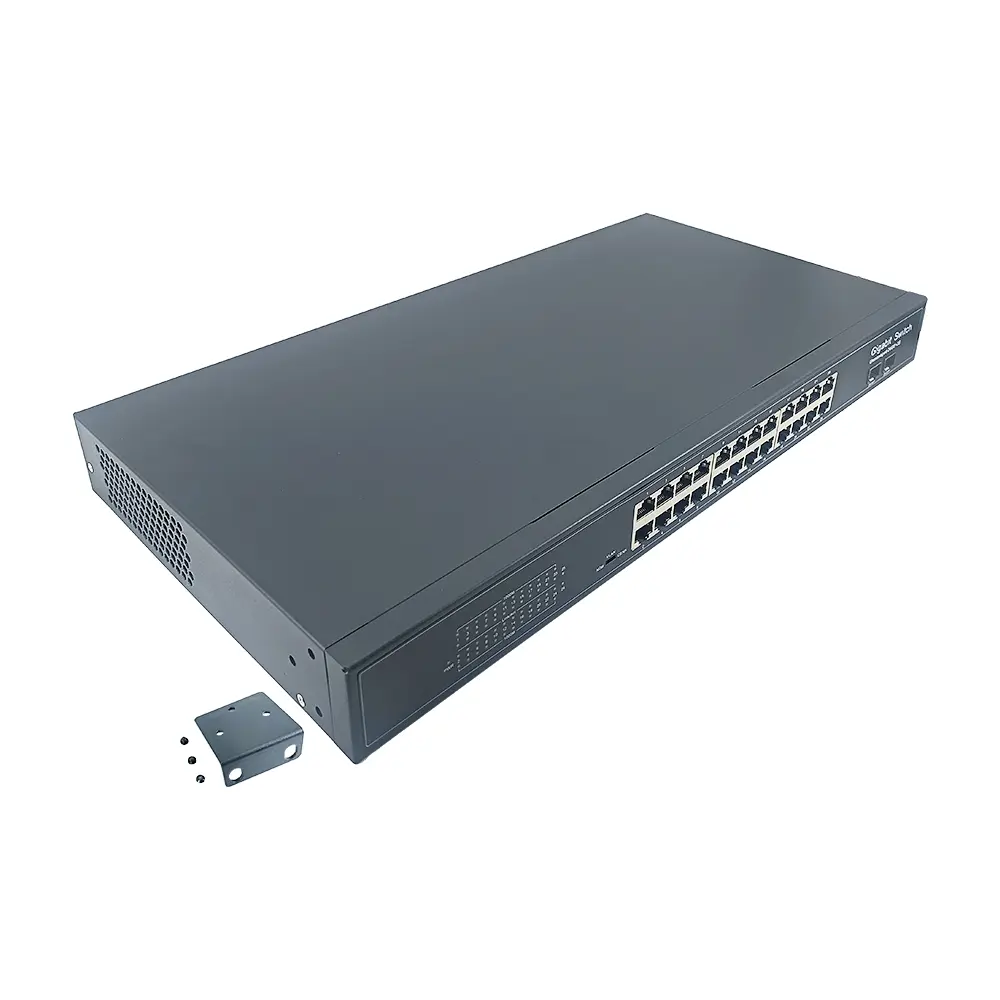

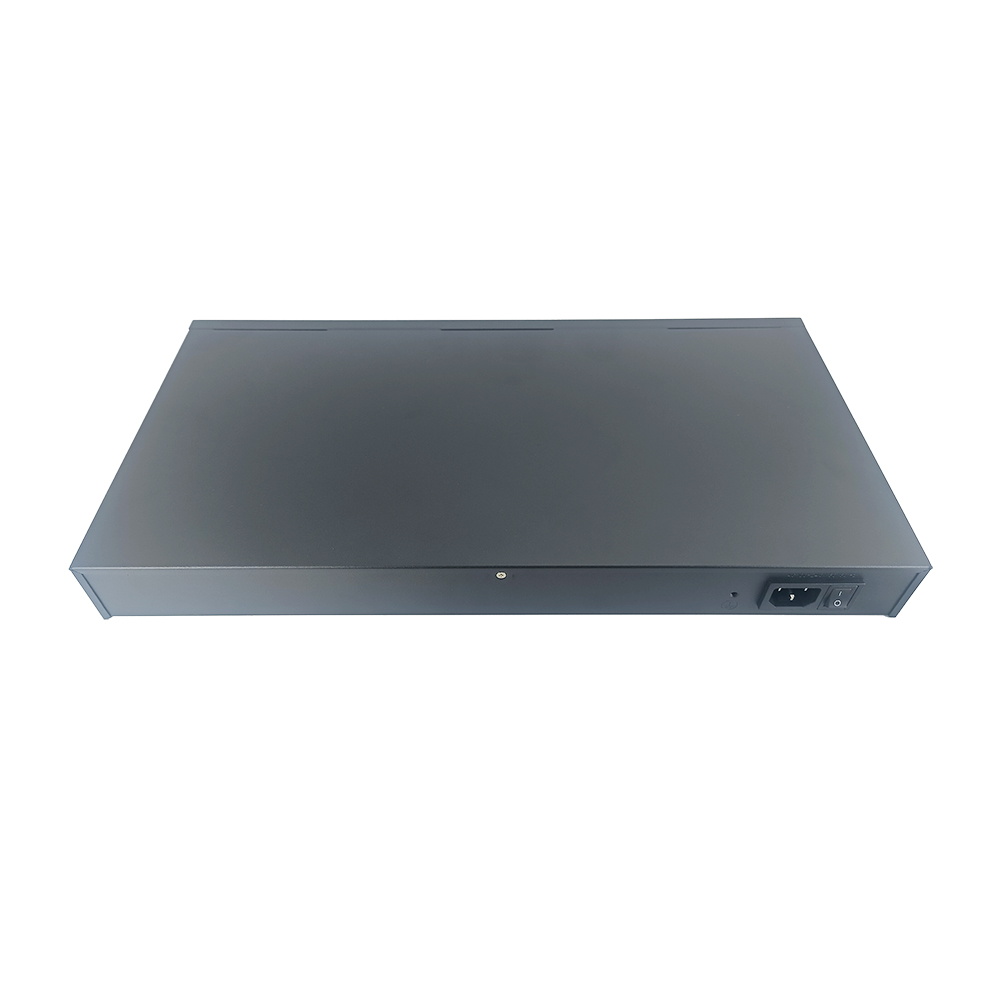

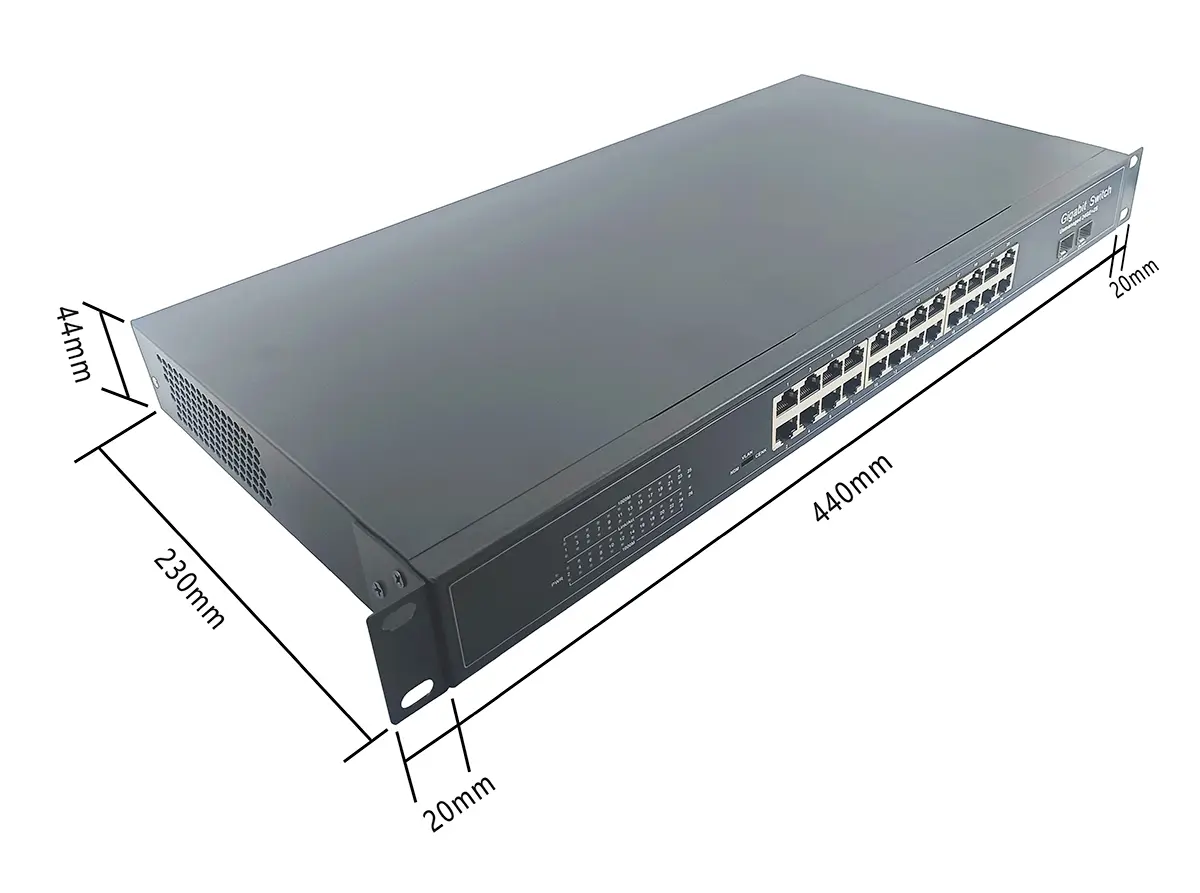

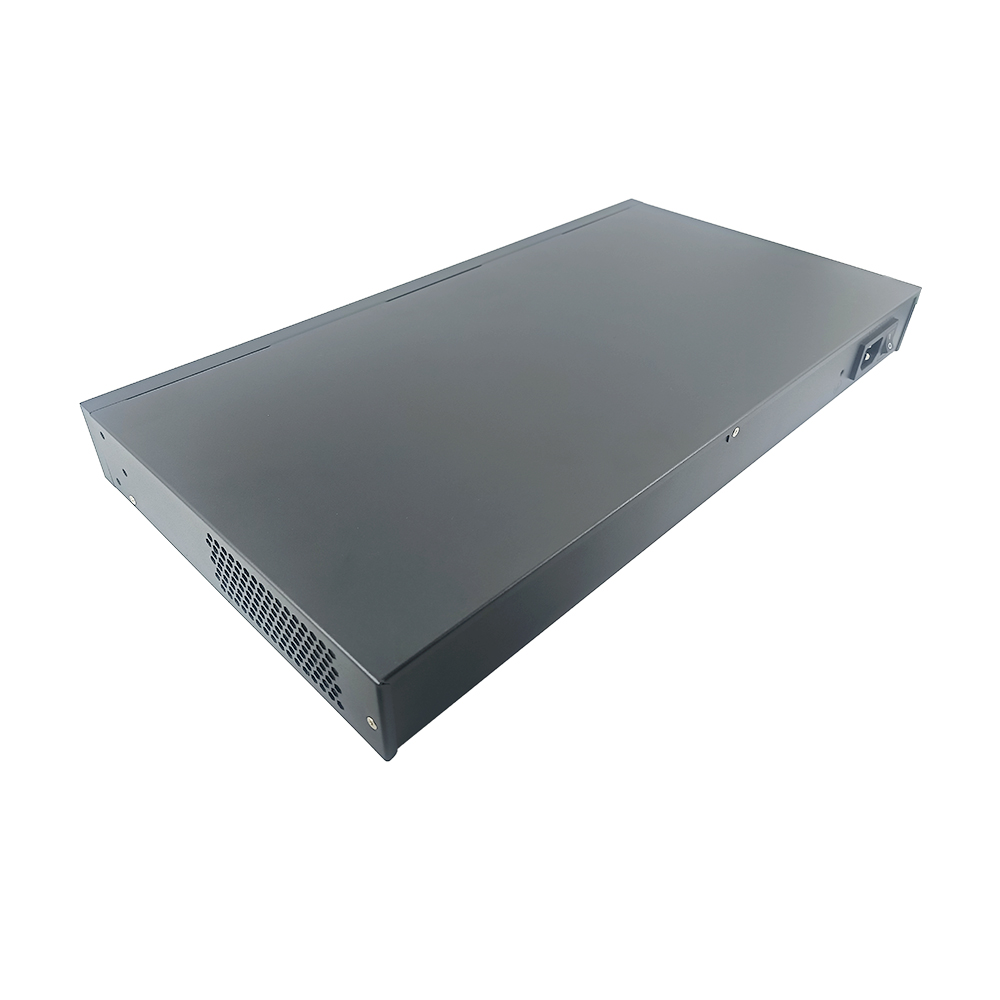

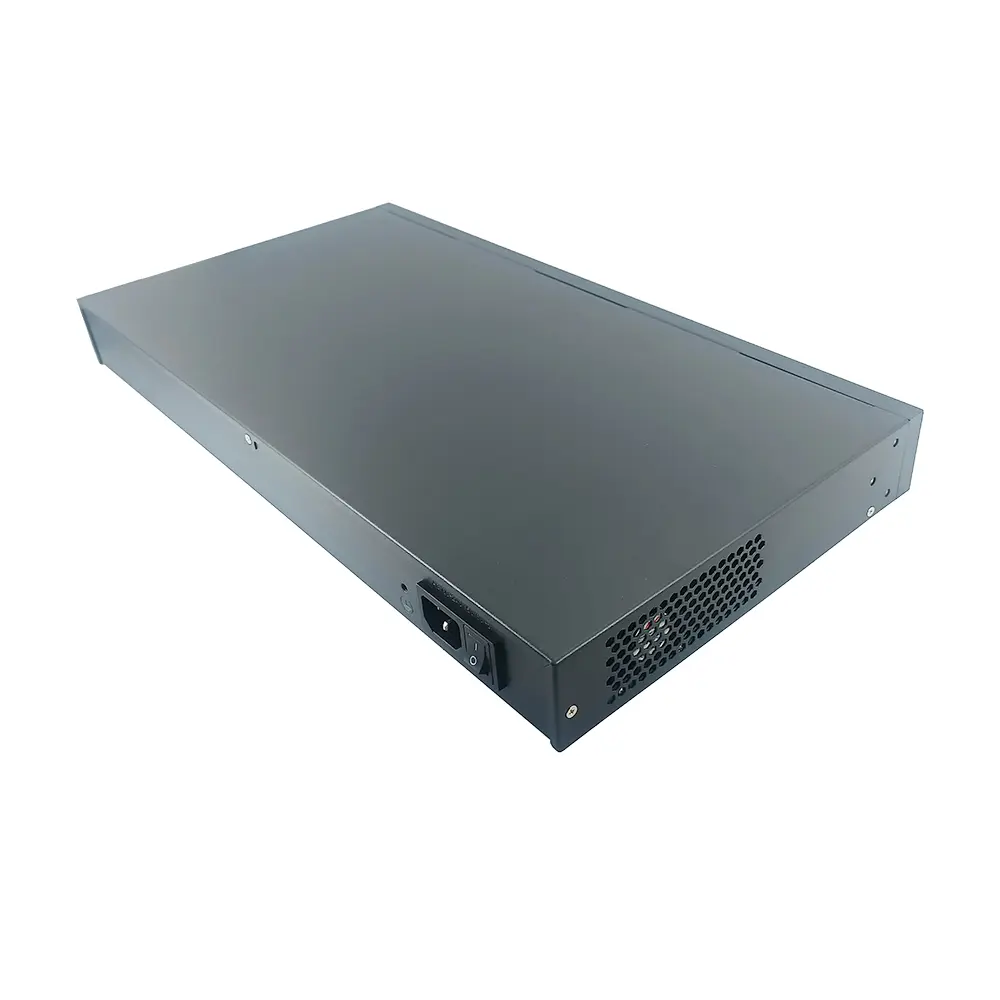

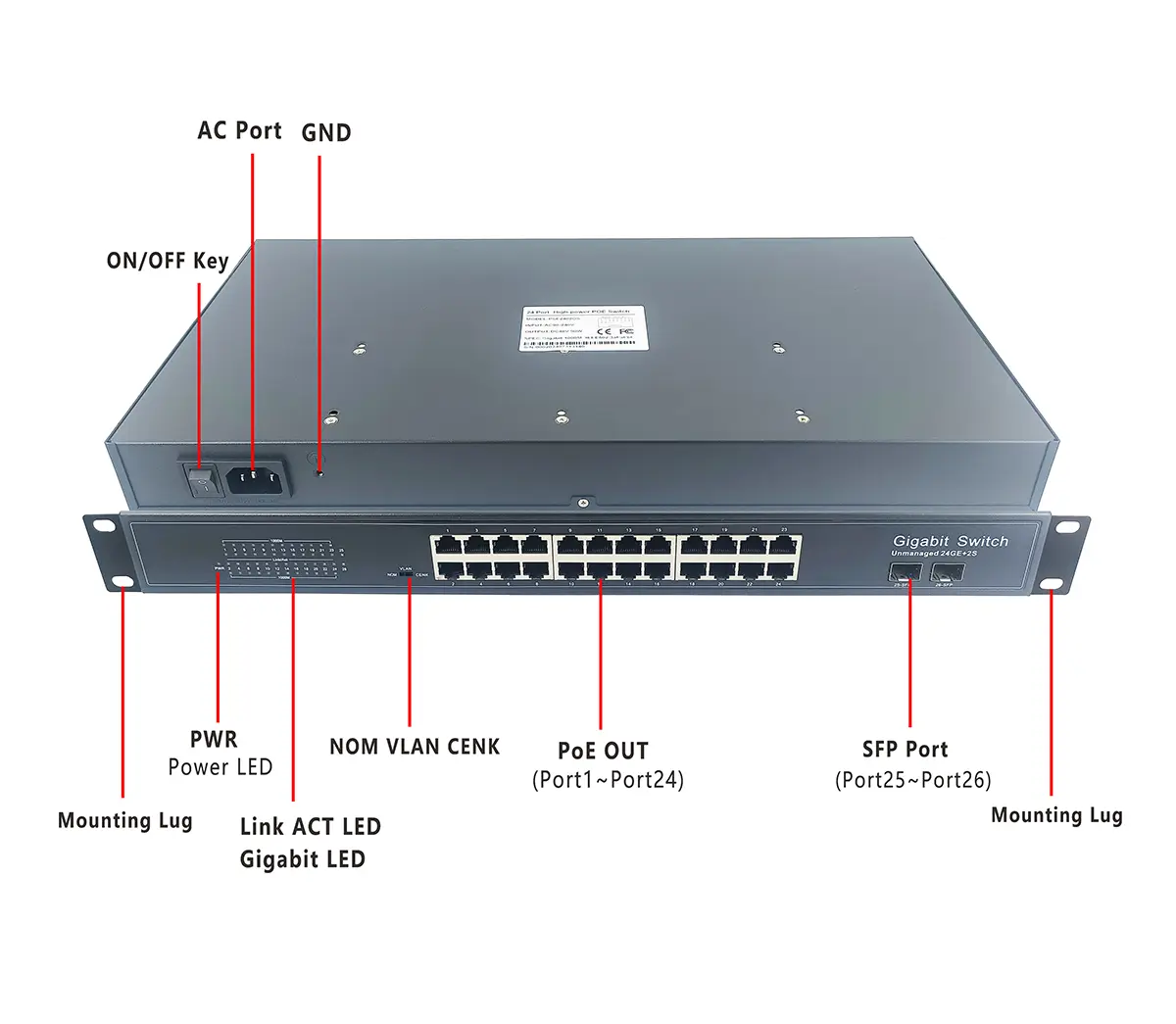

Dimensional structure: 440*230*44 mm (L*W*H). Body: standard IU chassis, matte black metal shell. Front panel: work indicator light (power supply, PoE port and SFP port), DIP switch (three working states: NOM/VLAN/CENK), Gigabit PoE port, SFP optical port; left and right sides: equipped with heat dissipation mesh to maintain normal body temperature, removable mounting ears, supports standard rack installation and desktop installation; back: pin-shaped AC power input interface, boat-shaped switch (control power switch), screw hole (ground protection).

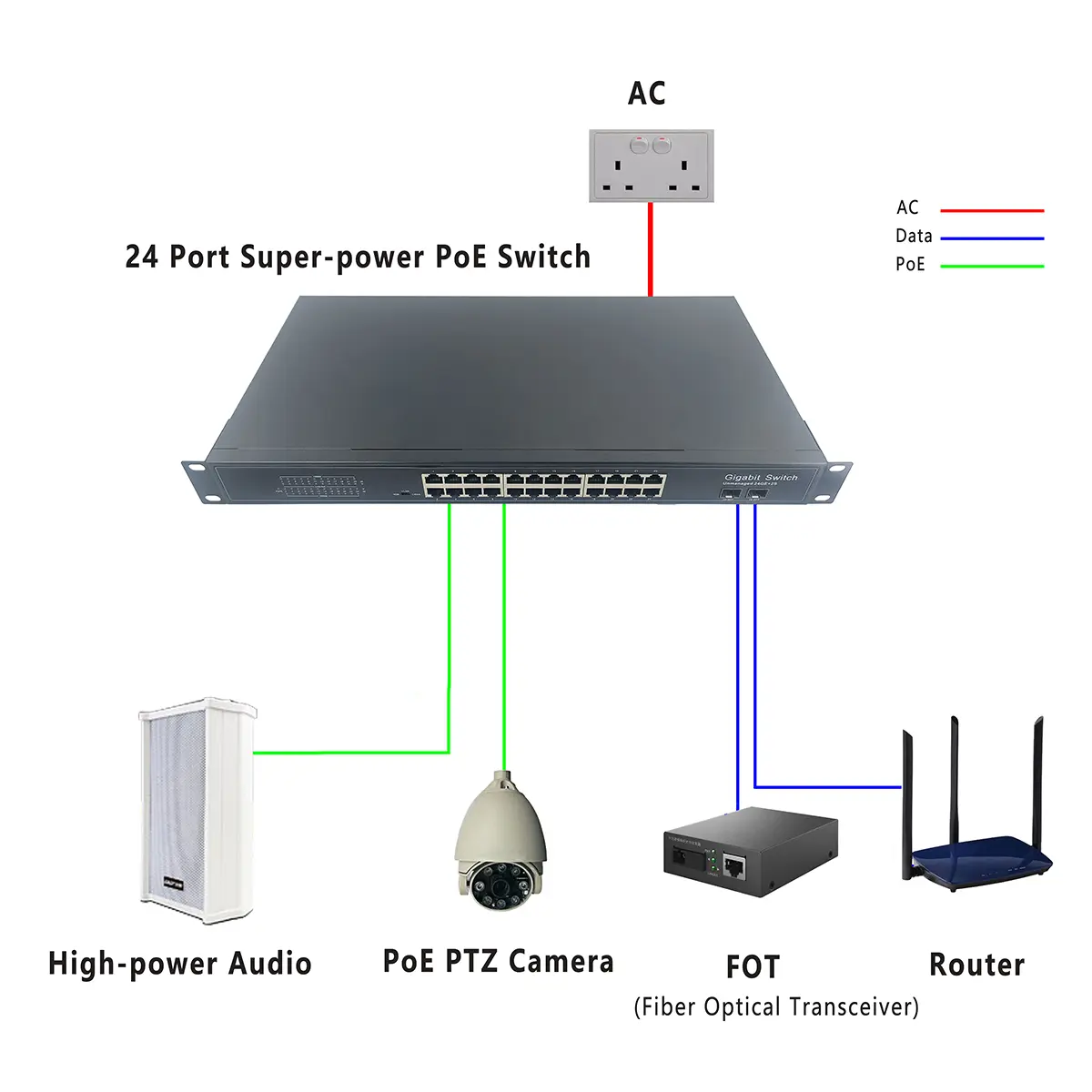

TSD-PSE2400G2S is an ultra-high-power Gigabit PoE switch with 24 PoE signal output ports and a maximum output power of 90W per port. It can provide PoE power supply for high-power equipment and also has good compatibility with low-power equipment. TSD-PSE2400G2S also has two SFP optical ports, which can support high-speed and stable data transmission over long distances. The products are aimed at the high-power equipment market and are mainly used in IPC, Wifi, high-power network bridges and large audio equipment.

Package list
Items	Quantity
PSE2400G2S PoE switch	1PCS
AC cable	1
Mounting Lug	2
Screw	6
Operation Manual	1
