100Mbps isolated 15W low-power PoE module

Model: TSD-PD3805

Input: Wide-Range DC 38-56V PoE signal
Output: DC 12V MAX 1.3A 15W
PoE protocol: IEEE 802.3af
Transmission rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: vertical PH1.25/2.0 Socket
Size: 38*38*15.5 mm (L*W*H)
Weight: N.W=16 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

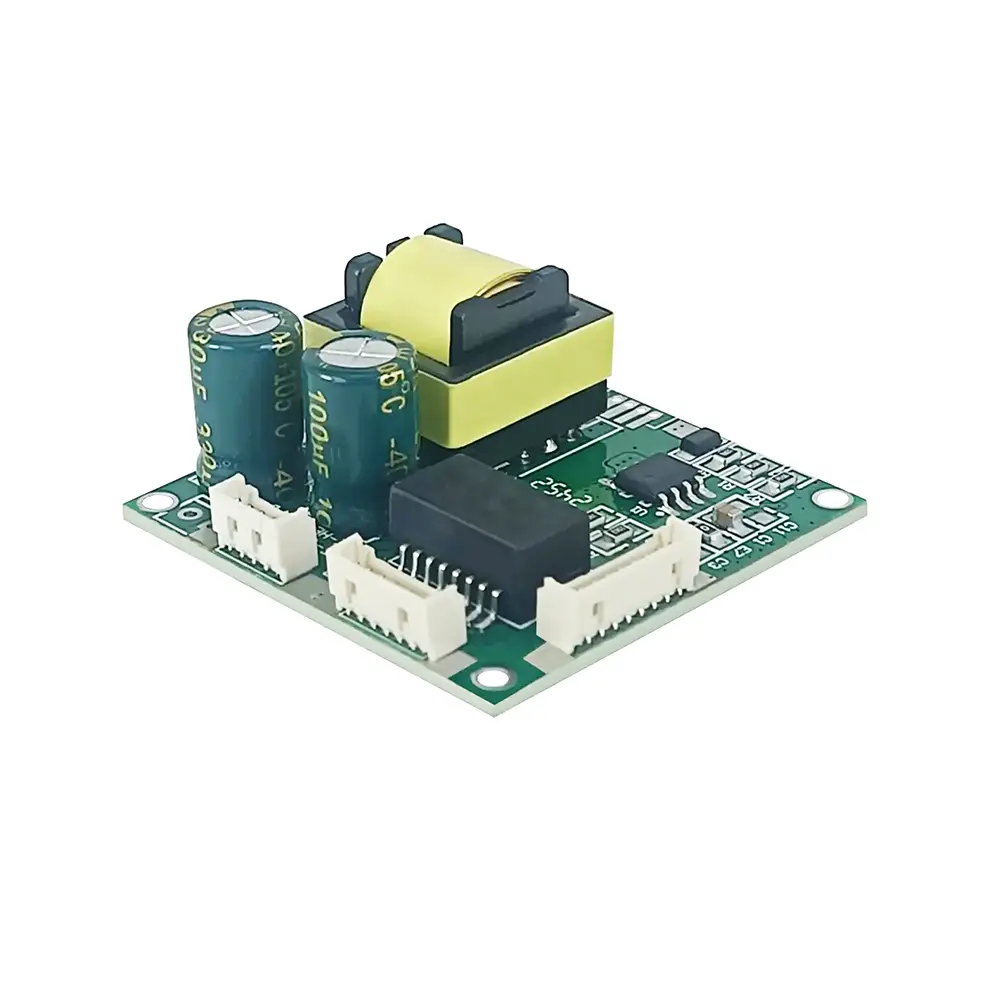

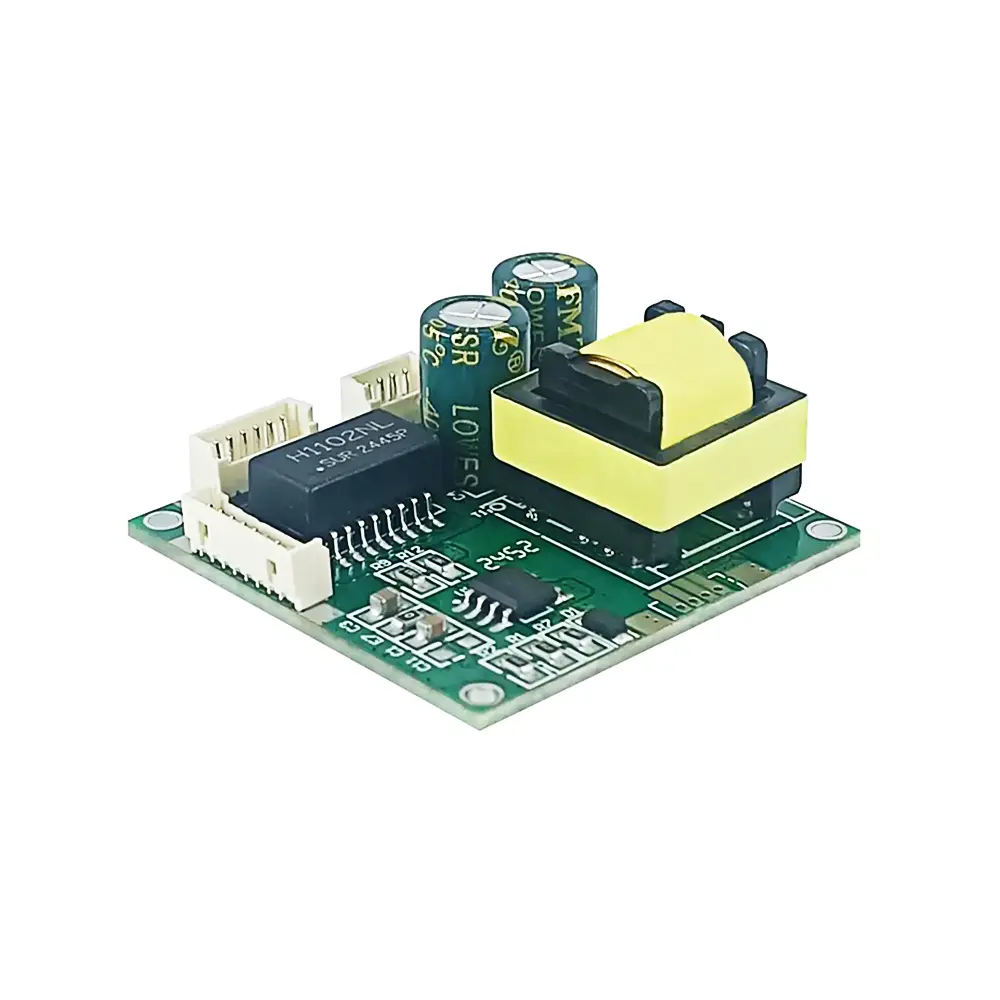

PD3805 is an active PoE module, following the IEEE802.3af POE standard protocol, with a maximum output power of 15.4W. PD3805 module can process the POE signal and convert it to output a DC 12V current and internet signal to supply IP devices.

Input port: Vertical 6-Pin PH1.25 female socket * 1, vertical 4-Pin PH1.25 female socket * 1.Input voltage: DC wide voltage ranging from 38 to 56V. Output port: Vertical 8-Pin PH2.0 female socket * 1. Output voltage: DC 12V.Output current: max 1.3A.

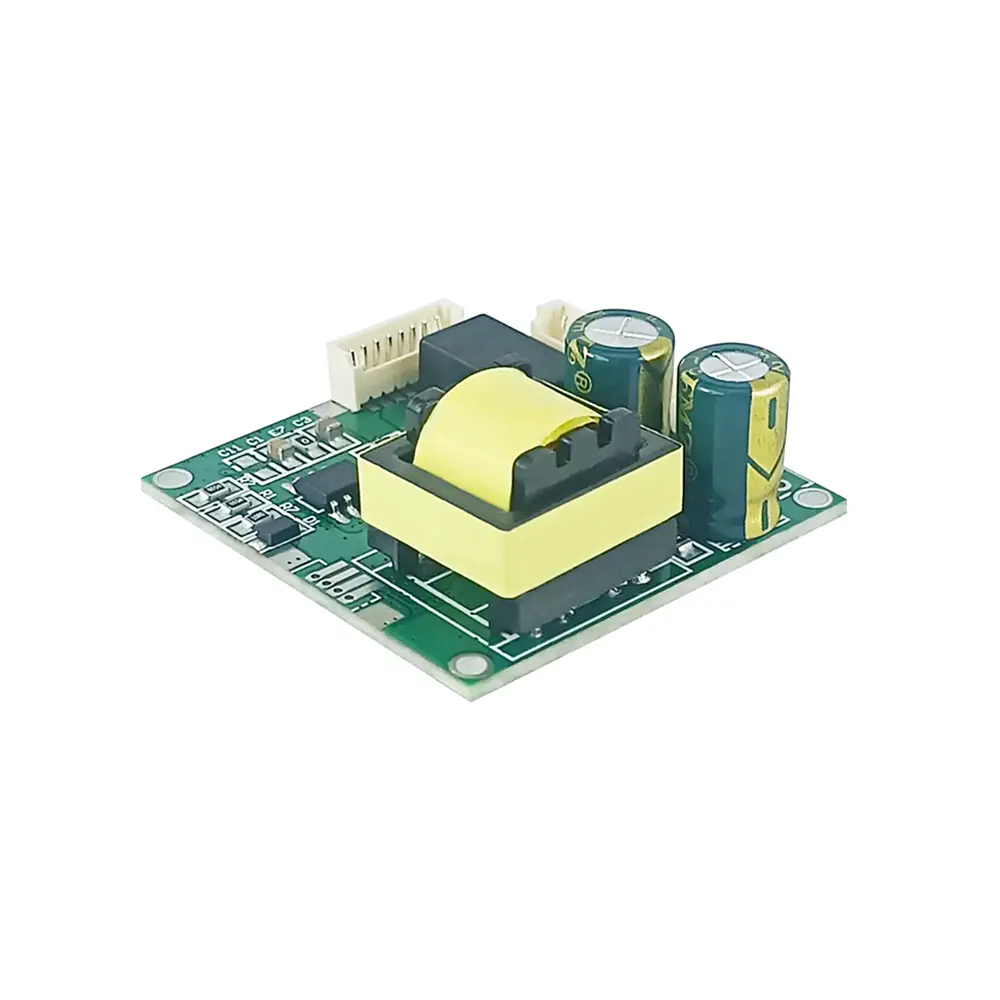

The PD3805 adopts an isolated design and contains a high-power isolation transformer, which can effectively avoid the problem of common ground. The circuit has protection functions such as lightning protection, short-circuit prevention, overload prevention, and high-temperature prevention. The EMC parameters meet the IEC 61000-4-2/3/4/5/6 standards. The product has obtained certifications such as CE, FC, and RoHS, and it has been continuously selling well in more than 100 countries and regions around the world.

The PD3805 complies with the IEEE802.3af POE standard protocol. Its maximum output power is 15.4W. It supports wide-voltage input of DC38-56V, and the default output voltage is DC12V. Other voltages can be customized. The effective transmission distance is 100 meters, and it supports 24-hour continuous operation throughout the day.

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 1.3A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● High-Temperature-Resistant Eco-Friendly PCB
● Lead-free manufacturing process
● 100Mbps High-Power Network Filter, Supports High-Power Devices
● High-Frequency Low-Resistance Electrolytic Capacitors to Reduce High-Frequency Loss and Heat
● Vertical socket, Ultra-thin design, easily install
● High-Temperature Flame-Retardant Connector
● Big brand original IC with stable performance
● High-Power, High-Conductivity, Low-Impedance Transistors
● Pure Copper Pins for Excellent Conductivity and Heat Dissipation
● Isolation Transformer: Ensures Safety and Signal Integrity
● 80mm Connecting Cable for Easy Installation

Product parameter table
Product Name	100Mbps isolated 15W low-power PoE Module
Product Model	TSD-PD3805
PoE Standard	IEEE802.3af
Input Voltage	PoE: DC 38-56V
Output	DC 12V MAX 1.3 A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	/

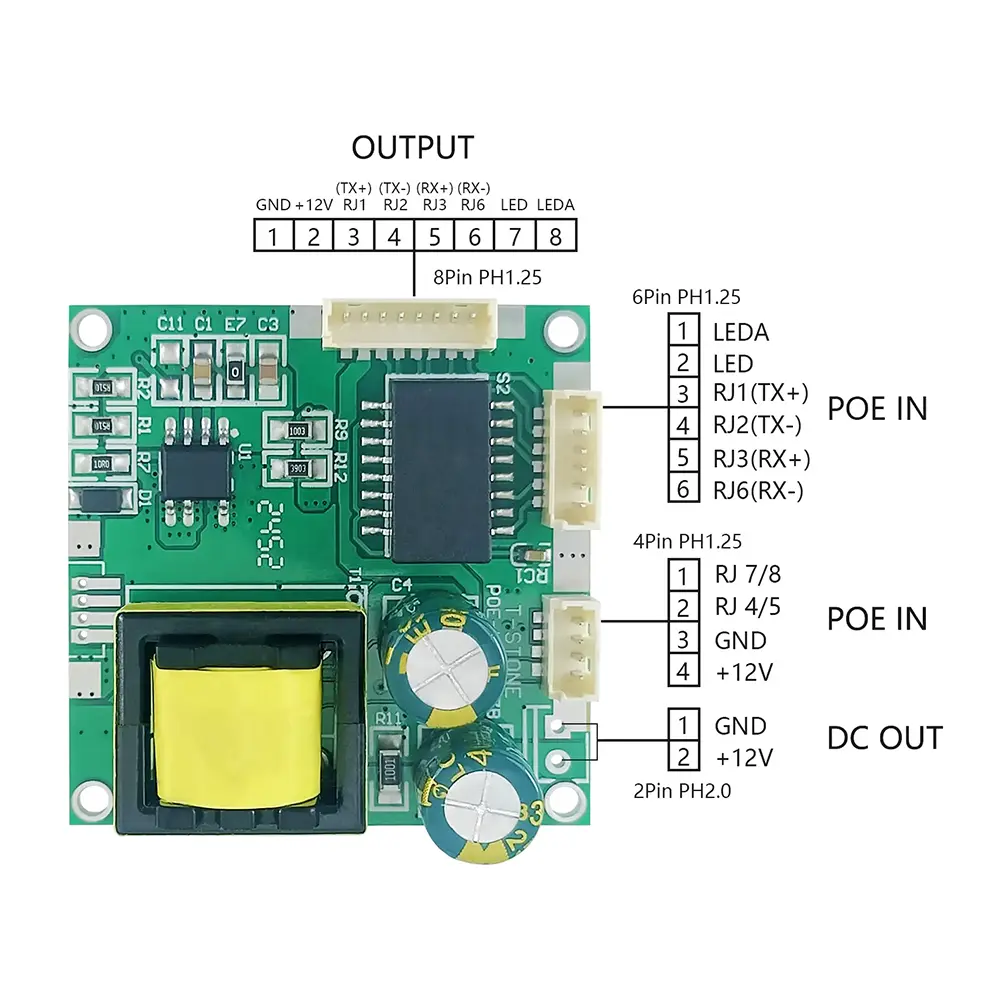

Interface	Input Port (6-Pin PH1.25mm Socket): PoE IN Input Port (4-Pin PH1.25mm Socket): PoE IN Output Port (8-Pin PH1.25mm Socket): DC 12V + Data OUT Output Port (2-Pin PH2.0mm Socket): DC 12V OUT
Function	/
Material	FR-4
Color	glossy green solder mask
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 16 g
Dimension	383815.5 mm
Package	Blister packaging tray

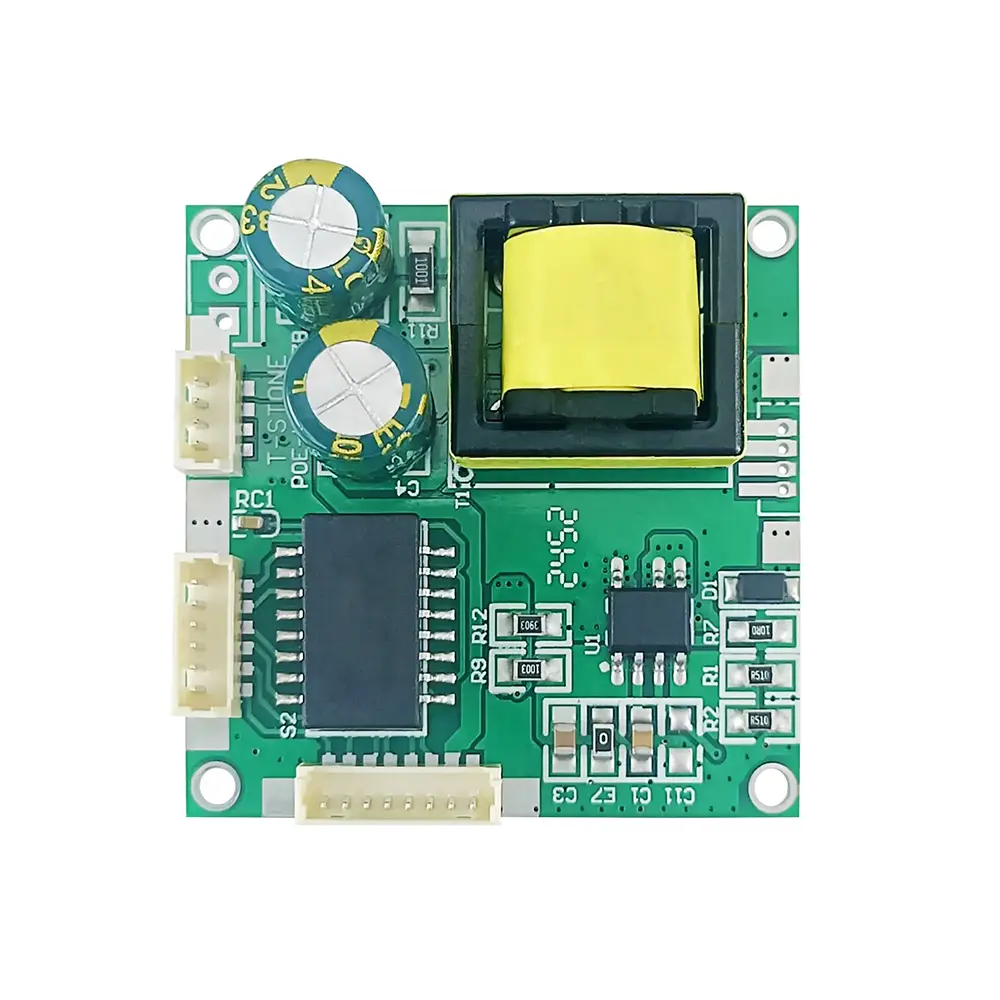

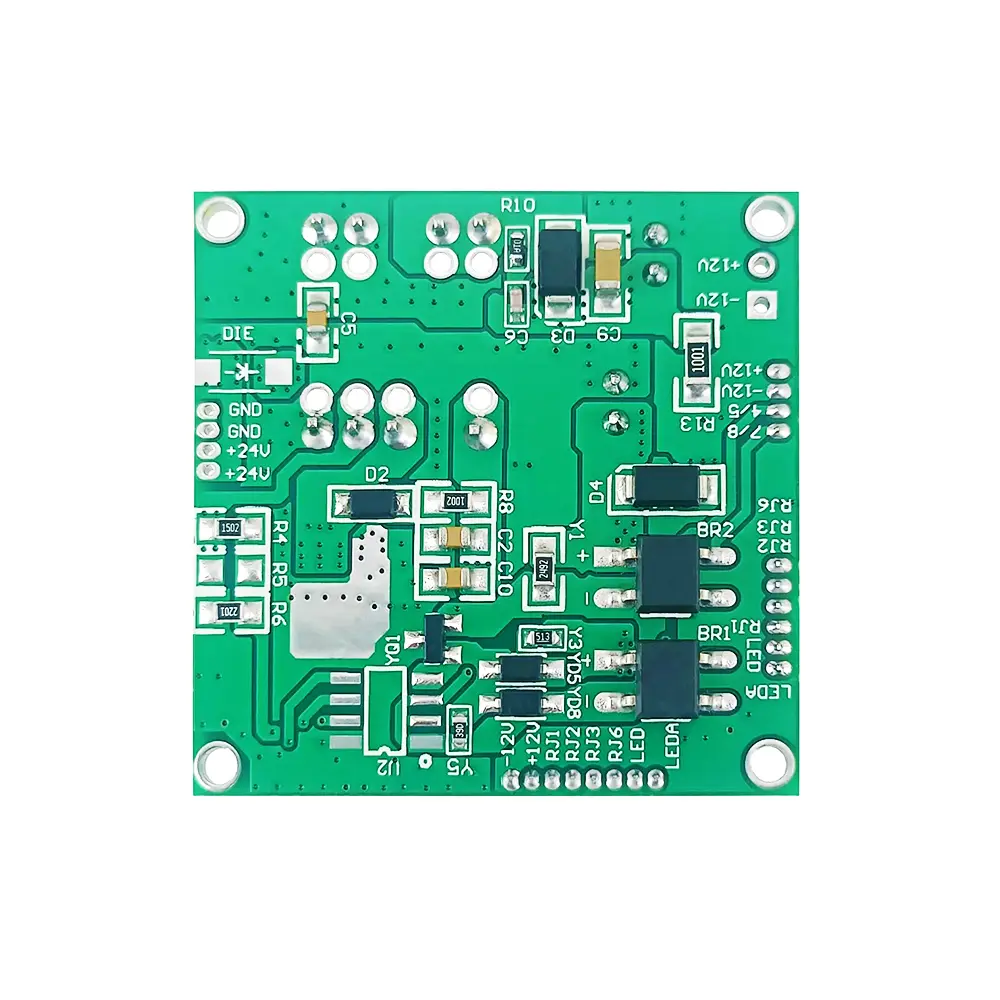

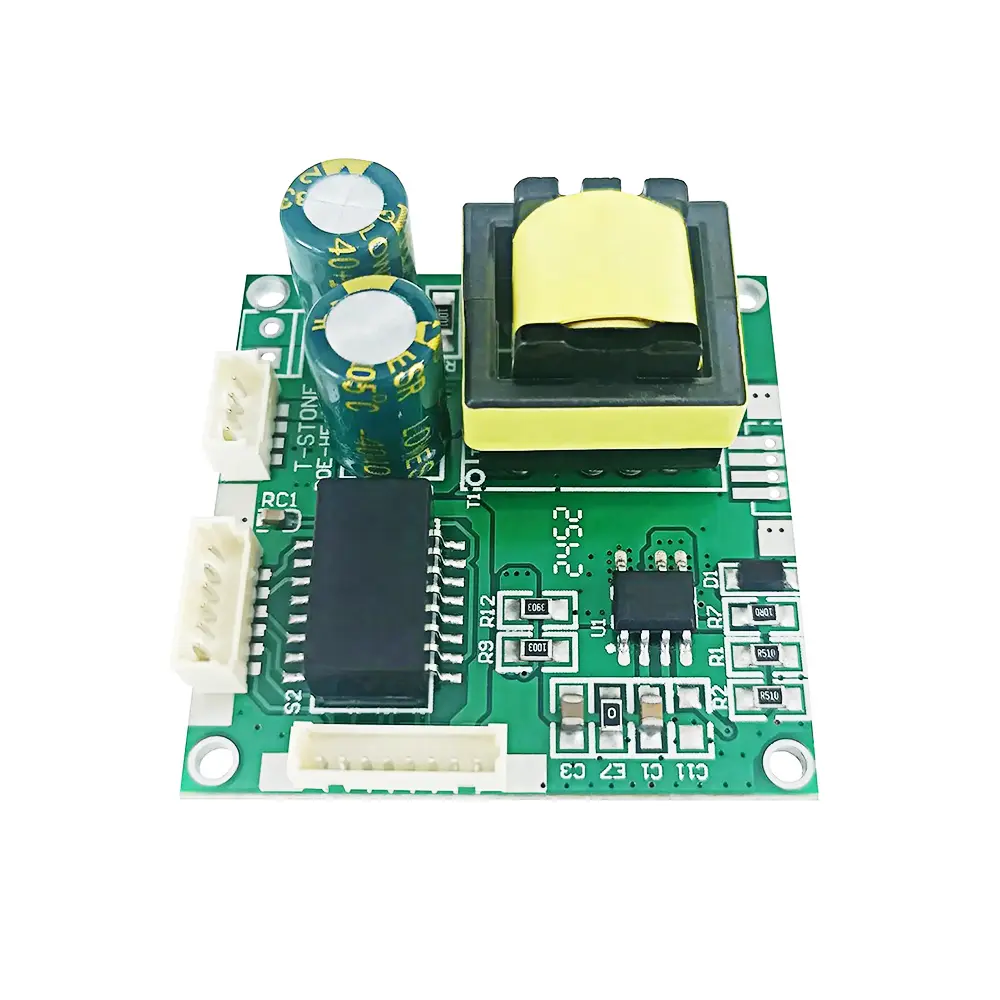

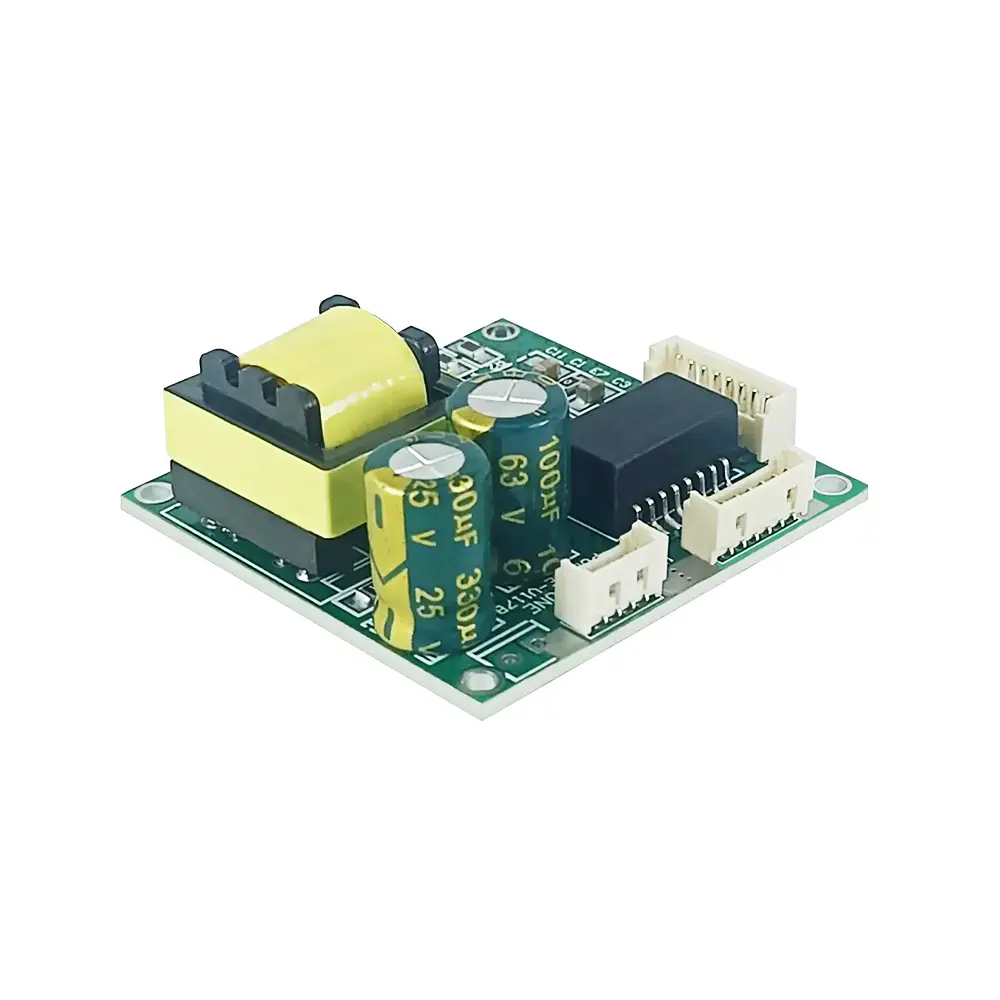

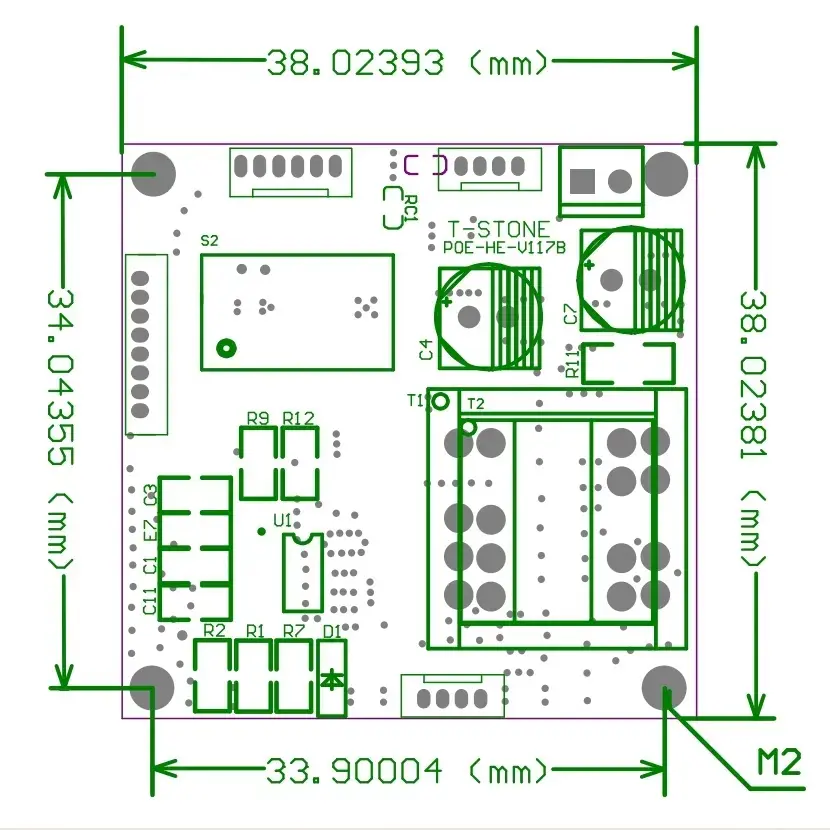

Structure size: 38*38*15.5mm. Screw holes: Ø=2.0mm*4. PCB: four-layer board, H=1.6mm. Surface painting: bright green. Overall layout: square structure, the maximum thickness is 15.5mm. The module is double-side-designed. The high and low components are arranged on two sides, resulting in a high space utilization rate.

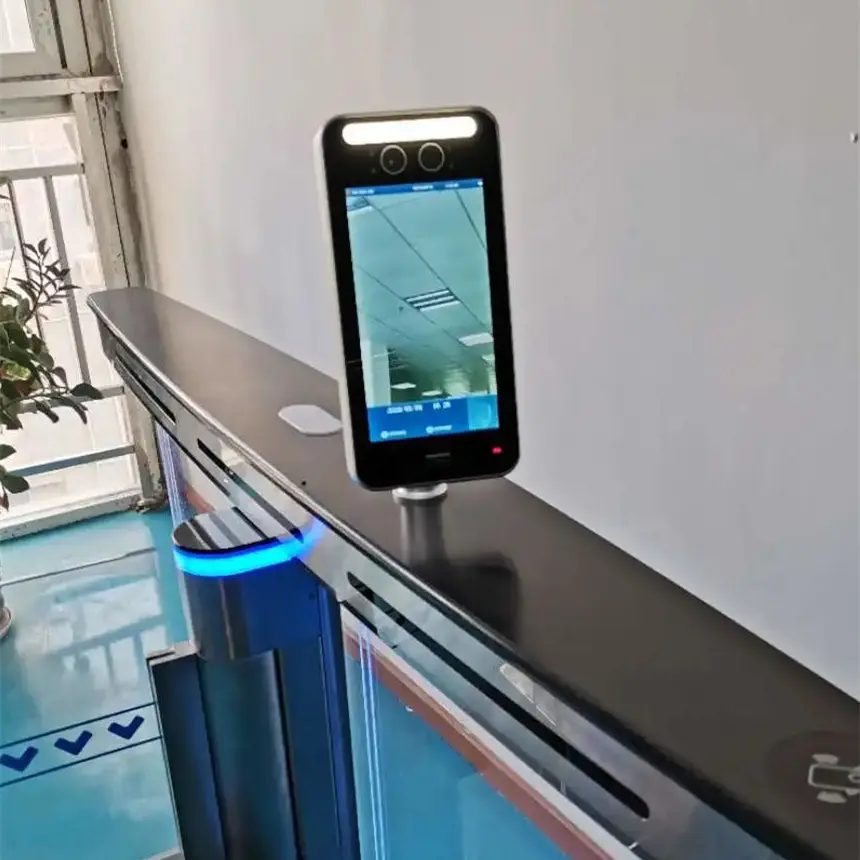

PD3805 is mainly used in industry products such as building intercom systems, access control systems, CCTV (Closed-Circuit Television), etc. The application of PD3805 greatly simplifies the wiring process of the equipment’s installation, reducing the installation cost and construction difficulty. Administrators are able to remotely monitor and manage the power supply status of each device. When a power failure occurs, they can quickly locate and solve the problem, improving the reliability and maintainability of the equipment. PD3805 performs well in the field of security applications and has received unanimous praise from manufacturers and end-users.

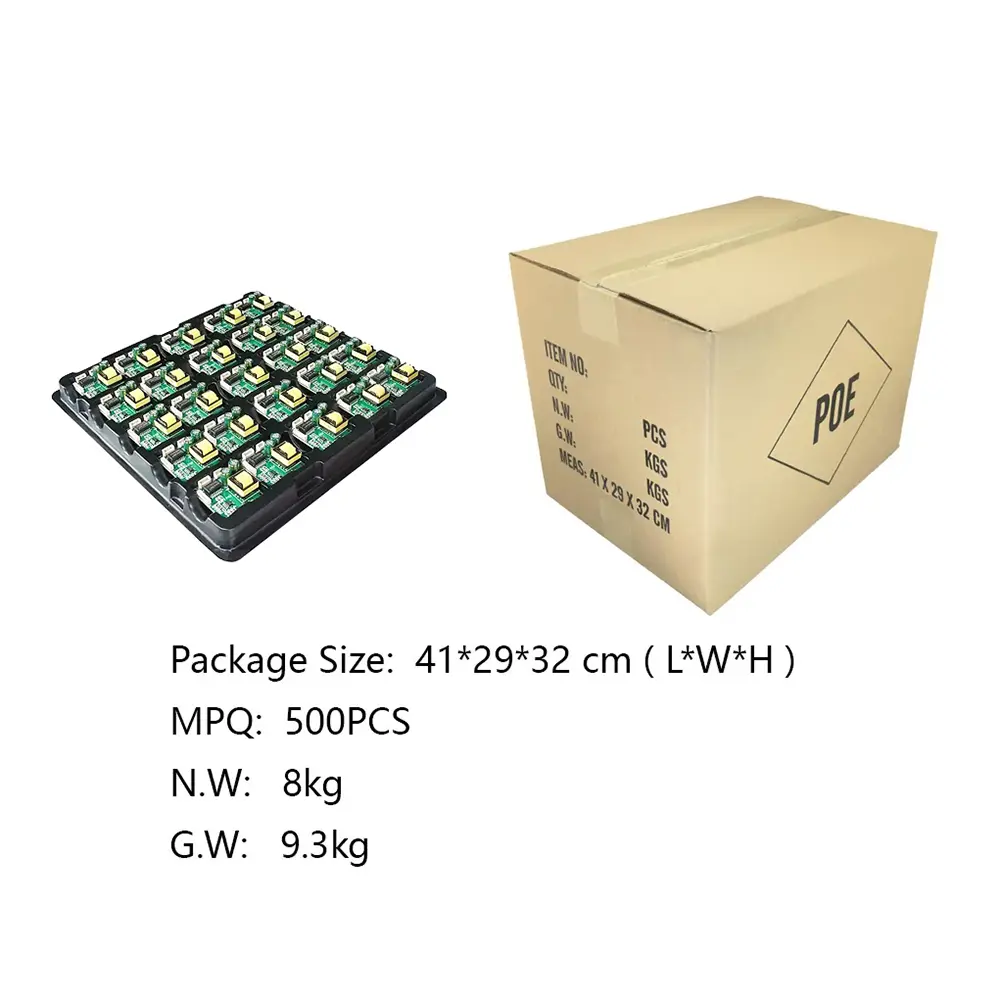

Package list
Items	Quantity
TSD-PD3805 PoE Module	500
Operation Manual	/
