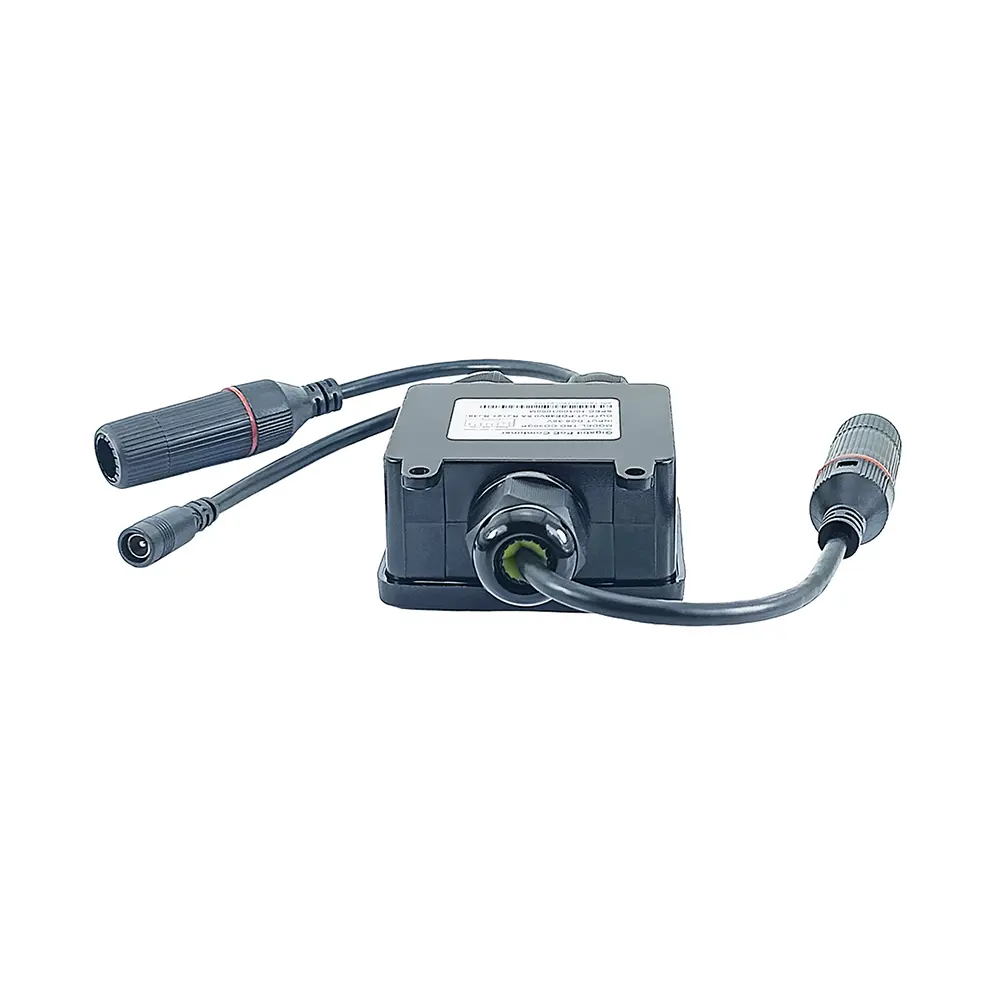

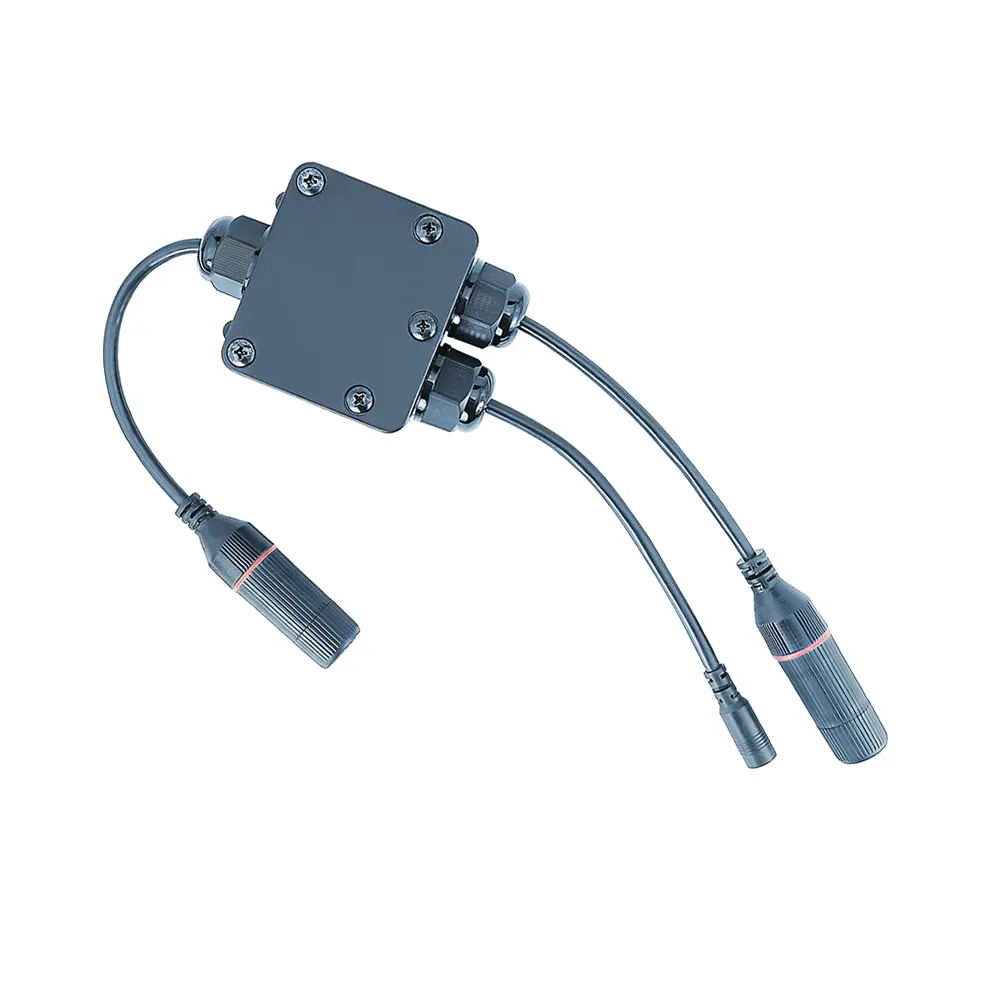

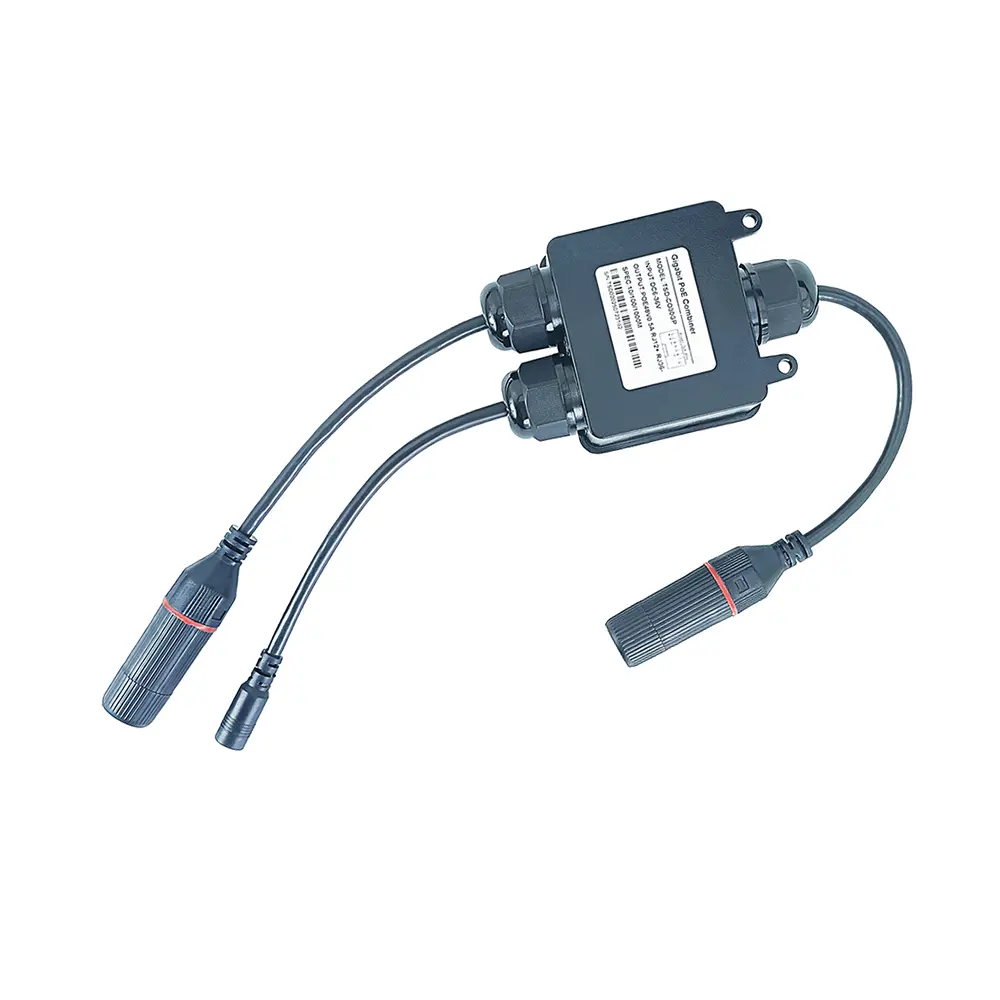

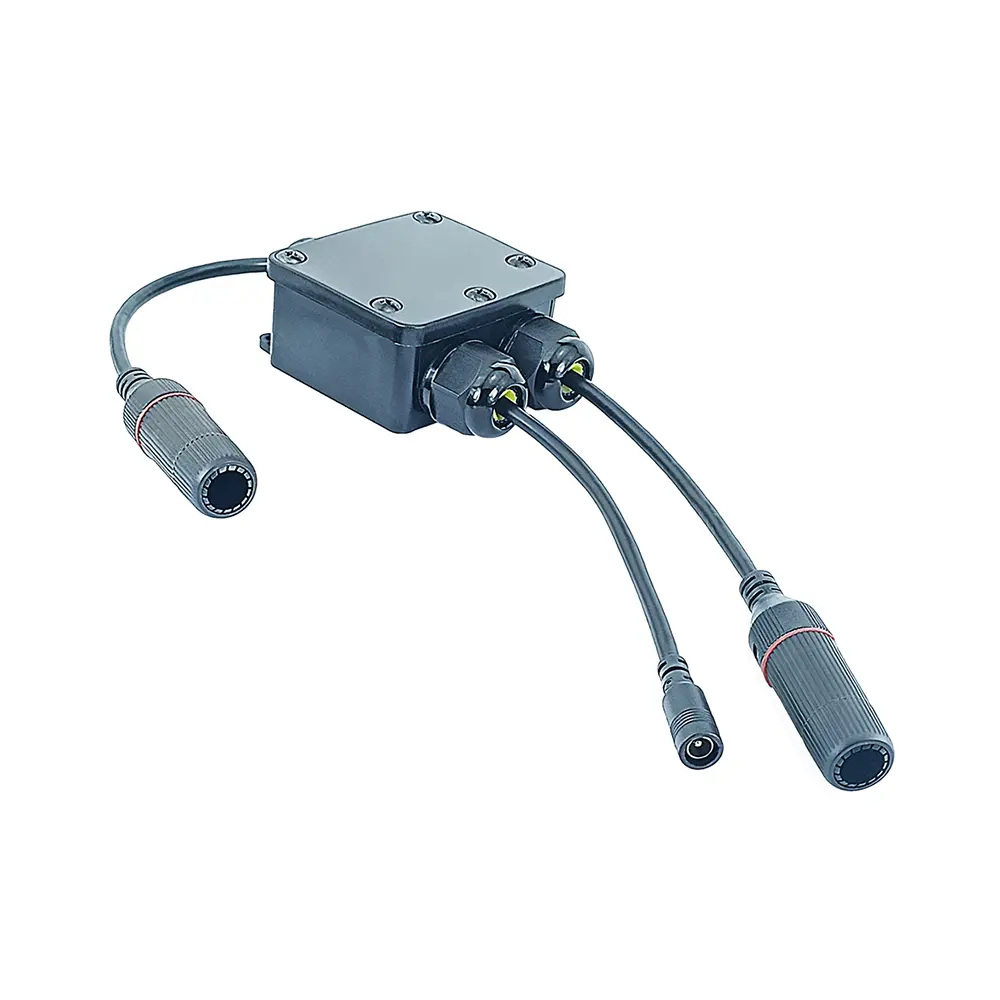

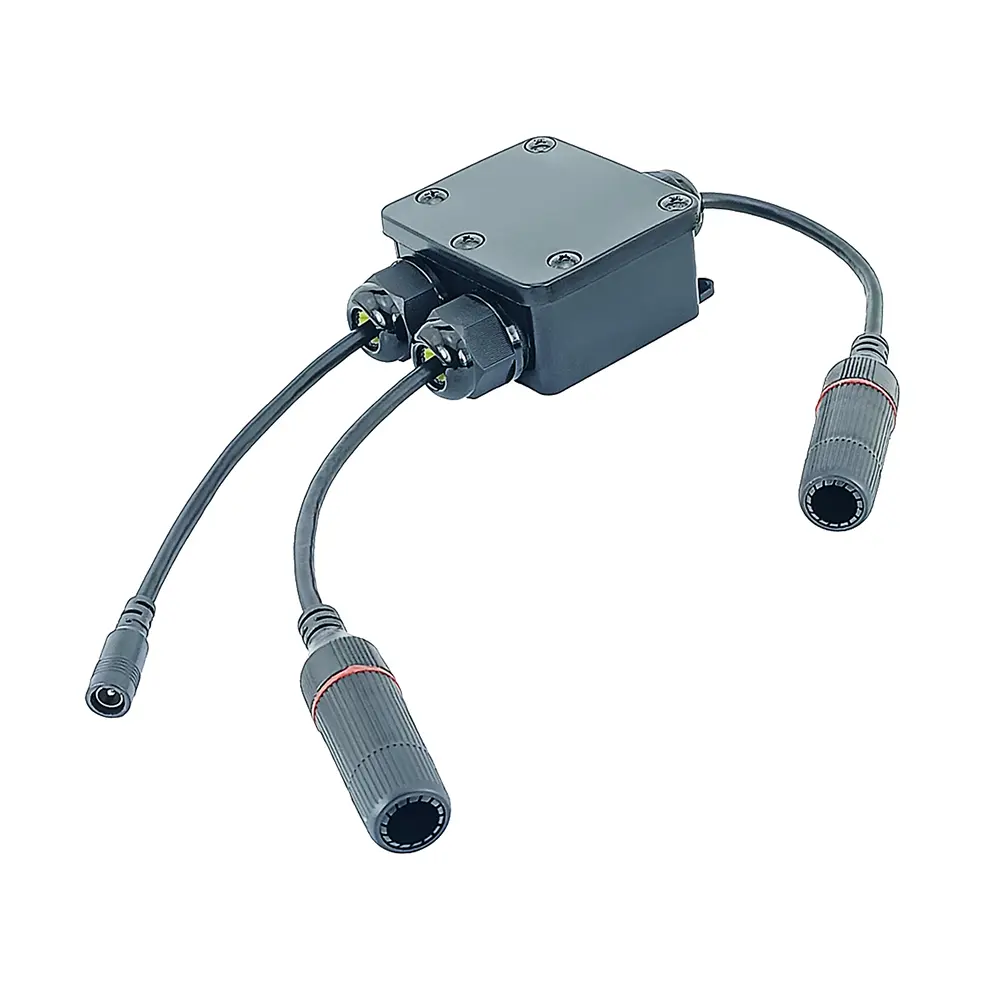

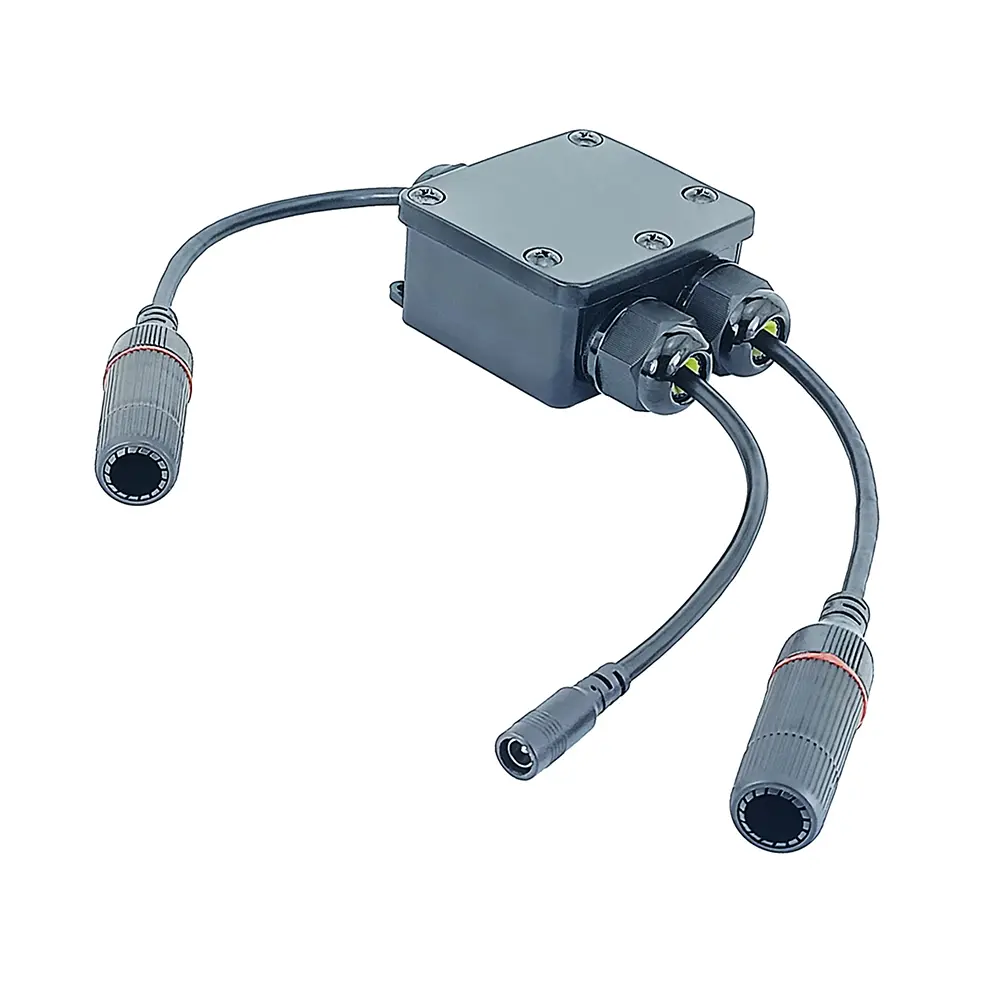

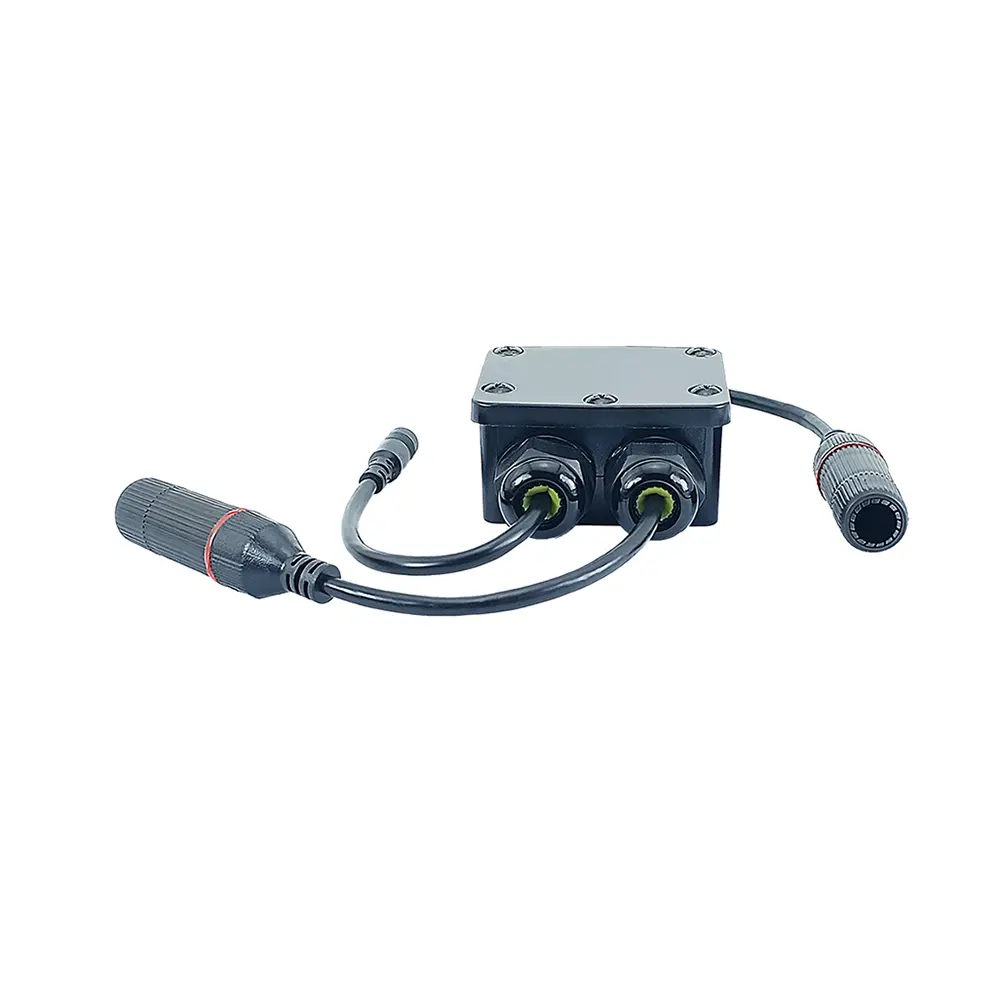

Waterproof single-path PoE combiner

Model: TSD-CO30PG

Input: DC 6-36V and data
Output: PoE 48V 0.65A 30W
PoE protocol: IEEE802.3af/at
Transmission rate: 10/100/1000Mbps
Power supply pins: RJ12+ RJ36-
Interface: RJ45 port/DC socket
Size: 475*71*36 mm (L*W*H)
Weight: N.W=172 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

TSD-CO30PG is a combiner compliant with the IEEE802.3af/at PoE standard protocols. The product inputs 6-36V DC power and network signals, and outputs 48V 0.65A PoE signals with a maximum output power of 30W.

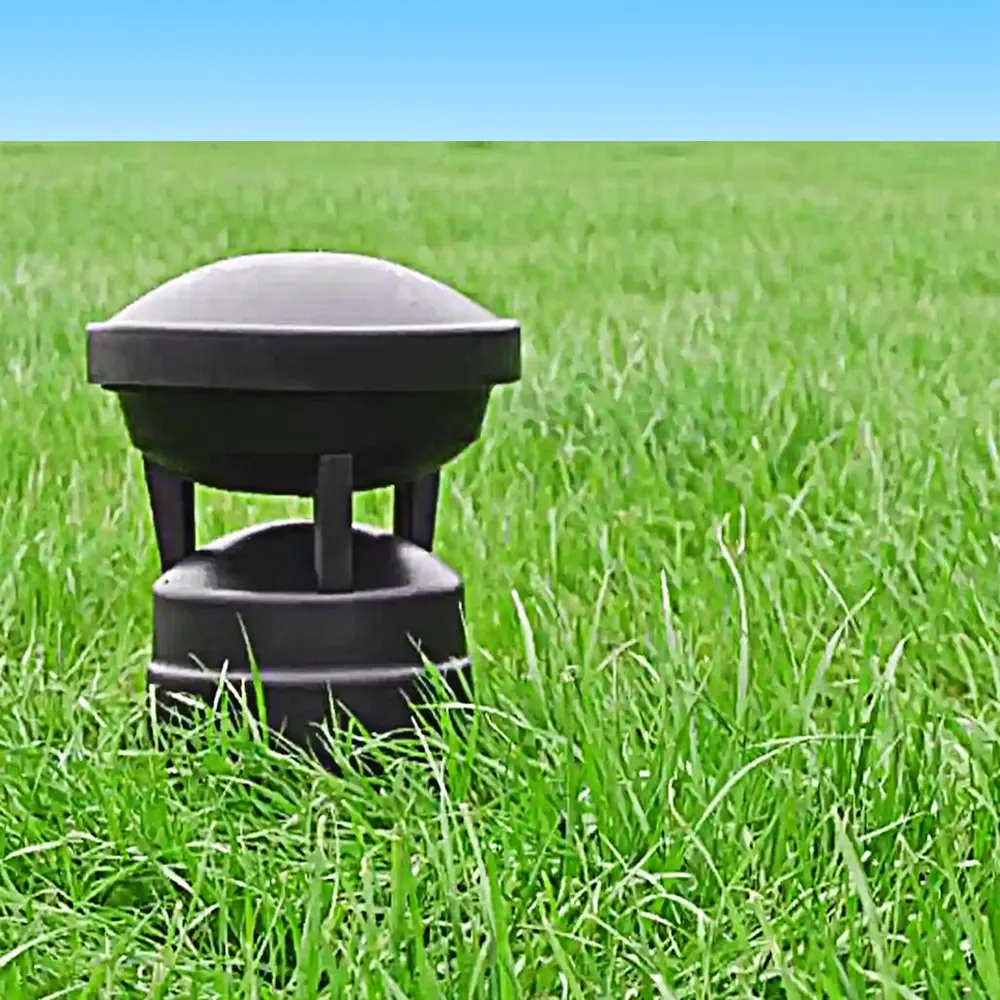

The TSD-CO30PG combiner has excellent waterproof performance and can supply power to outdoor PoE terminal devices that are far from AC 90-240V power sources and only receive solar power. The product is mainly applied in wireless APs, outdoor bridges, network cameras and outdoor speakers, etc.

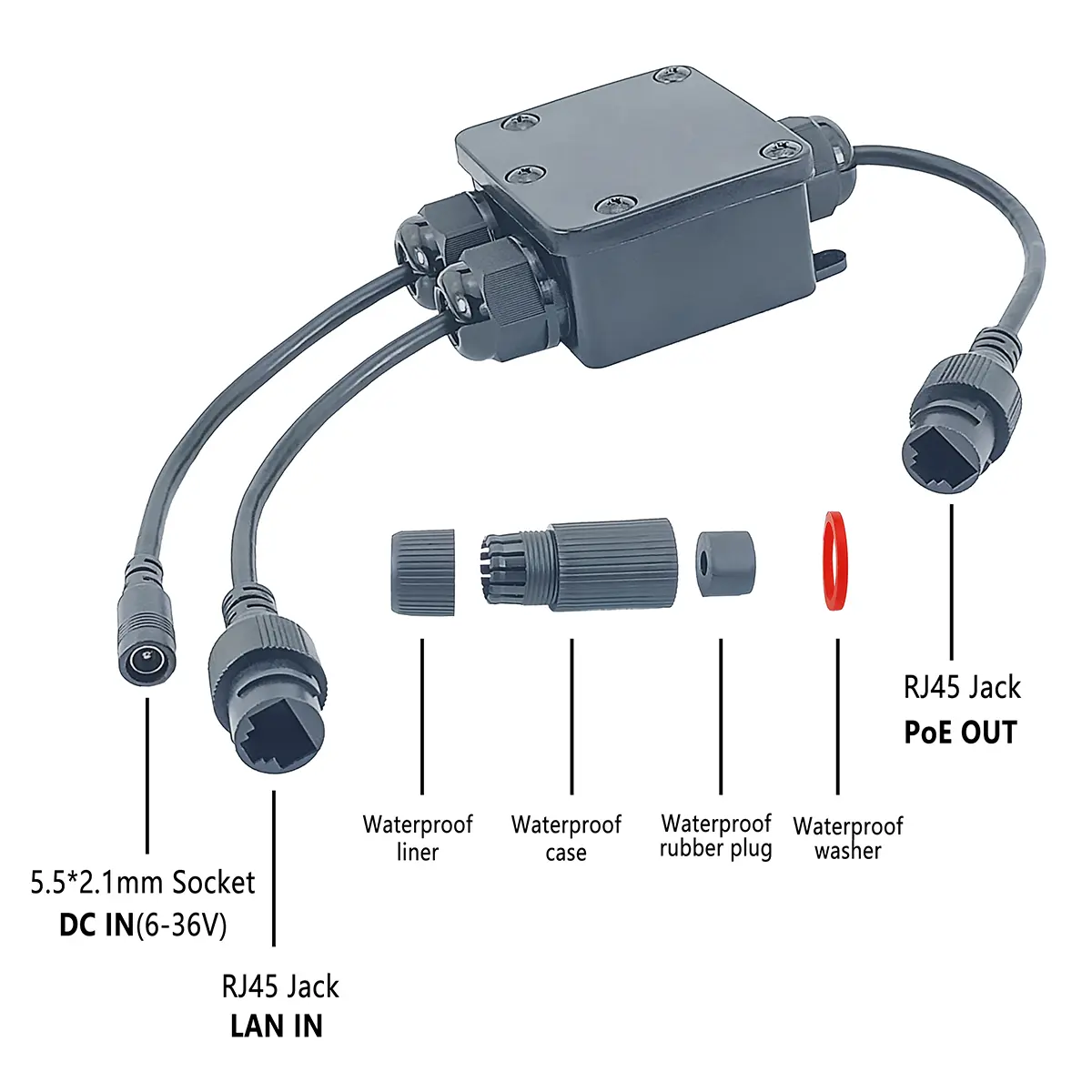

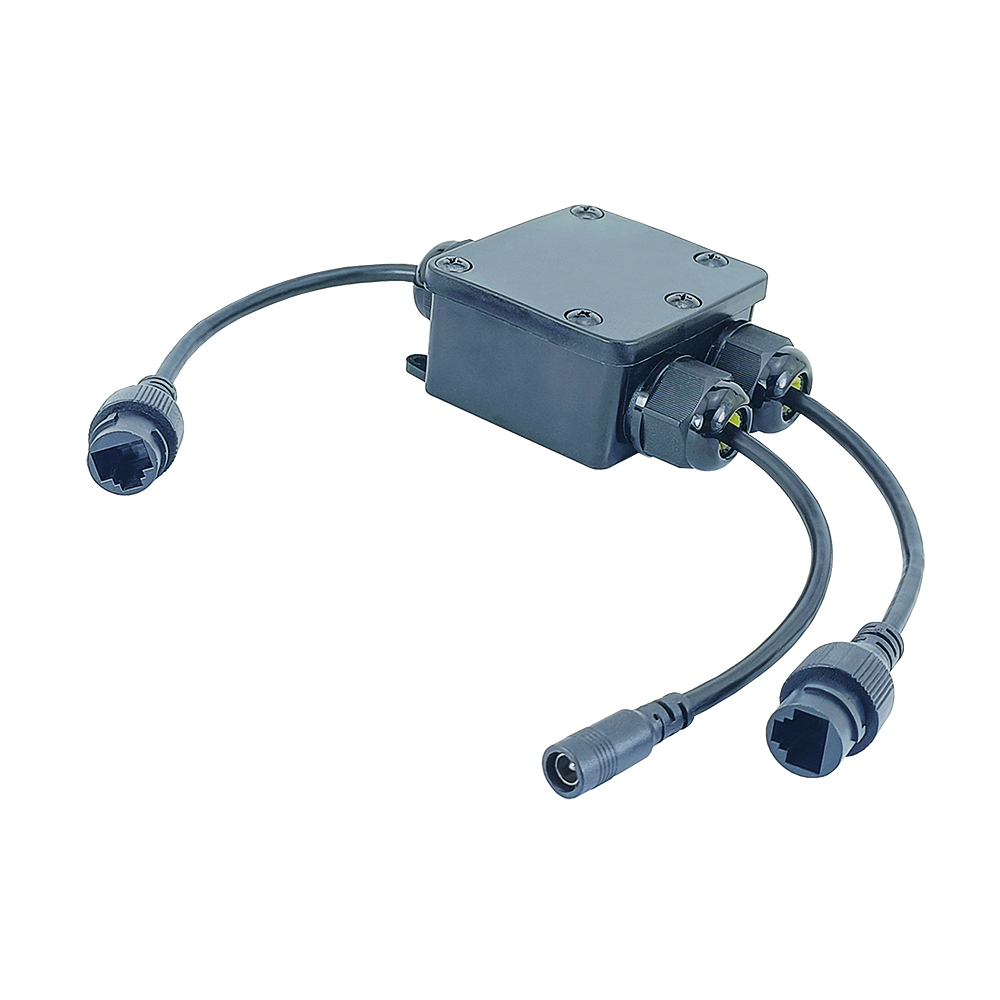

Interface configuration of TSD-CO30PG: Input interfaces:5.5*2.1mm DC female socket: inputs 6V~36V DC power, RJ45 network port 1: inputs data signals; Output interface:RJ45 network port 2: outputs PoE signals (48V 0.65A 30W).

TSD-CO30PG is a waterproof combiner specially designed for outdoor PoE power supply scenarios. The product can work in harsh environments such as humidity, high temperature or low temperature. TSD-CO30PG can combine data and power to transmit through a single network cable, effectively simplifying equipment installation and management, and reducing users' line deployment costs.

The EMC parameters of TSD-CO30PG meet the requirements of IEC 61000-4-2/3/4/5/6 standards, and it has obtained CE, FC, and RoHS certifications. The internal circuit is equipped with functions such as overheating protection, overvoltage protection, over-current protection, and short-circuit protection. The TSD-CO30PG combiner inputs DC 6V~36V and network signals, with an output voltage of 48V 0.65A and a maximum output power of 30W. Transmission rate: 10/100/1000M adaptive transmission; power supply pins: RJ12+ RJ36-.

● Input: DC 6-36V and data
● Output: PoE 48V 0.65A 30W
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- compatible
● Transmission Rate: 10/100/1000Mbps Auto-Negotiation
● Protection Features: overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%

● 5.5*2.1mm DC female socket

● Super-hard high and low temperature resistant plastic shell
● Waterproof function

● Original electronic components from international famous brands, with high precision and high performance

● High-power, high-conductivity and low-impedance transistors, featuring excellent reliability and temperature resistance

● Environmentally friendly and high-temperature resistant PCB material, with environmentally friendly lead-free process

● Pure copper pin connectors to ensure stable contact

● Equipped with standard waterproof four-piece set

Product parameter table
Product Name	waterproof single-path PoE combiner
Product Model	TSD-CO30PG
PoE Standard	IEEE802.3af/at
Input Voltage	DC 6-36V
Output	PoE 48V 0.65A 30W
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- compatible
Conversion Mode	/
Data Rate	10/100/1000Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	/
Interface	LAN port (RJ45 port1) : data IN Input port (DC female socket): DC IN PoE port (RJ45 port2): PoE OUT
Function	/
Material	Super-hard high and low temperature resistant plastic shell
Color	black
Accessories	Equipped with standard waterproof four-piece set*2
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 172 g G.W: 212 g
Dimension	475* 71* 36 mm (LWH(with waterproof four-piece set))
Package	EPE foam+cartons (14211242 mm)

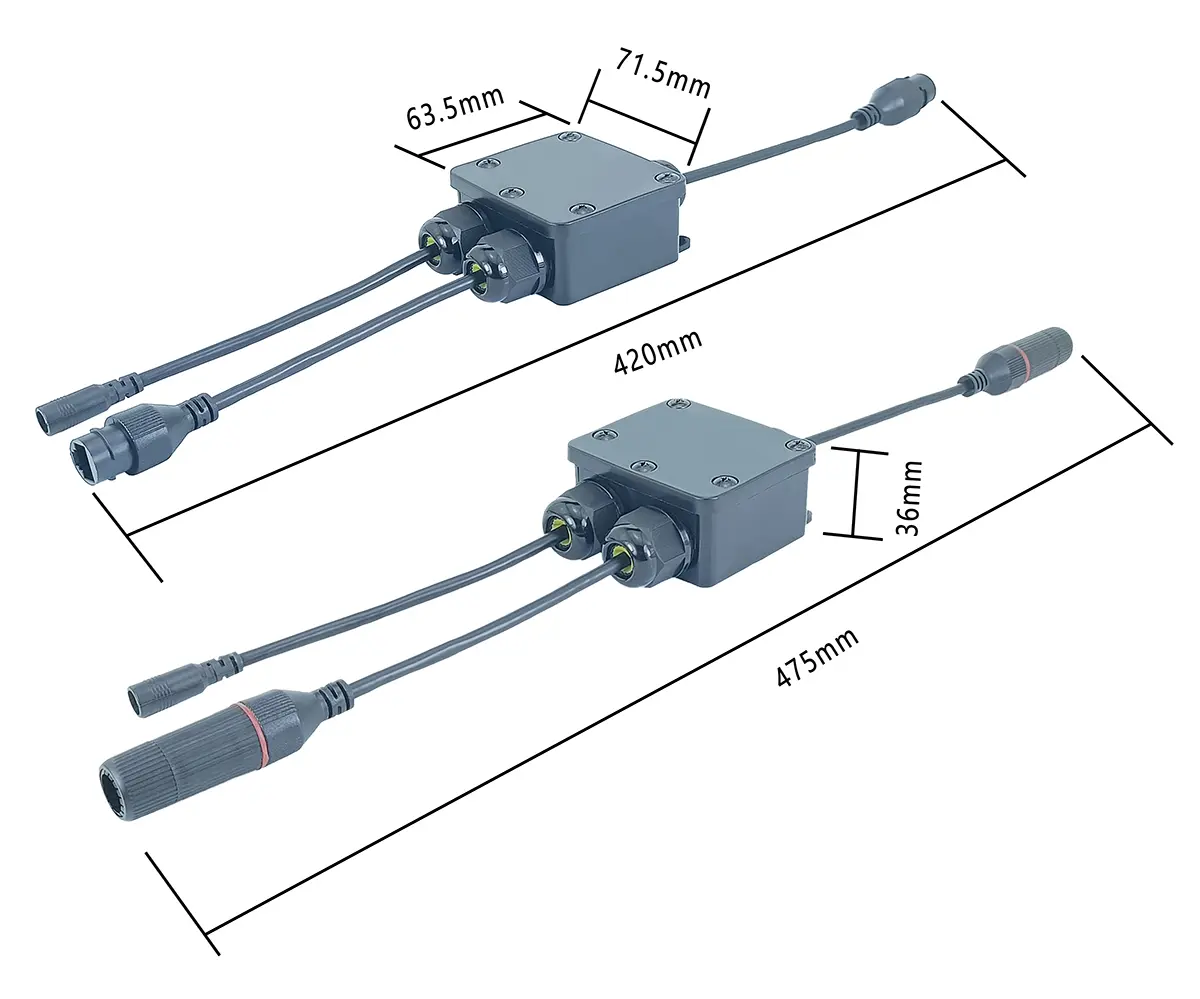

Housing dimensions: 63*71*36mm (L*W*H); overall length: 42cm; length with waterproof four-piece set: 47.5cm. DC female socket specification: 5.5*2.1mm. Body color: frosted black; body material: super-hard high and low temperature resistant plastic shell.
TSD-CO30PG-Dimension

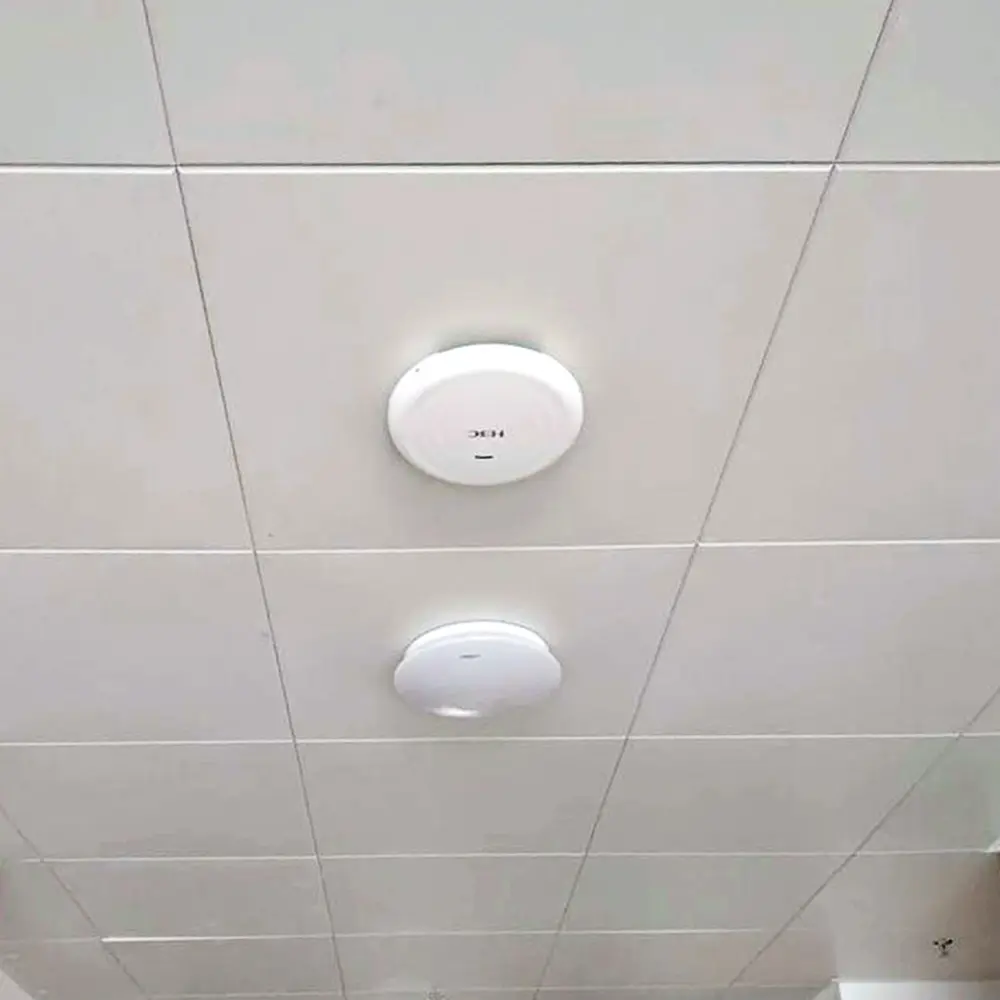

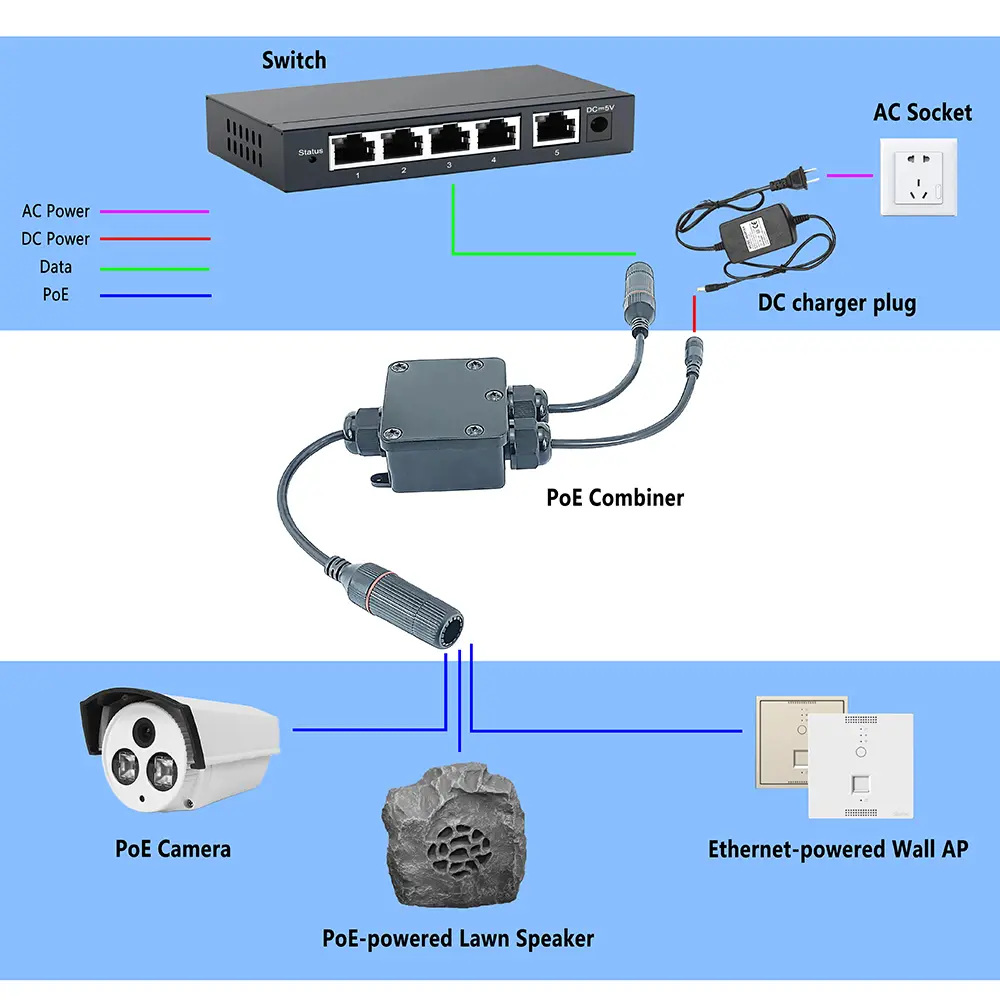

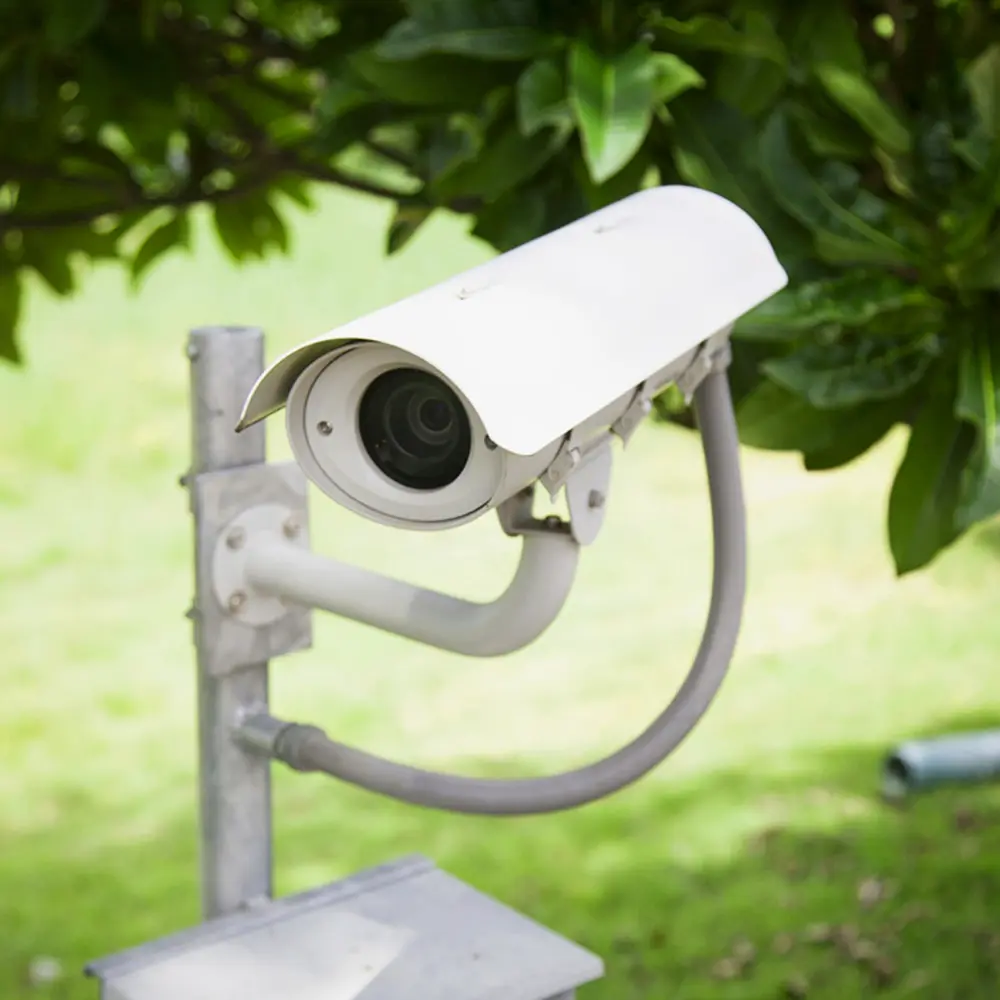

The TSD-CO30PG combiner can combine power and data signals to supply power to PoE terminal devices. It is mainly applied in wireless APs, network cameras, smart buildings, IP telephones and other outdoor low-voltage engineering equipment.

The TSD-CO30PG has excellent waterproof performance and can be flexibly used in various complex environments to solve the power supply problems of user equipment in harsh environments, effectively expand the network coverage range, reduce the complexity of equipment wiring and save user time. The performance and quality of the product have received unanimous praise from users.. TSD-CO30PG-Application

Package list
Items	Quantity
TSD-CO30PG Combiner	1
standard Waterproof four-piece set	2
Operation Manual	1
