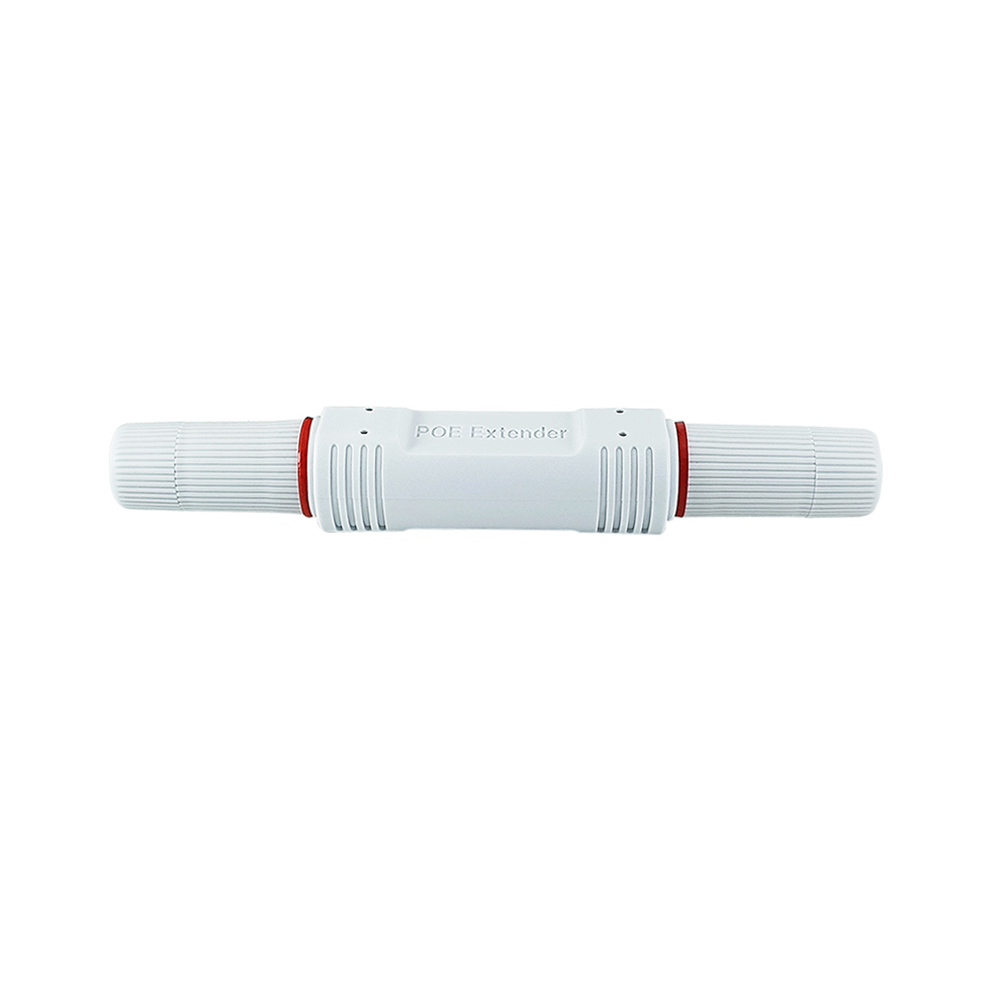

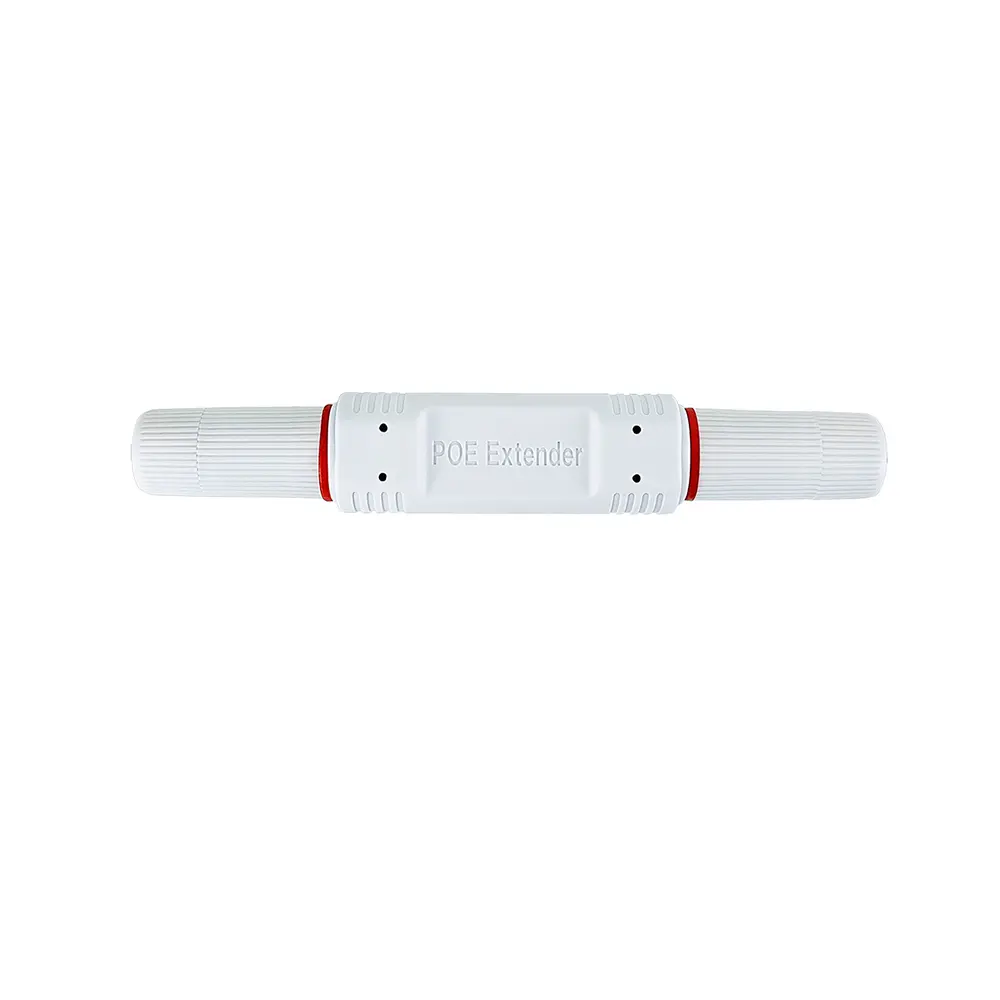

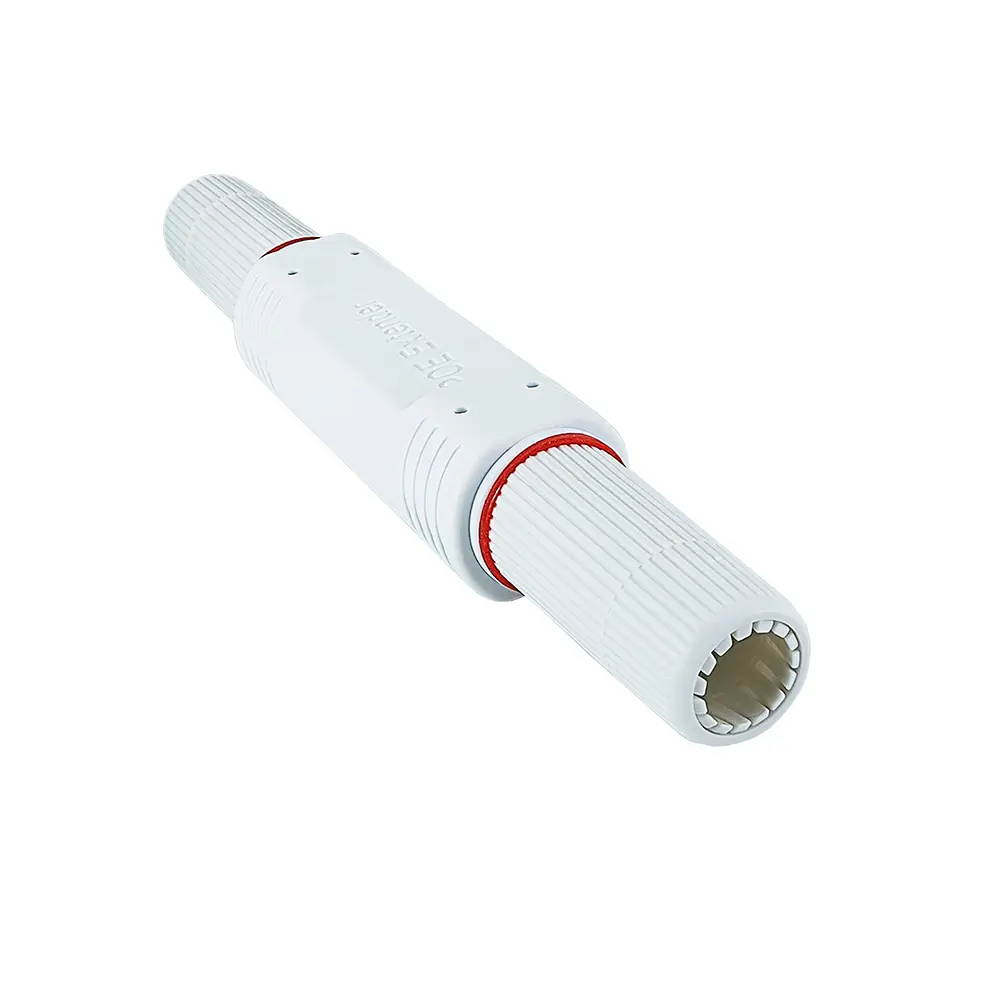

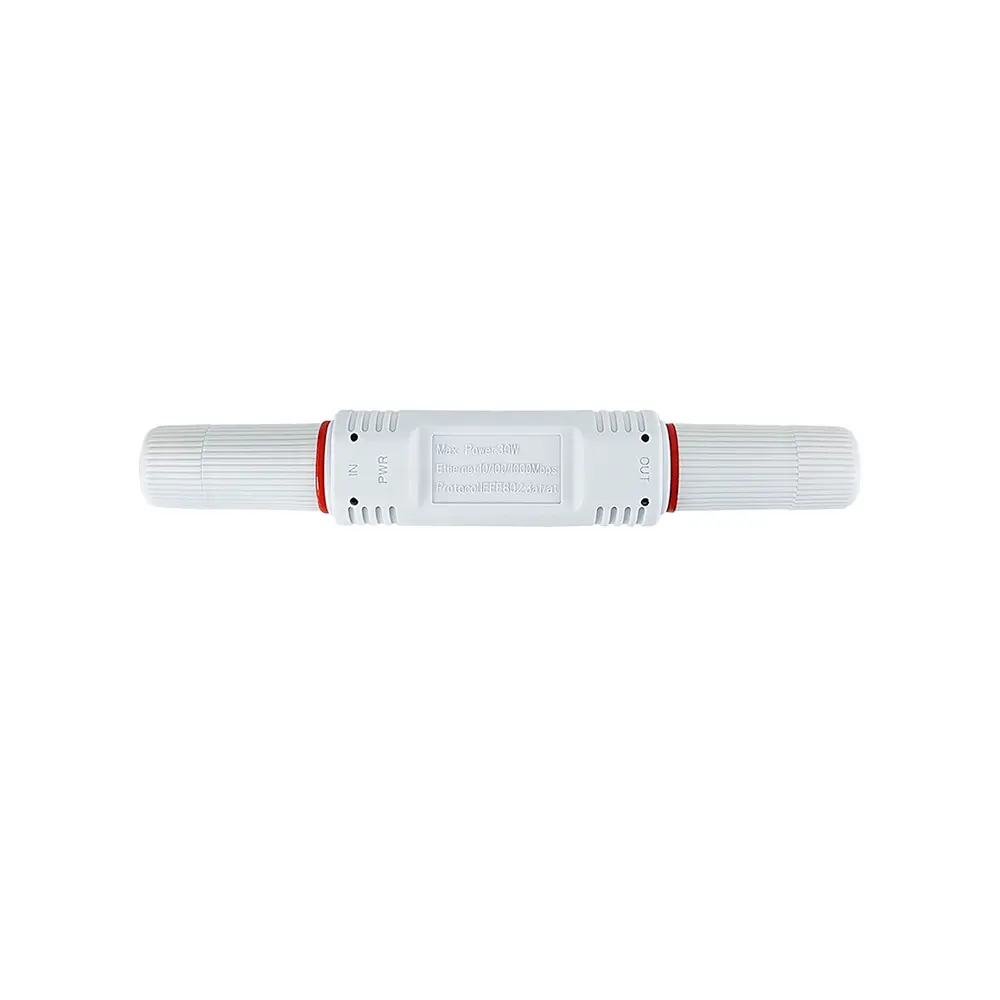

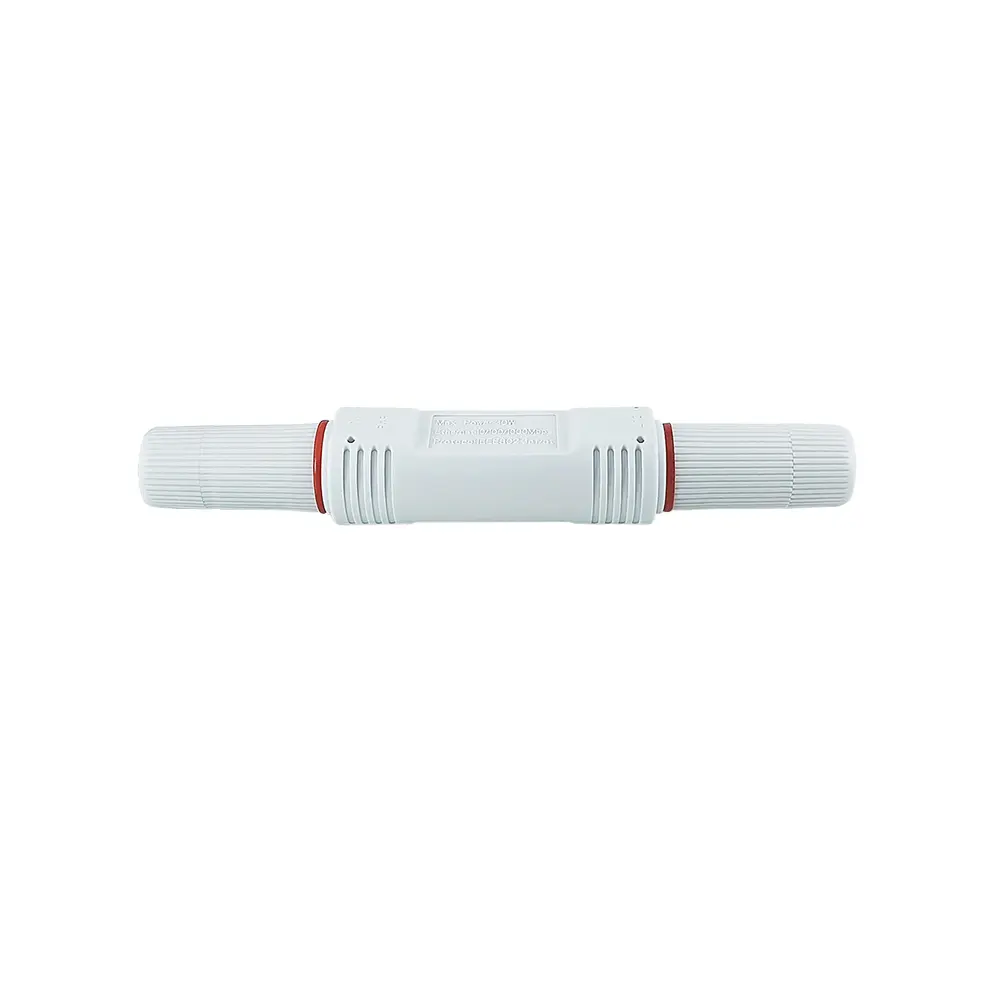

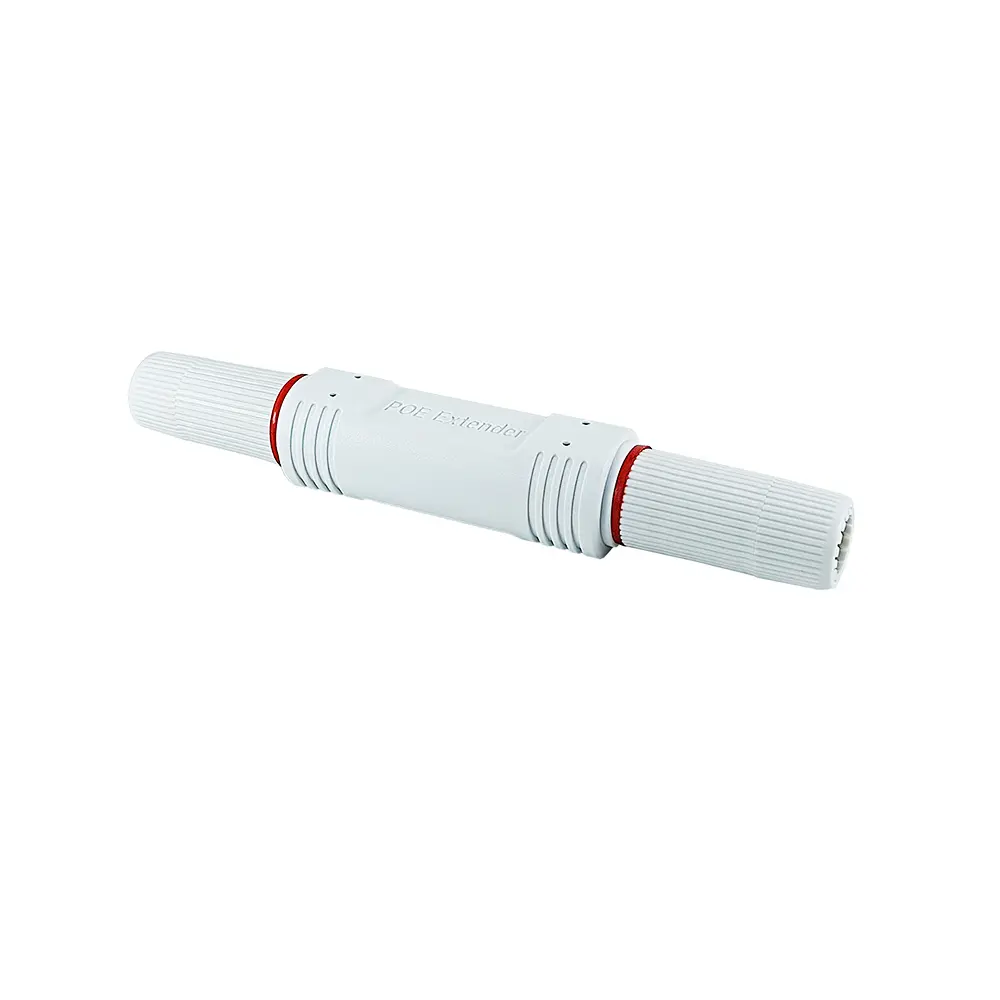

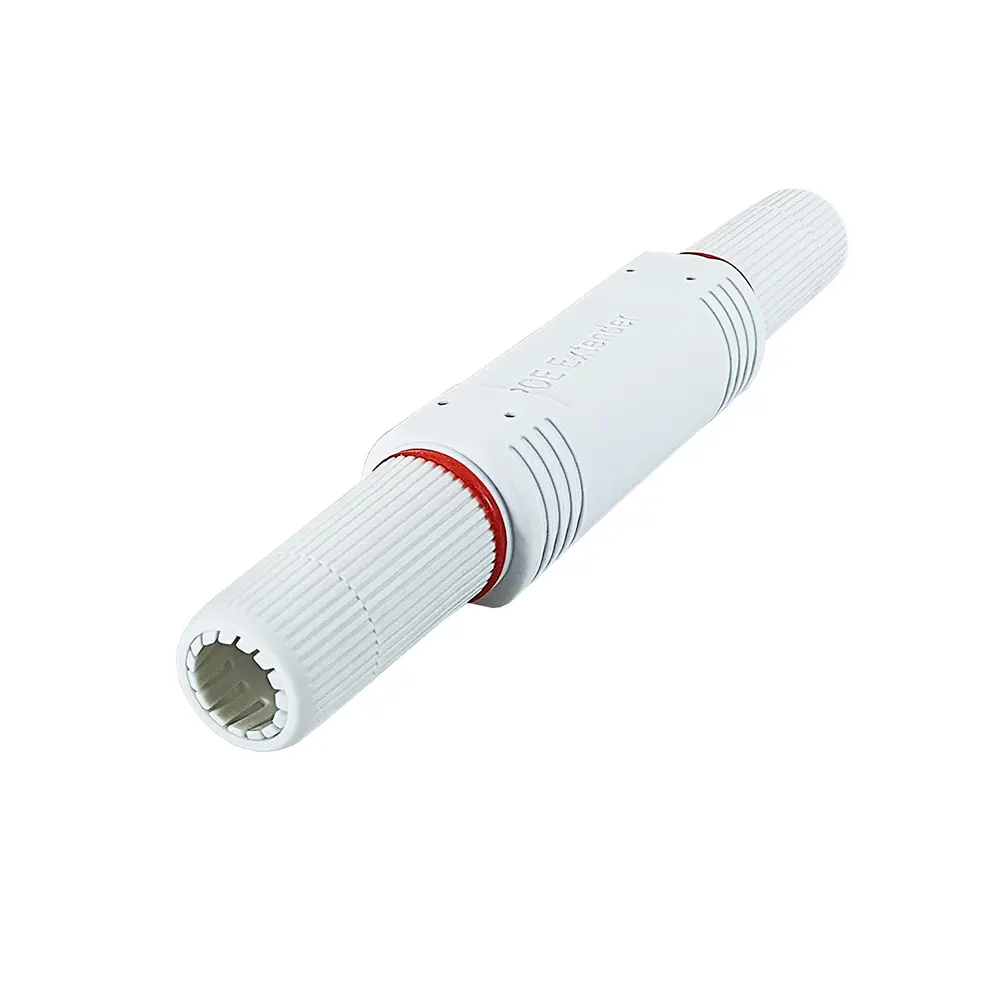

Waterproof Single-Channel Active PoE Extender

Model: TSD-EX101P/EX101GP

Input: PoE 48V 0.5A
Output: PoE 48V 0.5A
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100/1000Mbps
Supply Pins: RJ12+ RJ36-
Interface: RJ45 port
Size: 157*25.5*23 mm (L*W*H)
Weight: N.W=60 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-EX101GP extender is compatible with the IEEE802.3af/at PoE standard protocol, featuring an adaptive transmission rate of 10/100/1000M. It takes in a PoE signal and outputs a single PoE signal with a maximum power of 25.5W, extending the PoE signal transmission distance by up to 100 meters.

The TSD-EX101GP extender has excellent waterproof capabilities and can be installed outdoors to provide long-distance power supply and network data transmission for terminal devices such as IP cameras, wireless APs, and bridges, avoiding the need for additional power line installations and saving users' costs.

The TSD-EX101P series includes two products: TSD-EX101P: 10/100M adaptive transmission rate;TSD-EX101GP: 10/100/1000M adaptive transmission rate. Input and output configuration of TSD-EX101GP: RJ45 port 1: Input 48V 0.5A PoE signal, RJ45 port 2: Output 48V 0.5A PoE signal.

The TSD-EX101GP complies with the international standard protocol of IEEE802.3af/at PoE, and its EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards. It has obtained certifications such as CE, FCC, and RoHS. The TSD-EX101GP has excellent waterproof performance and can operate in various outdoor environments such as rainy and humid conditions. With a maximum extension distance of 100 meters, it effectively solves the problem of long-distance transmission for users.

The TSD-EX101GP accepts a 48V standard PoE signal as input and outputs a 48V PoE signal. It can extend the transmission distance by 100 meters and is adaptive to transmission rates of 10/100/1000M. The output power supply pins are RJ12+ and RJ36-. The product features overheat protection, overvoltage protection, over-current protection, and short circuit protection, among other functions.

● Input: PoE 48V 0.5A
● Output: PoE 48V 0.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Power supply pins: RJ12+ RJ36-
● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation

● Maximum output power of a single port: 25.5W

● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧90%
● Gigabit high-power network filter

● Original electronic components from international brands, high precision and high performance

● High-power high-conduction low-impedance transistor, excellent reliability and temperature tolerance

● High temperature resistant PCB environmental protection material, lead-free environmental protection process

● Adopt pure copper pin connector to avoid bad contact

● Equipped with a waterproof set *2

Product parameter table
Product Name	Single-Channel Active PoE Extender (Waterproof Model)
Product Model	TSD-EX101P	TSD-EX101GP
PoE Standard	/
Input Voltage	PoE 48V 0.5A
Output	PoE 48V 0.5A
Conversion Efficiency	≧90%
PoE Pin	PoE: RJ12+ RJ36-
Conversion Mode	/
Data Rate	10/100Mbps adaptive	10/100/1000Mbps adaptive
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short-circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	Green LED: Data, Yellow LED: Power

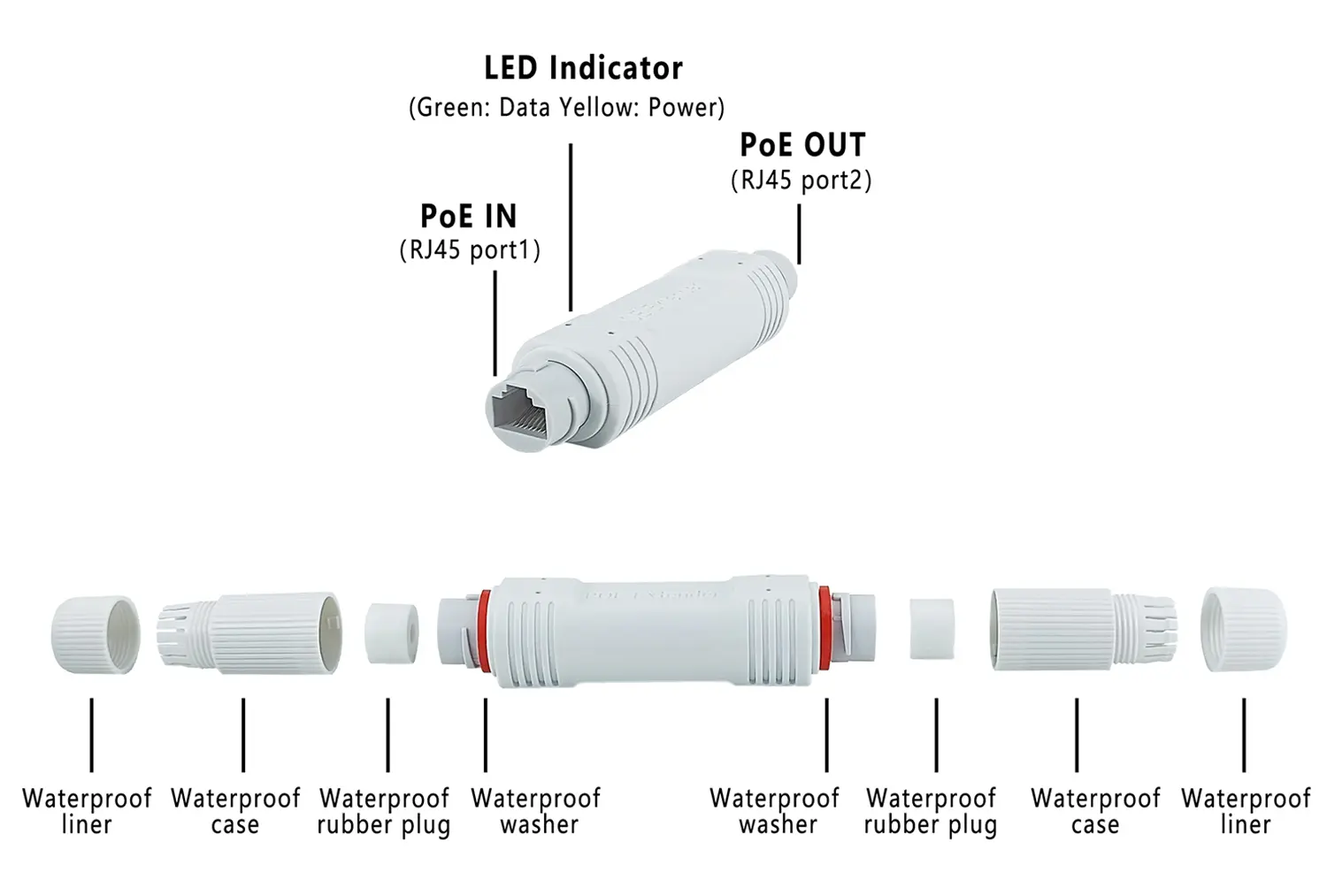

Interface	RJ45 network port 1: 48V 0.5A PoE IN RJ45 network port 2: 48V 0.5A PoE OUT
Material	ABS plastic material
Color	White
Accessories	waterproof four-piece set
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 60 g
Dimension	157 * 25.5 * 23 mm (with waterproof four-piece set (L * W * H))

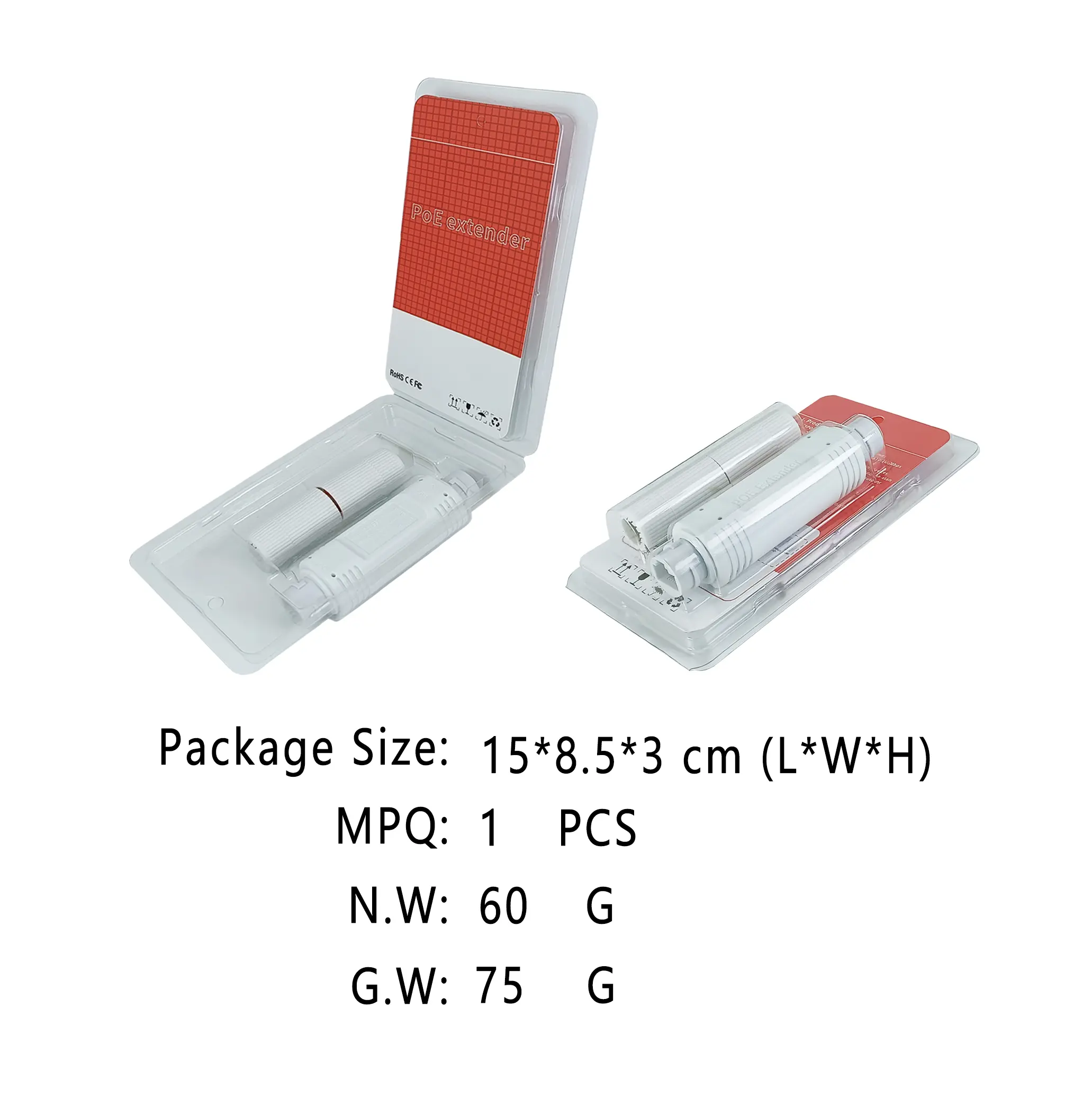

Package	Transparent blister packaging box (1508530mm LWH)

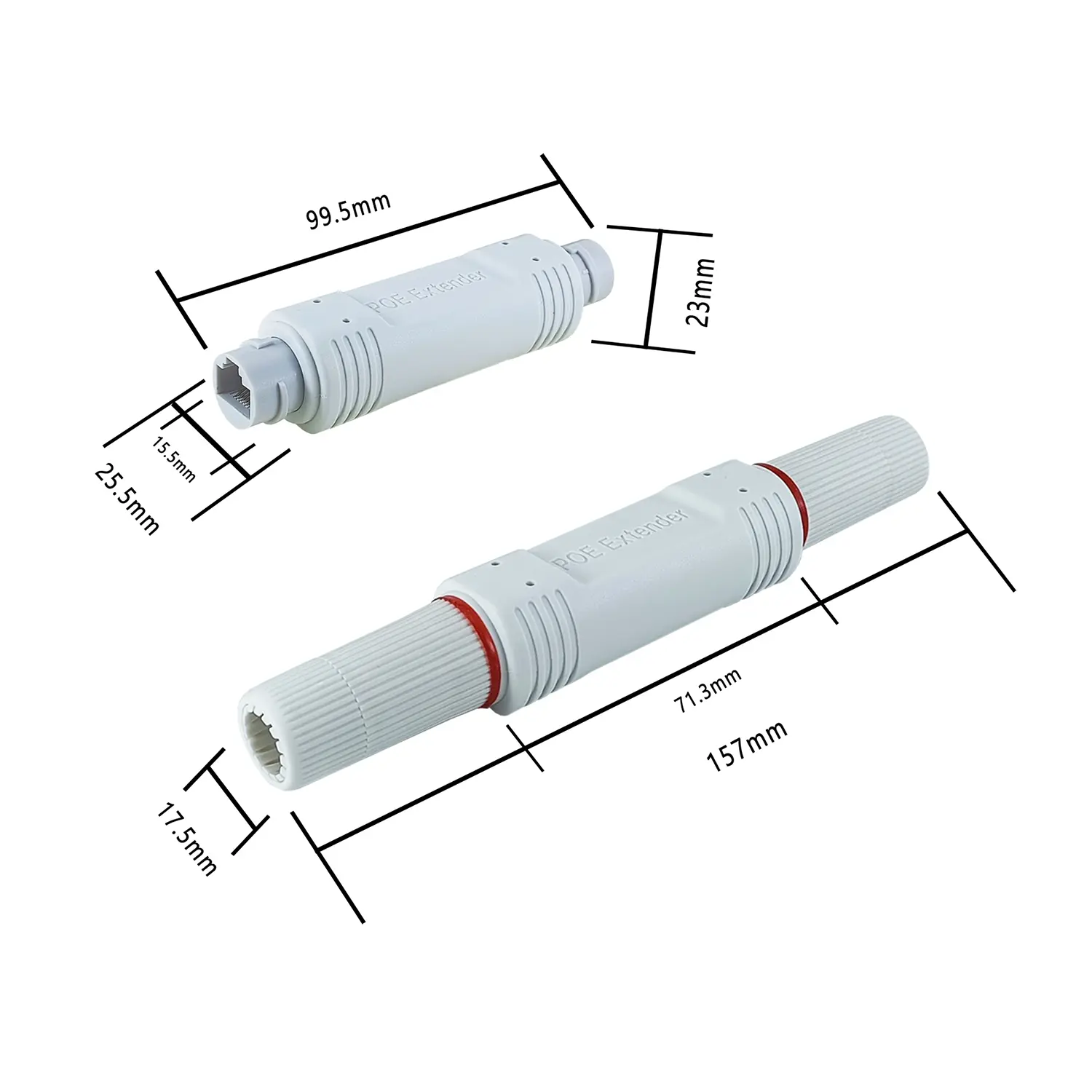

Dimensions: 99.5*25.5*23 mm (L*W*H), Product weight: 60g, Color and material: White plastic shell. The TSD-EX101GP comes with two sets of waterproof four-piece kits. The total length with the waterproof four-piece kits: 157 mm.
TSD-EX101GP-Dimension

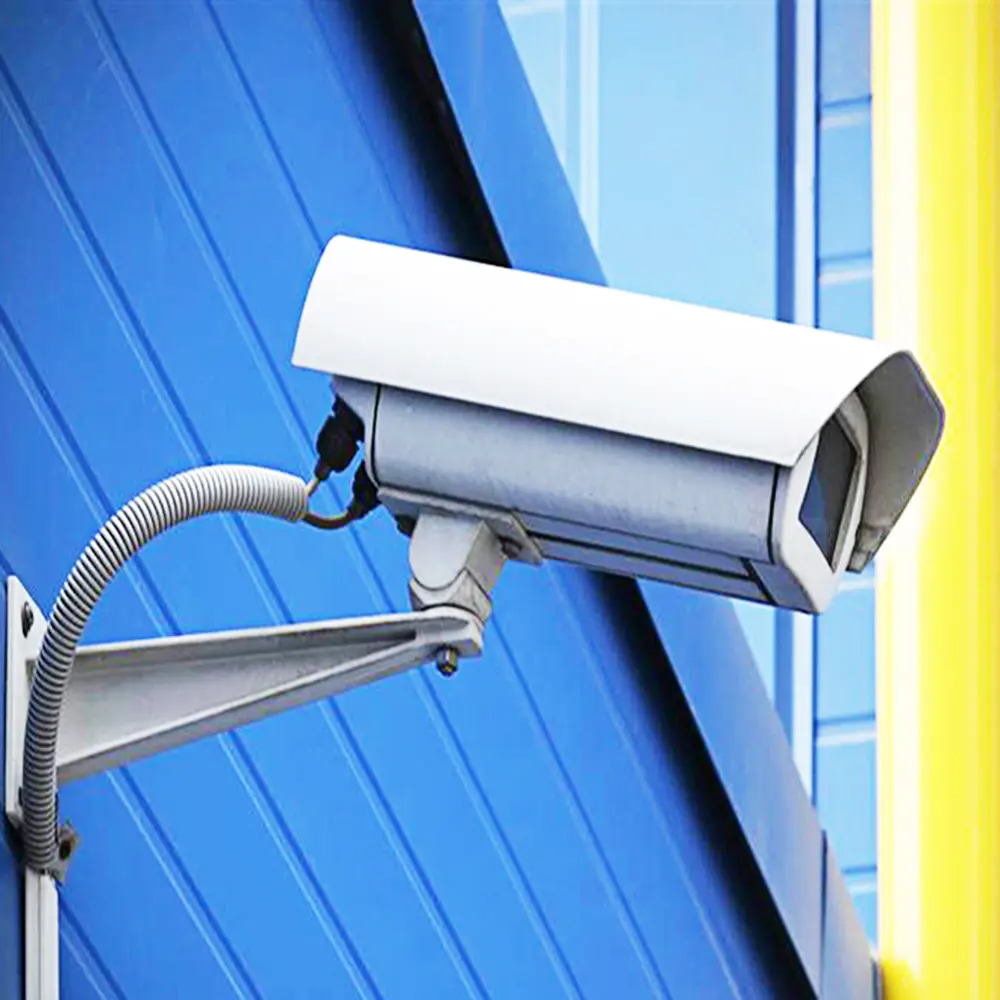

The TSD-EX101GP extender can simultaneously maintain power and data synchronization transmission and extend the transmission distance of Ethernet signals. It is mainly applied in scenarios such as security monitoring, outdoor communication, and intelligent buildings. The use of TSD-EX101GP extender can reduce the wiring workload, complexity and cost for users, effectively solve the signal attenuation and distance limitation problems in PoE transmission, and meet the requirements for long-distance equipment power supply and networking. TSD-EX101GP-Application

Package list
Items	Quantity
TSD-EX101GP	1 PCS
Operation Manual	1
Accessories	Waterproof four-piece set *2
