The V121C-30 complies with the IEEE802.3af/at POE standard protocol. Its maximum output power is 30W, and it can also output 15.4W. It supports wide-voltage input of DC 38-56V, and the default output voltage is DC 12V. Other voltages can be customized. The effective transmission distance is 100 meters, and it supports 24-hour continuous operation throughout the day.
● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements

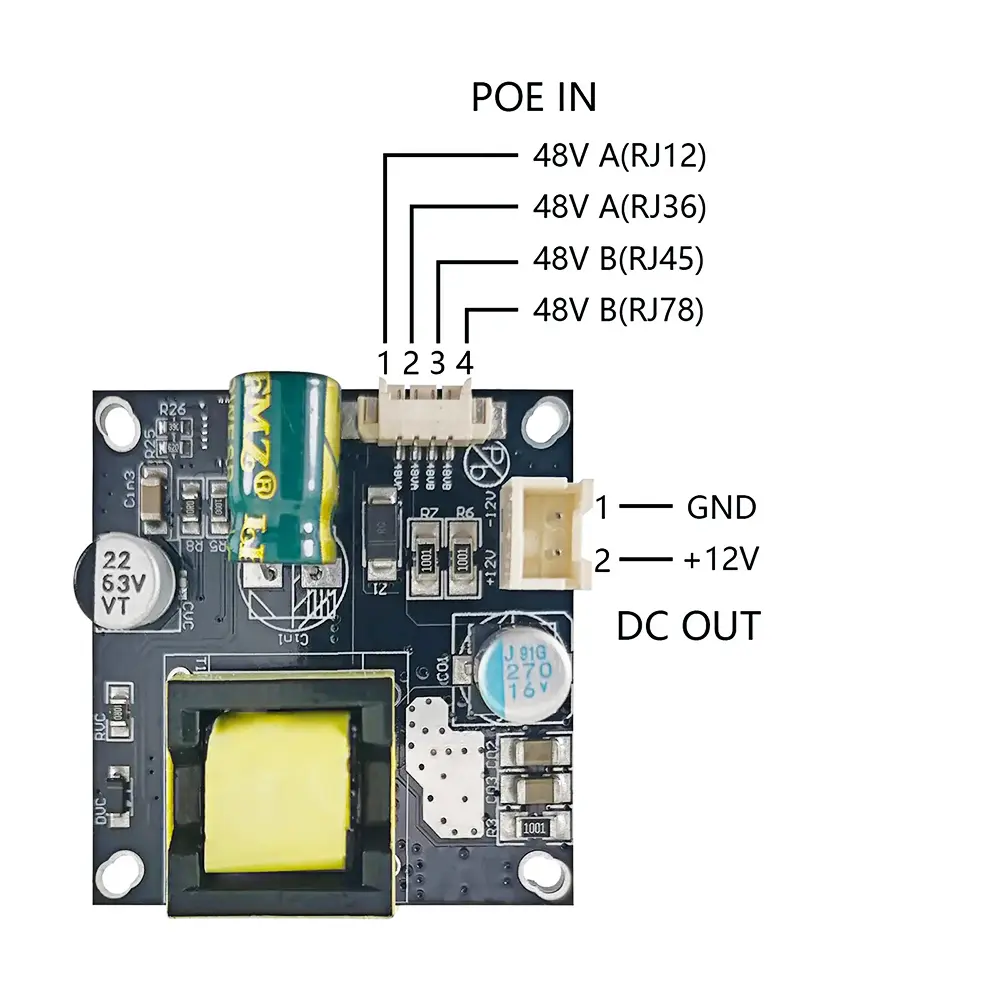

● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lighting surge resistance
● Conversion efficiency≧85%

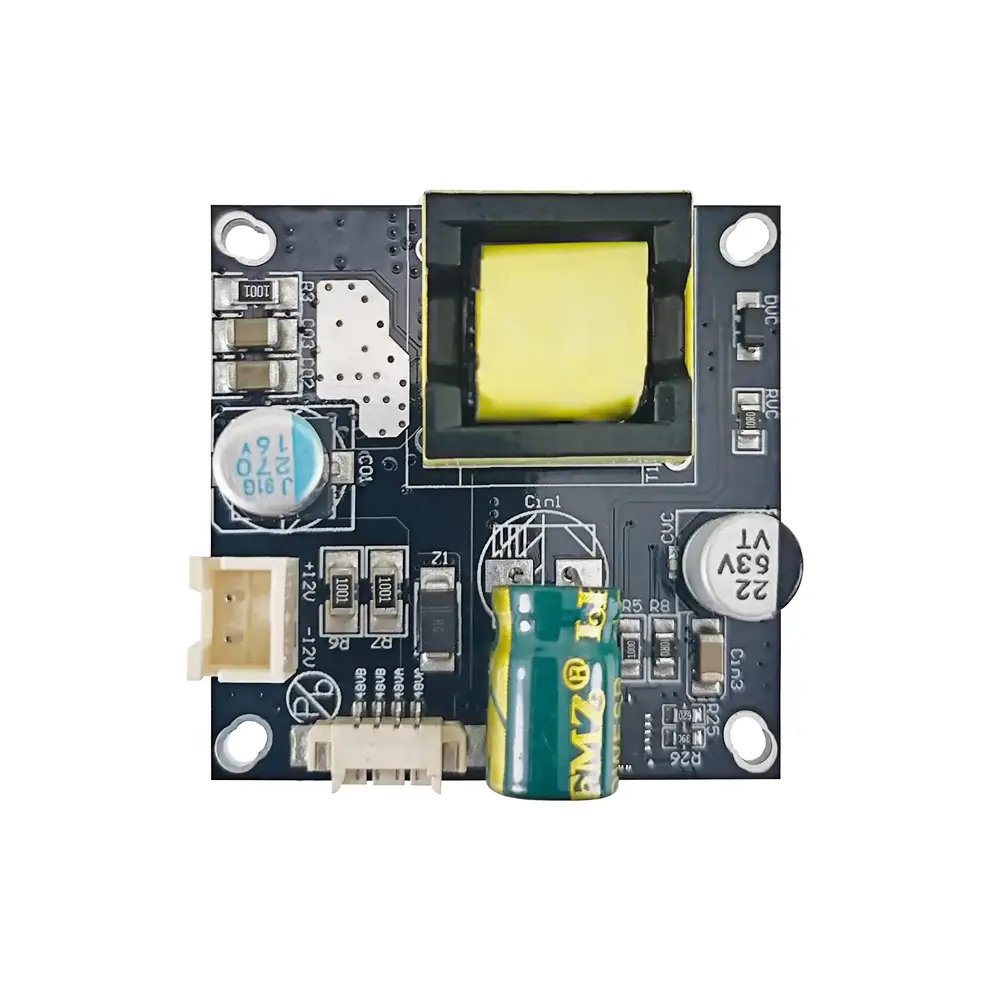

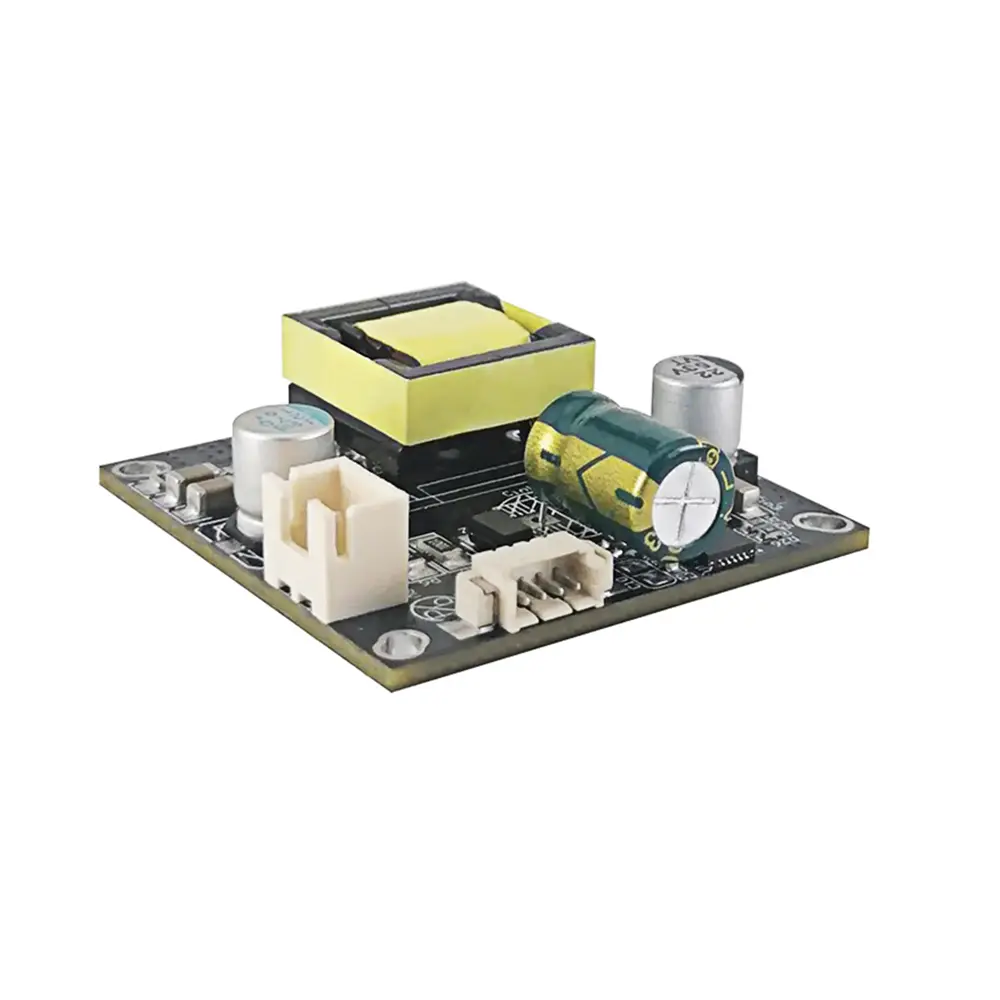

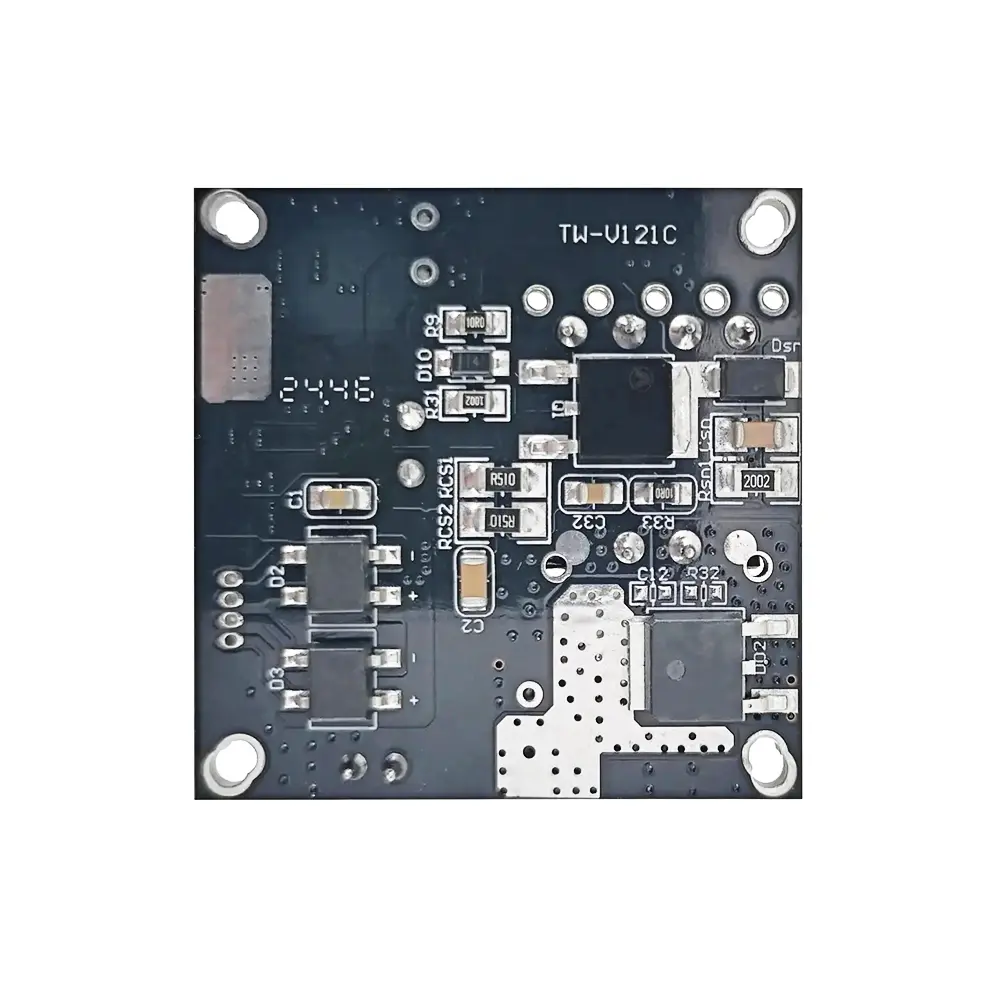

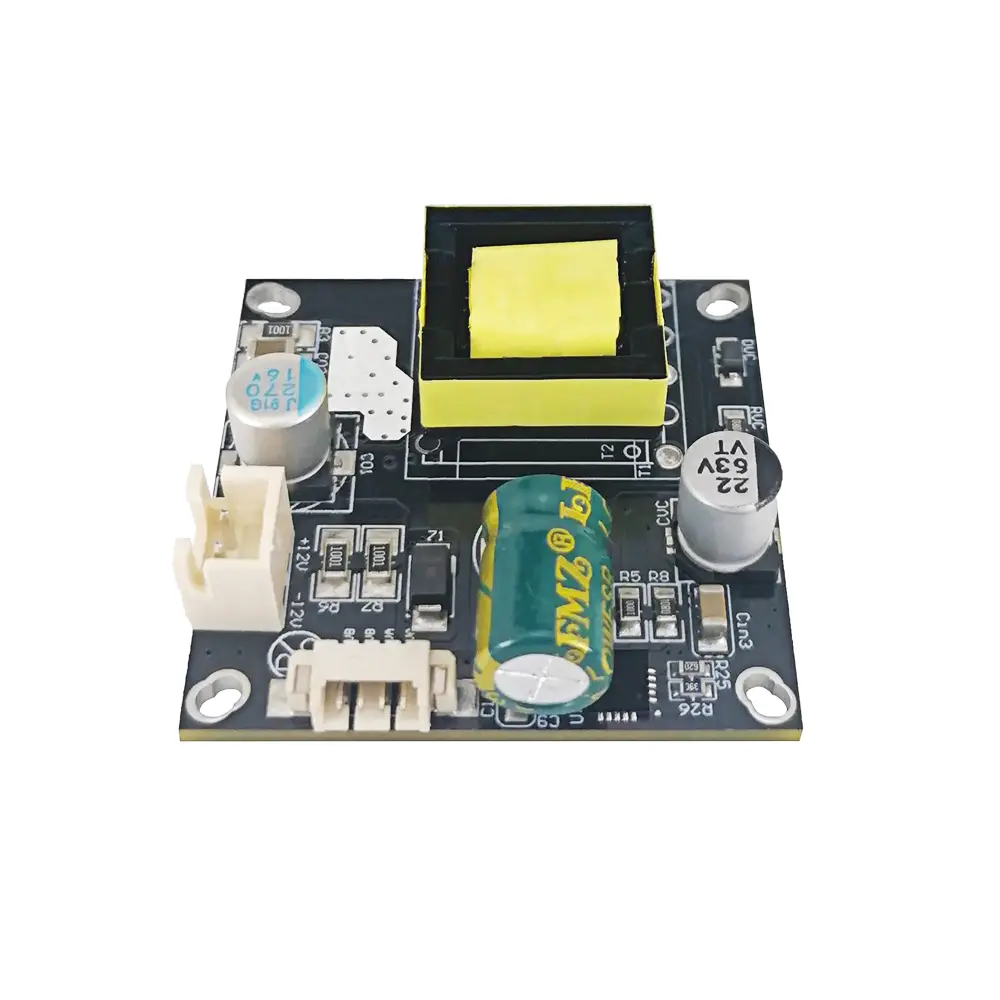

● Design-Festures: ultra-thin design, double-layer PCB with single-sided layout
● High-tempture-resistant,flame-retardant horizontal connectors

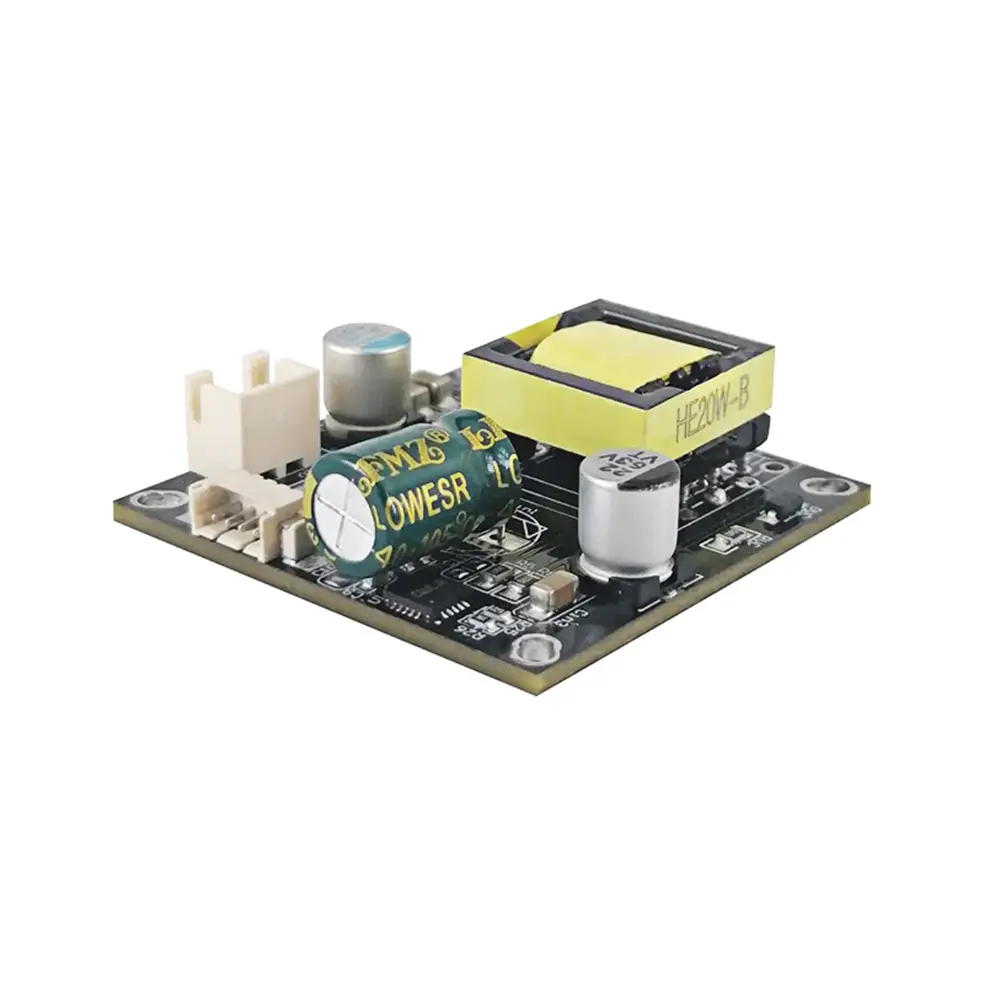

● High-frequency, low-resistance electrolytic capacitors (reduces high-frequency loss)
● Solid-state SMD capacitors (long lifespan, stable performance)

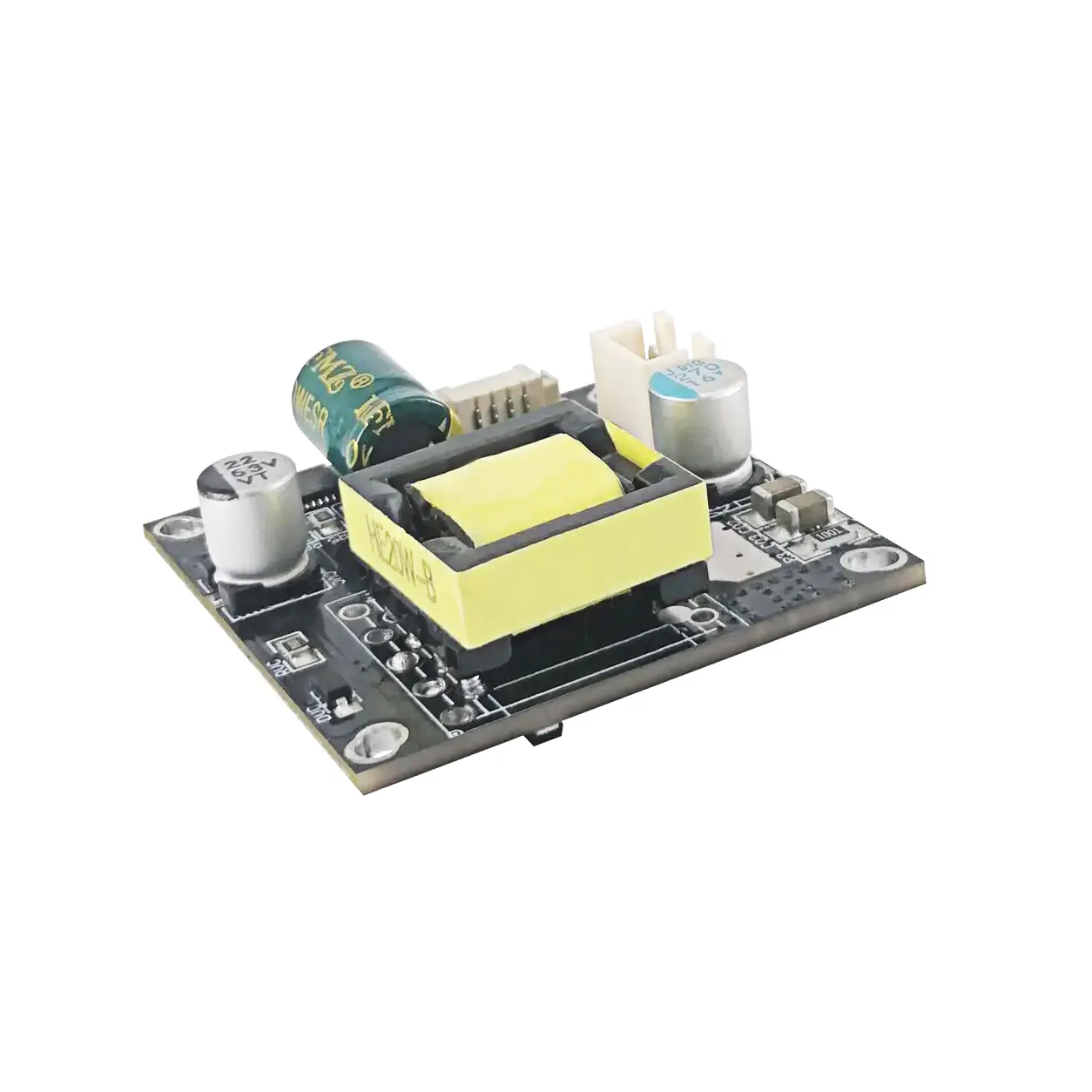

● Pure copper thickened wire cores, sunk-type ultra-thin isolation transformer
● High-precision branded electronic components
● High-power, low-impedance transistors for superior conductivity
● Using pure copper pin connectors to avoid poor contact
● High-temperature-resistant, eco-friendly PCB material
● Lead-free manufacturing process
