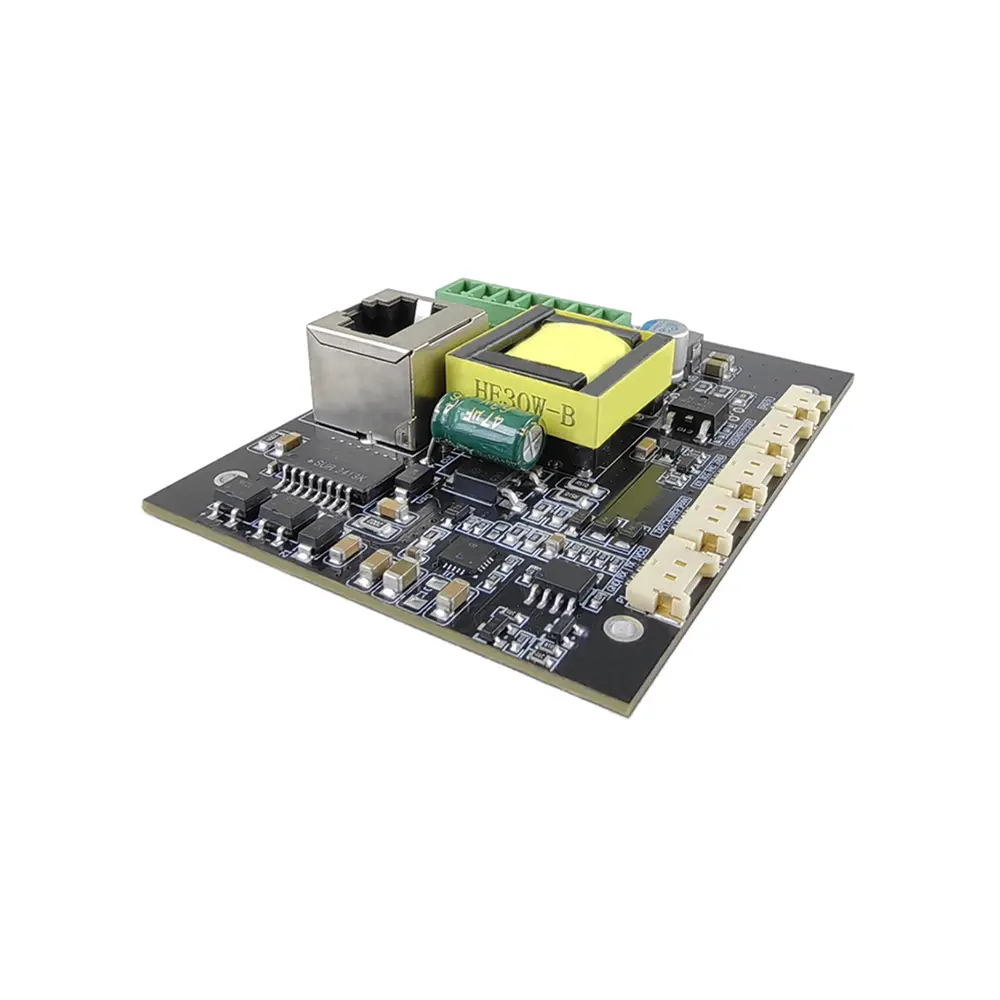

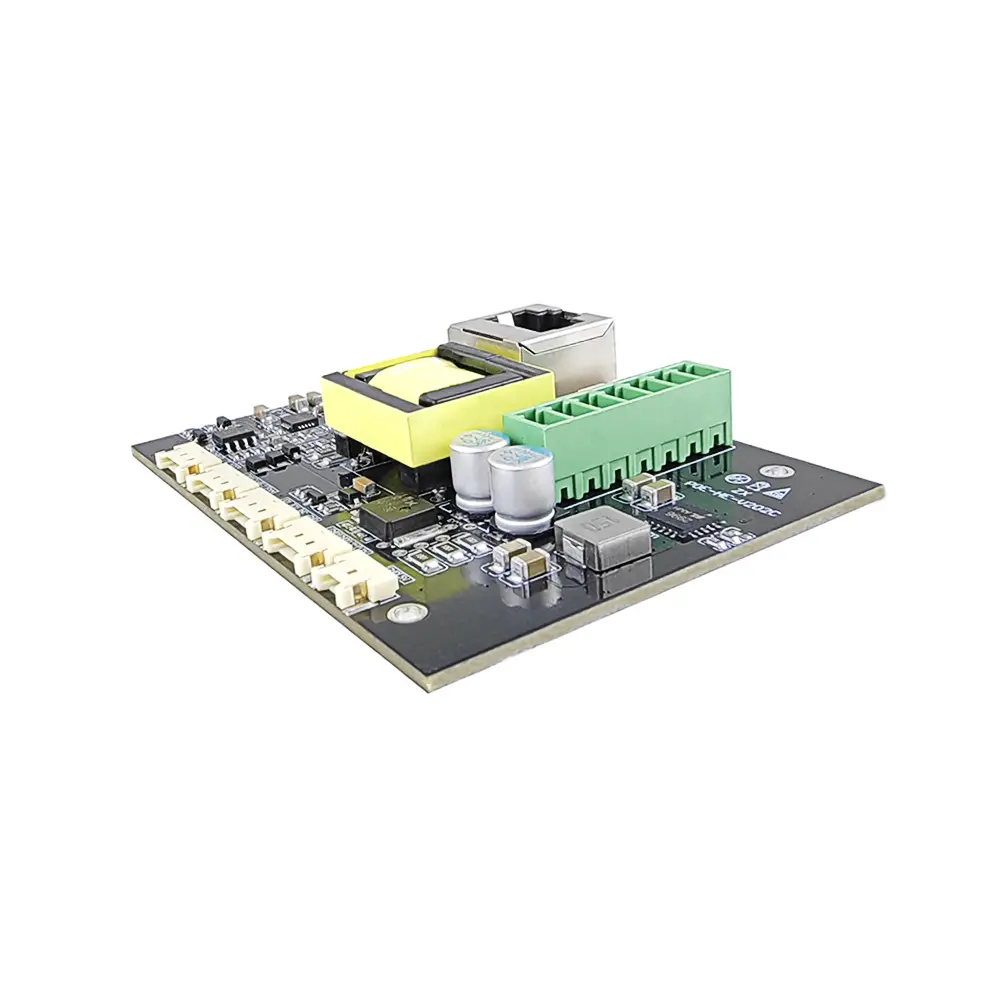

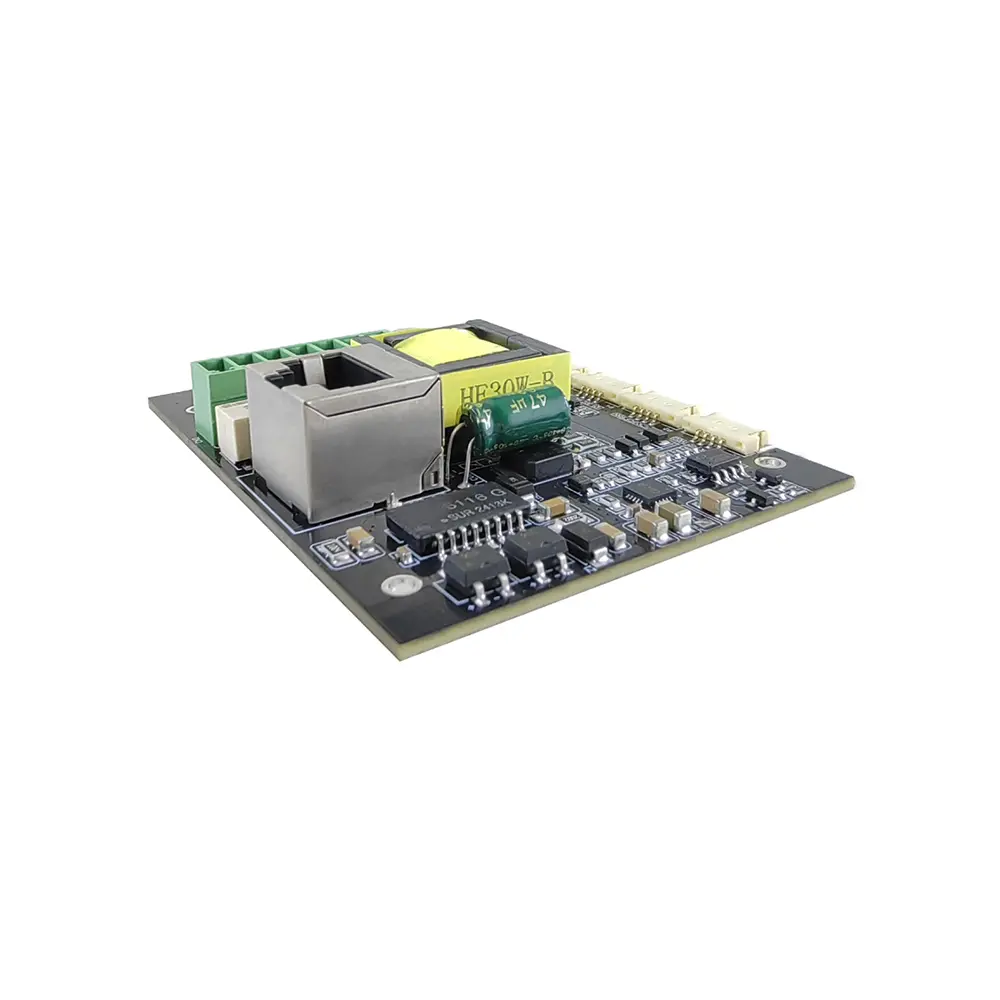

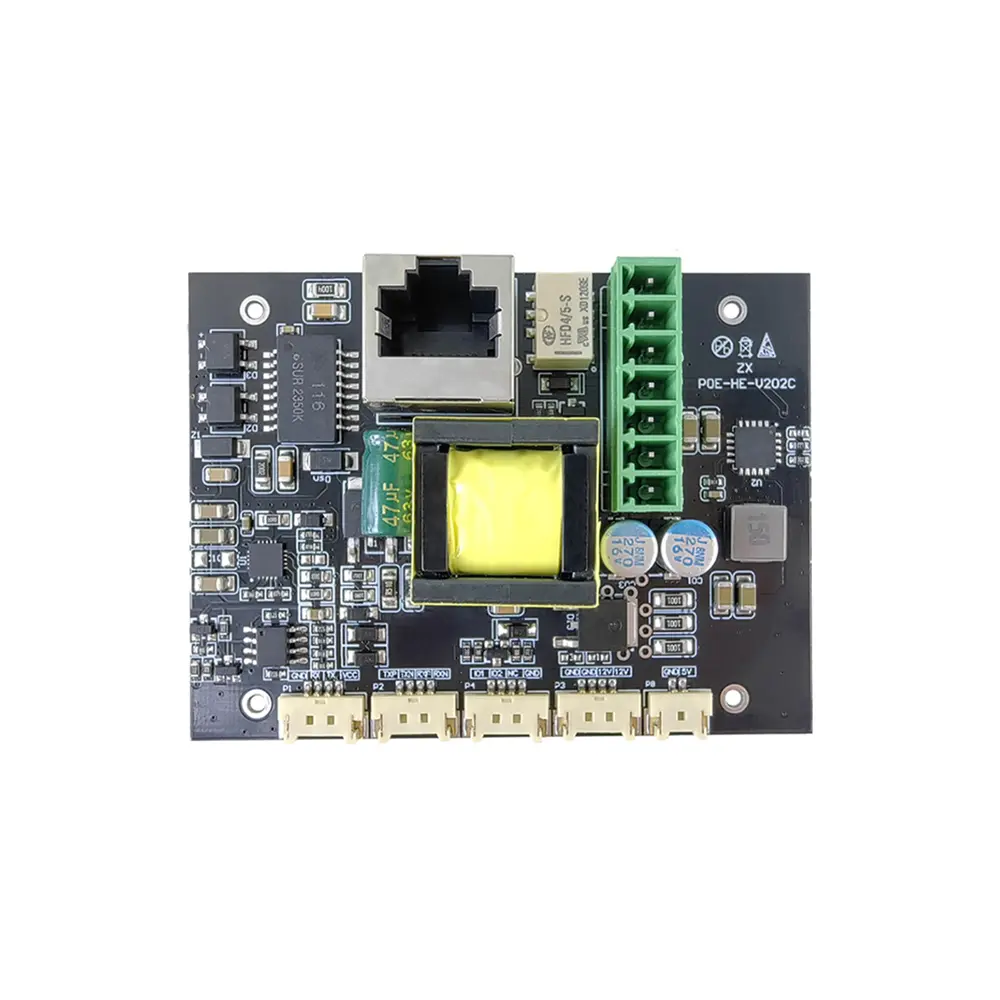

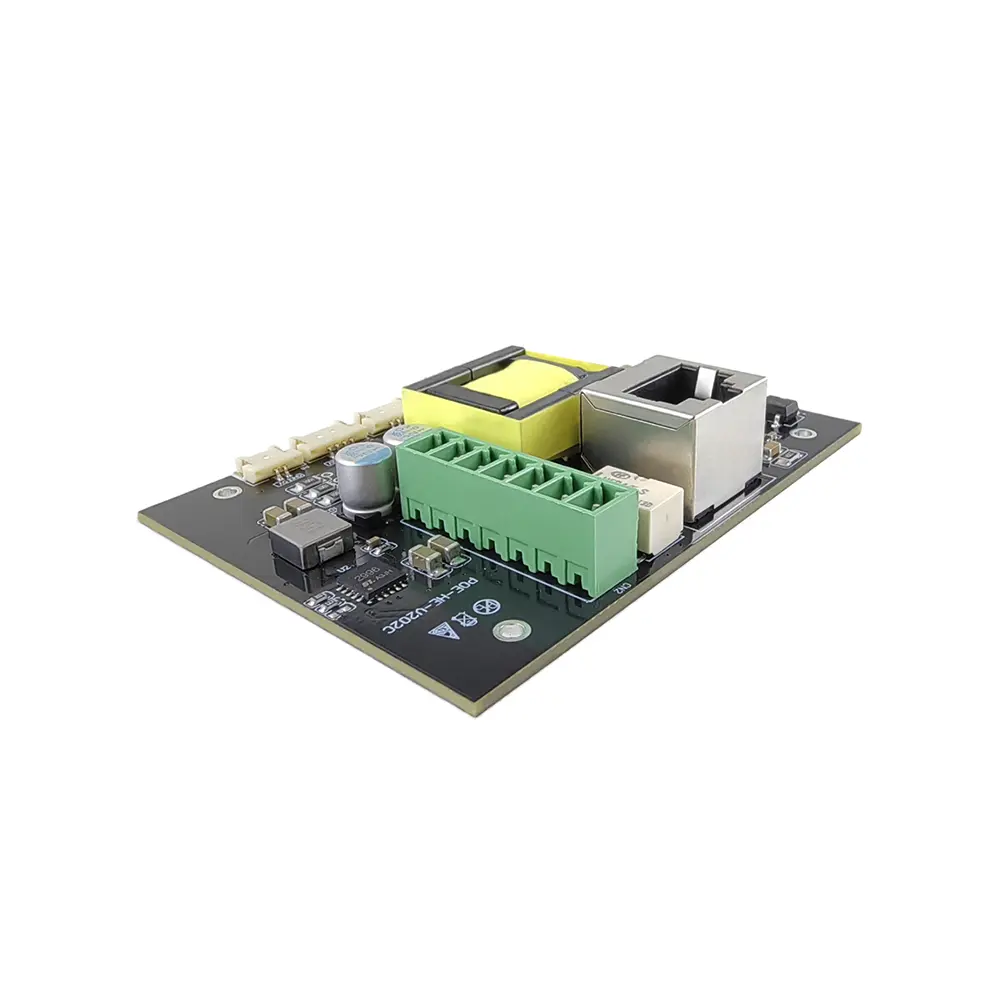

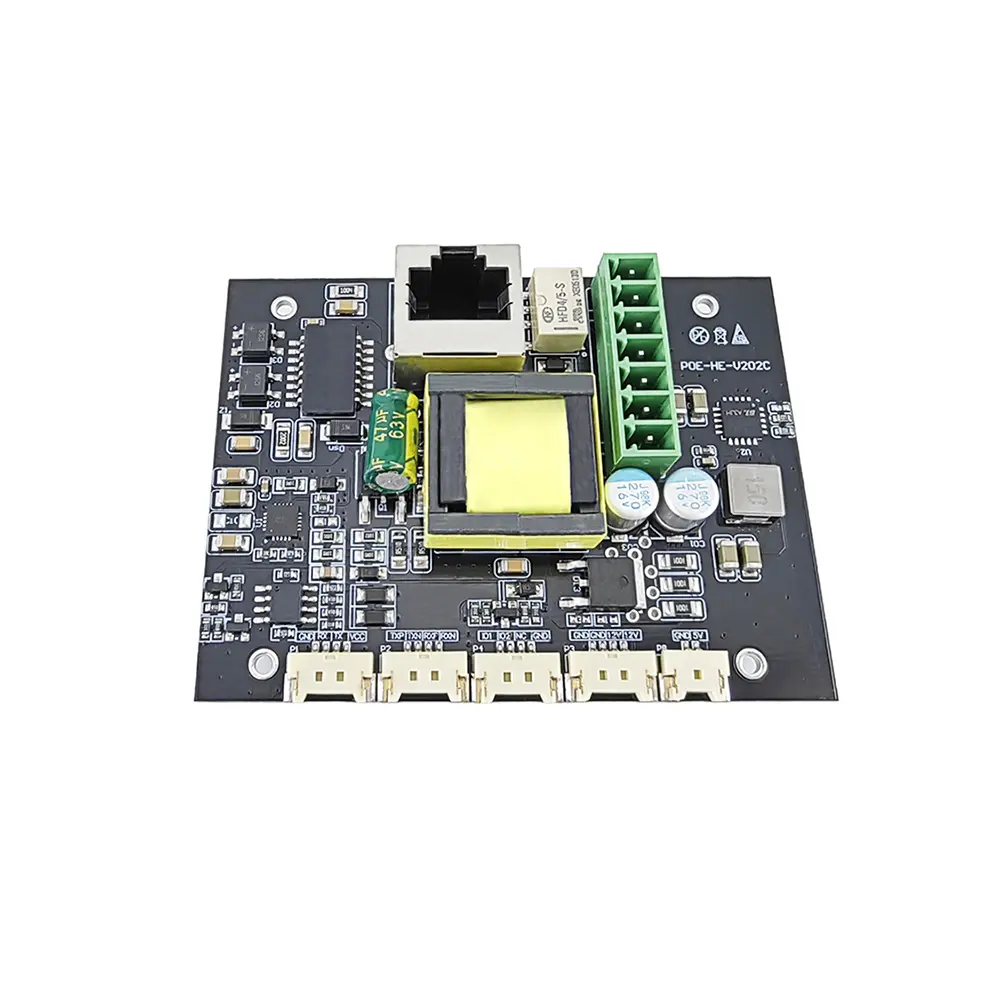

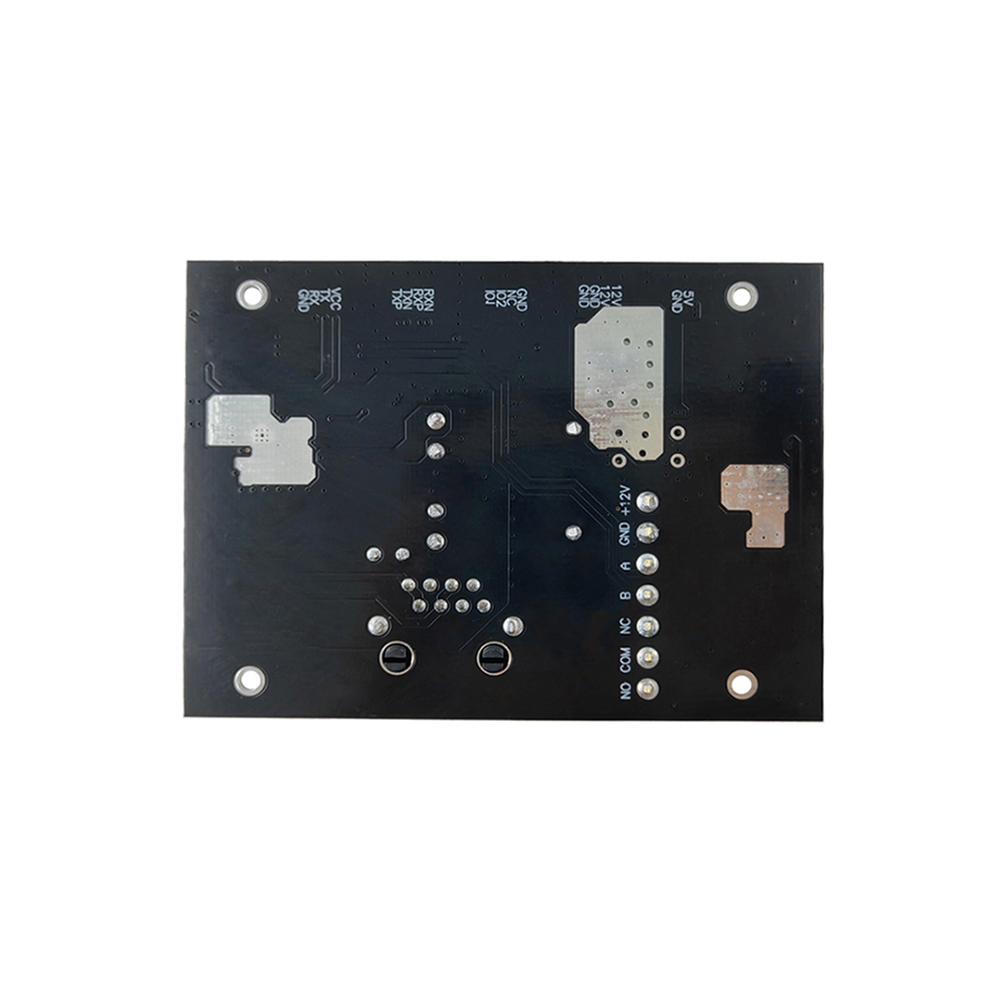

The V202C complies with IEEE802.3af/at PoE standards, offering a maximum output power of 30W and a maximum output power of 15.4W. It also features an adaptive transmission rate of 10/100Mbps. It supports a wide voltage input range of DC38-56V, with a default dual-voltage output of DC12V and DC5V; other voltages are customizable. The module integrates PoE, RS485, relays, serial ports, I/O ports, and dual-voltage outputs.
● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2.5A + 5V MAX 4A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Ultra-thin horizontal terminal
● 100Mbps high frequency POE filter to ensure stable data transmission
● High frequency low resistance electrolytic capacitor, effectively reduce the circuit high frequency loss and heating
● International brand original high-precision electronic components, stable performance
● High power, high conduction and low impedance transistor, stable performance and low heat
● High temperature resistant PCB environmental protection material, lead-free environmental protection process
● Adopt pure copper pin connector to avoid bad contact
● Integrated RS485 function, relay function, serial port, IO port and other functions
● Isolation transformer, strong reliability, high adaptability
