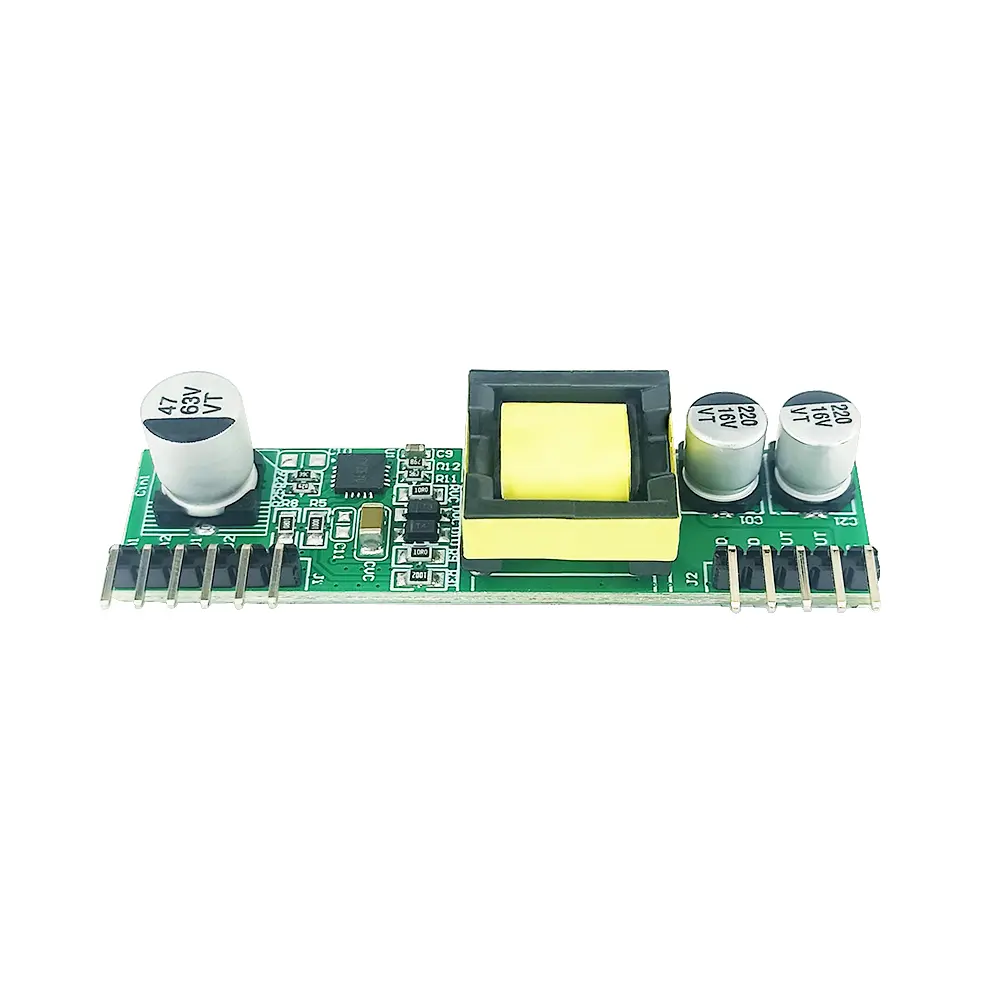

Pin Header Interface Isolated PoE PD Module

Model: TSD-PD6015

  • Input: Wide-Range PoE DC 38-56V
  • Output: DC 12V MAX 1.5A 18W
  • PoE protocol: IEEE 802.3af
  • RJ12+ RJ36- / RJ45+ RJ78-fully compatible
  • Conversion efficiency ≧85%
  • Interface: PH2.54mm Pin Header
  • Size: 60*15*14.2mm (L*W*H)
  • Weight: N.W=12g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

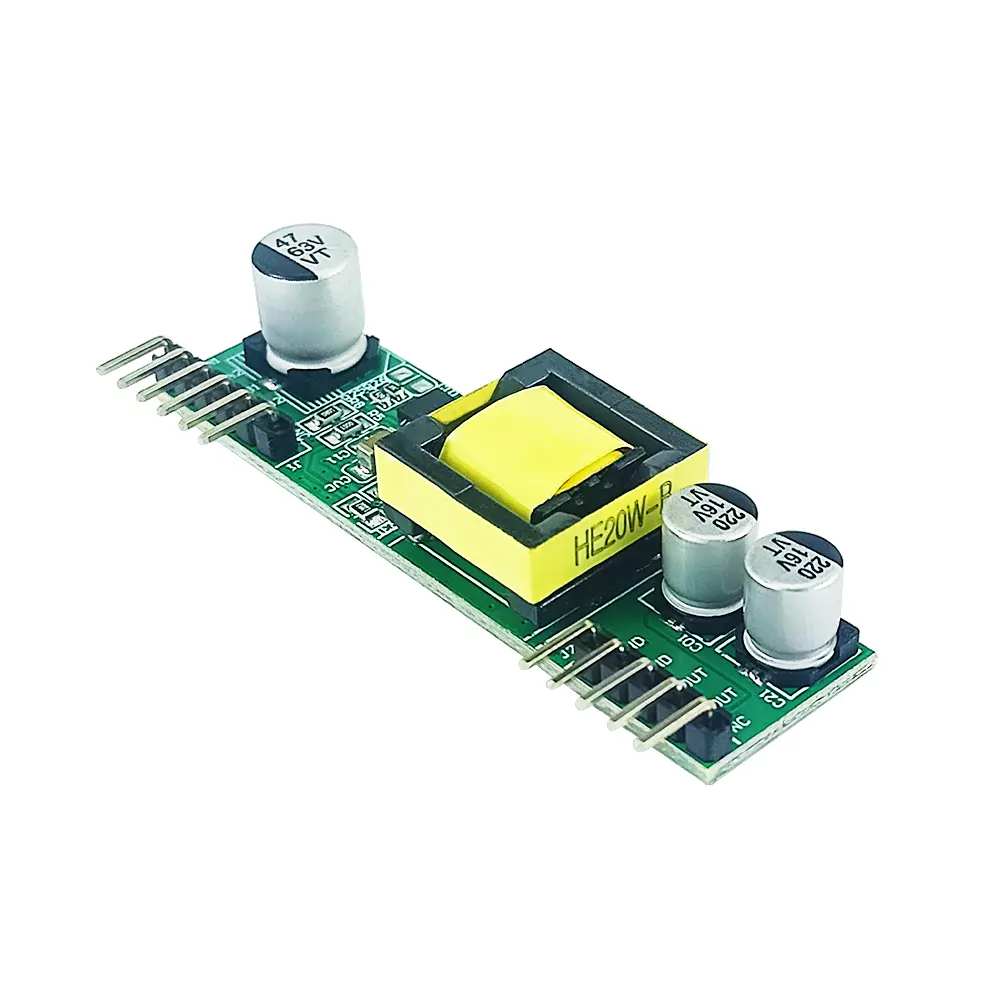

    TSD-PD6015-4
    01

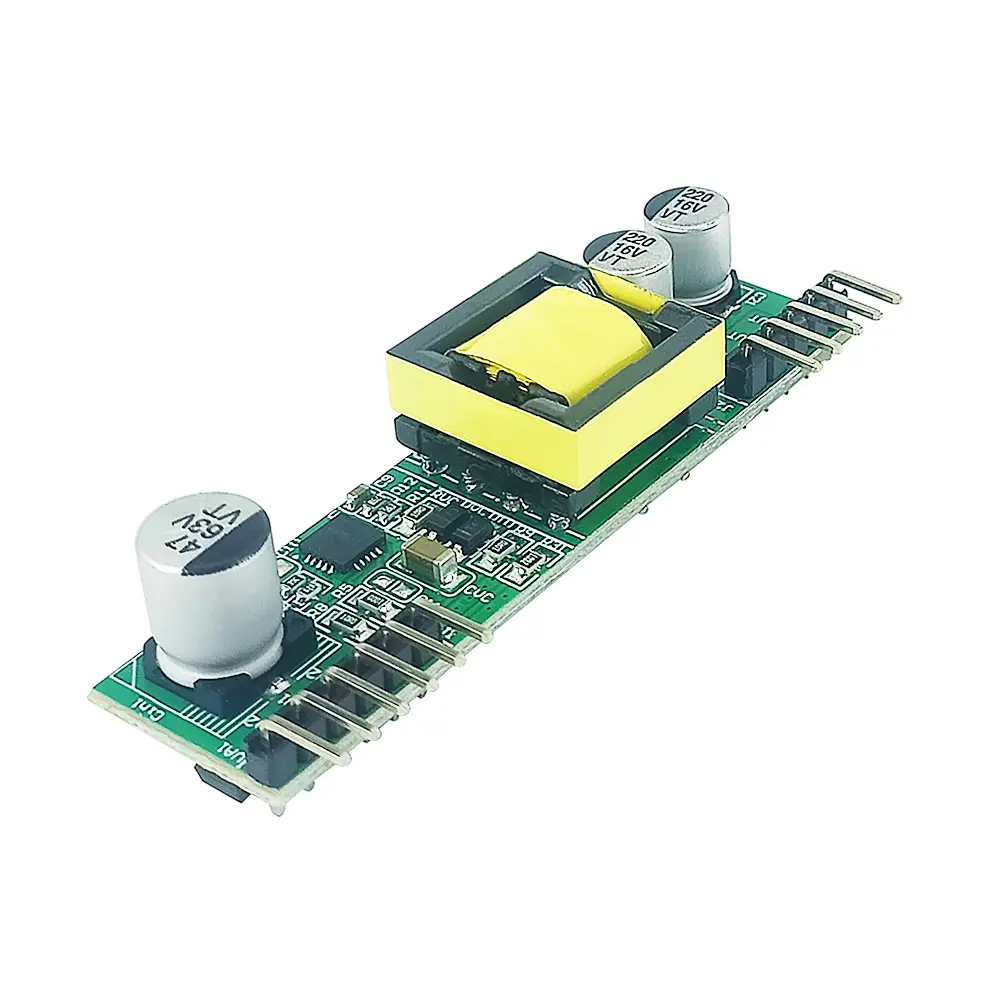

    TSD-PD6015 module is an active PoE module used in wireless coverage, audio broadcasting, LCD screen and other fields. The module can continuously and stably output 12V 1.5A DC, and the maximum output power is 20W.

    TSD-PD6015 module supports IEEE802.3af PoE international standard protocol, with handshake protocol, it can safely accept PoE signal, transmit data signals and DC power supply for terminal equipment.

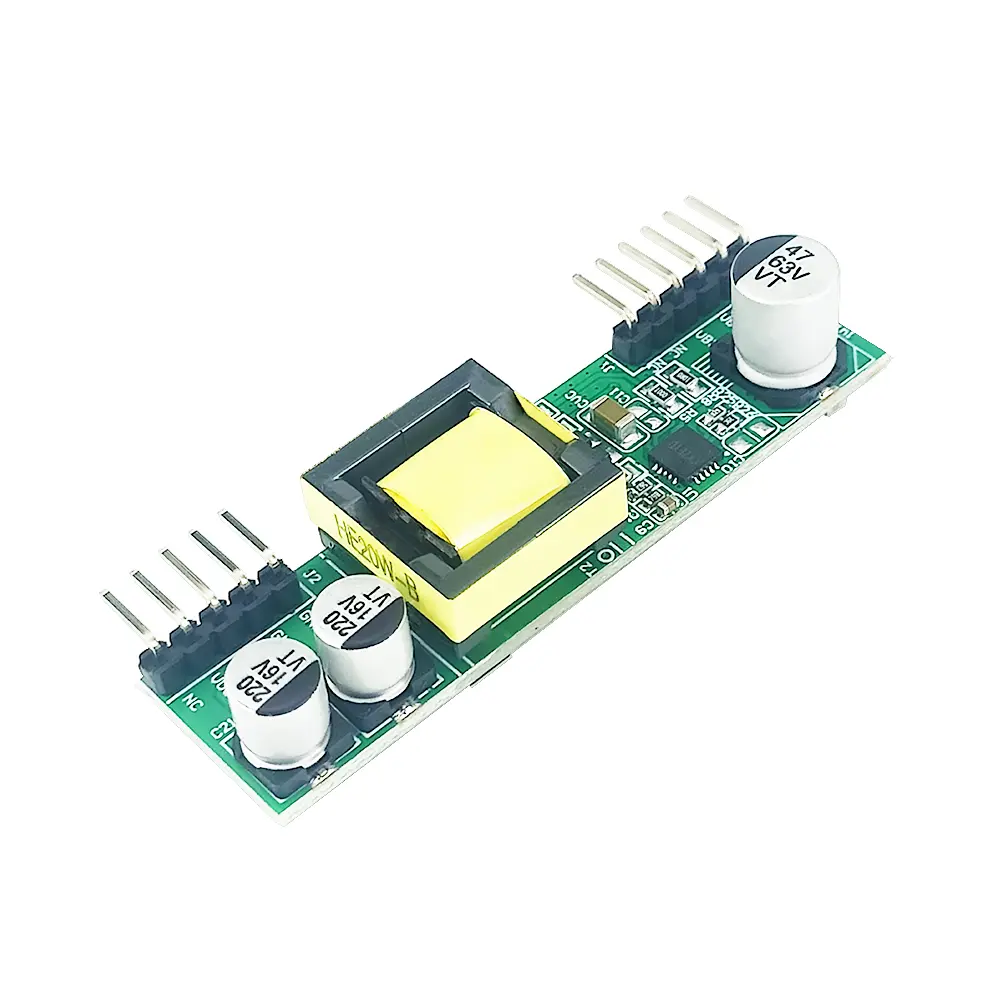

    TSD-PD6015-5

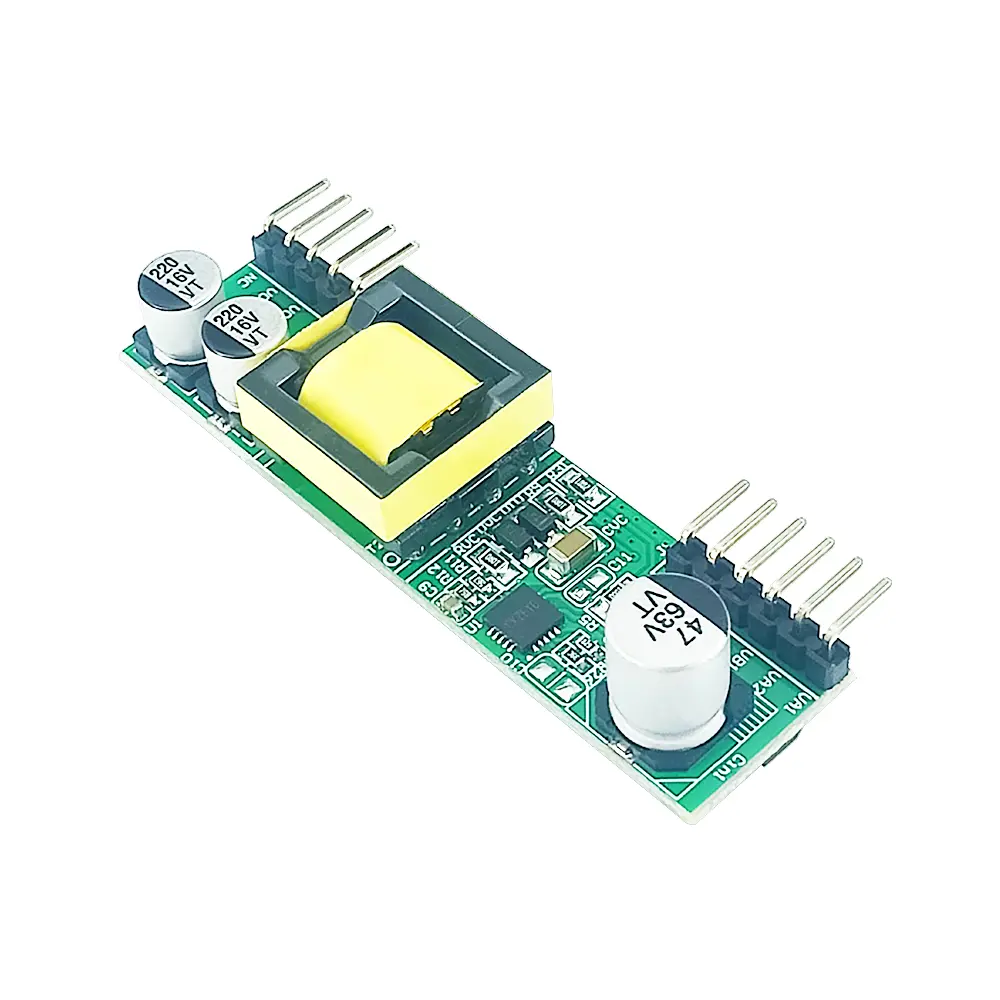

    The TSD-PD6015 module has isolation function, the maximum output power is 20W, and it has the protection ability of lightning, short circuit, overload and high temperature. Support wide voltage input DC 38-56V, default output voltage DC 12V, other voltage can be customized.

    TSD-PD6015 module supports IEEE802.3af PoE international standard protocol, EMC parameters in line with IEC 61000-4-2/3/4/5/6 standard requirements, has obtained CE, FCC, RoHS and other authoritative certification, products sell well in the world.




    ● Input:​​ Wide-range PoE DC 38-56V
    ● Output:​​ DC 12V MAX 1.5A
    ● Compliance:​​ IEEE 802.3af PoE International Standard
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
    ● Protection Features: Overheat protection, overload protection, overvoltage protection,  short-circuit protection
    ● Surge Protection: 4KV lighting surge resistance
    ● Conversion efficiency≧85%

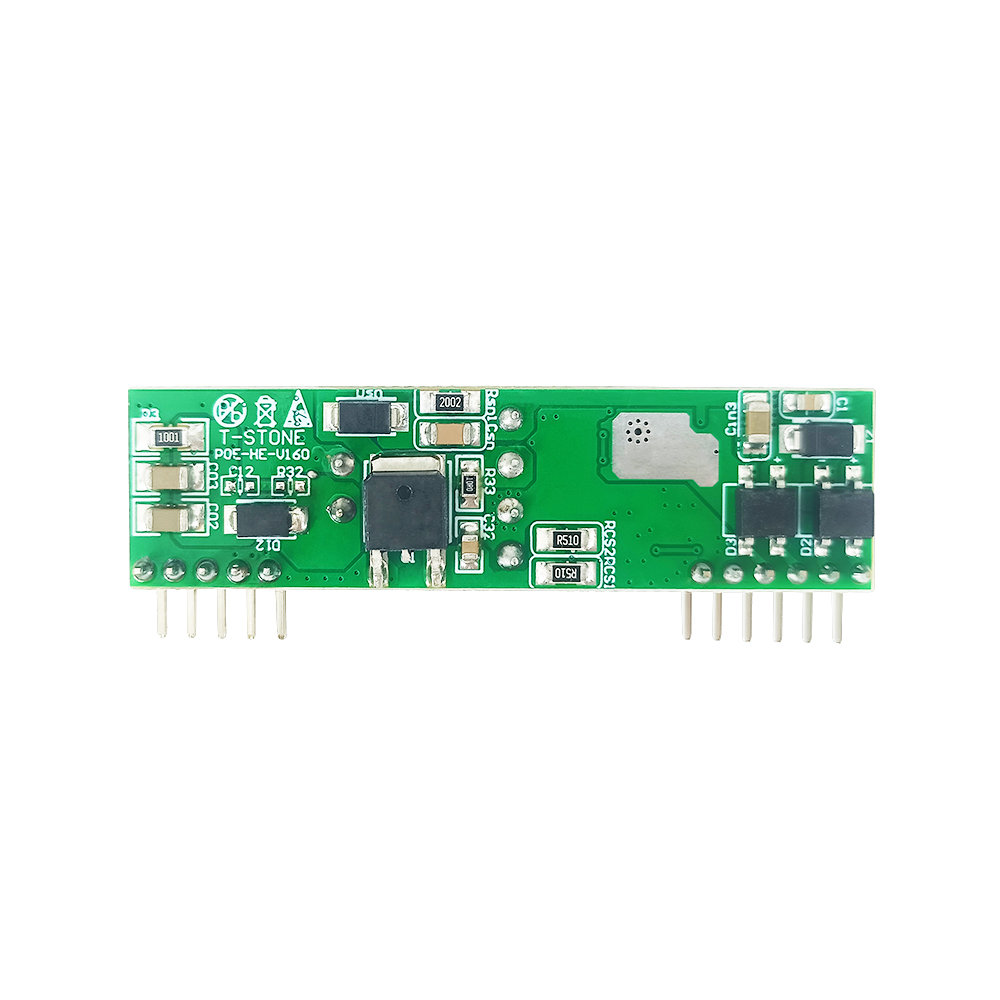

    ● Design Features:​​Two-layer board double-sided design
     ● High temperature resistant flame retardant socket, reduce security risks

    ● Patch solid-state capacitor: long service life, safe and stable

    ● EFD15 bobbin high frequency isolation transformer

    ● Environmentally friendly high temperature  resistant PCB material , lead-free process

    ● Bent needle row,optimize the space and enhance the connection stability

    ● Big original high precision electronic components

    ● High power transistor, high conduction and low impedance

    ● Pure copper pin connector to ensure good contact

    Product parameter table

    Product Name

    Pin Header Interface Isolated PoE PD Module

    Product Model

    TSD-PD6015

    PoE Standard

    IEEE802.3af

    Input Voltage

    PoE: DC 38-56V

    Output

    DC 12V MAX 1.5A

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

    Conversion Mode

    Isolated type

    Data Rate

    /

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Overvoltage Protection Overheating Protection
    Overcurrent Protection Short - circuit Protection

    LED Indicator

    /

    Interface

    Input Port  (4-Pin PH2.0mm Socket): DC 38-56V IN

    Output Port (4-Pin PH2.54mm Socket): DC 12V OUT

    Function

    /

    Material

    FR-4

    Color

    glossy green solder mask

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 12g

    Dimension

    60*15*14.2 mm

    Package

    Anti-static pearl cotton

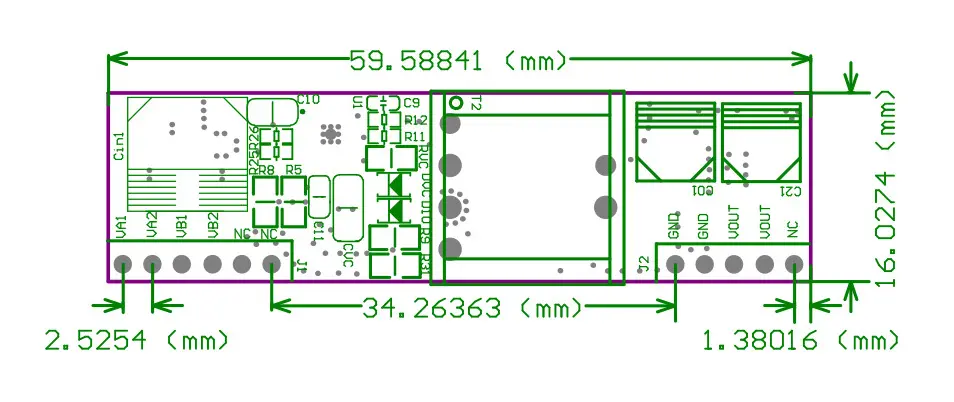

    Size structure: 60.0*15.0*14.2mm, PCB thickness: 1.6mm. Overall layout: square structure, maximum thickness: 14.2mm. Center distance of needle pin: 2.54mm. The surface is sprayed with bright green oil. Module design: two-layer board double-sided design, improve the quality of signal transmission, the larger components concentrated in one side, convenient installation.


    TSD-PD6015-Dimension

    TSD-PD6015 is an active PoE module with a maximum output power of 20W, which is mainly used in audio broadcasting, wireless coverage, LCD screen and other equipment. The module is easy to install, saves space, and the overall design is compatible with the user's motherboard. Since its launch, its performance and quality have received unanimous praise from users.

    Note: The TSD-PD6015 module does not set a network filter, and no network signal is generated after accessing the PoE signal. When connecting to use, the TSD-PD6015 module needs to be connected to the network filter on the user's motherboard.

    Application1

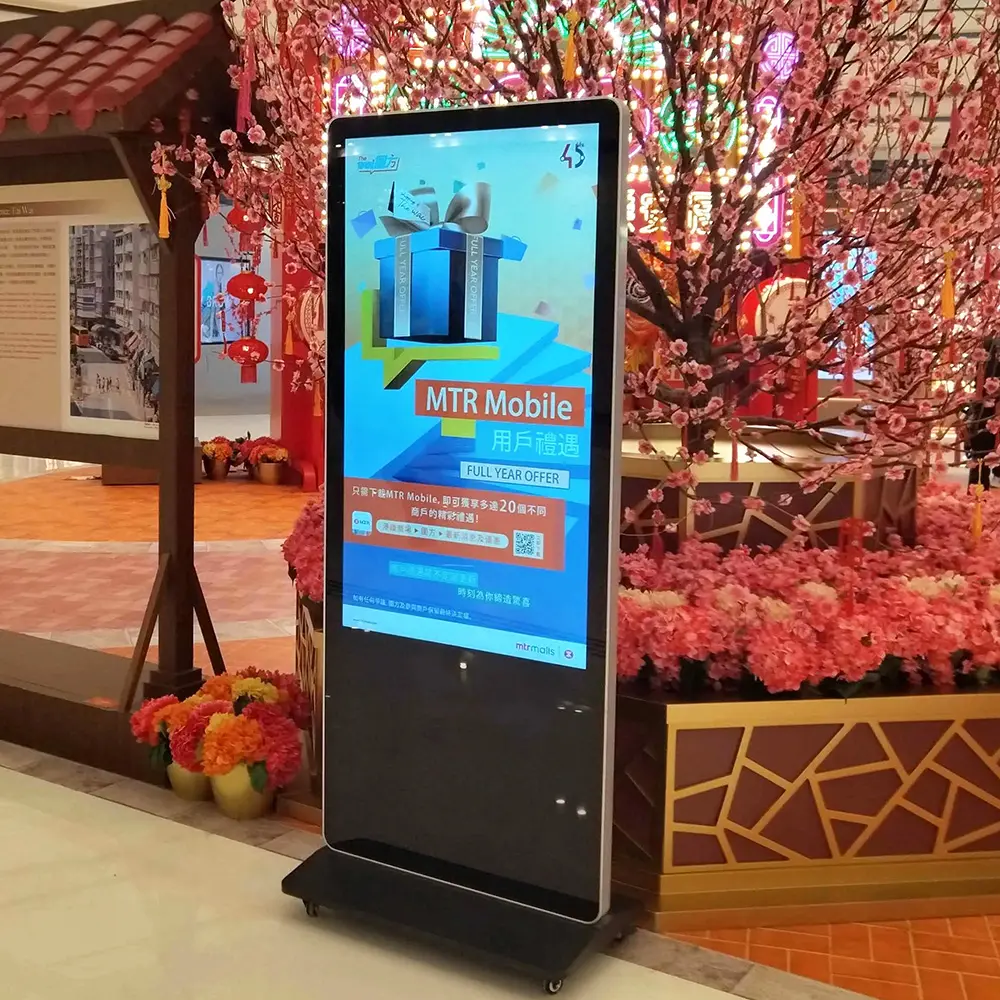

    Application2

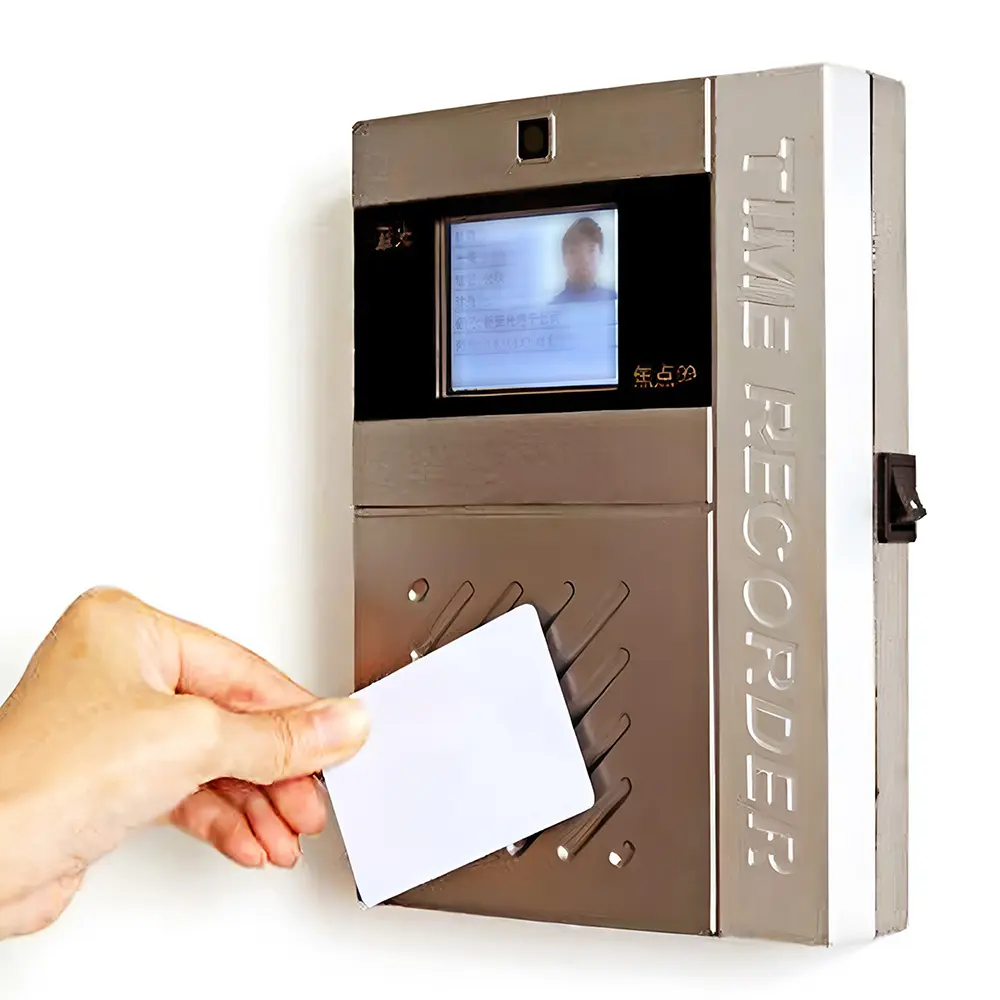

    Application3

    Package list
    Items Quantity
    PoE PD Module 500 PCS
    Operation Manual /
    package

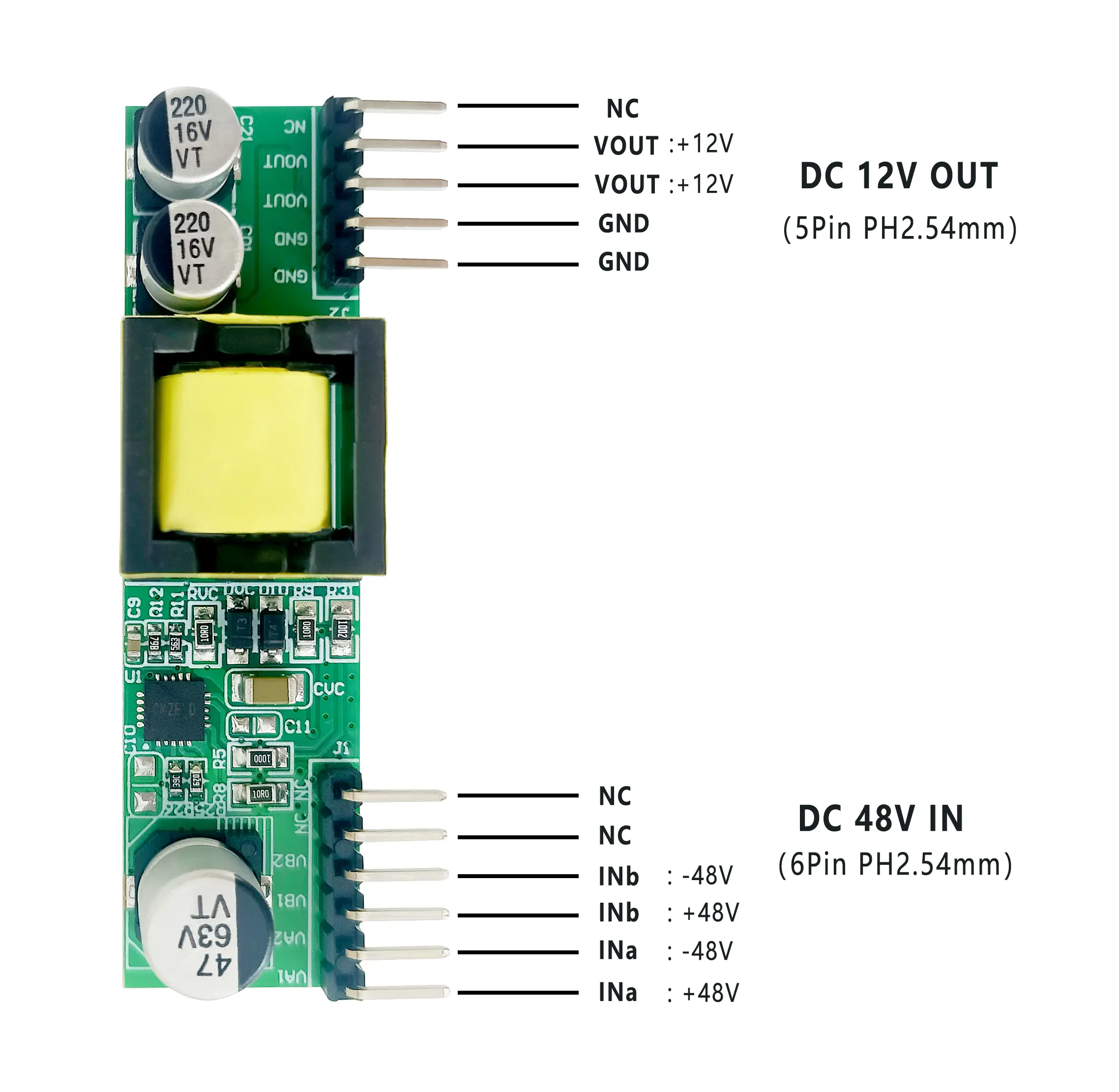

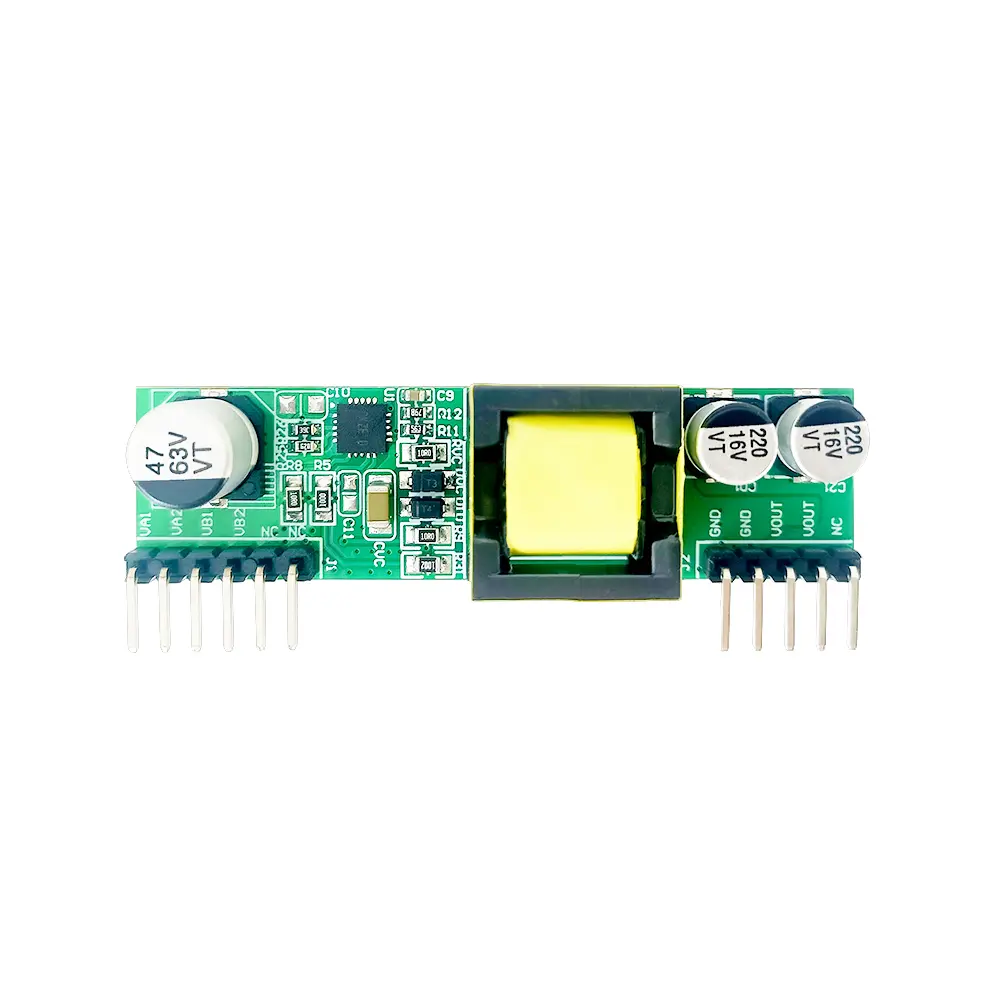

    The TSD-PD6015 module is set with an input connector: 6Pin PH2.54mm bent row pin, two sets of power pins input 48V DC, and two pins are suspended. One output connector: 5Pin PH2.54mm bent row pin, two sets of power pins output 12V DC, one pin dangling.

    Interface
