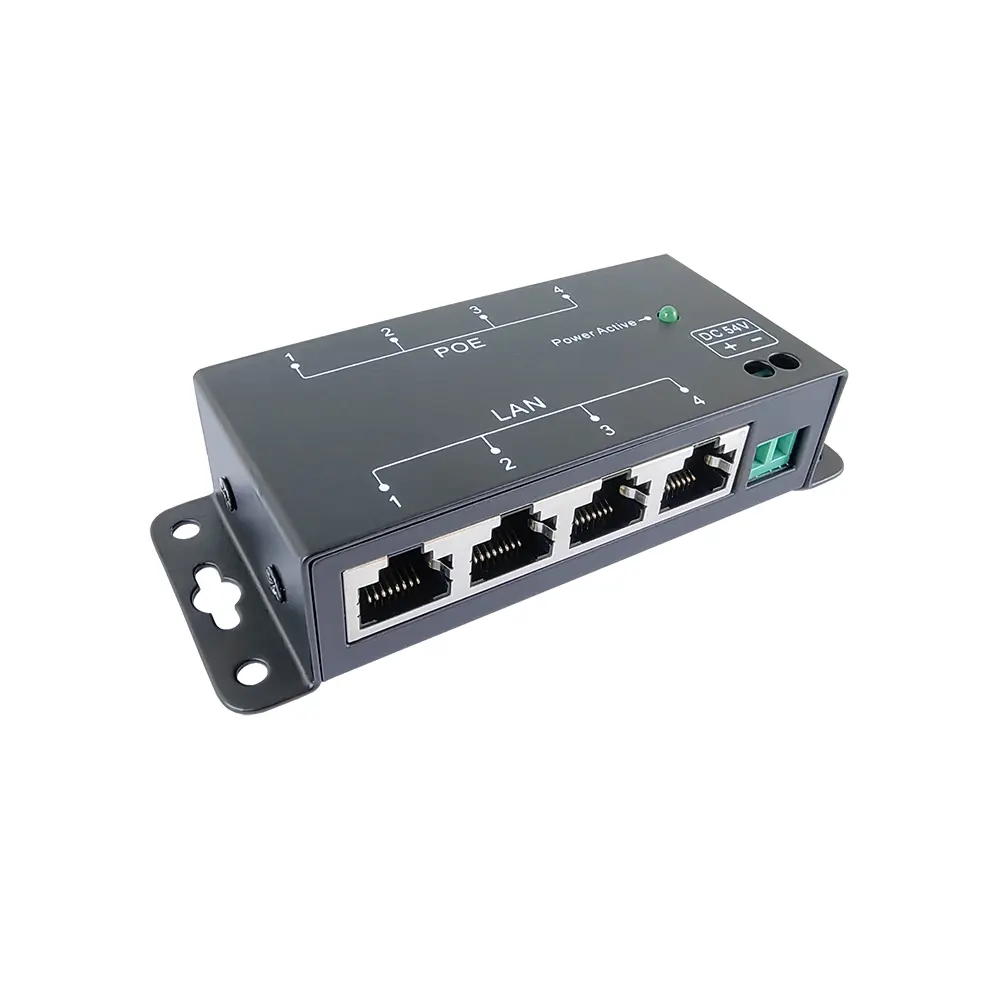

Passive High-power 4-port PoE Midspan

Model: TSD-MP404

Input: Wide-Range PoE DC 12-56V
Output: passive PoE 12-56V
Maximum single output power: 50W
Transmission rate: 10/100Mbps
Power supply pins: RJ45+ RJ78-
Interface: RJ45 Port *8
Size: 110*42.5*24.5mm (L*W*H)
Weight: N.W=130 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-MP404 crossover is a non-standard PoE power supply device. The product is mainly used to connect ordinary switches and network terminal devices. It has the function of providing power to network cables and can output four PoE signals to power the PD terminals. The maximum output power of a single path is 50W.

The TSD-MP404 can receive network data from the upper-level ordinary switch, input 12-56V DC signals, and output PoE signals to power terminal devices such as wireless APs, IP phones, PoE cameras and PoE speakers, effectively expanding the network coverage.

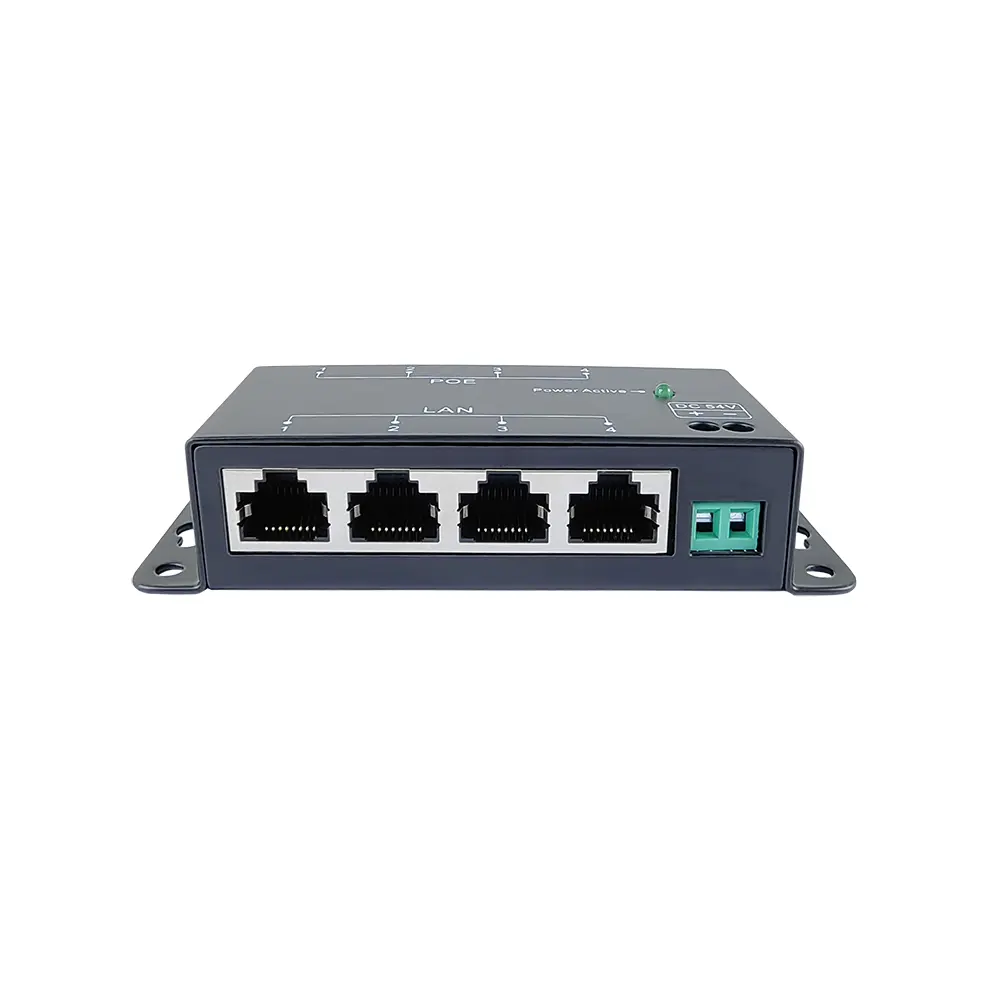

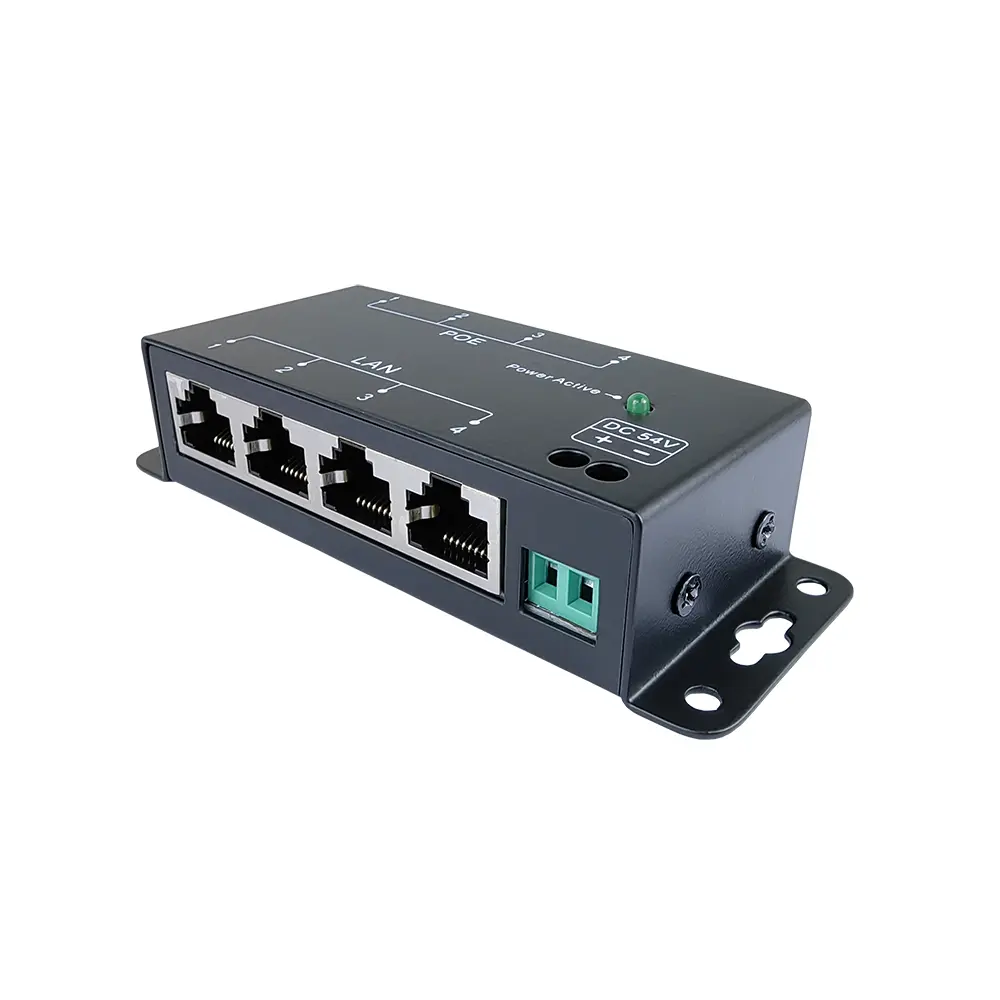

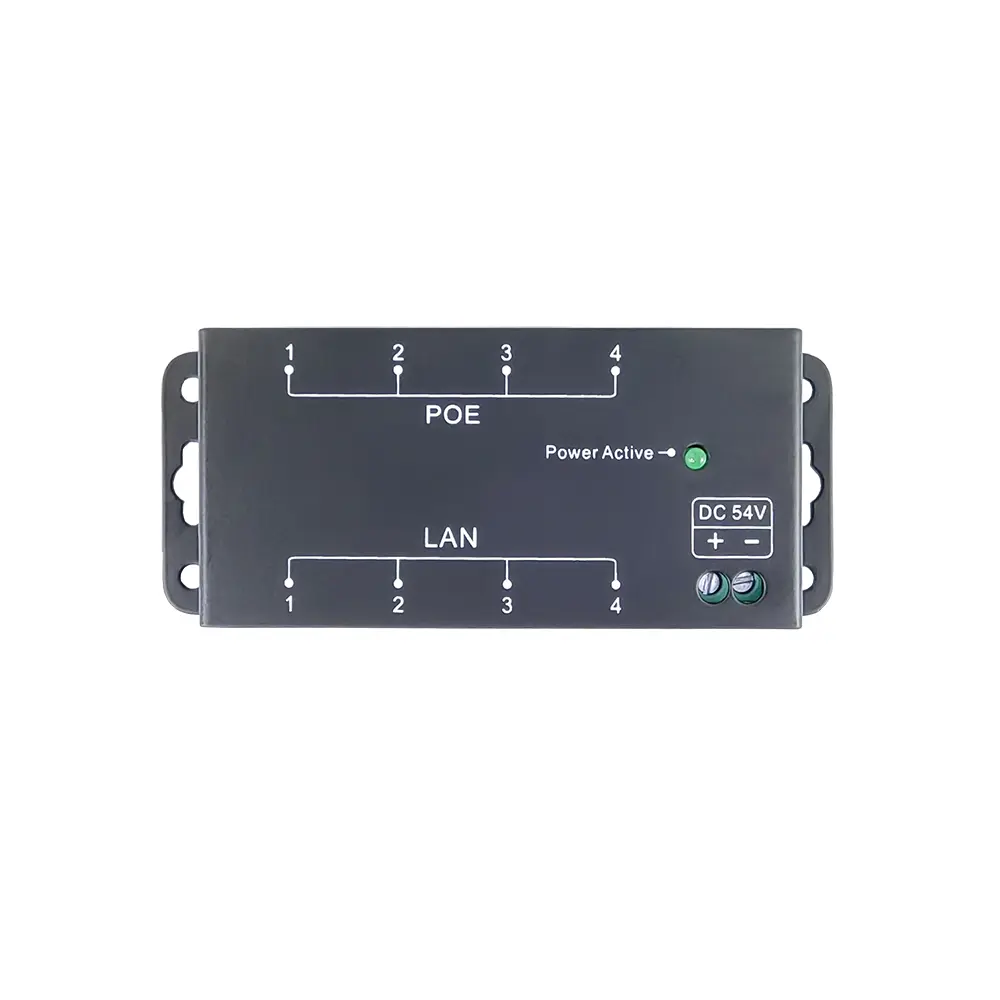

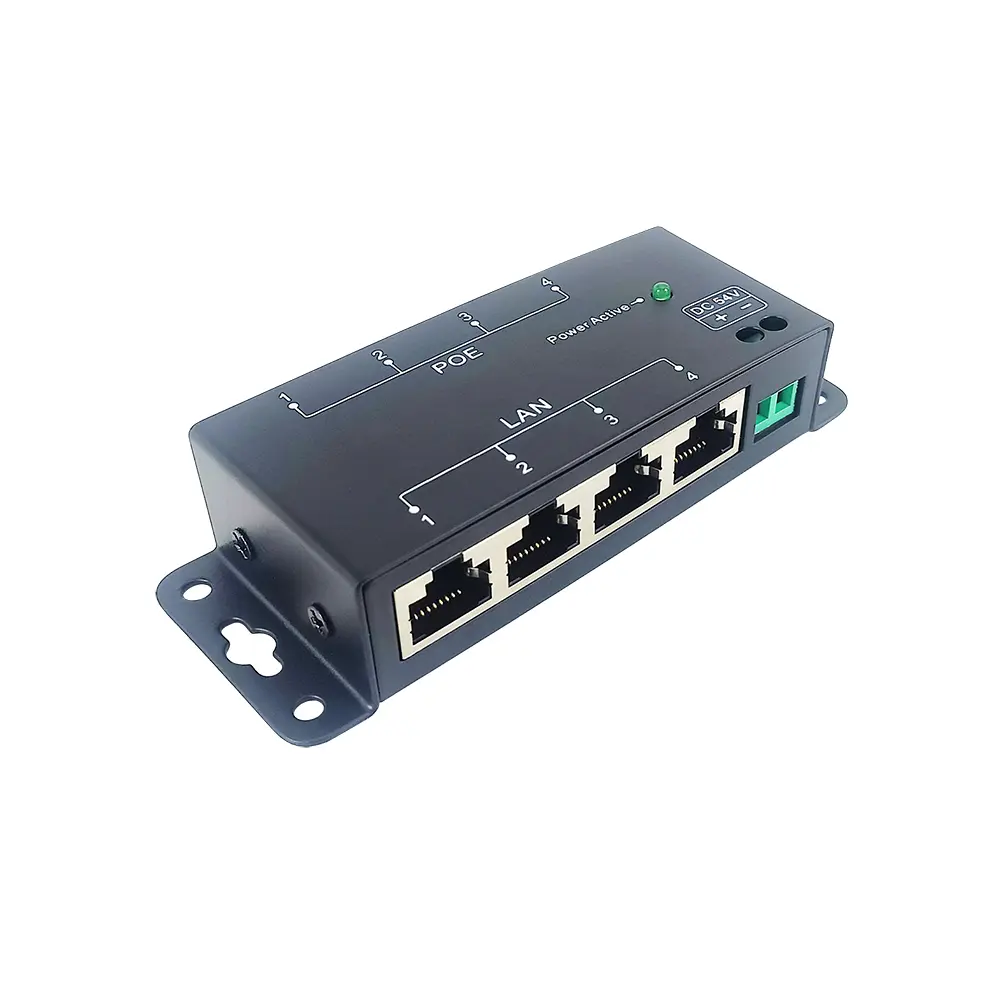

Input and output configuration of TSD-MP404: RJ45 Jack (×4): Data IN, RJ45 Jack (×4): passive PoE OUT, 2P Terminal Block: DC 12-56V IN, 5.5×2.1mm DC Female socket: DC 12-56V IN.

The TSD-MP404 does not support the IEEE802.3af/at standard PoE protocol. Its internal circuitry features overheat protection, overcurrent protection, overvoltage protection, and short-circuit protection functions. The product has obtained certifications such as CE, FCC, and RoHS, and its EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards. The TSD-MP404 crossover is widely used in the fields of education and healthcare, and its outstanding performance has received numerous positive reviews from users.

The TSD-MP404 inputs four data signals and outputs four 12-56V PoE signals. There are two DC input methods for users to choose from: input through the 5.5×2.1mm DC female jack or the 2P terminal block, meeting the needs of users with different types of connecting devices. The maximum single-port output power is 50W. The power supply mode is power supply via the RJ45+ RJ78- pins. The transmission rate is 10/100Mbps adaptive.

● Input: Wide-range PoE DC 12-56V
● Output: DC 12-56V passive PoE
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ45+ RJ78- power supply
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Vertical interface, flexible installation

● Maximum single output power: 50W

● High frequency low resistance electrolytic capacitor, effectively reduce the circuit high frequency loss and heating

● International brand original high-precision electronic components, stable performance

● High power, high conduction and low impedance transistor, stable performance and low heat

●High temperature resistant PCB environmental protection material, lead-free environmental protection process

● Pure copper pin connector, good contact stability

● 1U gold - plated Ethernet port

● Equipped with 80mm connecting line, convenient for users to connect

Product parameter table
Product Name	passive high-power 4-port PoE midspan
Product Model	TSD-MP404
PoE Standard	/
Input Voltage	DC 12-56V
Output	12-56V passive PoE
Conversion Efficiency	≧85%
PoE Pin	RJ45+ RJ78-
Conversion Mode	/
Data Rate	10/100Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	Emerald Green LED: Indicates the working status of the power supply
Interface	Input Port (RJ45 port): data IN Input Port (2-Pin terminal block): DC 12-56V IN Input Port (DC female socket): DC 12-56V IN Output Port (RJ45 port): passive PoE OUT
Function	/
Material	Hard metal shell
Color	glossy black paint
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 130 g
Dimension	11042.524.5 mm

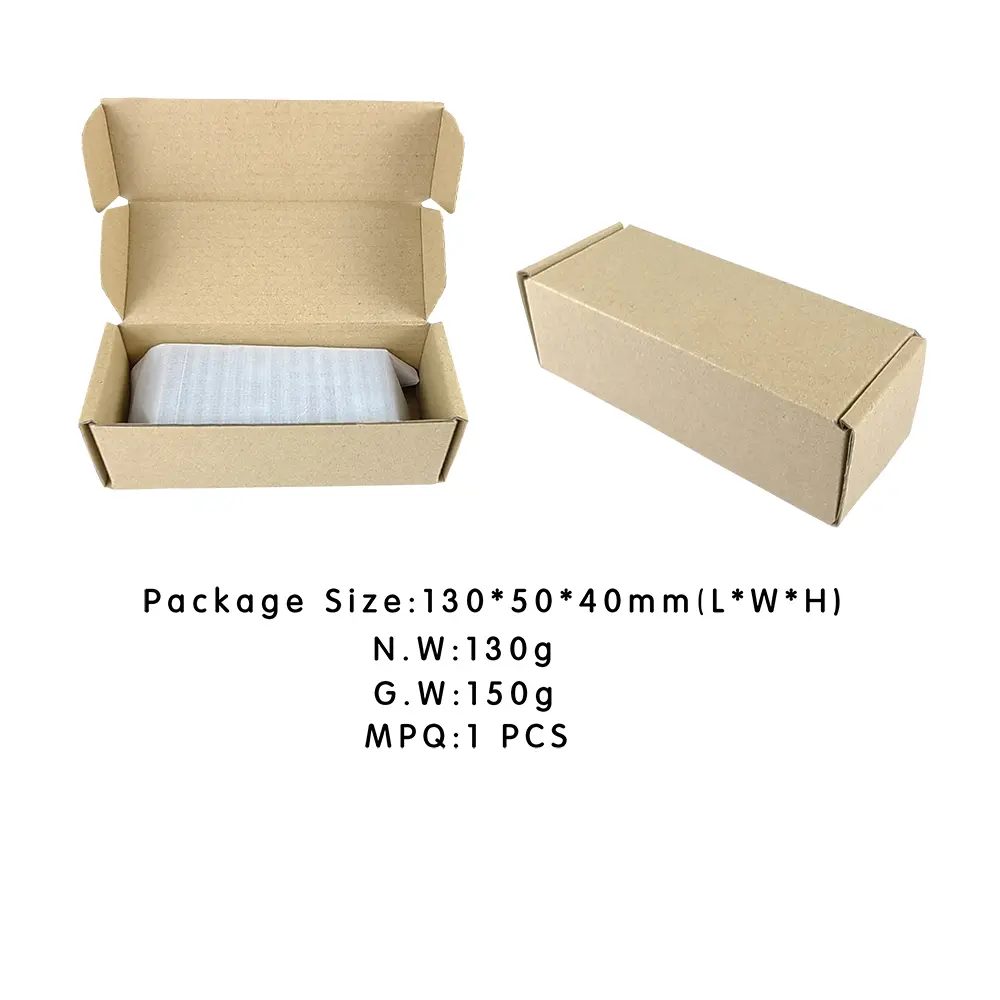

Package	Anti-static pearl cotton + paper box

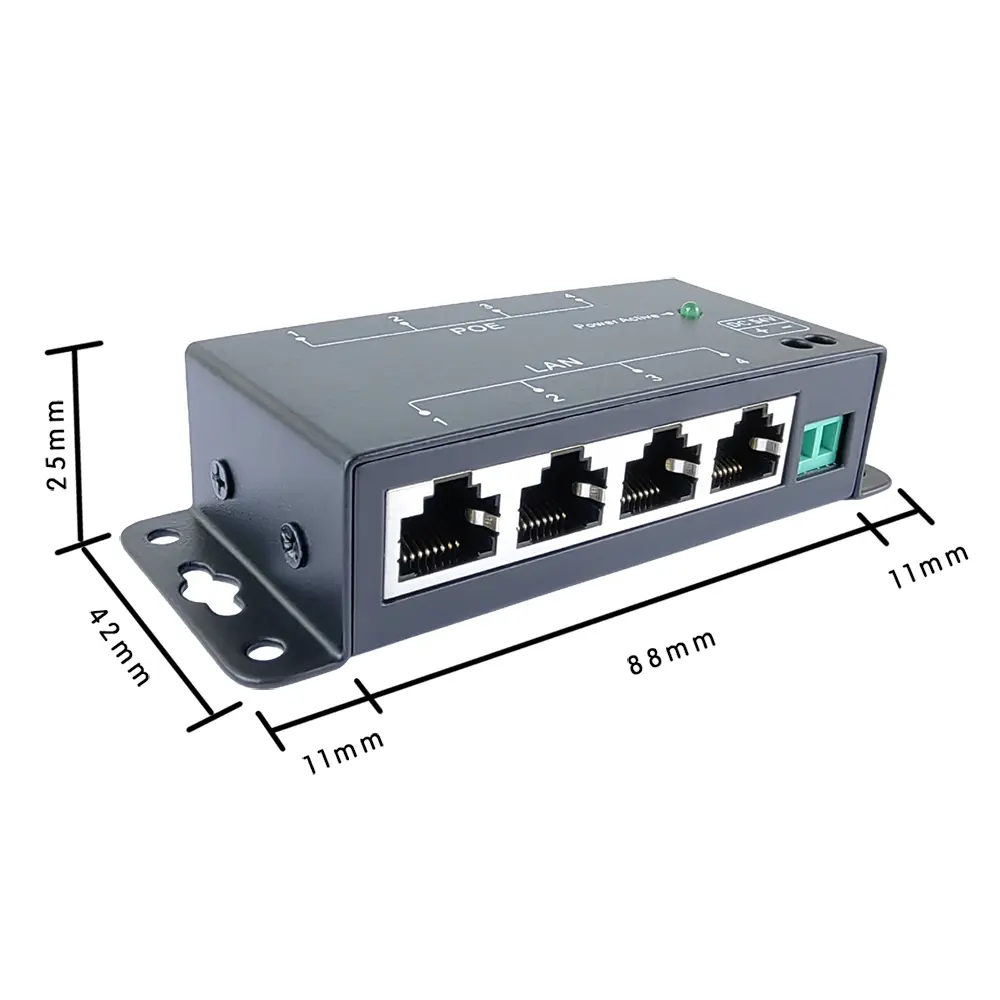

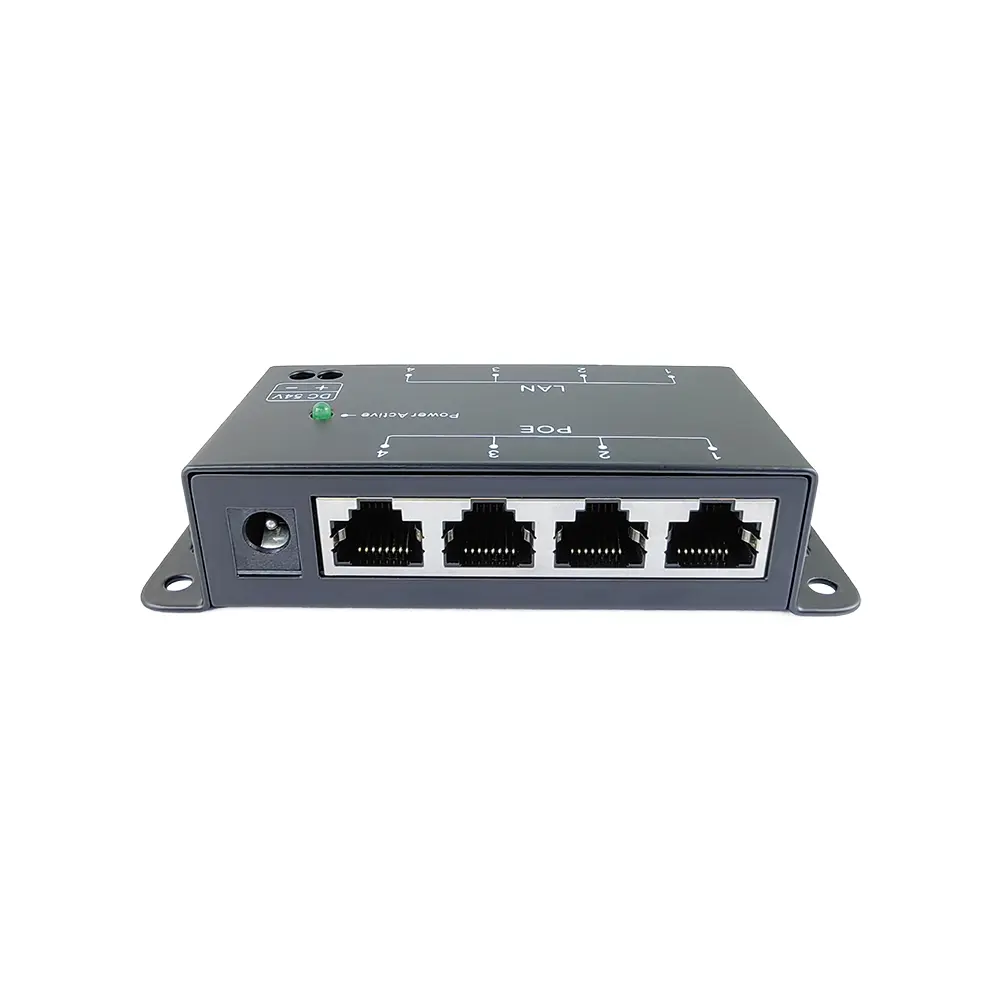

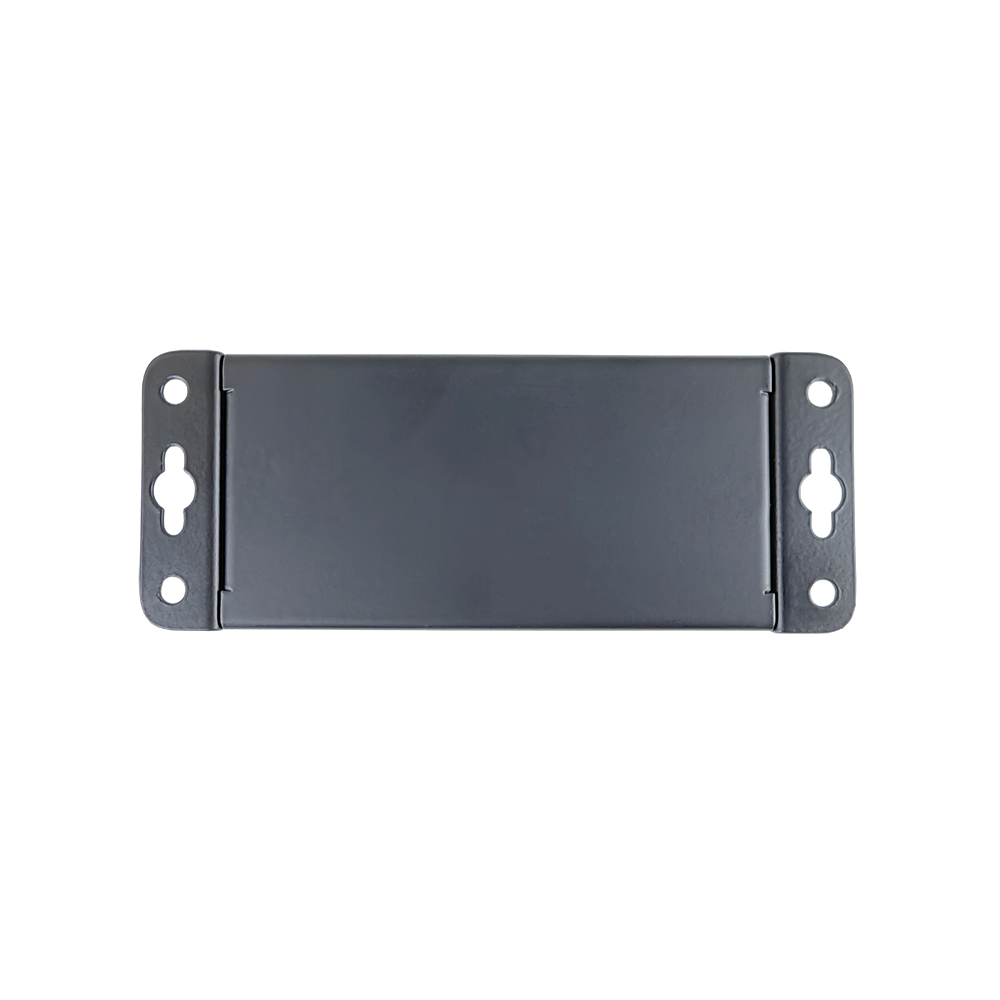

The overall dimensions are 110×42.5×24.5mm (L*W*H). The dimensions of the mounting lug are 11.5×42.5×1.3mm. Emerald Green Indicator Light: Indicates the working status of the power supply.1U Gold-Plated RJ45 Jack: Reduce transmission delay and ensure stable connection of network devices. DC Socket Specification: 5.5×2.1mm. Overall Material: Hard metal shell. Color: Glossy black paint. Total weight: 130 g.
404-dimension

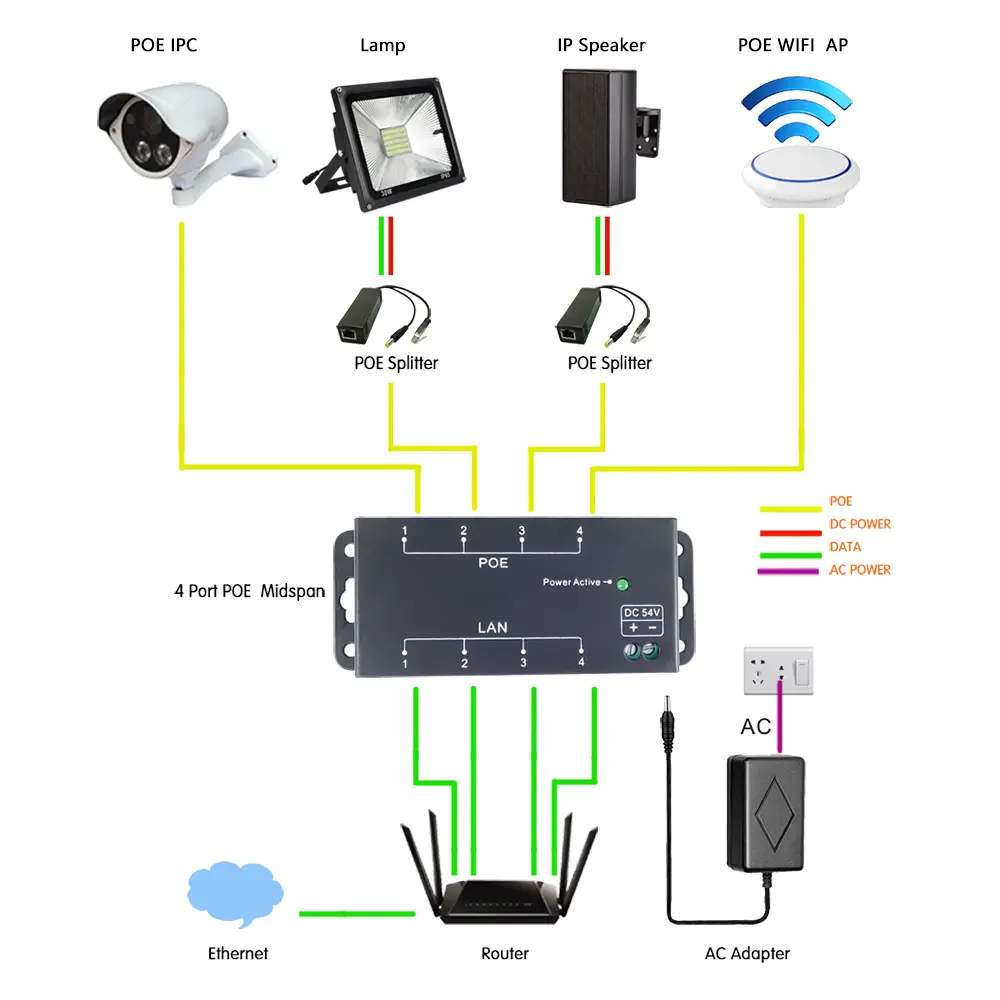

The TSD-MP404 midspan has a maximum single-port output power of 50W. It can expand the PoE power supply range without altering the existing network structure, providing network transmission and power supply for multiple terminal devices while achieving physical isolation between data and power.

The TSD-MP404 midspan offers a simple solution for the rapid deployment of high-power PoE, optimizes the user's network architecture, and reduces deployment costs. It is an indispensable power supply device in the PoE power supply system.

Package list
Items	Quantity
PoE Midspan: TSD-MP404	1
Operation Manual	/
