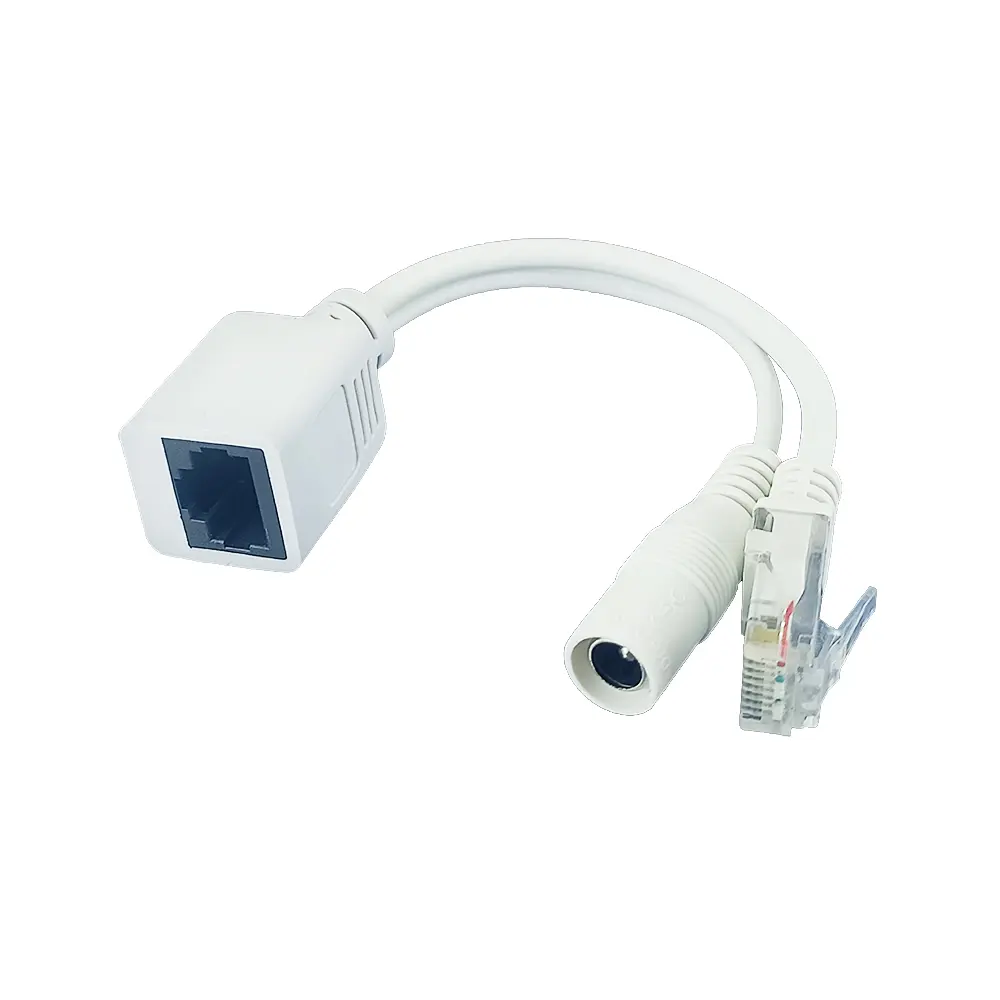

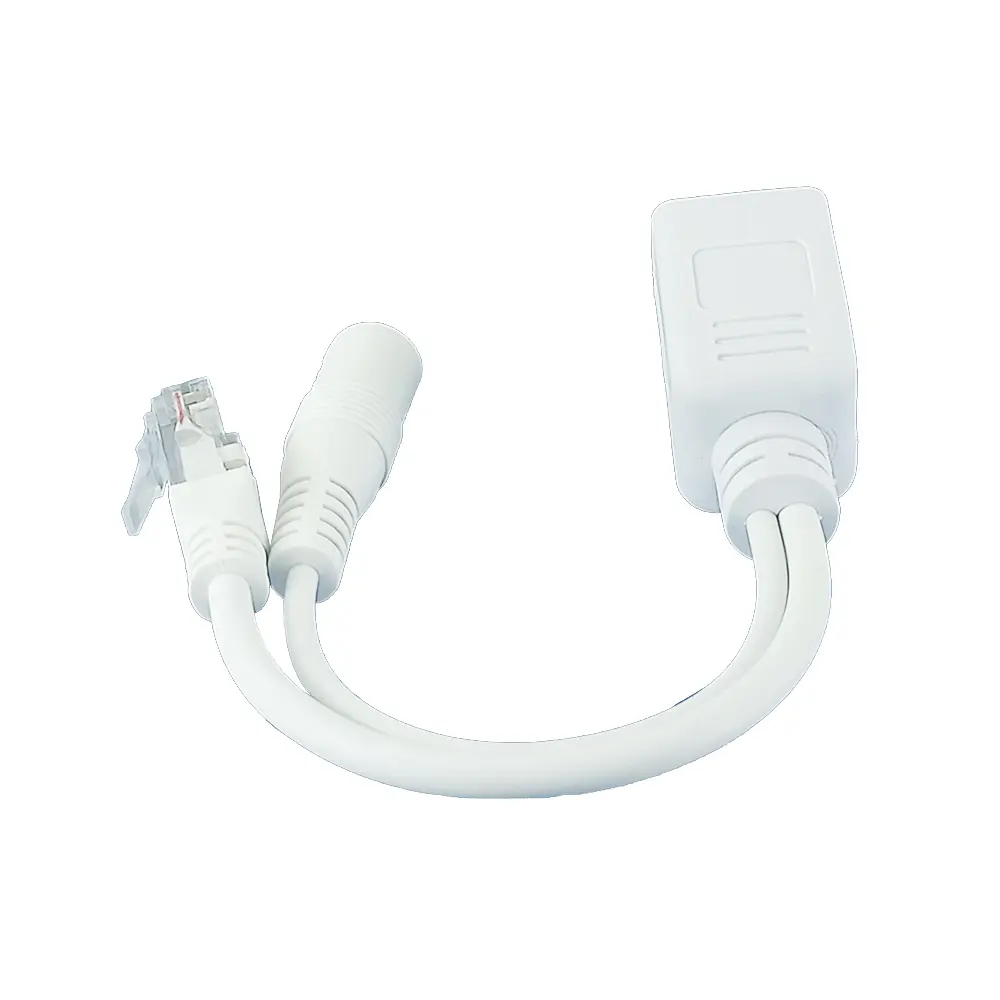

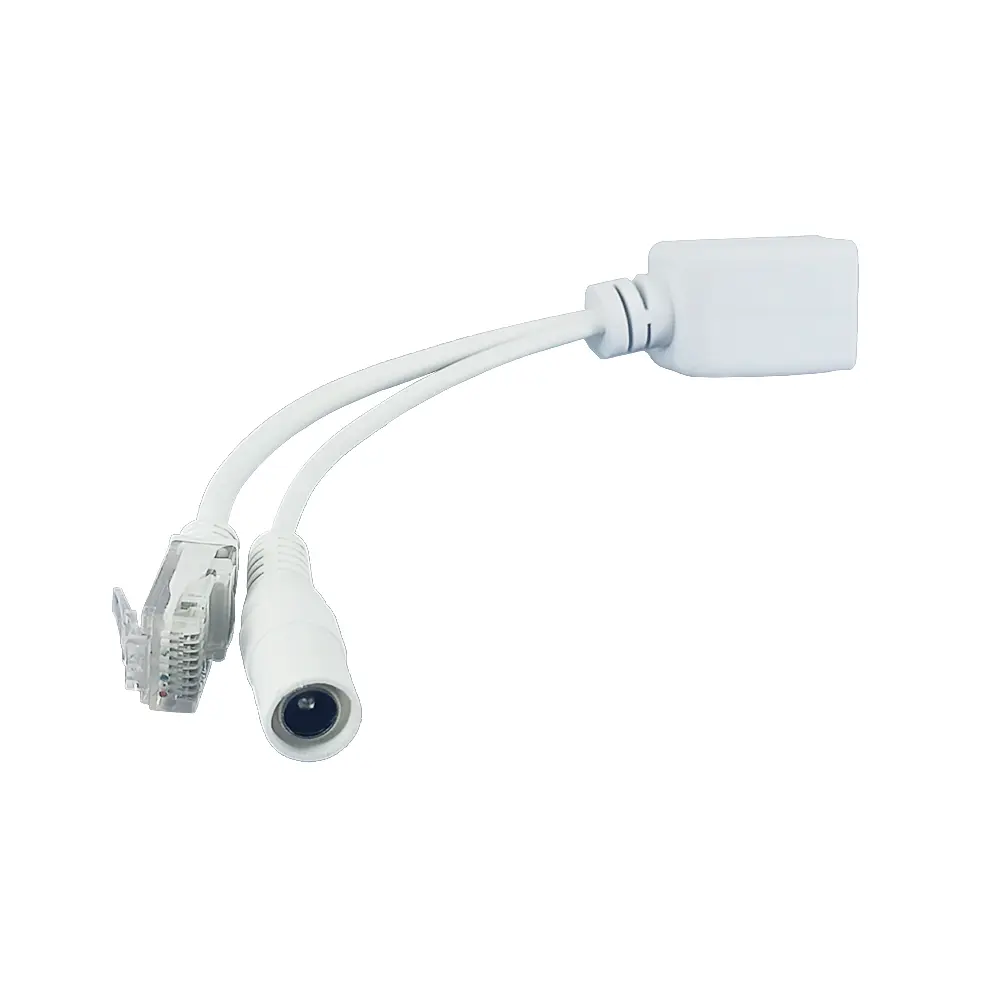

Pass-through 30W Passive PoE Combiner

Model: TSD-PD12H

  • Input: Wide-Range PoE DC 12-56V
  • Output: passive PoE 12-56V
  • Transmission rate: 10/100Mbps
  • Power supply pins: RJ45+ RJ78-
  • Certified by CE, FCC and RoHS
  • Interface: RJ45 Port , 5.5*2.1mm socket
  • Size: 170*19*20mm (L*W*H)
  • Weight: N.W=26 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

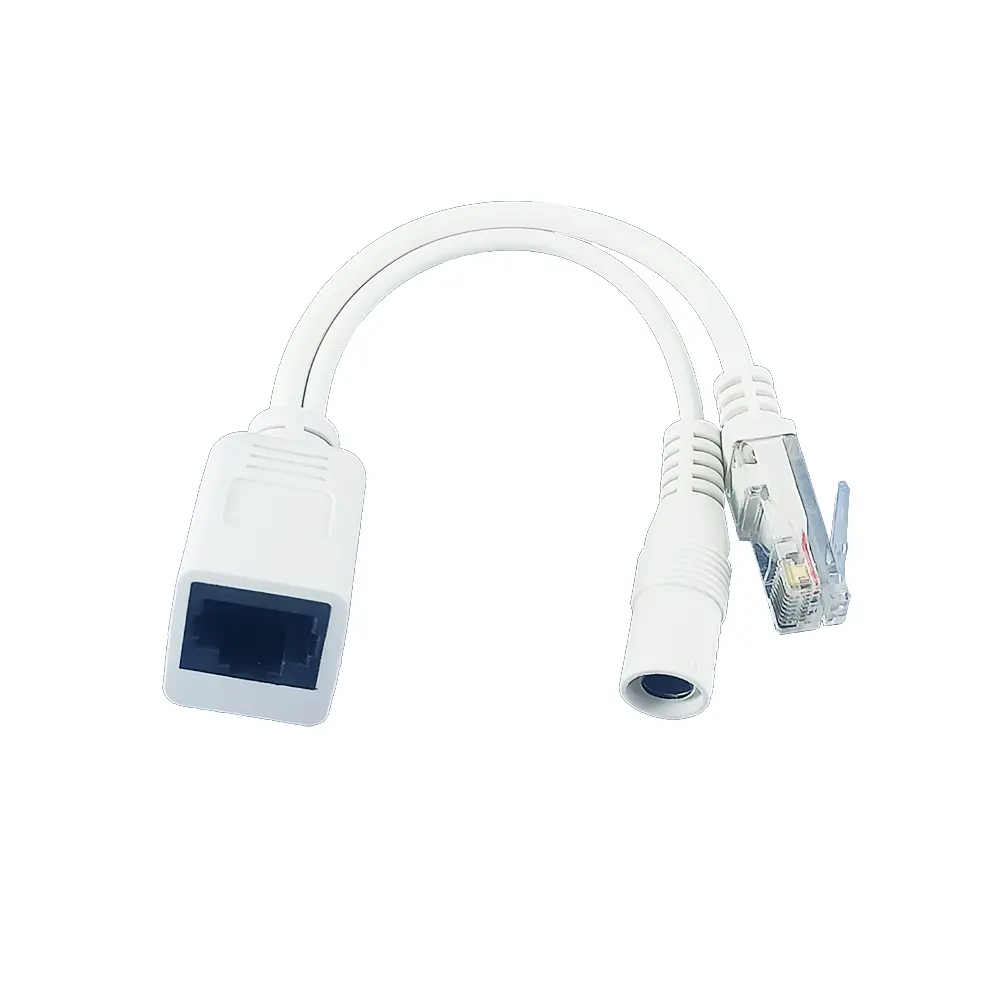

    TSD-PD12H-5
    01

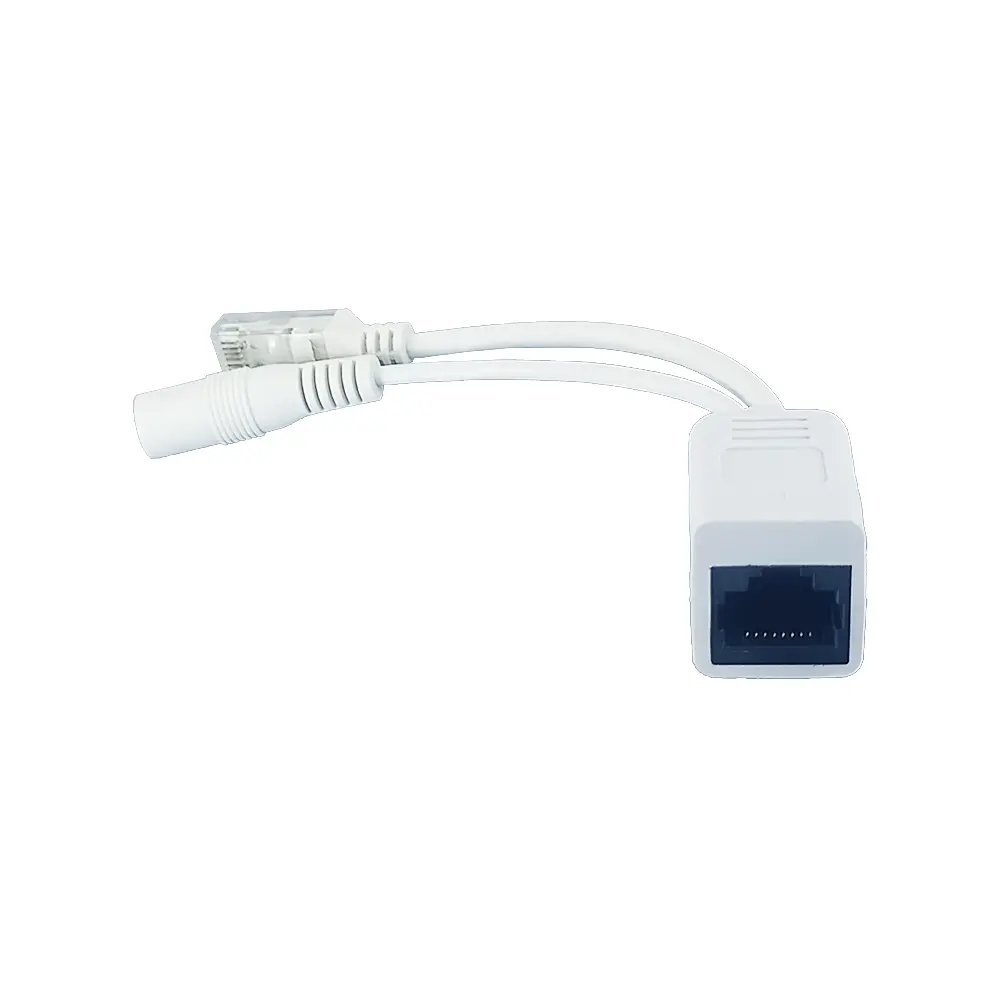

    TSD-PD12H is a direct-through passive PoE combiner with a maximum output power of 30W. It does not support the IEEE 802.3af/at PoE standard protocol. The internal circuit does not have a voltage regulation function. It takes 12-56V DC input and outputs 12-56V passive PoE signal.



    The TSD-PD12H can receive DC and data signals, and after merging and conversion, it outputs one passive PoE signal. It can provide PoE power supply for high-power terminal devices and supports the operation of devices such as PoE IPC and PoE wireless AP.


    ​

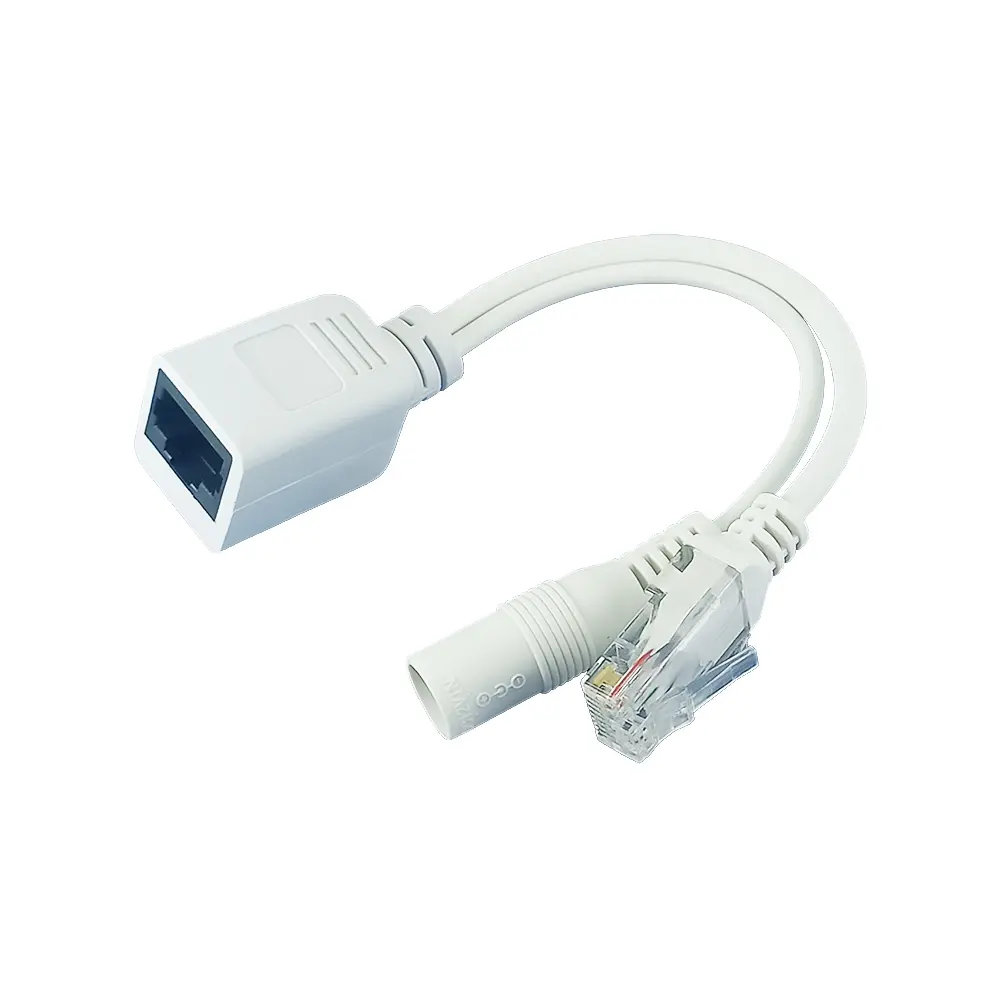

    TSD-PD12H-6
    01

    The TSD-PD12H has two input channels and one output channel. The RJ45 crystal connector: for input data signal; the DC socket: for input of 12-56V DC signal; the RJ45 network port: for output of passive PoE signal, with a direct connection output, and the output voltage: 12-56V.


    TSD-PD12H has obtained certifications such as CE, FCC, and RoHS, and its EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards. The circuit has protection functions against lightning strikes, short circuits, overloads, and high temperatures. The product is sold in many countries and regions around the world.

    The maximum output power of TSD-PD12H is 30W. The transmission rate is 10/100Mbps adaptive transmission. It supports a wide voltage input range of DC 12~56V, and an output voltage range of DC 12~56V. The power supply pins are: RJ45 + RJ78 -.



    ● Input:​​ Wide-range PoE DC 12-56V
    ● Output:​​ DC 12-56V passive PoE
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility:  RJ45+ RJ78- power supply
    ● Transmission Rate:​​ 10/100Mbps Auto-Negotiation
    ● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● Through-type input and output

    ●  DC socket specification: 5.5*2.1mm

    ● High-temperature-resistant and environmentally friendly ABS plastic casing

    ● Equipped with original high-precision electronic components from international brands, ensuring stable performance

    ● High power, high conduction and low impedance transistor, stable performance and low heat

    ●High temperature resistant PCB environmental protection material, lead-free environmental protection process

    ● Pure copper pin connector, good contact stability

    Product parameter table

    Product Name

    pass-through 30W passive PoE combiner

    Product Model

    TSD-PD12H

    PoE Standard

    /

    Input Voltage

    DC 12-56V

    Output

    passive PoE 12-56V

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ45+ RJ78-

    Conversion Mode

    /

    Data Rate

    10/100Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    /

    Interface

    Input Port  (RJ45 connector): data IN

    Input Port  (DC female socket): DC 12-56 V IN

    Output Port (RJ45 Jack): passive PoE OUT

    Function

    /

    Material

    High-temperature-resistant and environmentally friendly ABS plastic

    Color

    Matte white and matte black

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 26 g

    Dimension

    170*19*20 mm

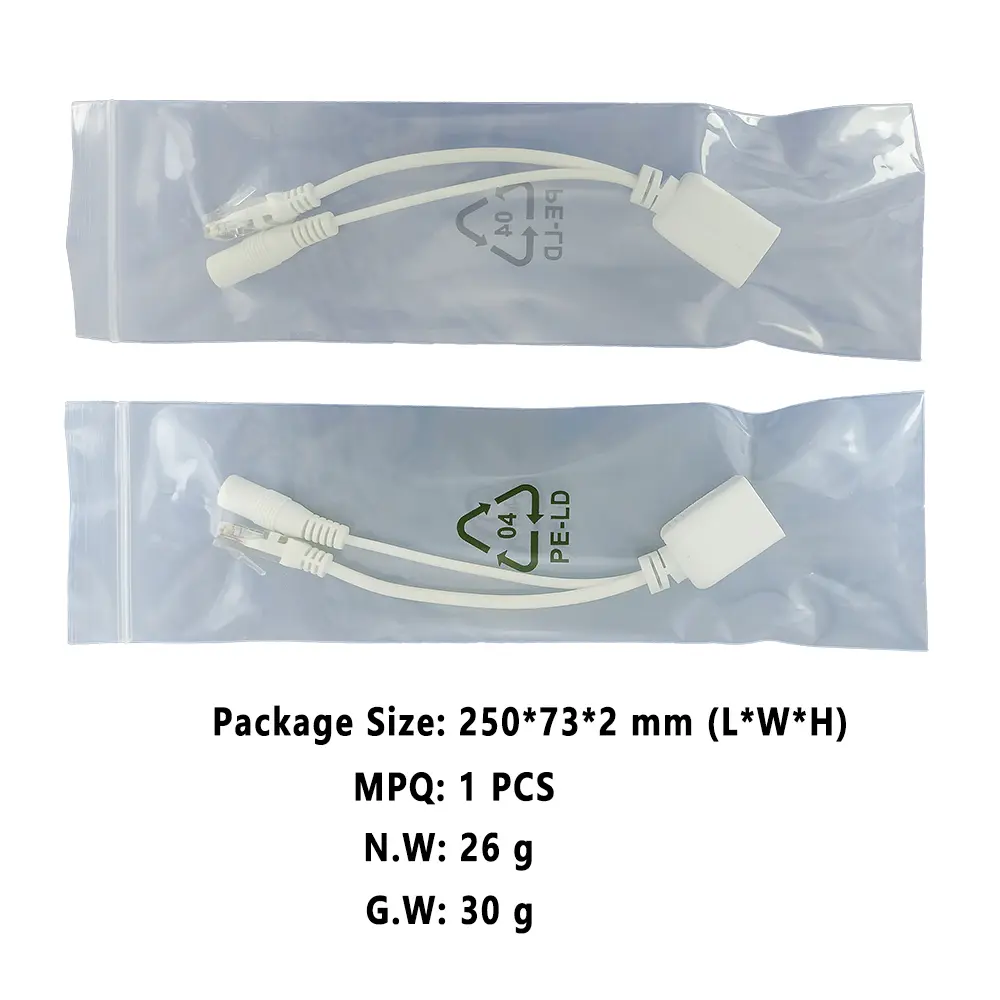

    Package

    Transparent LDPE Packaging Bag

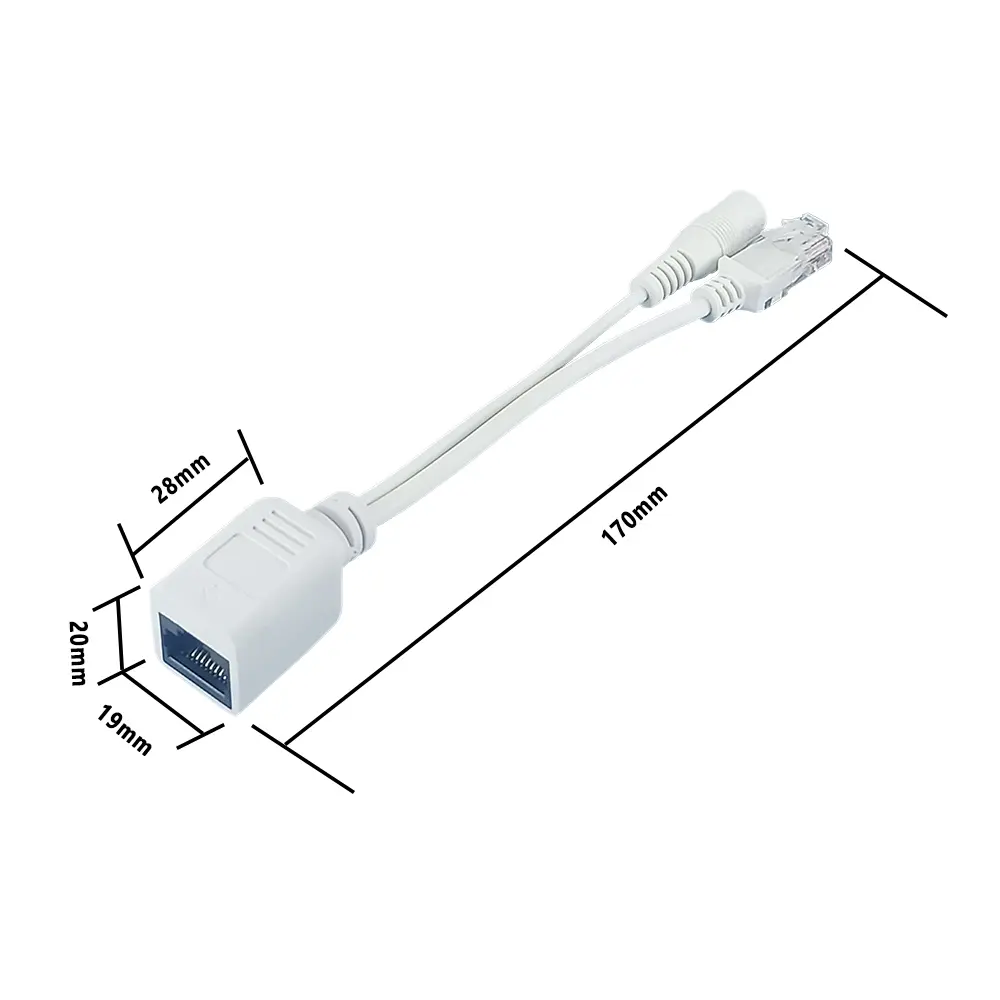

    Size and structure: 170*19*20mm (Length*Width*Height), with a center length of 142mm. DC socket specification: 5.5*2.1mm. Overall material: High-temperature resistant and environmentally friendly ABS plastic casing, colors: frosted white, frosted black.
    Dimension

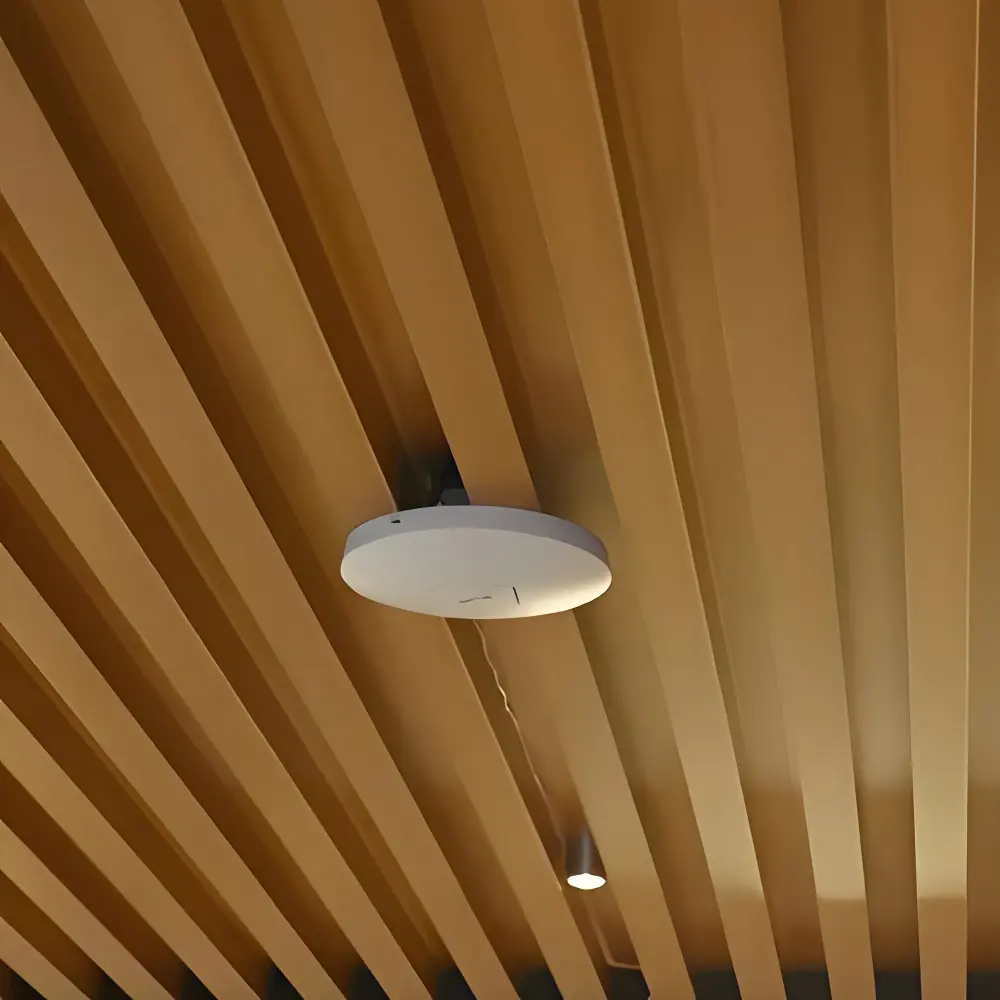

    The TSD-PD12H is small, lightweight, and easy to install and use. With a maximum output power of 30W, it can be flexibly applied in various indoor and outdoor wiring scenarios to meet the diverse needs of users. It supports the operation of high-power IP devices such as cameras and wireless APs. The TSD-PD12H has won unanimous praise from equipment manufacturers and end users for its stable operation, excellent performance, and flexible deployment.

    The TSD-PD12H does not support the IEEE802.3af/at standard protocol. When powering, it supplies power directly to the terminal device without going through a detection process. Therefore, users should be aware that the power-receiving device should be compatible with the output voltage of the TSD-PD12H; otherwise, it may cause the device to malfunction.

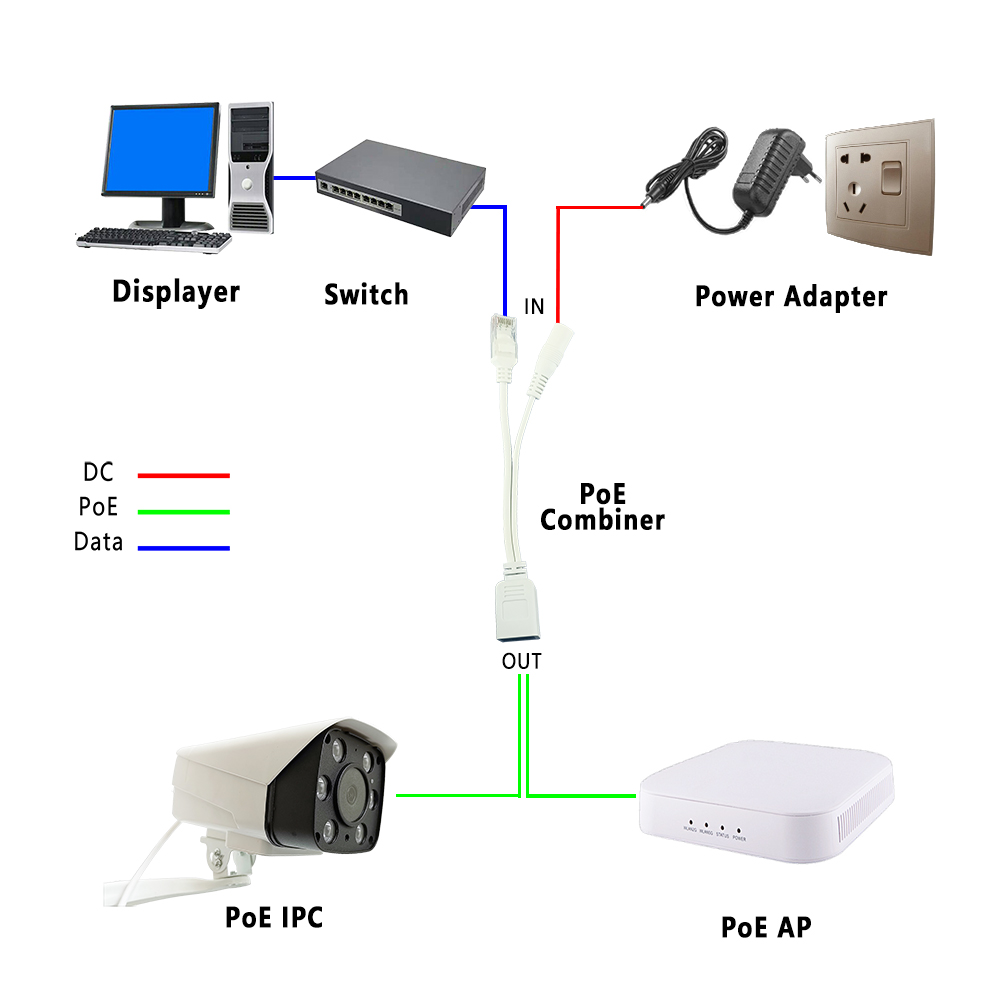

    Topography
    Application1
    Application2
    Application3

    Package list
    Items Quantity
    PoE Combiner: TSD-PD12H 1
    Operation Manual /
    Package
    Interface
