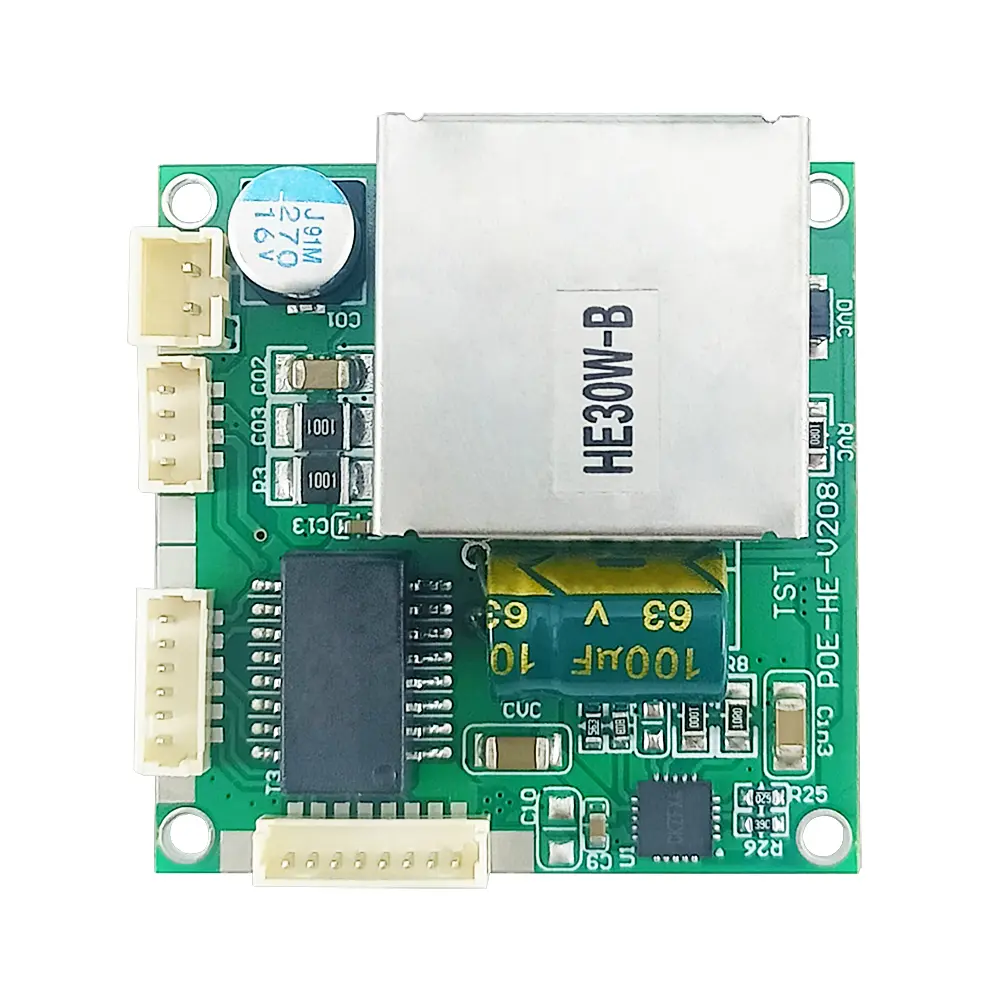

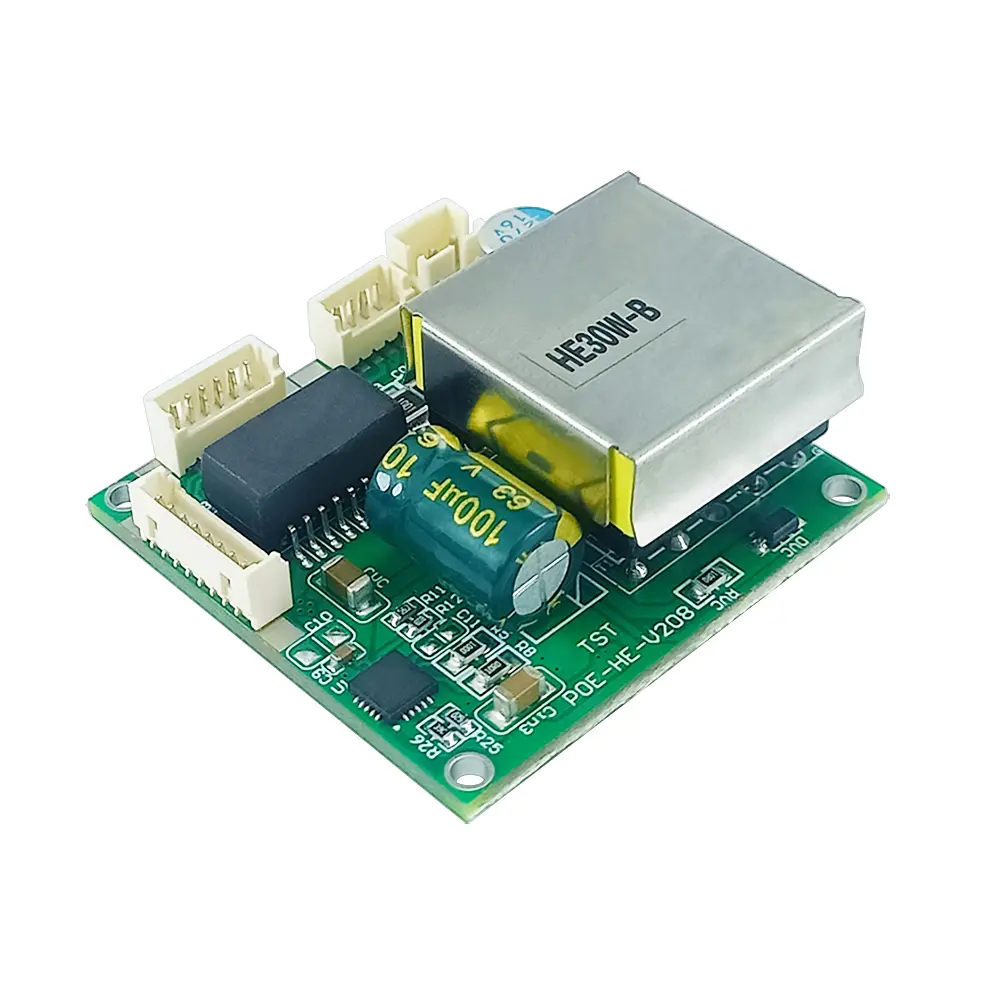

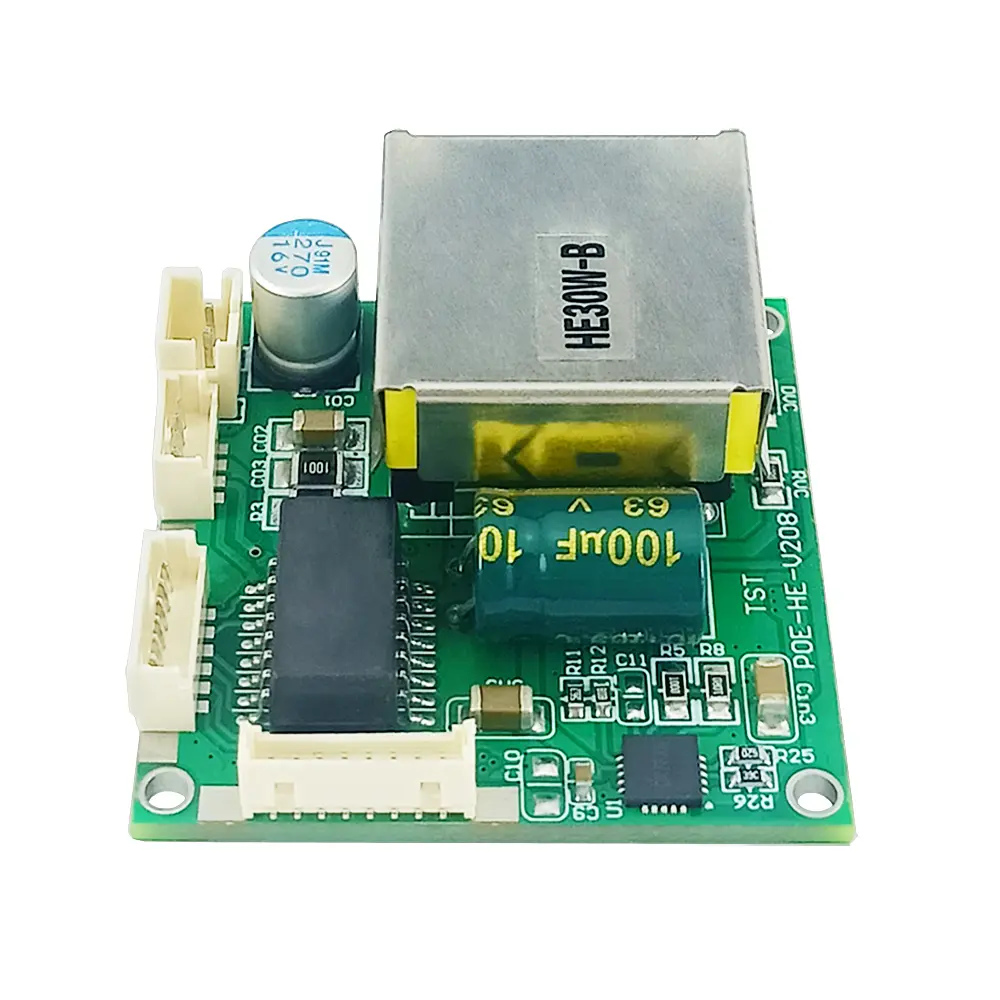

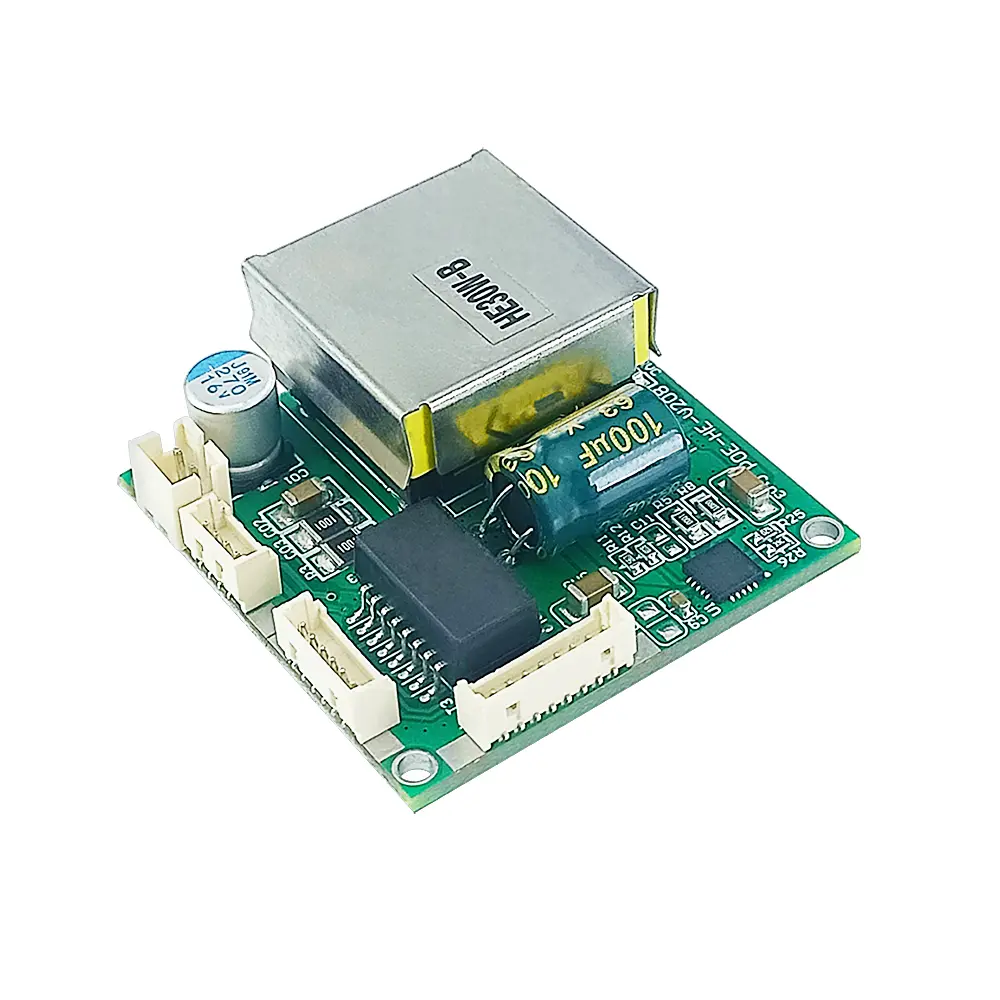

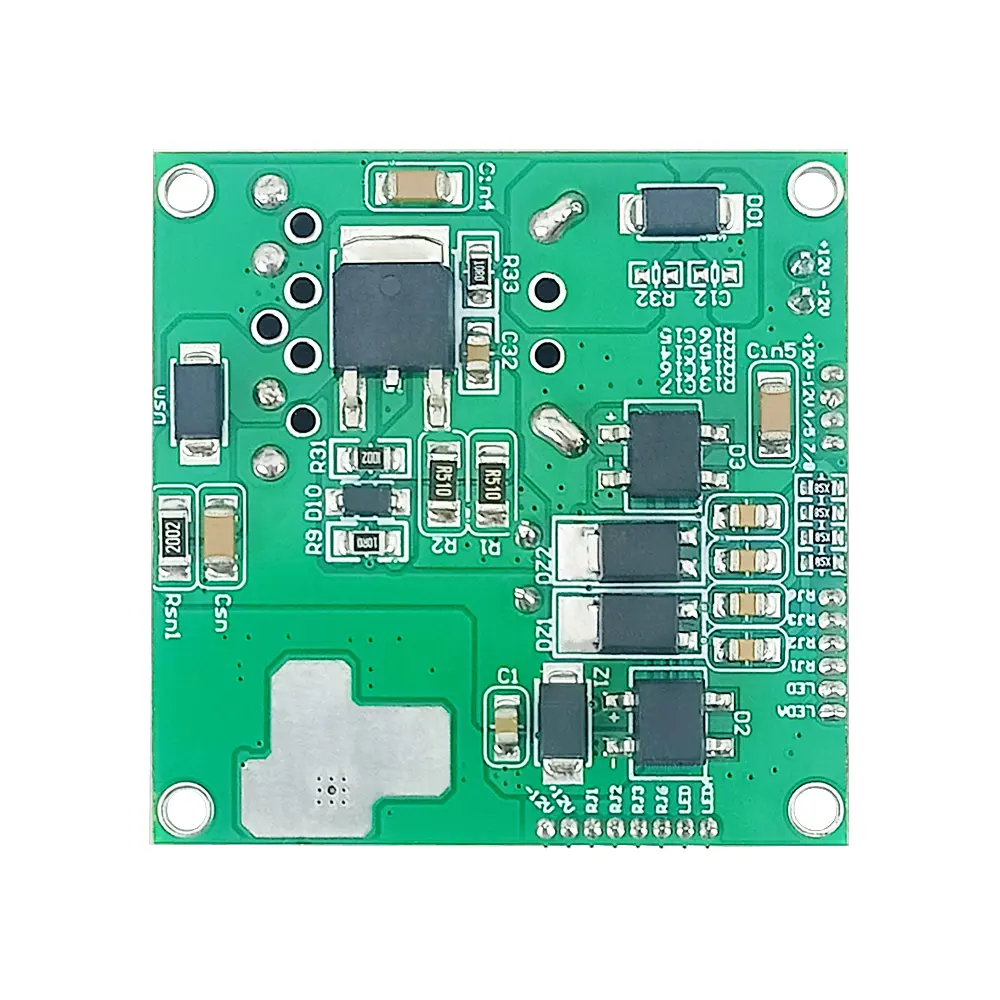

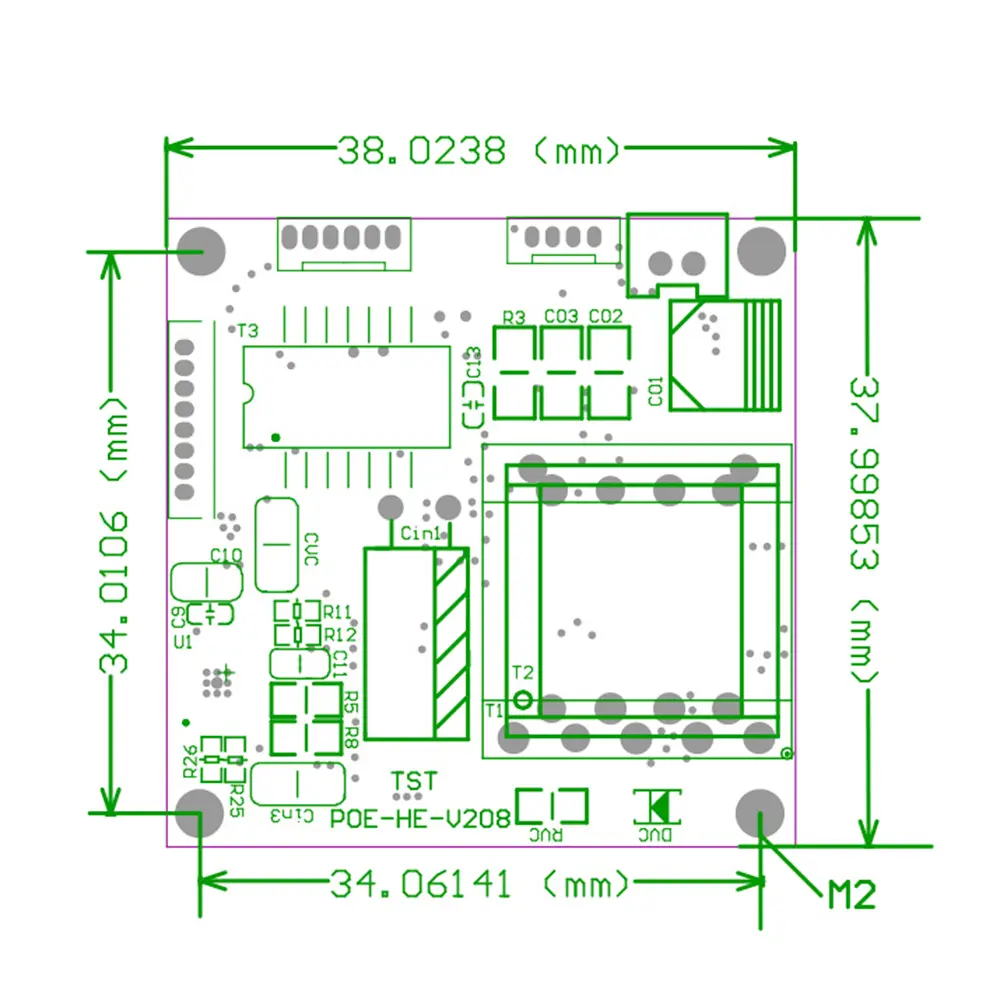

The TSD-PD3827 is an isolated PD module with electrical isolation and safety assurance functions using a bobbin EE19 isolation transformer with a shielding case. The circuit has the functions of overheat protection, overvoltage protection, overcurrent protection, short circuit protection and so on. The maximum output power is 30W. Transmission rate: 10/100Mbps adaptive. Support wide voltage input DC 38-56V, default output voltage DC12V, other voltage can be customized.
● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements

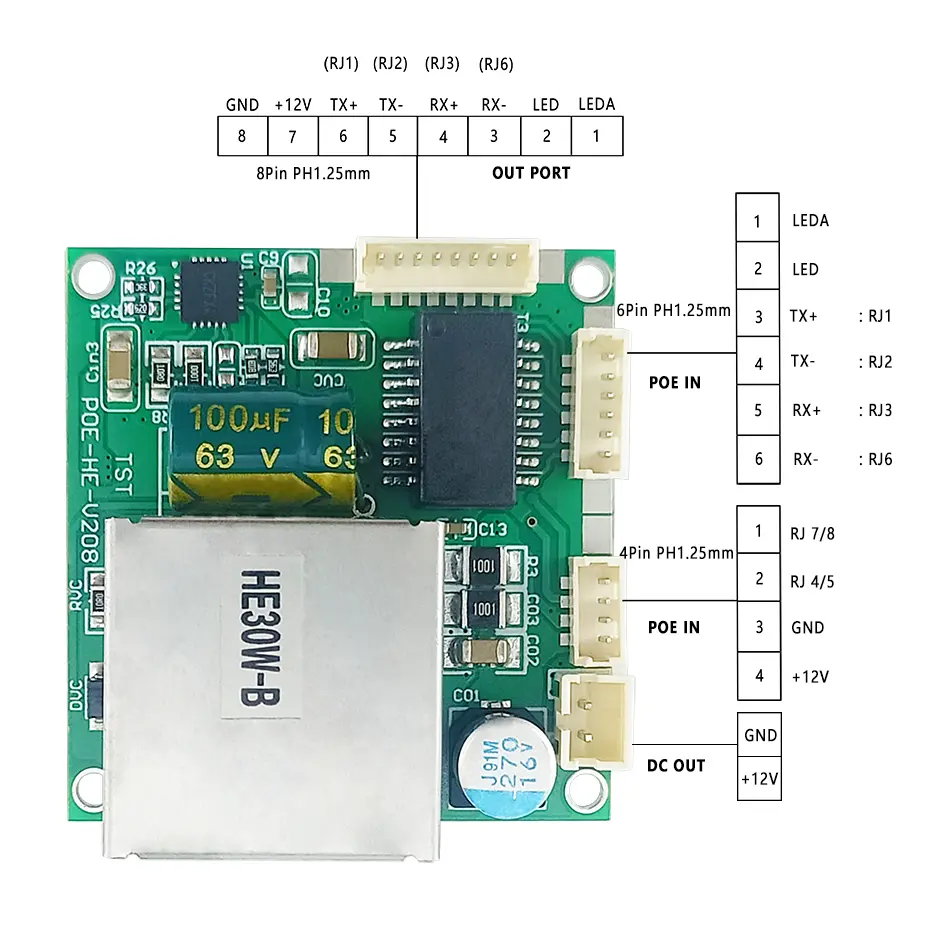

● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 6KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Vertical interface, space saving, easy
installation
● High frequency low resistance electrolytic capacitor, reduce circuit high frequency wastage and heat
● Patch solid capacitor, long life and high safety, improve module power supply stability
● International brand original electronic components, excellent precision and high performance
● Large power, high conduction and low impedance transistor, excellent reliability and temperature tolerance
● Environmental protection high temperature resistant PCB material, environmental protection lead-free process
● Pure copper pin connector to ensure safety performance
● High-Power, High-Conductivity, Low-Impedance Transistors
● High temperature resistant flame retardant interface socket, reduce security risks
● Isolation transformer: EE19 bobbin, with shielding case, high electrical safety
● Equipped with 80mm connecting line for easy customer connection
