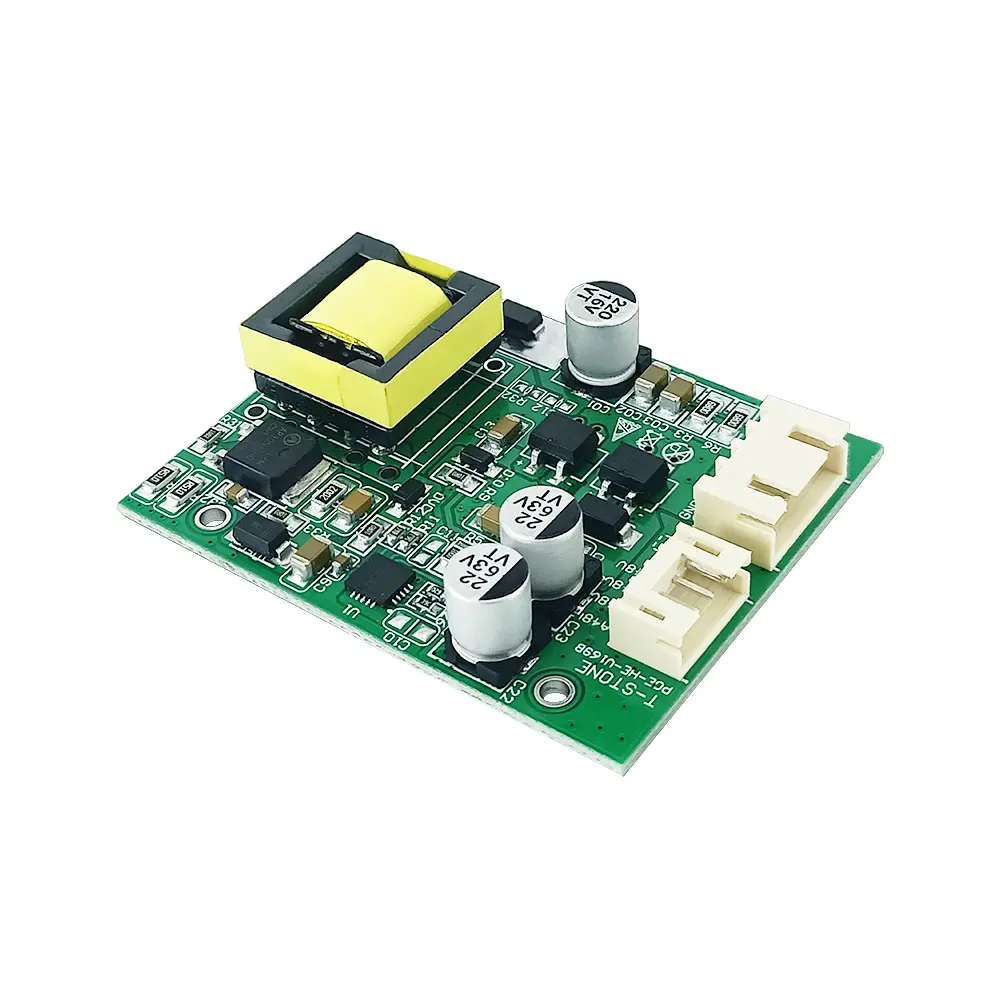

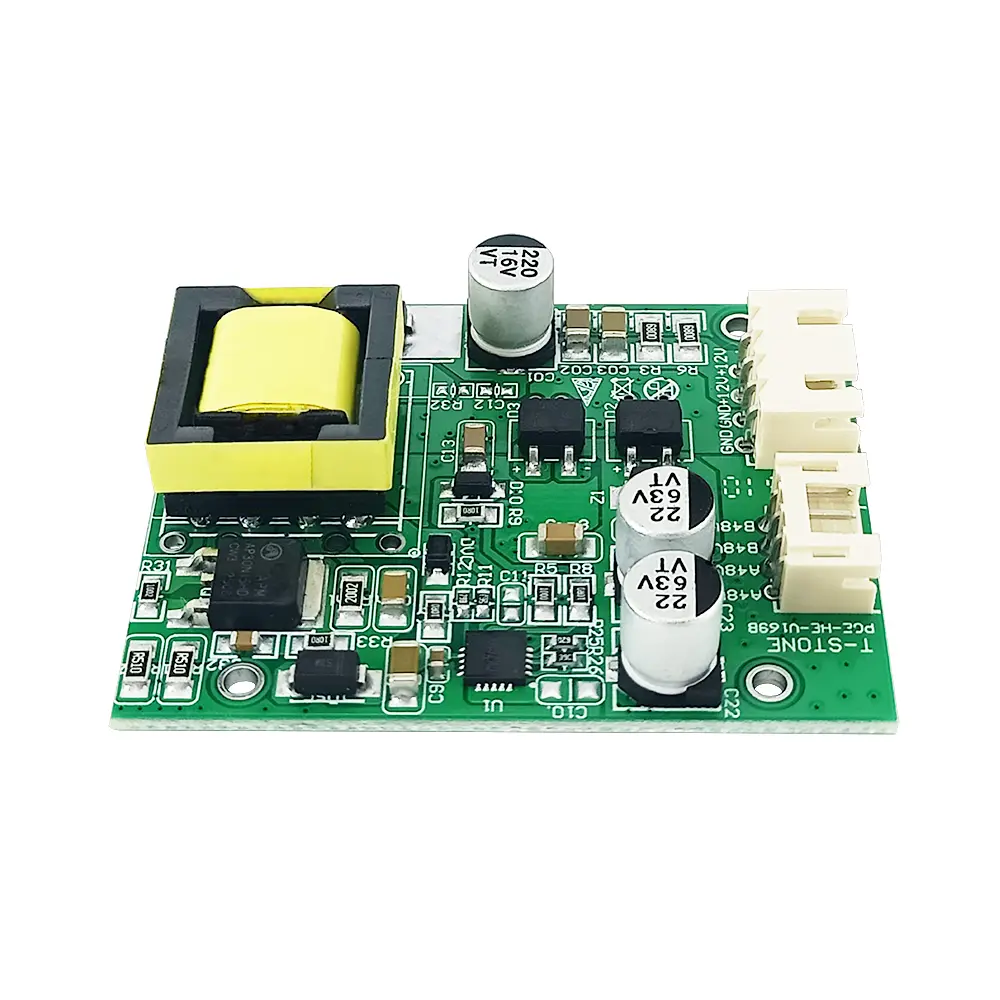

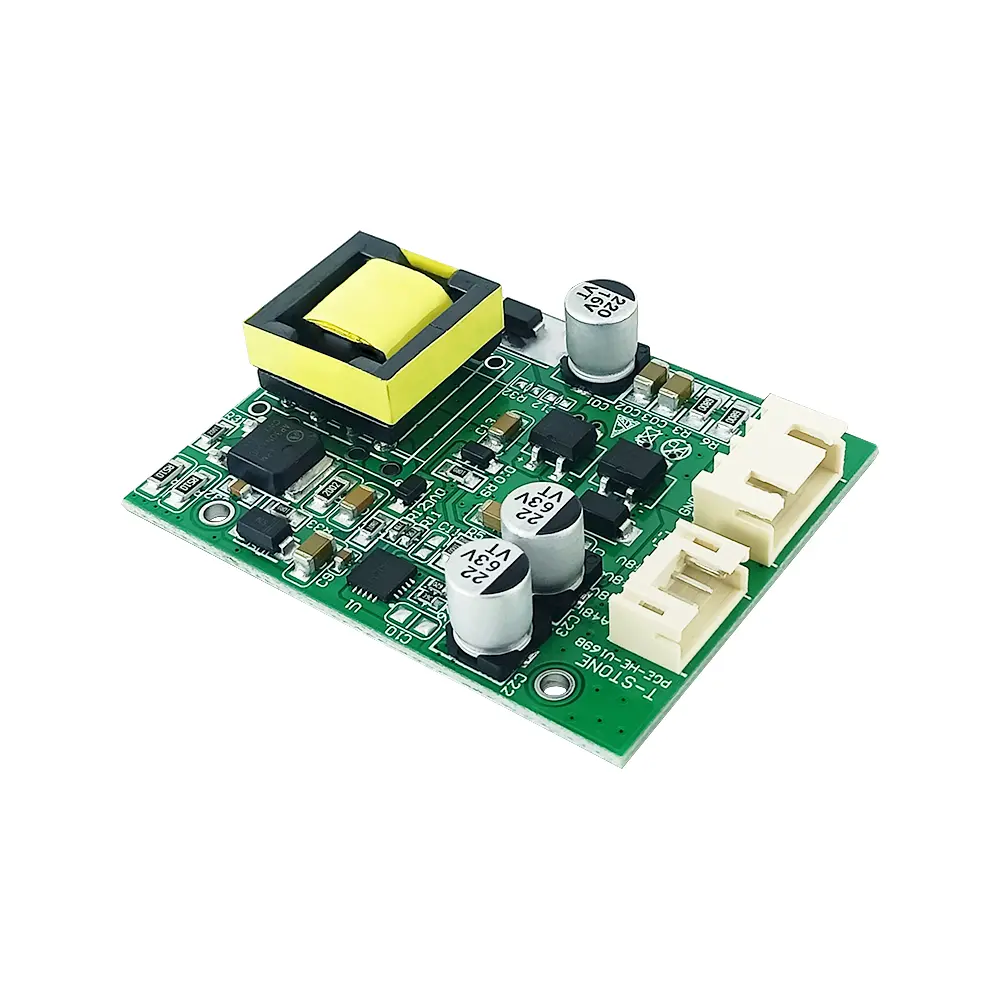

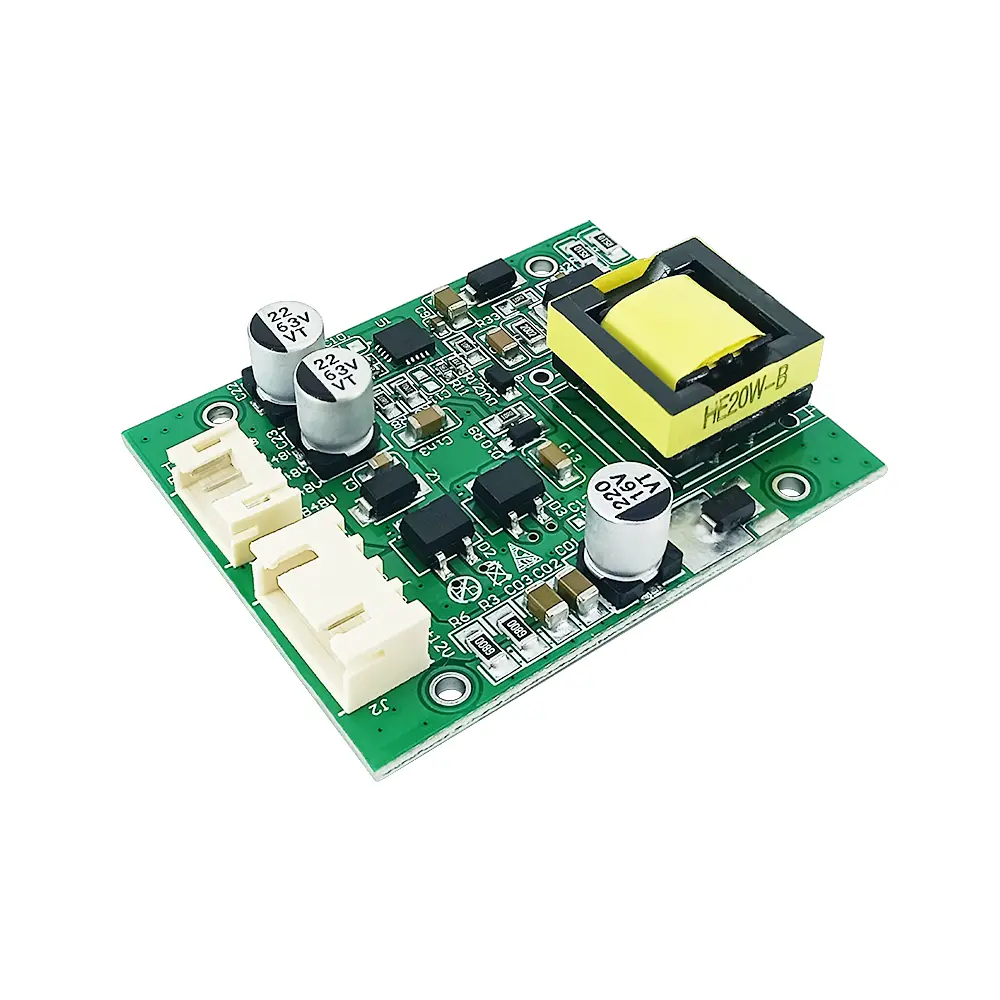

Isolated PoE module for commercial displays

Model: TSD-V169B/169B-30

Input: Wide-Range PoE DC 38-56V
Output: DC 12V 1.5A/12V 2.5A
PoE protocol: IEEE 802.3af/at
Conversion efficiency ≧85%
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH2.0 /2.54 Socket
Size: 50*40*11 mm (L*W*H)
Weight: N.W=15g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

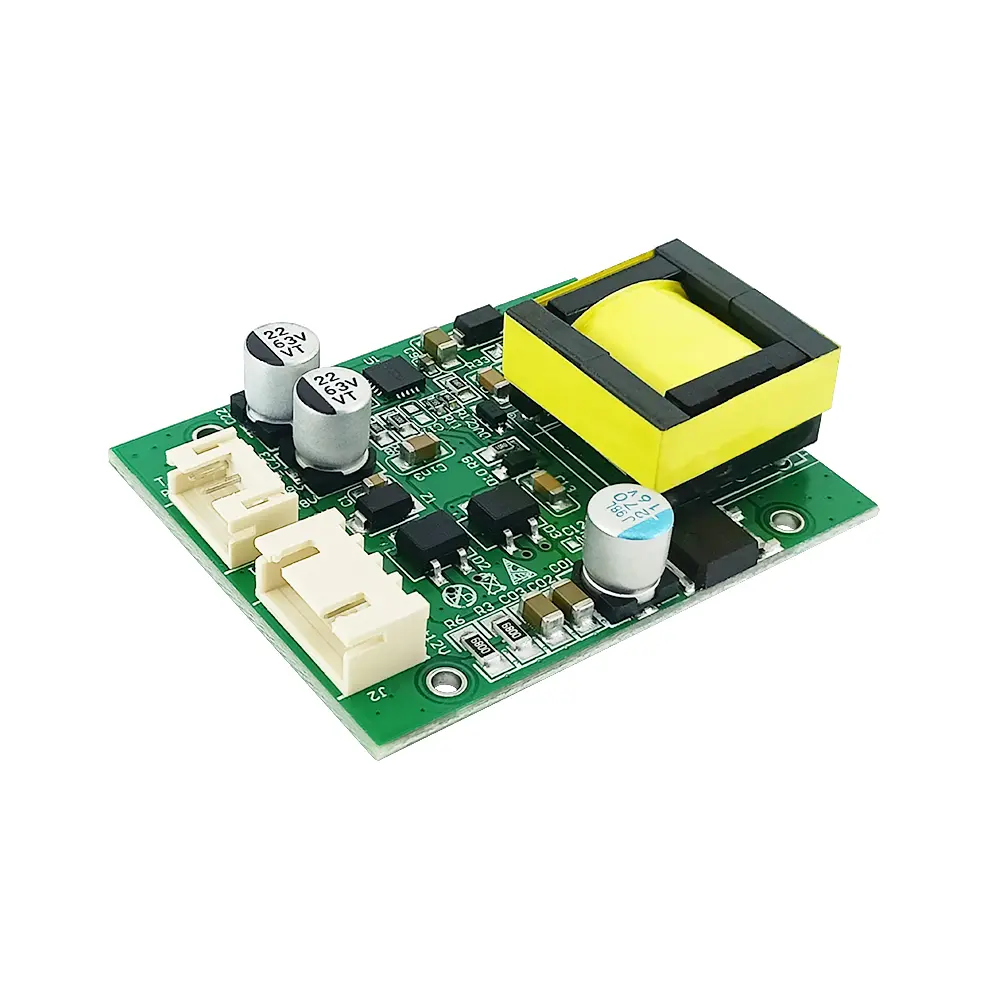

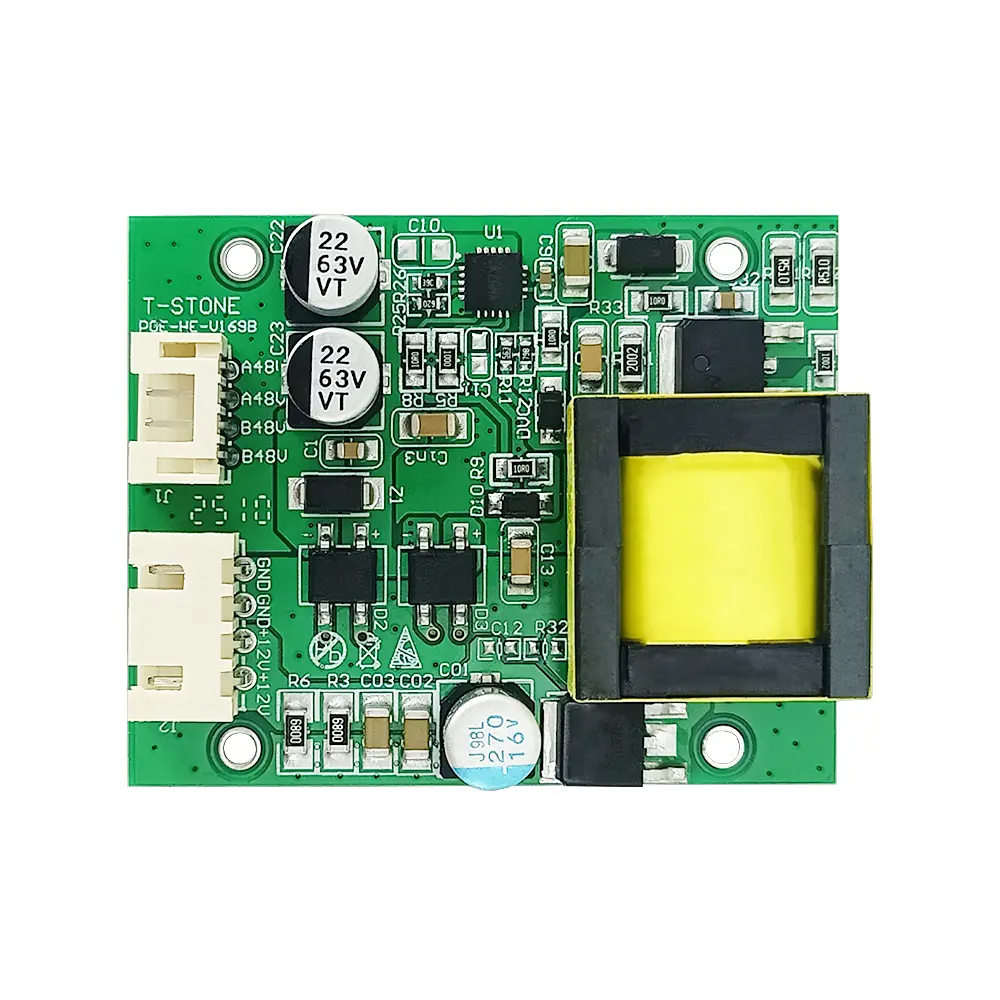

The TSD-V169B is a PoE module that can be used in commercial displays, all-in-one machines, electronic class signs, and other devices. It takes a 38-56V DC signal as input in the PoE signal, converts it, and outputs a DC 12V 1.5A signal.The V169B product series includes two models in total:TSD-V169B: Outputs 12V 1.5A direct current, with a maximum output power of 20W;TSD-V169B-30: Outputs 12V 2.5A direct current, with a maximum output power of 30W.

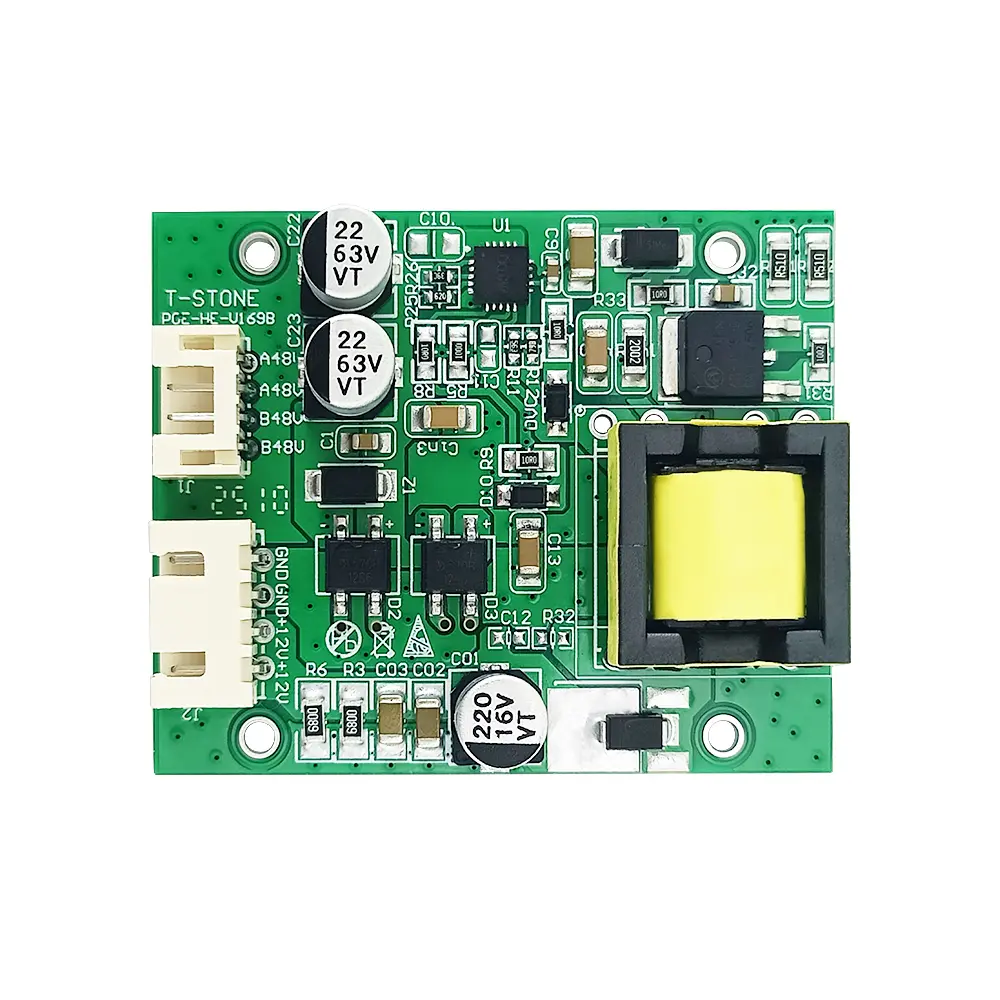

TSD - V169B Module Interface and Dimensions: 4 - pin PH2.0mm socket: DC 38 - 56V IN, 4 - pin PH2.54mm socket: DC 12V 1.5A/2.5A OUT.

The TSD-V169B complies with the IEEE802.3af PoE standard protocol. It has obtained certifications such as CE, FCC, and RoHS. The product's EMC parameters meet the requirements of IEC 61000 - 4 - 2/3/4/5/6 standards. High - quality original components from well - known brands are used in the product, ensuring high precision, excellent performance, and reliable quality and safety. Since its launch on the market, it has received unanimous praise from domestic and international users.

The TSD - V169B is a PoE module with isolation function. In addition, the module's circuit is equipped with multiple protection functions, including 4KV surge protection, over - heat protection, over - voltage protection, over - current protection, and short - circuit protection. These features enable it to operate safely in various scenarios. The TSD - V169B has a maximum output power of 20W. It supports wide - voltage DC input ranging from 38V to 56V and provides a 12V 1.5A DC output signal.

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 1.5A/12V MAX 2.5A
● Compliance: IEEE 802.3af / IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Provides 4KV surge protection to safeguard the device from voltage spikes

● Conversion efficiency≧85%
● Employs a pure-copper, thick-wire- core transformer for efficient power conversion

● The PCB is made of environmentally friendly, high - temperature - resistant material

● Equipped with solid - state surface - mount capacitors, which offer a long service life and stable performance

● Features a tow-layer board with single - side design
● Made of beige,high - temperature - resistant, flame -reardant materials.It uses horizontal interface sockets.
● Uses high -precision electronic components from well known brands to ensure reliable operation

Items	Specifications
Product Name	Isolated PoE module for commercial displays
Product Model	TSD-V169B	TSD-V169B-30
PoE Standard	IEEE802.3af	IEEE802.3af/at
Input	POE: DC 38-56V
Output	DC12V max1.5A	DC12V max2.5A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated
Data Rate	/
Transmission Distance	100 meters
Surge Protection	4KV
Circuit Protection	Overload Protection, Overheating Protection Overvoltage Protection, Short circuit Protection
LED Indicator	/
Interface	Input Port(4 - Pin PH2.0mm Socket): DC 38-56V IN Output Port (4 - Pin PH2.54mm Socket): DC 12V OUT
Function	/
Material	FR-4
Color	Bright green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 15g
Dimension	504011 mm (LWH)
Package	Anti-static pearl cotton

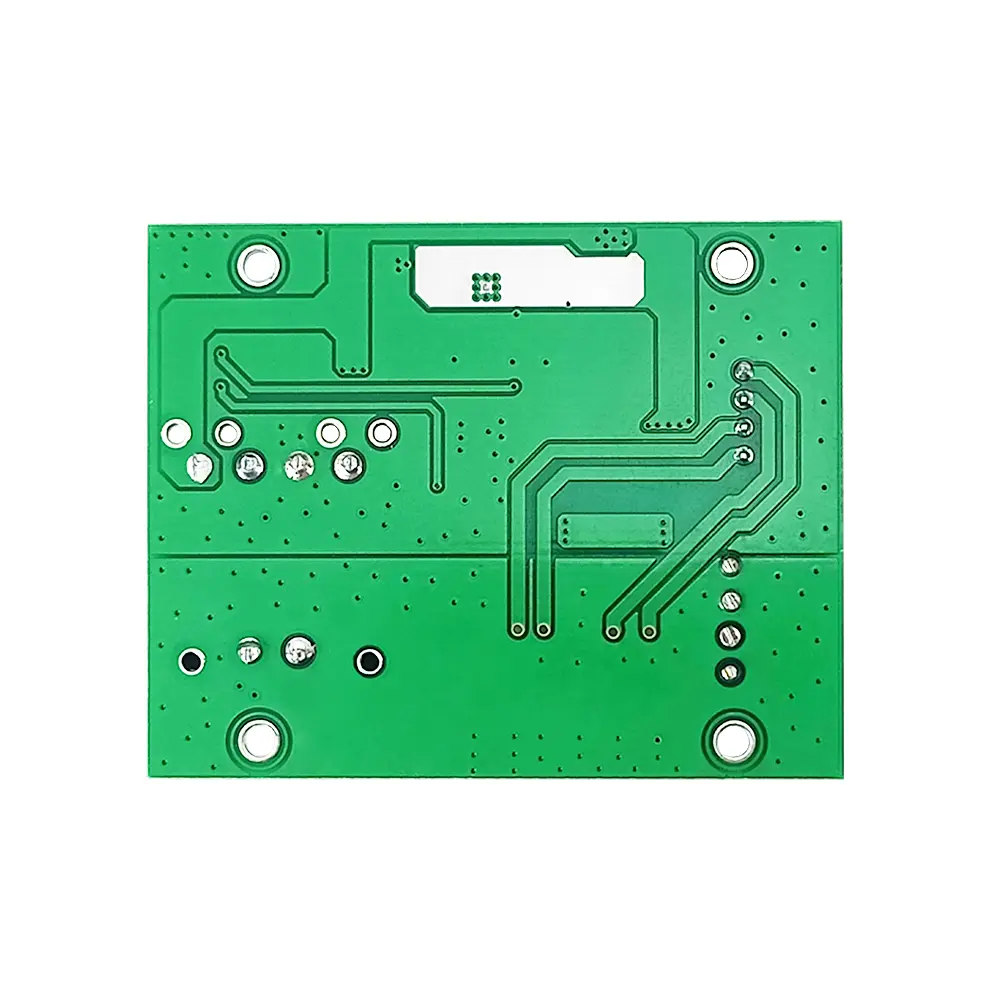

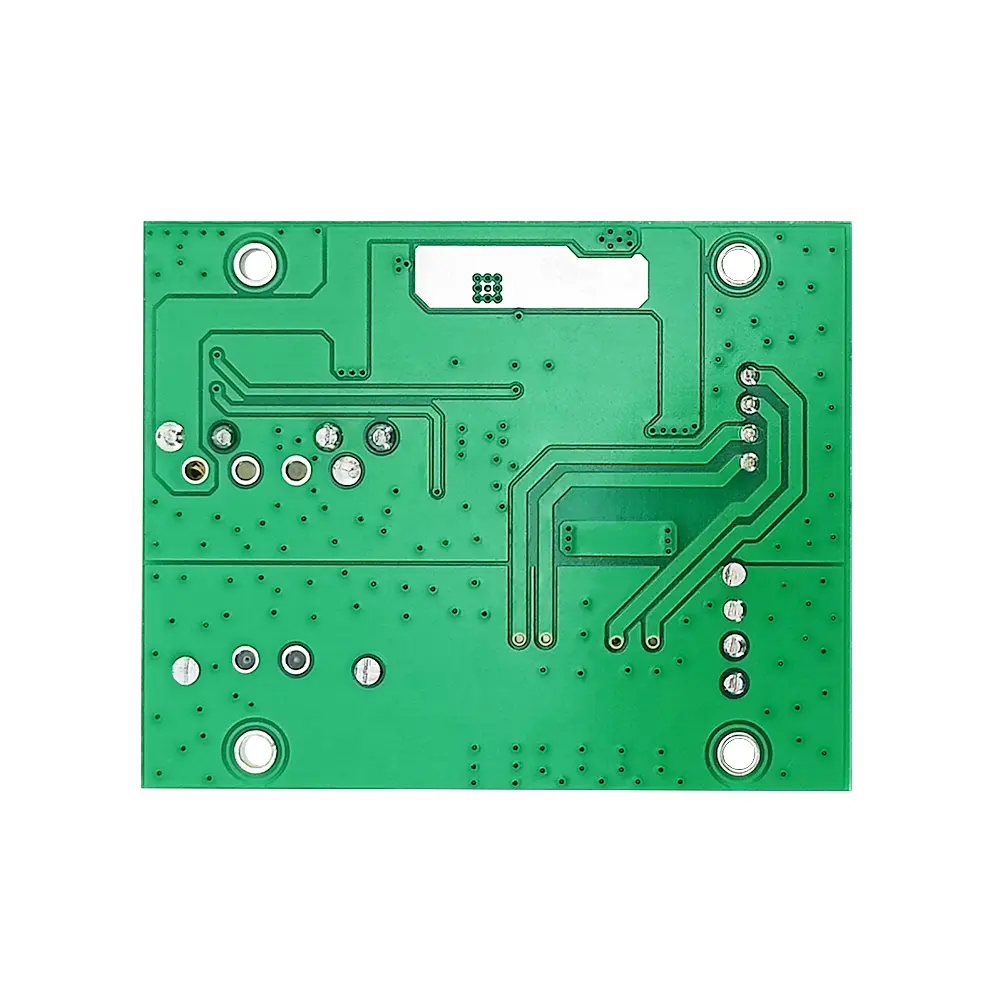

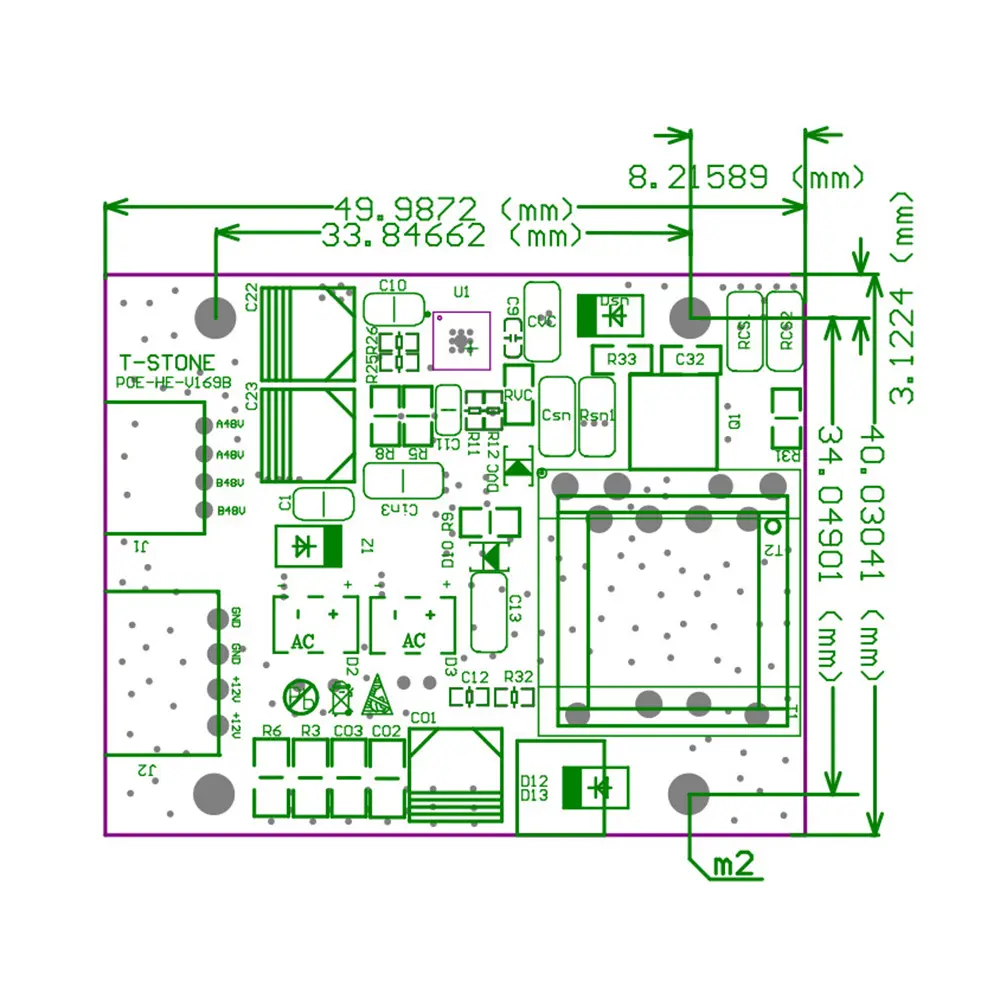

Overall Dimensions: 50*40*11 mm.PCB Design: It features a square - shaped structure. The PCB has a thickness of 1.6mm, and the maximum thickness of the module is 11mm. The surface of the PCB is coated with bright - green solder mask. Module design: Two-layer PCB with single-sided layout. Screw Holes: There are four screw holes with a diameter of Φ = 2.0mm.Both the input and output of the TSD - V169B use high - temperature - resistant and flame - retardant horizontal sockets, ensuring safe and convenient plugging and unplugging for users.Net Weight: Each module weighs 15 grams.

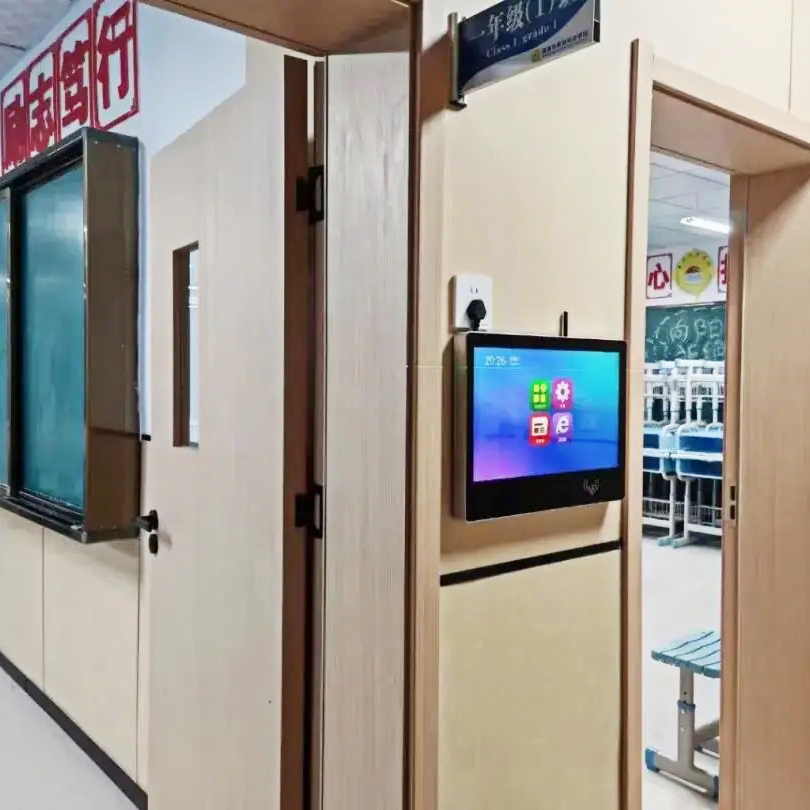

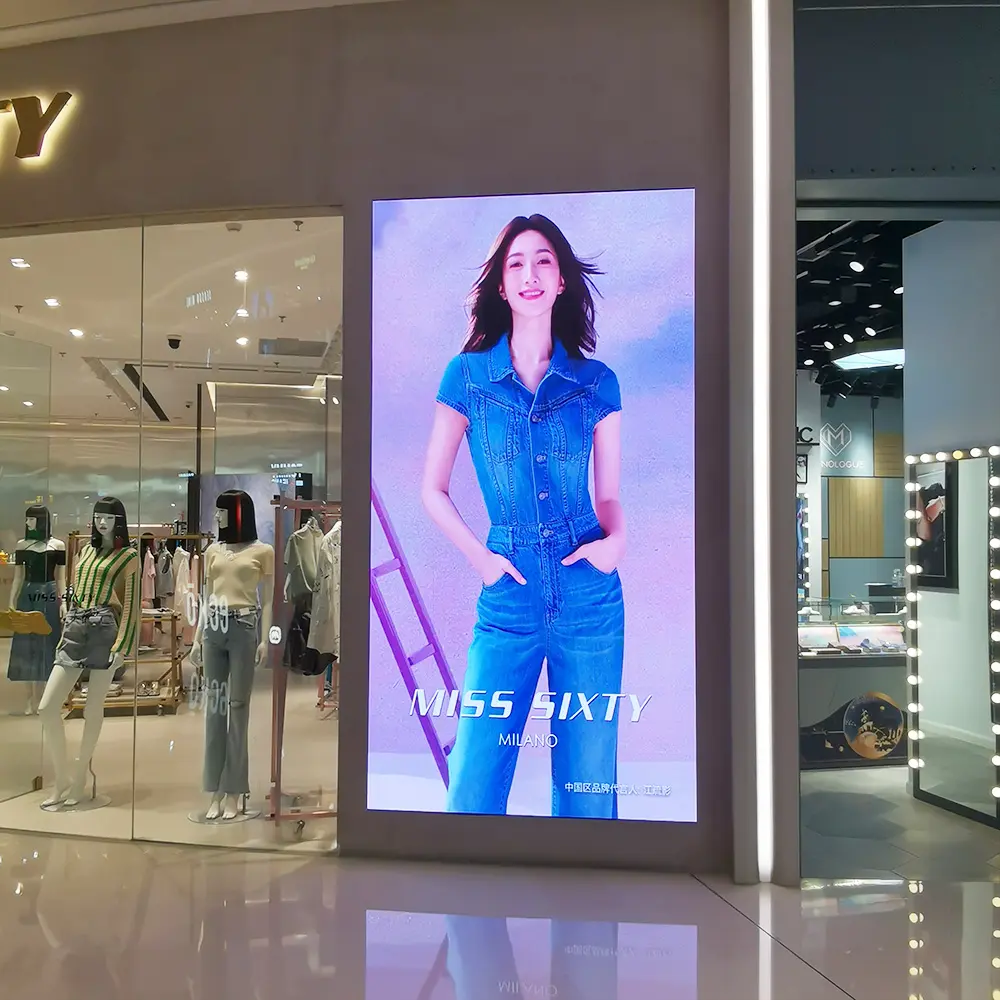

The TSD - V169B offers users a variety of power supply options. This module is lightweight and compact, with an overall height of less than 15mm. It can be flexibly installed in various types of terminal devices. This not only eliminates the need for users to carry out additional power wiring but also ensures safe and reliable power supply for the devices.

When the user's device already has a network filter, but the voltage from the PoE signal is too high to supply power directly, integrating the TSD-V169B module into the user's device can provide stable 12V direct current for the terminal device, users should note that it does not come with a network filter. It only processes the electrical signal in the PoE signal to provide DC power to the terminal devices.

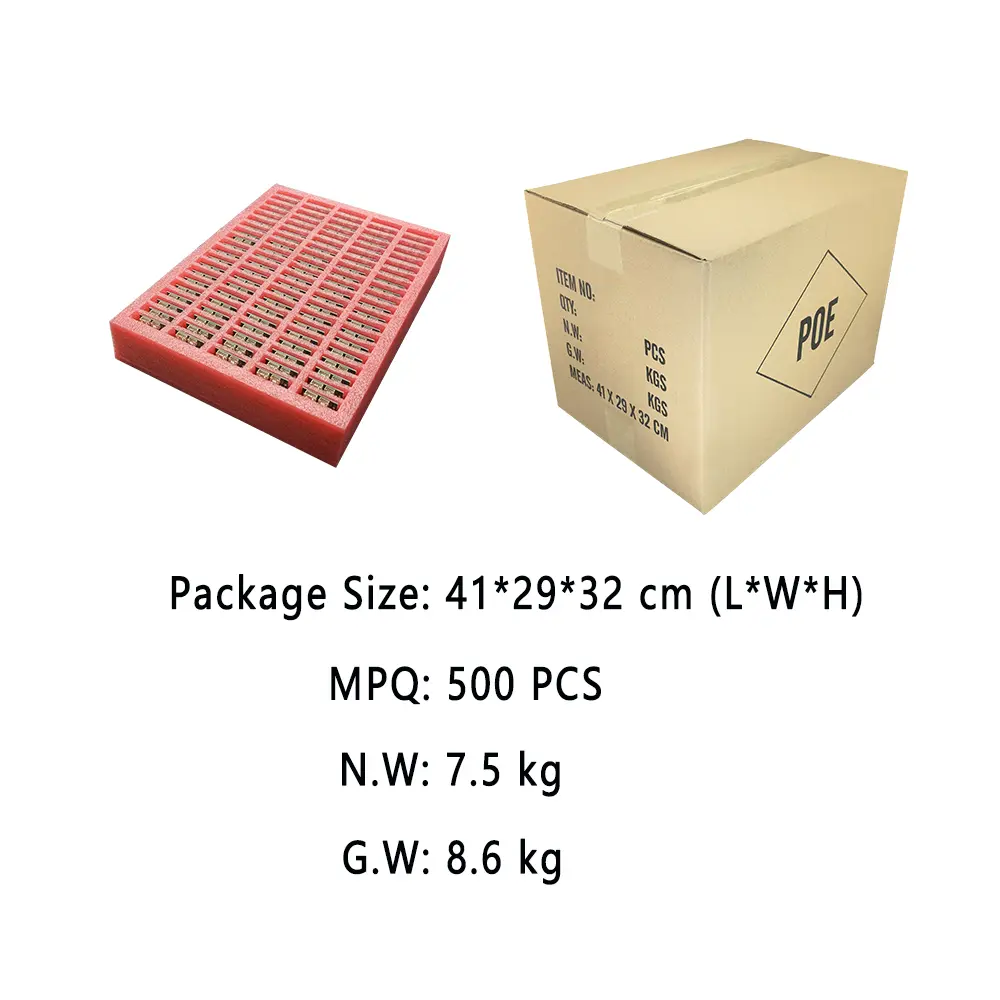

Package list
Items	Quantity
TSD-V169B PoE Module	500 PCS
Operation Manual	/
