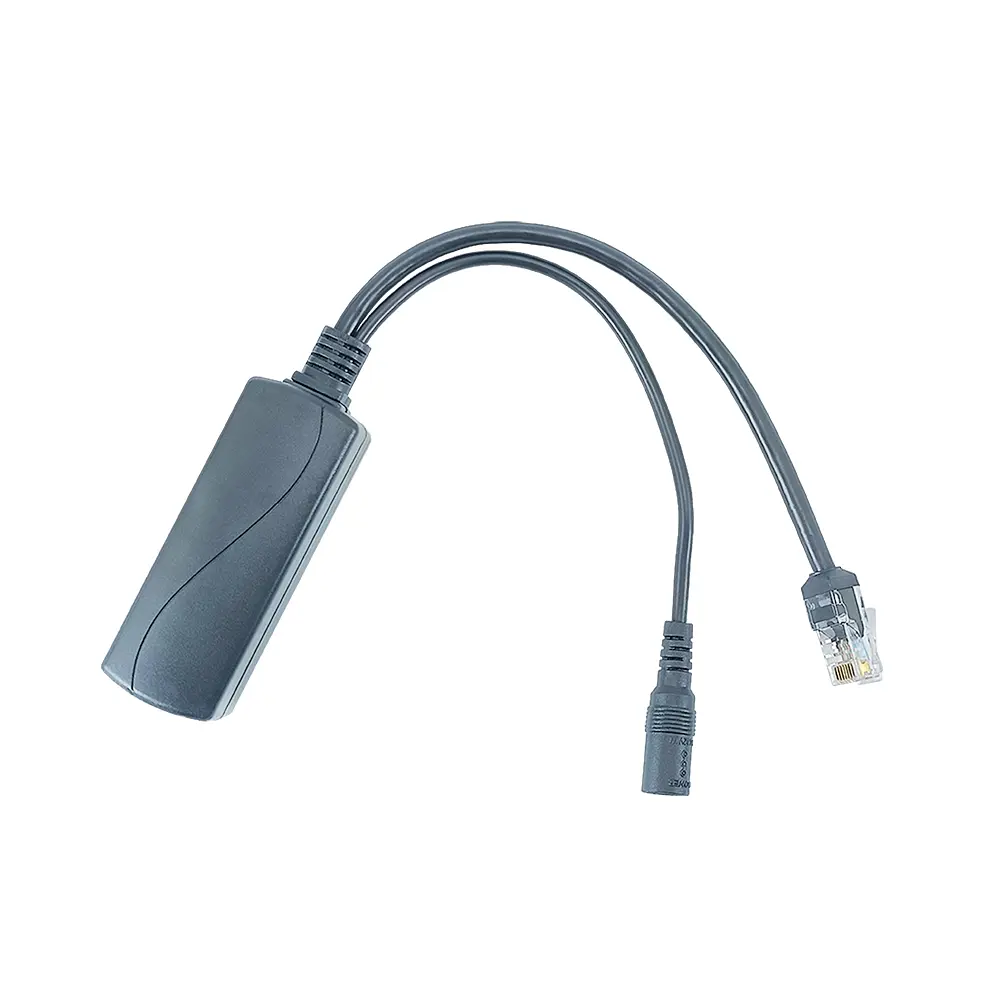

Gigabit Pass-through 30W Passive PoE Combiner

Model: TSD-PD12HG

  • Input: Wide-Range PoE DC 12-56V
  • Output: passive PoE 12-56V
  • Transmission rate: 10/100/1000Mbps
  • Power supply pins: RJ45+ RJ78-
  • Certifications: CE, FCC and RoHS
  • Interface: RJ45 Port , 5.5*2.1mm socket
  • Size: 285*28*23 mm (L*W*H)
  • Weight: N.W=45 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

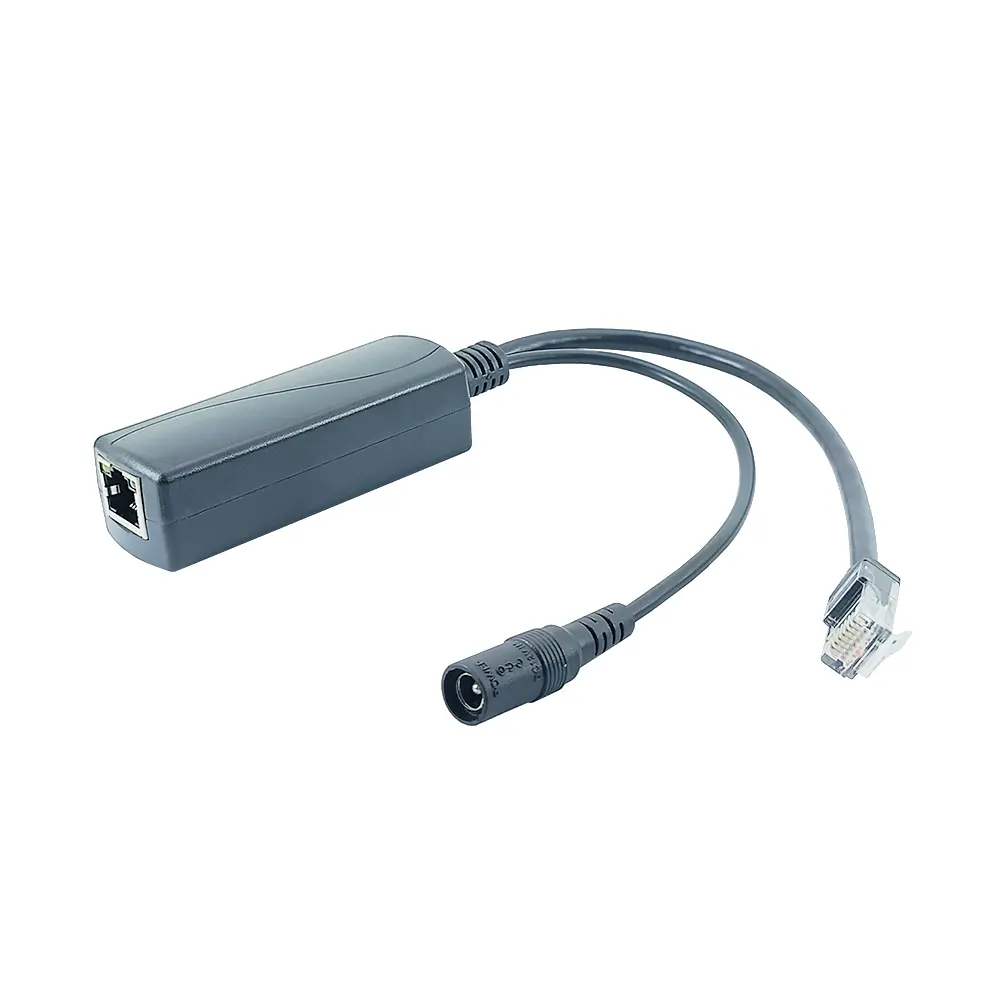

    TSD-PD12HG-3
    01

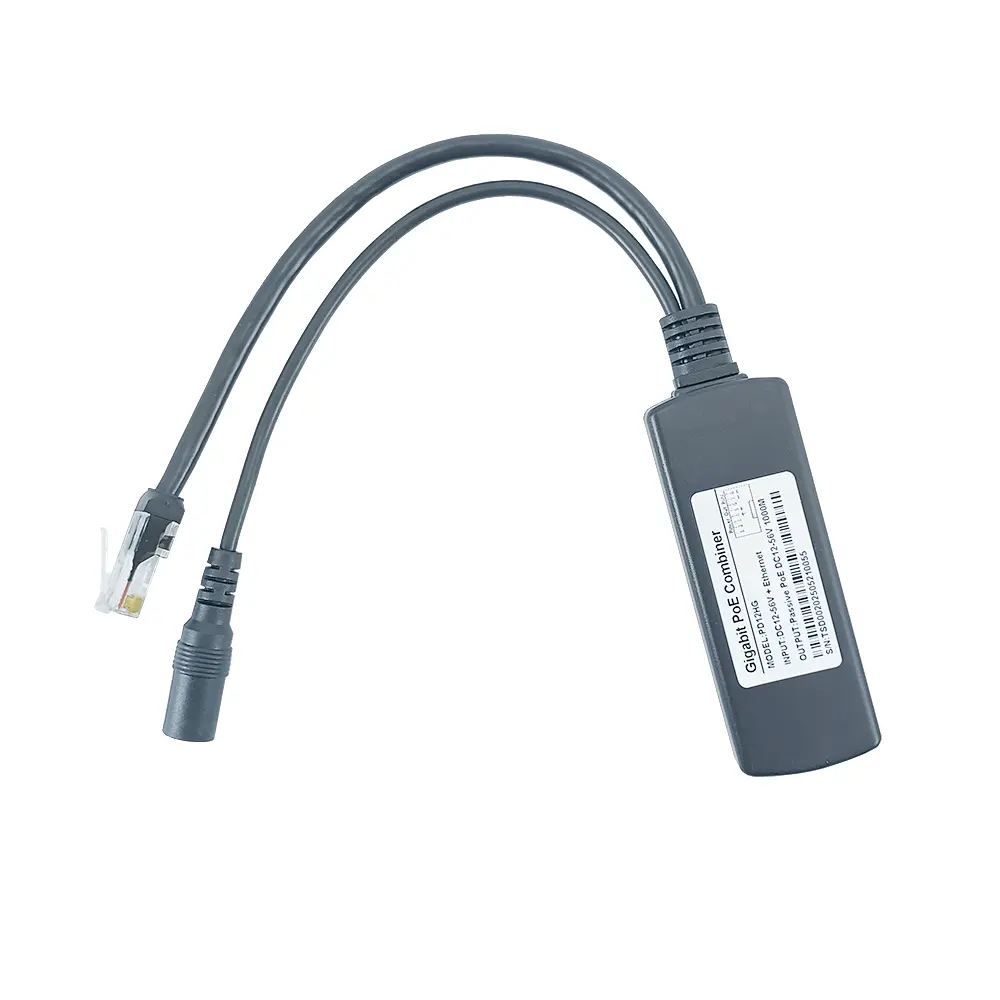

    The TSD-PD12HG is a passive gigabit PoE combiner with a maximum output power of 30W. It does not support the IEEE802.3af/at PoE standard protocol. This product is a through-type combiner, and its internal circuit does not have a boost or buck function. It inputs 12~56V DC power and outputs 12~56V passive PoE signals.



    The TSD-PD12HG merges and converts the received DC and data signals and then outputs one passive PoE signal. It can support high-power PoE terminal devices, such as PoE IPCs, PoE wireless APs, and other devices.


    ​

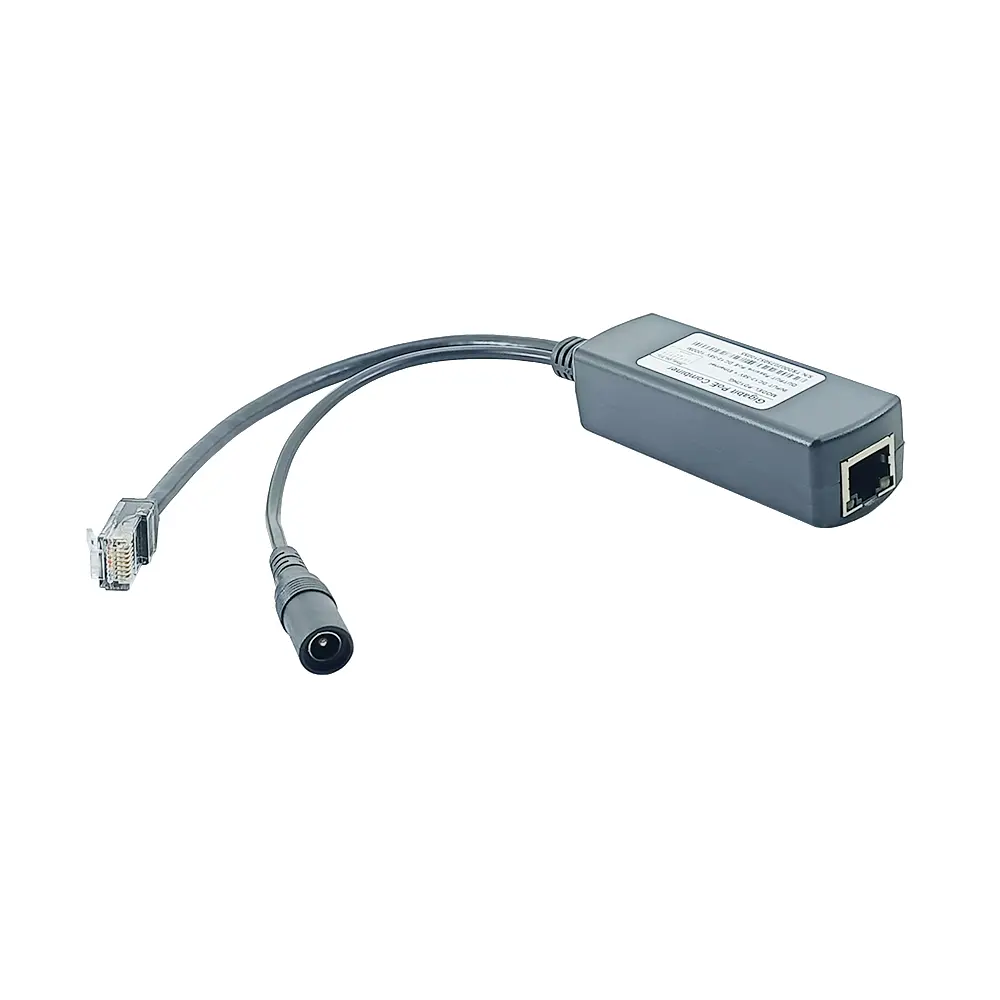

    TSD-PD12HG-4
    01

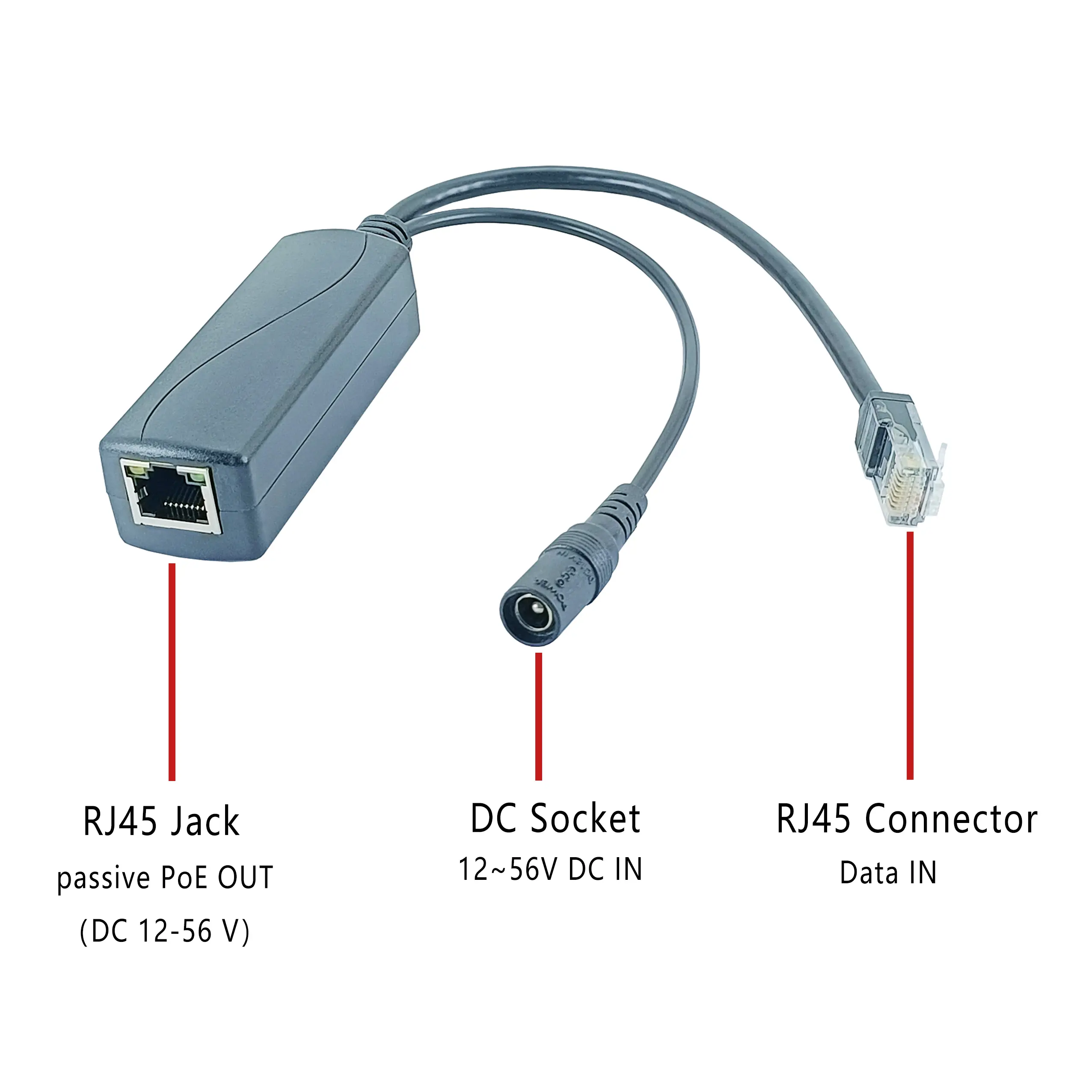

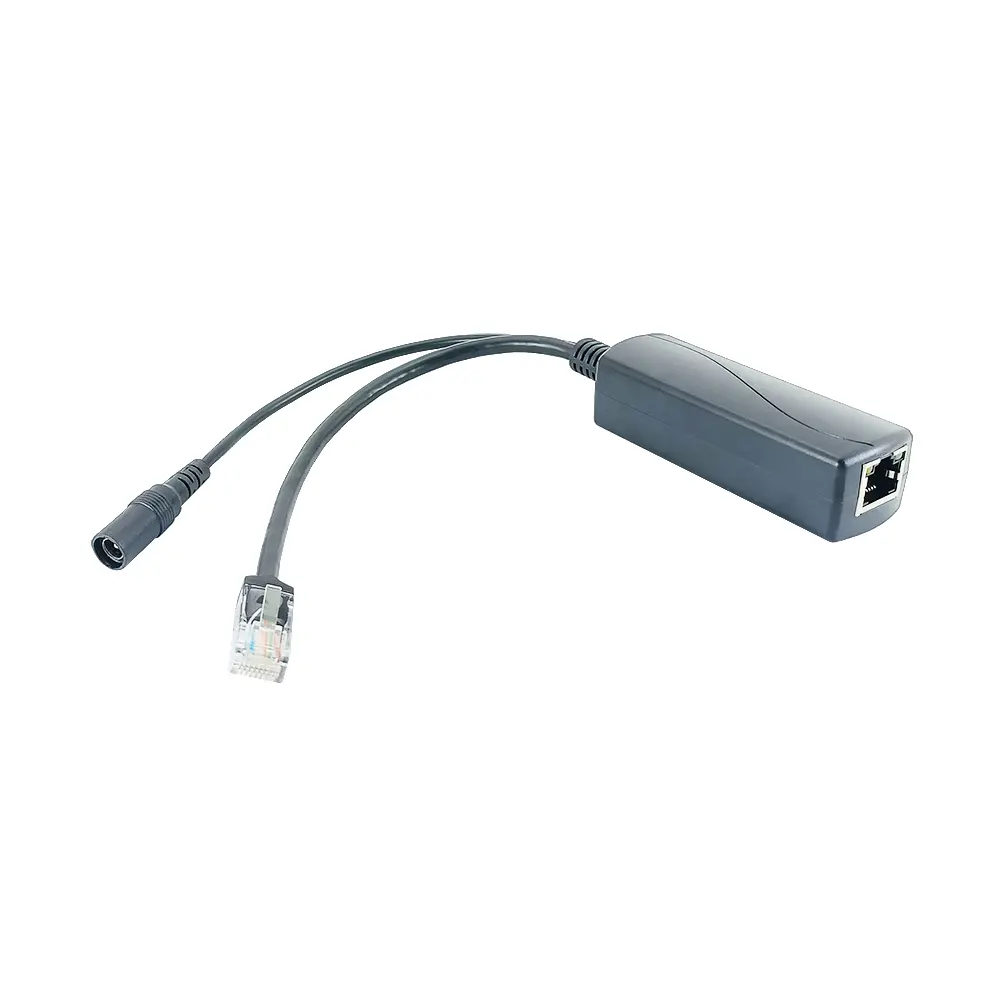

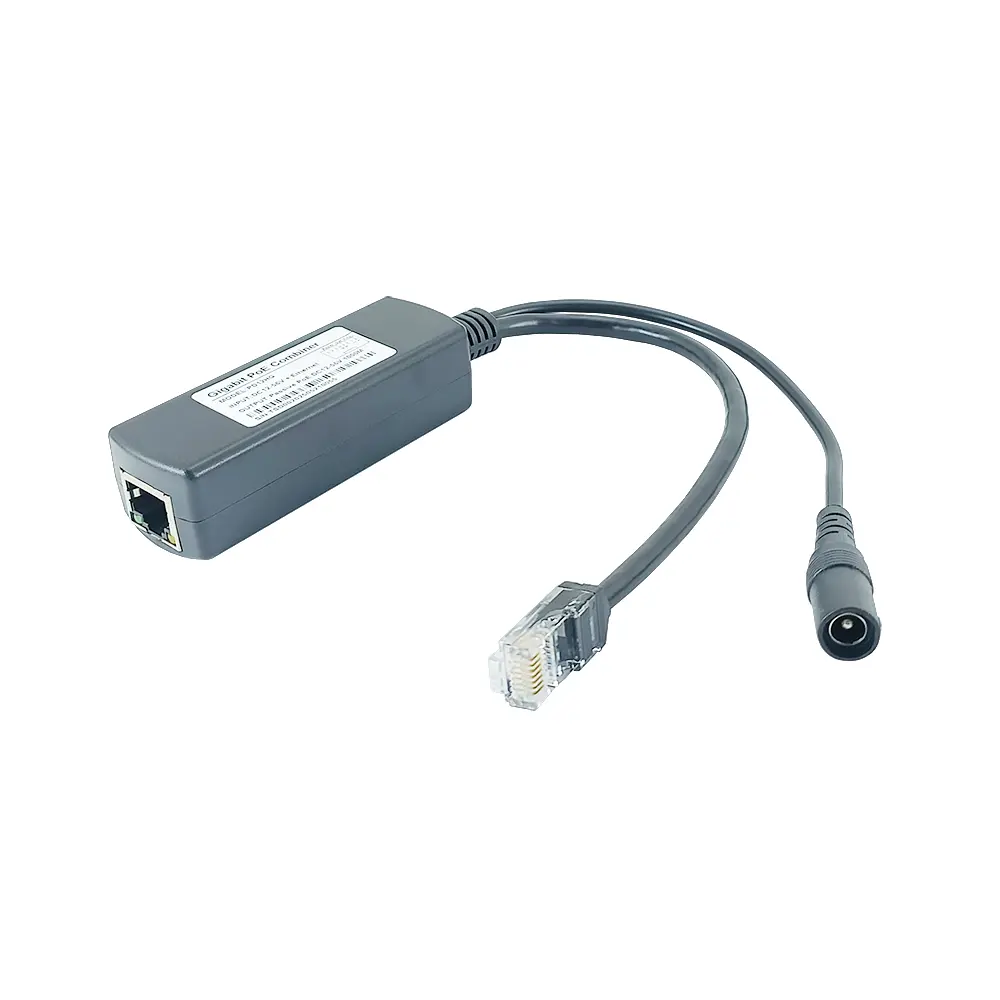

    TSD-PD12HG Input Port: RJ45 Crystal Head: Input Data Signal; DC Female Socket: Input 12-56V DC Signal; TSD-PD12HG Output Port: RJ45 Network Port: Output passive PoE Signal, Output Voltage: 12-56V.


    The TSD-PD12HG has obtained CE, FC, and RoHS certifications, and its EMC parameters comply with IEC 61000-4-2/3/4/5/6 standards. The circuitry includes protection against lightning strikes, short circuits, overloads, and high temperatures. This product is sold well in many countries and regions worldwide.

    The TSD-PD12HG uses RJ45+ and RJ78-pin power supplies. It offers a maximum output power of 30W and a self-adapting transmission rate of 10/100/1000Mbps. It supports a wide input voltage range of DC12-56V and an output voltage range of DC12-56V.



    ● Input:​​ Wide-range PoE DC 12-56V
    ● Output:​​ DC 12-56V passive PoE
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility:  RJ45+ RJ78- power supply
    ● Transmission Rate:​​ 10/100/1000Mbps auto-negotiation
    ● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● Through-type input and output

    ●  DC socket specification: 5.5*2.1mm

    ● High-temperature-resistant and environmentally friendly ABS plastic casing

    ● Equipped with original high-precision electronic components from international brands, ensuring stable performance

    ● High power, high conduction and low impedance transistor, stable performance and low heat

    ●High temperature resistant PCB environmental protection material, lead-free environmental protection process

    ● Pure copper pin connector, good contact stability

    Product parameter table

    Product Name

    Gigabit pass-through 30W passive PoE combiner

    Product Model

    TSD-PD12HG

    PoE Standard

    /

    Input Voltage

    DC 12-56V

    Output

    passive PoE 12-56V

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ45+ RJ78-

    Conversion Mode

    /

    Data Rate

    10/100/1000Mbps auto-negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    /

    Interface

    Input Port  (RJ45 connector): data IN

    Input Port  (DC female socket): DC 12-56 V IN

    Output Port (RJ45 Jack): passive PoE OUT

    Function

    /

    Material

    High-temperature-resistant and environmentally friendly ABS plastic

    Color

    Matte black

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 45 g

    Dimension

    285*28*23 mm

    Package

    Transparent LDPE Packaging Bag

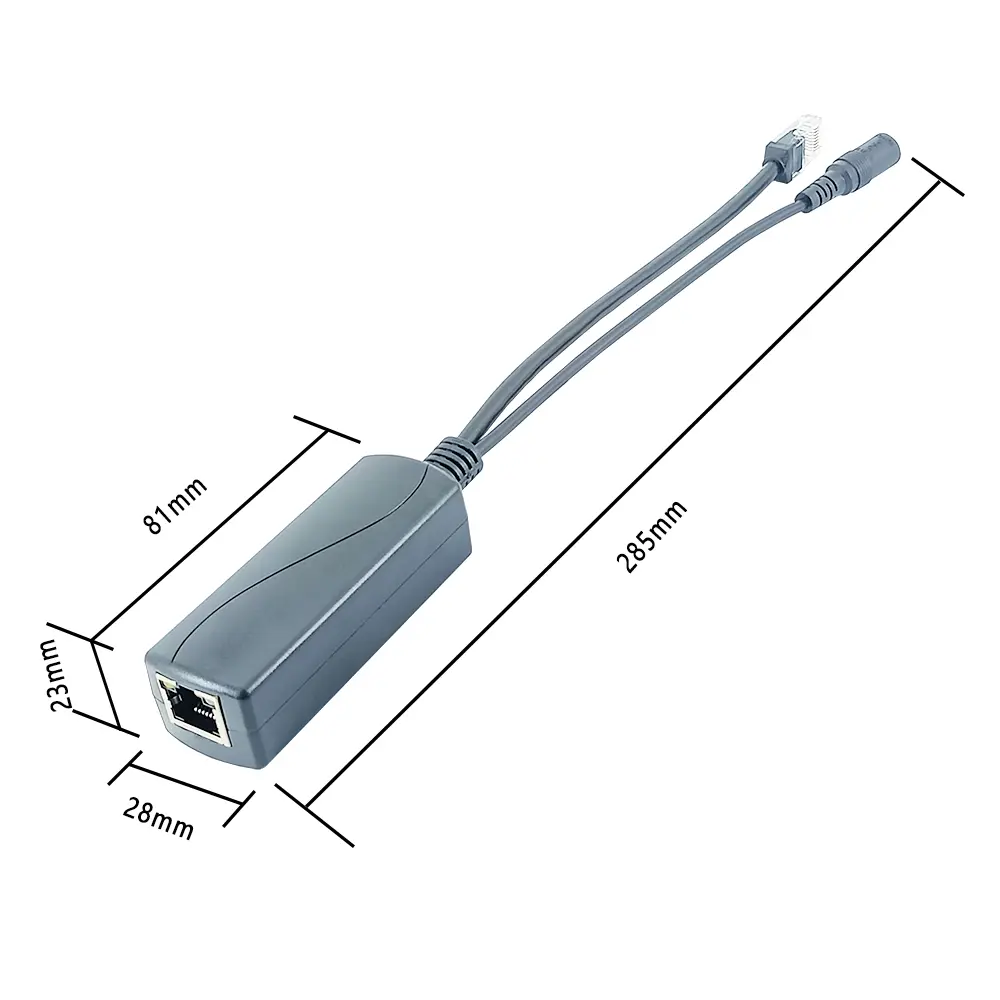

    Size and structure: 285*28*23mm (L*W*H), the wire length being 204mm. DC socket specification: 5.5*2.1mm. Overall material: High-temperature resistant and environmentally friendly ABS plastic casing, color: matte black.
    Dimension

    The TSD-PD12HG offers a maximum output power of 30W and supports a wide range of input and output voltages, enabling flexible application in various indoor and outdoor wiring scenarios to meet diverse voltage requirements. The TSD-PD12HG supports high-power IP devices such as cameras and wireless access points, and its flexible deployment has earned praise from both equipment manufacturers and end users.

    TSD-PD12HG does not support the IEEE802.3af/at standard protocol and directly supplies power to the terminal device without handshake protocol detection. Therefore, users should pay attention to the following: when using, the input voltage of the powered device should be compatible with the output voltage of TSD-PD12HG. Otherwise, the powered device may not work properly.

    Topography

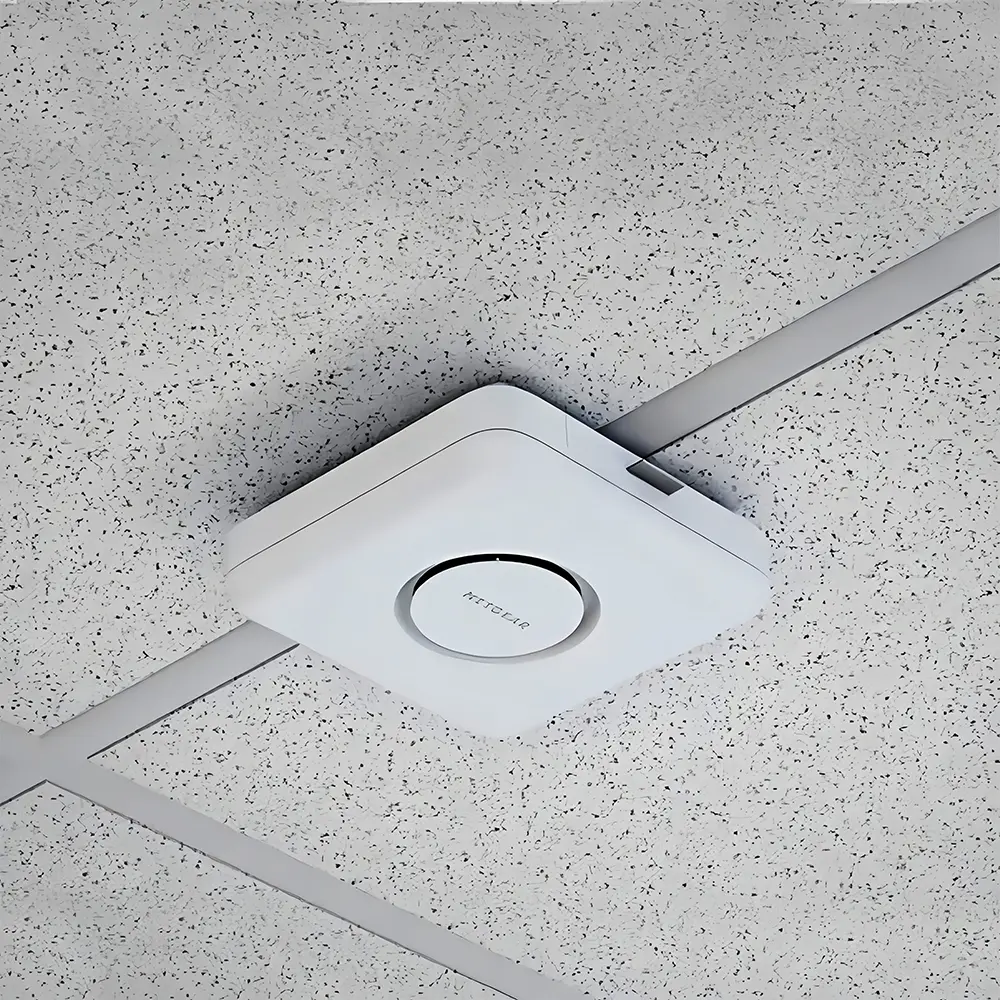

    Application1

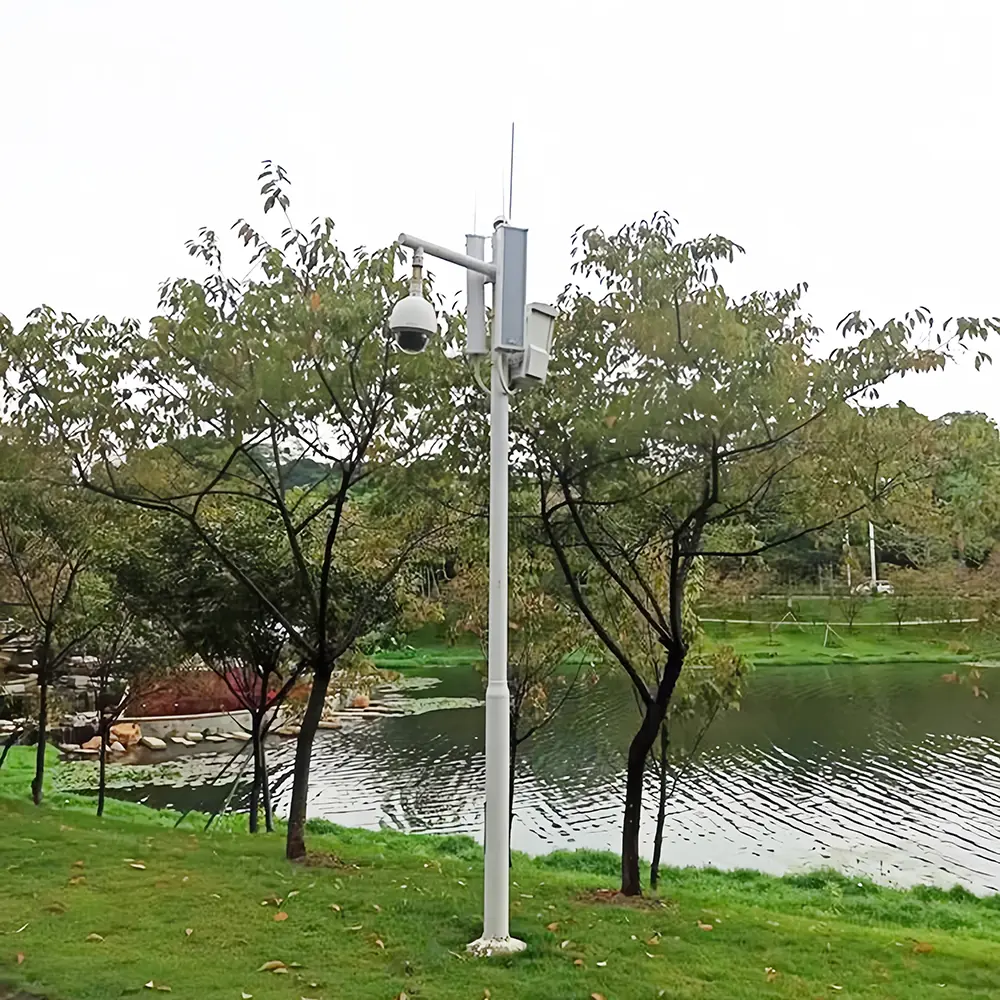

    Application2
    Application3

    Package list
    Items Quantity
    PoE Combiner: TSD-PD12HG 1
    Operation Manual /

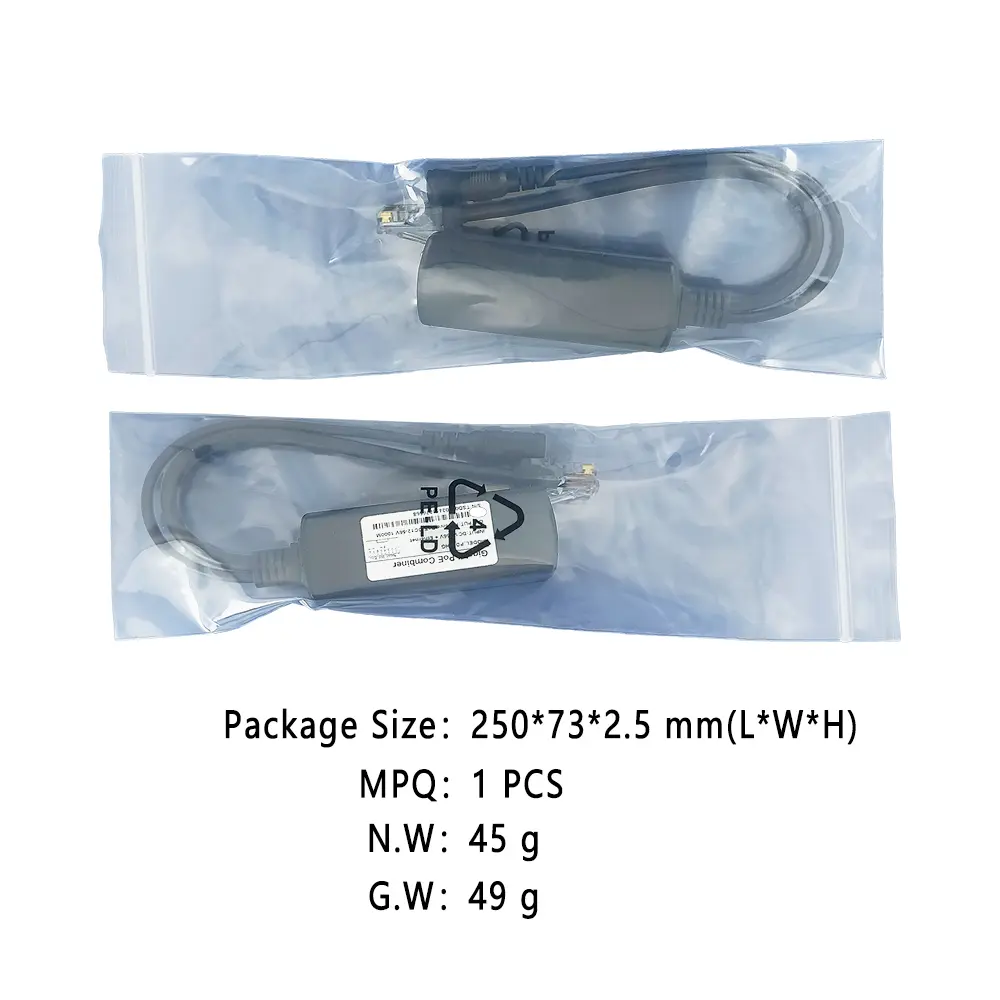

    Package
    Interface
