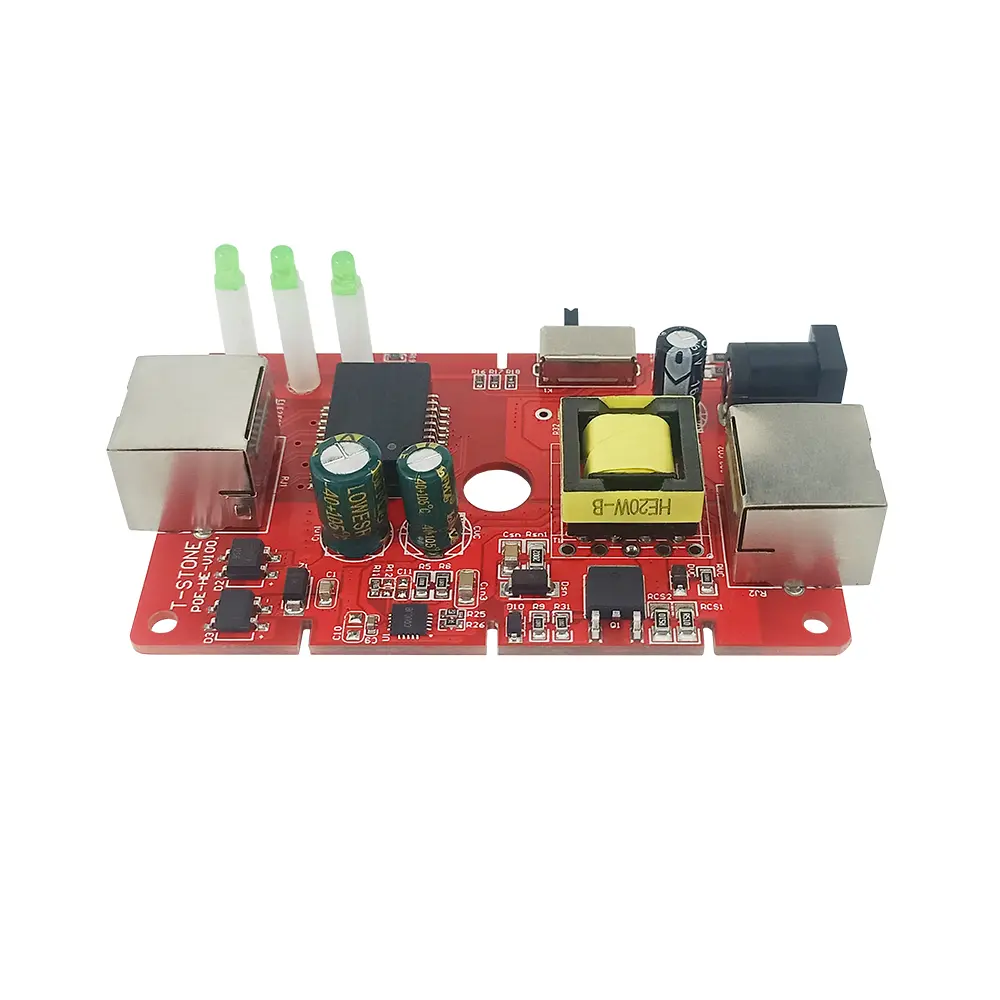

DC 5V/9V/12V multi-voltage output PoE module

Model: TSD-V100

Input: PoE DC 38V–56V signal
Output: DC 5V 3A/9V 2A/12V 1.5A
PoE protocol: IEEE 802.3af
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/DC socket
Size: 86.5*50*23 mm (L*W*H)
Weight: N.W=33 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD - V100 is a Powered Device (PD) module that supports the international standard IEEE802.3af protocol. The module inputs a standard PoE signal of 38 - 56V. After being processed by the internal circuit, it can provide data transmission and DC power supply for terminal devices.

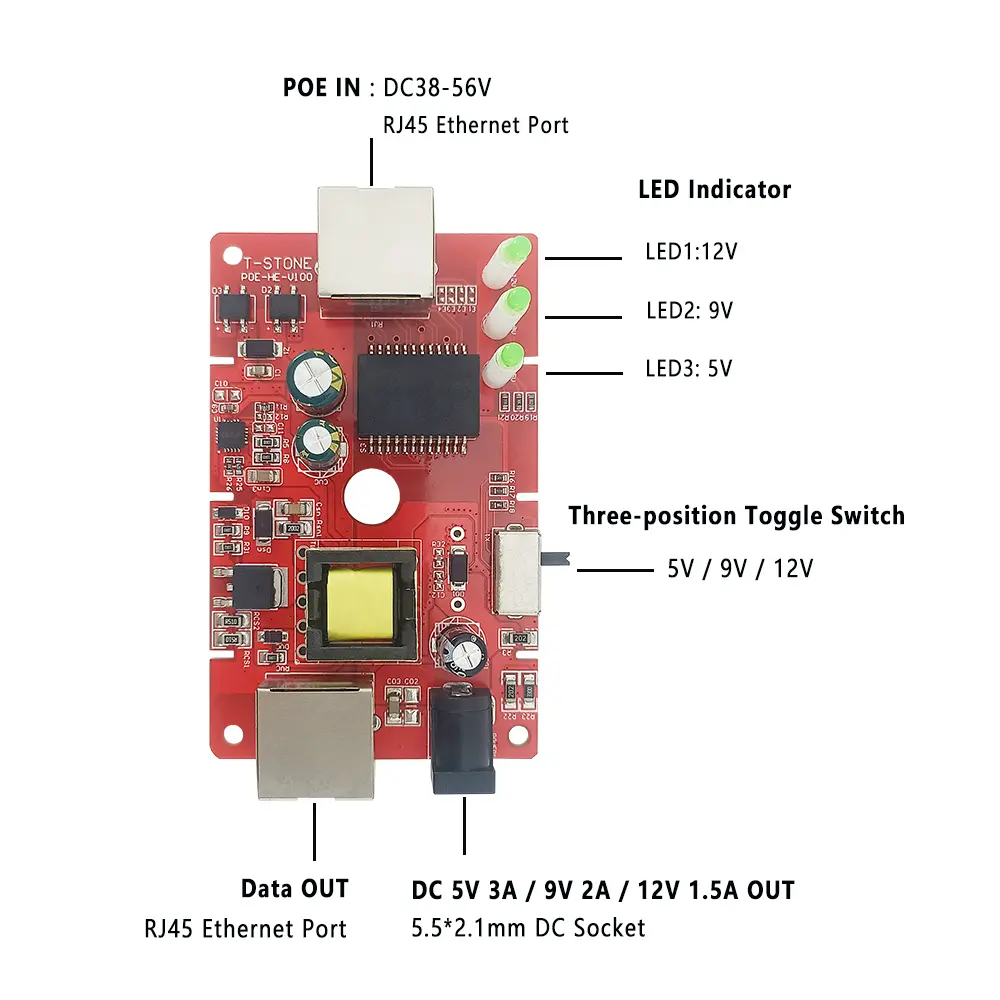

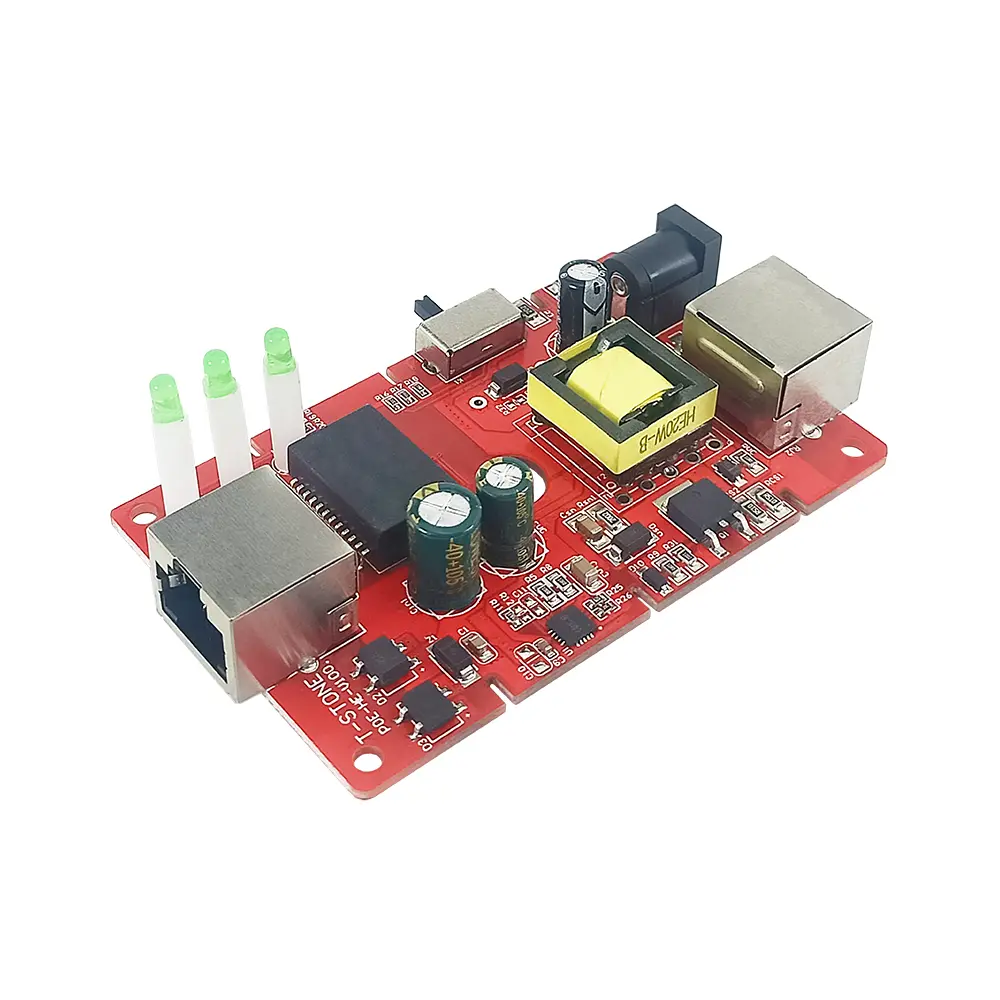

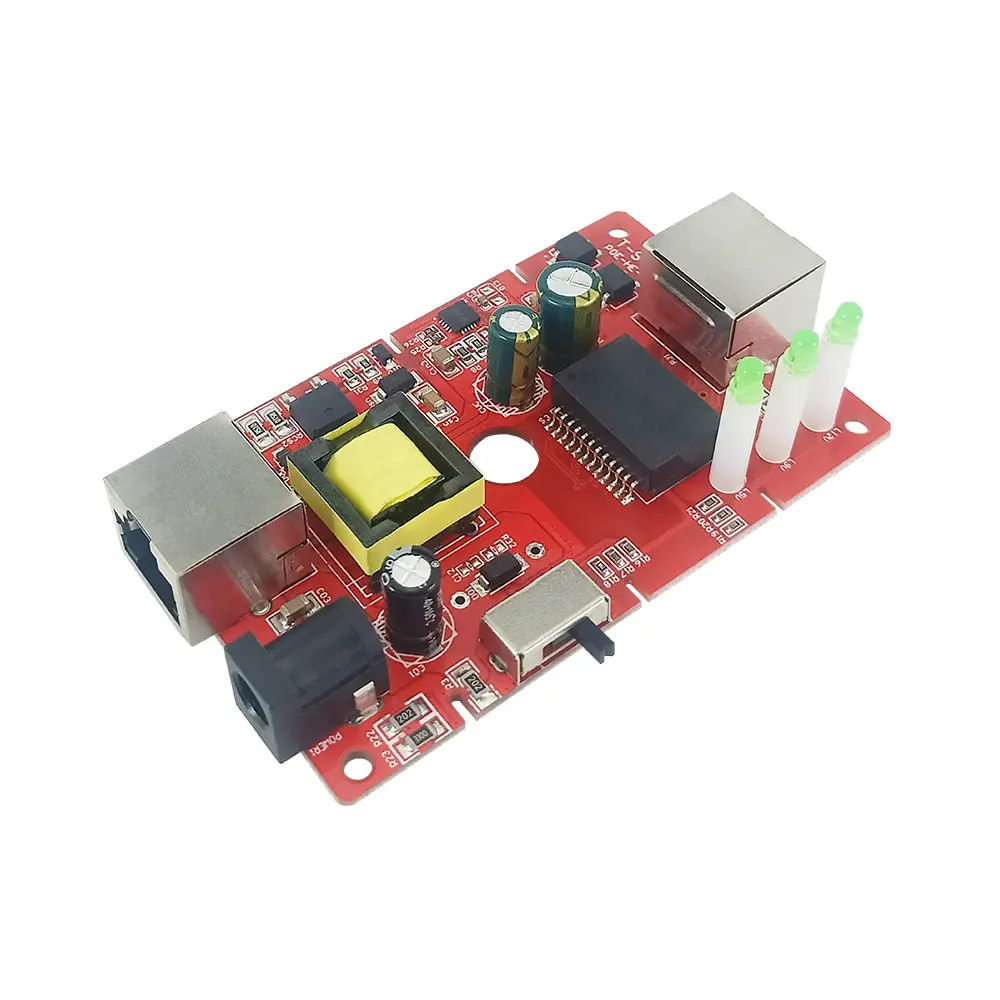

Interface Configuration of TSD - V100,

RJ45 Ethernet Port: DC 38 - 56V IN;

RJ45 Ethernet Port: data signals OUT;

5.5 * 2.1mm DC Female Socket: DC 5V/9V/12V OUT.

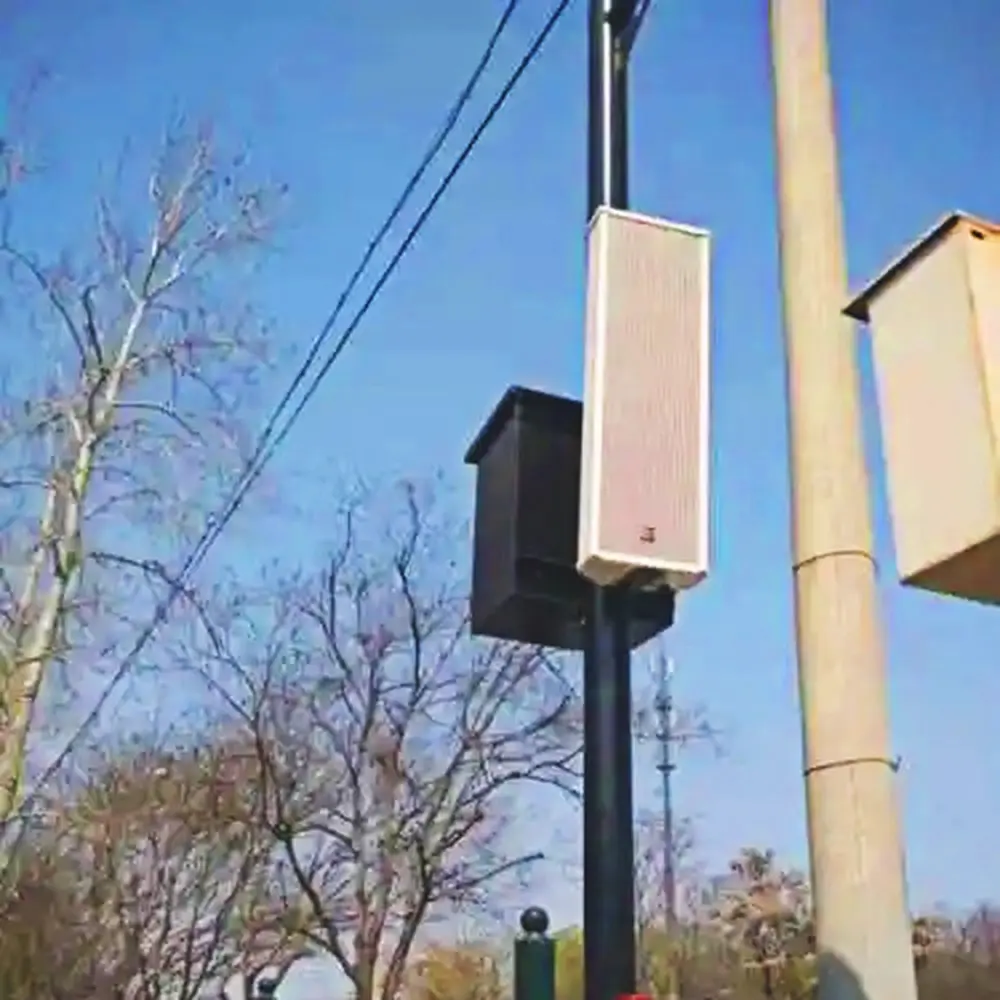

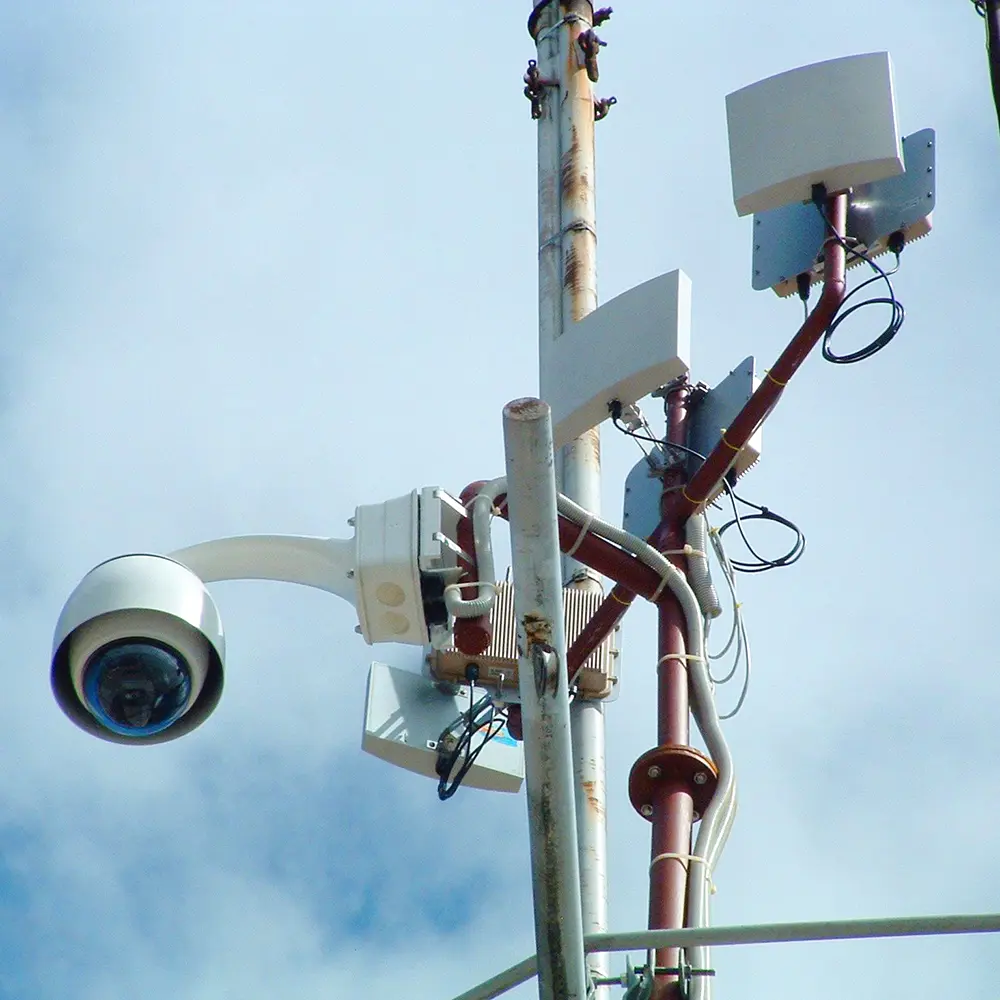

The TSD - V100 has a maximum output power of 15W. When installed on network devices such as IP phones, network cameras, and wireless access points (APs), it can provide PoE power supply support for traditional low - power network devices.

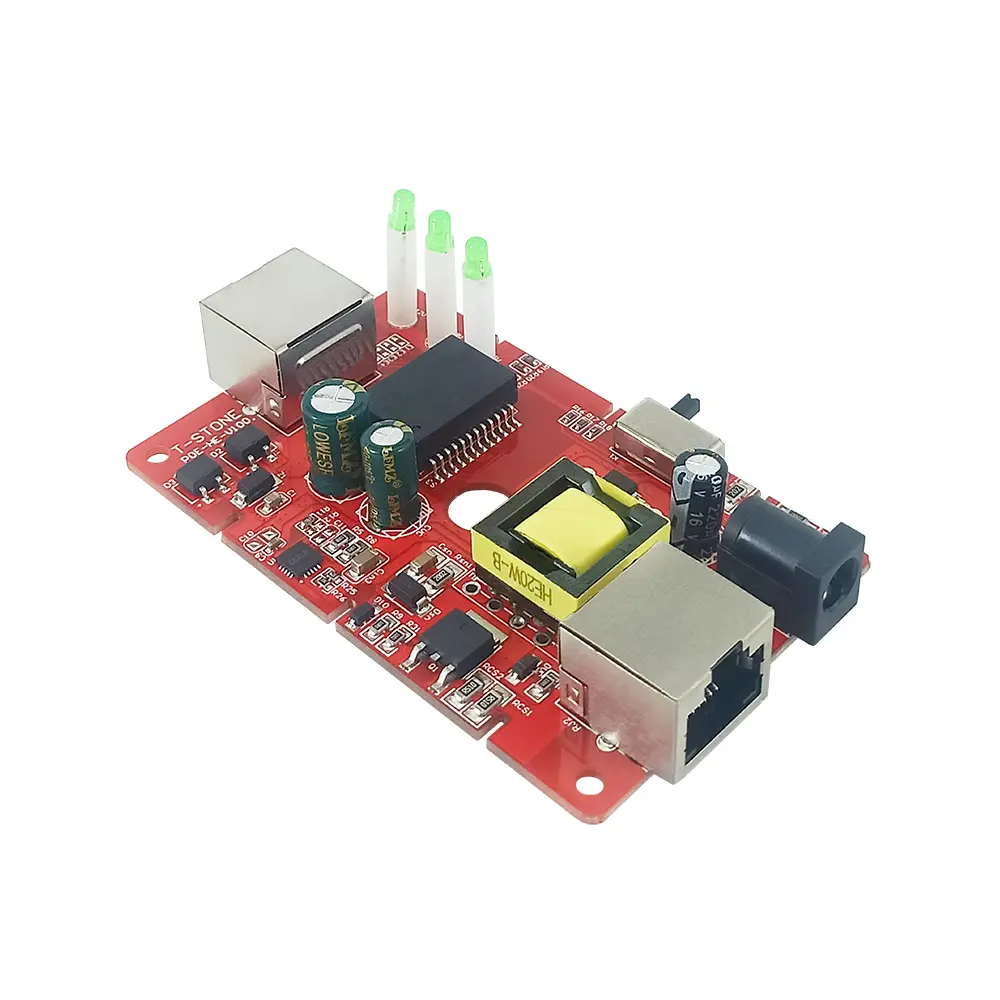

An isolation transformer is designed on the TSD - V100, making it a PD module with isolation function. The module circuit is equipped with protection functions against lightning strikes, short - circuits, overloads, and high temperatures. The product has obtained certifications such as CE, FCC, and RoHS. Its EMC parameters meet the requirements of the IEC 61000 - 4 - 2/3/4/5/6 standards. It is a best - seller in many countries and regions around the world.

The TSD - V100 has a maximum output power of 15W and complies with the IEEE802.3af PoE standard protocol. The module is equipped with a gigabit PoE high - frequency filter and supports 10/100/1000M adaptive transmission rates. The TSD - V100 can input a wide - voltage DC of 38 - 56V and provides three output voltages for users: DC 12V 1.5A / DC 9V 2A / DC 5V 3A. Users can flexibly select the output voltage by adjusting the toggle switch.

● Input: PoE wide - voltage DC 38 - 56V

● Output: data + voltage DC12V MAX1.5A/9V MAX2A/5V MAX3A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Fully compatible with RJ12 + RJ36 - / RJ45 + RJ78 -

● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Isolation protection

● The PCB is environmentally friendly, high - temperature resistant

● Equipped with high - precision electronic components from well - known brands

● High - frequency PoE filter for gigabit networks, enabling stable data transmission

● Conversion efficiency exceeds 85%

● Features a vertical interface socket made of beige, high - temperature - resistant, and flame - retardant materials

● Incorporates high - precision electronic components from well - known brands

Product parameter table
Product Name	DC 5V/9V/12V multi-voltage output PoE module
Product Model	TSD-V100
PoE Standard	IEEE802.3af
Input Voltage	PoE: DC 38-56V
Output	DC 12V MAX1.5A / 9V MAX2A / 5V MAX3A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100/1000M Adaptive transmission speed
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	Green LED Indicator*3
Interface	PoE Port (RJ45 Jack) : PoE 38V~56V IN Output Port (RJ45 Jack) : Data OUT Output Port (DC Socket) : DC 12V/9V/5V OUT
Function	/
Material	FR-4
Color	Glossy red
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 33 g
Dimension	86.55023 mm (LWH)
Package	Anti - static expanded polyethylene (EPE)

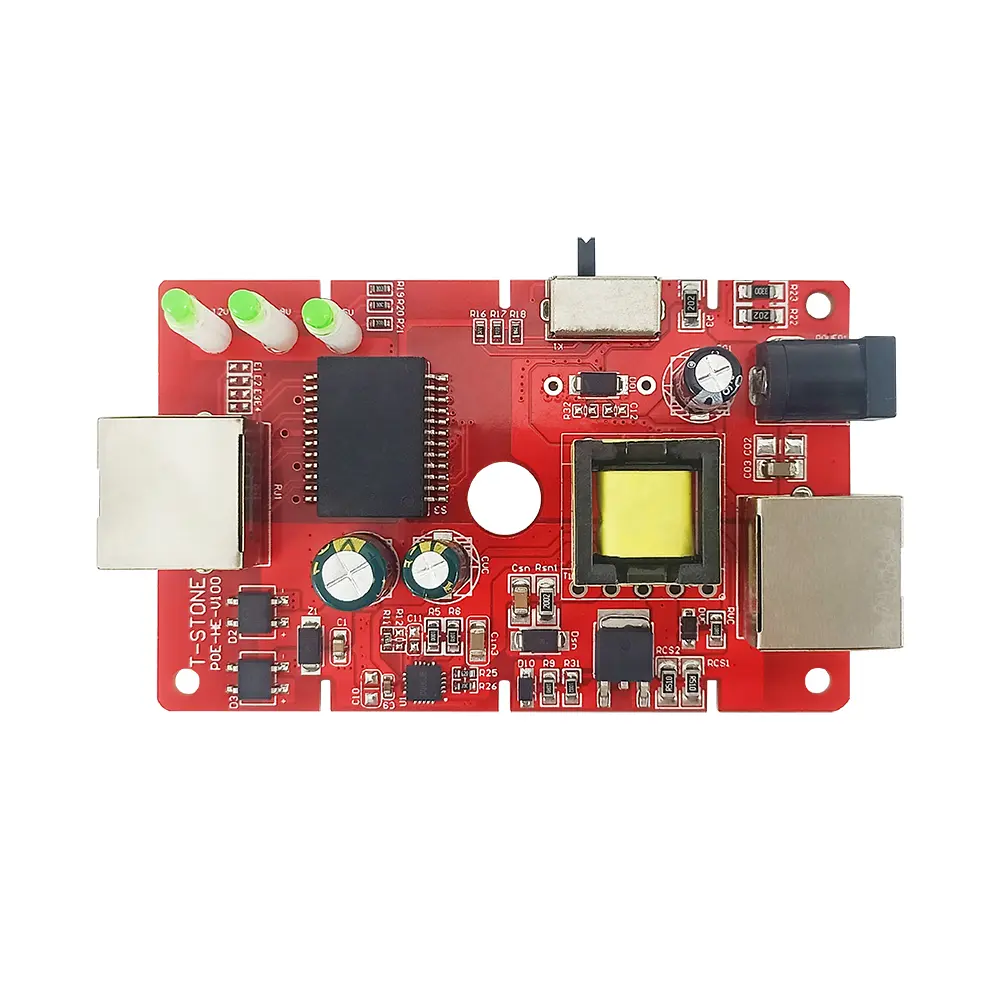

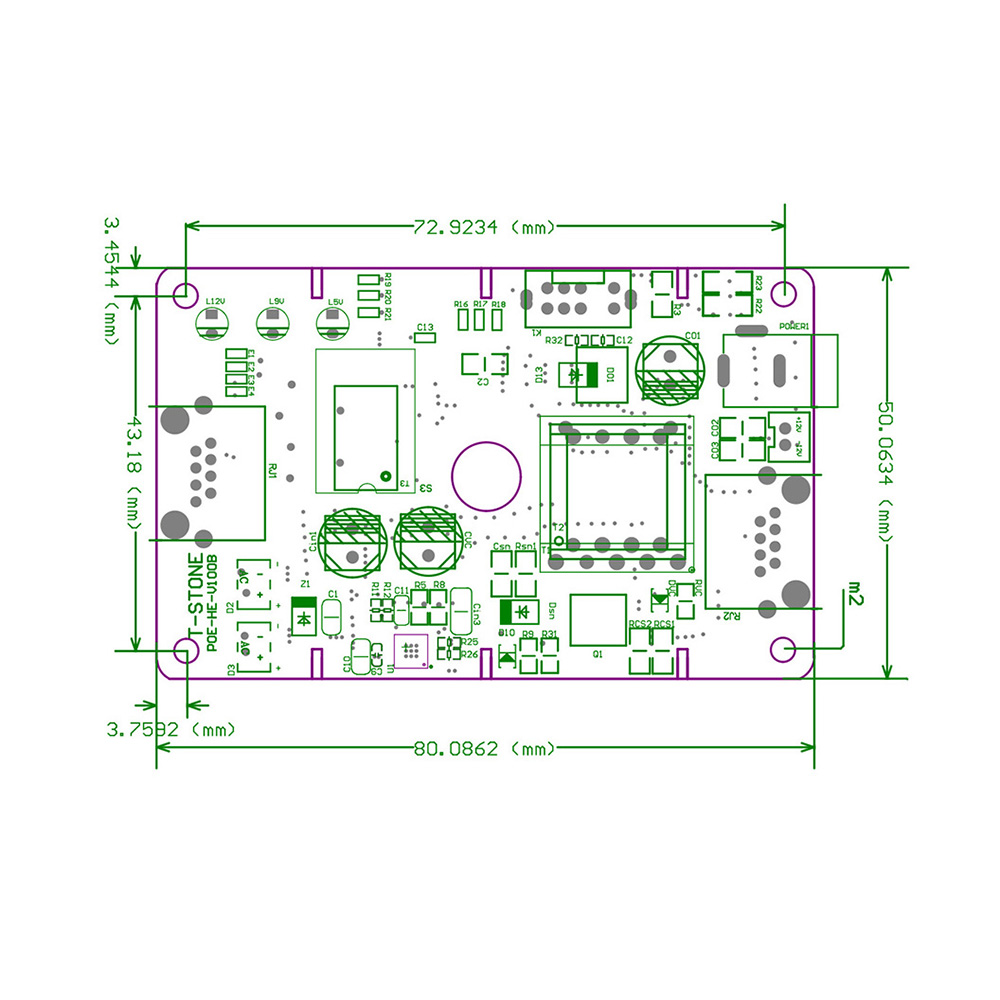

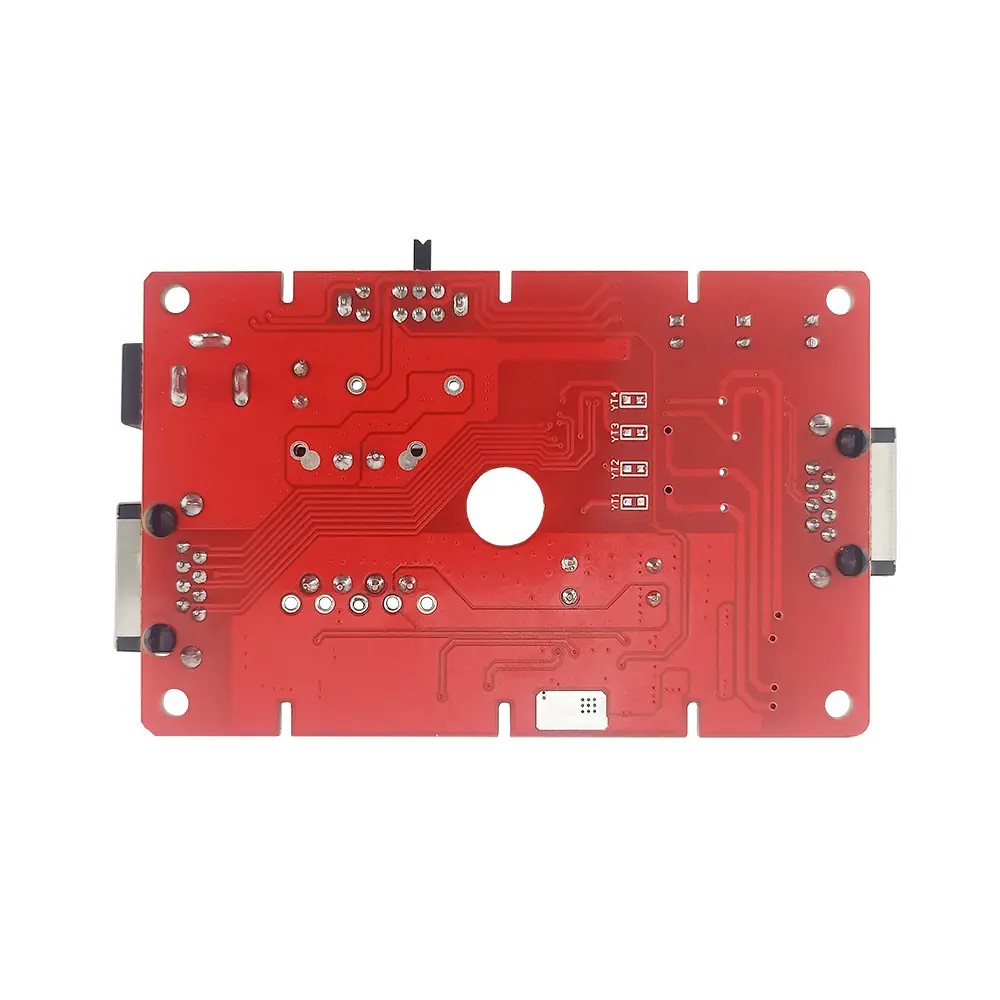

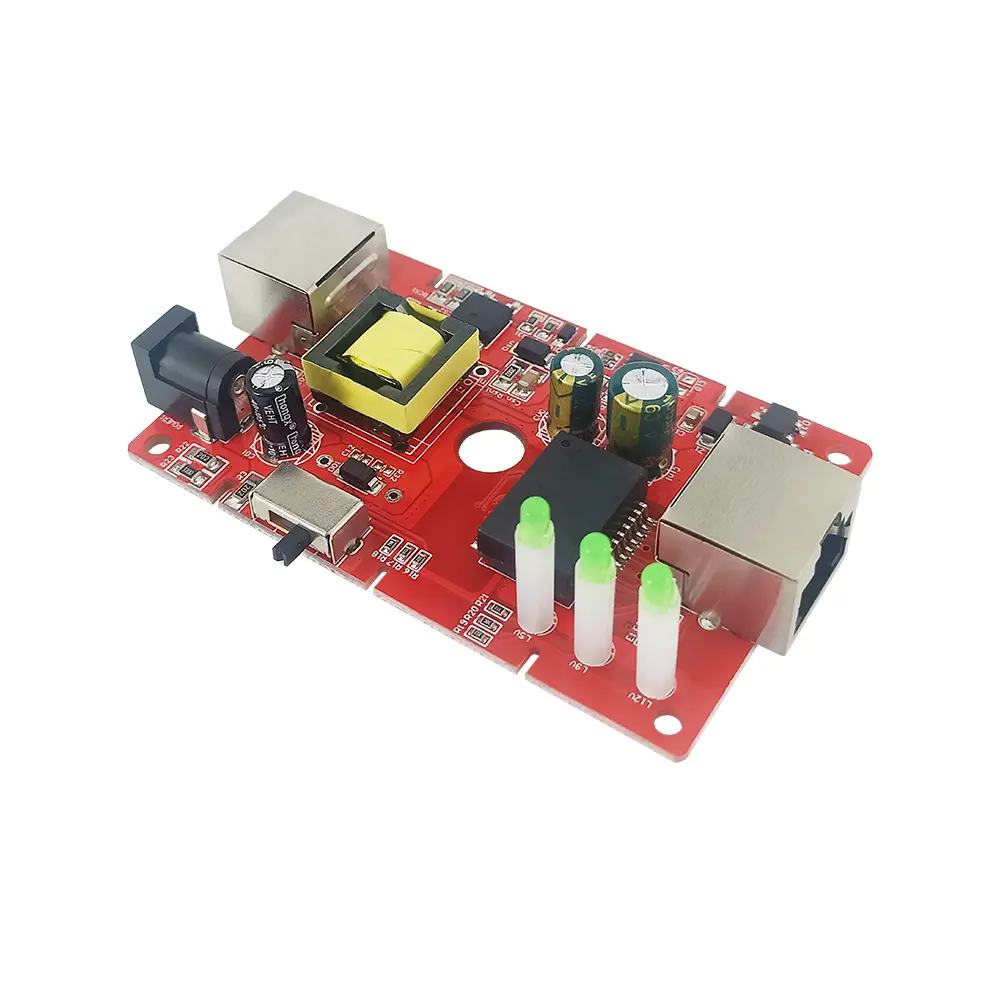

The overall product dimensions are 86.5 * 50 * 23mm, and the maximum height of the module is 23mm. The PCB size is 80 * 50 * 1.5mm. The screw hole specification is M2 * 4. The center - to - center distance between the holes is 73mm (along the long side) and 43mm (along the short side). The PCB color is bright red. The overall layout of the PCB is in a square structure. The input (RJ45 Ethernet port) and output ports (RJ45 Ethernet port and DC socket) are located on both sides of the PCB board, and each is about 1 - 2mm longer than the PCB board. A toggle switch is installed on the module to adjust the output voltage.

The TSD - V100 outputs data and power signals respectively through the RJ45 Ethernet port and the DC socket. Users can directly connect it to traditional network devices during use, providing power and data support for the devices. The output voltage of the TSD - V100 is flexibly adjustable. Users only need to adjust the toggle switch to obtain three commonly - used voltage levels, meeting various voltage requirements of users. This effectively enhances the safety of devices and management efficiency. The TSD - V100 is of reliable quality and offers flexible output, which has won unanimous praise from equipment manufacturers and end - users alike.

Package list
Items	Quantity
V100 PoE module	140 PCS
Operation Manual	/
