DC 48V 30W output Gigabit PoE combiner

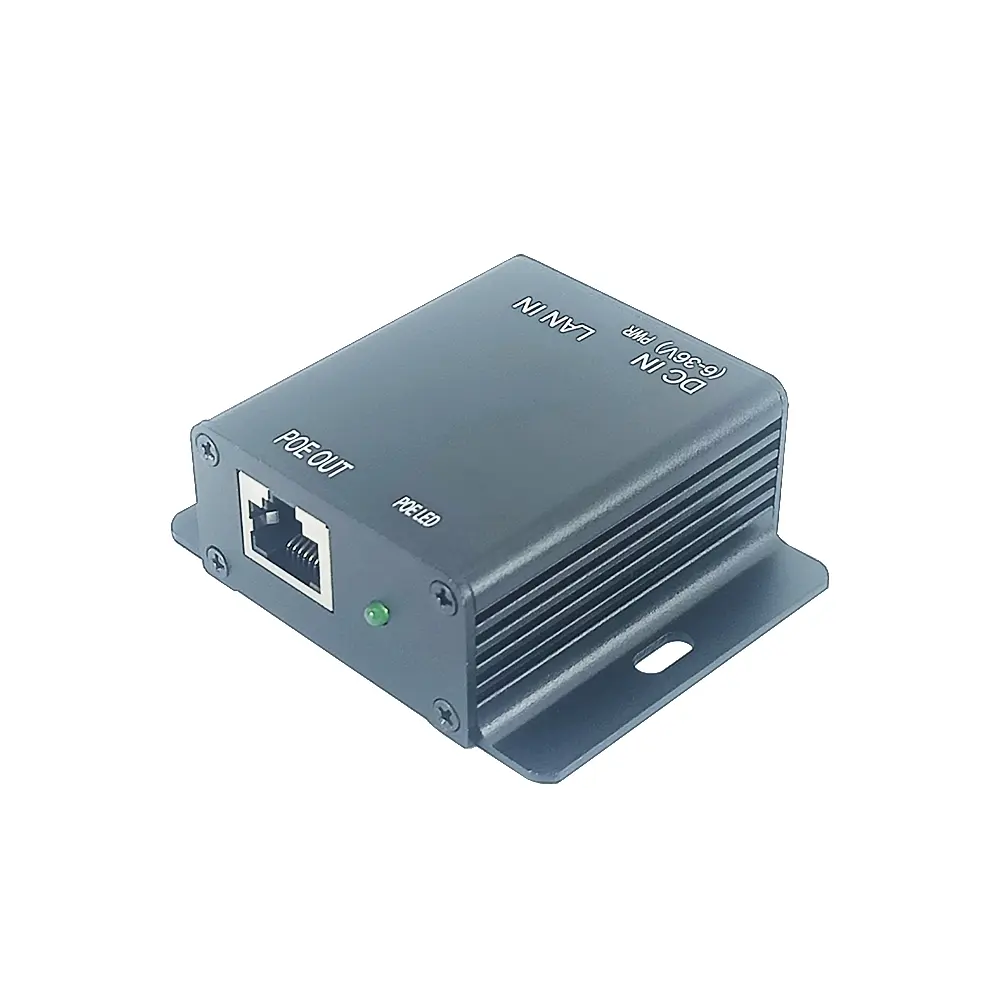

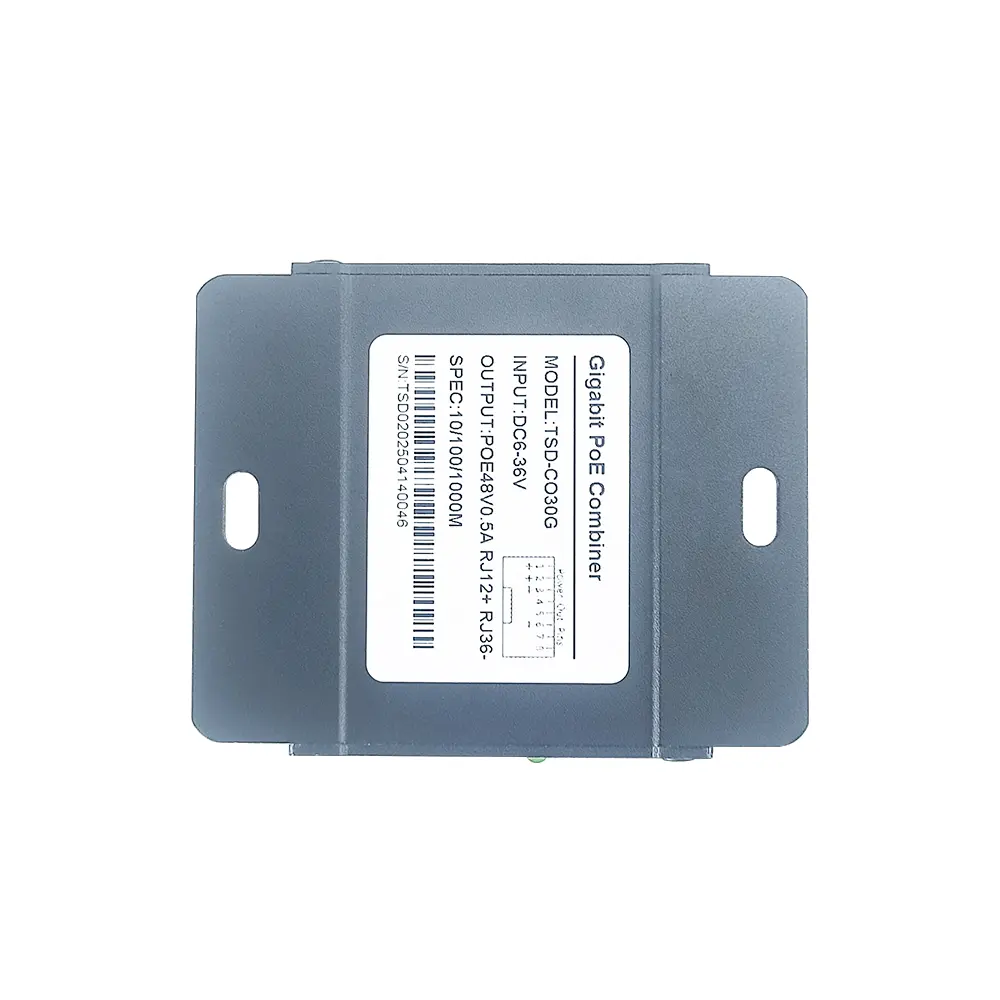

Model: TSD-CO30G

  • Input: DC 6-36V + data
  • Output: 48V 0.65A 30W
  • PoE protocol: IEEE802.3af/at
  • Transmission rate: 10/100/1000Mbps
  • Power supply pins: RJ12+ RJ36-
  • Interface: RJ45 Port , 5.5*2.1mm socket
  • Size: 71*58*25 mm (L*W*H)
  • Weight: N.W=79 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package
    TSD-CO30G-6
    01

    The TSD-CO30G combiner supports the IEEE 802.3af/at PoE standard and offers a maximum output power of 30W. It integrates data and power signals and outputs a single PoE signal.

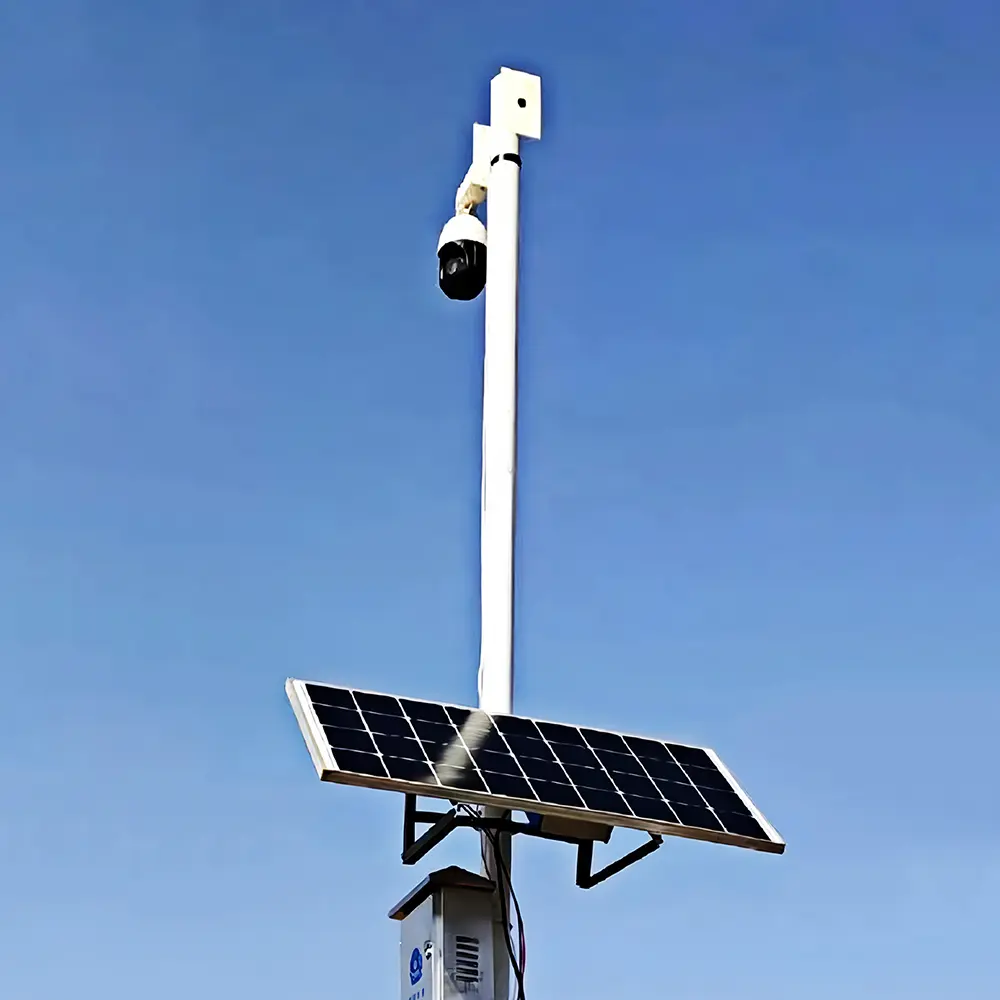

    The TSD-CO30G is primarily used in remote outdoor environments, such as fish ponds, mines, and orchards. In these remote locations, where only solar power can provide a DC 12-24V power source, the combiner can provide simultaneous data and power transmission for devices.


    ​

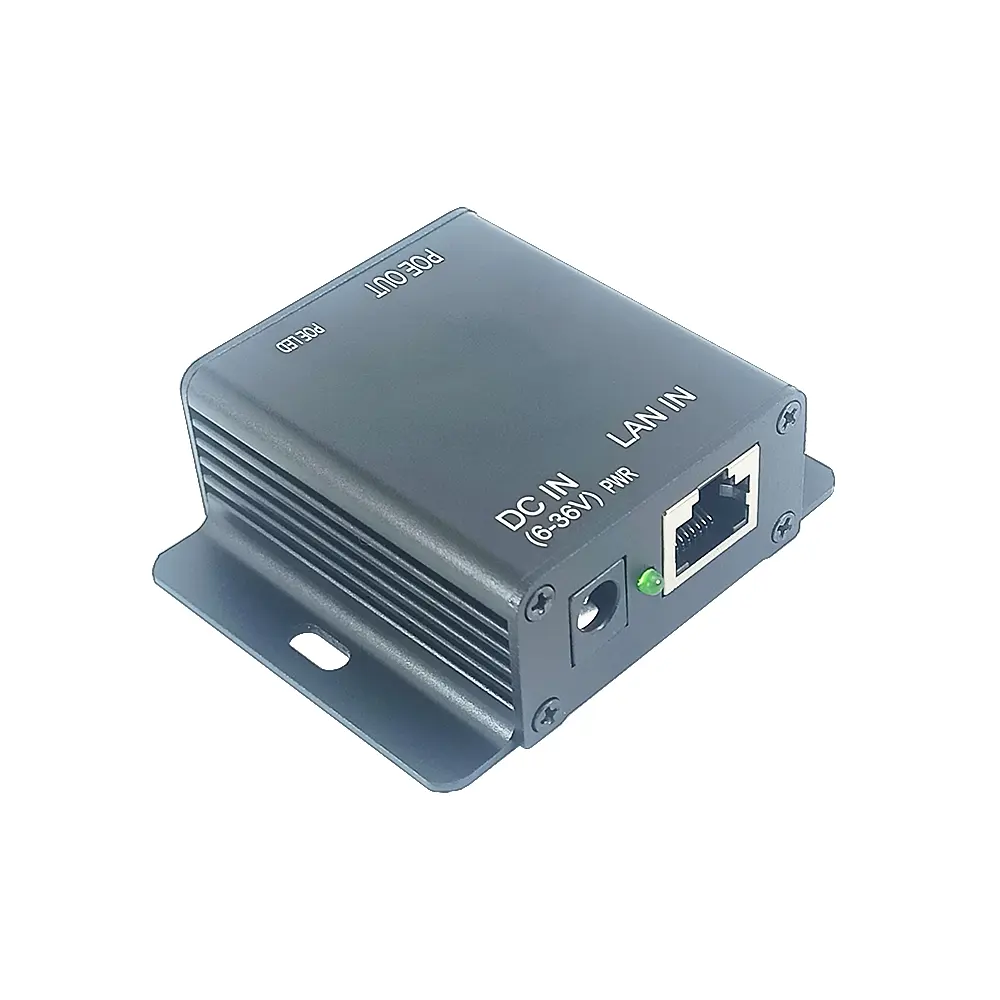

    TSD-CO30G-7
    01

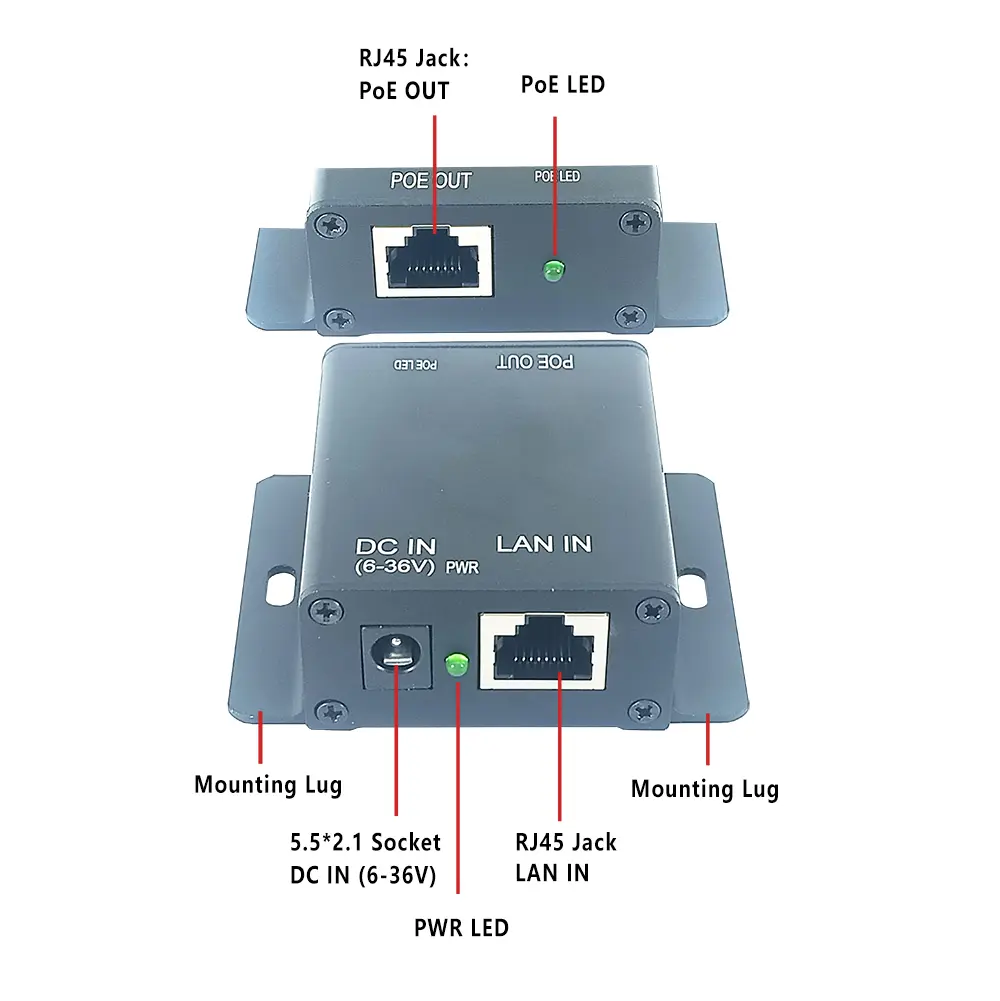

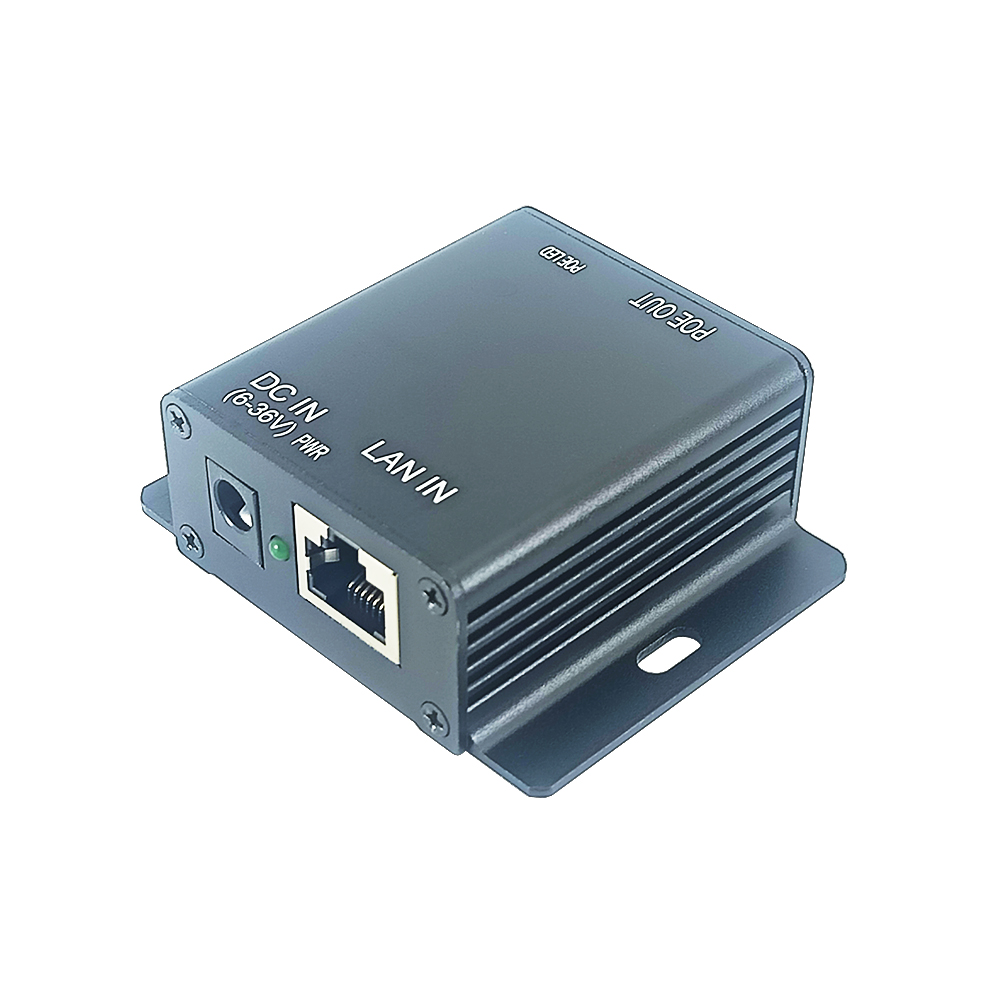

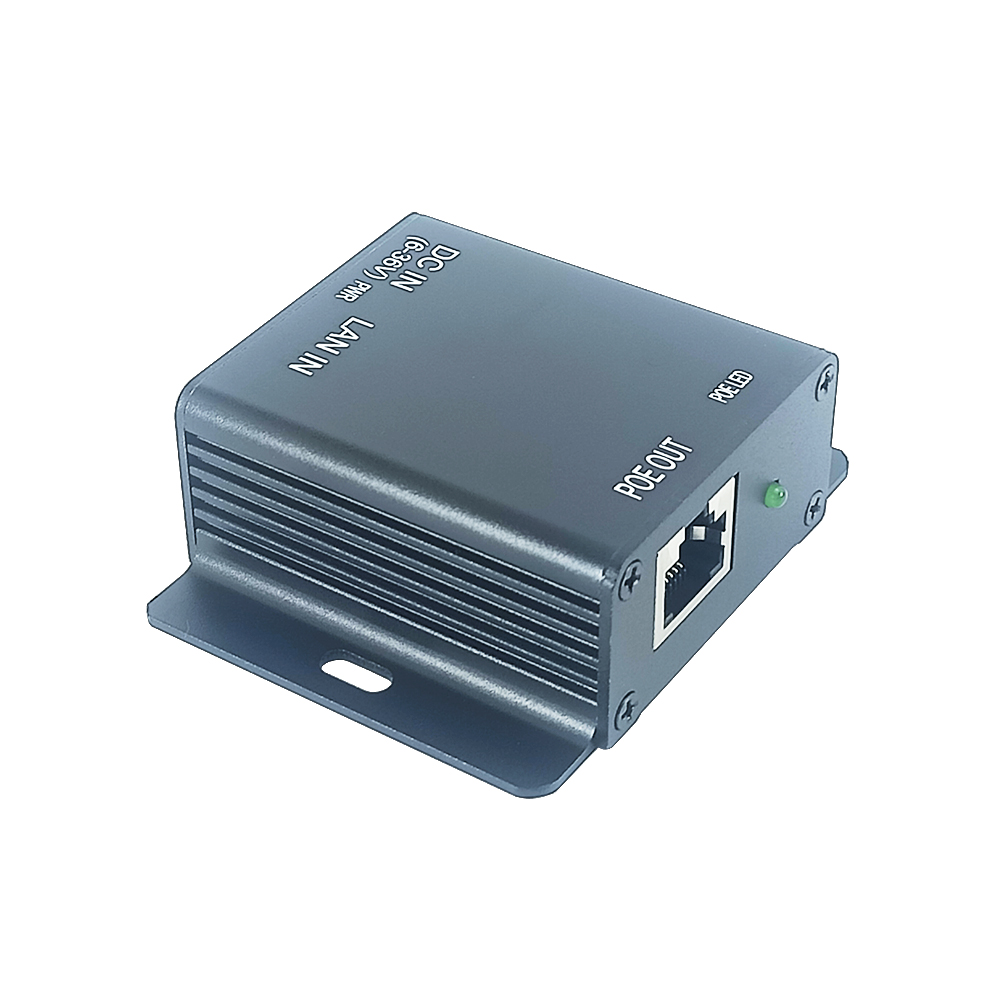

    The TSD-CO30G combiner inputs network and electrical signals and outputs a PoE signal. The DC connector accepts 6-36V DC power and data signals. RJ45 port 1 accepts data signals. A PWR LED indicates the combiner's operating status. RJ45 port 2 outputs PoE signals. A PoE LED indicates the PoE port's output status.


    The TSD-CO30G combiner simultaneously transmits data and power signals over the network cable, achieving "one-wire dual-use," effectively reducing deployment costs and simplifying device installation and management. It can be flexibly applied in a variety of scenarios, providing a PoE power supply solution for user devices.

    The TSD-CO30G combiner accepts 6-36V DC power and data signals, outputs 48V 0.65A, and has a maximum output power of 30W. Transmission rates: 10/100/1000Mbps auto-sensing. Power connectors: RJ12+, RJ36-. The TSD-CO30G's EMC parameters comply with IEC 61000-4-2/3/4/5/6 standards and are CE, FC, and RoHS certified. Internal circuitry includes overheating, overvoltage, overcurrent, and short-circuit protection.



    ● Input:​​ DC 6-36 V + data
    ● Output:​​ DC 48V 0.65A
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility:  RJ12+ RJ36- power supply
    ● Transmission Rate:​​ 10/100/1000Mbps auto-negotiation
    ● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● DC Receptacle Size: 5.5*2.1mm

    ● Color and Material: Matte black hard metal housing

    ● Internationally OEM electronic components, high precision and high performance

    ● Equipped with original high-precision electronic components from international brands, ensuring stable performance

    ● High-power, high-conductance, low-impedance transistors, excellent reliability and temperature tolerance

    ● Eco-friendly, high-temperature-resistant PCB material, environmentally friendly lead-free process

    ● Pure copper pin connectors to ensure stable contact

    Product parameter table

    Product Name

    DC 48V 30W output gigabit PoE combiner

    Product Model

    TSD-CO30G

    PoE Standard

    /

    Input Voltage

    DC 6-36V

    Output Voltage

    DC 48V 0.65A

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ12+ RJ36-

    Conversion Mode

    /

    Data Rate

    10/100/1000Mbps auto-sensing

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    PWR LED, PoE LED

    Interface

    LAN Port  (RJ45 Jack): data IN

    Input Port  (DC female socket): DC  IN

    PoE Port (RJ45 Jack): PoE OUT

    Function

    /

    Material

    Hard metal shell

    Color

    Matte black

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 79 g

    Dimension

    71*58*25 mm

    Package

    EPE foam + Cartons (93*82*32mm(L*W*H))

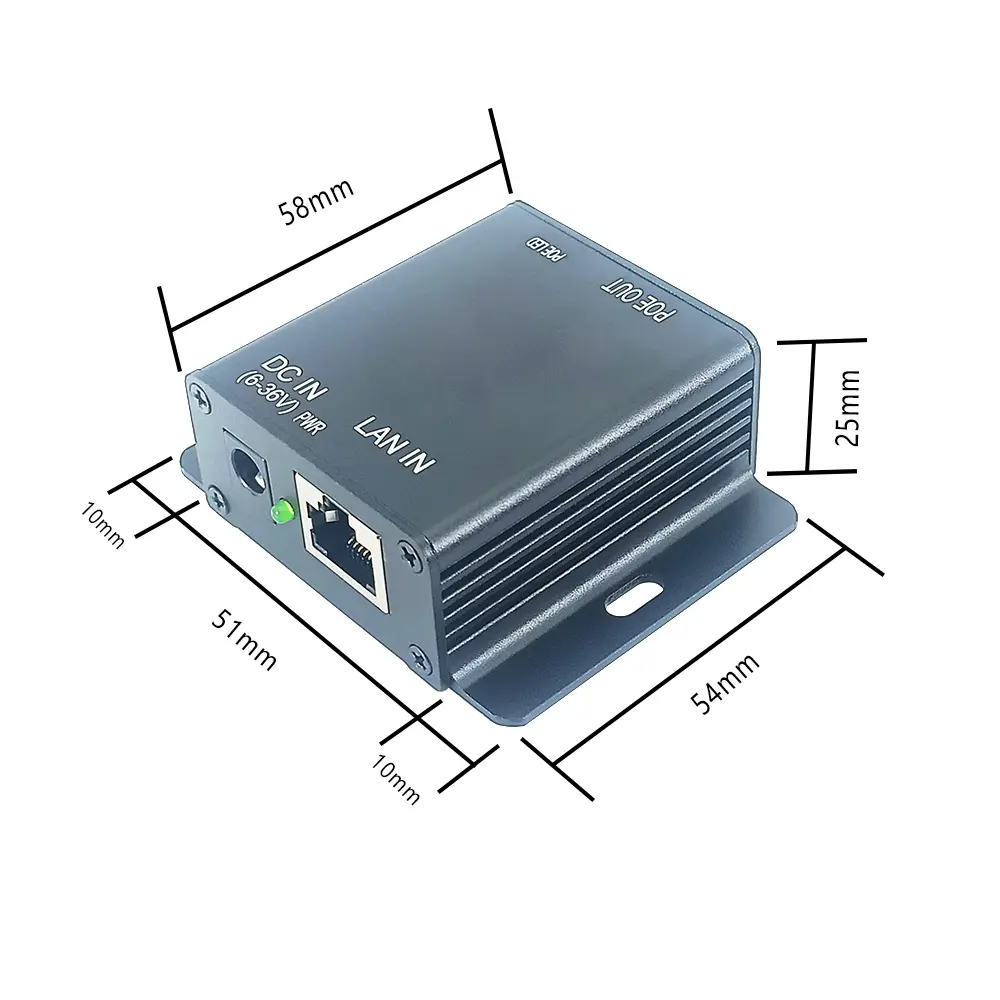

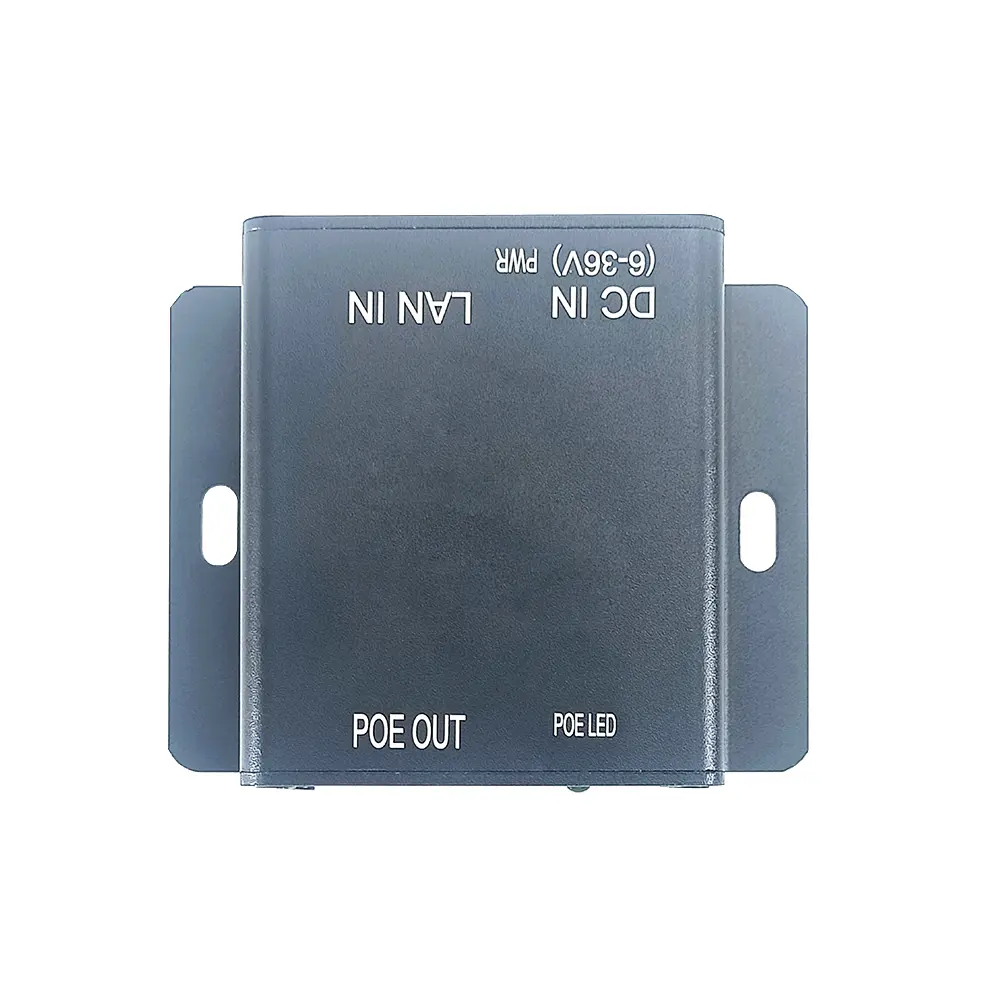

    Dimensions: 71*58*25mm (with mounting brackets). Mounting bracket dimensions: 54*10*1mm (L*W*H). DC connector dimensions: 5.5*2.1mm. Housing color: matte black. Housing material: hard metal housing. Overall structure: rectangular with mounting brackets on both sides.
    Dimension

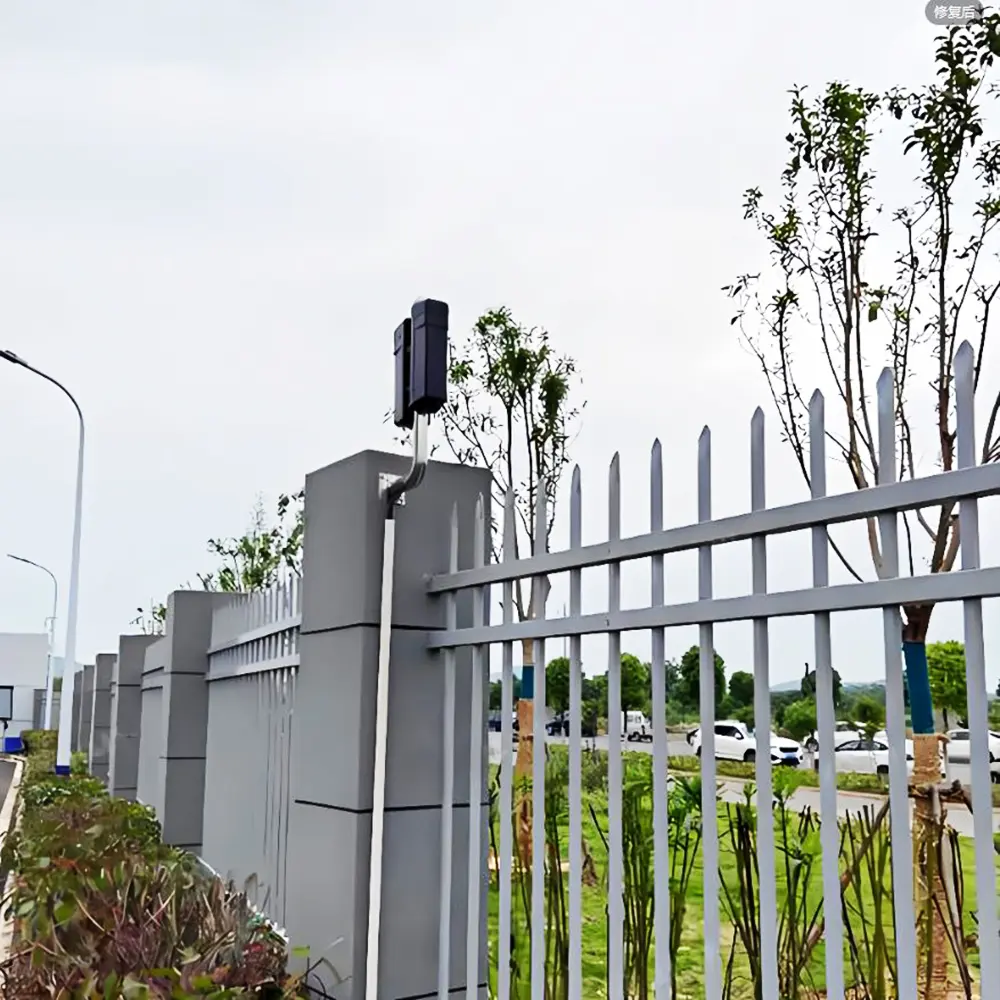

    The TSD-CO30G combiner provides network transmission and power supply for remote PoE devices or those powered by solar power outdoors. It can be used in wireless access points, PoE cameras, outdoor bridges, and other outdoor weak current equipment. The flexible use of the TSD-CO30G can expand network coverage, reduce device wiring complexity, and effectively save users money.

    Topography
    Application1
    Application2
    Application3

    Package list
    Items Quantity
    PoE Combiner: TSD-CO30G 1
    Operation Manual /
    Package
    Interface
