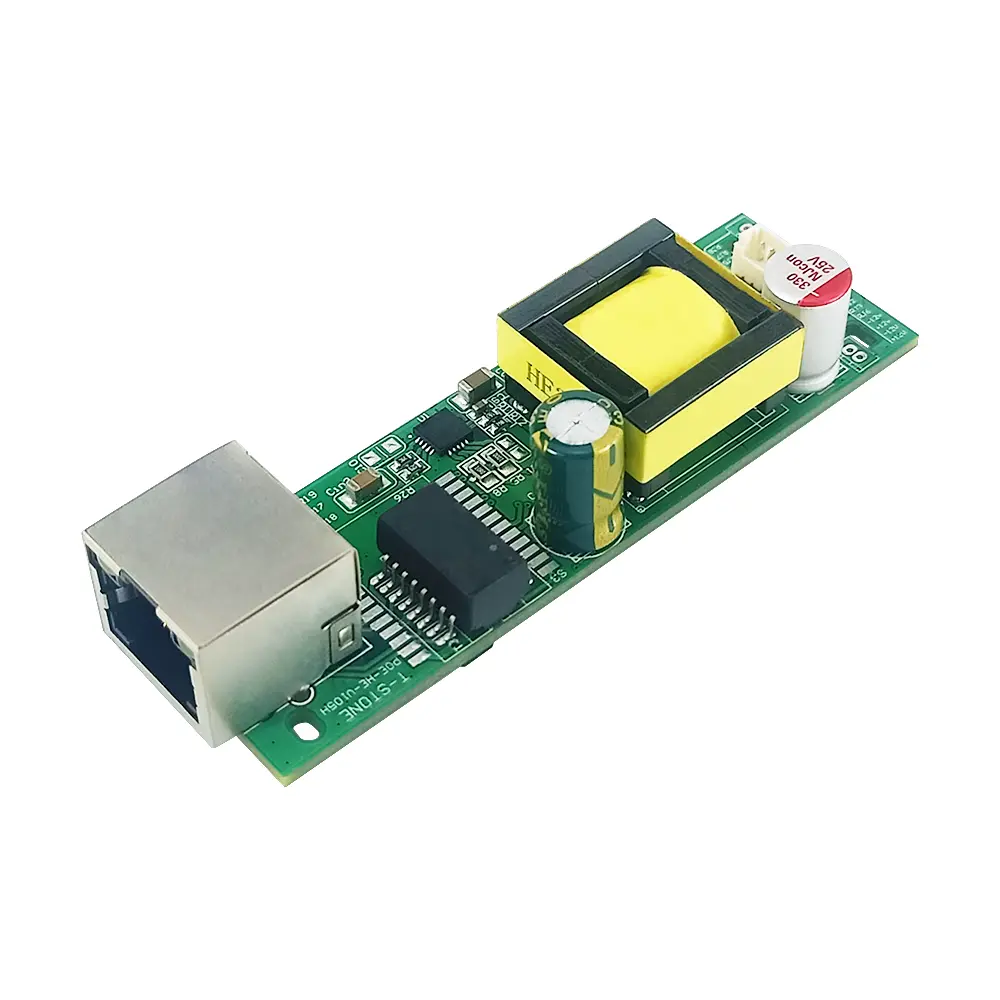

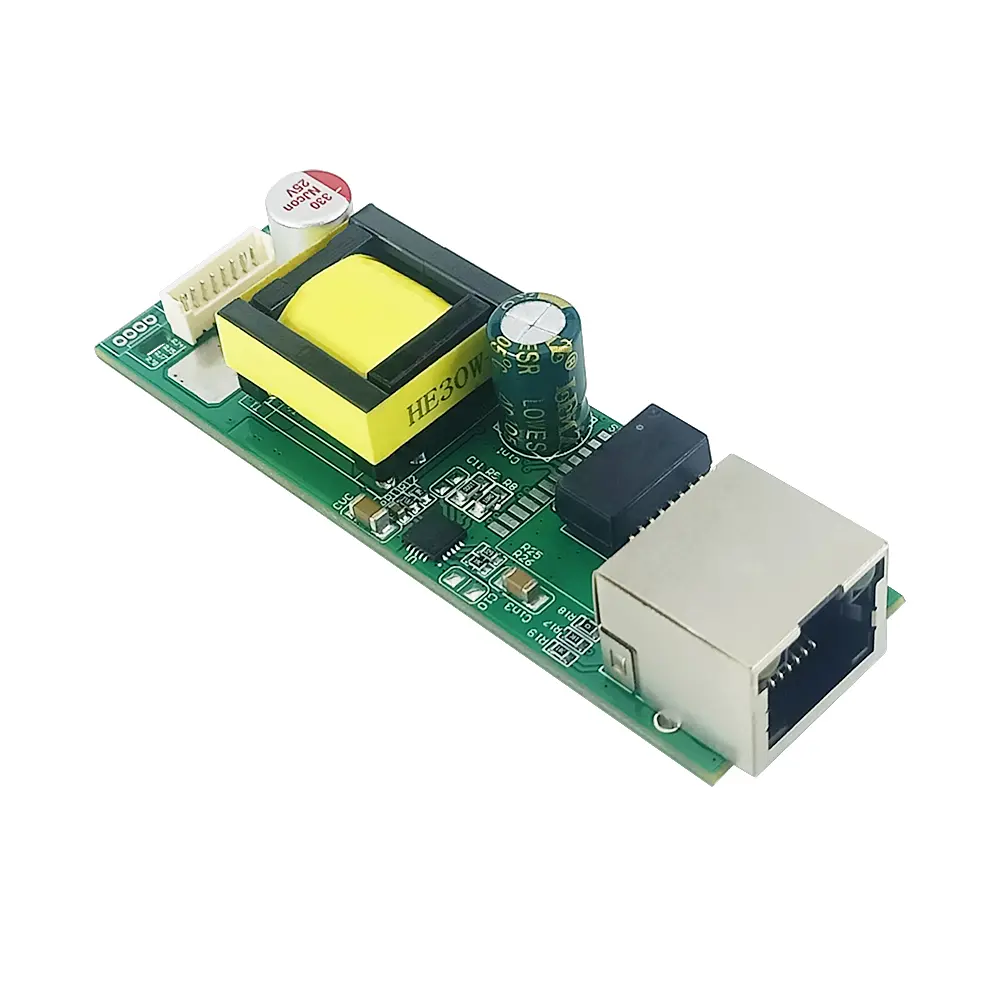

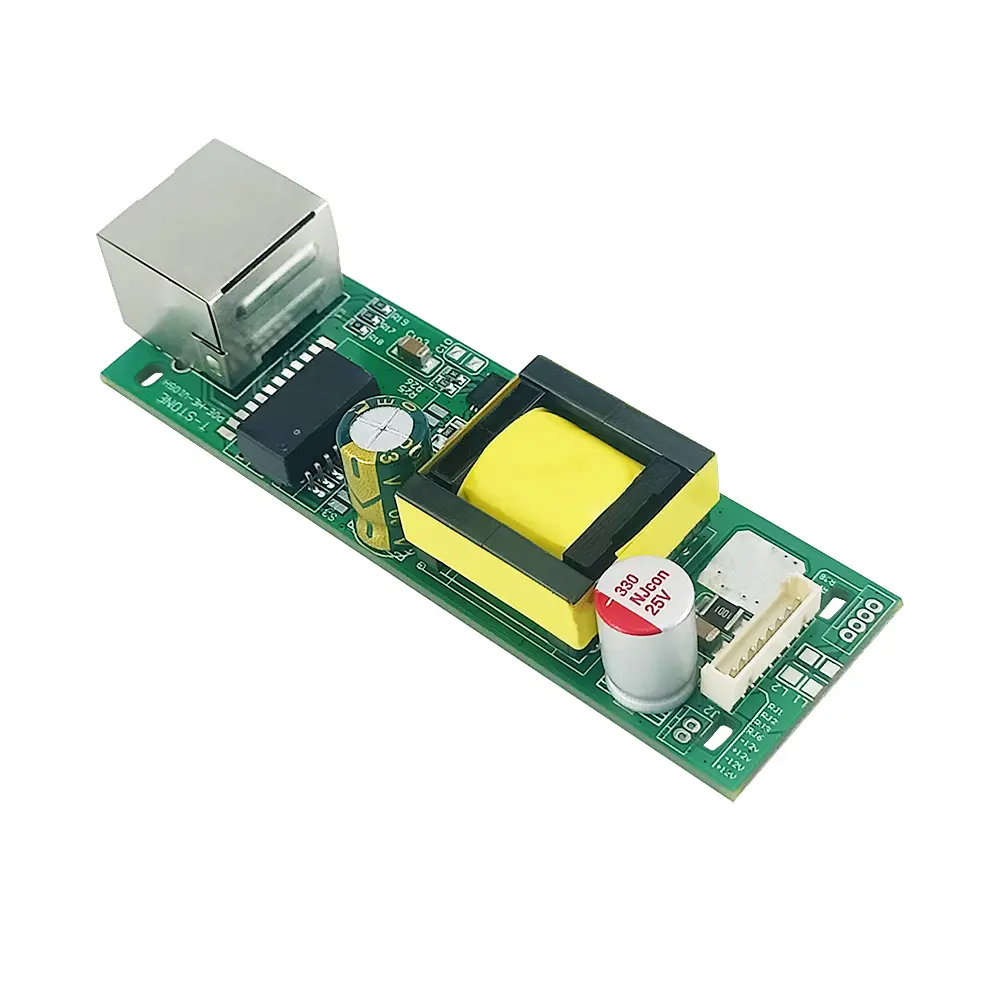

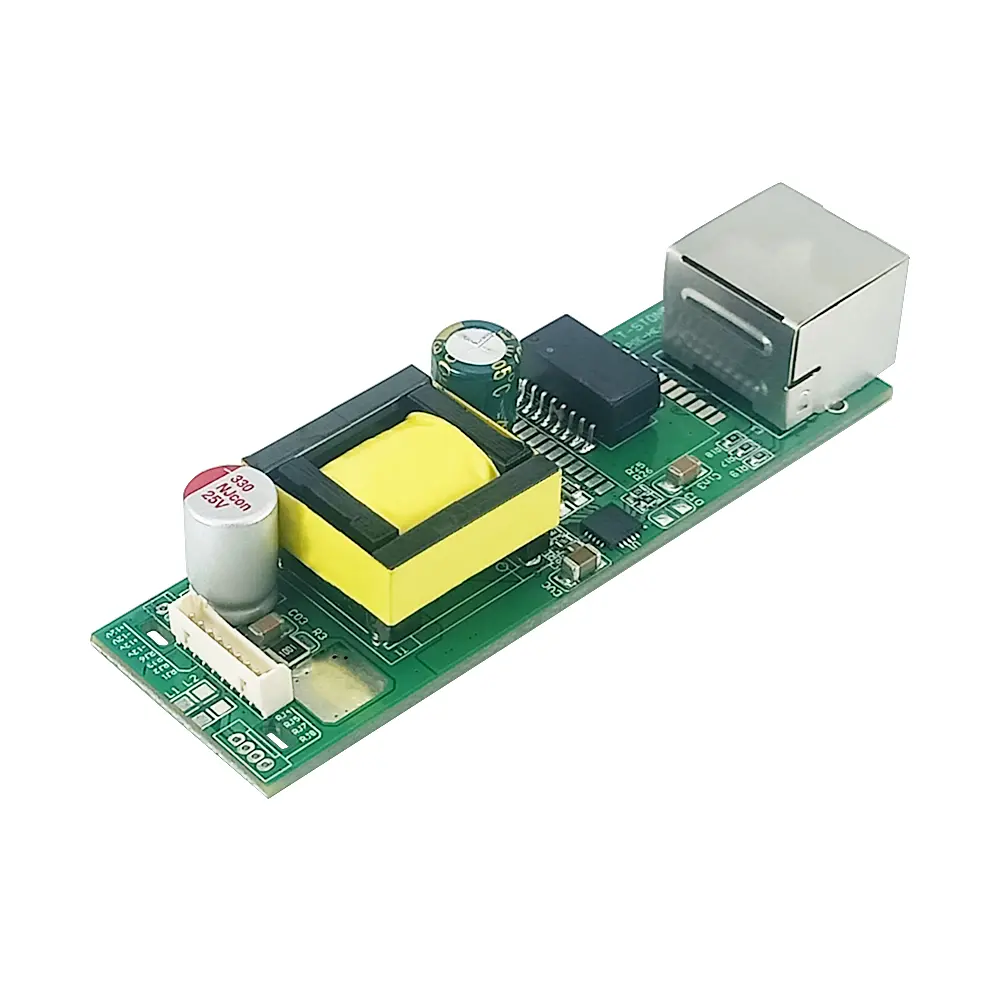

DC 12V 30W Power supply PoE Module (Active)

Model: TSD-V105H

Input: PoE DC power supply (38V–56V)
Output: DC 12V MAX2.5A 30W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/8P terminal block
Size: 80*23*17 mm (L*W*H)
Weight: N.W=24 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-V105H module conforms to the IEEE 802.3af/at PoE standard protocol, accepts a DC 38-56V PoE signal as input, and outputs a continuous and stable 12V 2.5A DC power with a maximum output power of 30W.

The TSD-V105H series includes three types:

TSD-V105H, transfer rate: 10/100M;

TSD-V105H-G, transfer rate: 10/100/1000M;

TSD-V105H-2.5G, transfer rate: 10/100/1000M/2.5G.

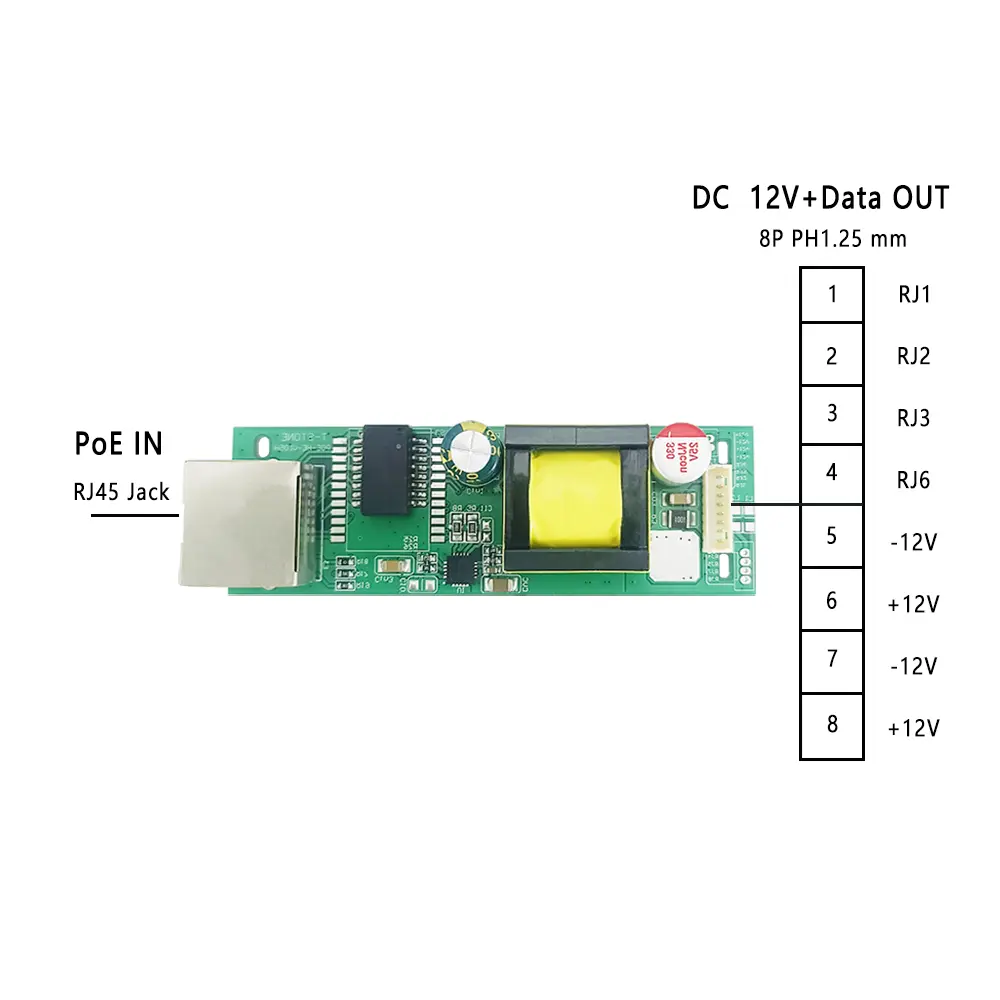

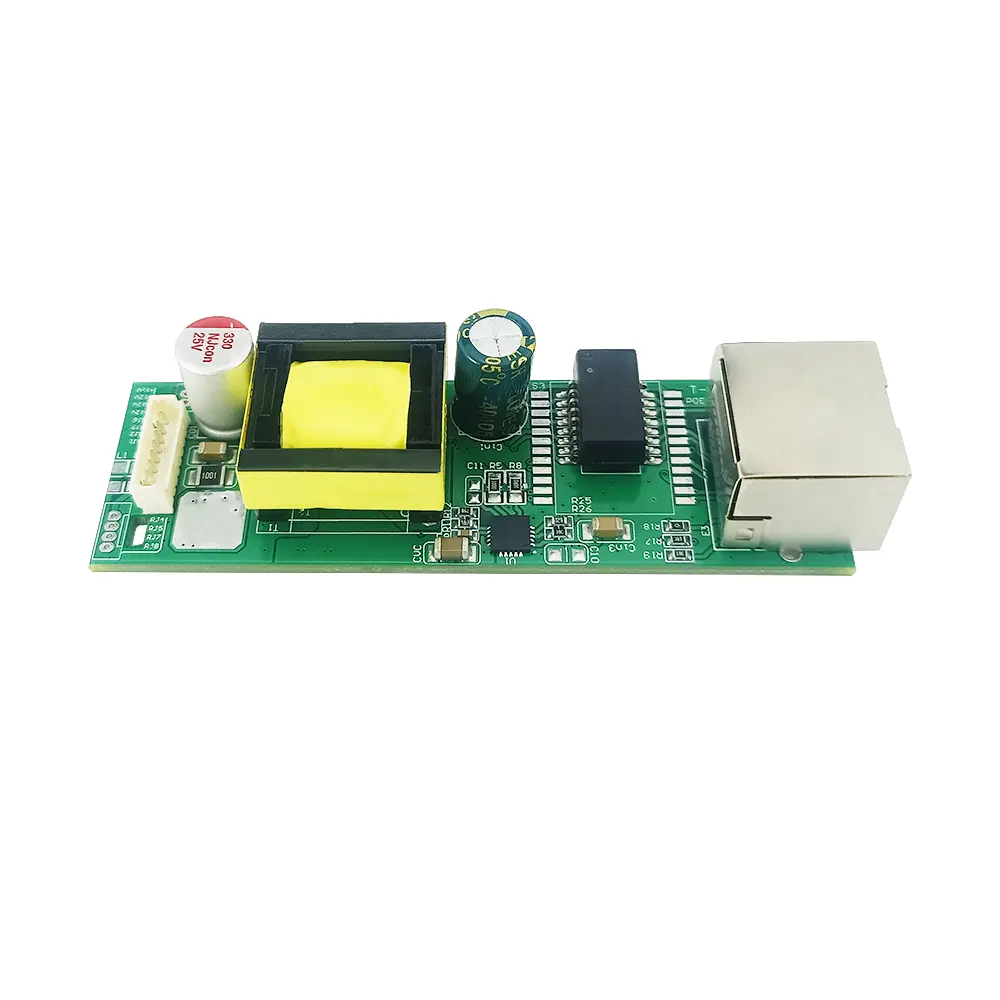

The TSD-V105H module's interface configuration includes: an RJ45 network port for input DC 38-56V PoE signals, an 8-pin PH1.25mm socket for outputting 12V 2.5A DC signals and data signals.

The TSD-V105H module's EMC parameters comply with IEC 61000-4-2/3/4/5/6 standards and have obtained CE, FCC, and RoHS certifications. The circuit features overheat protection, overvoltage protection, overload protection, short-circuit protection, and isolation protection. The product has achieved remarkable sales results both domestically and internationally, and its quality and performance have earned the trust and recognition of users.

The TSD - V105H complies with the IEEE 802.3af/at PoE standard protocol. It has an adaptive transmission rate of 10/100M. The maximum output power of the module is 30W. It supports wide - voltage input of DC 38 - 56V, with a default output voltage of DC 12V. Other output voltages can be customized upon request.

● Input: Wide-range PoE DC power supply (38V–56V)

● Output: DC 12V MAX2.5A + data
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Isolation protection

● Beige, high - temperature - resistant, flame - retardant material, vertical interface socket

● Equipped with high - precision electronic components from well - known brands, ensuring stable performance

● High - frequency PoE filter for 100M networks, enabling stable data transmission

● SMD (Surface Mount Device) solid capacitors offer a long service life and stable performance

● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation

● High - temperature - resistant PCB made of environmentally friendly materials

● EE19 bobbin isolation transformer to enhance anti - interference ability

● An 80mm connecting Wire is provided for convenient connection

Product parameter table
Product Name	DC 12V 30W Power supply PoE Module (Active)
Product Model	TSD-V105H	TSD-V105H-G	TSD-V105H-2.5G
PoE Standard	IEEE802.3af/at
Input Voltage	PoE: DC 38-56V
Output	voltage DC 12V MAX2.5A (Other Voltage can be customized)
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100 Mbps	10/100/1000 Mbps	10/100/1000Mbps/2.5G
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (RJ45 Jack): PoE 38V~56V IN Output Port (8Pin PH1.25mm terminal block): Data +DC 12V OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	80mm Connecting Line
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 24g
Dimension	802317 mm (LWH)
Package	Anti-static pearl cotton

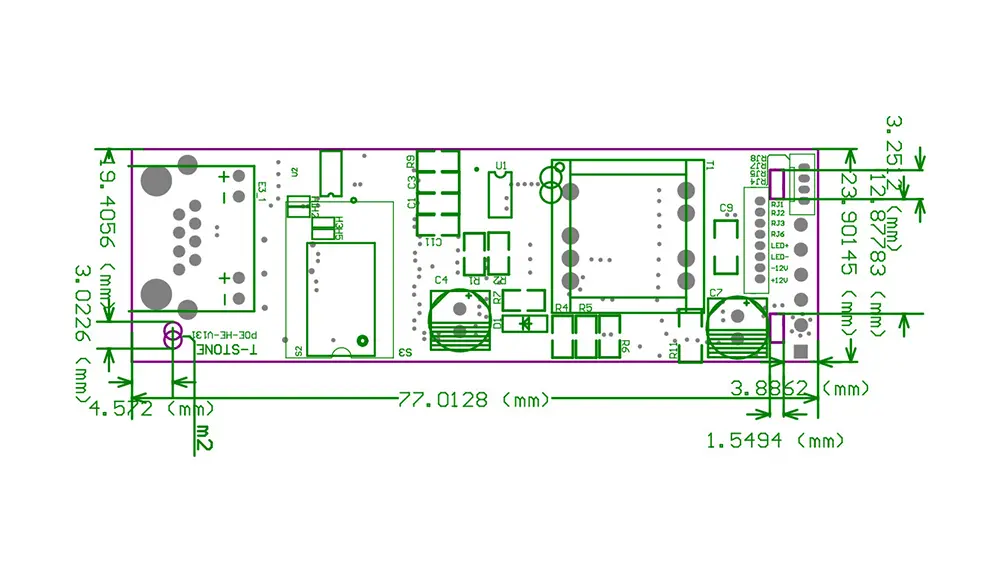

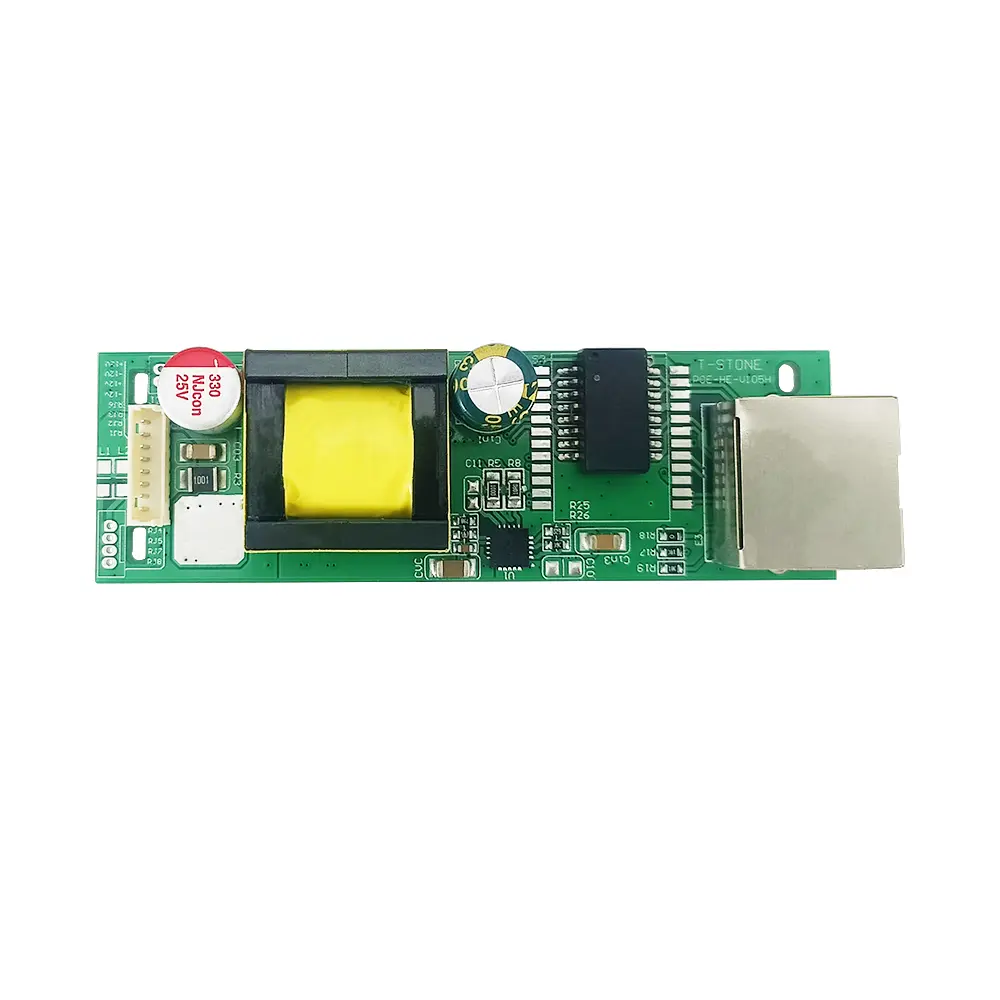

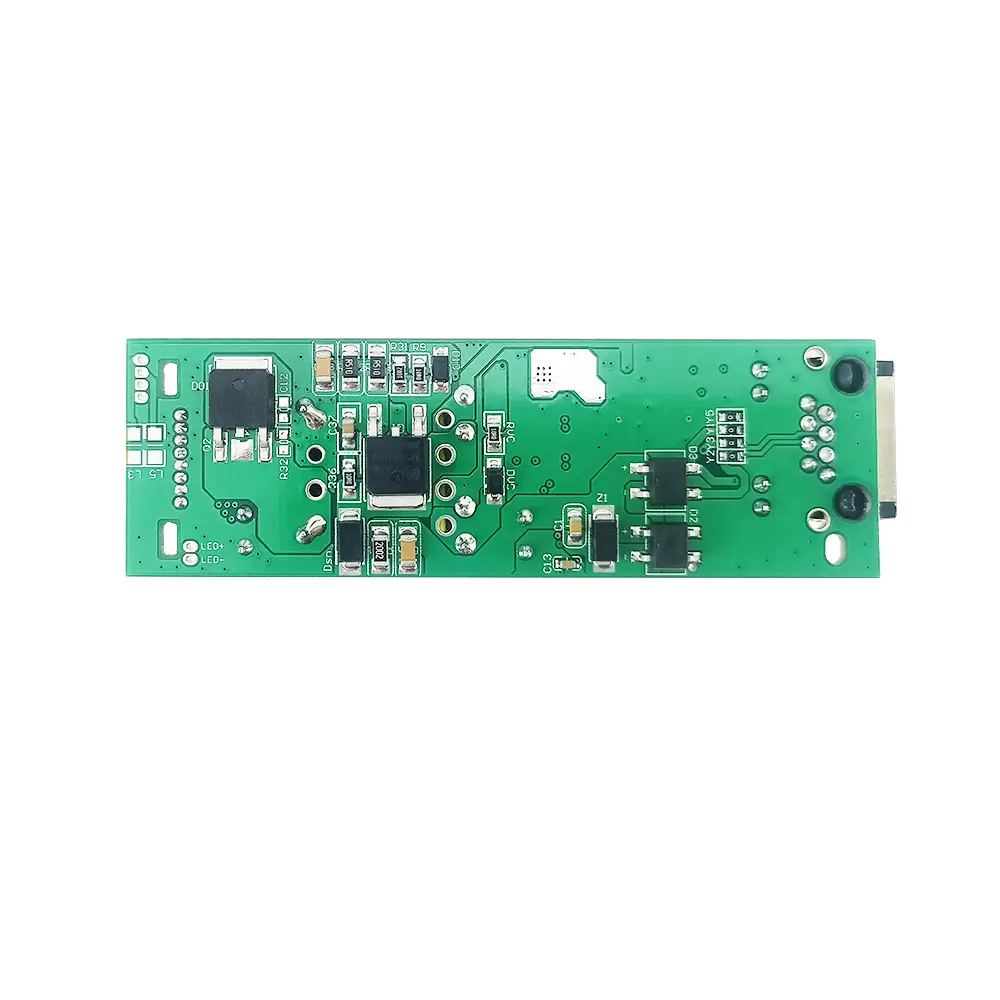

Dimensions and structure: The overall dimensions of the module are 80 * 23 * 17mm (Length * Width * Height). The thickness of the PCB board is 1.6mm, and the maximum thickness of the module is 17mm. The PCB adopts a double - layer structure with a square design. The components are arranged on both sides of the board, with large - sized components concentrated on the front side. The surface is coated with bright - green solder mask oil, making it both practical and aesthetically pleasing. The net weight of the module is 24g.

The TSD-V105H can separate PoE signals, delivering stable data signals and electrical power to non-PoE devices. This effectively addresses the issue of user devices not supporting PoE-powered networks, enabling seamless compatibility between modern PoE network systems and traditional network devices.

The TSD - V105H module is small in size, light in weight, and easy to install. It can be flexibly applied in various PoE power - supply scenarios, providing users with a reliable - technology and low - cost wiring option. This module can also safely power traditional network devices (such as IP phones, wireless routers, etc.), while maintaining the network connection to ensure the stability and compatibility of PoE power supply.

Package list
Items	Quantity
V105H PoE module	500 PCS
Operation Manual	/
