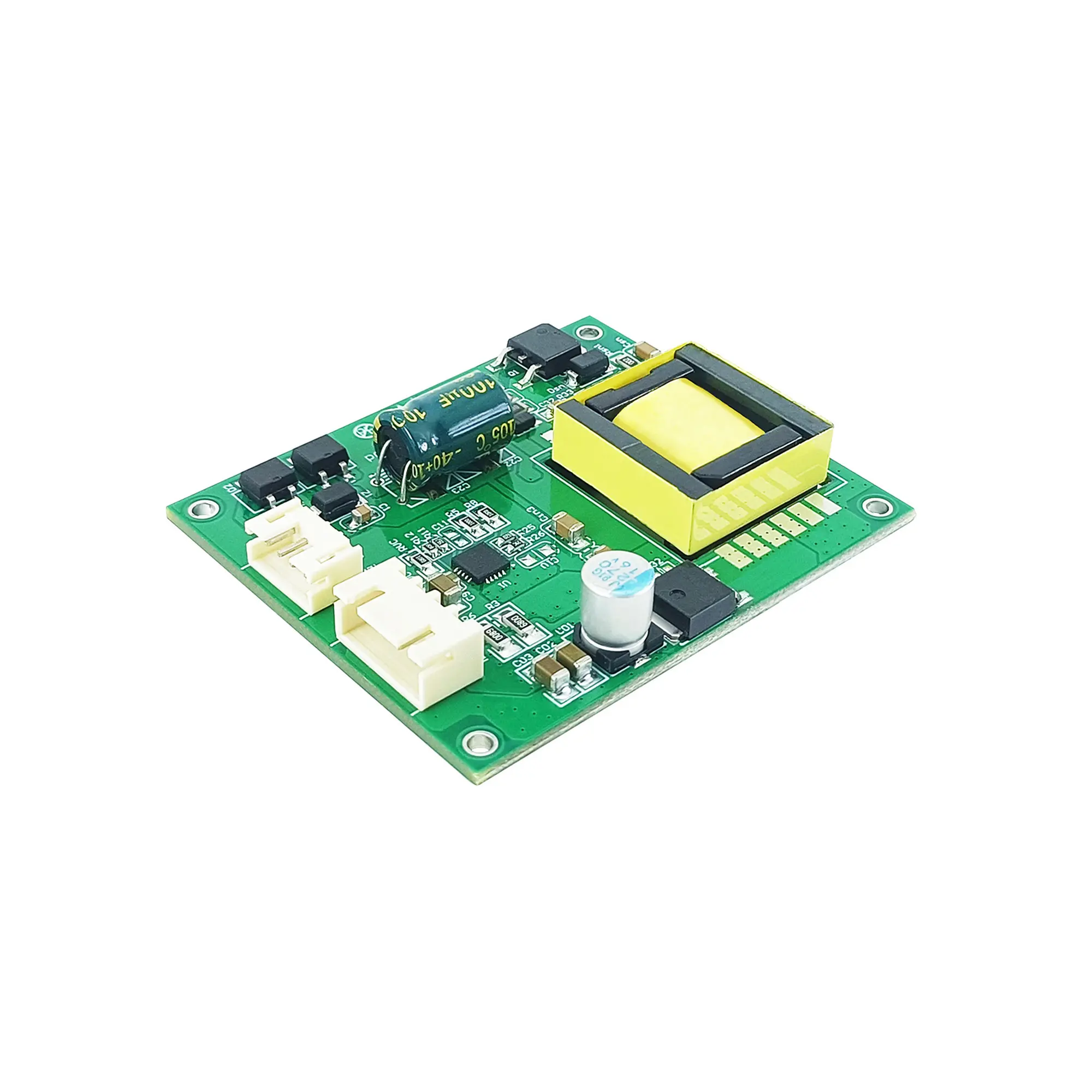

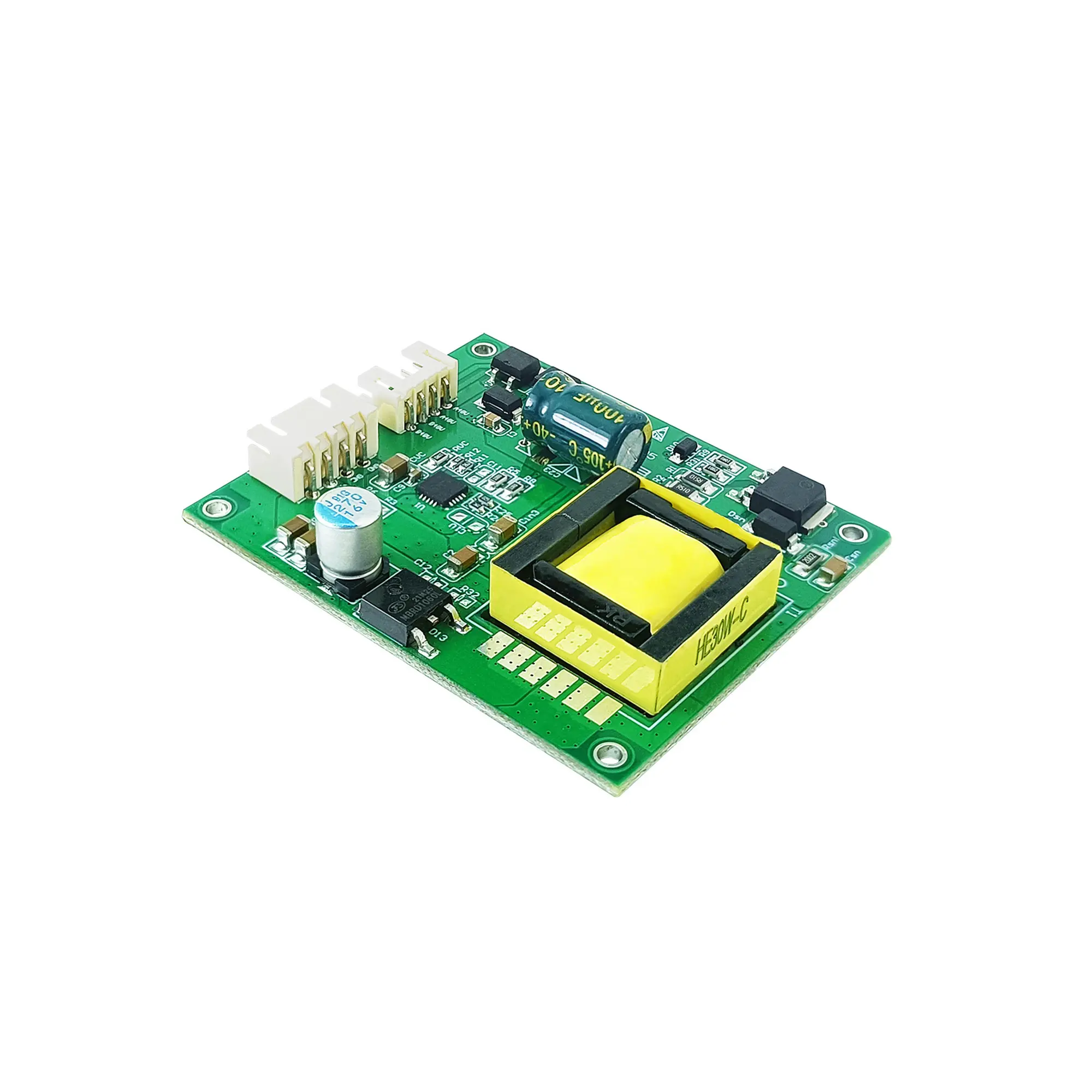

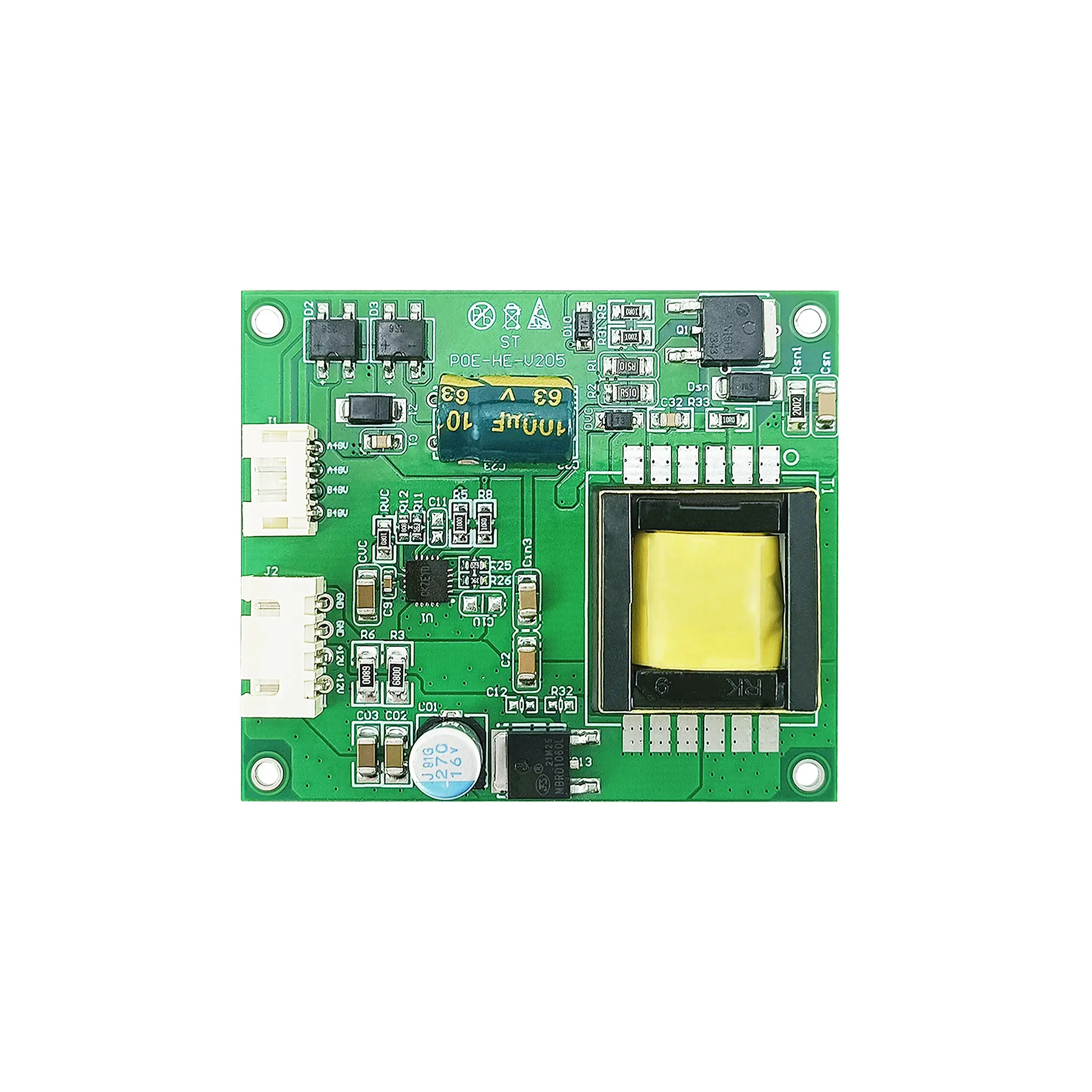

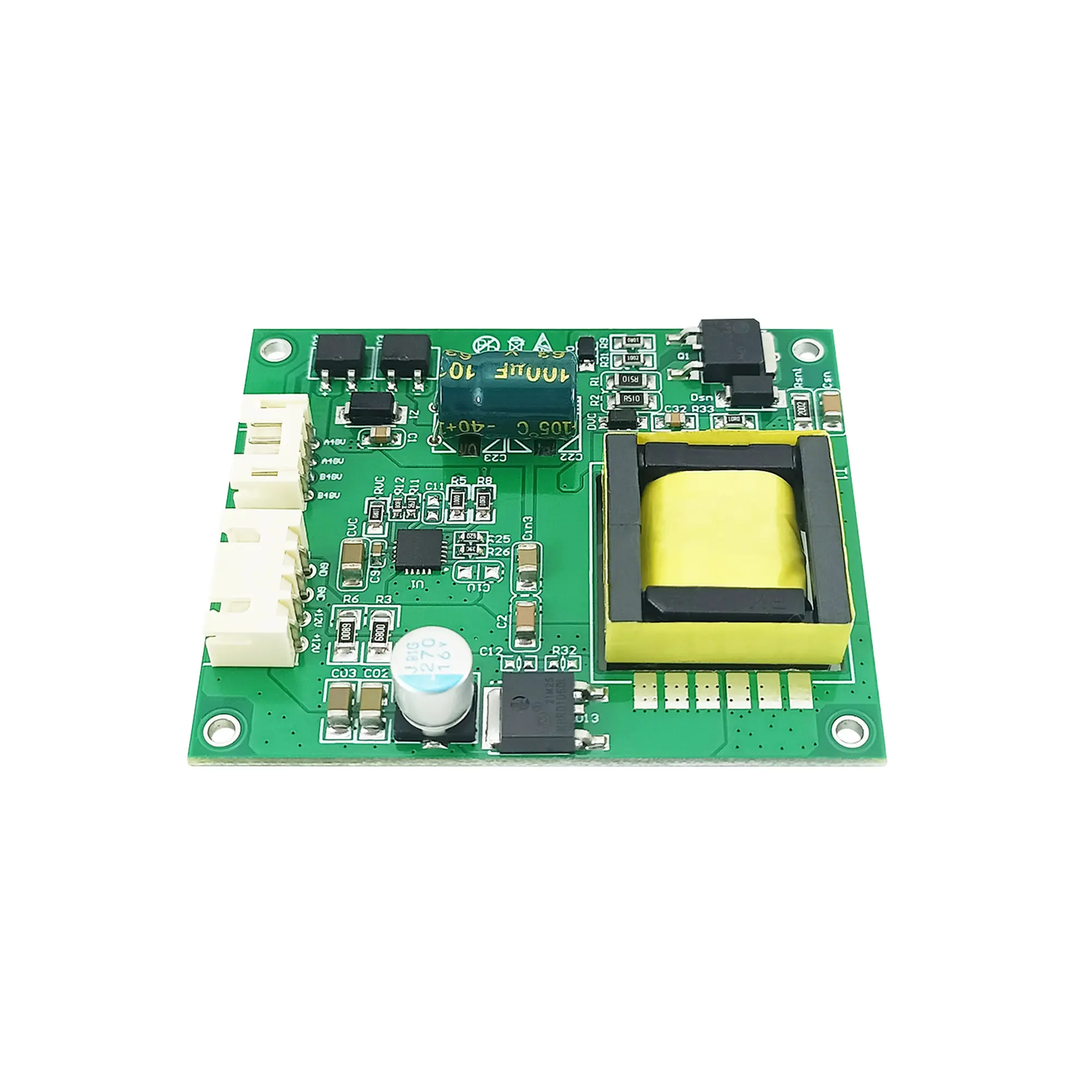

TSD-V205 equipped with an isolation transformer,
providing electrical isolation. Additionally, it offers surge protection (4KV),
lightning strike protection, short-circuit protection, overload protection, and
high-temperature protection to ensure circuit safety. The module supports wide
DC 38-56V input voltage and delivers a stable DC 12V 2.5A output, with a
maximum output power of 30W.

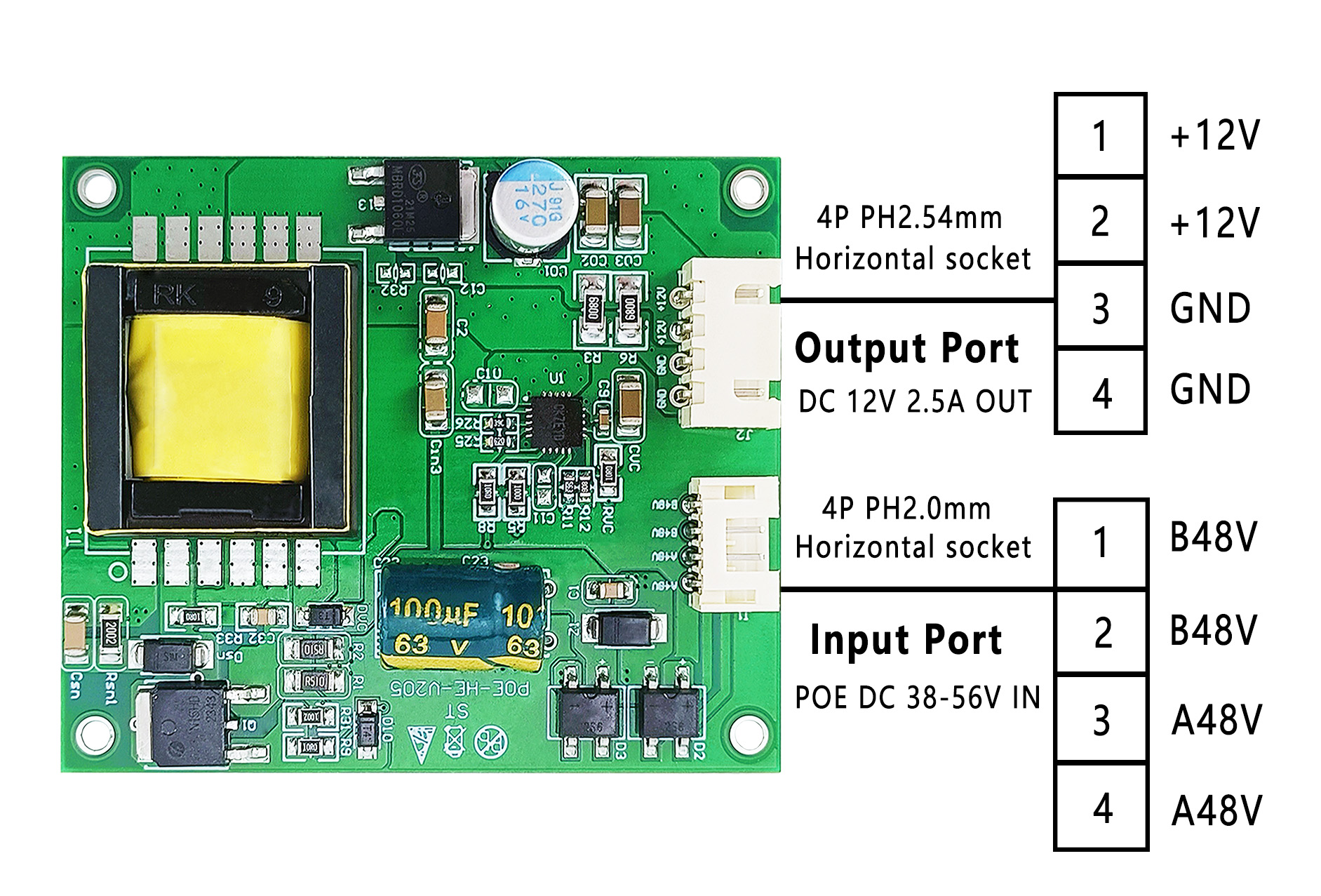

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lighting surge resistance
● Conversion efficiency≧85%

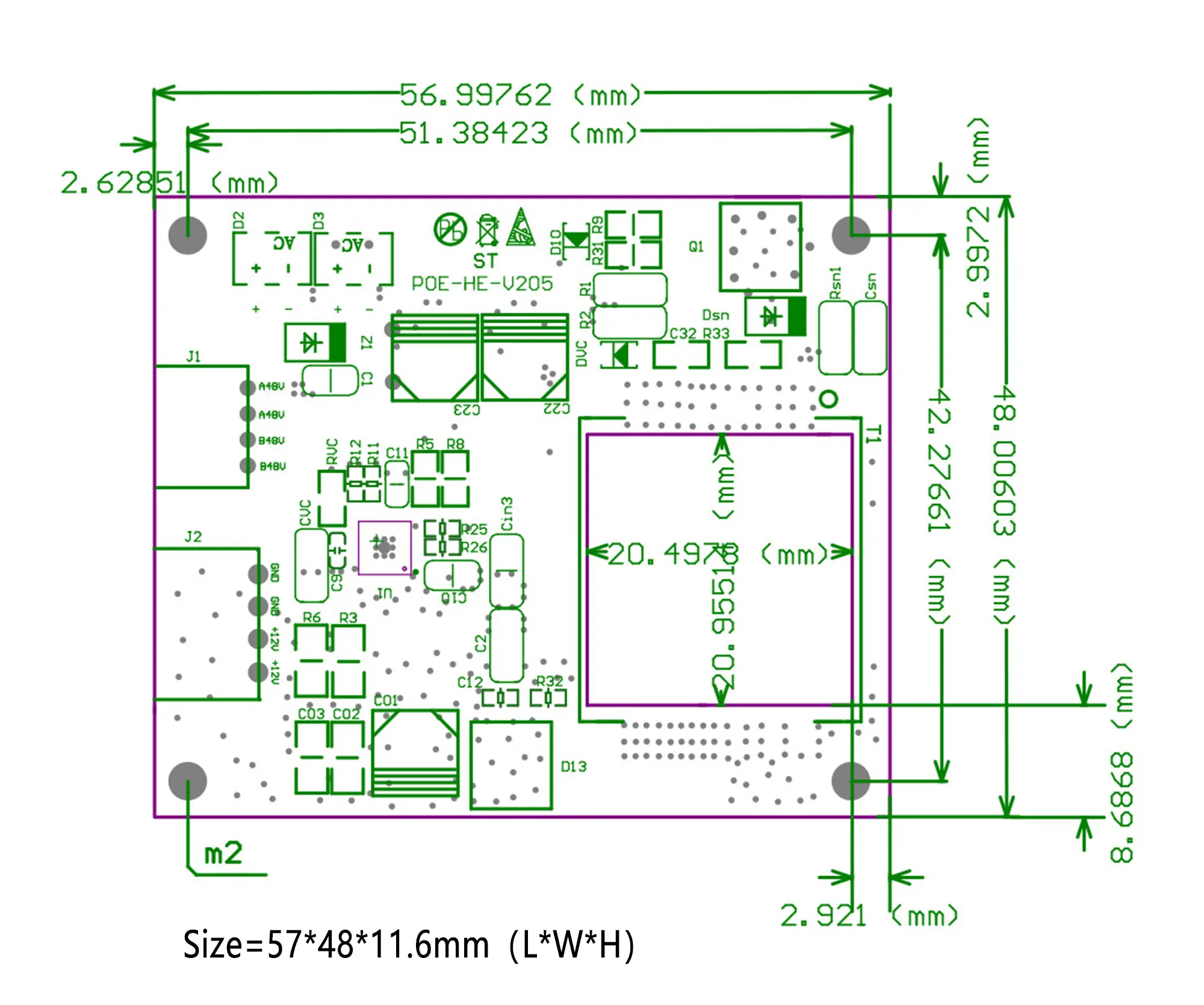

● Design Features: ultra-slim compact design, double-layer PCB with
single-sided layout
● High-temperature-resistant,
flame-retardant horizontal connectors
● High-frequency, low-resistance electrolytic capacitors (reduces high-frequency loss)
● Solid-state SMD capacitors (long lifespan, stable performance)

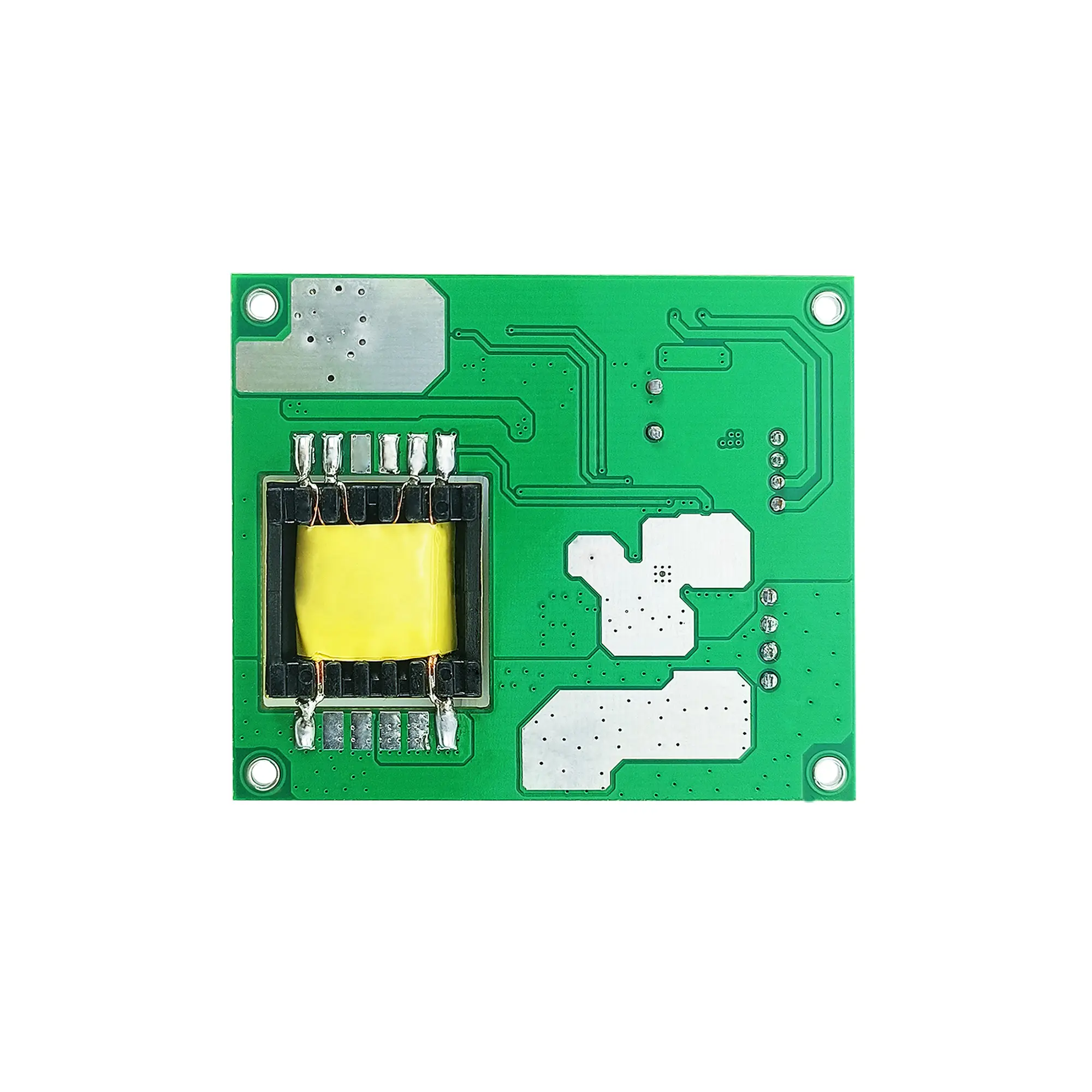

● Pure copper thickened wire cores, sunk-type ultra-thin isolation transformer
● High-precision branded electronic components
● High-power, low-impedance transistors for superior conductivity
● Pure copper pin connectors (excellent electrical & thermal conductivity)
● High-temperature-resistant, eco-friendly PCB material
● Lead-free manufacturing process
