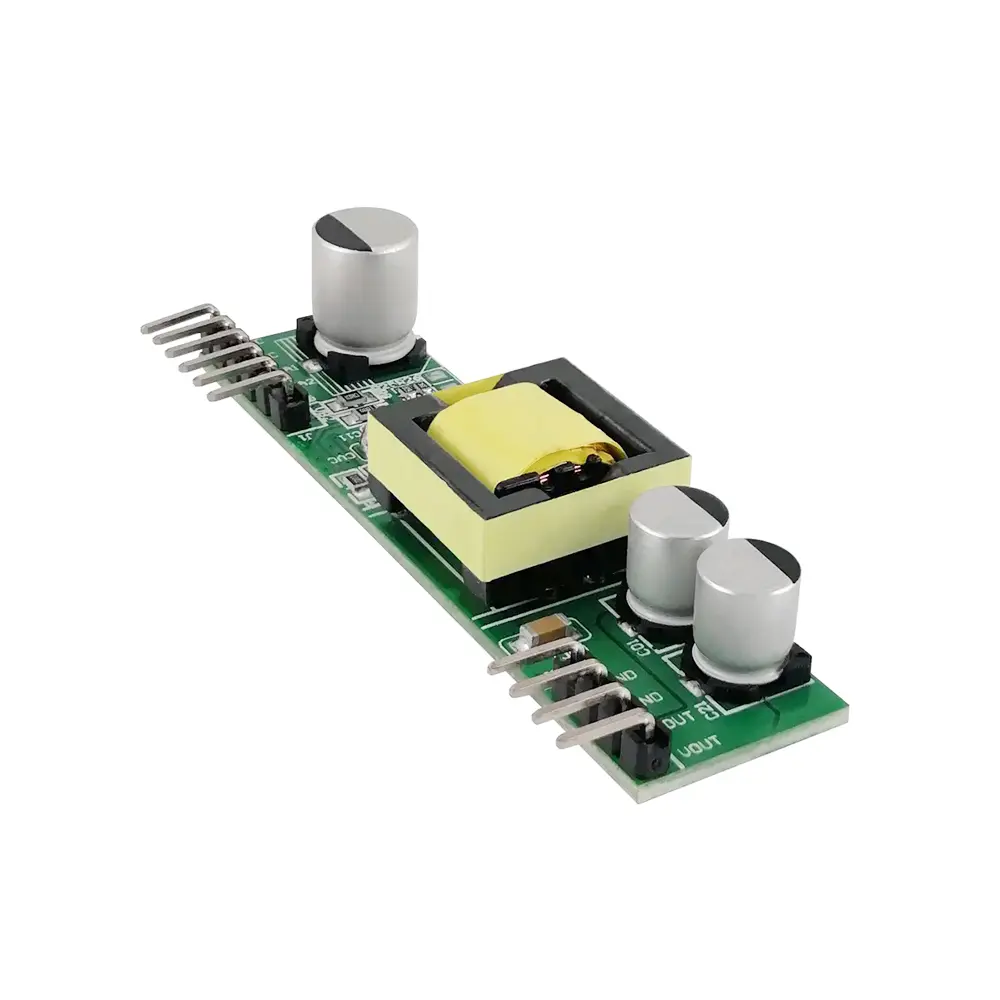

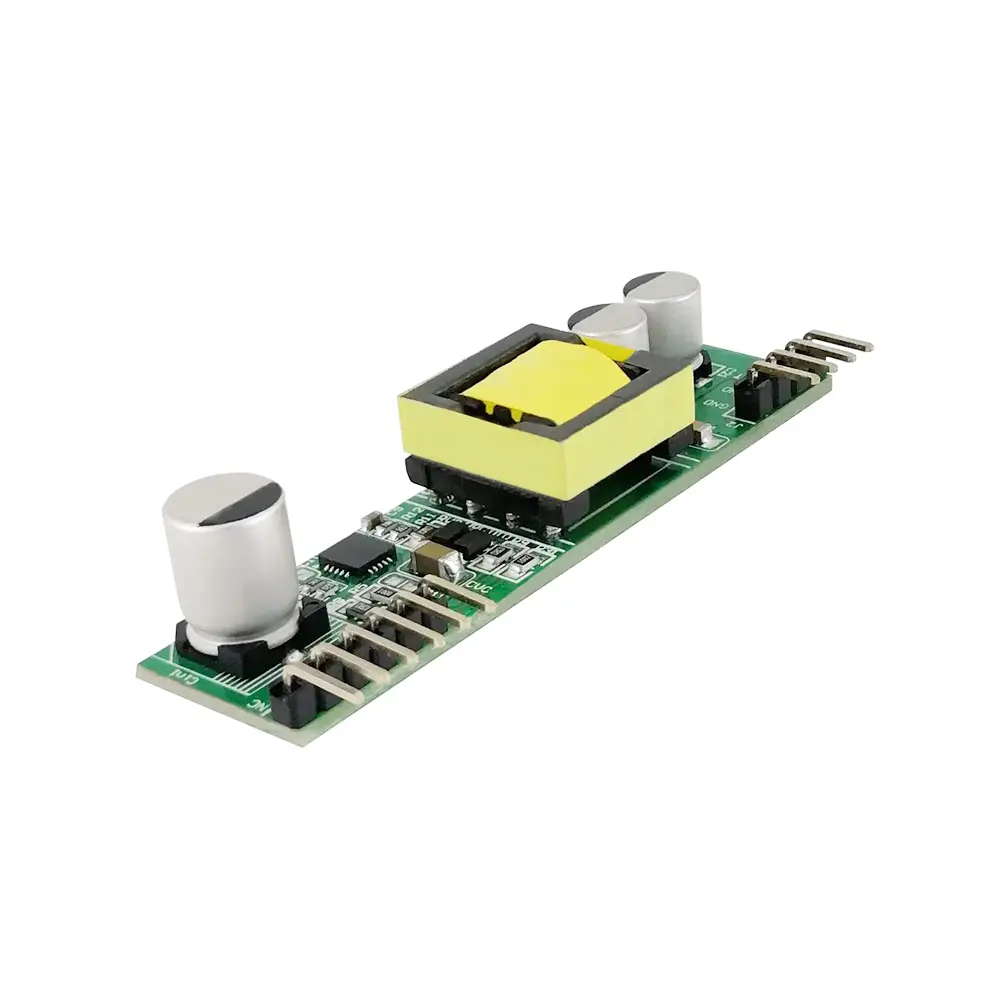

90-degree Pin Header 12V 18W PoE PD Module

MODEL: V201

Input: PoE DC 38-56V
Output: DC 12V MAX 1.5A
PoE protocol: IEEE 802.3af
Data rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH2.54 bent-pin header
Size: 62*16*14.8mm (L*W*H)
Weight: N.W=12 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

The V201 is an active PoE module that complies with the IEEE802.3af POE standard protocol and has a conversion efficiency of over 85%. The V201 module is responsible for processing the 48V voltage of POE and converting it to output a DC 12V current to supply IP devices.

Input port: 6-Pin PH2.54 bent-pin header pins * 1. Input voltage: DC wide voltage ranging from 38 to 56V. Output port: 4-Pin PH2.54 bent-pin header pins * 1. Output voltage: DC 12V. Output current: max1.5A.

The V201 uses a high-temperature-resistant and flame-retardant interface. The circuit design is equipped with protection functions such as lightning protection, short-circuit protection, overload protection, and high-temperature protection. Its EMC parameters comply with the IEC 61000-4-2/3/4/5/6 standards. It uses an isolated design scheme and is equipped with a high-power pure copper isolation transformer, which can effectively avoid the common-ground problem. The product has obtained certifications such as CE, FC, and RoHS, and is sold well in more than 100 countries and regions around the world.

The V201 complies with the IEEE802.3af POE standard protocol. Its maximum output power is 18W(IEEE802.3af class 3). It supports wide-voltage input of DC38-56V, and the default output voltage is DC12V. Other voltages can be customized. The effective transmission distance is 100 meters, and it supports 24/7 non-stop operation.

● IEEE802.3af POE standard protocol and handshake recognition function

● Input: wide POE voltage DC38-56V

● Output: DC12V max1.5A(other voltages can be customized)

● RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

● Ultra-thin design, easy installation

● 4KV surge suppression

● Overheat protection, overvoltage protection, overload protection, short circuit protection

● The conversion ratio exceeds 85%

● EMC parameters comply with IEC 61000-4-2/3/4/5/6 standards

● Big brand high-precision electronic components with high parameter accuracy and low error rate

● High power, high conductivity, low impedance transistor with stable performance and low heat generation

● Big brand surface-mount capacitors feature small size and high-temperature resistance

● Big brand original IC with stable performance

● High temperature resistant and environmentally friendly PCB material

● Adopt pure copper pin connectors to avoid bad contact

● Pure copper transformer features a long service life and strong anti-interference ability

● High-temperature-resistant and flame-retardant interface

● Isolation design to avoid common-ground issues

Items	Specifications
Product Name	90-degree pin header 12V 18W PoE PD module
Product Model	V201
PoE Standard	IEEE802.3af
Input	POE: DC38-56V
Output	DC12V max1.5A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated
Data Rate	10/100Mbps Adaptive
Transmission Distance	100 meters
Surge Protection	4KV
Circuit Protection	Overload Protection Overheating Protection Overvoltage Protection Short circuit Protection
LED Indicator	/

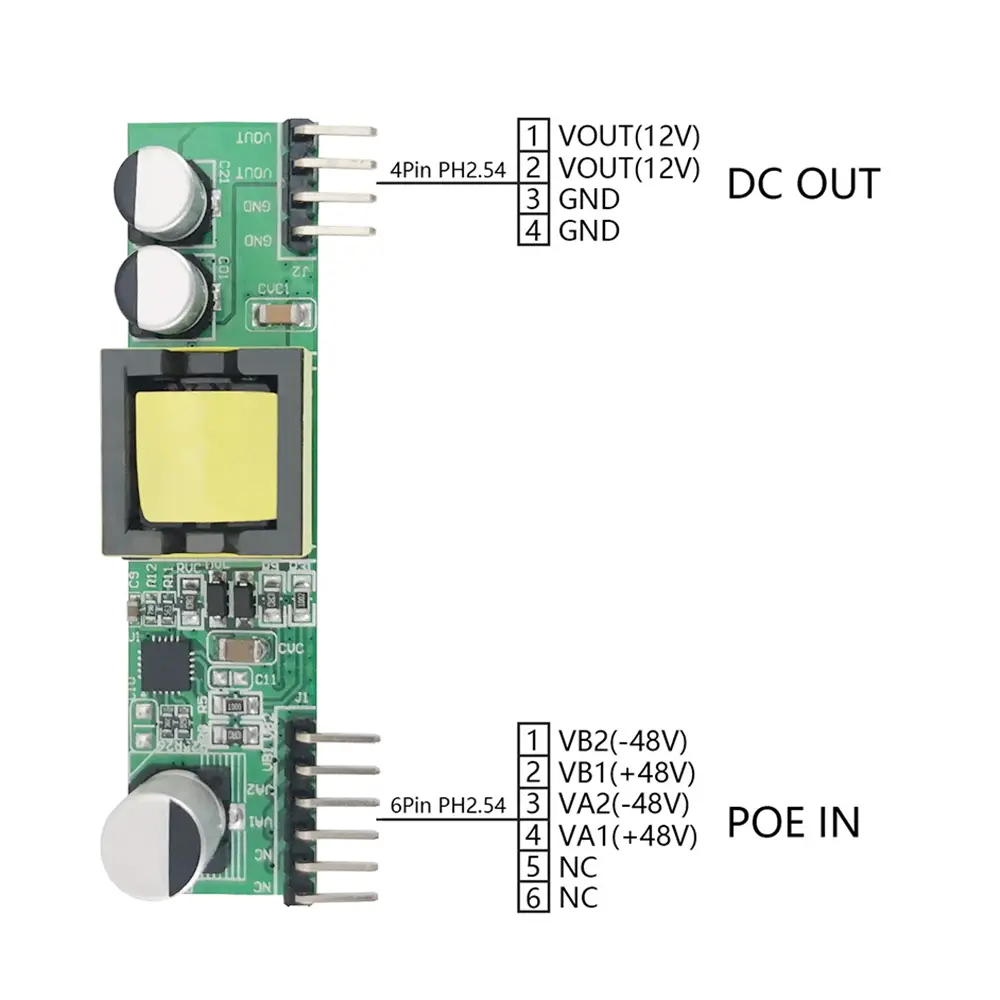

Interface	Input Port: 6Pin PH2.54 bent-pin header * 1: DC 38-56V IN Output Port: 4Pin PH2.54 bent-pin header * 1: DC 12V OUT
Function	/
Material	FR-4
Color	Bright green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～80℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 12g
Dimension	62mm16mm14.8mm
Package	Anti-static pearl cotton

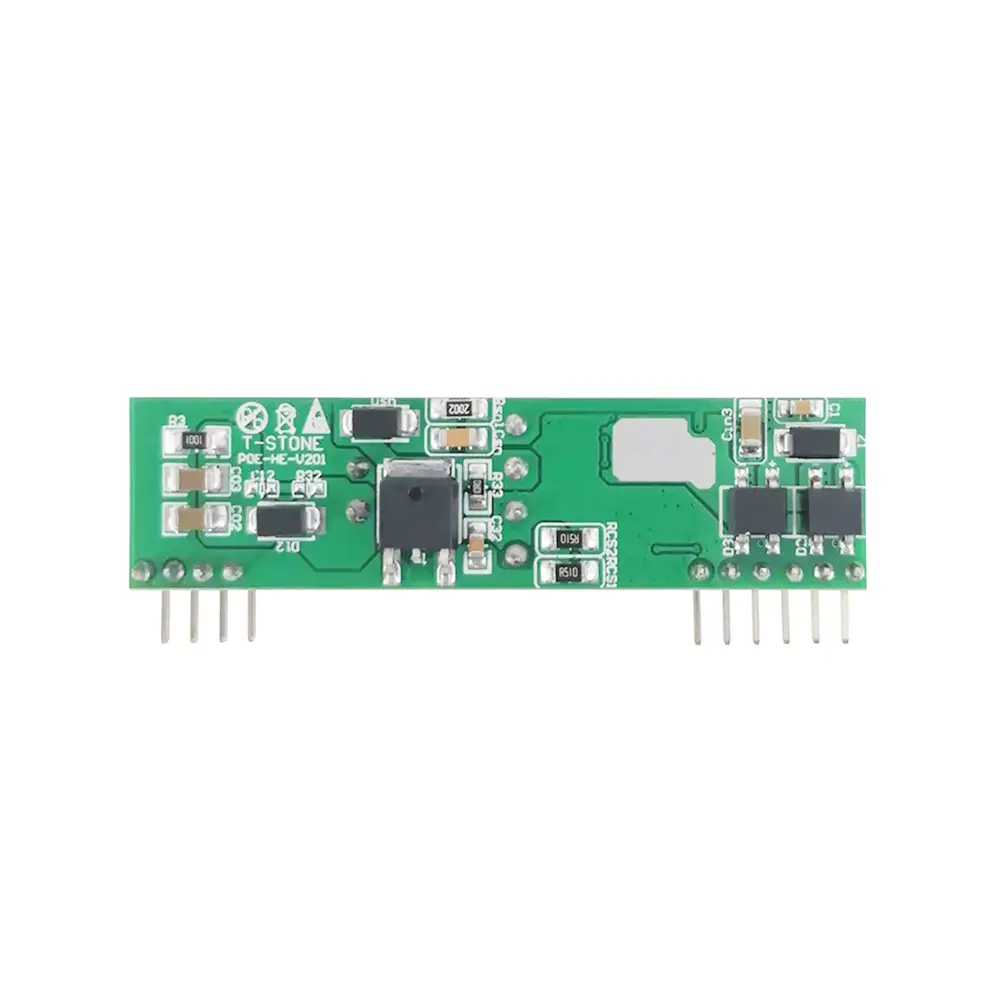

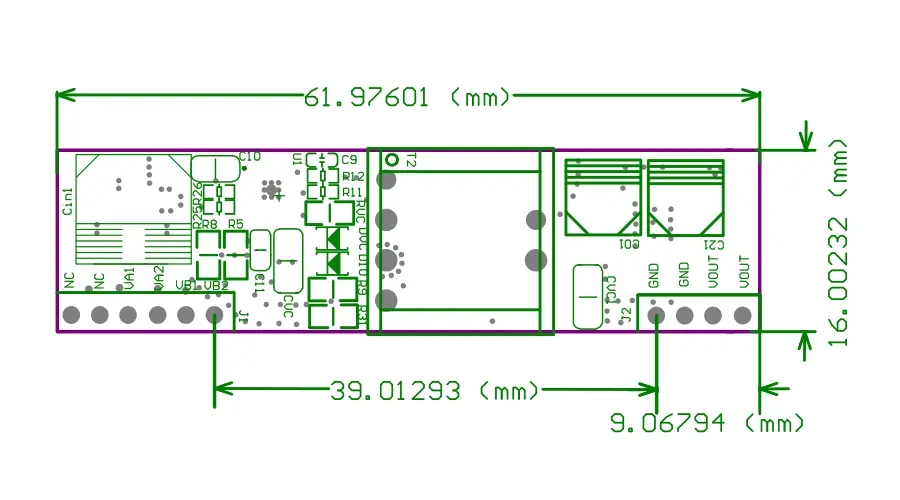

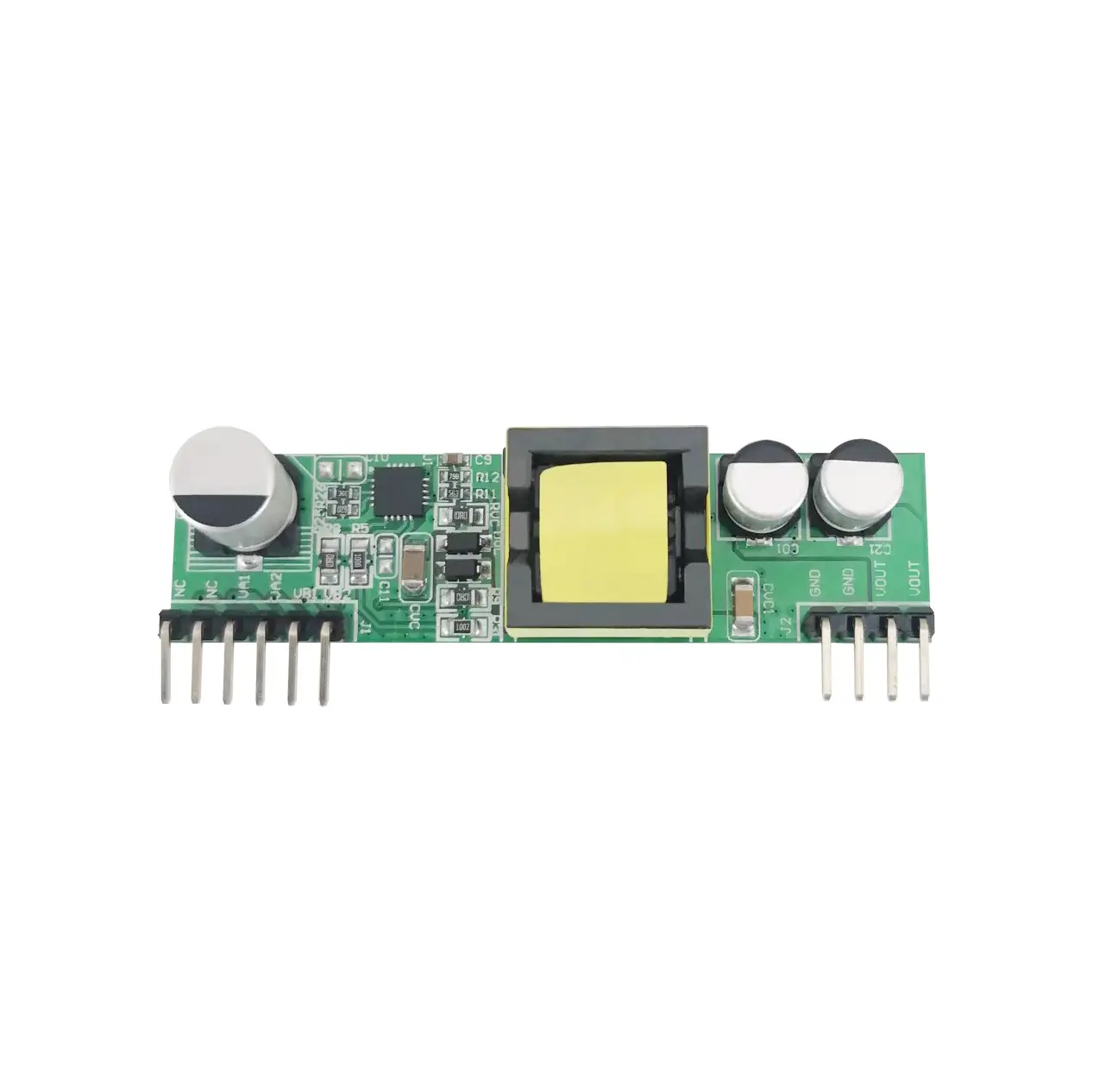

Structure size: 62*16*14.8mm. PCB: double-layer board, H=1.6mm.Surface painting: bright green. Overall layout: square structure, the maximum thickness is 14.8mm. The module is double-side-designed. The tall and short components are designed on two sides of the board, resulting in high space utilization.

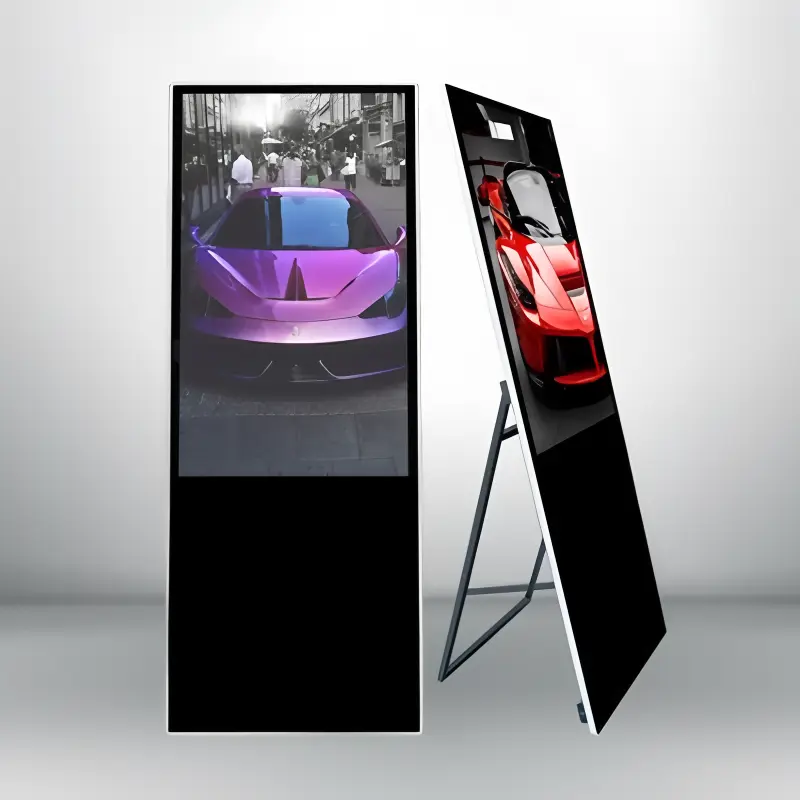

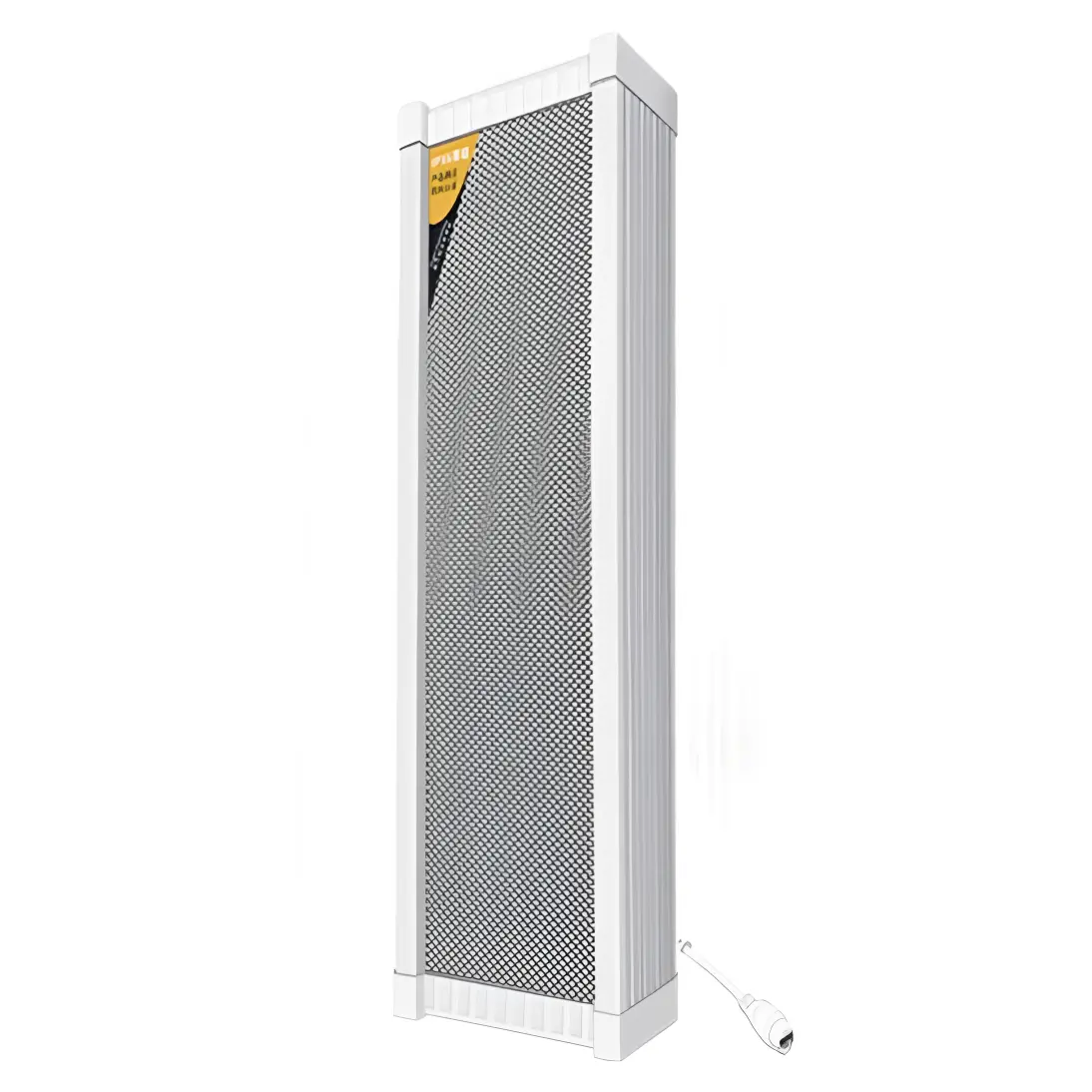

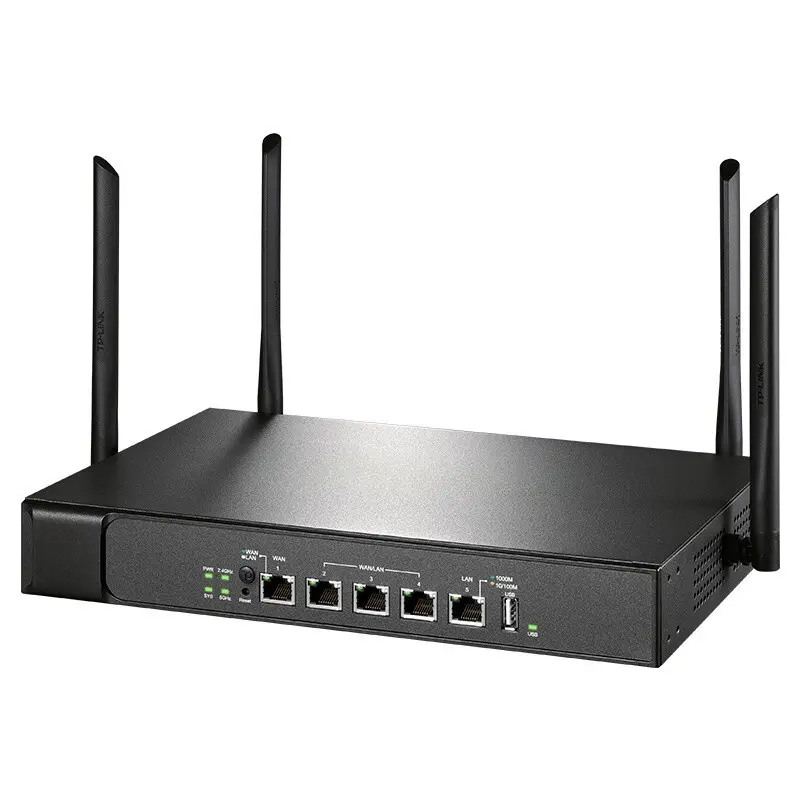

V201 is mainly used in industry products such as broadcasting audio systems, commercial display billboards, wireless APs, etc.

After applying the V201 module, there is no need to lay separate power lines for devices. Only one Ethernet cable is required, which reduces the installation difficulty and wiring costs. It also makes the installation location more flexible, not restricted by the position of power sockets. Meanwhile, the reduced use of power lines makes the overall wiring neater, decreases cable clutter, and helps maintain the cleanliness and aesthetics of indoor and outdoor environments. The V201 performs well in the fields of broadcasting, commercial displays, wireless APs, etc, and has won unanimous recognition from manufacturers and end-users.

Package list
Items	Quantity
PoE Power Supply	1
Operation Manual	1
