8KV surge protector 25W ultra-thin PoE module

Model: TSD-V198B

Input: PoE wide voltage DC 38-56V
Output: DC 24V MAX1A 25W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100 Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/terminal block
Size: 69*58*19 mm (L*W*H)
Weight: N.W=40 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-V198B is a PoE module that complies with the IEEE 802.3af/at PoE international standard protocol. The module supports a wide voltage input of 38-56V, with a maximum output power of 25W, and can continuously and stably output 24V 1A DC power.

The TSD-V198B module is suitable for communication scenarios with high lightning protection requirements. Using the TSD-V198B not only simplifies wiring complexity but also provides devices with superior lightning protection and anti-interference capabilities, effectively ensuring safe equipment operation and reducing the risk of failure due to lightning strikes.

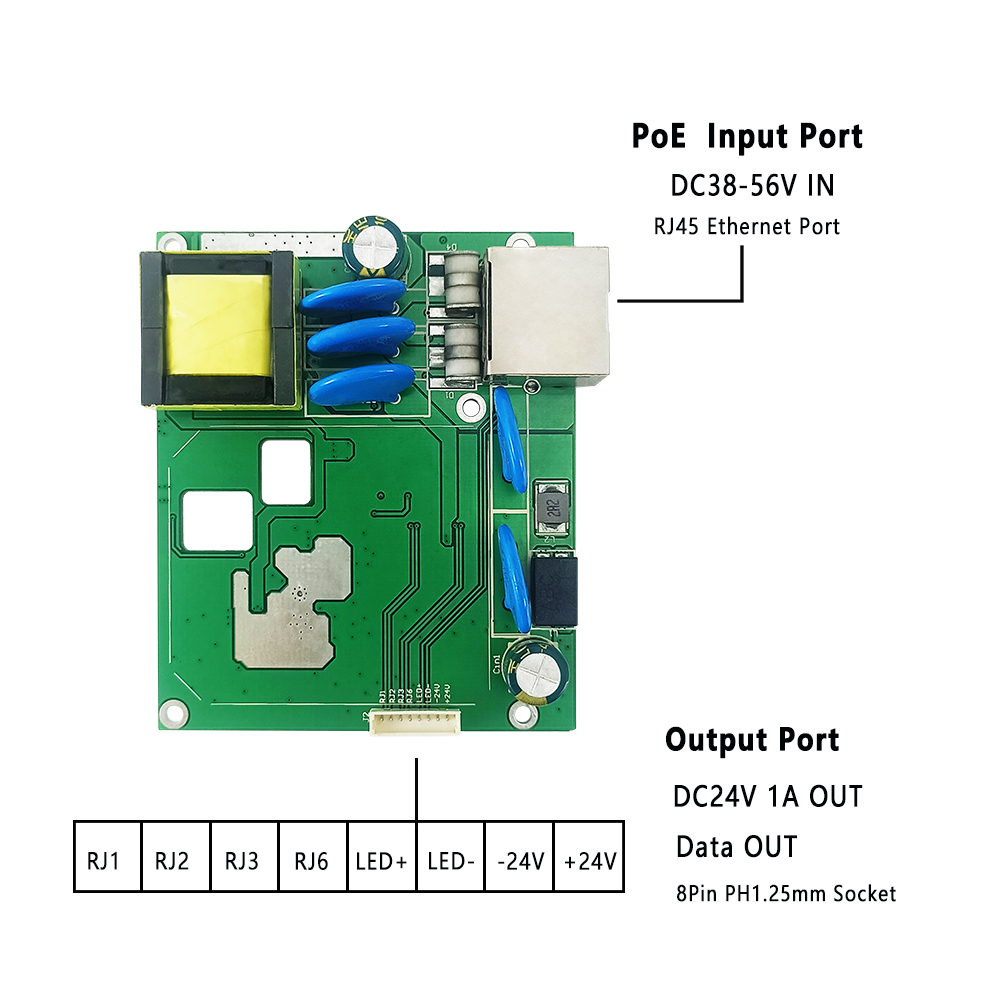

Interface Settings of the TSD-V198B Module:

RJ45 Ethernet Port: DC 38 - 56V PoE signal IN;

8-Pin PH1.25mm Socket: Data and DC 24V 1A signals OUT.

The TSD-V198B supports the IEEE 802.3af/at PoE international standard protocol, and its EMC parameters comply with IEC 61000-4-2/3/4/5/6 standards. It has obtained authoritative certifications such as CE, FCC, and RoHS. The TSD-V198B module's 8KV surge protection feature makes the product perform exceptionally well in terms of safety and signal quality, earning consistent praise from users.

The TSD-V198B is a module with isolation function. Its circuit is equipped with protection capabilities against 8 kV lightning strikes, short circuits, overloads, and high temperatures. The module has a 10/100M adaptive transmission rate, with a maximum output power of 25W. It supports wide-voltage input of DC 38 - 56V, with a default output voltage of DC 24V. Other output voltages can be customized upon request.

● Input: PoE wide voltage DC 38-56V

● Output: Voltage 24V DC, maximum current 1A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 8KV super lightning surge resistance

● Isolation protection
● High temperature resistant flame retardant socket, reduce security risks

● Equipped with a 100M high - frequency network filter

● Equipped with high - precision electronic components from well - known brands, ensuring stable performance

● Metal fixing lugs for easy installation and fixation

● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation

● High - temperature - resistant PCB made of environmentally friendly materials

Product parameter table
Product Name	8K Surge Protector 25W Ultra-Thin PoE Module
Product Model	TSD-V198B
PoE Standard	IEEE802.3af/at
Input Voltage	PoE: DC 38-56V
Output	Voltage 24 V DC MAX1A (Other Voltage can be customized)
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	100Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	8KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (RJ45 Ethernet-port) : PoE IN Output Port (8 - Pin PH2.0mm Socket) :Data + DC 24V OUT
Function	/
Material	FR-4
Color	bright green oil
Accessories	80mm Connecting Line
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 40 g
Dimension	68 59 19 mm (LWH)
Package	Anti-static pearl cotton

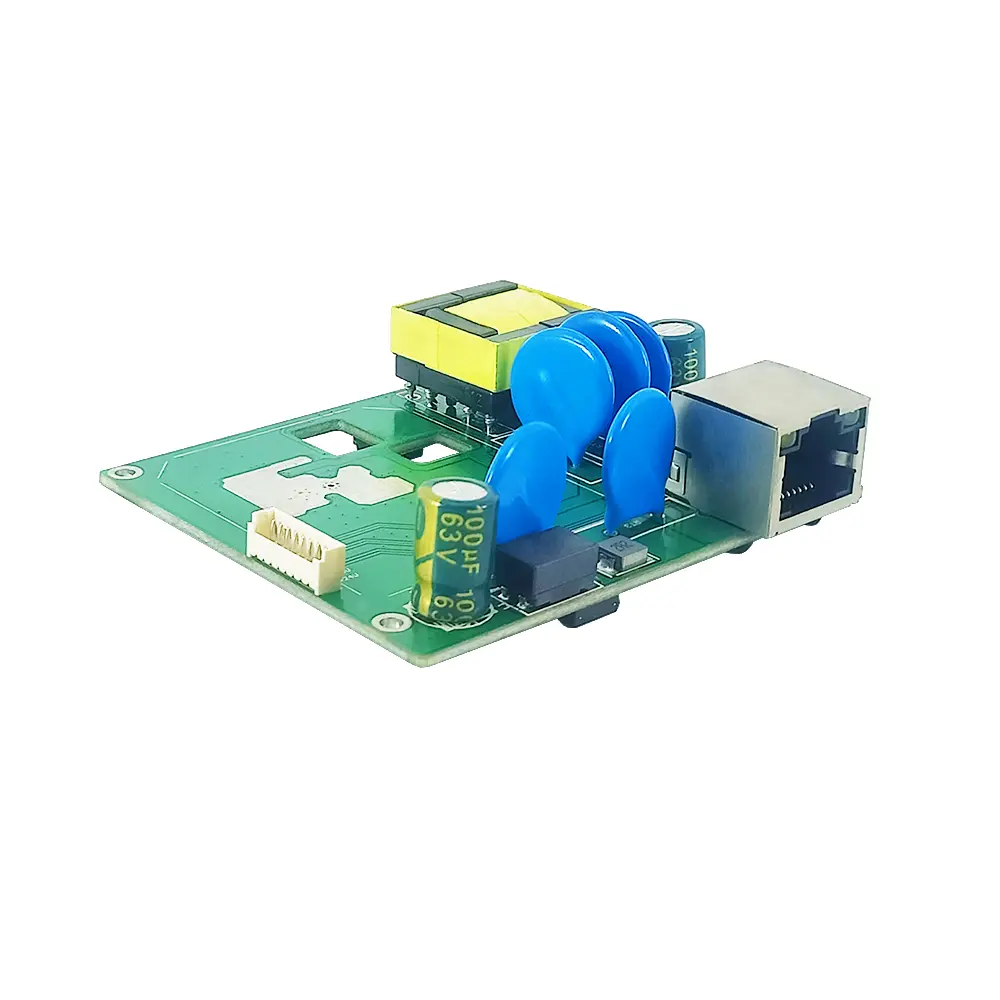

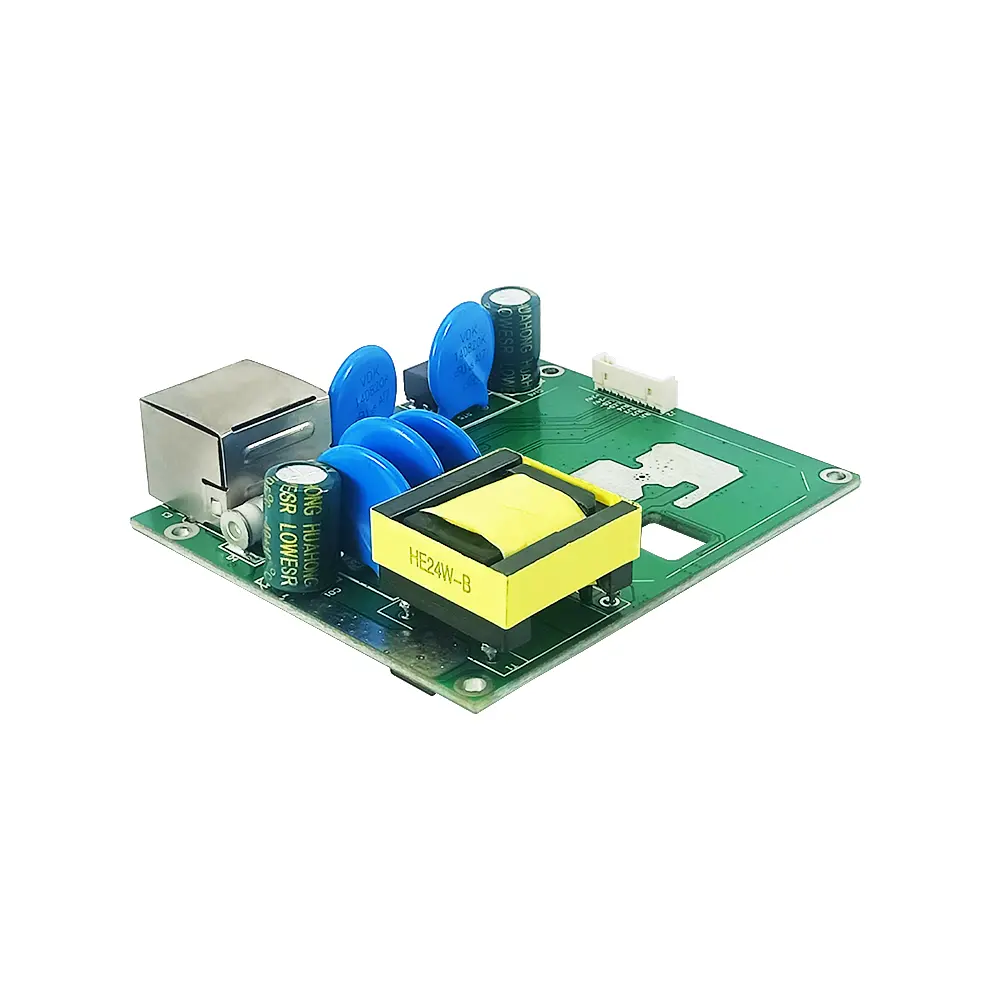

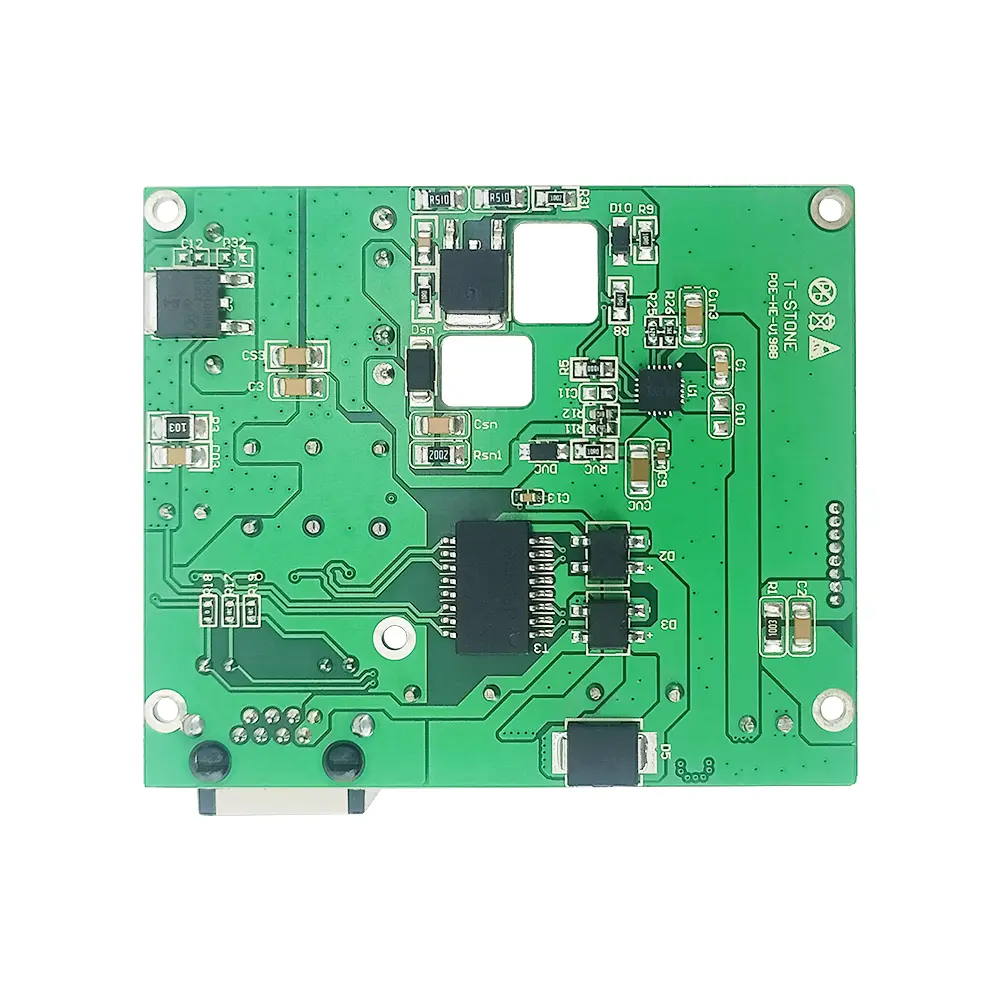

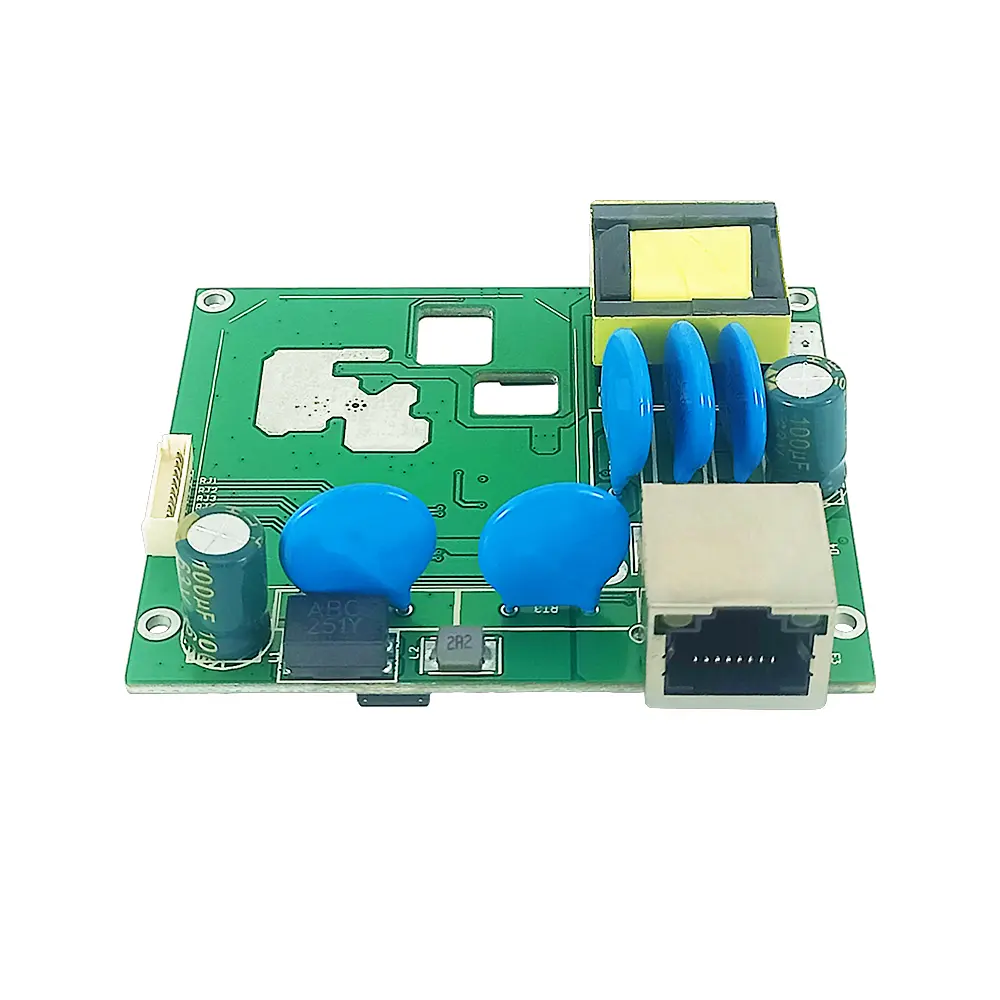

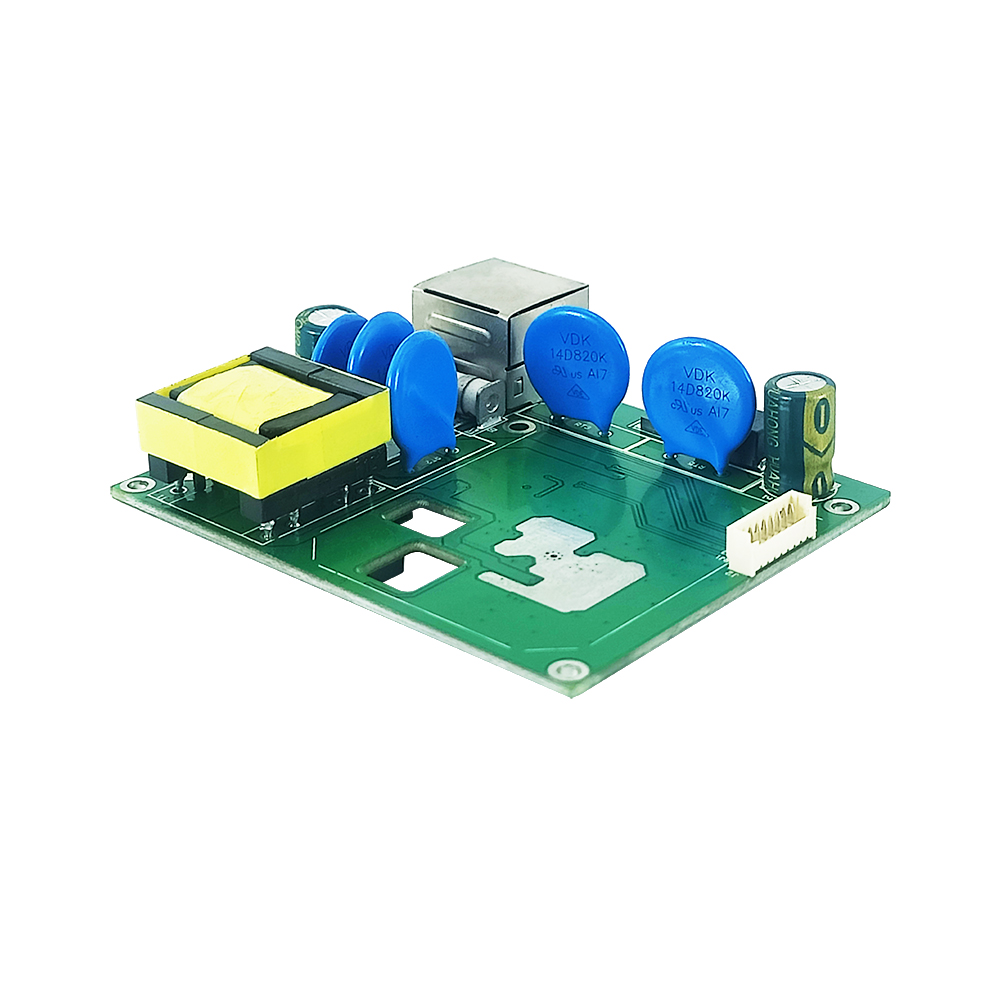

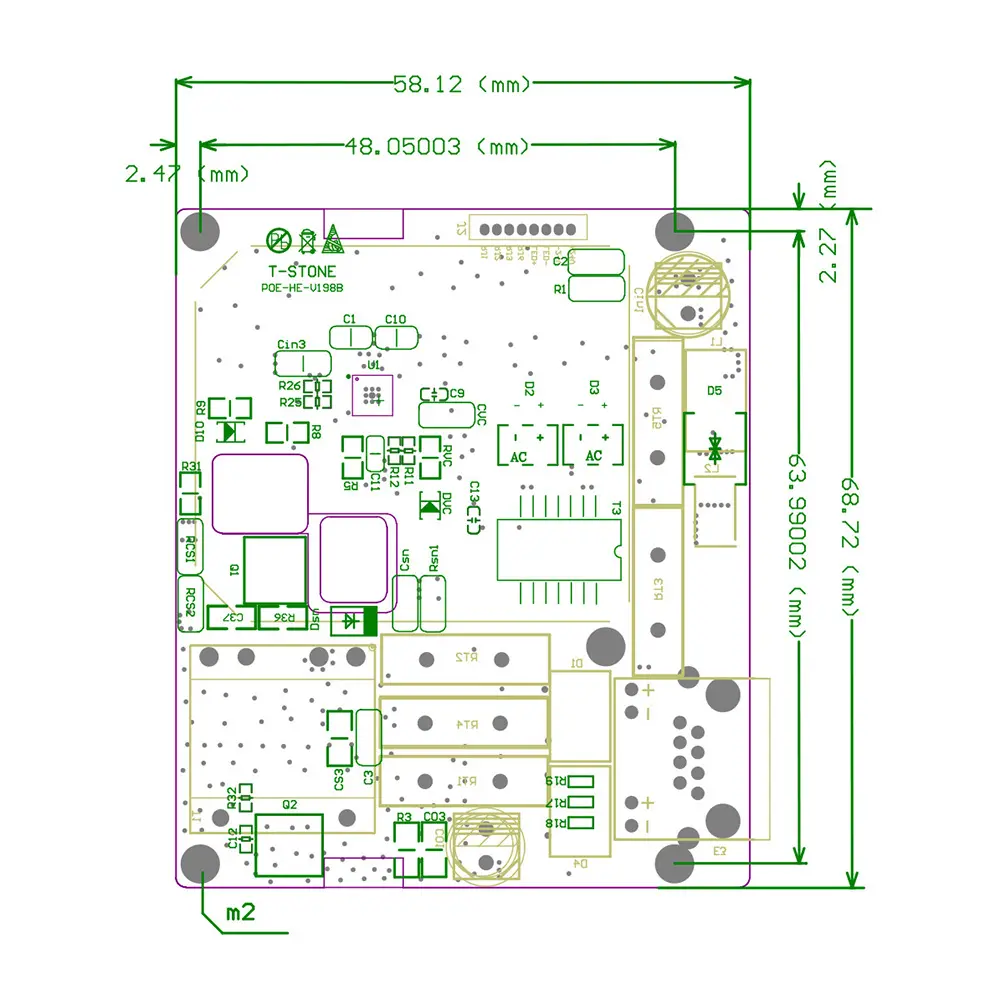

The overall dimensions of the module are 69×58×19 mm, with the maximum thickness being 19 mm. The PCB has a thickness of 1.7 mm and features a square structure. Screw hole diameter: Φ = 2.25 mm * 5. Module Design: It adopts a four-layer double-sided design. All vertical components are concentrated on the front side, while the back side features an ultra-thin design. The surface of the PCB is coated with bright green solder mask, and a heat dissipation area is set on the front side of the board. Single Module Net Weight: 40 g.

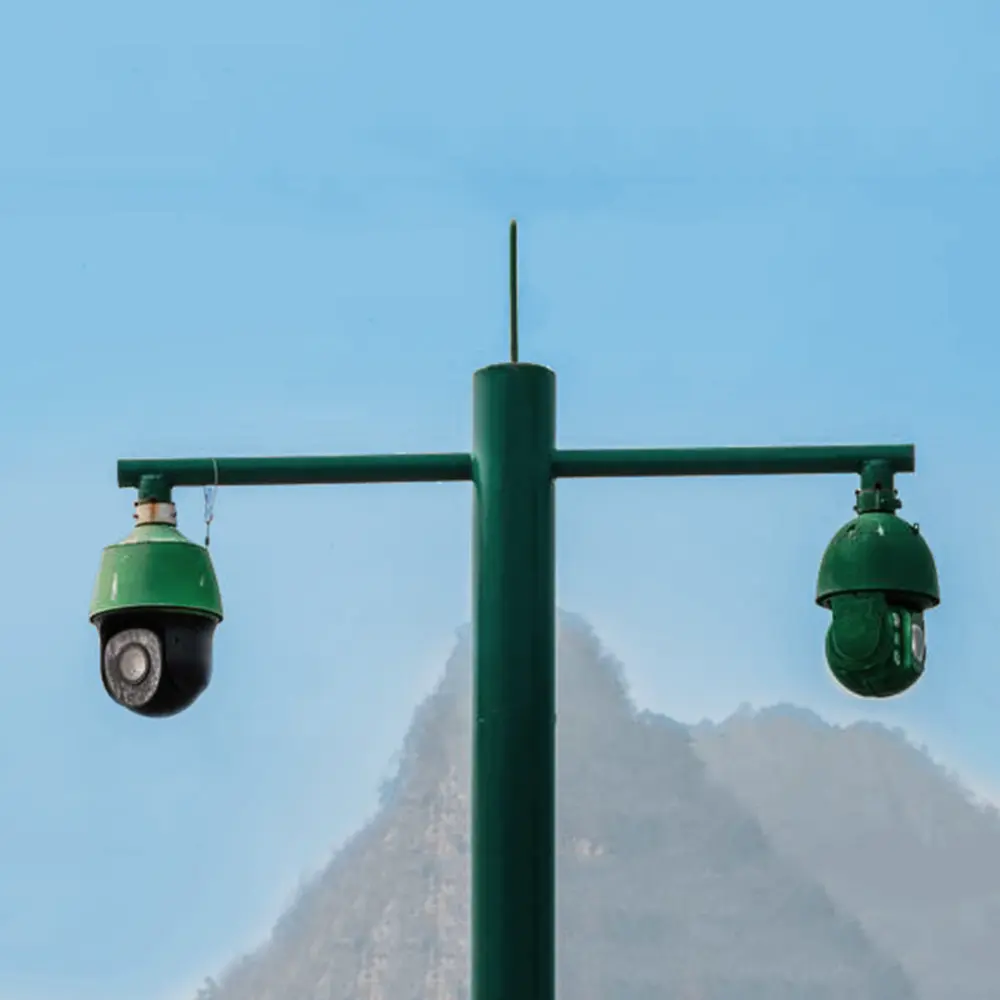

The TSD - V198B can be integrated into devices like surveillance cameras, wireless bridges, and audio systems, offering PoE power supply support for ordinary network devices. It enables the synchronous transmission of power and data signals via a single Ethernet cable, simplifying the wiring process during equipment installation and reducing users' economic expenses.

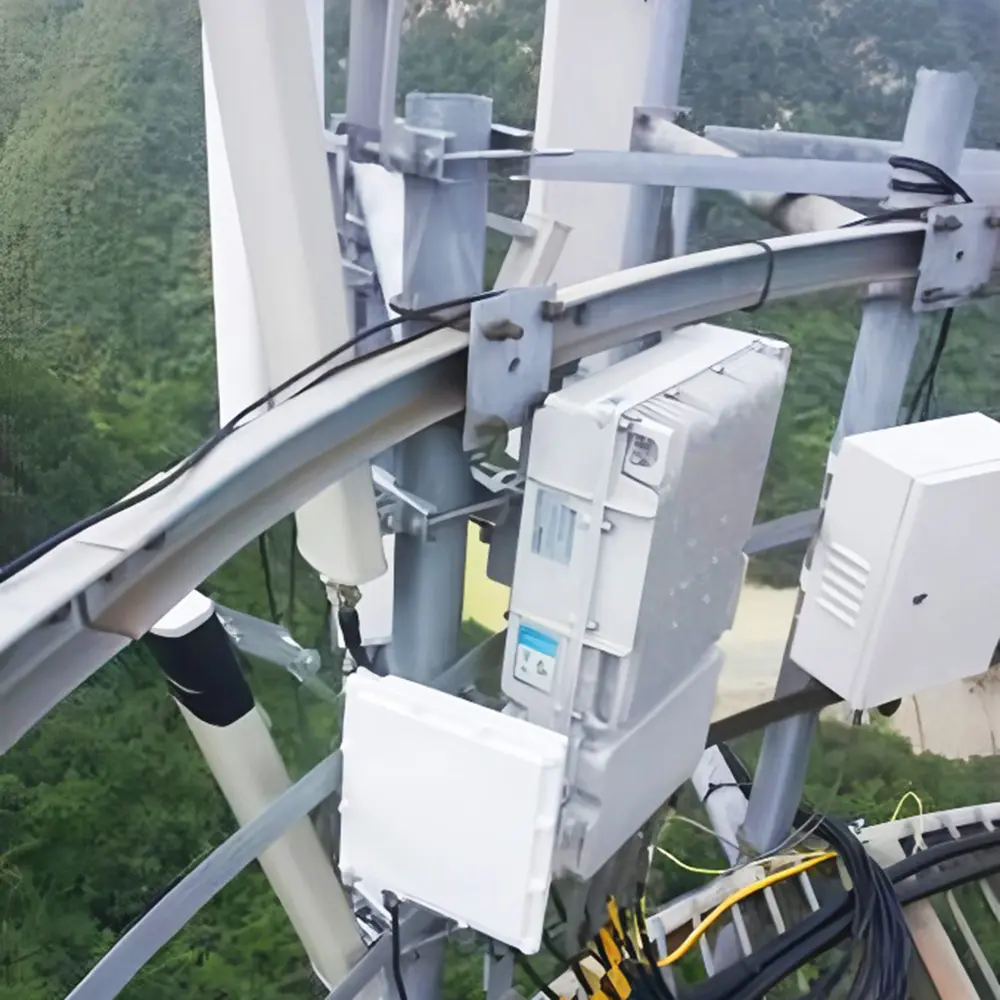

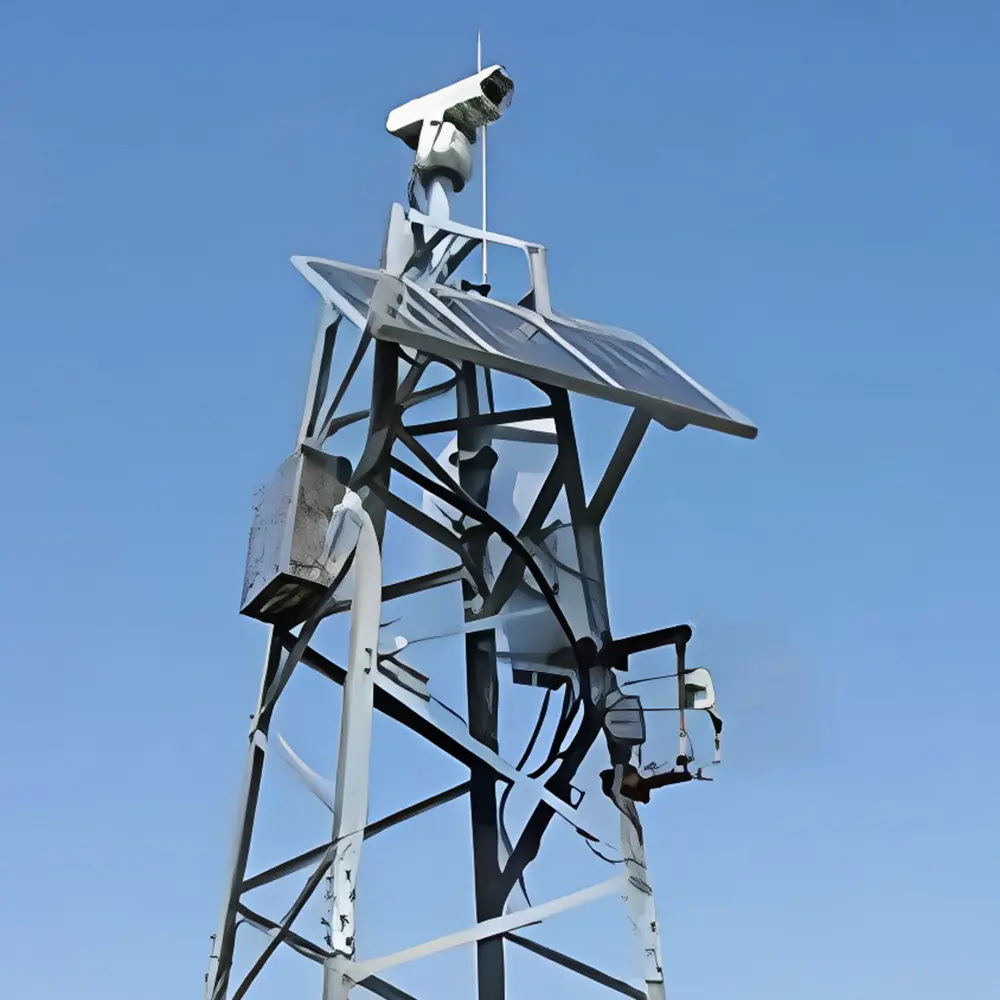

The TSD - V198B module boasts exceptional lightning protection capabilities. This allows user - owned devices to be safely deployed in outdoor environments such as fish ponds, high - voltage power lines, forests, mining areas, and rooftop locations of high - rise buildings. In adverse weather conditions, it guarantees the safe and stable operation of end - devices and the high - quality transmission of information.

Package list
Items	Quantity
V198B PoE module	140 PCS
Operation Manual	/
