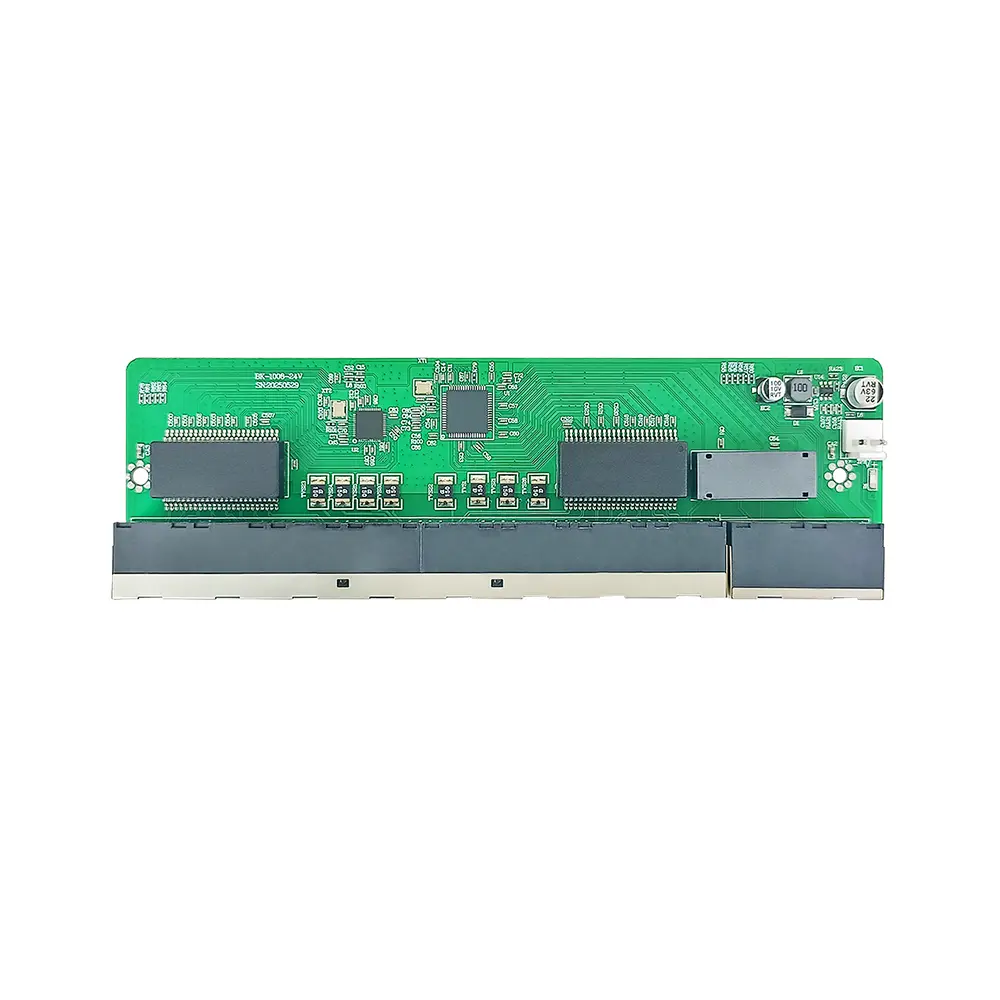

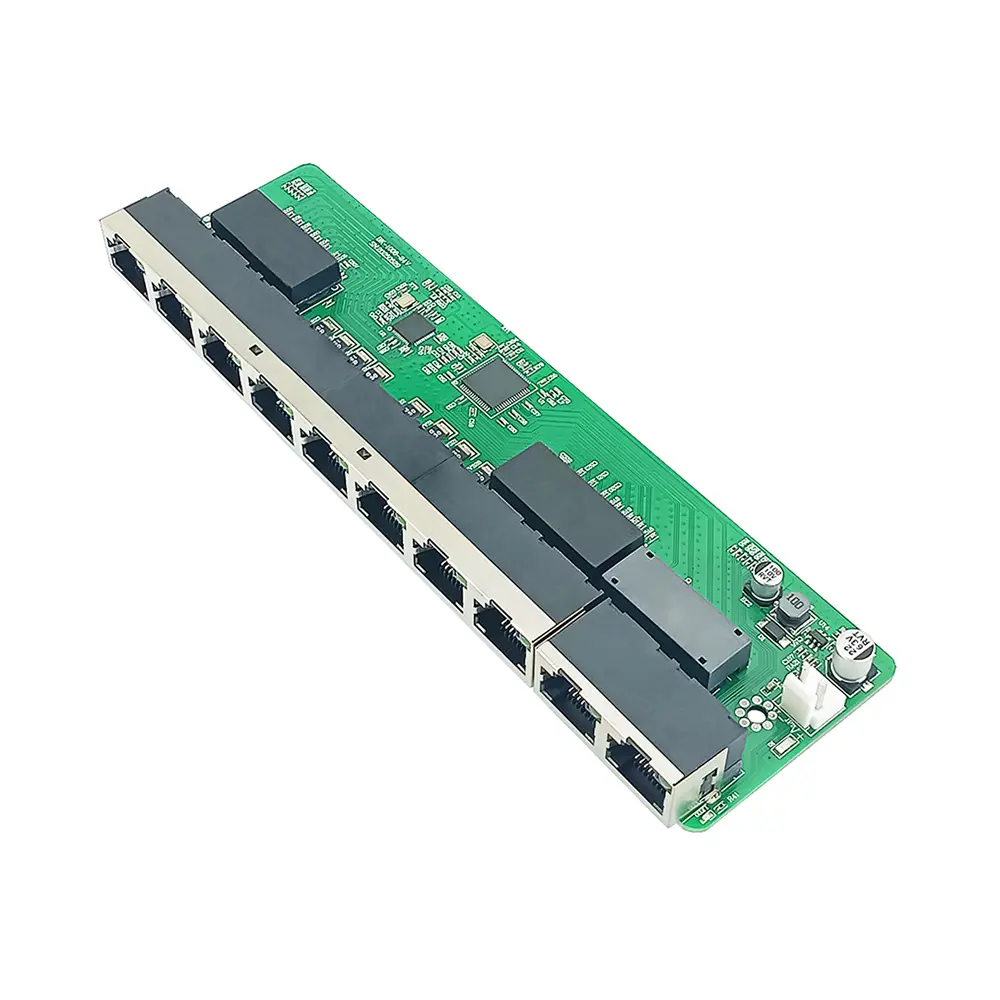

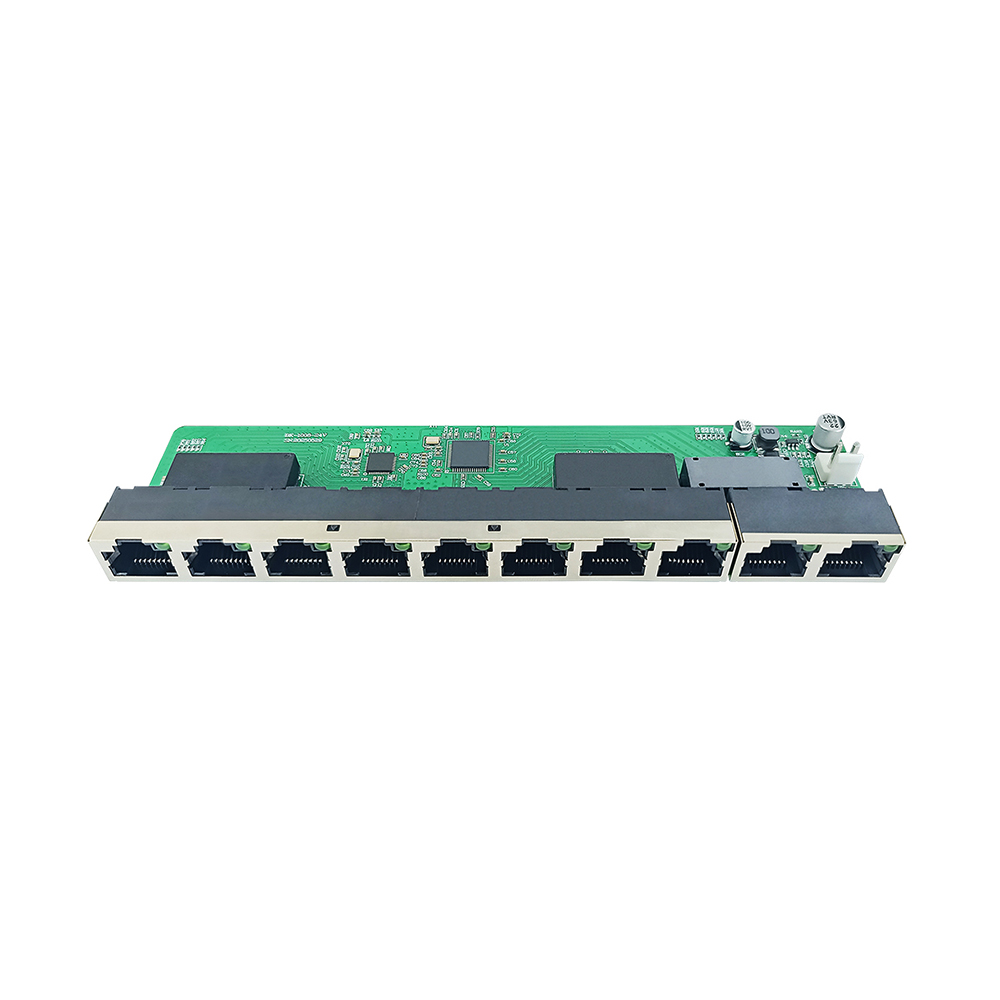

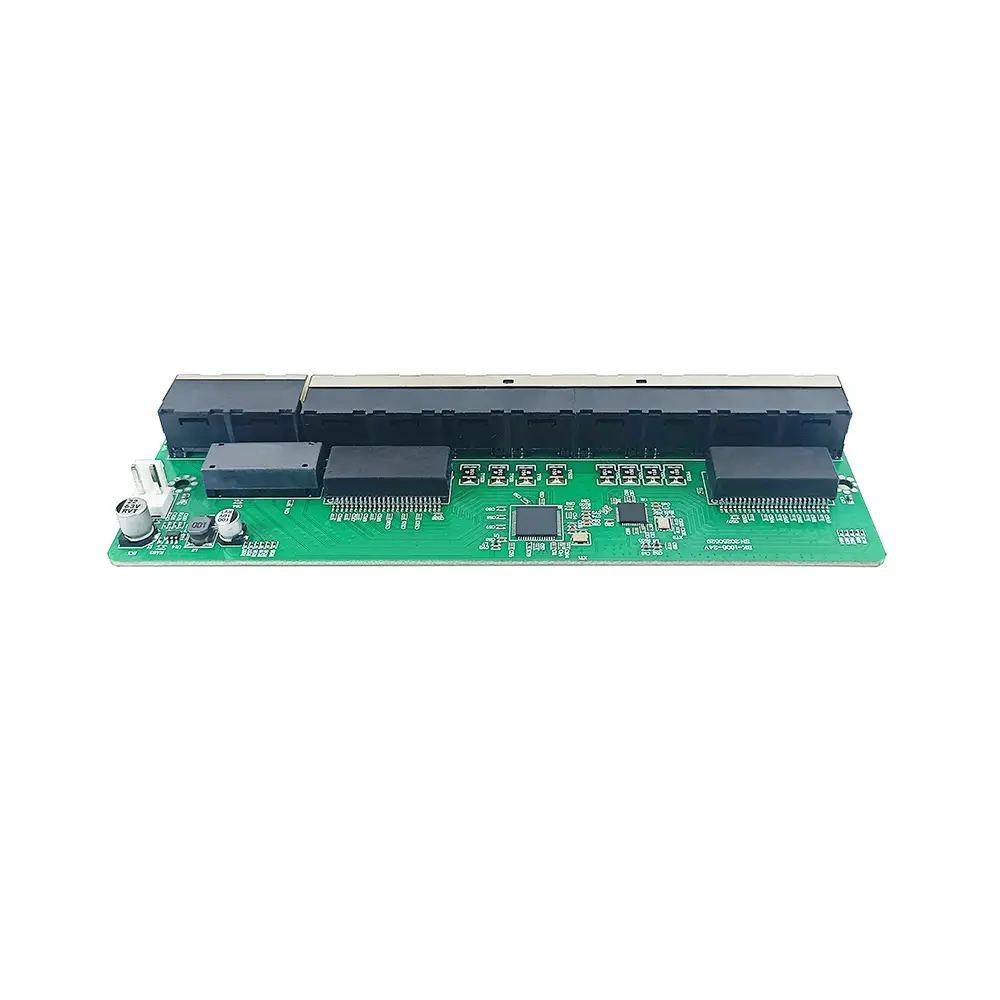

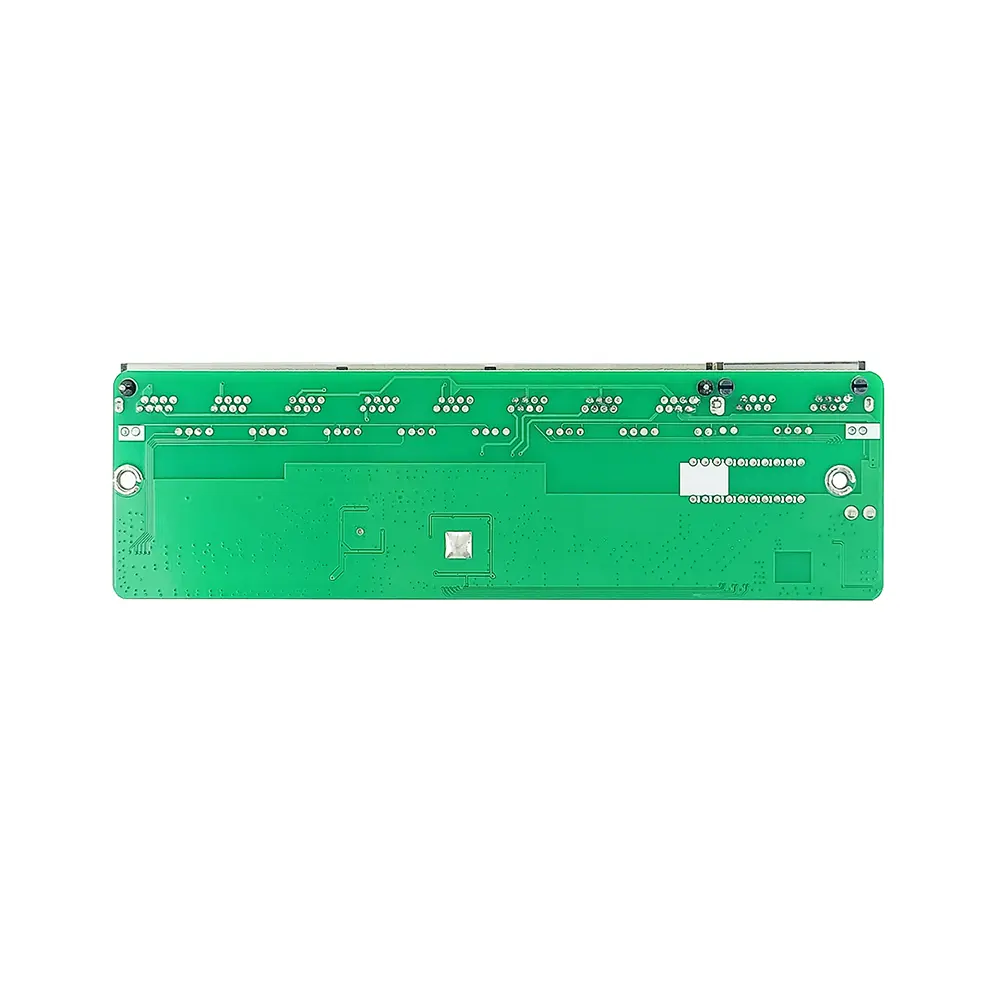

8-port Passive PoE Switch Board

Model: TSD-T1008

  • Input: wide voltage DC 6-60V
  • Output: passive PoE signal
  • Transmission rate: 10/100Mbps
  • Conversion efficiency is over 85%
  • Power supply pins: RJ45+ RJ78-
  • Interface: RJ45 port
  • Size: 164*50*17 mm (L*W*H)
  • Weight: N.W=66 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

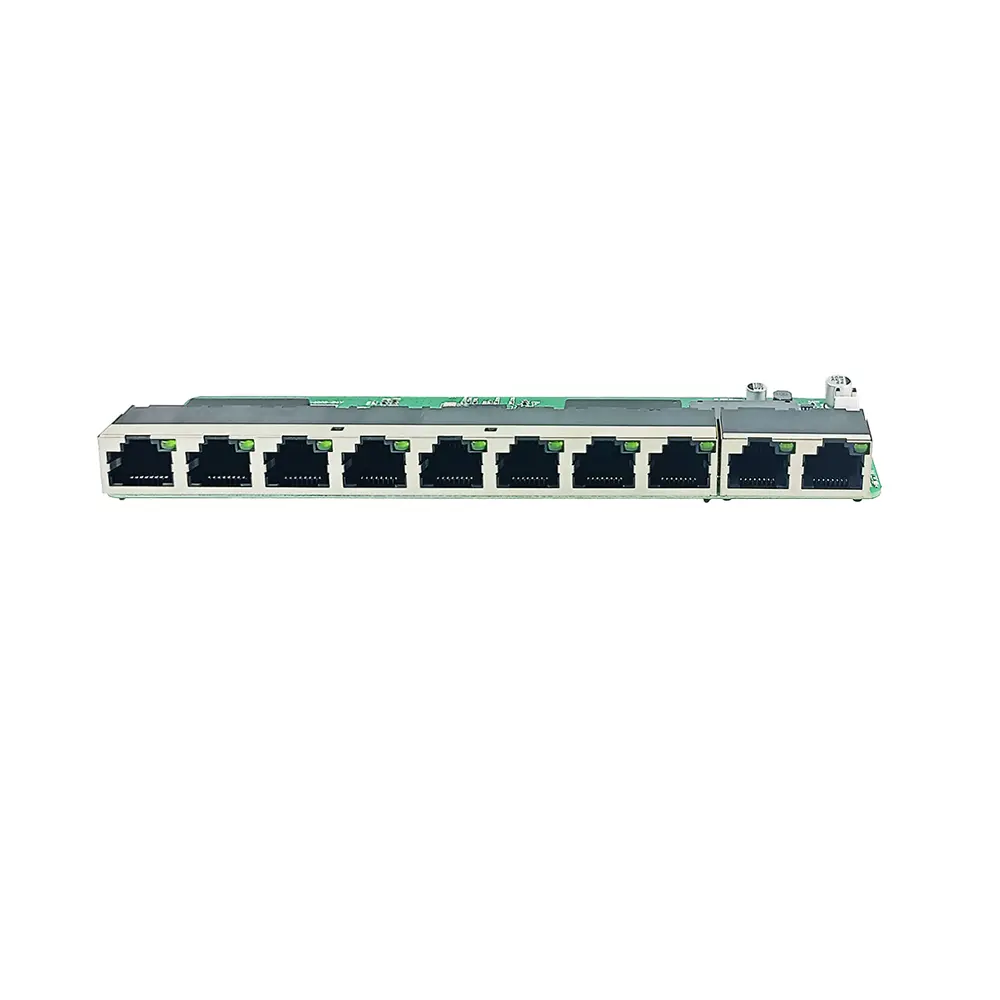

    TSD-T1008-3
    01

    The TSD-T1008 board supports 8 independent passive PoE signal outputs. The board accepts a wide DC input voltage of 6-60V through terminal blocks. Two Uplink ports are provided for cascading and data transmission between upper and lower levels. The output voltage of the board is equal to the input voltage, and the maximum output power of a single channel is 30W.


    The TSD-T1008 is suitable for power supply solutions of passive PoE devices, industrial-grade PoE device power supply (such as security monitoring, wireless base stations, etc.), and network power supply systems that require wide voltage input.

    ​

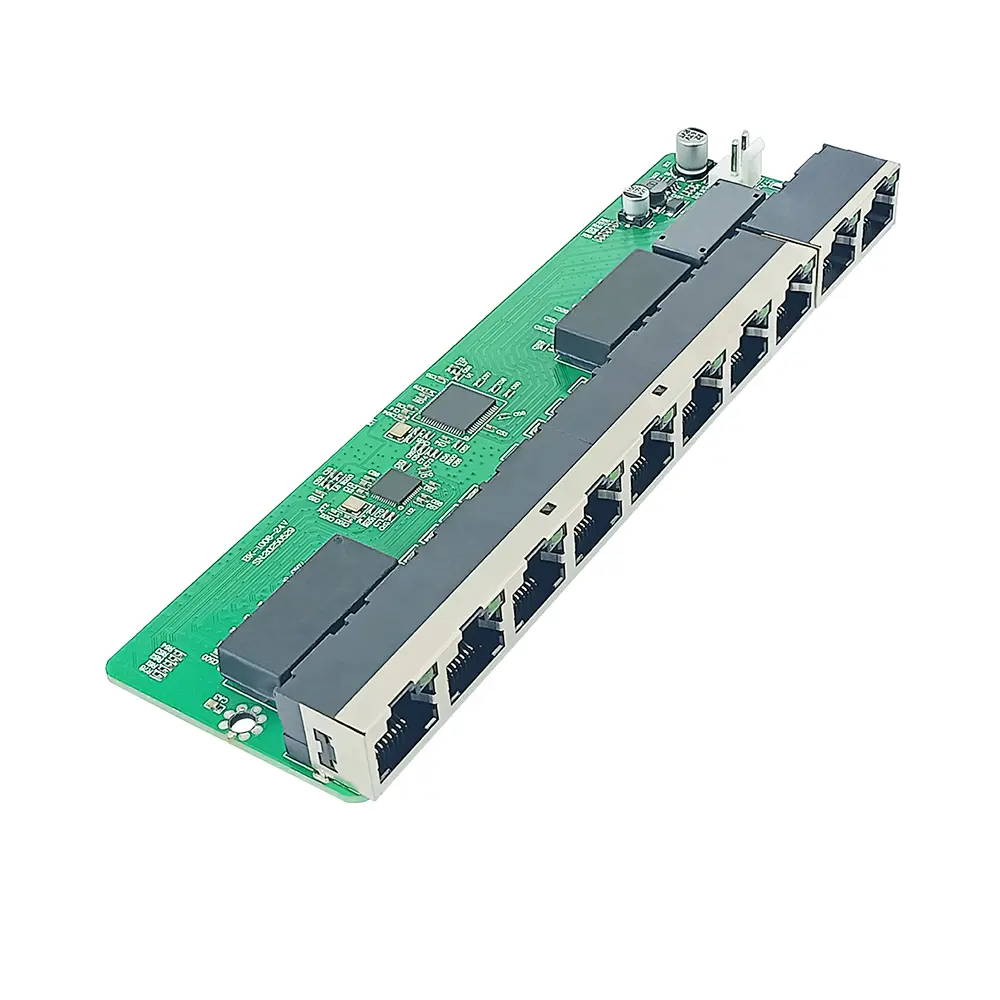

    TSD-T1008-4
    01


    Interface Configuration of TSD-T1008 Switch Board:
    2P PH3.96mm Terminal Block: DC 6-60V Input;
     RJ45 Ports 1-8: PoE Ports, Passive PoE Signal Output;
    RJ45 Ports 9-10: Uplink Ports, Data Transmission.


    The TSD-T1008 switch board complies with IEC 61000-4-2/3/4/5/6 EMC standards and holds CE, FCC, and RoHS certifications. It incorporates multiple protection mechanisms including over-temperature, over-voltage, over-current, and short-circuit protection. Designed for multi-device scenarios, the TSD-T1008 offers flexible power supply solutions across diverse environments.

    The TSD-T1008 board features a wide DC input voltage range of 6-60V and outputs 8 channels of passive PoE signals, with output voltage equal to input voltage. Maximum single-port output power: 30W. Power Pin Configuration: RJ45+ RJ78-. Transmission Rate: 10/100M auto-negotiation.



    ● Input:​​ wide voltage 6-60V
    ● Output:​​ passive PoE signal
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ45+ RJ78- compatible
    ● Transmission Rate:​​ 10/100Mbps Auto-Negotiation
    ● Protection Features:​​ overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● The maximum output power per port is 30W

    ● Backplane bandwidth: 2G

    ● Surface mount solid-state capacitors, high stability, durable

    ● 100Mbps high frequency POE filter to ensure stable data transmission

    ● Original electronic components from international brands, high precision and performance

    ● High-power, high conduction, low-resistance transistors

    ● Eco-friendly, high-temperature resistant PCB material, environmentally friendly lead-free process

    ● Pure copper pin connectors, stable and reliable contact

    ● Temperature-resistant, flame-retardant sockets

    Product parameter table

    Product Name

    		 8-port passive PoE switch board

    Product Model

    TSD-T1008

    PoE Standard

    /

    Input Voltage

    Wide voltage DC 6-60V

    Output

    Passive PoE signal

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ45+ RJ78- compatible

    Conversion Mode

    /

    Data Rate

    10/100Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    Red power indicator light * 1, Green data indicator light * 10

    Interface

    2P PH3.96mm terminal: DC 6-60V IN

    RJ45 Jack 1 to 8: PoE ports, passive PoE OUT

    RJ45 Jack 9 to 10: Uplink ports, data transmission

    Function

    /

    Material

    FR-4

    Color

    Glossy green

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 66 g G.W: 71 g

    Dimension

    Product Dimension: 164*50*17 mm

    Package

    Anti-static bag (220*150*2.5 mm (L*W*H))

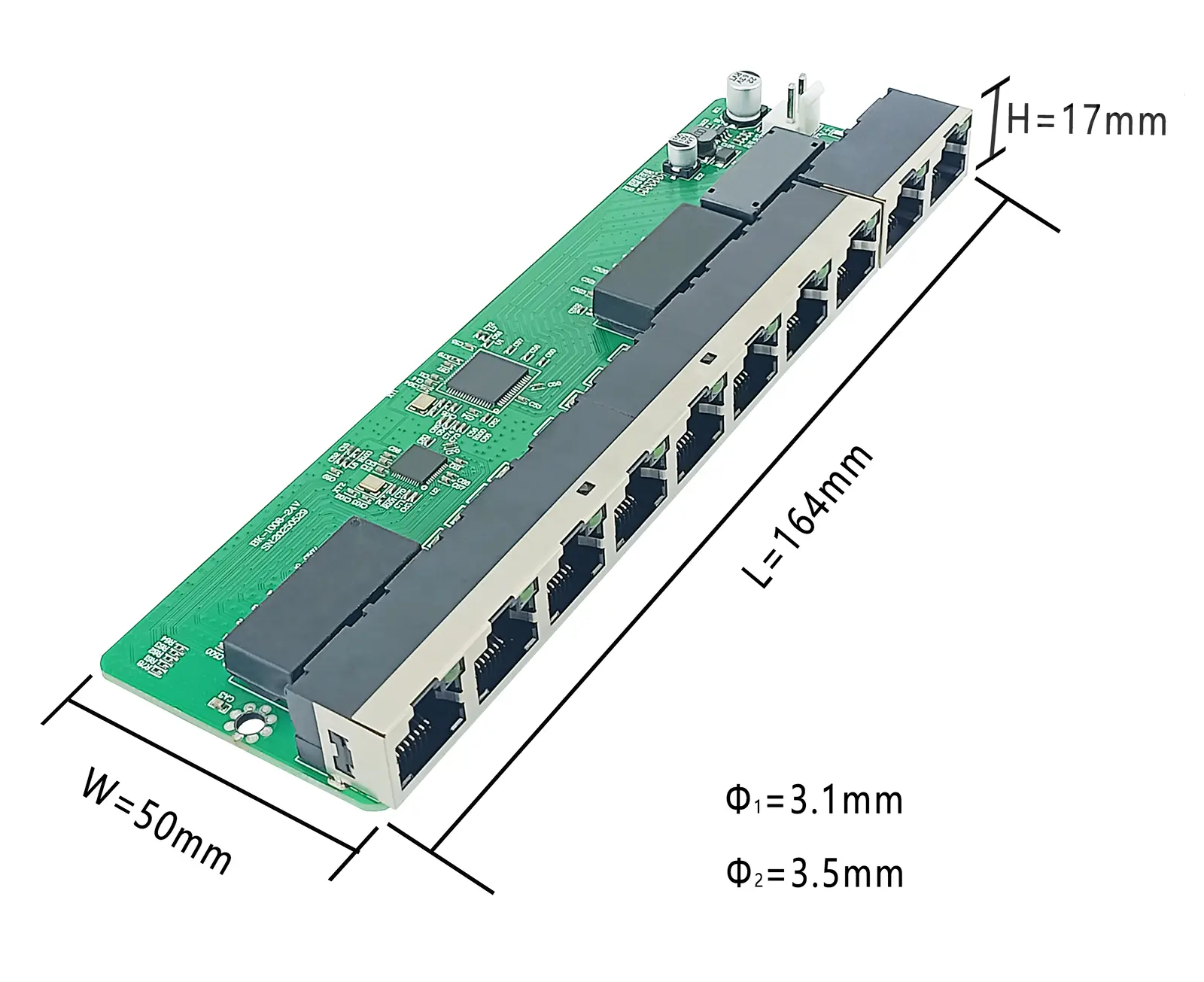

    Size and structure: 164*50*17 mm (L*W*H), screw hole diameter: Φ1 = 3.1mm*1, Φ2 = 3.5mm*1, screw hole center distance: L = 151.4mm, PCB thickness: 1.6mm. Overall layout: square structure, single-sided design, maximum thickness: 17mm. LED indicator lights: red power indicator light, green data indicator lights *10. The board surface is coated with glossy green solder mask paint. Two Uplink ports and eight PoE ports are distributed on the same side, which is convenient for users to connect and use.


    TSD-T1008-Dimension

    The TSD-T1008 switch board provides 8 passive PoE output ports with 100 Mbps capability. The board supports the connection of various types of devices such as PoE cameras, wireless APs, outdoor bridges, and IP phones, offering excellent compatibility. Users can utilize the two uplink ports of the TSD-T1008 for data transmission and network expansion. The eight PoE ports can simultaneously connect multiple devices, meeting the user's need for centralized power supply to equipment.

    The TSD-T1008 board enables simultaneous data and power transmission over a single Ethernet cable, assisting users in device management while reducing the need for additional cabling and lowering economic costs.Note: The input voltage of the user’s PD (Powered Device) must strictly match the output voltage of the TSD-T1008. Otherwise, it may result in the device failing to operate properly or being damaged due to overvoltage.

    TSD-T1008-Application1

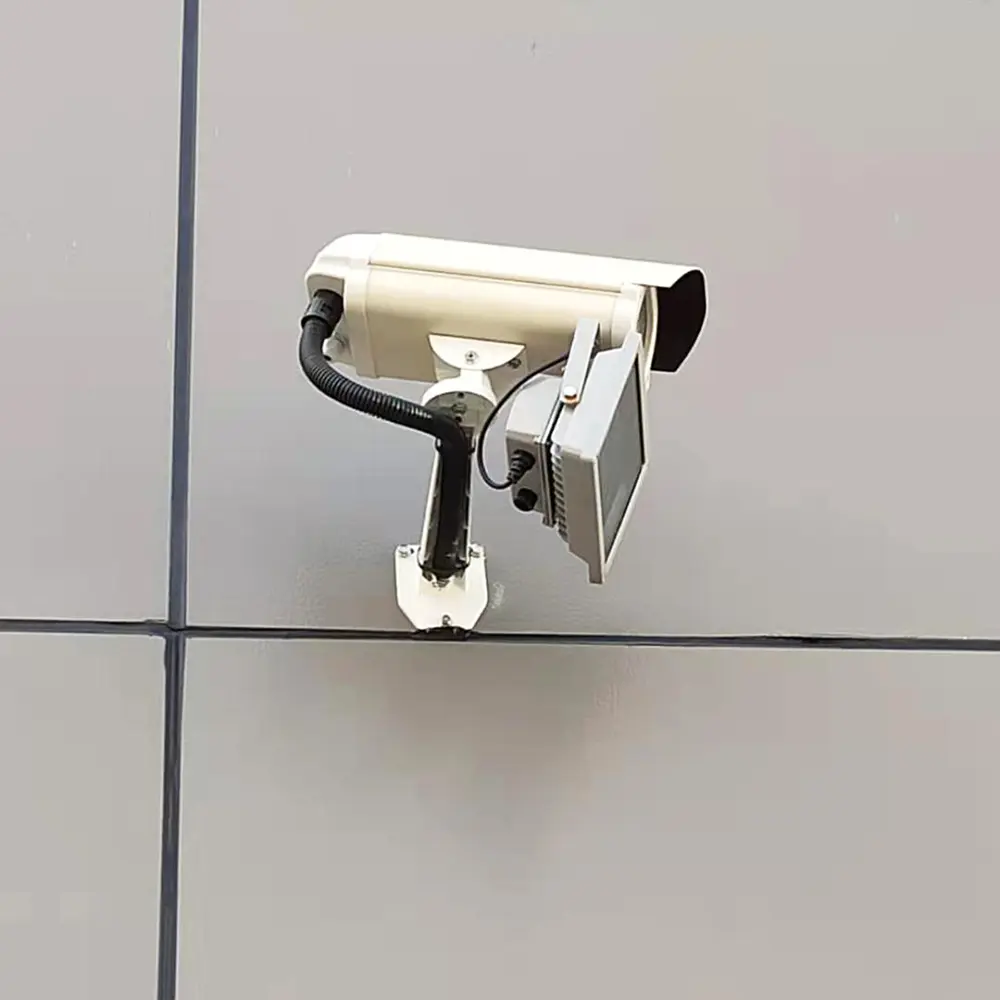

    TSD-T1008-Application2

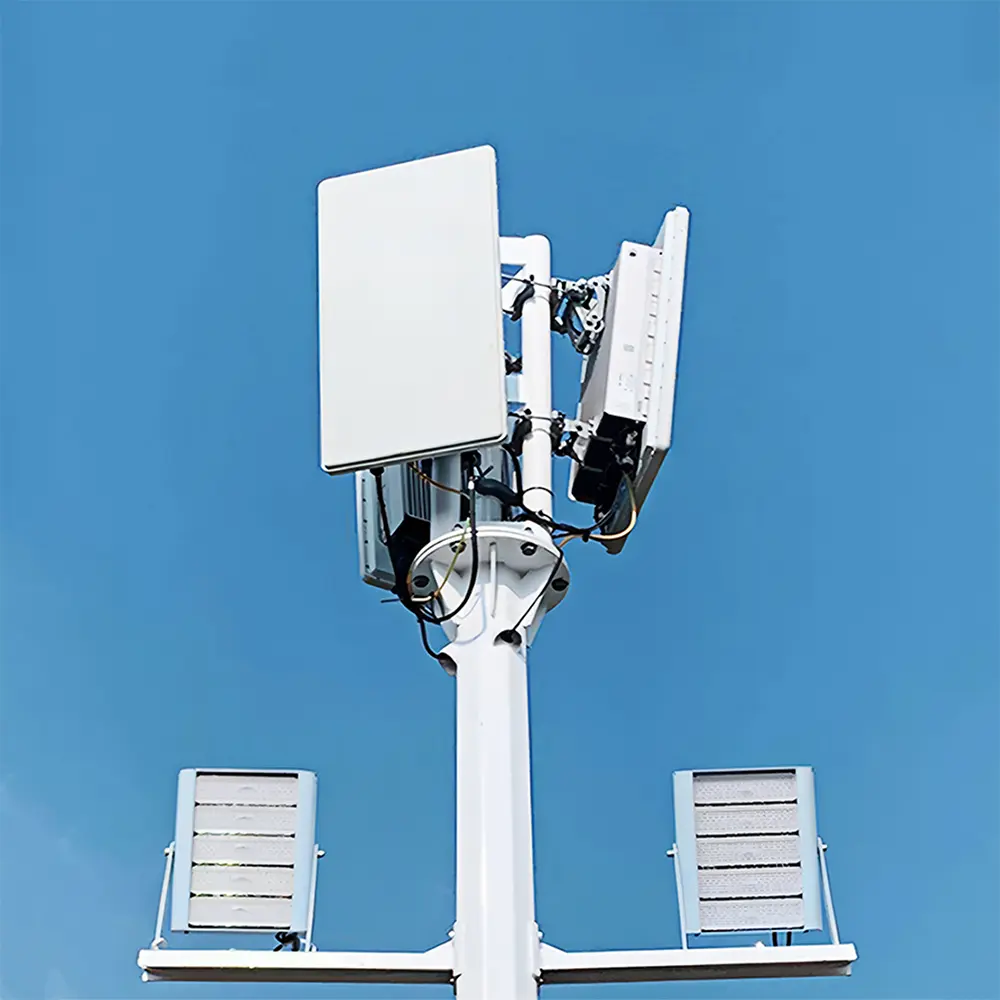

    TSD-T1008-Application3

    Package list
    Items Quantity
    TSD-T1008 PoE switch board 1 PCS
    Operation Manual /

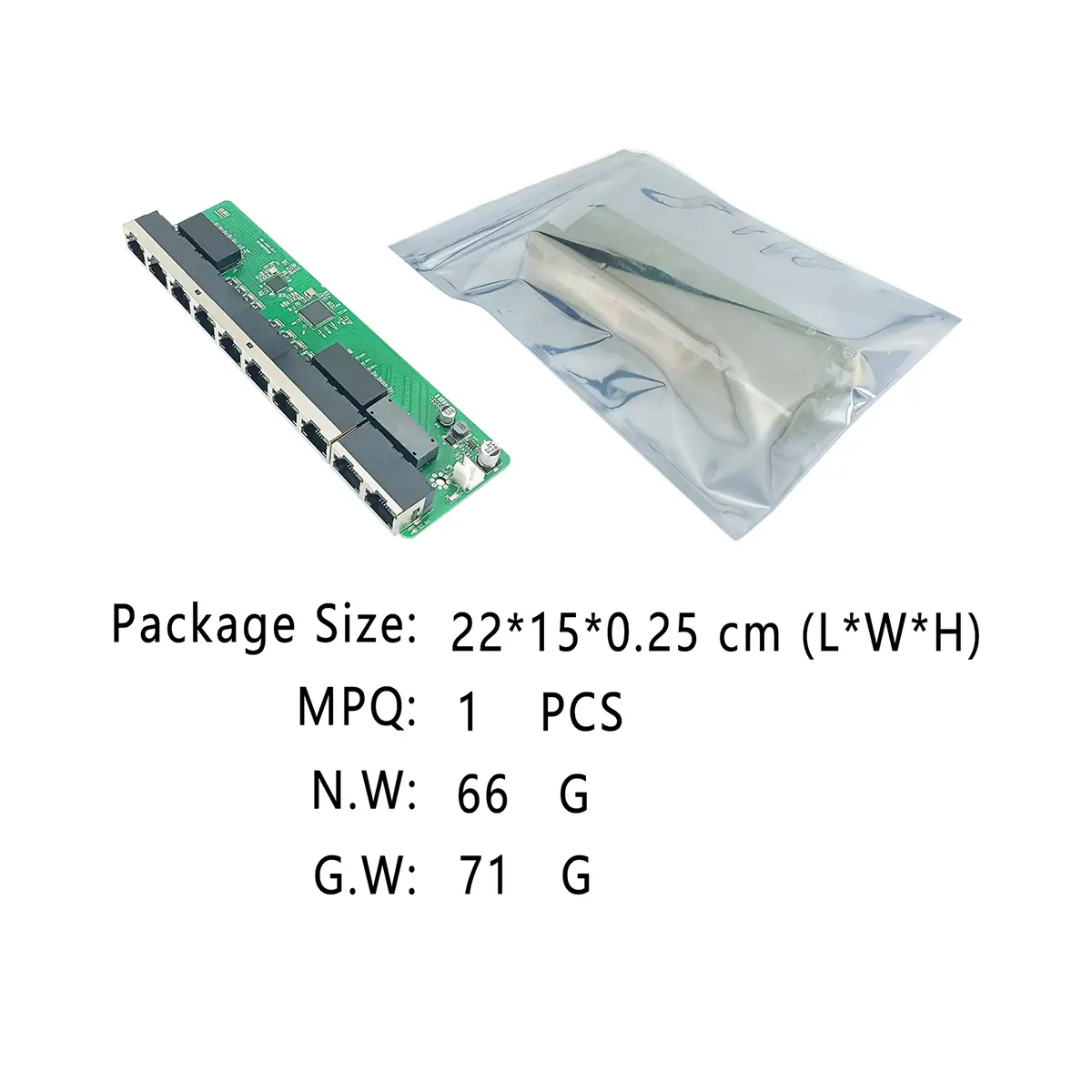

    TSD-T1008-Package

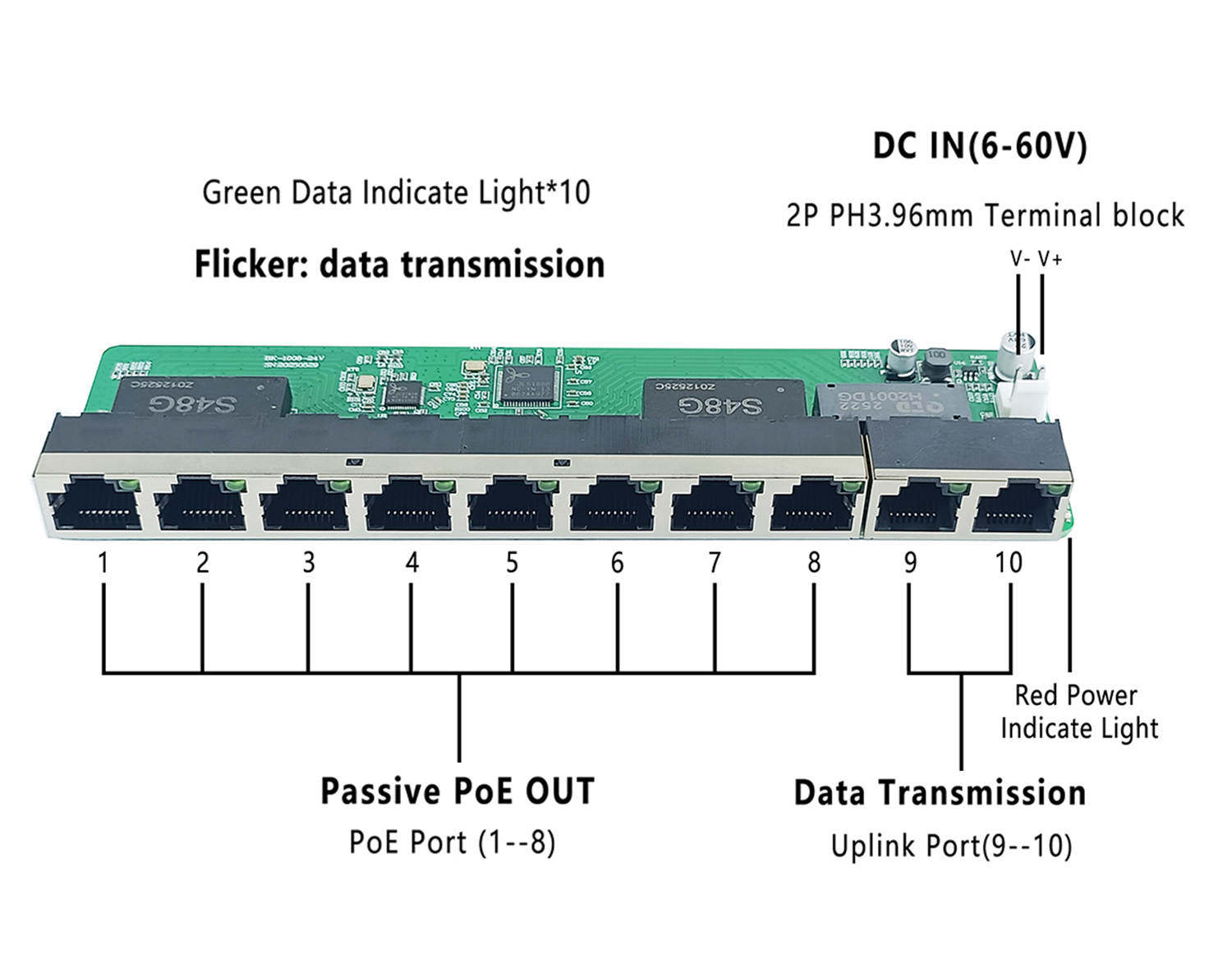

    TSD-T1008-Interface
