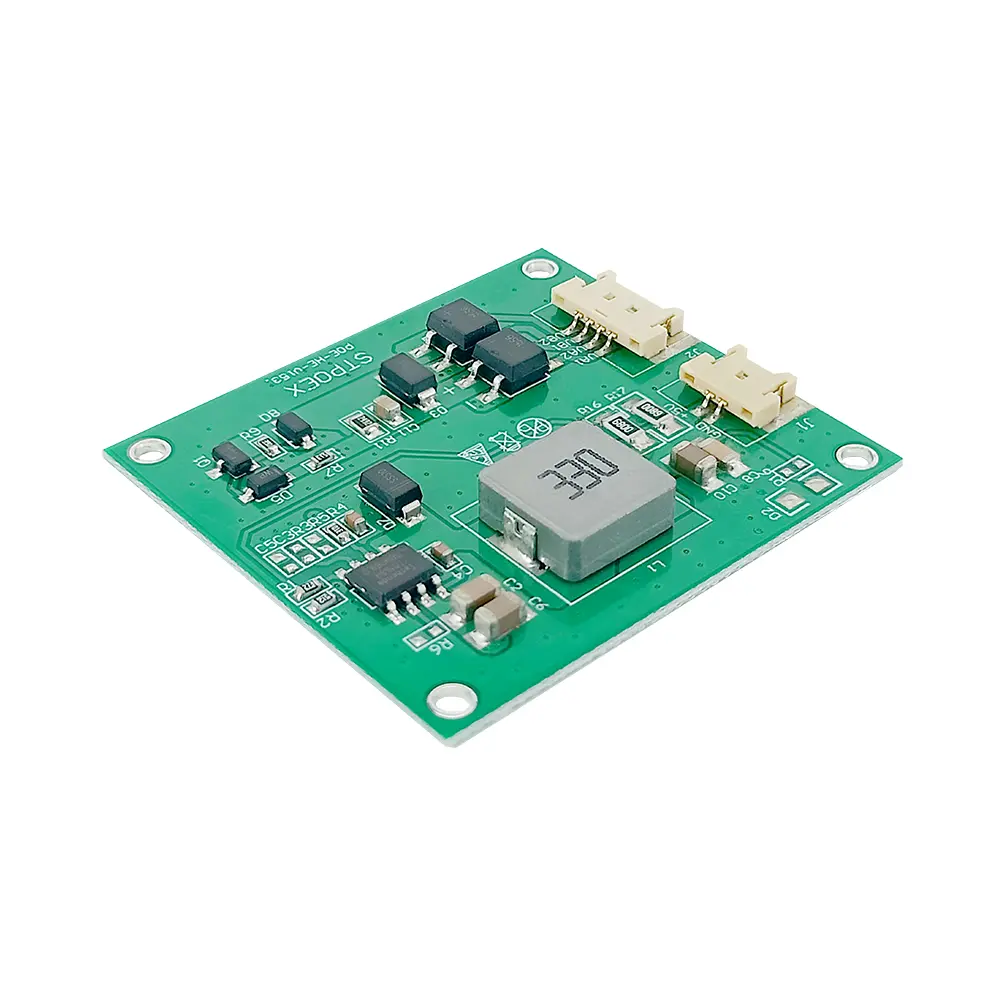

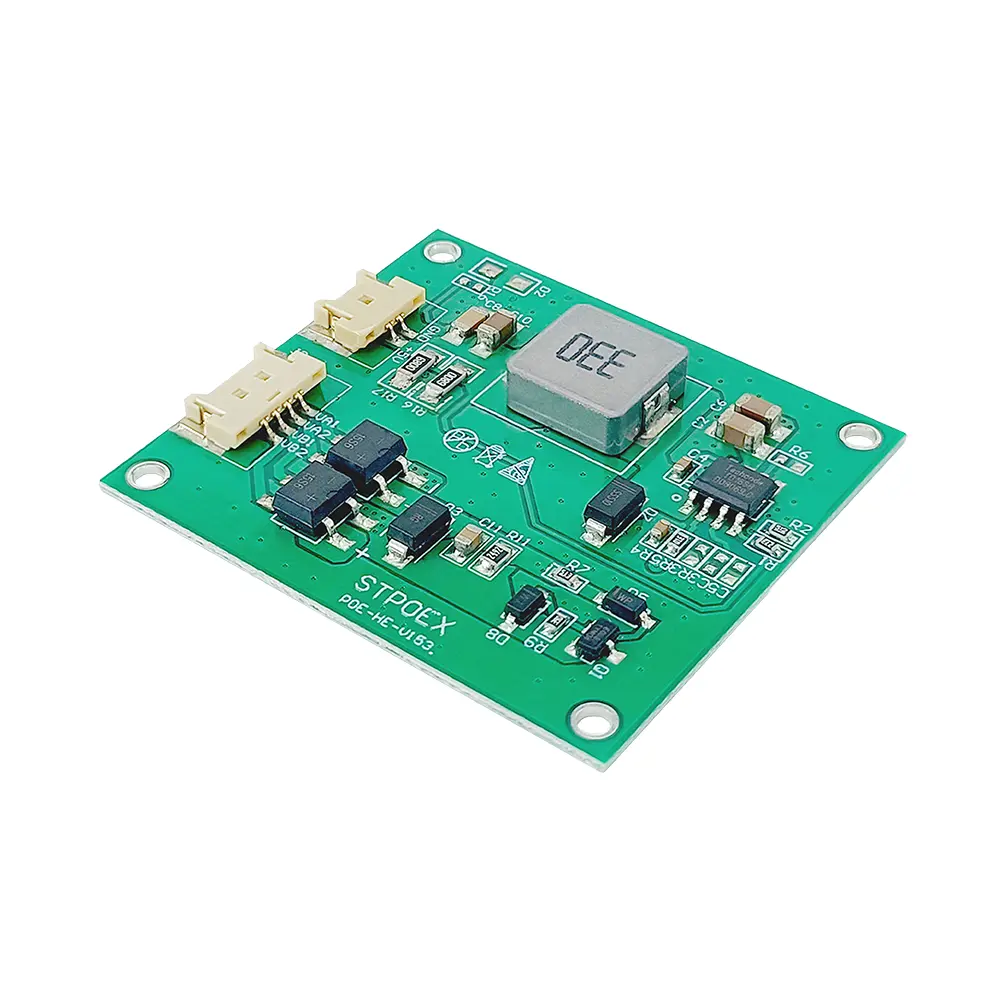

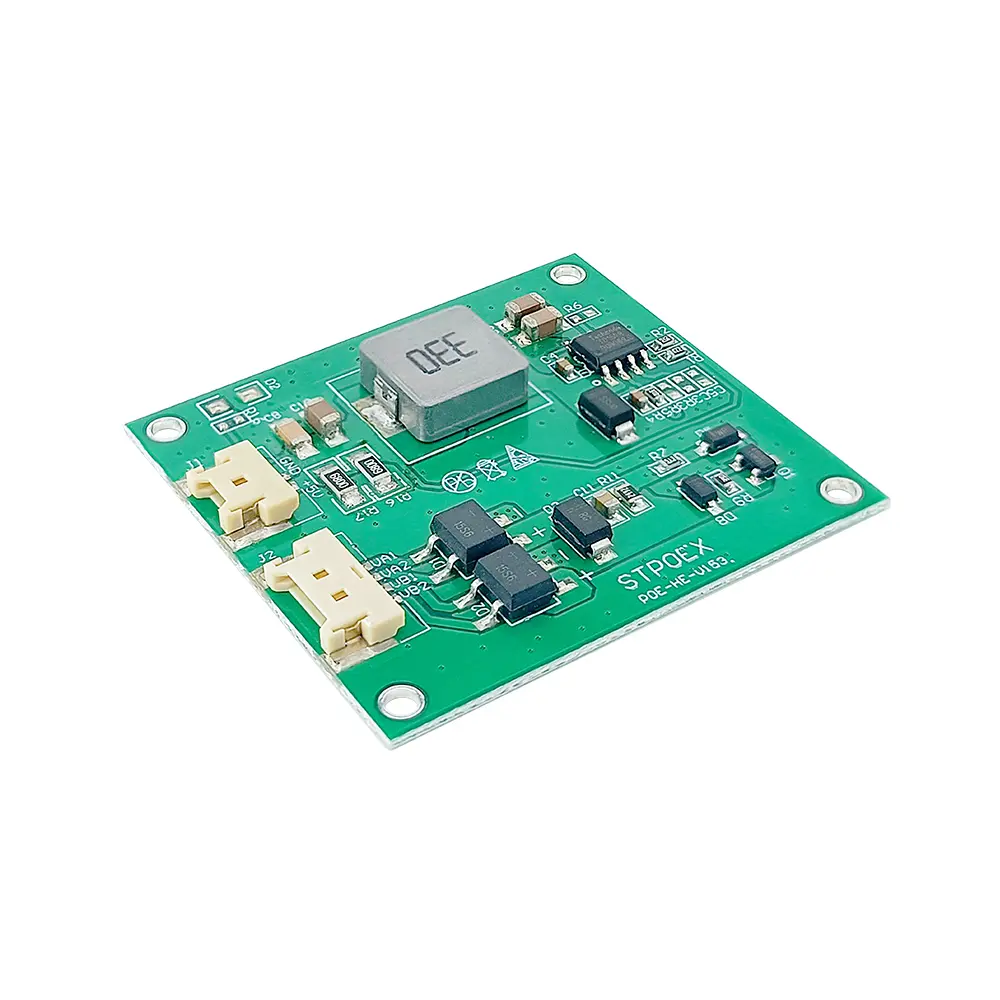

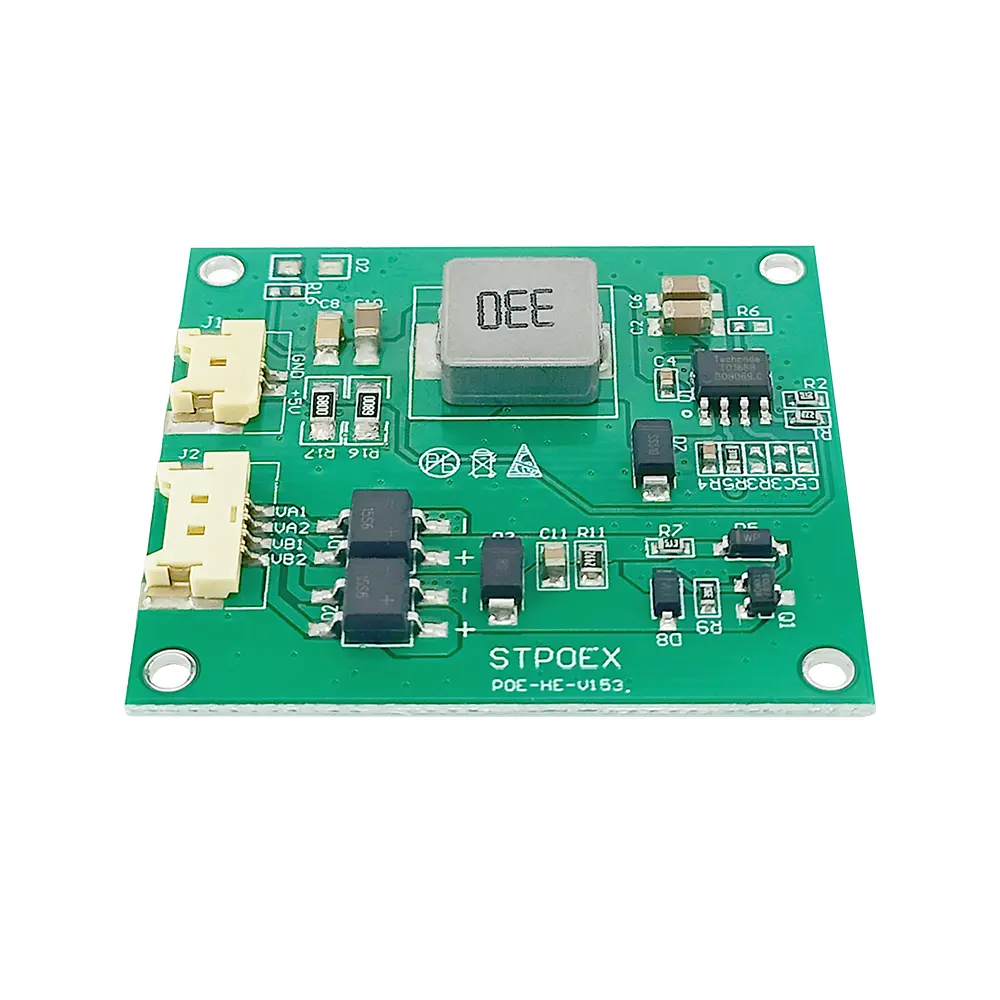

5V/12V dual-voltage output PoE module

Model: TSD-V153

Input: PoE DC power supply (38V–56V)
Output: DC 5V 2A /12V 1.3A
PoE protocol: IEEE 802.3af
Conversion efficiency≧90%
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH1.25 terminal block
Size: 43*39*4.8 mm (L*W*H)
Weight: N.W=7 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-V153 features an ultra-slim design, allowing it to flexibly adapt to various commercial displays, all-in-one computers, and other devices. It effectively simplifies device wiring, reduces installation complexity, and enhances the stability, reliability, and scalability of device operation.

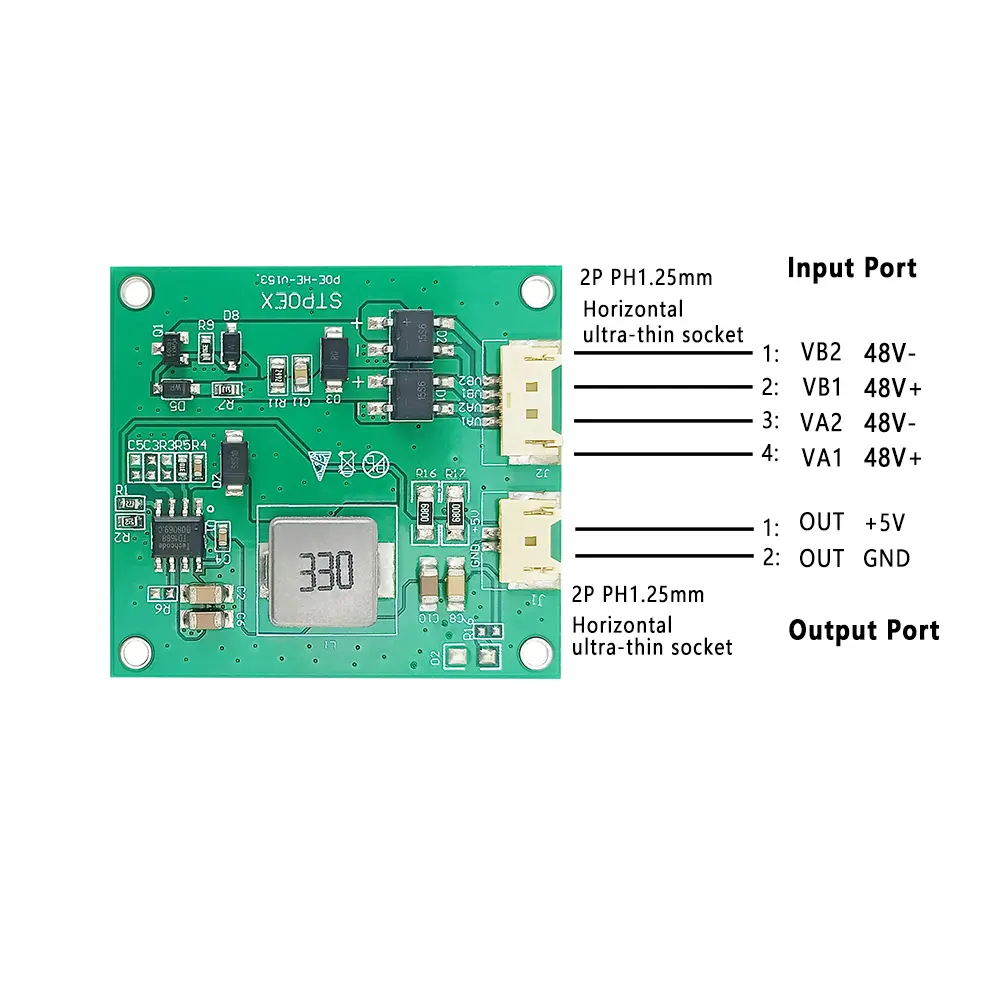

Interface Configuration of the TSD-V153 Module:

4-pin PH1.25mm socket : DC 38-56V input;

2-pin PH1.25mm socket: DC 5V 2A / 12V 1.3A output.

The TSD-V153 supports the IEEE 802.3af PoE international standard protocol, with a maximum output power of 15W. The module receives a DC signal of 38-56V from the PoE input and can output stable DC power of 5V/2A or 12V/1.3A.

The TSD-V153complies with the IEEE 802.3af PoE international standard protocol, EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards, certified with CE, FCC, and RoHS approvals. The TSD-V153 features a compact size, flexible installation, excellent performance, and wide applicability, earning widespread recognition from users.

The TSD-V153 incorporates multiple protection mechanisms, including over-temperature protection, over-voltage protection, over-current protection, short-circuit protection, and 4KV surge protection, ensuring reliable safety for both the device and the entire power supply system. The module supports wide voltage input (DC 38-56V).Default output: DC 5V 2A; customizable to DC 12V 1.3A. Maximum output power: 15W.

● Input: Wide-range PoE DC power supply (38V–56V)

● Output: DC 5V Max 2A / DC 12V Max 1.3A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Conversion efficiency≧90%

● High-temperature-resistant, flame-retardant horizontal connectors, ultra-slim compact design

● Double-layer PCB with single-sided layout

● Beige High-Temperature-Resistant Flame-Retardant Material, Horizontal Ultra-Thin SMD Socket

● High-precision branded electronic components

● Pure Copper Thickened Core Transformer

● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation

● High - temperature - resistant PCB made of environmentally friendly materials

Product parameter table
Product Name	5V/12V dual-voltage output PoE module
Product Model	TSD-V153
PoE Standard	IEEE802.3af
Input Voltage	DC 38-56V
Output	DC 5V MAX2A / 12V MAX1.3A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Non-isolated type
Data Rate	/
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (4-Pin PH1.25mm Socket): DC 38-56V IN Output Port (2-Pin PH1.25mm Socket): DC 5V/12V OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 7 g
Dimension	43394.8 mm (LWH)
Package	Anti-static pearl cotton

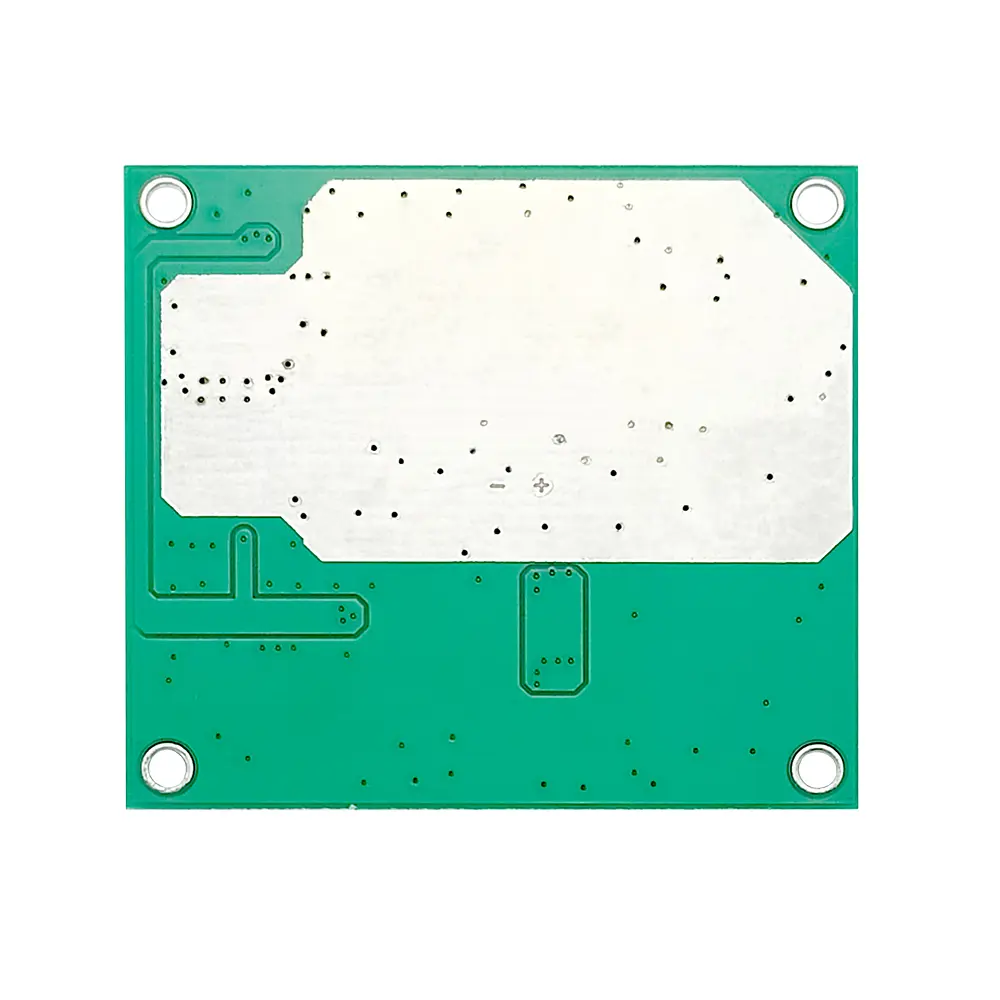

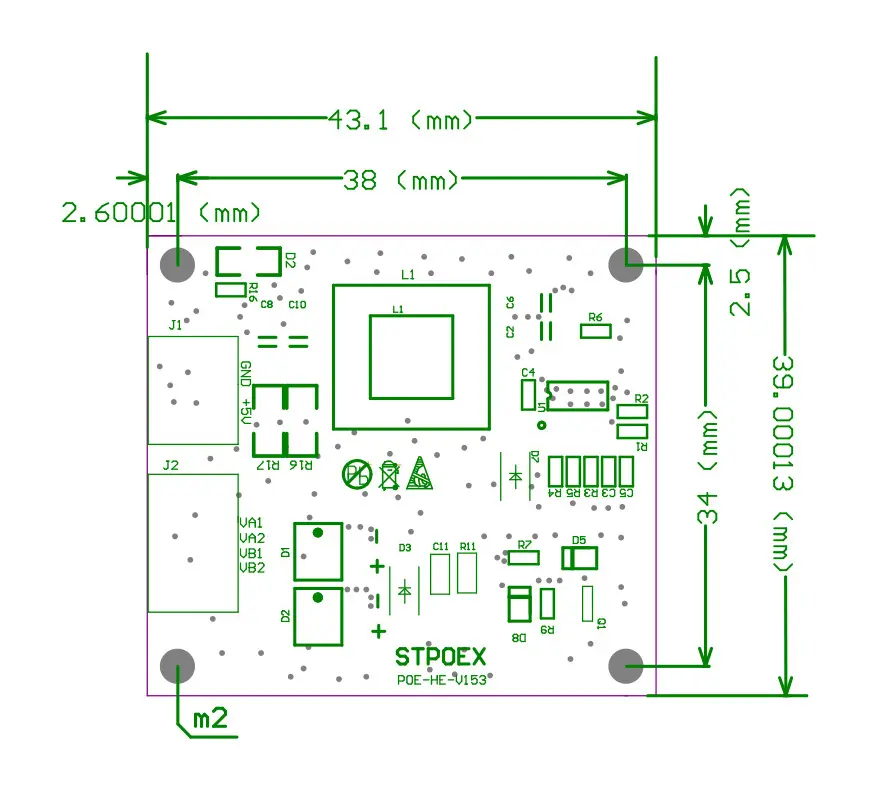

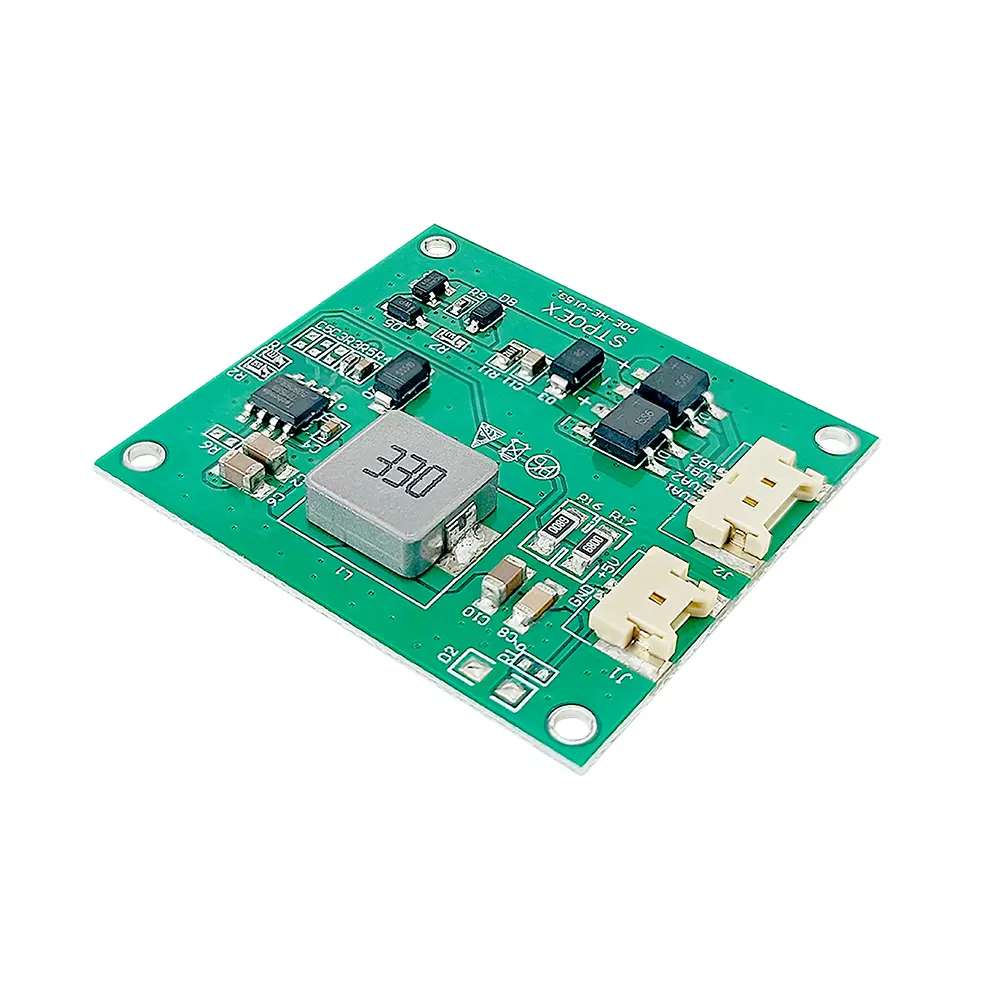

Module Design: ultra-slim horizontal interface design, with an overall ultra-thin profile, net weight: 7g.Module dimensions: 43 × 39 × 4.8mm,PCB thickness: 0.96mm (maximum module thickness: 4.8mm),PCB layout: square structure, double-layer single-sided design, with glossy green solder mask. Screw hole diameter: Φ = 2.1mm × 4,hole center spacing: L = 38mm, W = 34mm.

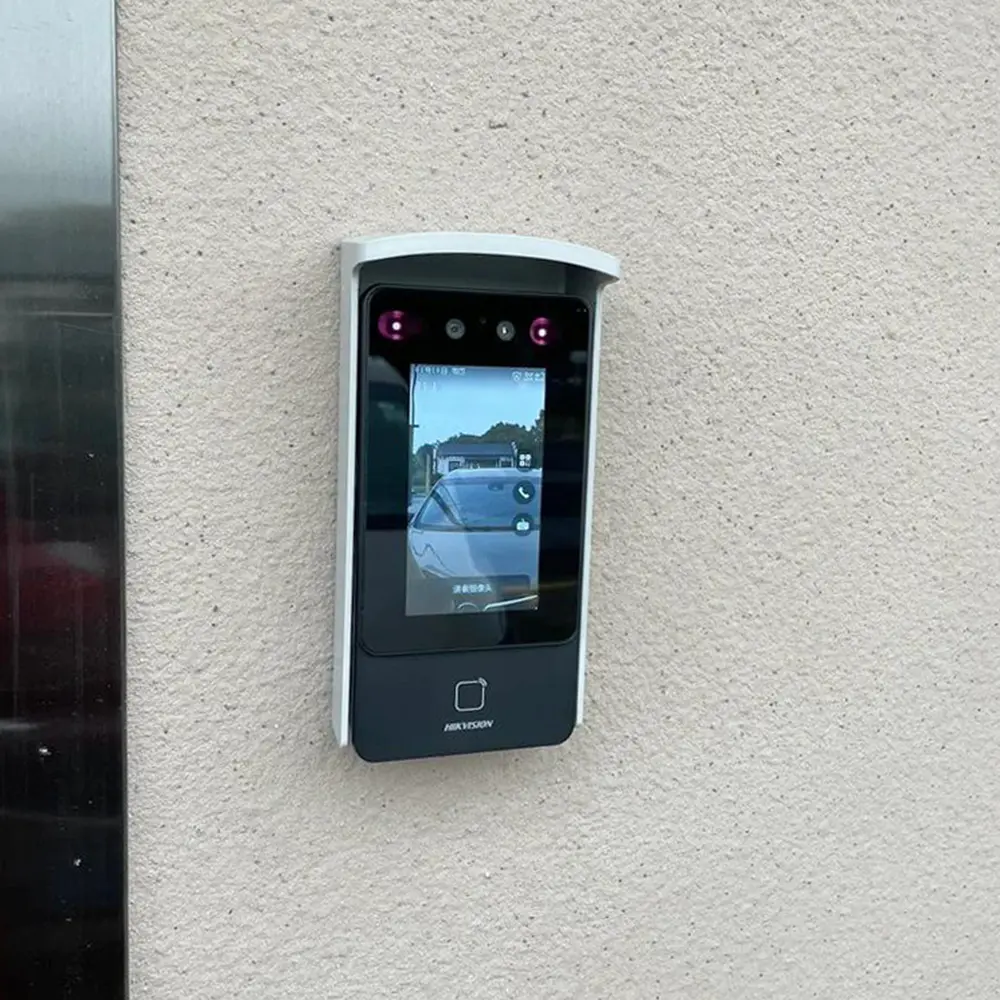

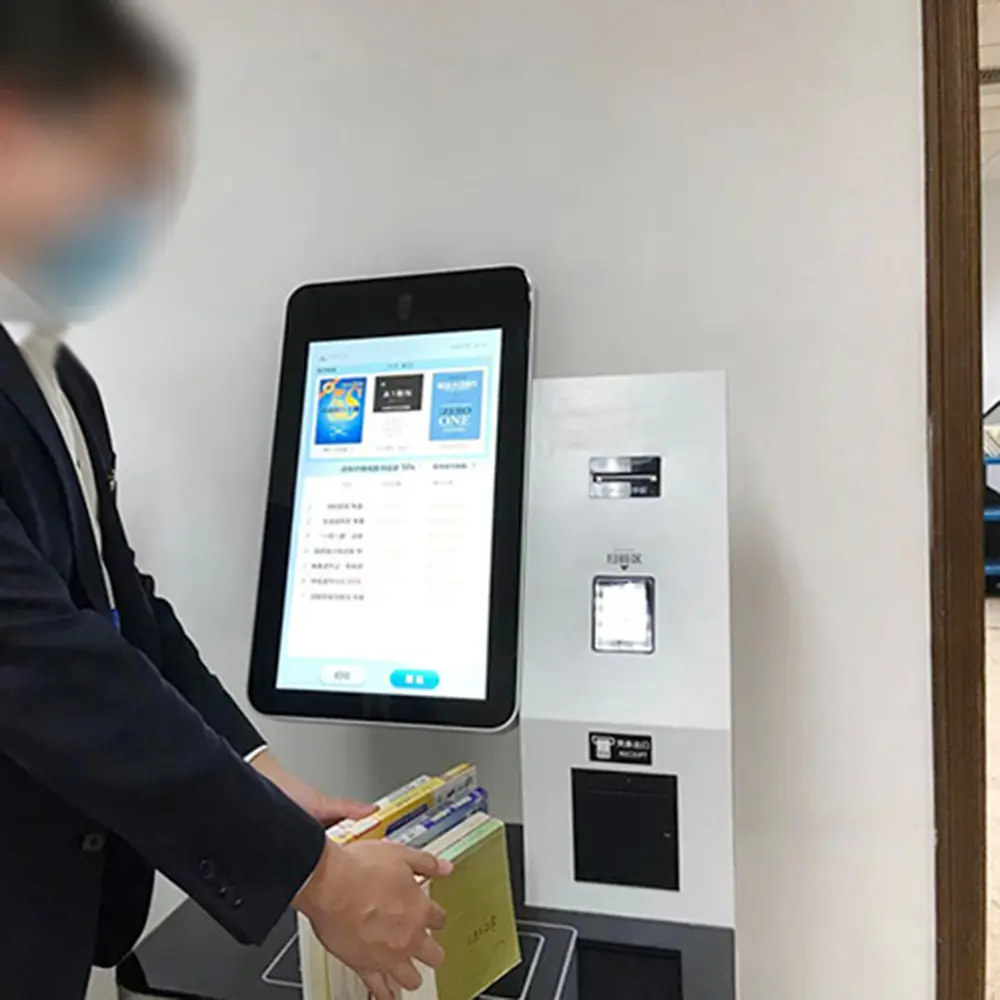

The use of the TSD-V153 module significantly reduces installation complexity and costs, allowing users to flexibly choose equipment placement locations, thereby improving space utilization. Additionally, the module simplifies cable deployment, minimizing safety risks associated with complex power systems and further enhancing electrical safety for connected devices.

Thanks to its compact and lightweight design, the TSD-V153 is compatible with a wide range of equipment and is widely adopted in commercial, educational, financial, and industrial sectors. It provides greater convenience for powering user devices, making it an ideal power supply solution in diverse applications.

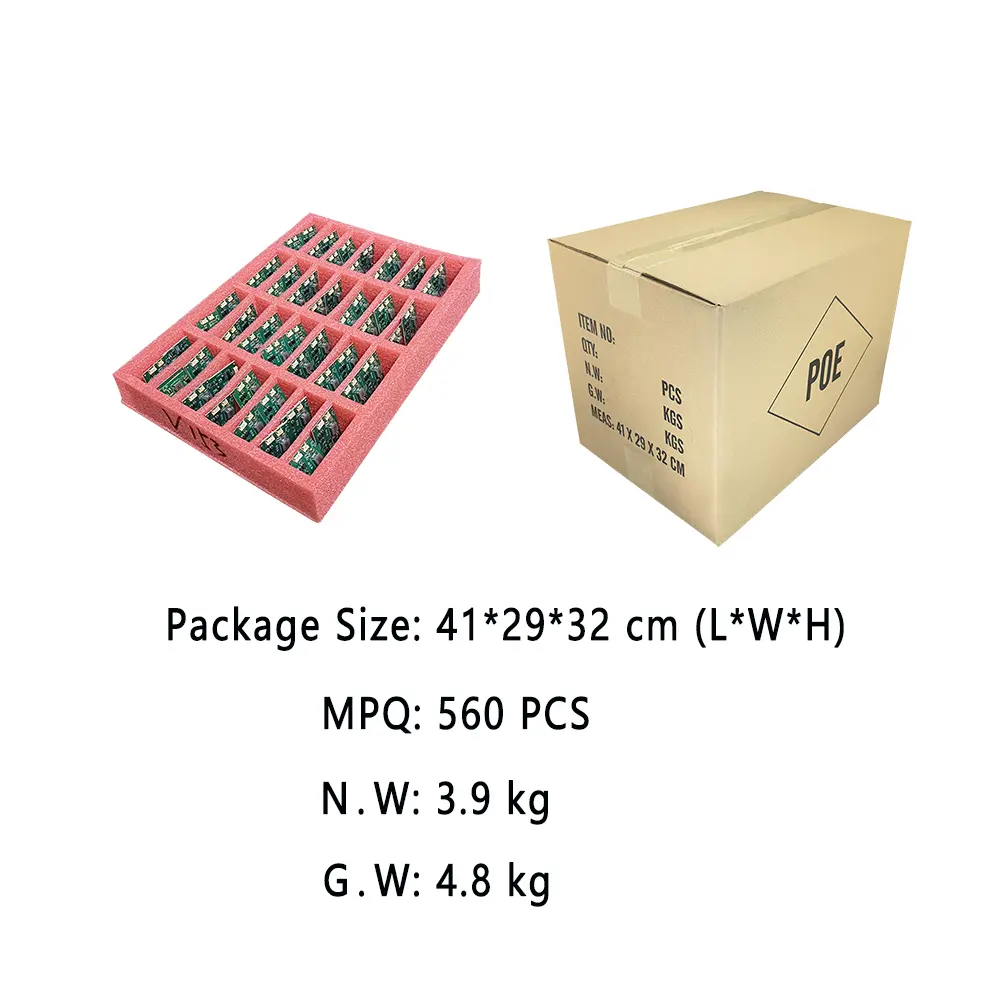

Package list
Items	Quantity
V153 PoE module	560 PCS
Operation Manual	/
