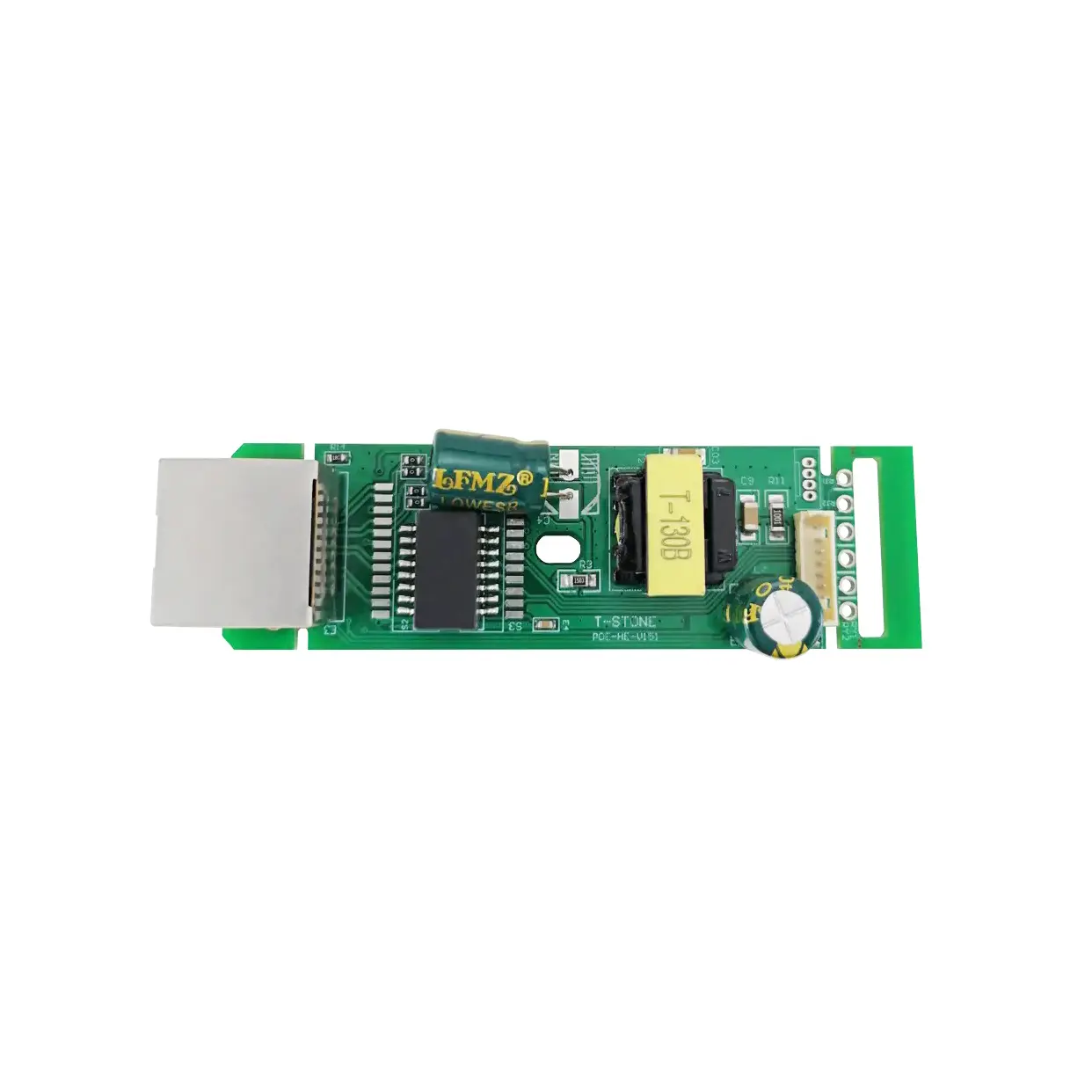

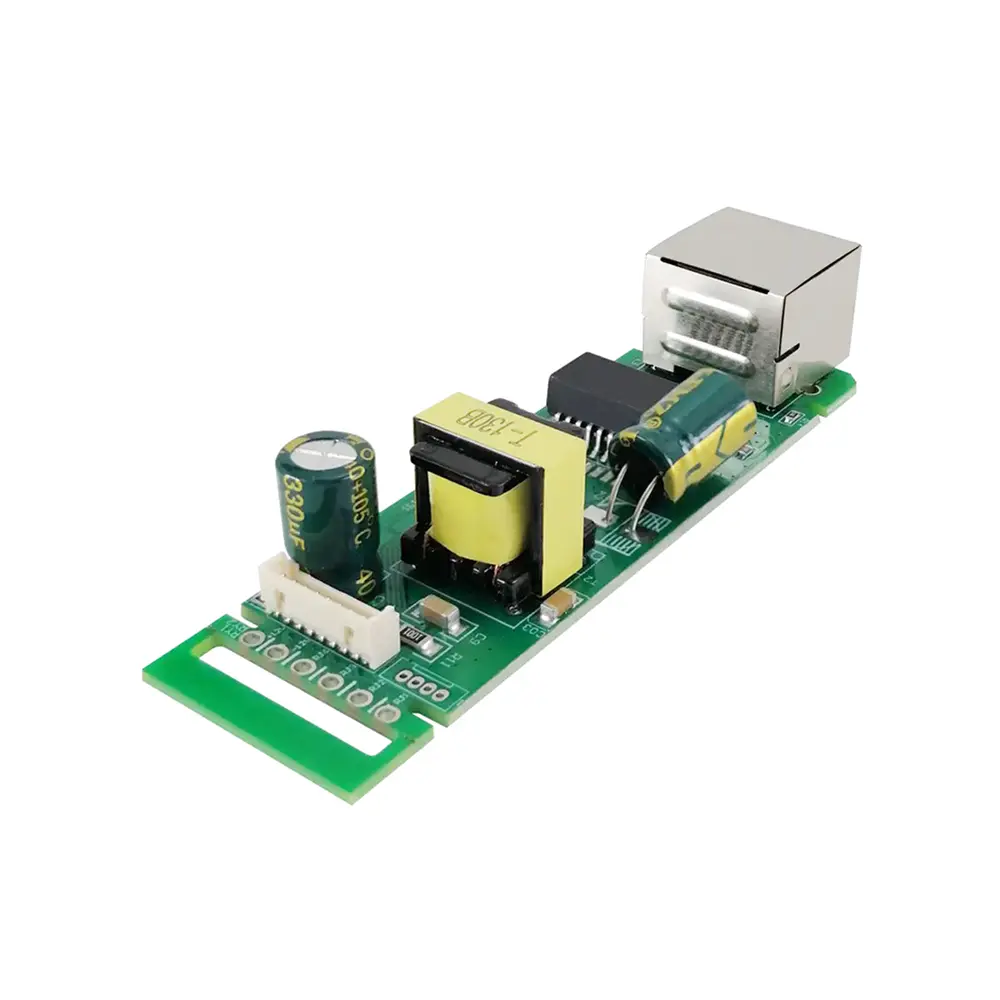

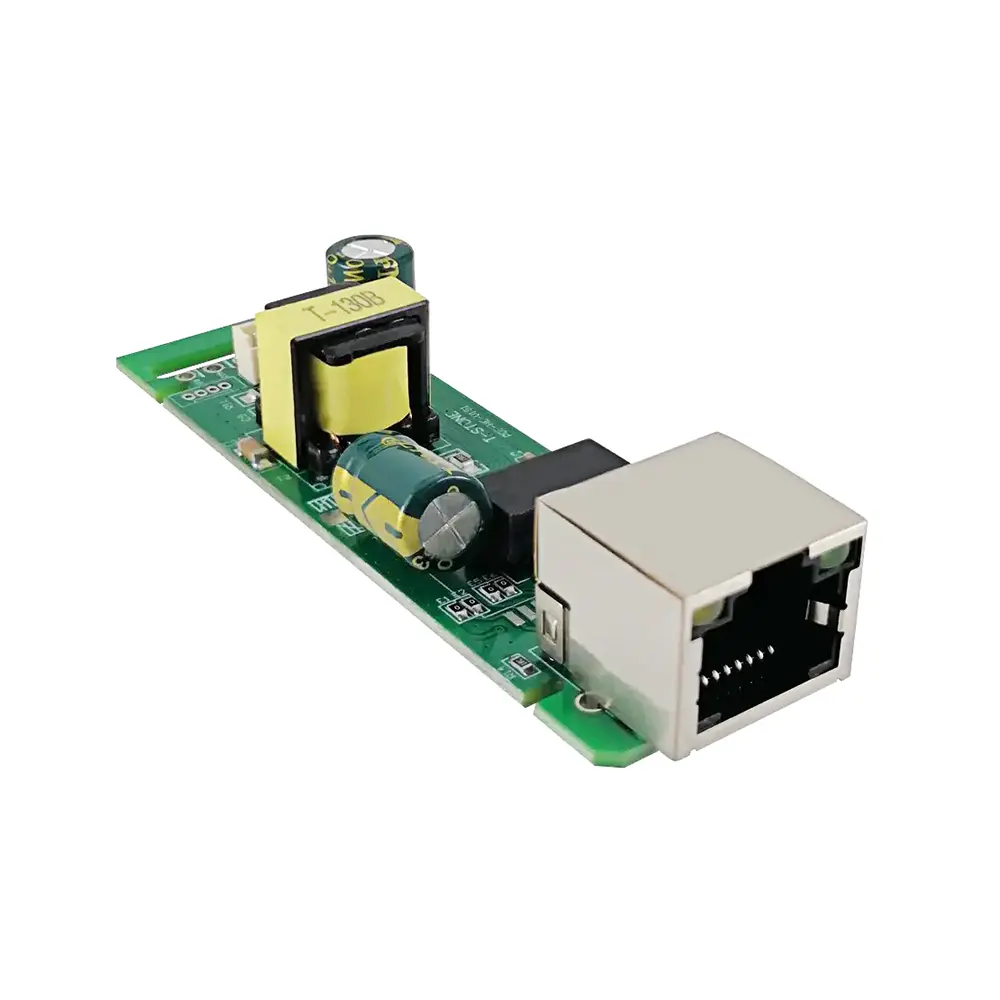

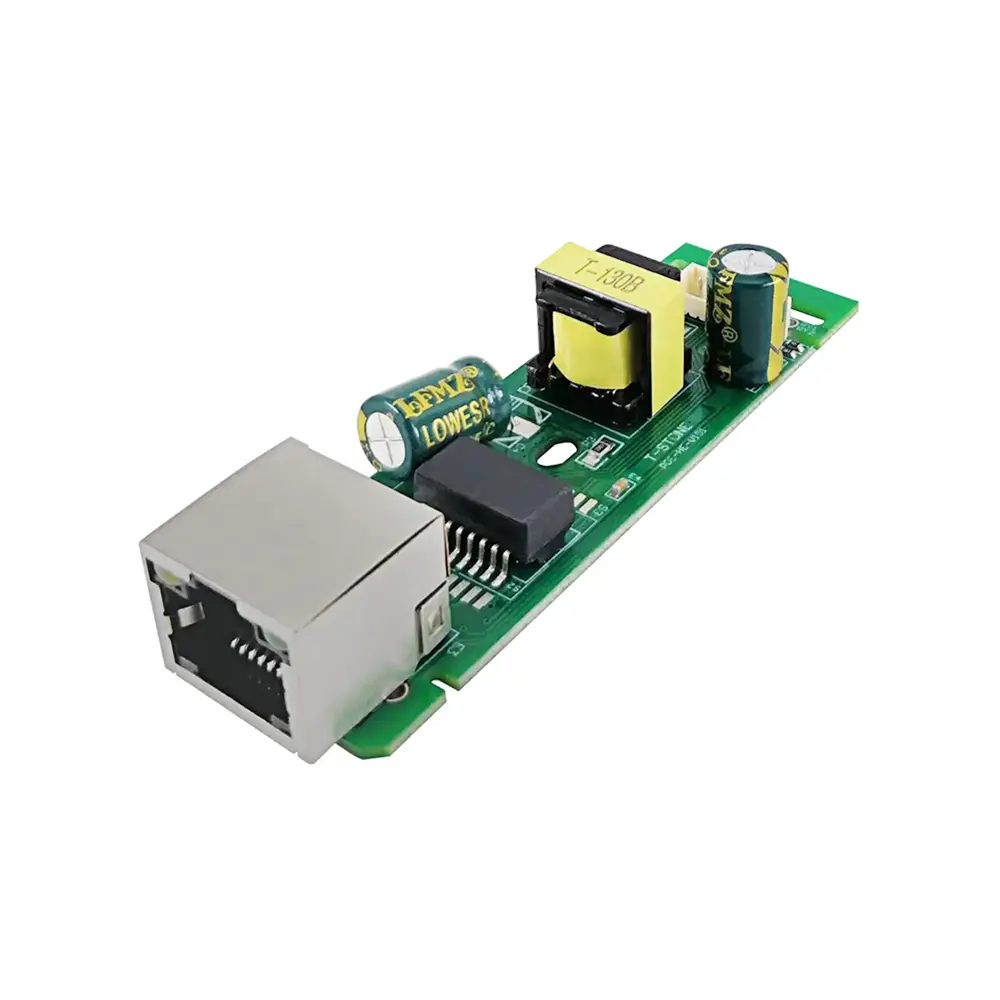

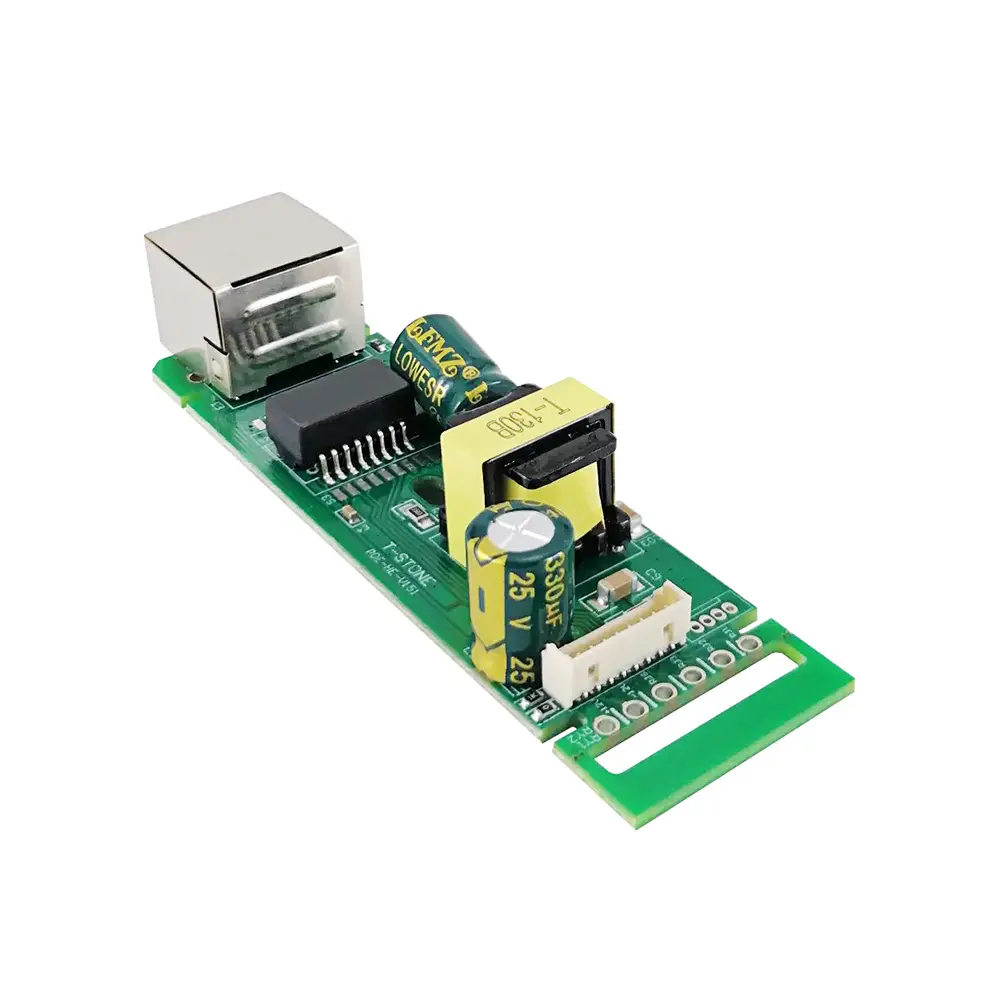

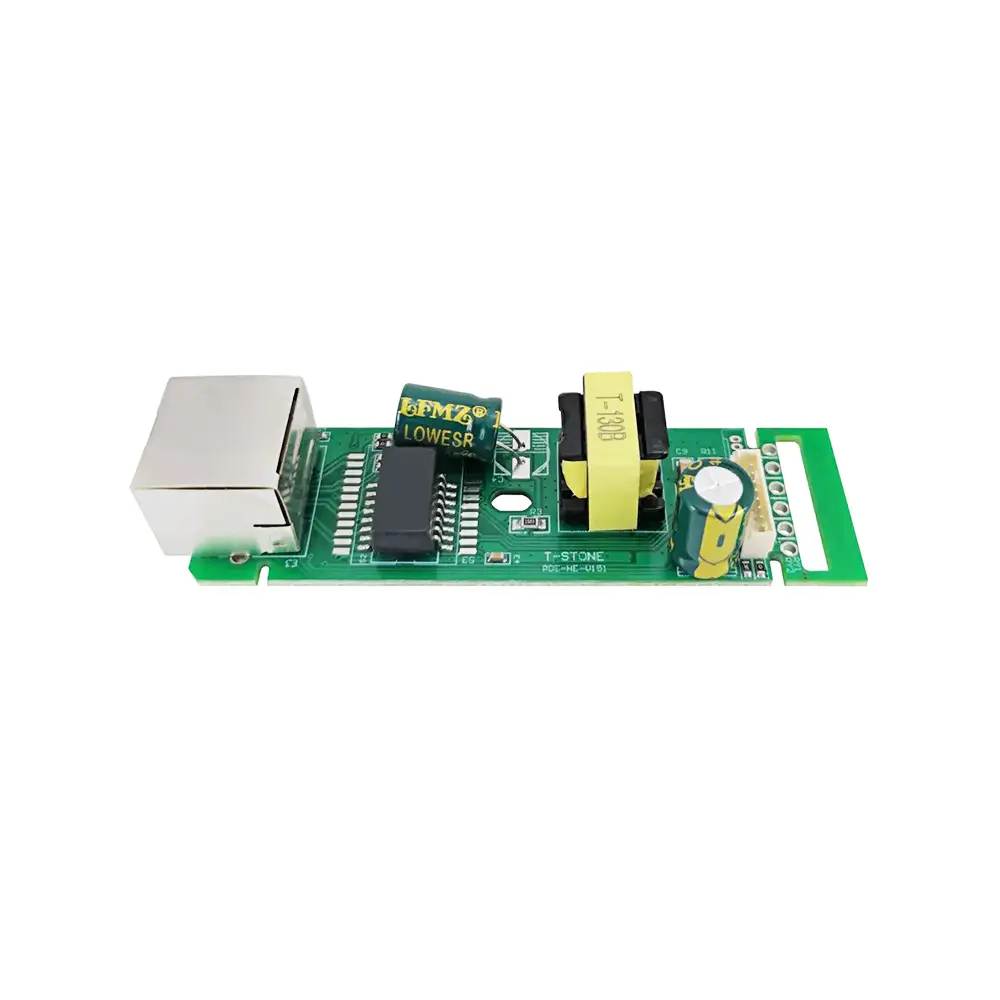

4KV lightning protection 100M isolated 12W PoE PD module

Model: TSD-V151

Input: Wide-Range PoE DC 38-56V
Output: DC 12V MAX 1A 12W
PoE protocol: IEEE 802.3af
Transmission rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port + PH1.25 Socket
Size: 77.1*23*16.9 mm (L*W*H)
Weight: N.W=17 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

The V151 is an active PoE module. Its power supply mode is fully compatible with RJ12+ RJ36- / RJ45+ RJ78-. Its conversion ratio exceeds 85%. The V151 module is responsible for processing the POE signal and converting it to output a DC12V current and internet signal to supply IP devices.

Input port: Horizontal RJ45 female socket * 1.Input voltage: DC wide voltage ranging from 38 to 56V.Output port: 8Pin PH1.25 female socket * 1. Output voltage: DC 12V. Output current: Max 1A.

The V151 uses a high-temperature-resistant and flame-retardant interface. The circuit design is equipped with protection functions such as lightning protection, short-circuit protection, overload protection, and high-temperature protection. Its EMC parameters comply with the IEC 61000-4-2/3/4/5/6 standards. It adopts an isolated design and is equipped with a high-power pure copper isolation transformer, which is equipped with a metal shell and can effectively avoid the common-ground problem. The product has obtained certifications such as CE, FC, and RoHS, and is highly favored by a lot of consumers.

The V151 complies with the IEEE802.3af POE standard protocol. Its maximum output power is 12W. It supports wide-voltage input of DC38-56V, and the default output voltage is DC12V. Other voltages can be customized. The effective transmission distance is 100 meters, and it supports 24/7 non-stop operation.

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 1 A
● Compliance: IEEE 802.3af PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Big brand high-precision electronic components with high parameter accuracy and low error rate

● 100Mbps high frequency POE filter to ensure stable data transmission

● High frequency low resistance electrolytic capacitor, effectively reduce the circuit high frequency loss and heating

● High power, high conduction and low impedance transistor, stable performance and low heat

● High temperature resistant PCB environmental protection material, lead-free environmental protection process

● Pure copper pin connector, good contact stability

● Beige high temperature flame retardant interface socket, safe and reliable quality

● Equipped with 80mm connecting line, convenient for users to connect

Product parameter table
Product Name	4KV lightning protection 100M isolated 12W PoE PD module
Product Model	TSD-V151
PoE Standard	IEEE802.3af
Input Voltage	PoE: DC 38-56V
Output	DC 12V MAX 1 A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	/

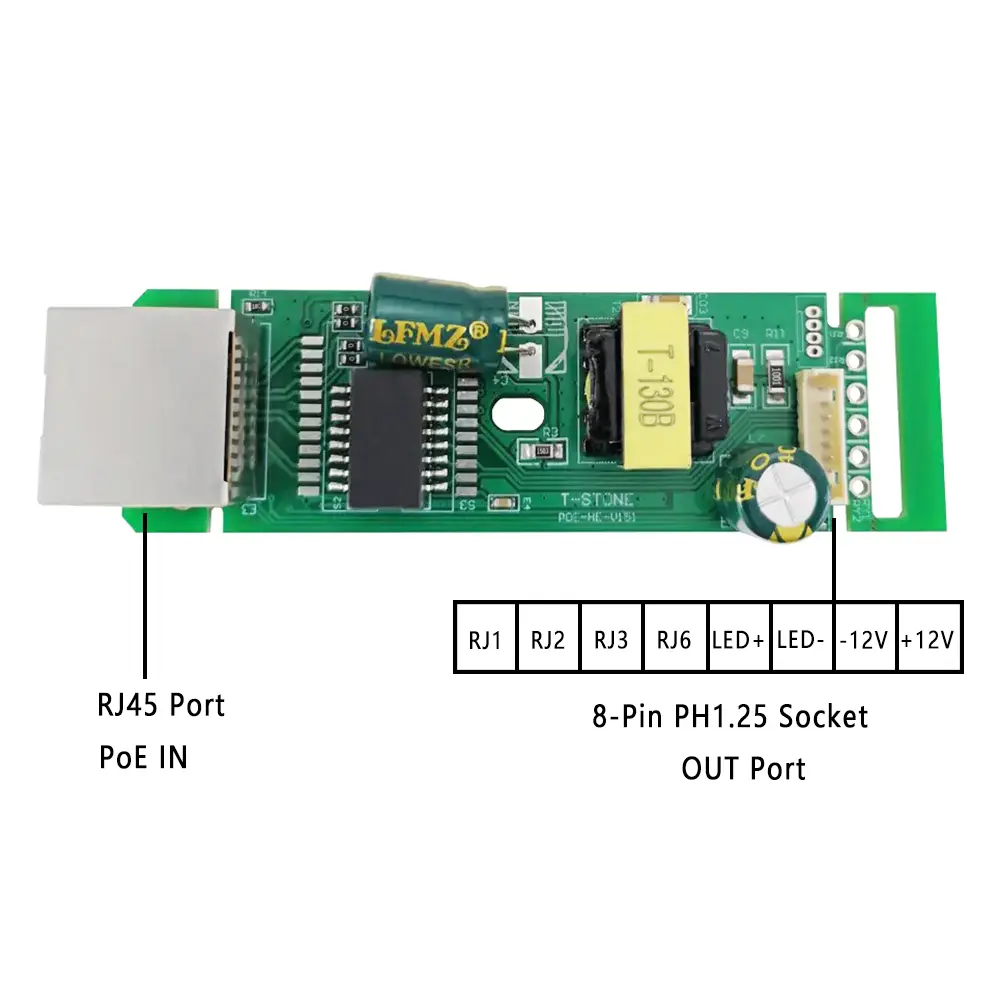

Interface	PoE Input Port (RJ45 Ethernet port): PoE IN Output Port (8-Pin PH1.25 female socket): Data + DC OUT
Function	/
Material	FR-4
Color	glossy green solder mask
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 17 g
Dimension	77.12316.9 mm
Package	Anti-static pearl cotton

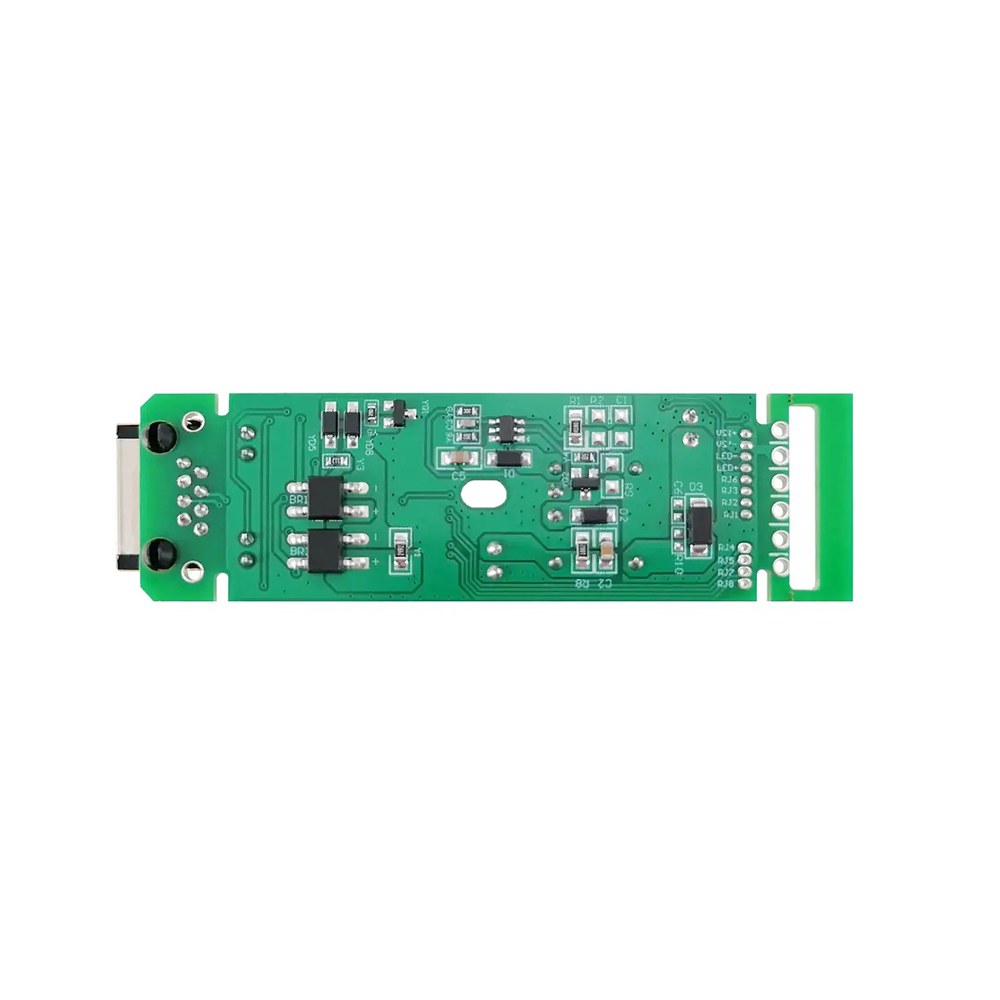

Structure size: 77.1mm*23mm*16.9mm. PCB: double-layer board, H=1.6mm.Surface painting: bright green. Overall layout: square structure, the maximum thickness is 16.9mm. The module is double-side-designed. The tall and short components are designed on two sides of the board, resulting in high space utilization.
dimension

V151 is mainly used in industry products such as broadcasting audio systems, commercial display billboards, wireless APs, etc. The application of the V151 module has greatly simplified the wiring process of the installation equipment, reducing the installation cost and construction difficulty. It has significantly decreased the difficulty of centralized power supply. Only centralized power supply to the switch is required, with a concentrated power supply range, which is easy to manage and has a low cost. V151 performs well in fields such as broadcasting, commercial displays, wireless access points (APs), etc., and has received unanimous praise from manufacturers and end users.

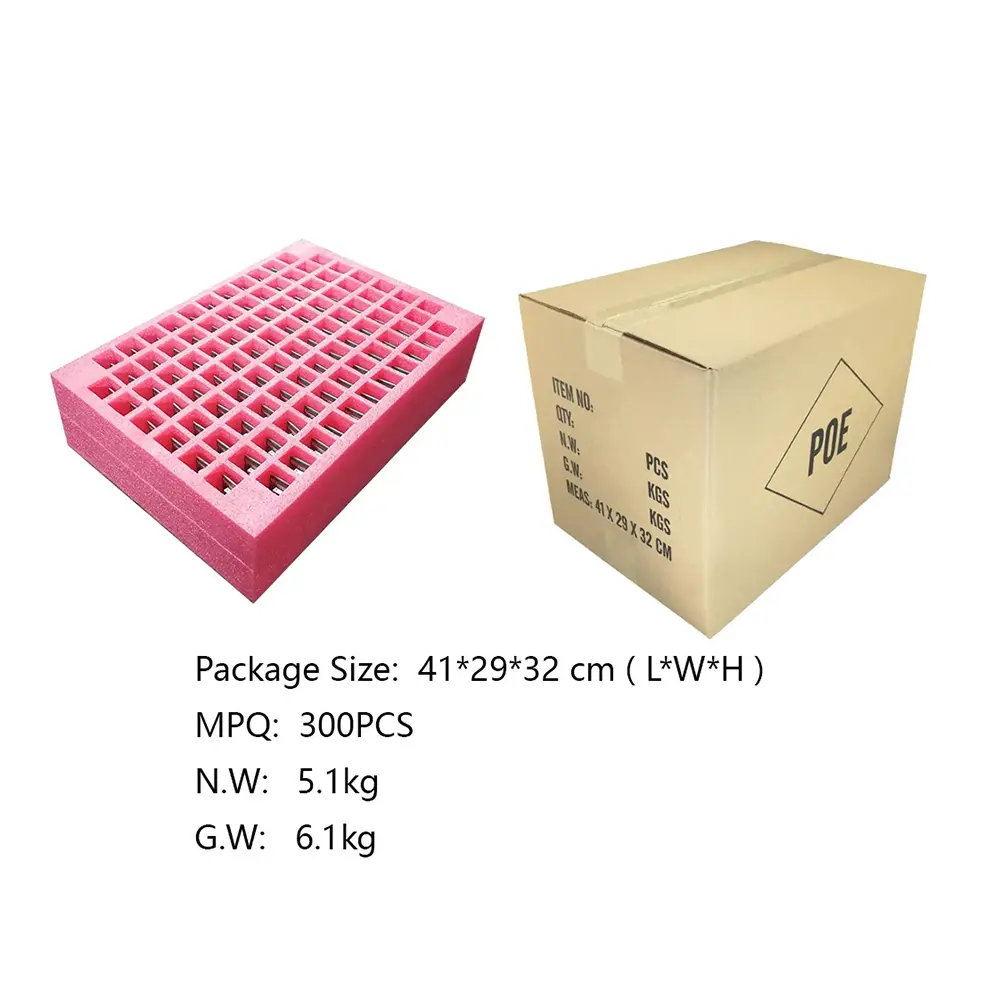

Package list
Items	Quantity
TSD-V151 Module	300
Operation Manual	/
