48V to 24V 25W PoE Converter with Waterproof Housing

Model: TSD-PD2401H-2.5G

  • Input: DC 48-56V PoE signal
  • Output: DC 24V PoE signal
  • IEEE802.3af/at
  • Rate: 10/100/1000Mbps+2.5G
  • RJ12+ RJ36-/RJ45+ RJ78-
  • Interface: RJ45 Port
  • Size: 89*31*26 mm+21cm(tail cable)
  • Weight: N.W=64 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package
    pd2401h-2-5g-3
    01

    PD2401H-2.5G is a 25W high-power POE converter that can convert 48V-56V POE signals to 24V POE signals with a maximum transmission rate of 2.5G.



    The TSD-PD2401H PoE converters come in three models:

    PD2401H: 25W 100Mbps PoE converter

    PD2401HG: 25W Gigabit PoE converter

    PD2401H-2.5G: 25W 2.5G PoE converter


    ​

    pd2401h-2-5g-4
    01

    The PD2401H-2.5G input port (RJ45 female connector) inputs a 48-56V PoE signal; the output port (RJ45 female connector) outputs 24V PoE signal.


    The PD2401H-2.5G motherboard utilizes a high-efficiency, low-noise design and is compatible with various protection circuits, effectively reducing power conversion losses and interference, improving efficiency and enhancing system stability. The product's EMC parameters meet IEC 61000-4-2/3/4/5/6 standards and has passed FC, CE, and ROHS certifications. It is sold in over 100 countries and regions worldwide.

    The PD2401H-2.5G complies with IEEE802.3AF/AT PoE standards, offering a maximum output power of 25.5W. Data rates are 10/100/1000Mbps/2.5G. It supports a wide-voltage DC38-56V PoE signal input and a 24V PoE output. The PD2401H-2.5G supports both national and passive PoE signal inputs of 48-56V and 24V passive PoE signal outputs.



    ● Input:​​ DC 48-56V PoE signal
    ● Output:​​  DC 24V PoE signal
    ● IEEE802.3af/at PoE standard protocol
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility:  RJ12+ RJ36- / RJ45+ RJ78- power supply
    ● Transmission Rate:​​ 10/100/1000Mbps +2.5G auto-negotiation
    ● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧90%
    ● Small size, less space, easy to install

    ● The 21CM tail line extends the outlet, so that the outlet can be bent and folded or through the wall, and the installation is more flexible

    ● High-power, low-impedance transistors for superior conductivity

    ● Using pure copper pin connectors to avoid poor contact

    ● High temperature resistant and environmentally friendly ABS plastic shell

    ● Lead-free manufacturing process

    Items

    Specifications

    Product Name

    48V to 24V 25W PoE Converter with Waterproof Housing

    Product Model

    PD2401H

    PD2401HG

    PD2401H-2.5G

    PoE Standard

    IEEE802.3af/at

    Input Voltage

    POE: DC38-56V (Active PoE and Passive PoE)

    Output

    POE: DC24V Passive PoE (Other Voltage can be customized)

    Conversion Efficiency

    ≧90%

    PoE Pin

    Input: RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

    Output: RJ45+ RJ78-

    Conversion Mode

    /

    Data Rate

    10M/100M Adaptive

    10M/100M/1000M Adaptive

    10M/100M/1000M/2.5G Adaptive

    Transmission Distance

    100 meters

    Surge Protection

    4KV

    Circuit Protection

    Short-circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    2* POE Indicators

    Interface

    RJ45 female head: PoE 48-56V input

    RJ45 female head: PoE 24V output

    Material

    ABS plastic material

    Color

    Matte black

    Accessories

    Waterproof four-piece set

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -20～60℃ For Operating -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 64g G.W: 74g

    Dimension

    Product Dimension: 89mm*31mm*26mm + 210mm (tail cable) Packing Dimension: 185mm*46mm*31mm

    Package

    White Carton or Plastic Bag

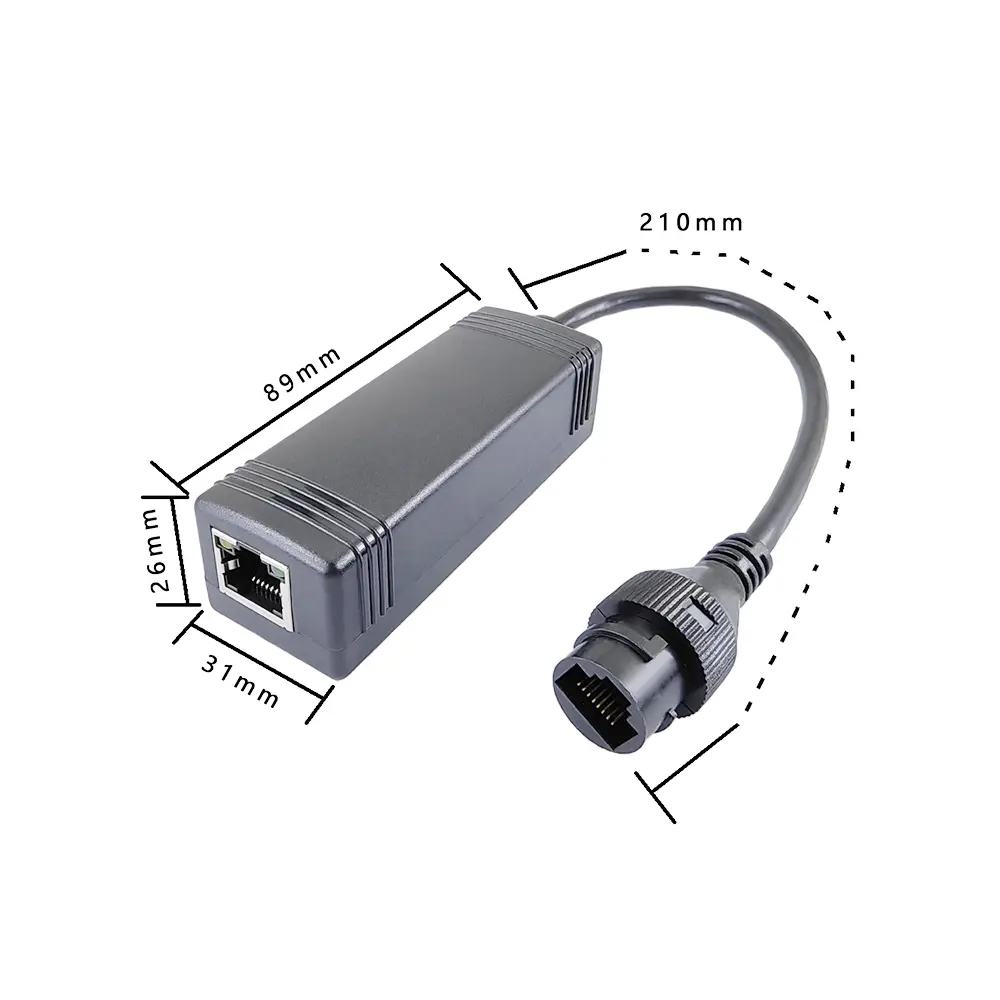

    Product dimensions: 89mm*31mm*26mm + 210mm (tail cable length). Input and output use standard RJ45 sockets for easy connection. Housing material: Matte black, heat-resistant, environmentally friendly ABS plasticpd2401h-2-5g-dimension

    The PD2401H-2.5G PoE converter easily resolves input and output mismatches between devices, enhancing deployment flexibility. The PD2401H-2.5G PoE converter has been widely used in 24V PoE CPE and wireless AP systems, performing exceptionally well and earning widespread user approval.

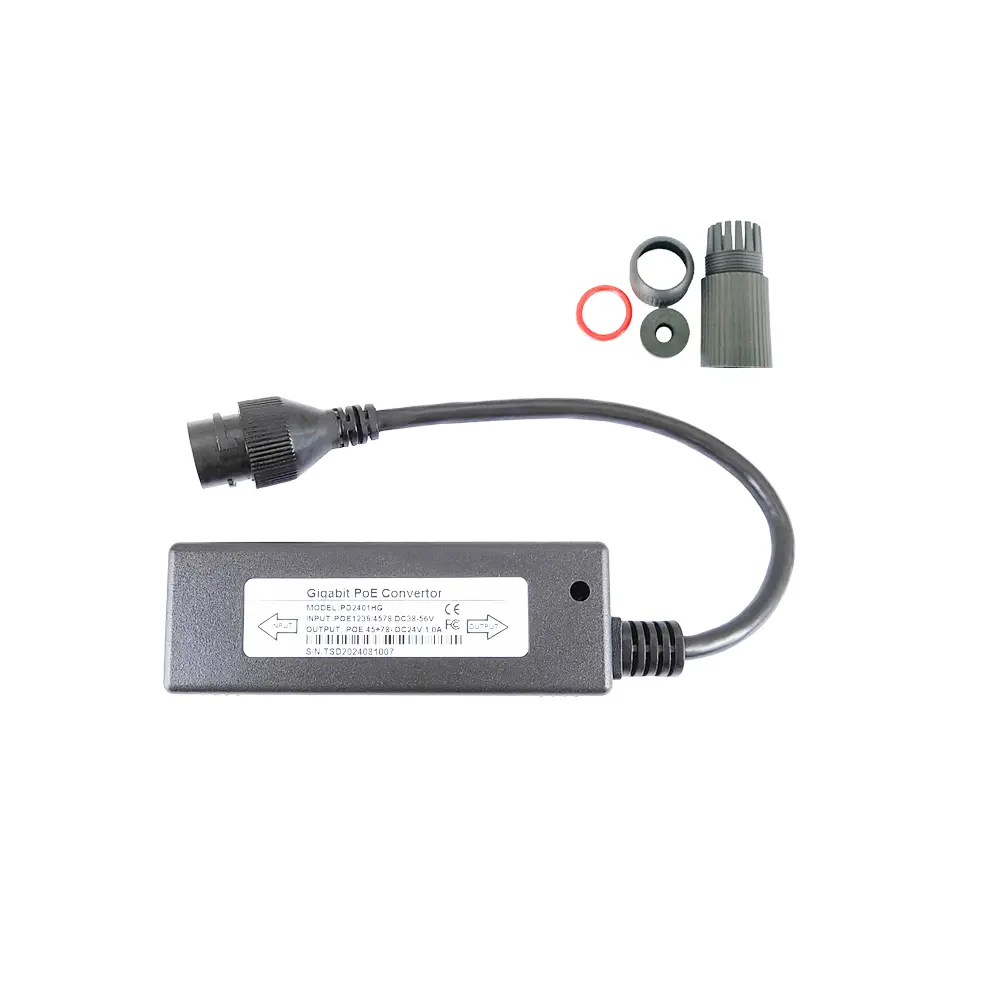

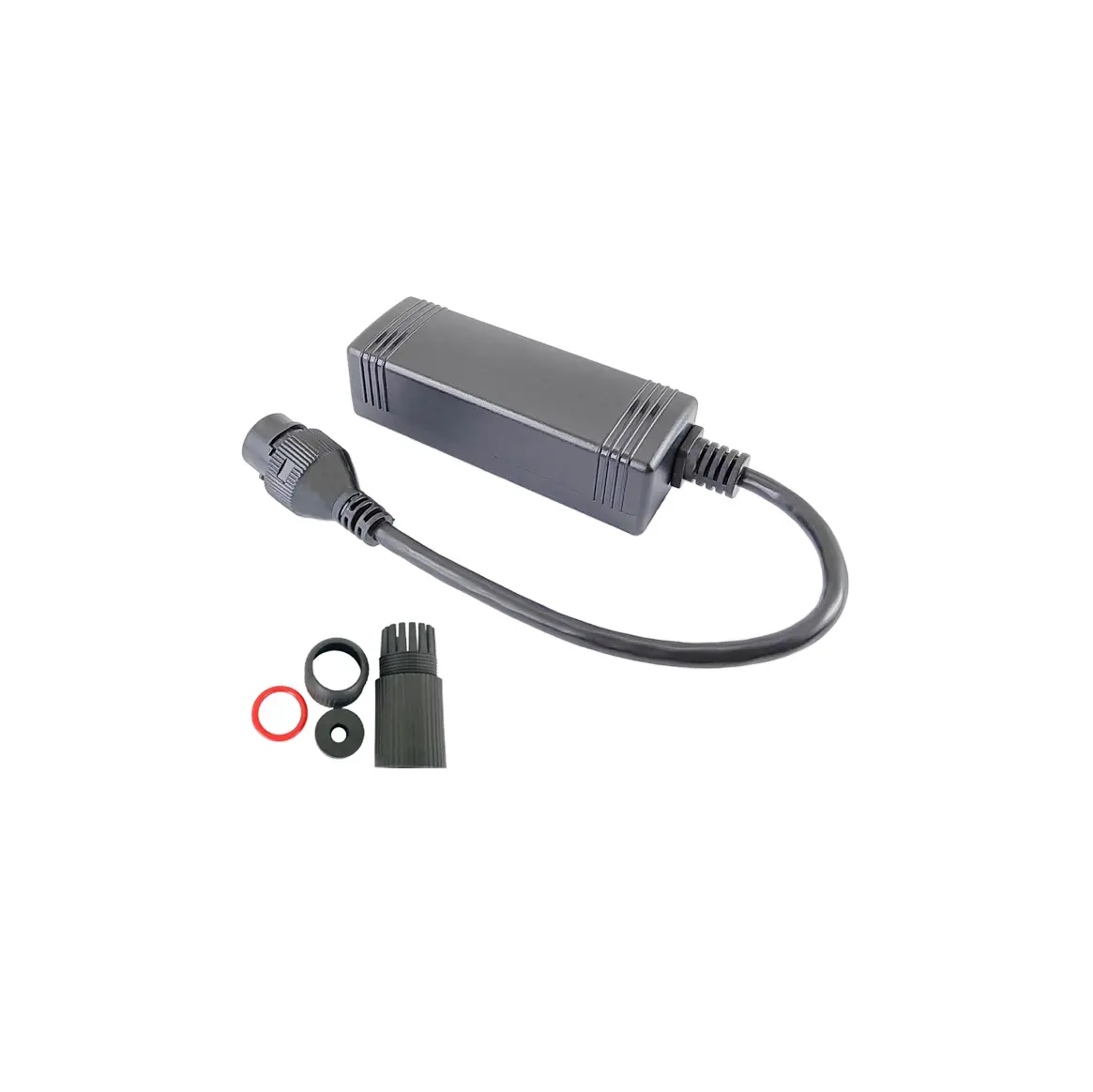

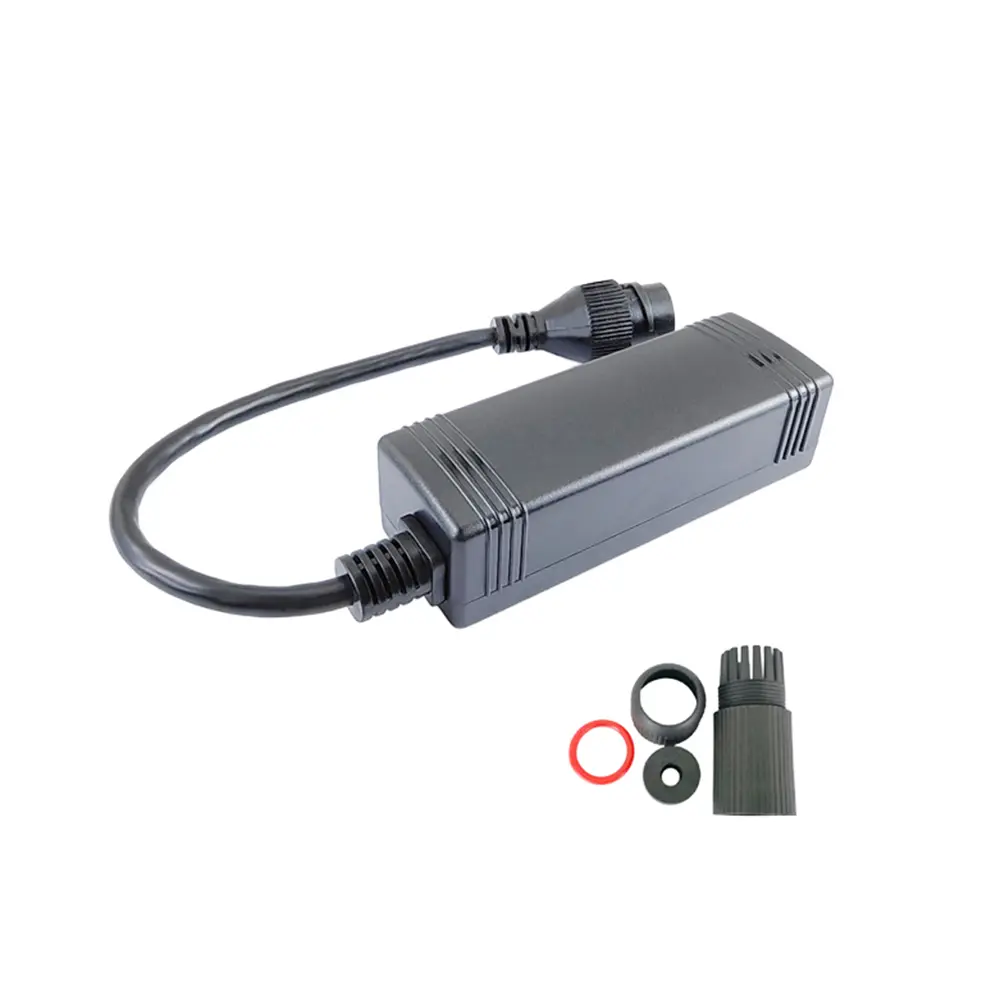

    The PD2401H-2.5G PoE converter is equipped with a waterproof four-piece set, which can be used in wet and rainy environments. The product is simple and flexible to install, and the installation location can be freely selected according to the device requirements.

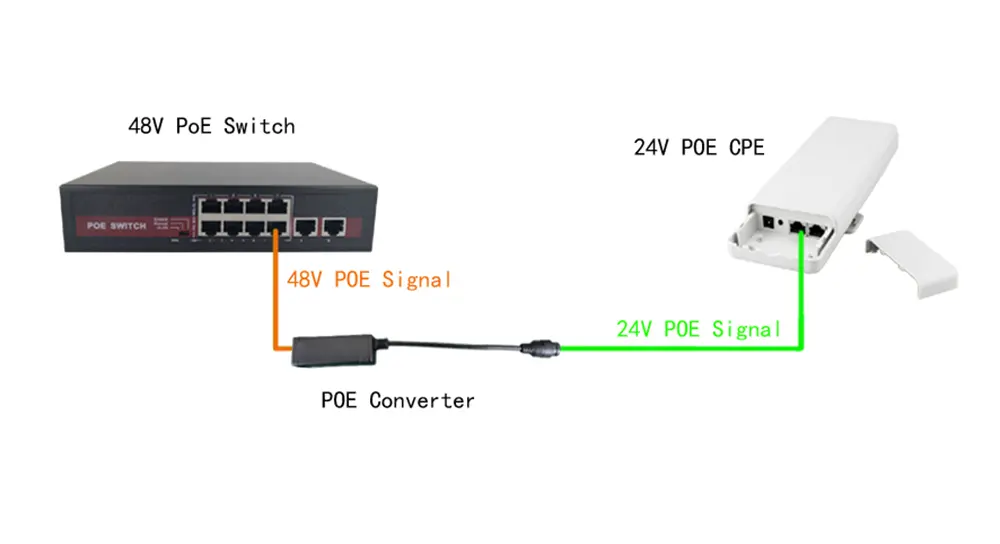

    pd2401h-2-5g-topology
    pd2401h-2-5g-application1
    pd2401h-2-5g-application2
    pd2401h-2-5g-application3

    Package list
    Items Quantity
    PoE Converter: TSD-PD2401H-2.5G 1 PCS
    Operation Manual /

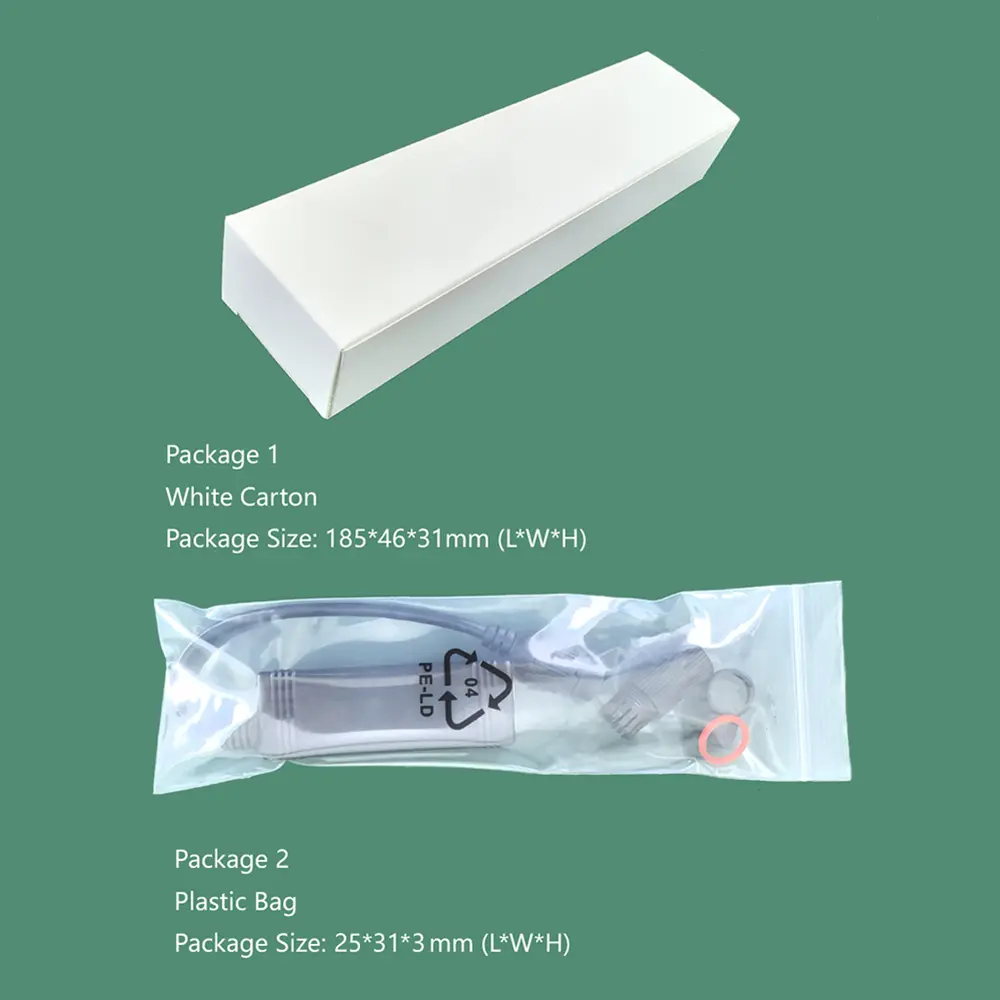

    pd2401h-2-5g-package

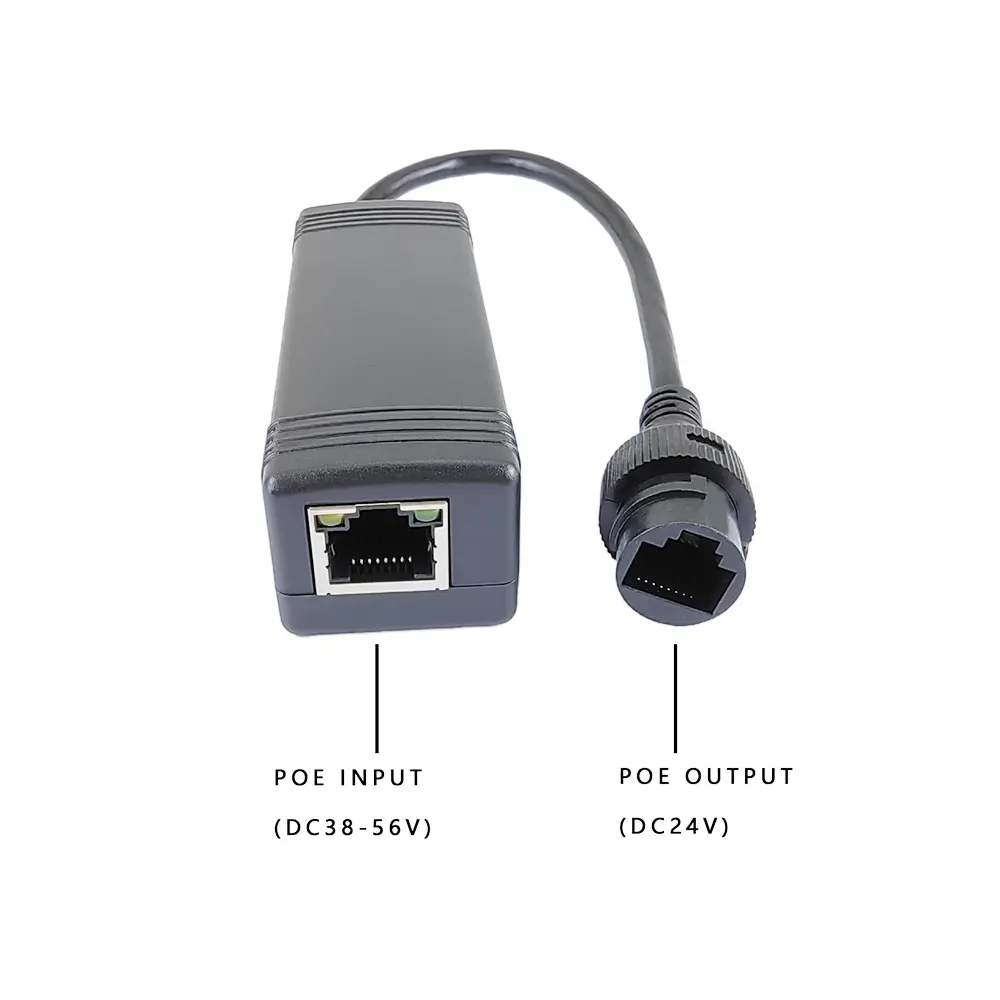

    pd2401h-2-5g-interface
