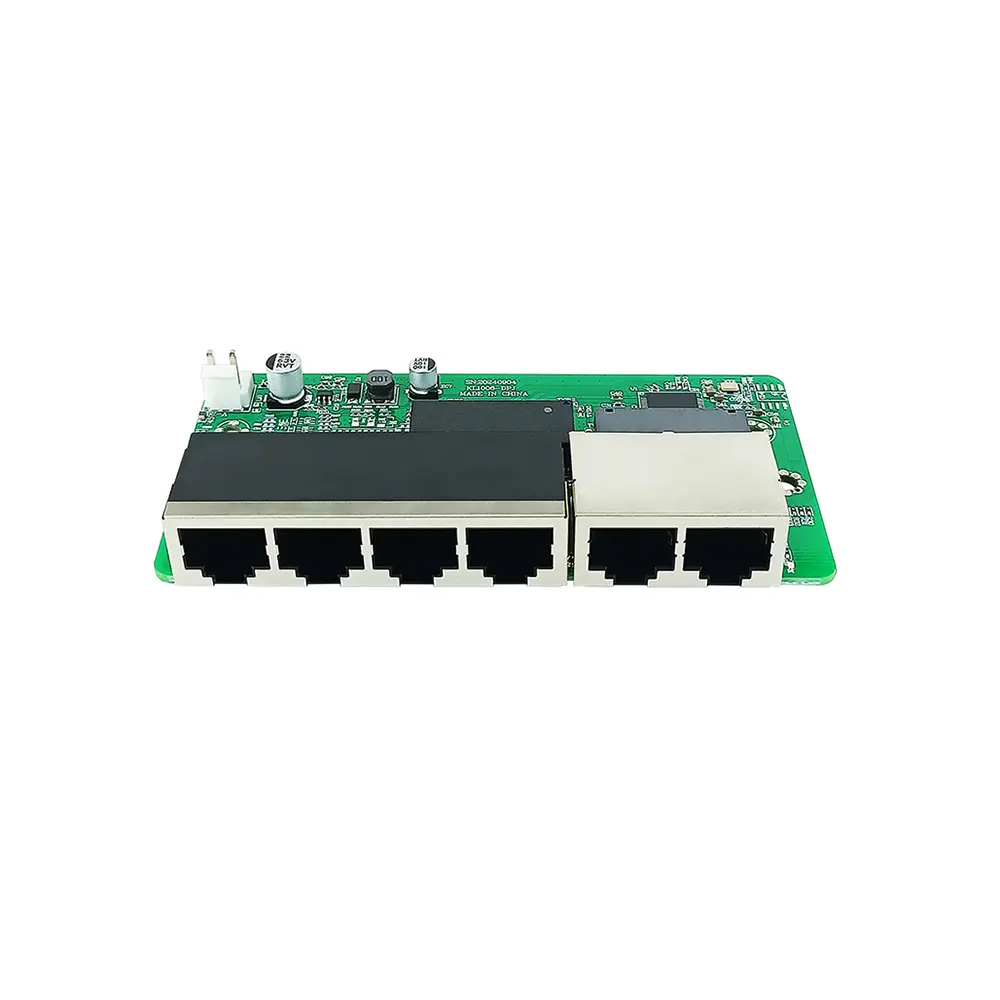

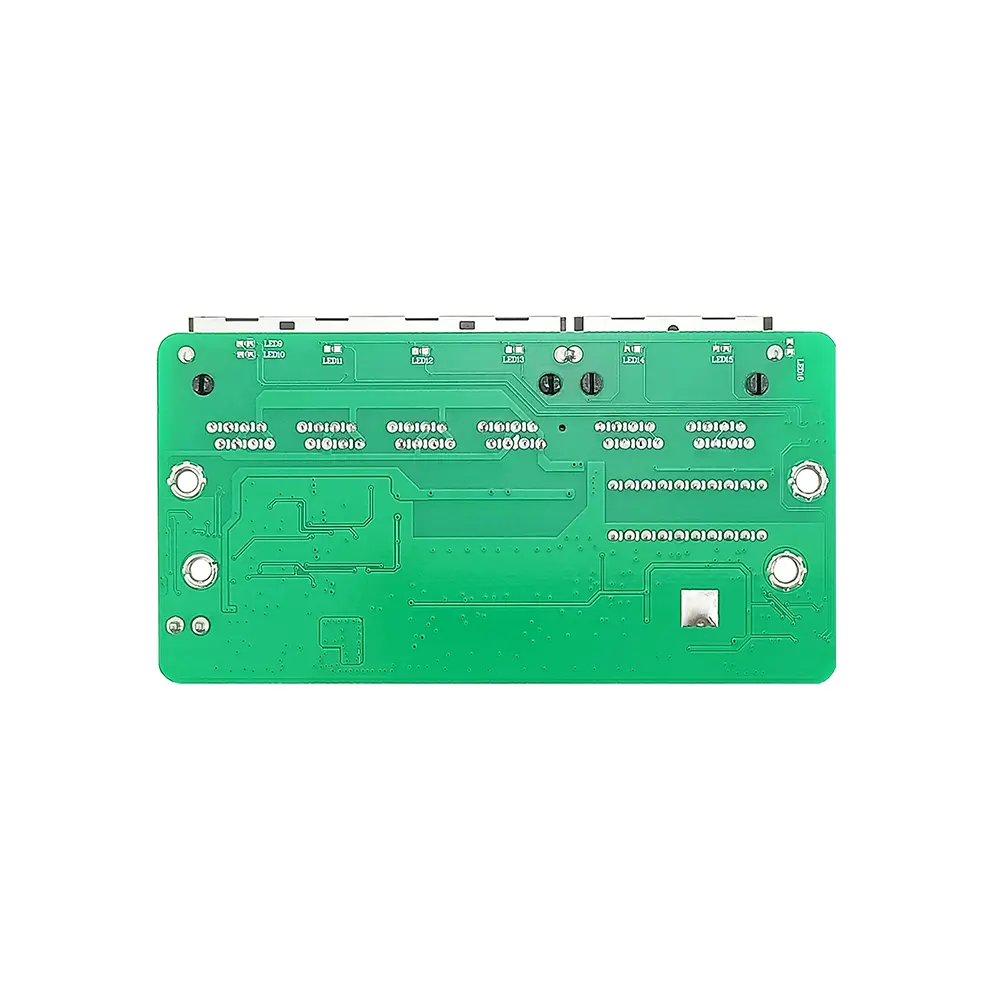

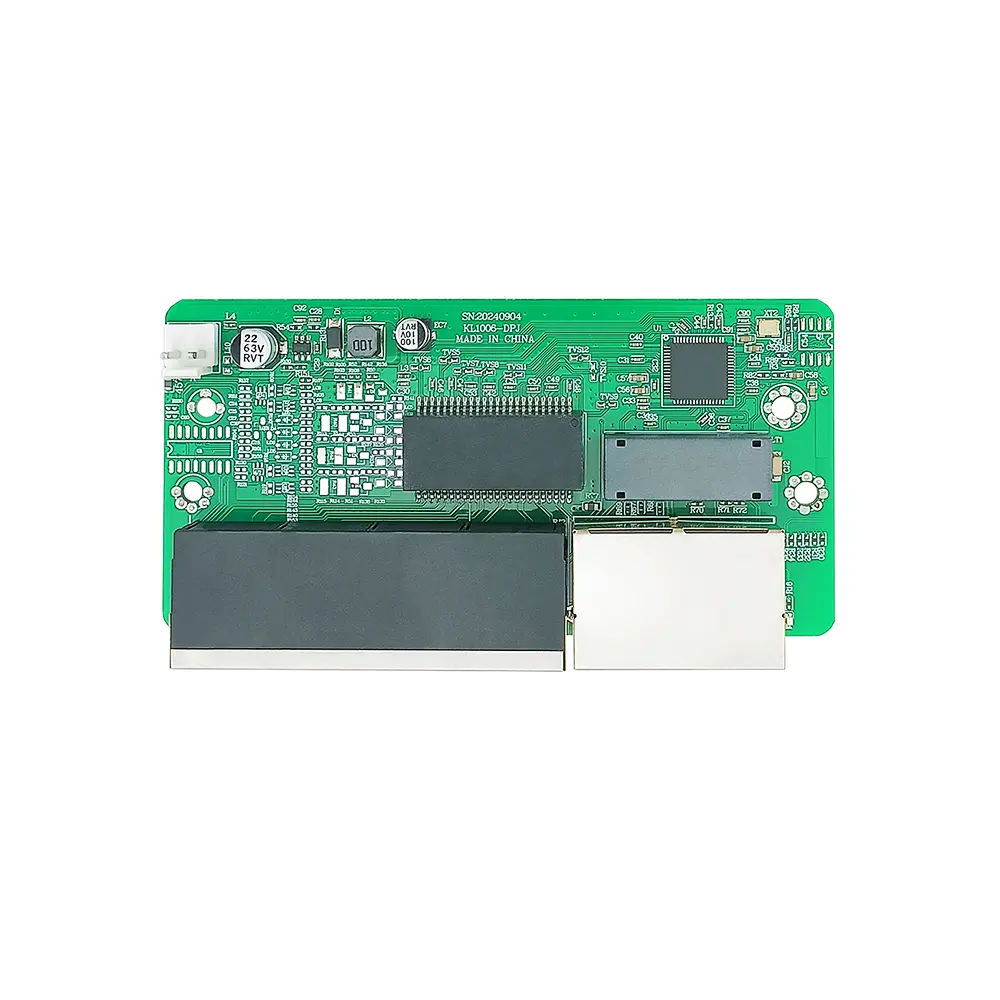

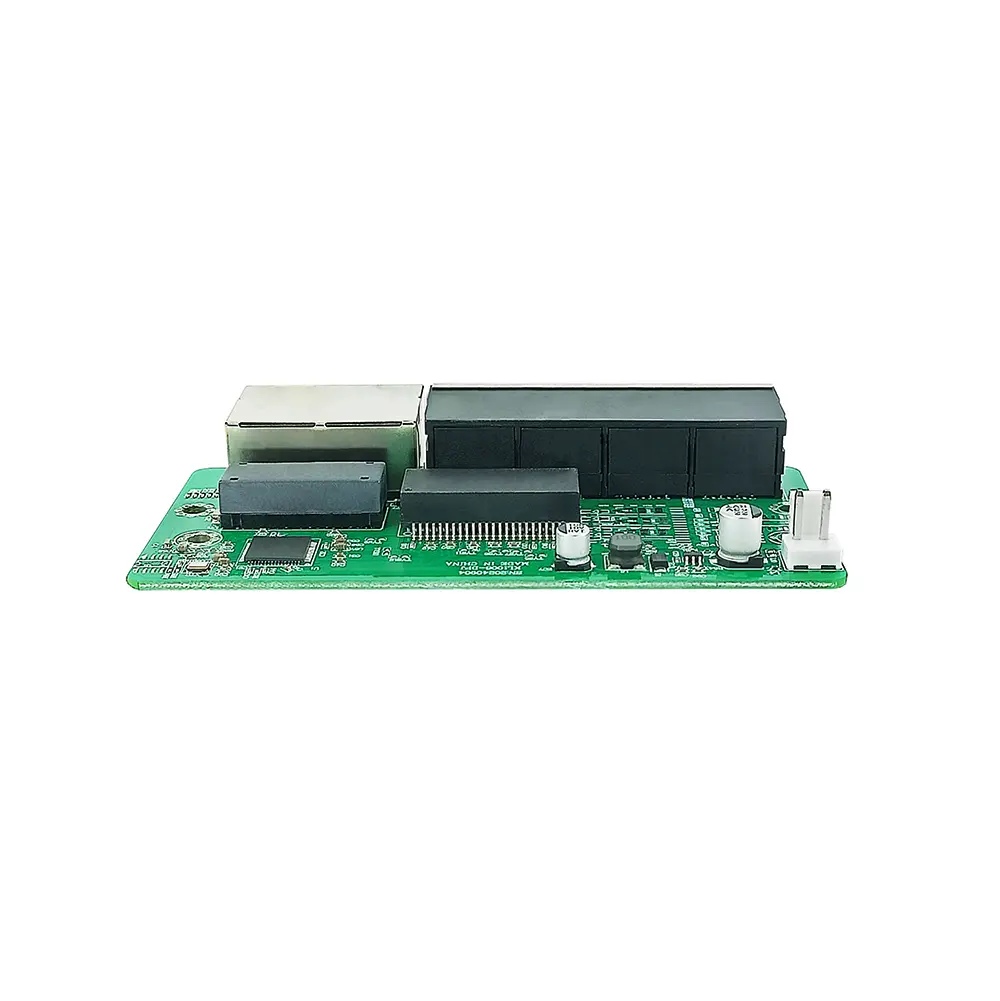

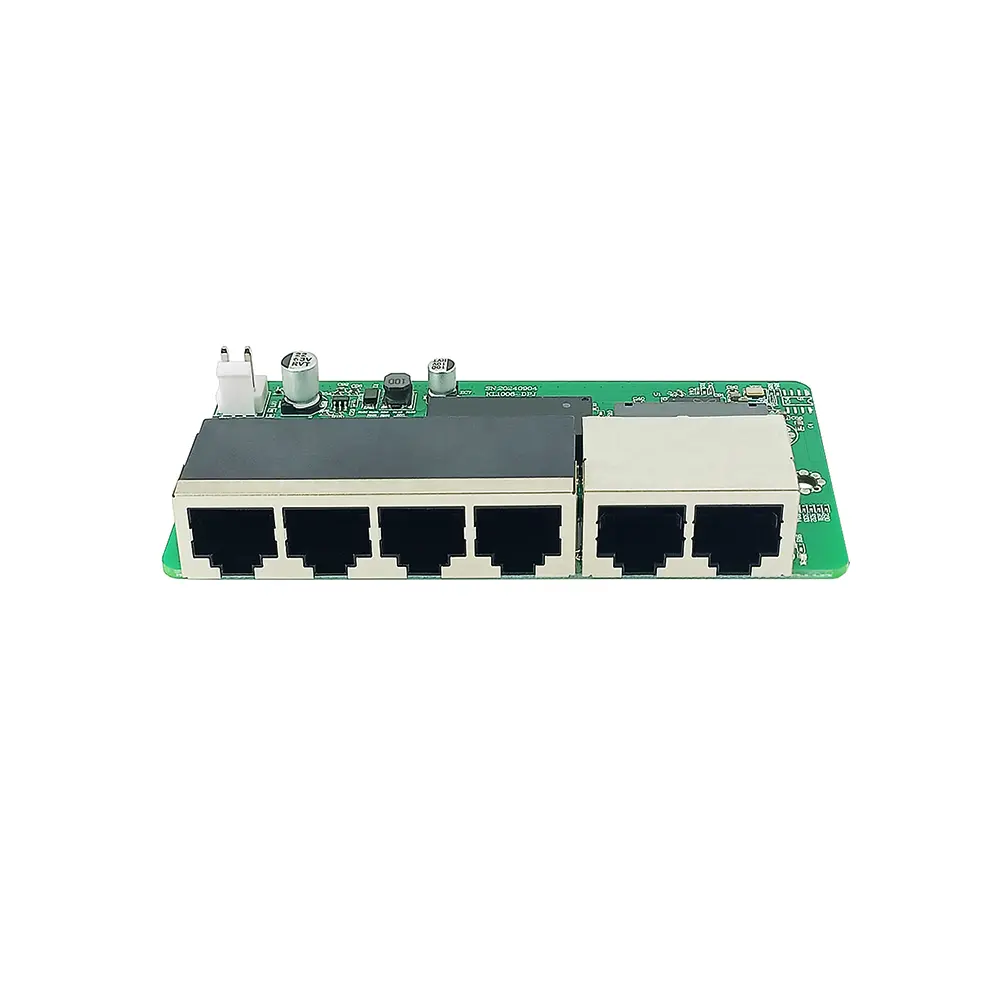

4-port Passive PoE Switch Board

Model: TSD-T1006

  • Input: wide voltage DC 6-60V
  • Output: passive PoE signal
  • Transmission rate: 10/100Mbps
  • Conversion efficiency is over 85%
  • Power supply pins: RJ45+ RJ78-
  • Interface: RJ45 port
  • Size: 105*56*16.5 mm (L*W*H)
  • Weight: N.W=52 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

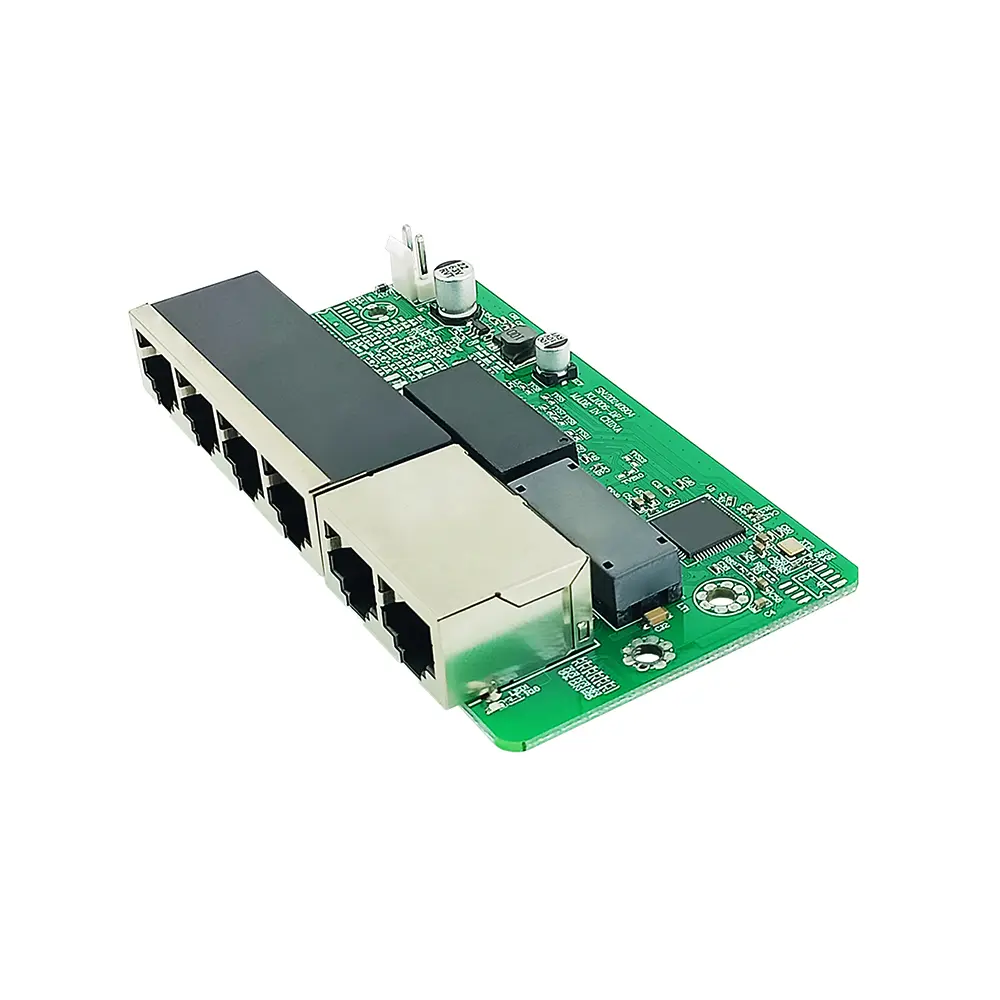

    TSD-T1006-5
    01

    TSD-T1006 is a passive PoE switch module. This module supports 10/100Mbps Ethernet transmission. The input voltage ranges from DC 6V to 60V. The module provides four passive PoE signal outputs. The maximum output power of a single port is 30W. The two uplink ports are used for network transmission.


    The TSD-T1006 switch module can be flexibly installed and deployed in various environments and is suitable for applications in security monitoring, IP telephony, smart buildings, and industrial Internet of Things scenarios.

    ​

    TSD-T1006-4
    01

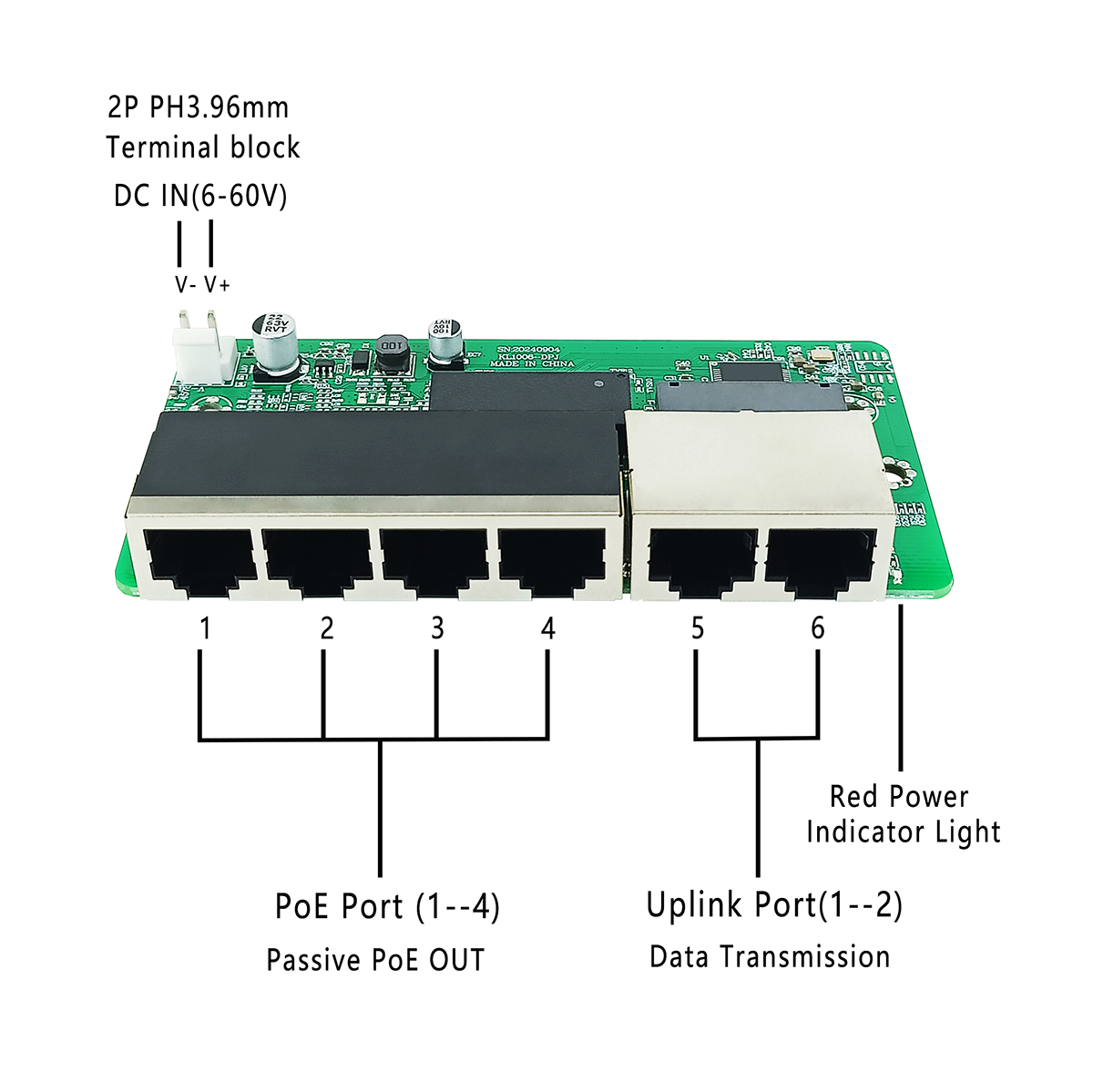

    Interface configuration of the TSD-T1006 switch module:

    2P PH3.96mm terminal blocks: DC 6-60V input;

    RJ45 ports 1 to 4: PoE ports, passive PoE signal output;

    RJ45 ports 5 to 6: Uplink ports, data transmission.


    The TSD-T1006 switch module is certified with CE, FCC, RoHS, etc. The product's EMC parameters meet the requirements of IEC 61000-4-2/3/4/5/6 standards. It has functions such as overheat protection, overvoltage protection, overcurrent protection, and short-circuit protection. The output voltage range of the TSD-T1006 module is wide, which can be flexibly applied in various scenarios, bringing great convenience to users in line expansion and equipment deployment.

    The TSD-T1006 switch module accepts a wide voltage DC 6-60V as input and outputs four passive PoE signals. The output voltage is the same as the input voltage. Power supply pins: RJ45+ RJ78-. Module transmission rate: 10/100M adaptive transmission. Backplane bandwidth: 1G. The maximum output power per port is 30W.



    ● Input:​​ wide voltage 6-60V
    ● Output:​​ passive PoE signal
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ45+ RJ78- compatible
    ● Transmission Rate:​​ 10/100Mbps Auto-Negotiation
    ● Protection Features:​​ overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● The maximum output power per port is 30W

    ● Backplane bandwidth: 1G

    ● Surface mount solid-state capacitors, high stability, durable

    ● 100Mbps high frequency POE filter to ensure stable data transmission

    ● Original electronic components from international brands, high precision and performance

    ● High-power, high conduction, low-resistance transistors, excellent reliability and temperature tolerance

    ● Eco-friendly, high-temperature resistant PCB material, environmentally friendly lead-free process

    ● Pure copper pin connectors, ensure stable contact
    ● Temperature-resistant, flame-retardant sockets, reduce safety hazards

    Product parameter table

    Product Name

    		 4-port passive PoE switch board

    Product Model

    TSD-T1006

    PoE Standard

    /

    Input Voltage

    Wide voltage DC 6-60V

    Output

    Passive PoE signal

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ45+ RJ78- compatible

    Conversion Mode

    /

    Data Rate

    10/100Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    power indicator light*1

    Interface

    2P PH3.96mm terminal: DC 6-60V IN

    RJ45 Jack 1 to 4: PoE ports, passive PoE OUT

    RJ45 Jack 5 to 6: Uplink ports, data transmission

    Function

    /

    Material

    FR-4

    Color

    Glossy green

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 52 g G.W: 57 g

    Dimension

    Product Dimension: 105*56*16.5mm

    Package

    Anti-static bag (220*150*2.5 mm (L*W*H))

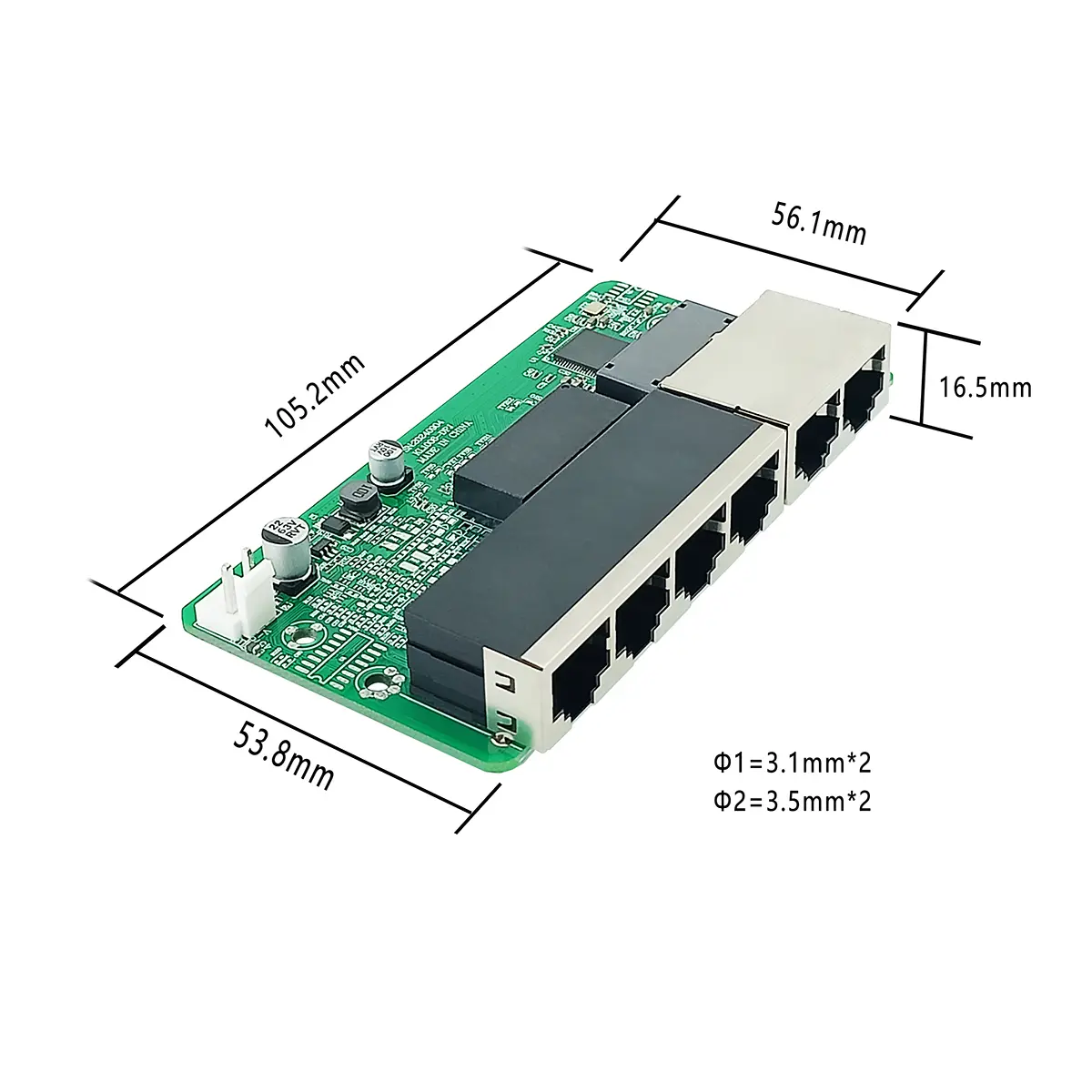

    Size and structure: 105*56*16.5 mm (L*W*H), screw hole diameter: Φ1 = 3.1mm * 2, Φ2 = 3.5mm * 2, screw hole center distance: L1 = 96mm, L2 = 90mm, PCB thickness: 1.6mm. Overall layout: square structure, single-sided design, maximum thickness: 16.5mm. The module surface is coated with glossy green solder mask paint. The RJ45 network port is concentrated on one side, facilitating user connection and use.


    TSD-T1006-Dimension

    The TSD-T1006 switch module is designed to meet users' flexible power supply requirements. The module supports 100Mbps data transmission and has an output voltage equal to the input voltage. The DC 6-60V wide voltage range can adapt to various power supply environments and can supply power directly without handshake detection. The product is compatible with passive PD devices such as 12V/24V/48V. It can be applied in special scenarios such as security monitoring, industrial Internet of Things, and renovation of old residential areas. The TSD-T1006 can provide users with more flexible power supply solutions for deploying equipment.

    Before use, users should be aware that the input voltage of the PD device must be strictly matched with the output voltage of the TSD-T1006 to avoid damage to the equipment due to overvoltage or the equipment being unable to operate normally due to undervoltage.

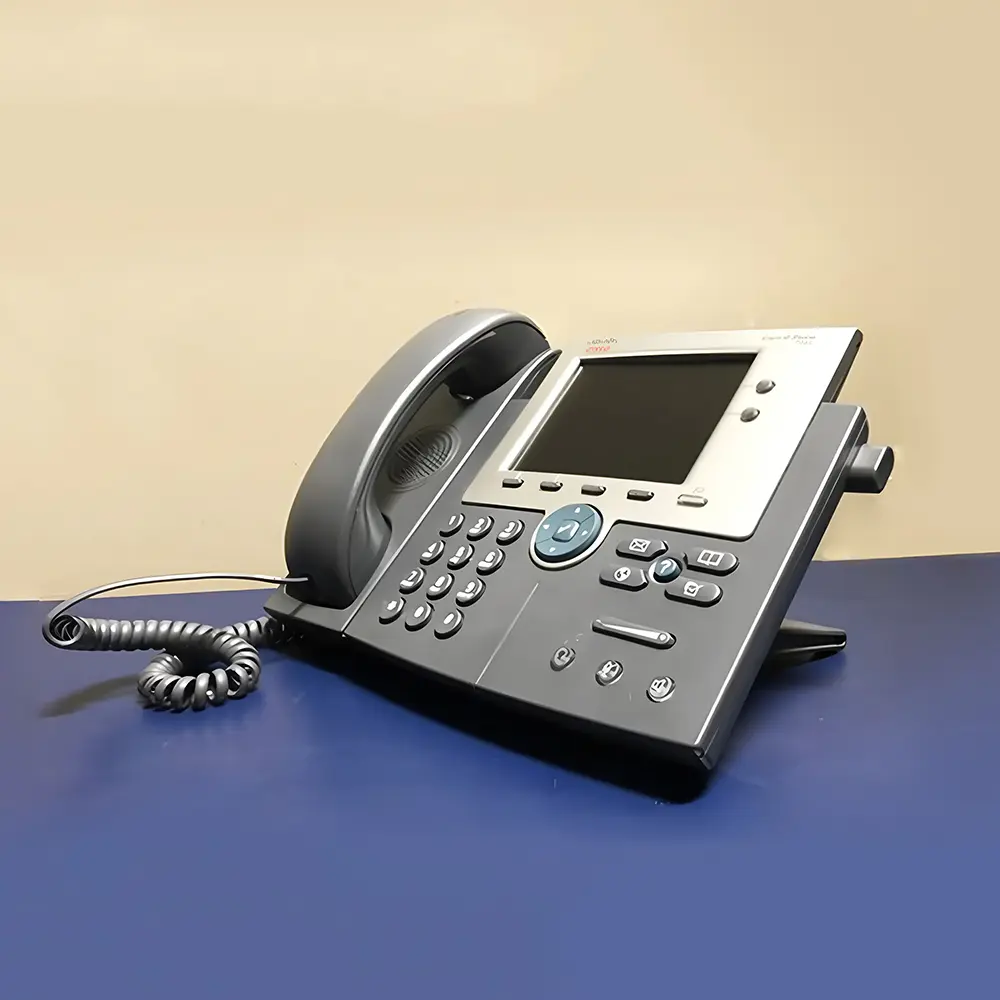

    TSD-T1006-Application1
    TSD-T1006-Application2
    TSD-T1006-Application3

    Package list
    Items Quantity
    TSD-T1006 PoE switch board 1 PCS
    Operation Manual /

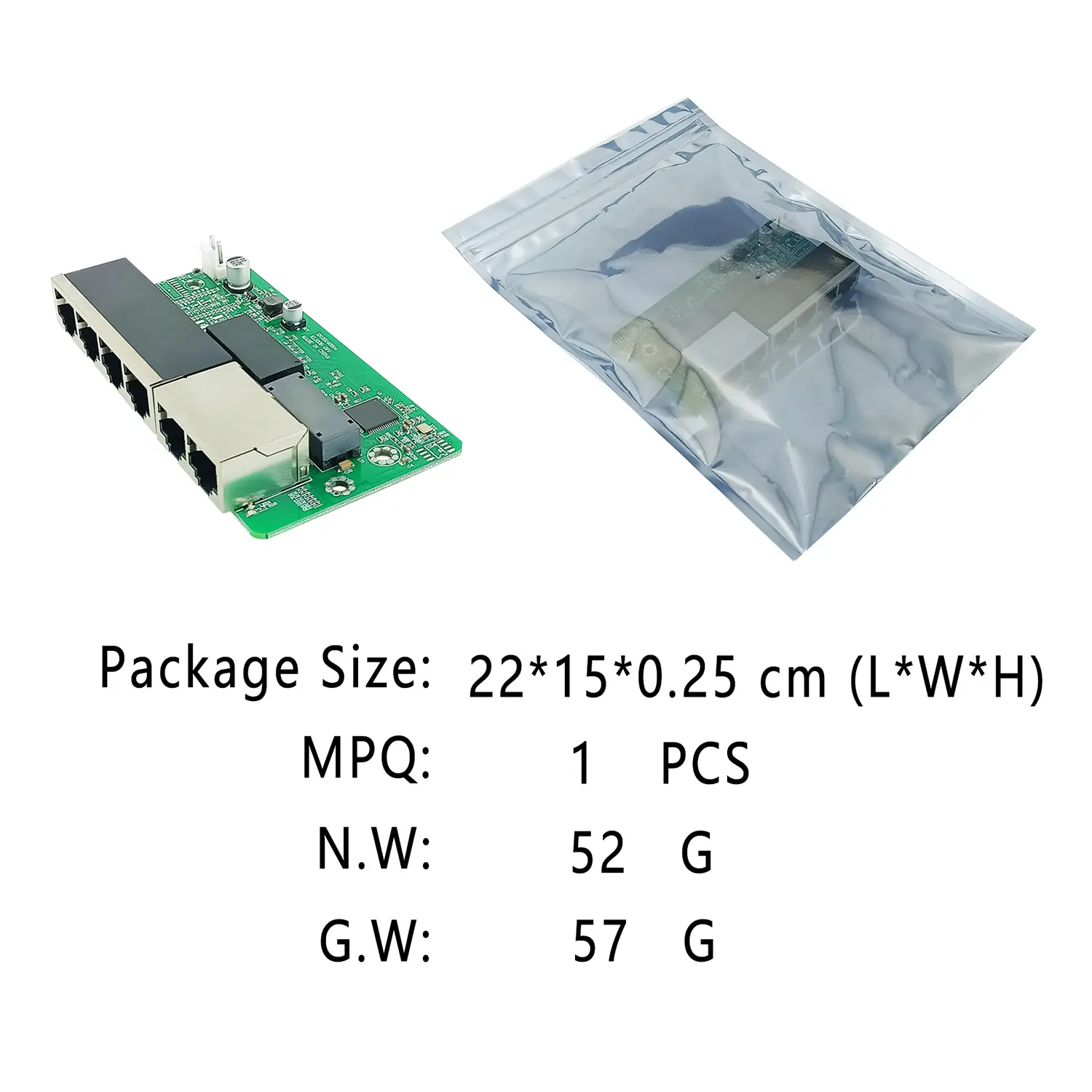

    TSD-T1006-Package
    TSD-T1006-Interface
