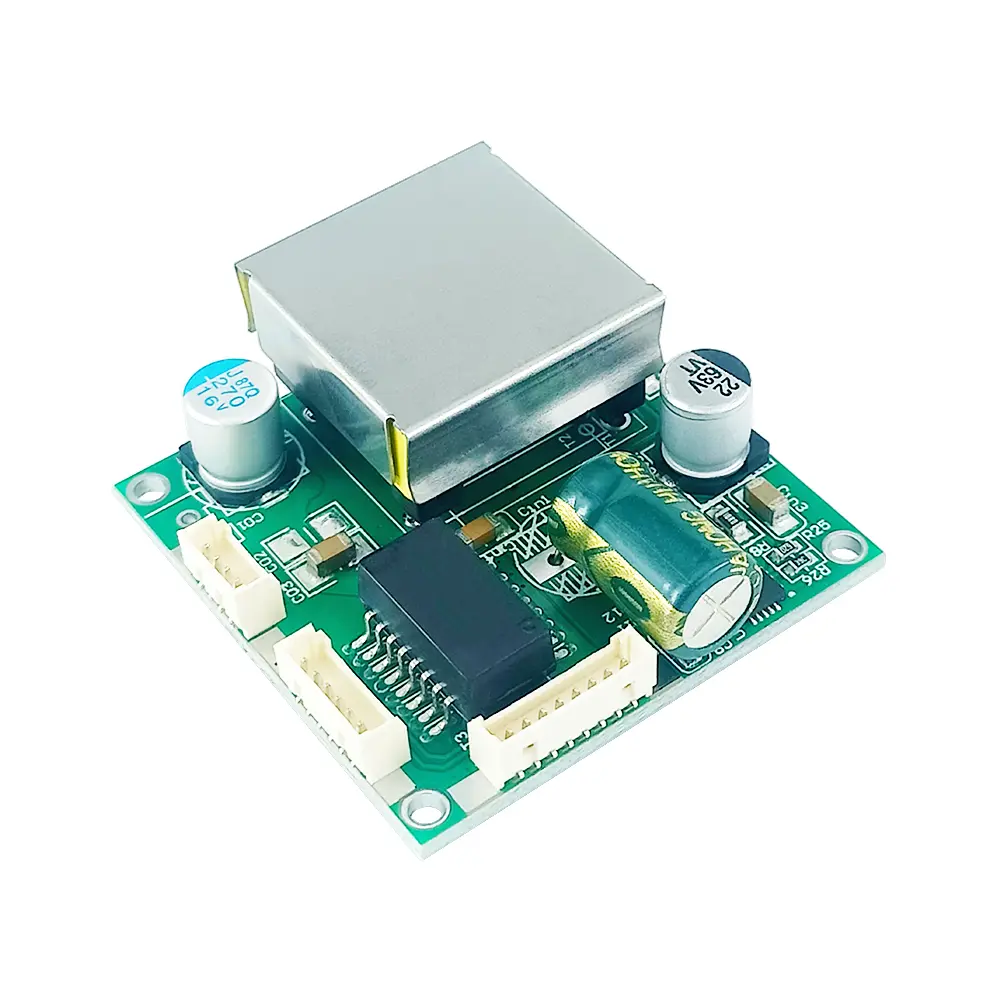

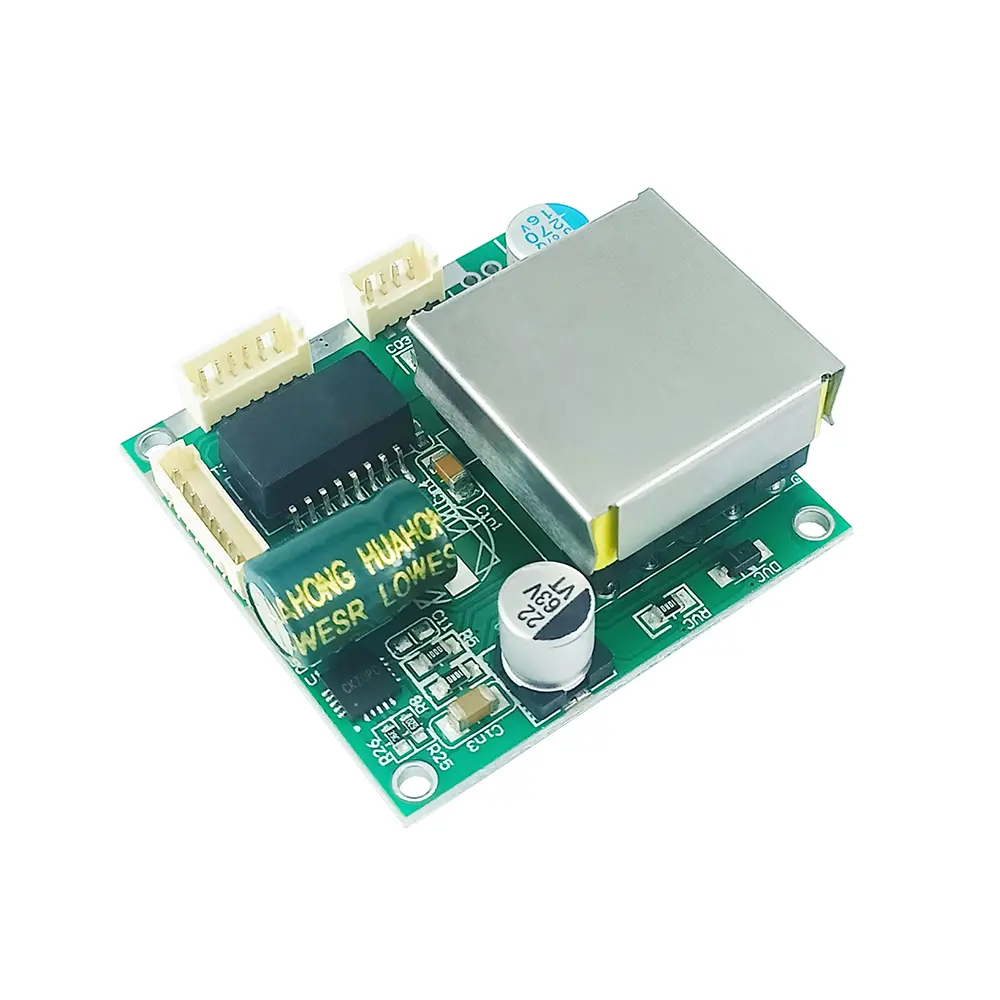

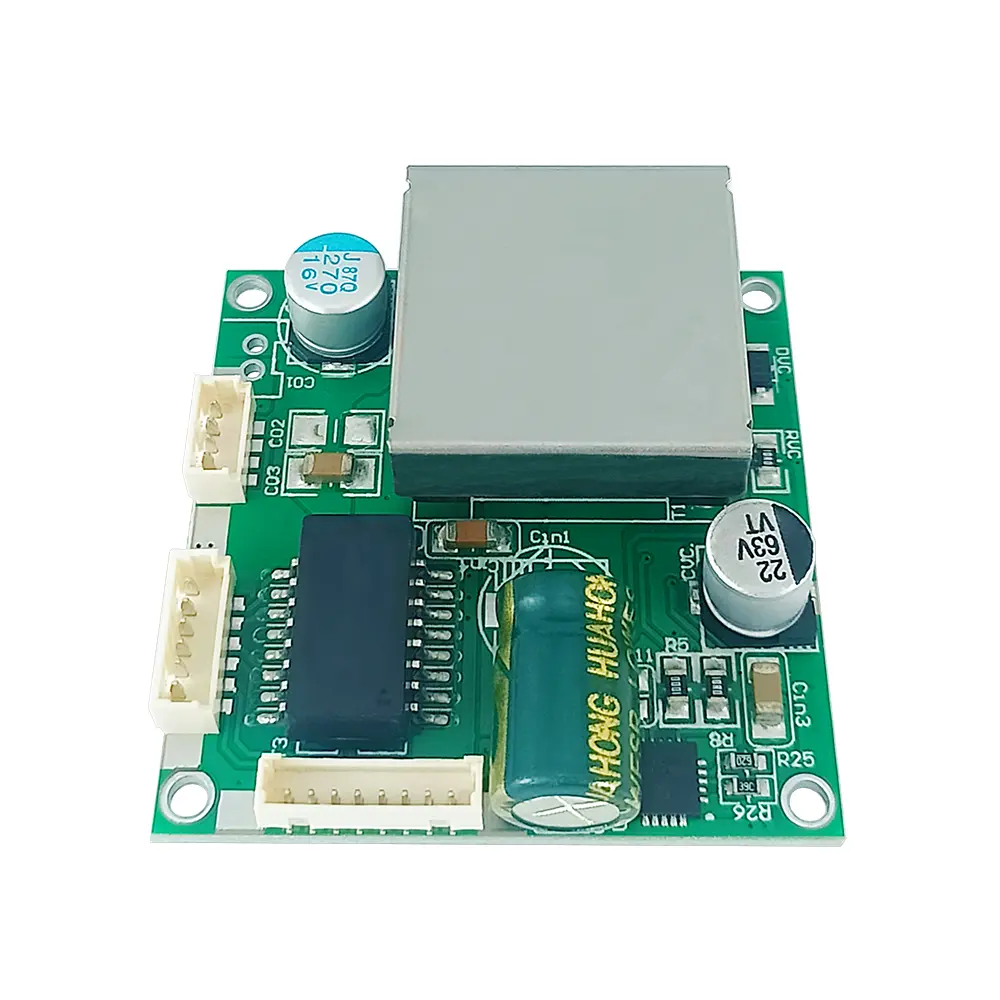

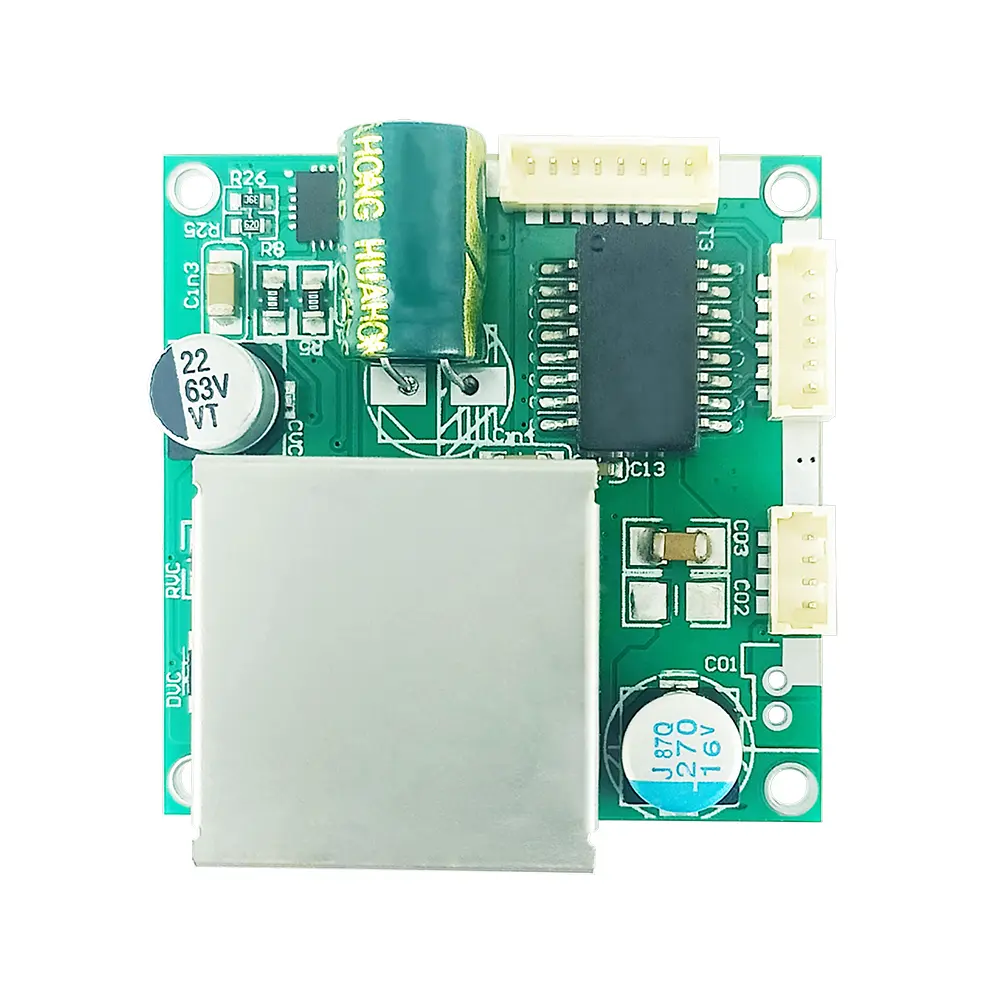

The maximum output power of TSD-PD3826 is 30W and the transmission rate is 10/100Mbps adaptive. The module uses an isolation transformer with a shield to increase the anti-electromagnetic interference ability of the circuit. The circuit has the protection function of lightning, short circuit, overload and high temperature. Support wide voltage input DC 38-56V, default output voltage DC 12V, other voltage can be customized.
● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements

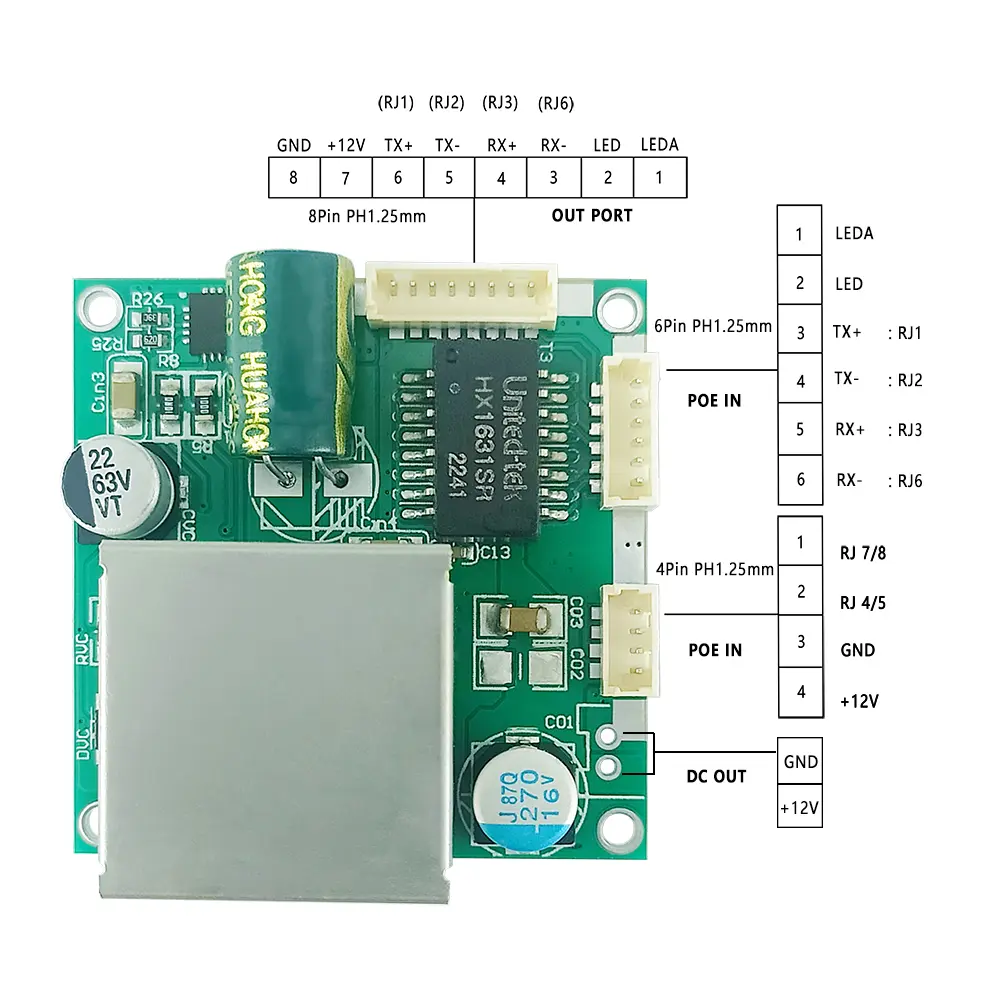

● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● Vertical interface, space saving, easy installation
● High power high conduction low impedance transistor, high reliability, high temperature tolerance
● 100Mbps high power network filter, can carry high power equipment
● High frequency low resistance electrolytic capacitor, reduce circuit high frequency loss and heat
● Patch solid capacitor, high stability, long service life
● International brand original electronic components, excellent precision and high performance
● Pure copper pin connector to ensure safety performance
● High temperature resistant PCB environmental protection material, lead-free environmental protection process
● High temperature resistant flame retardant interface socket, reduce security risks
● EE19 frame with shield cover isolation transformer, effectively reduce electromagnetic interference
● Equipped with 80mm connecting line for easy customer connection
