30W Gigabit PoE Module

Model: TSD-V206B

Input: PoE DC power supply (38V–56V)
Output: DC 12V MAX2.5A 30W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH1.25 sockets*3
Size: 38*32*12 mm (L*W*H)
Weight: N.W=12 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

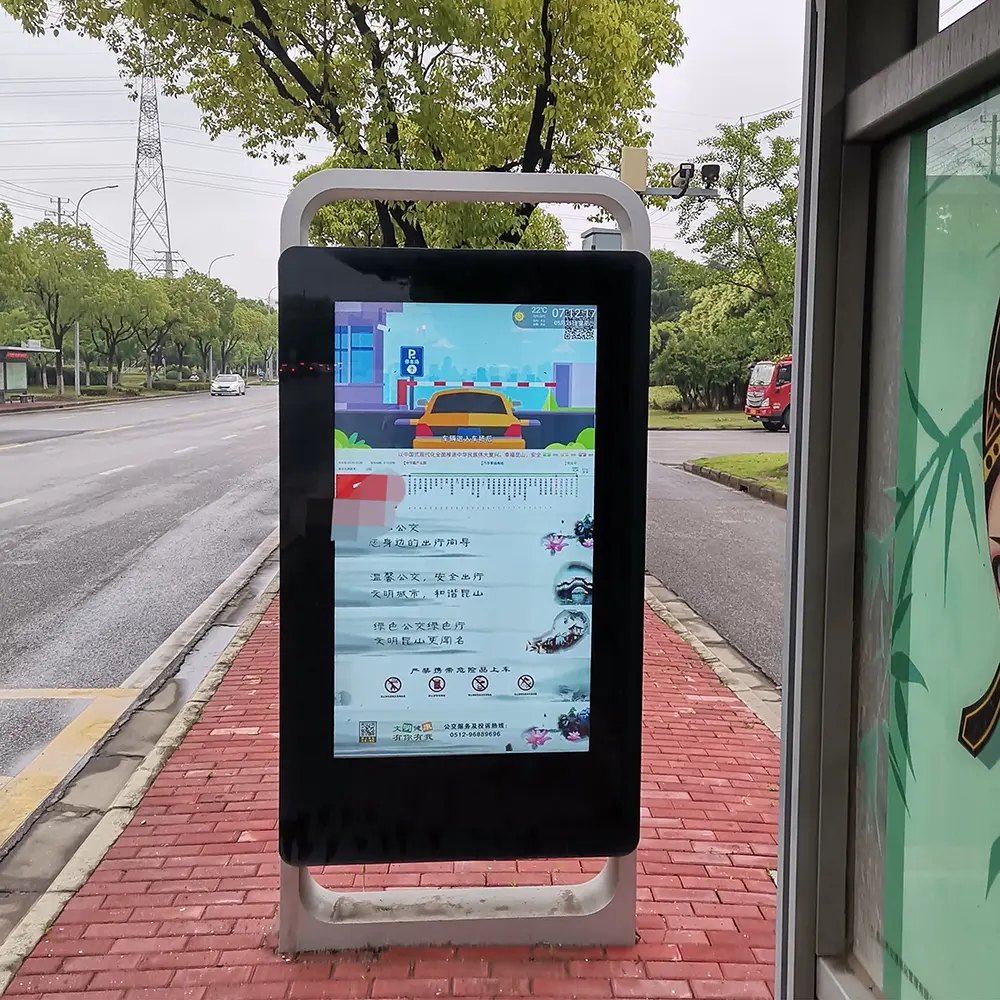

The TSD-V206B is primarily used in scenarios requiring PoE power supply solutions, such as integrated advertising machines, electronic class signs, smart access control systems, and commercial display terminals. The module can provide stable DC power supply and data transmission for terminal devices.

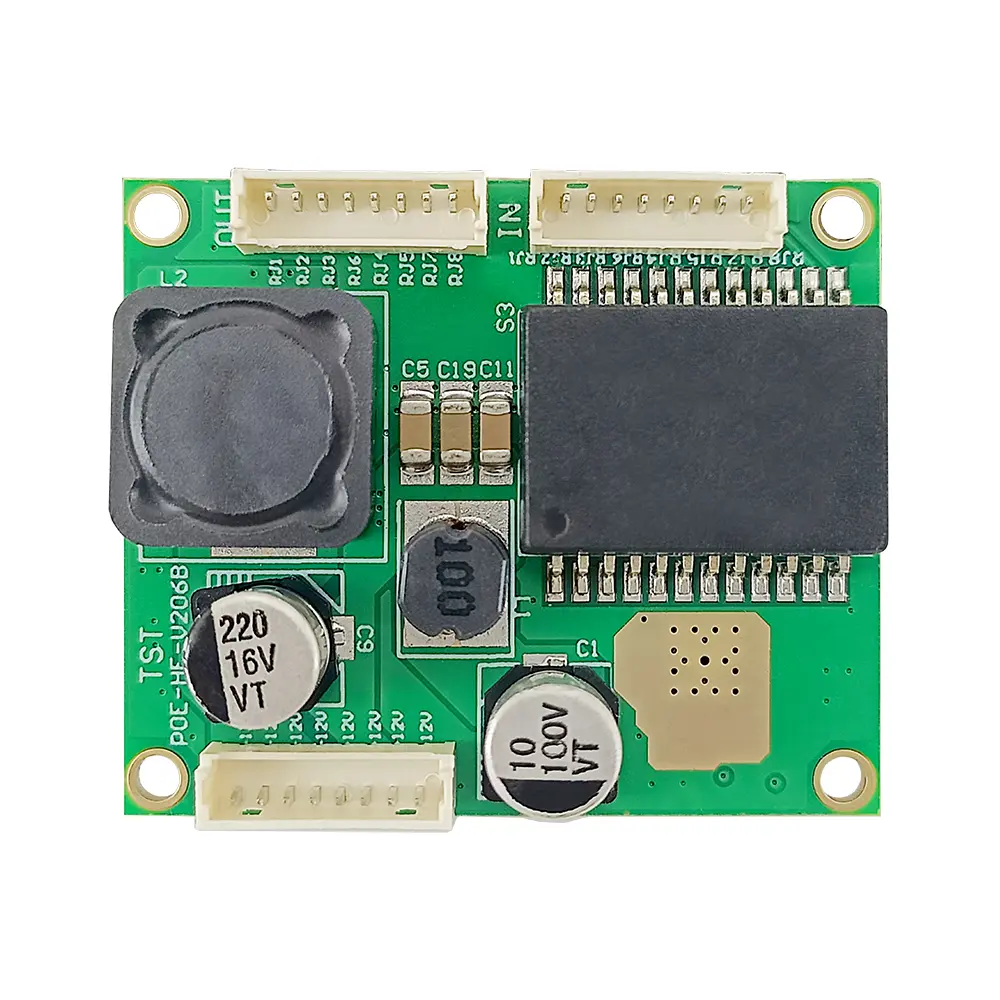

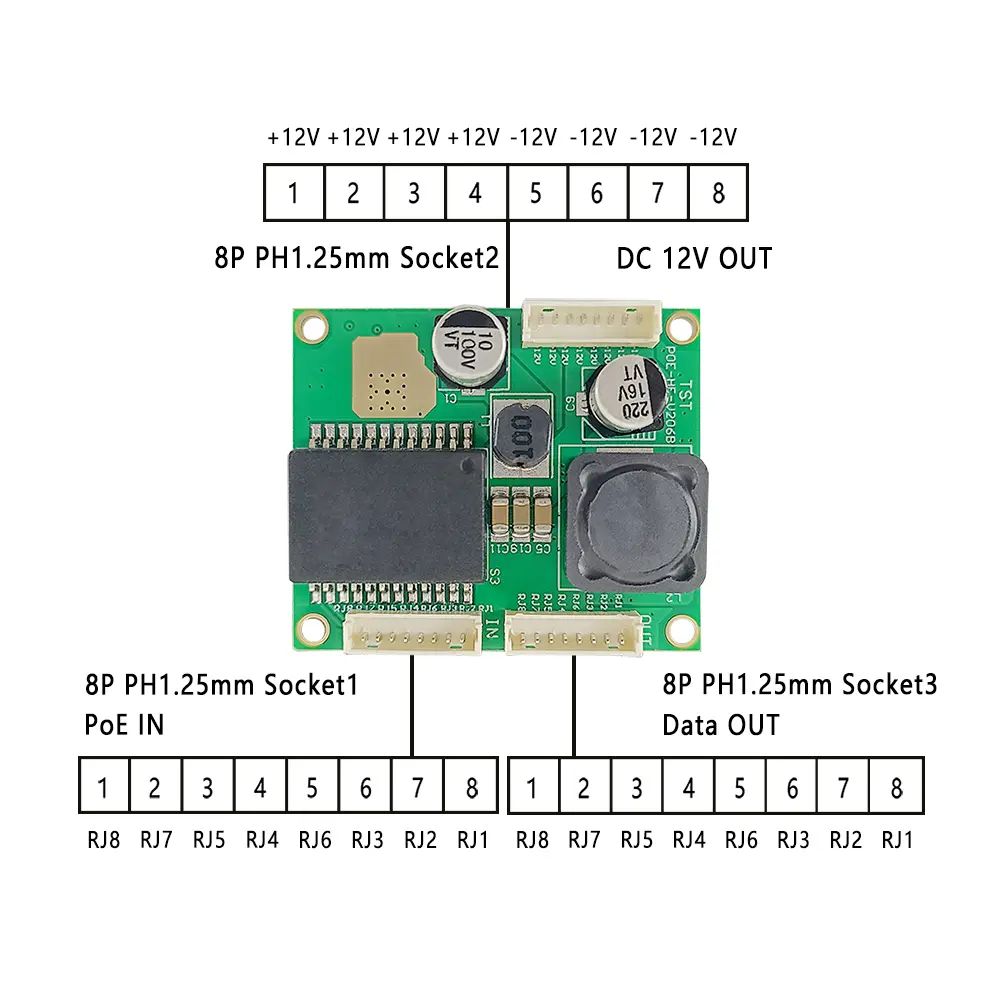

The TSD-V206B module's interface settings are as follows:

8P PH1.25mm vertical socket 1: Input PoE DC 38-56V signal;

8P PH1.25mm vertical socket 2: Output 12V DC signal;

8P PH1.25mm vertical socket 3: Output data signal.

The TSD-V206B is a PoE module that complies with the IEEE 802.3af/at PoE international standard protocol. The module takes a PoE signal from the power supply and outputs 12V 2.5A DC power and network data signals, with a maximum output power of 30W.

The TSD-V206B module's EMC parameters comply with IEC 61000-4-2/3/4/5/6 standards. The product has obtained CE, FCC, and RoHS certifications, ensuring reliable performance and versatility in various application scenarios. It is sold in numerous countries and regions worldwide.

The TSD-V206B supports wide voltage input DC38-56V, default output voltage DC 12V, maximum output power 30W, and features lightning protection, short circuit protection, overload protection, and high temperature protection. The module features a gigabit network filter and boasts an adaptive transmission rate of 10/100/1000 Mbps.

● Input: Wide-range PoE DC power supply (38V–56V)

● Output: DC 12V Max 2.5 A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance
● Transmission rate: 10/100/1000 Mbps

● Conversion efficiency≧90%

● High-temperature-resistant, flame-retardant horizontal connectors, ultra-slim compact design

● Gigabit high-power network filter, capable of carrying high-power devices

● Beige High-Temperature-Resistant Flame-Retardant Material, Horizontal Ultra-Thin SMD Socket

● High-precision branded electronic components

● Pure Copper Thickened Core Transformer

● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation

● High - temperature - resistant PCB made of environmentally friendly materials

Product parameter table
Product Name	30W Gigabit PoE Module
Product Model	TSD-V206B
PoE Standard	IEEE802.3af/at
Input Voltage	DC 38-56V
Output	DC 12V MAX2.5A
Conversion Efficiency	≧90%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Non-isolated type
Data Rate	10/100/1000 Mbps
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (8-Pin PH1.25mm Socket1): DC 38-56V IN Output Port (8-Pin PH1.25mm Socket2): DC 12V OUT Output Port (8-Pin PH1.25mm Socke3t): Data OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 12 g
Dimension	383212 mm (LWH)
Package	Anti-static pearl cotton

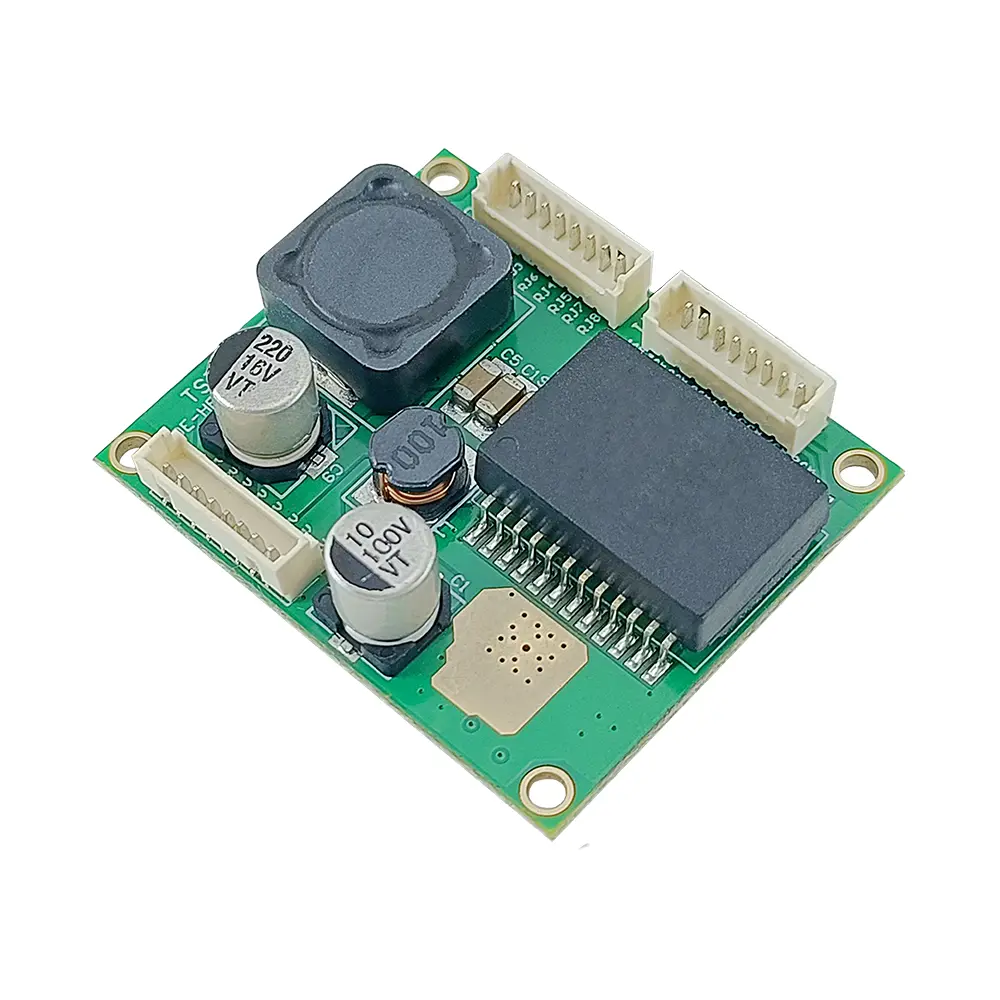

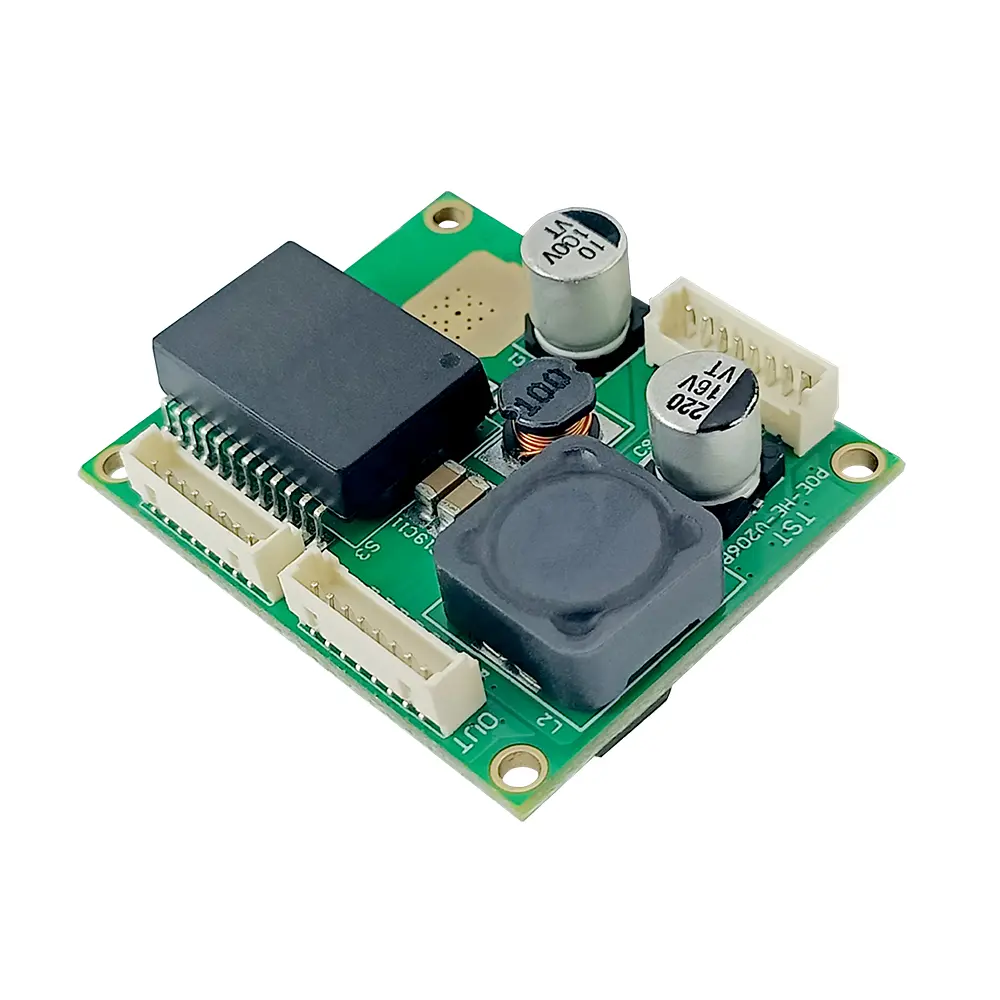

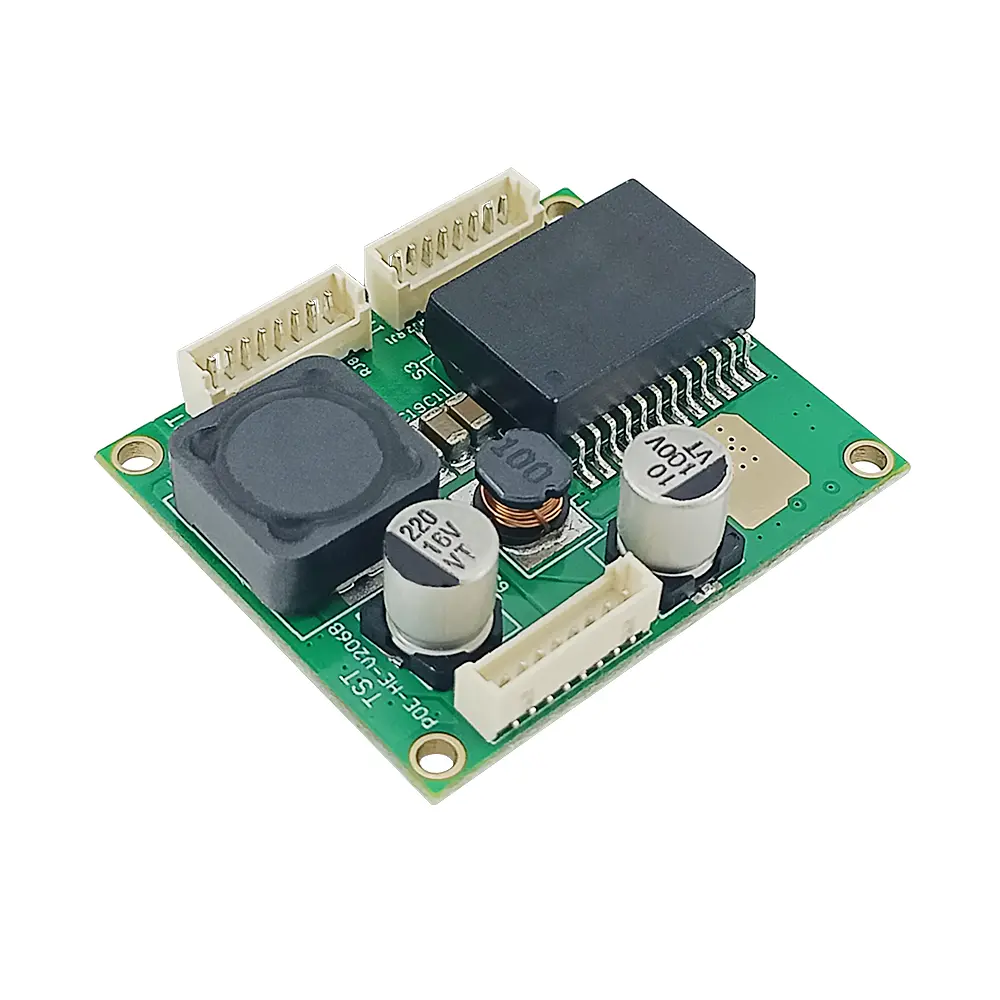

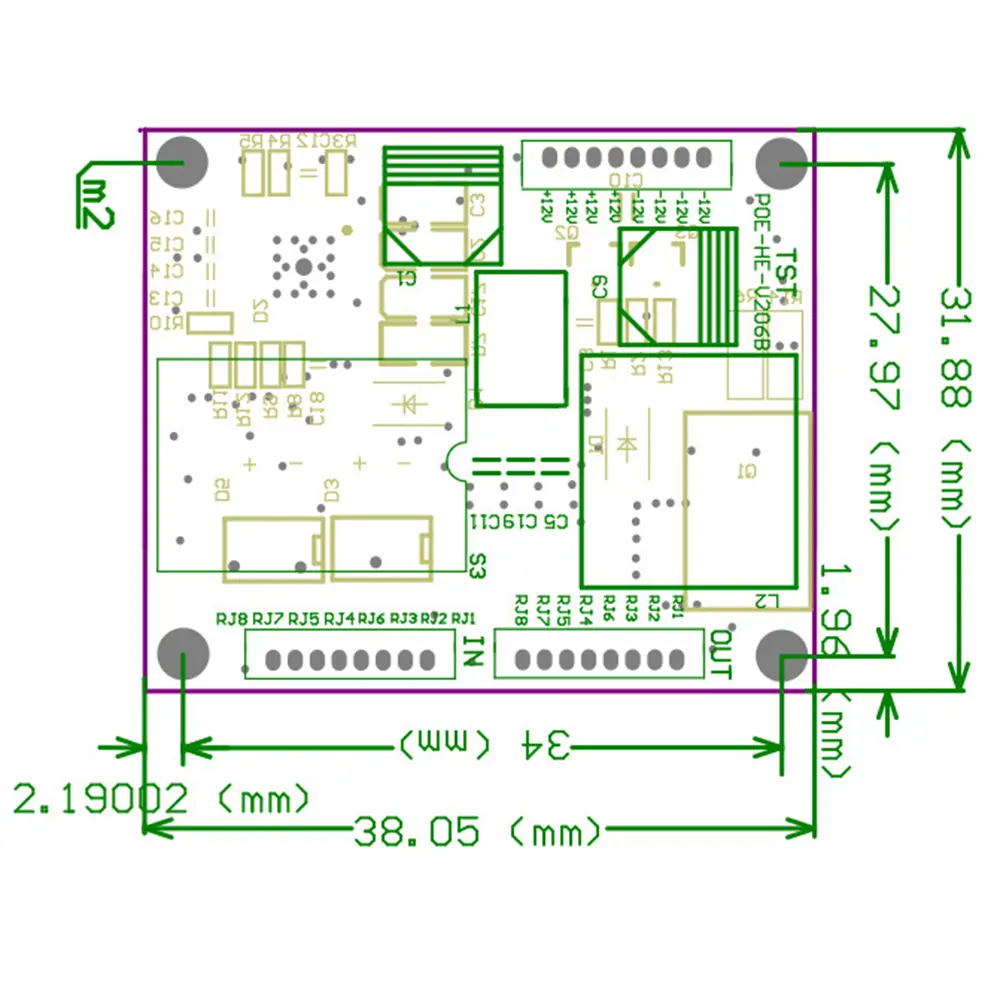

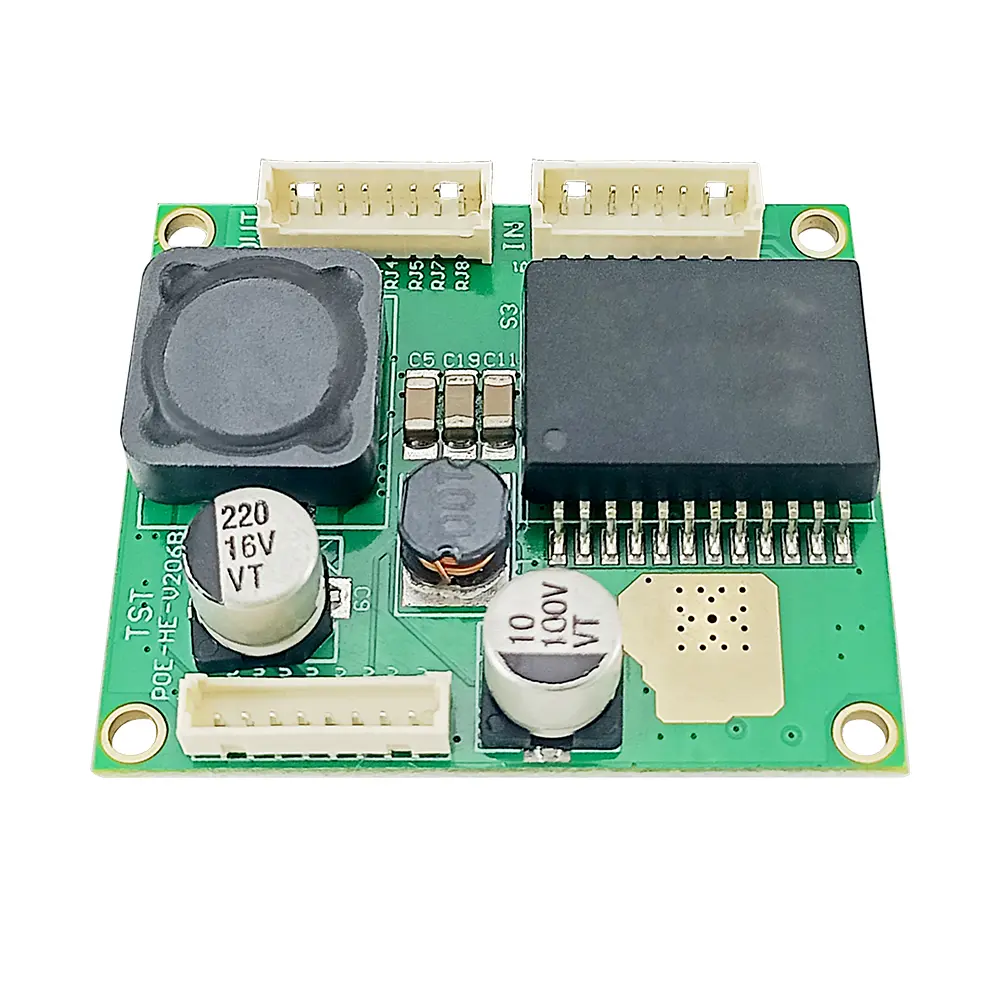

Dimensions: 38*32*12mm, screw hole diameter: Φ=2.1mm*4, hole center distance: 34*28mm. PCB thickness: 1.6mm. Maximum thickness: 12mm. Solder resist: Glossy green. Module design: Square structure, double-sided design, effectively improving signal integrity. Larger components are concentrated on one side, increasing circuit integration and facilitating user installation.

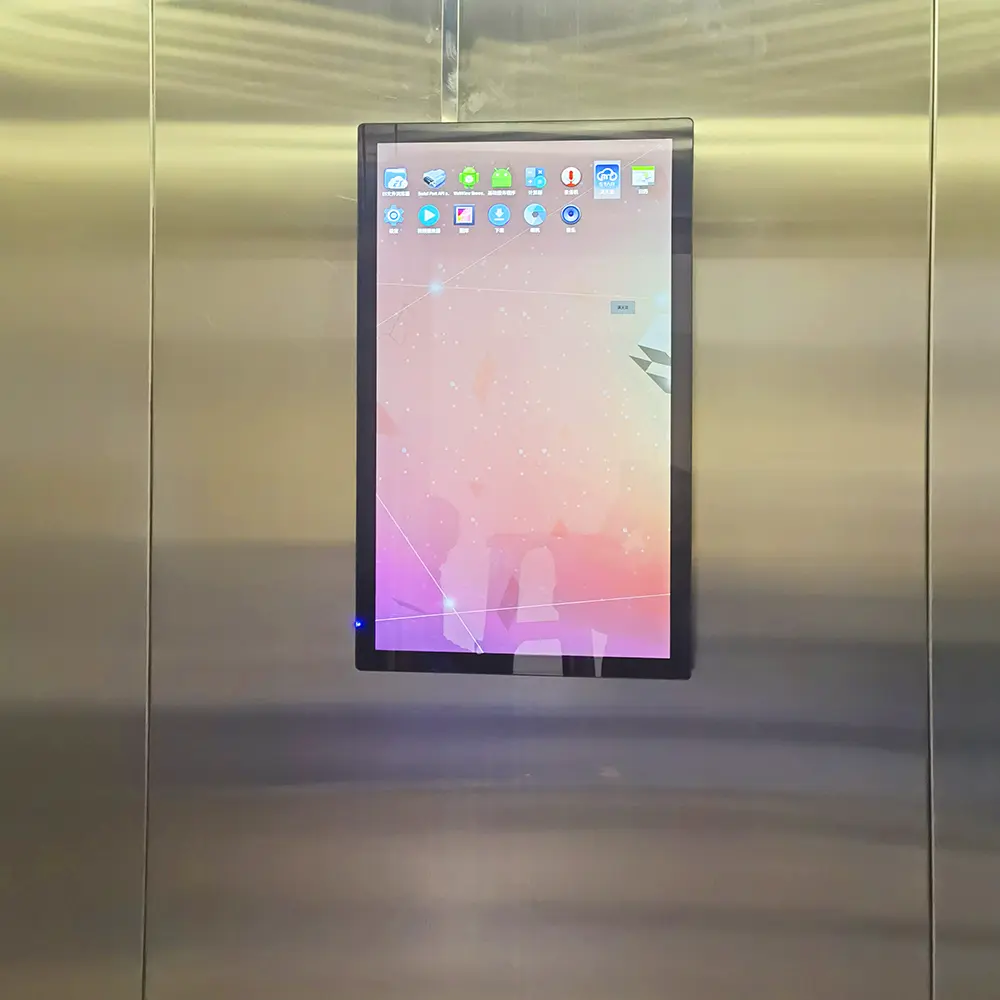

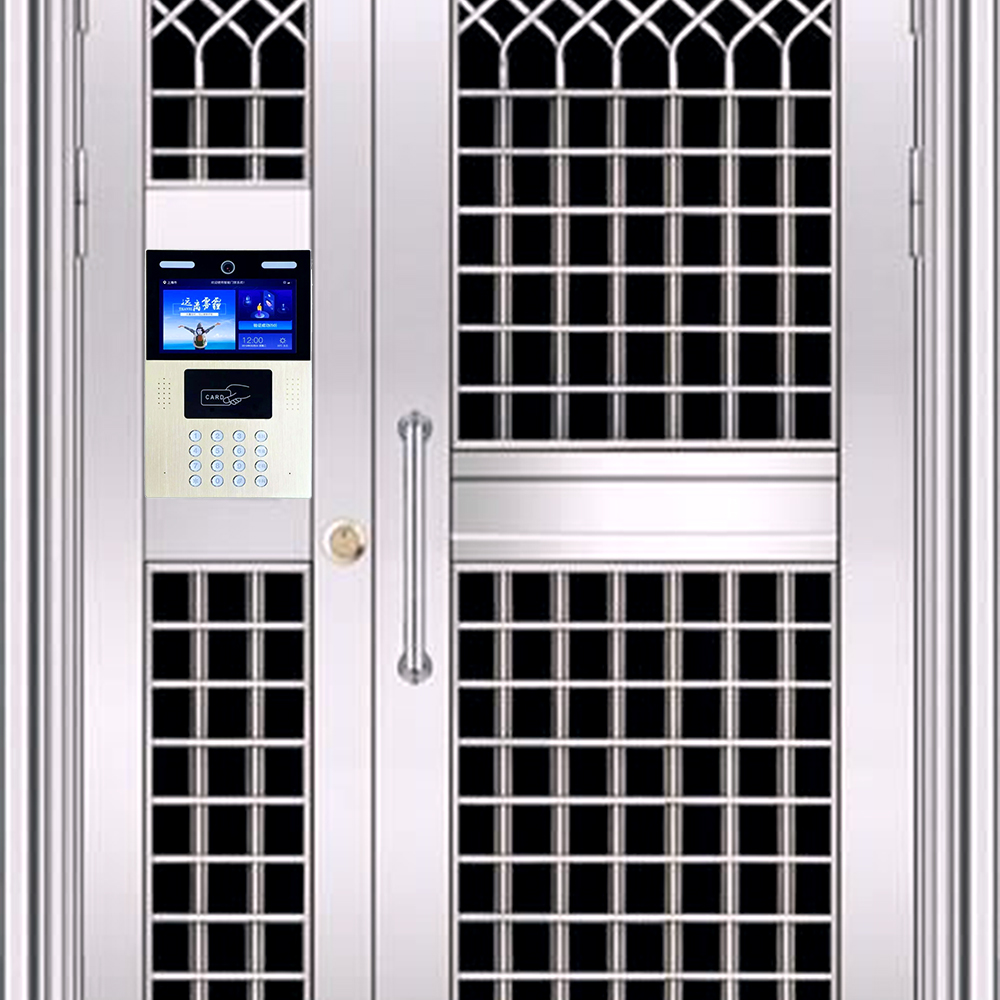

The TSD-V206B module can be flexibly installed in various types of terminal devices, reducing the complexity of equipment installation and deployment costs. The module operates stably and has excellent performance, and can be used to support the operation of display screens, advertising machines, all-in-one computers, and intelligent access control systems, providing users with a more reliable and convenient power supply solution.

Package list
Items	Quantity
V206B PoE module	560 PCS
Operation Manual	/
