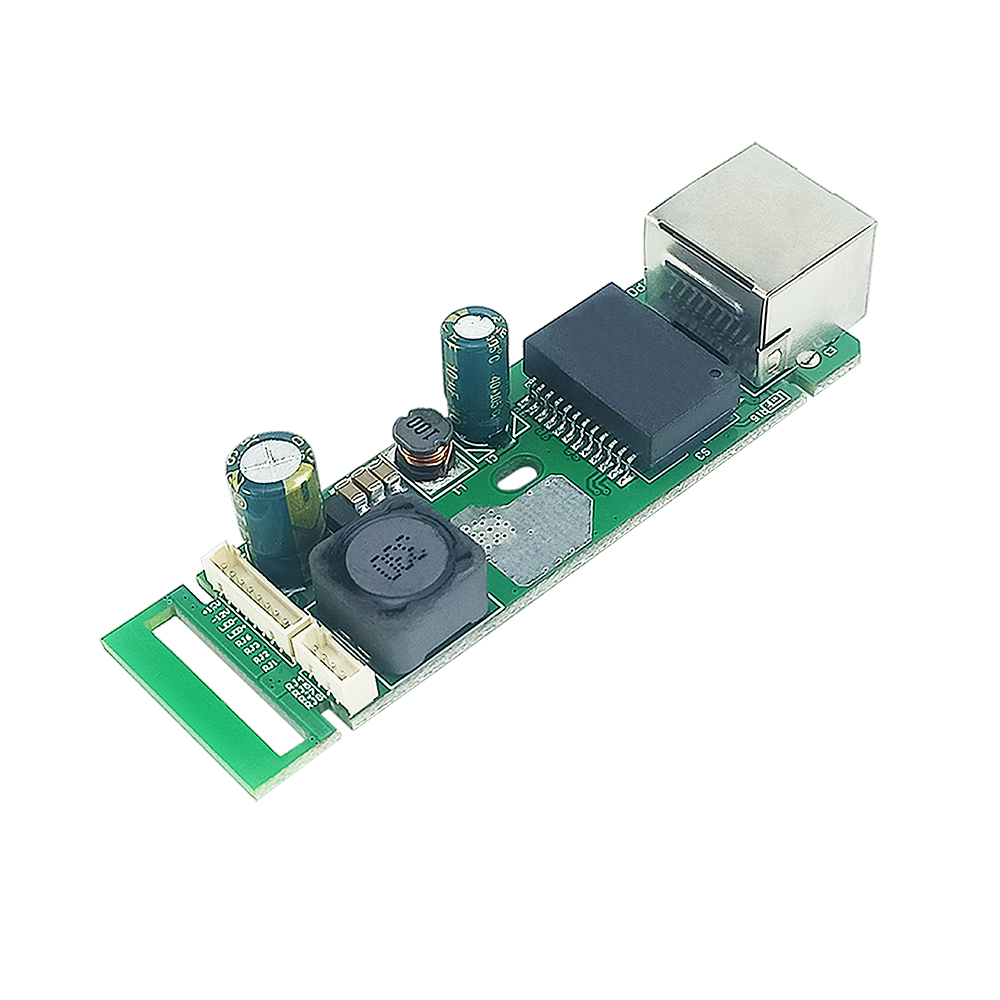

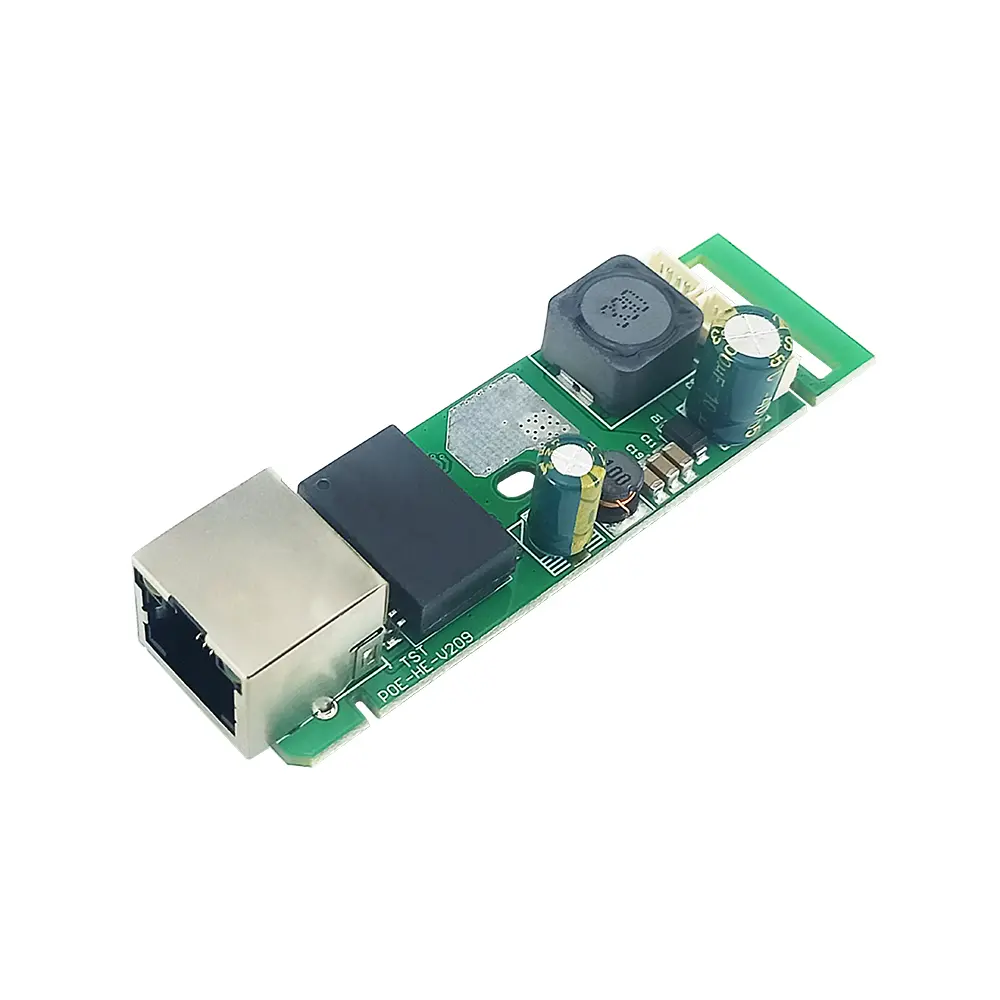

30W Gigabit Non-isolated PoE Module

Model: TSD-V209

Input: PoE DC power supply (38V–56V)
Output: DC 12V MAX2.5A 30W, data
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/terminal block
Size: 80*23*17 mm (L*W*H)
Weight: N.W=19 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

The TSD-V209 complies with the international IEEE 802.3af/at PoE standard protocol, providing a stable 12V 2.5A DC power supply and data transmission for IP devices such as IP broadcast systems, cameras, and network bridges, with a maximum output power of 30W.

When cabling distances are excessively long or deployments are complex, the TSD-V209 module can simplify cabling, requiring only a single network cable to simultaneously transmit network data and DC signals, effectively solving users' cabling challenges and improving the overall reliability and security of the equipment.

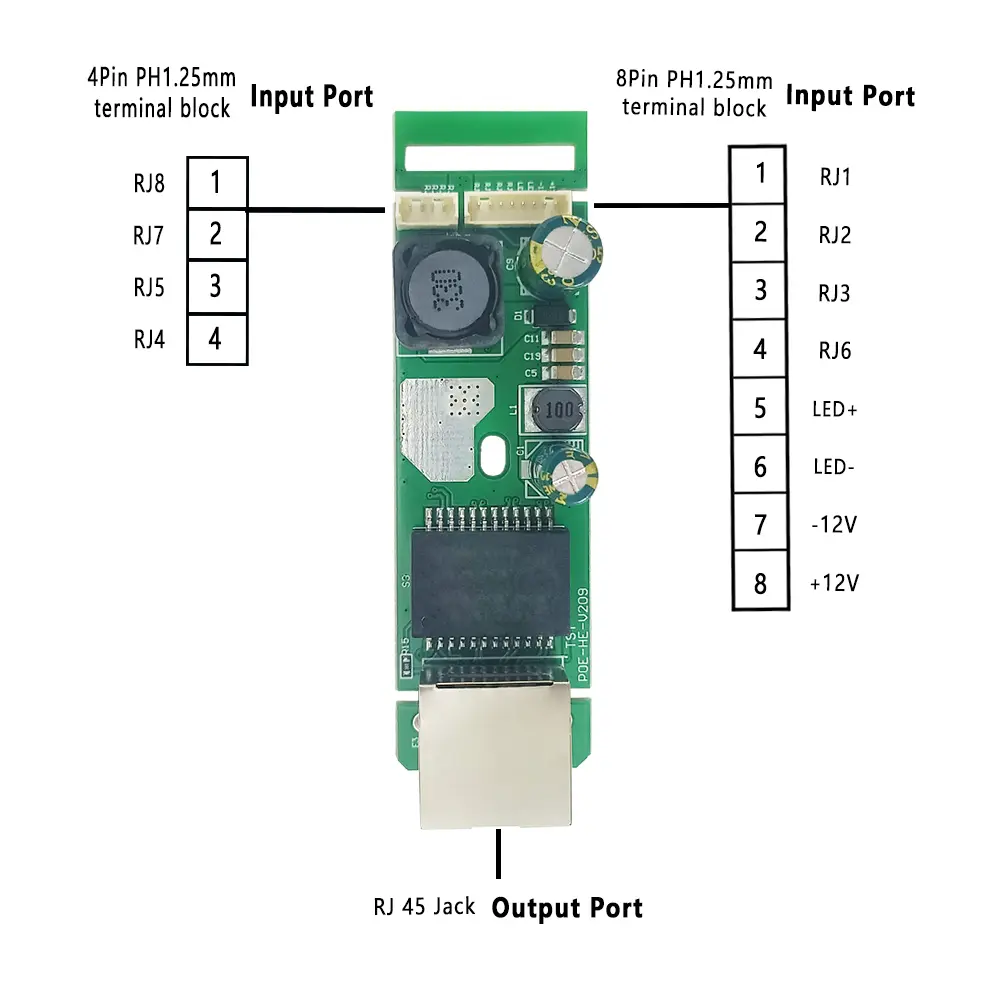

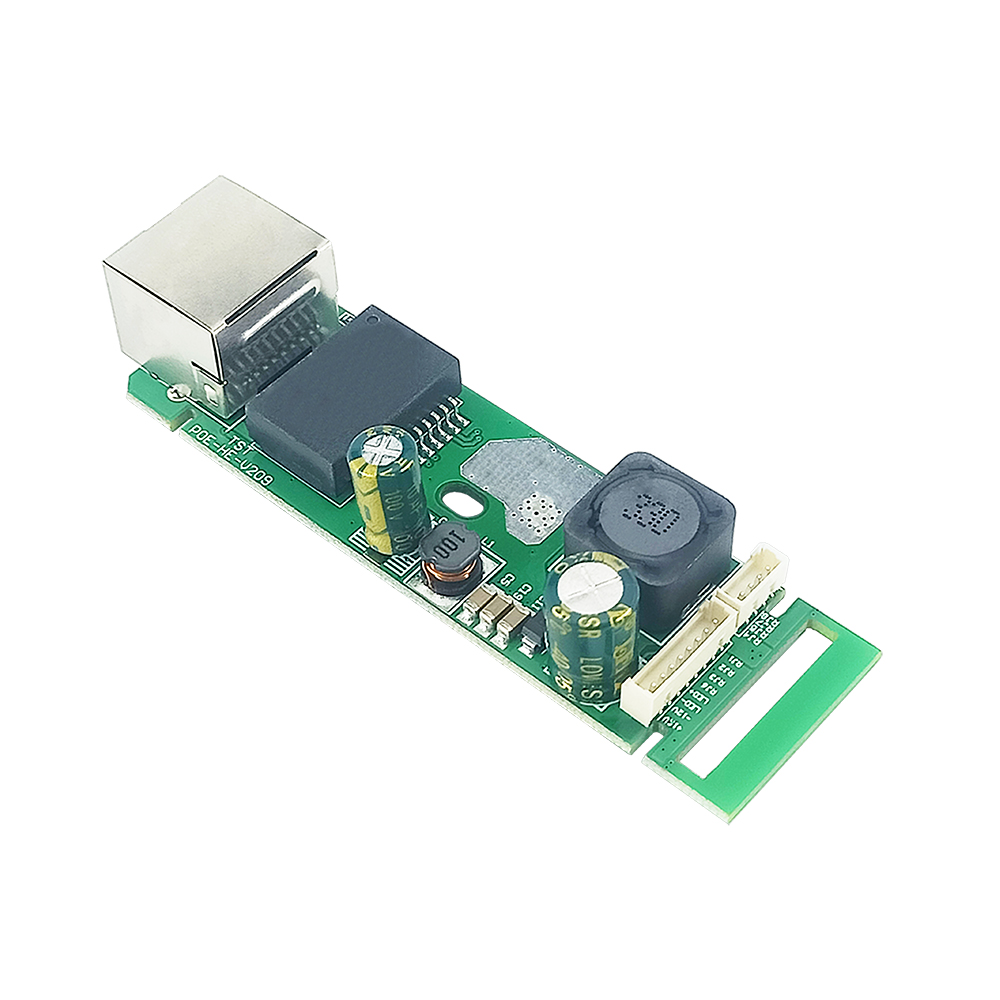

TSD-V209 Module Interface Configuration:

8-pin PH1.25mm female connector: Input DC 38-56V PoE signal.

4-pin PH1.25mm female connector: Input DC 38-56V PoE signal.

RJ45 Ethernet port: Output DC 12V 2.5A signal.

The TSD-V209 module supports the IEEE 802.3af/at standard protocol, and its EMC parameters comply with IEC 61000-4-2/3/4/5/6 standards. It has obtained CE, FCC, and RoHS certifications. The TSD-V209 module uses high-precision components from well-known brands and environmentally friendly, high-temperature resistant PCB materials, ensuring reliable quality and excellent performance, making it a trustworthy choice for users.

Transmission Rate: Supports 10/100/1000M adaptive transmission rate. Maximum output power is 30W. Input Voltage: Supports wide DC input voltage from 38V to 56V. Default output voltage is DC 12V; other voltages can be customized upon request. The module circuit features multiple protection functions including 4KV surge protection, overheat protection, overvoltage protection, overload protection, and short circuit protection.

● Input: PoE wide - voltage DC 38 - 56V

● Output: Data + voltage, DC 12V, maximum 2.5A

● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Compliance: Meets the requirements of IEC 61000 - 4 - 2/3/4/5/6 standards

● PoE Compatibility: Fully compatible with RJ12 + RJ36 - / RJ45 + RJ78 - pin configurations

● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Beige high - temperature - resistant flame - retardant material with a vertical interface socket

● Electronic Components: Original high - precision electronic components from well - known brands, ensuring stable performance

● Gigabit High - frequency PoE Filter: Ensures efficient data transmission

● High - frequency low - impedance electrolytic capacitors effectively reduce high - frequency losses and heat generation in the circuit

● Electrolytic Capacitors: High - frequency, low - resistance electrolytic capacitors to effectively reduce high - frequency losses and heat generation in the circuit

● High - temperature - resistant PCB made of environmentally friendly materials

● Connection Wire: 80mm connection wire for convenient connection

Product parameter table
Product Name	30W Gigabit Non-isolated PoE Module
Product Model	TSD-V209
PoE Standard	IEEE802.3af/at
Input Voltage	DC 38-56V
Output	DC 12V MAX2.5A (Other Voltage can be customized)
Conversion Efficiency	≧90%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Non-isolated type
Data Rate	10/100/1000 Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (8Pin PH1.25mm terminal block): PoE 38V~56V IN Input Port (4Pin PH1.25mm terminal block): PoE 38V~56V IN Output Port (RJ45 Jack): Data +DC 12V 2.5A OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 19 g
Dimension	802317 mm (LWH)
Package	Anti-static pearl cotton

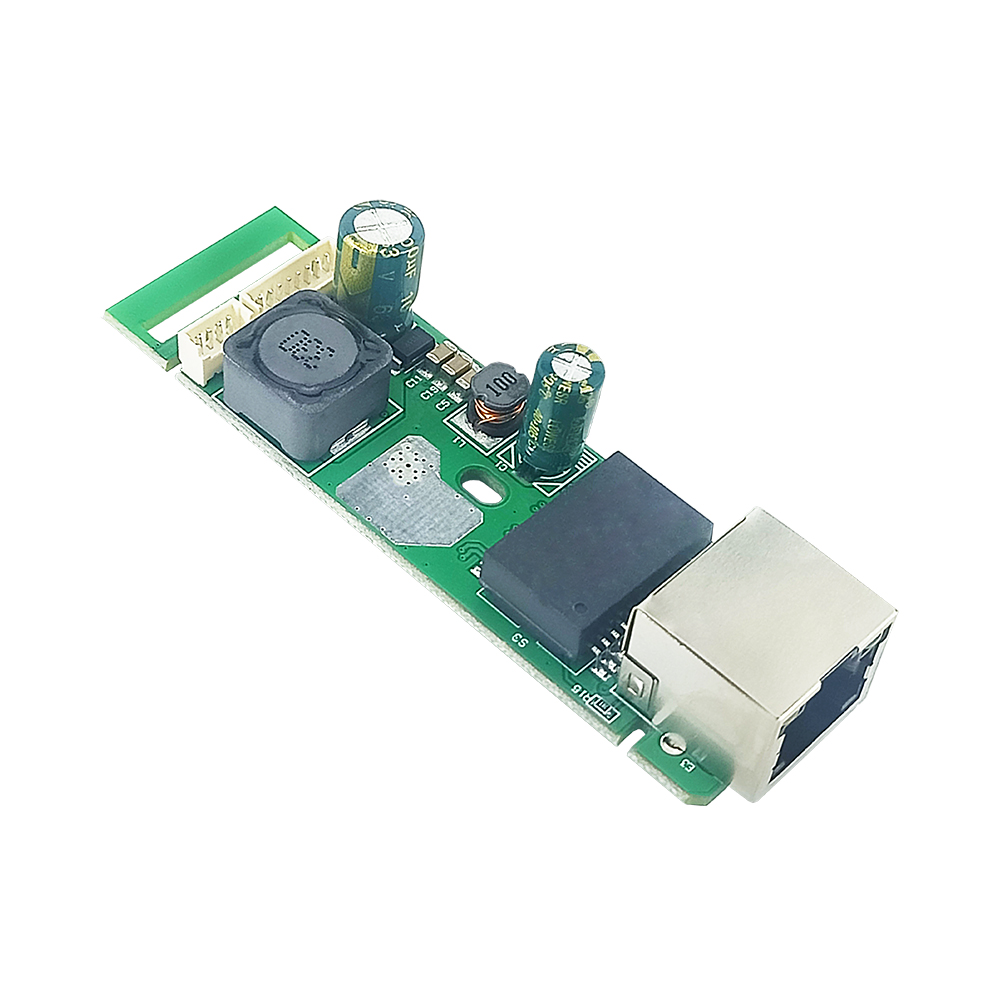

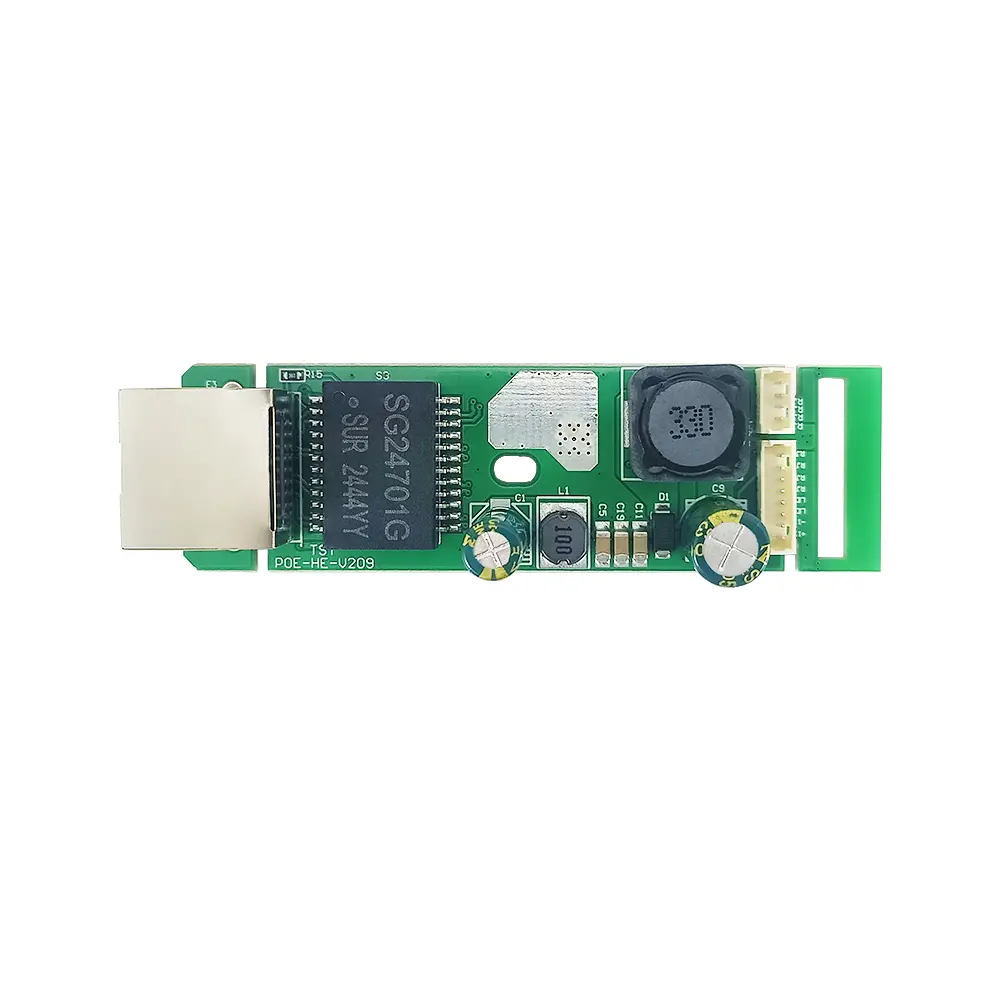

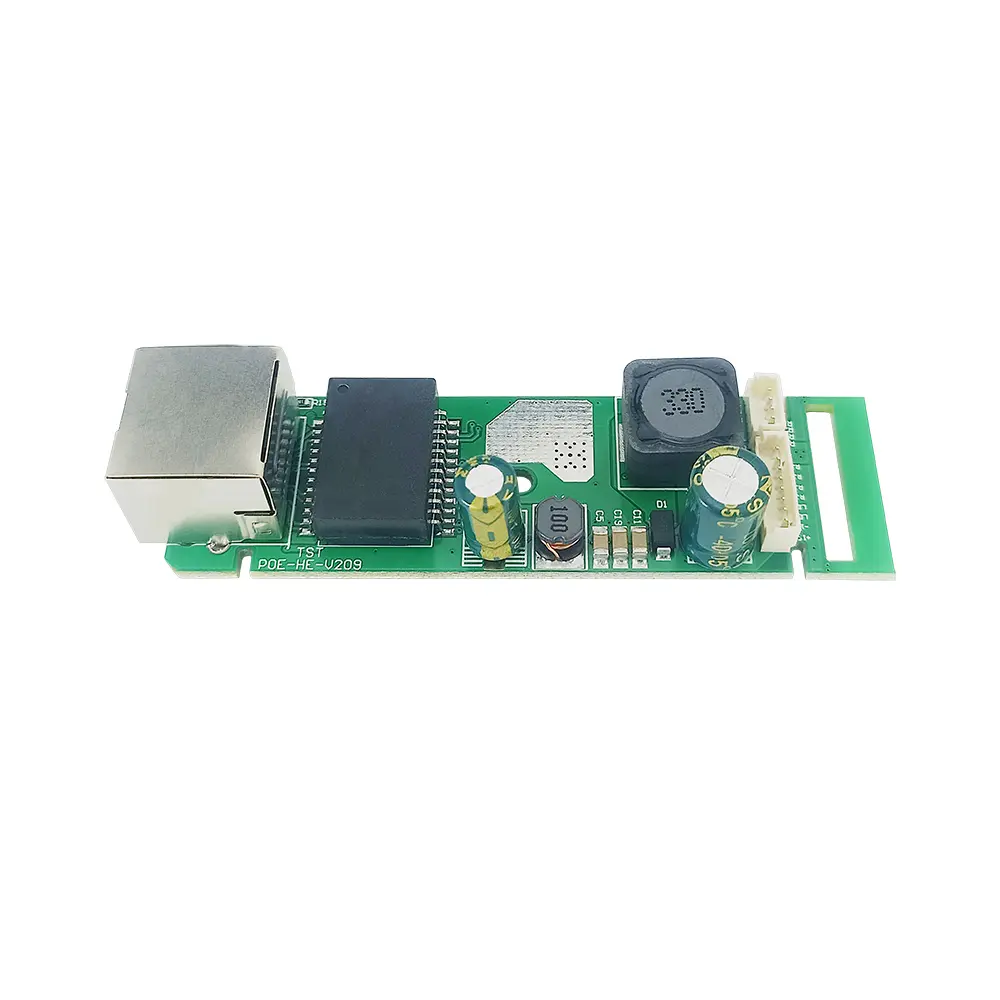

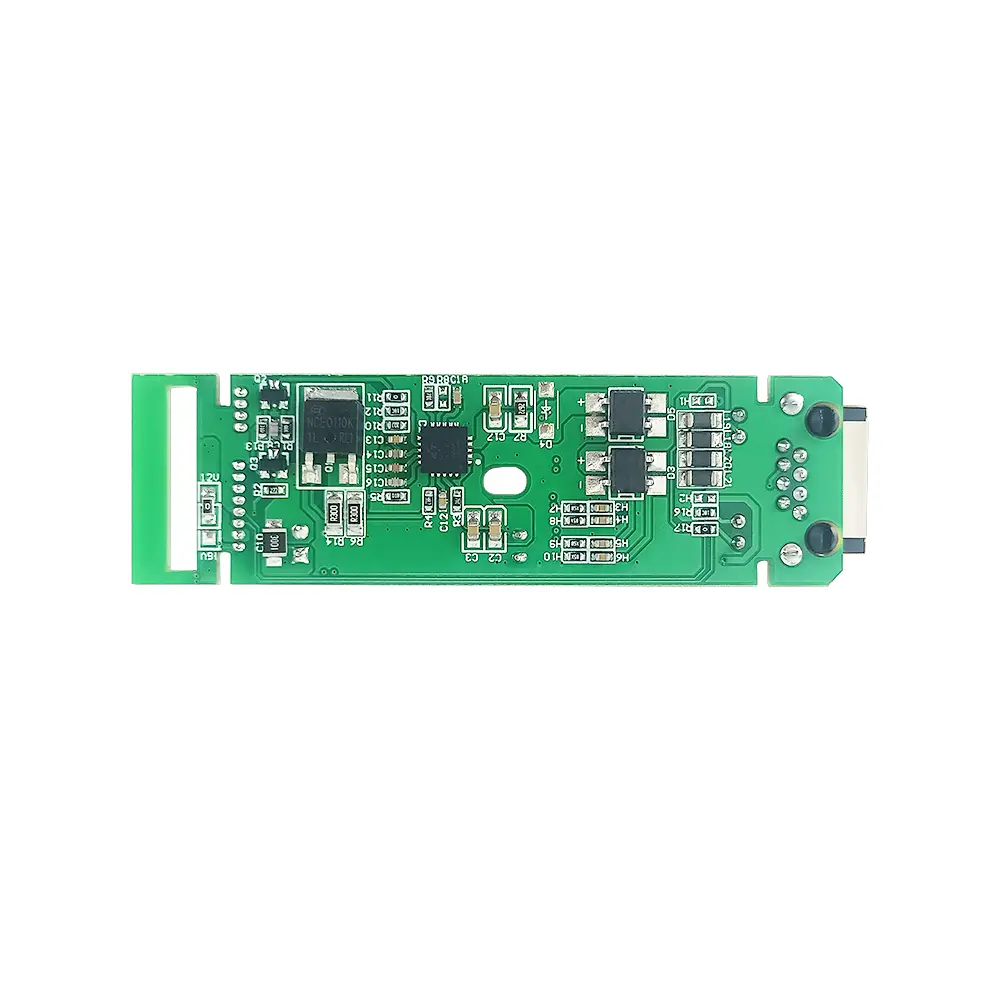

The TSD-V209 module dimensions are 80*23*17mm (L*W*H). The maximum module thickness is 17mm, and the PCB board thickness is 1.7mm. Product appearance: Square structure. The PCB surface is coated with bright green solder resist. Components are arranged on both sides, with large components concentrated on the front for easy installation and use. Module net weight: 19g.

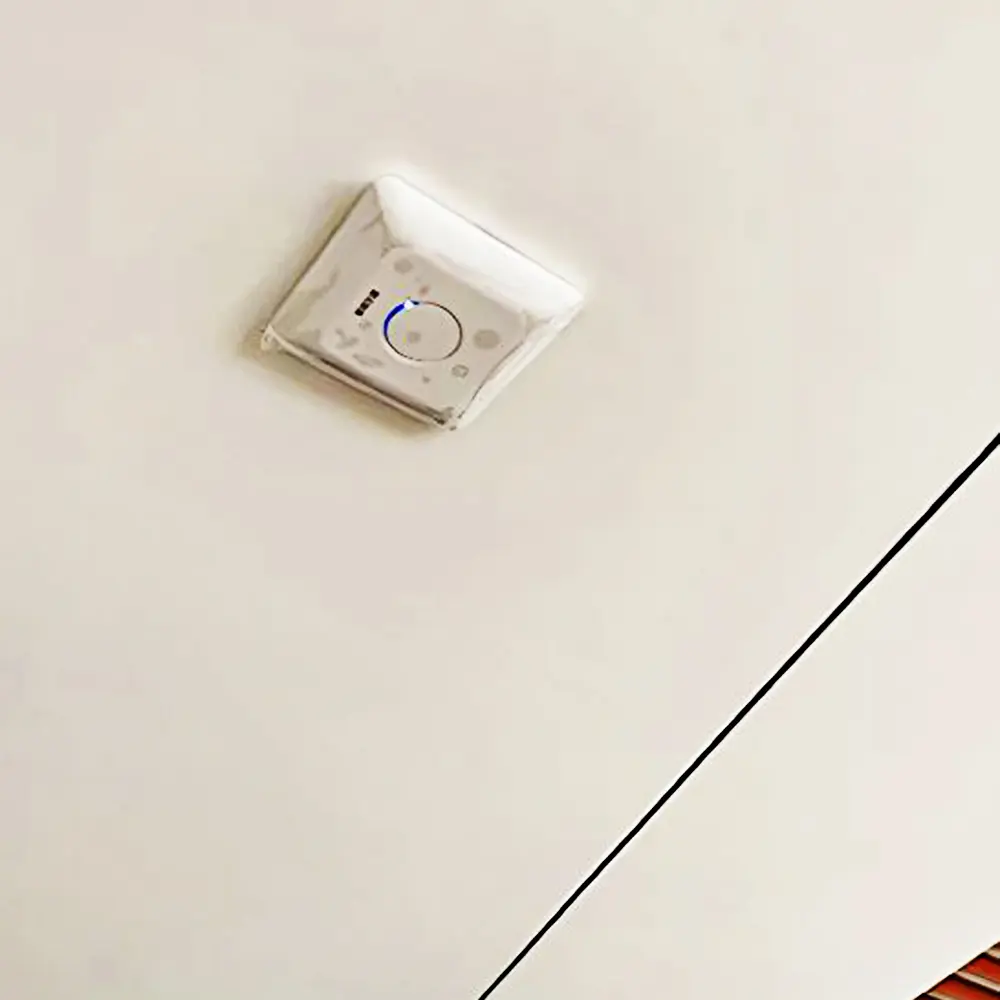

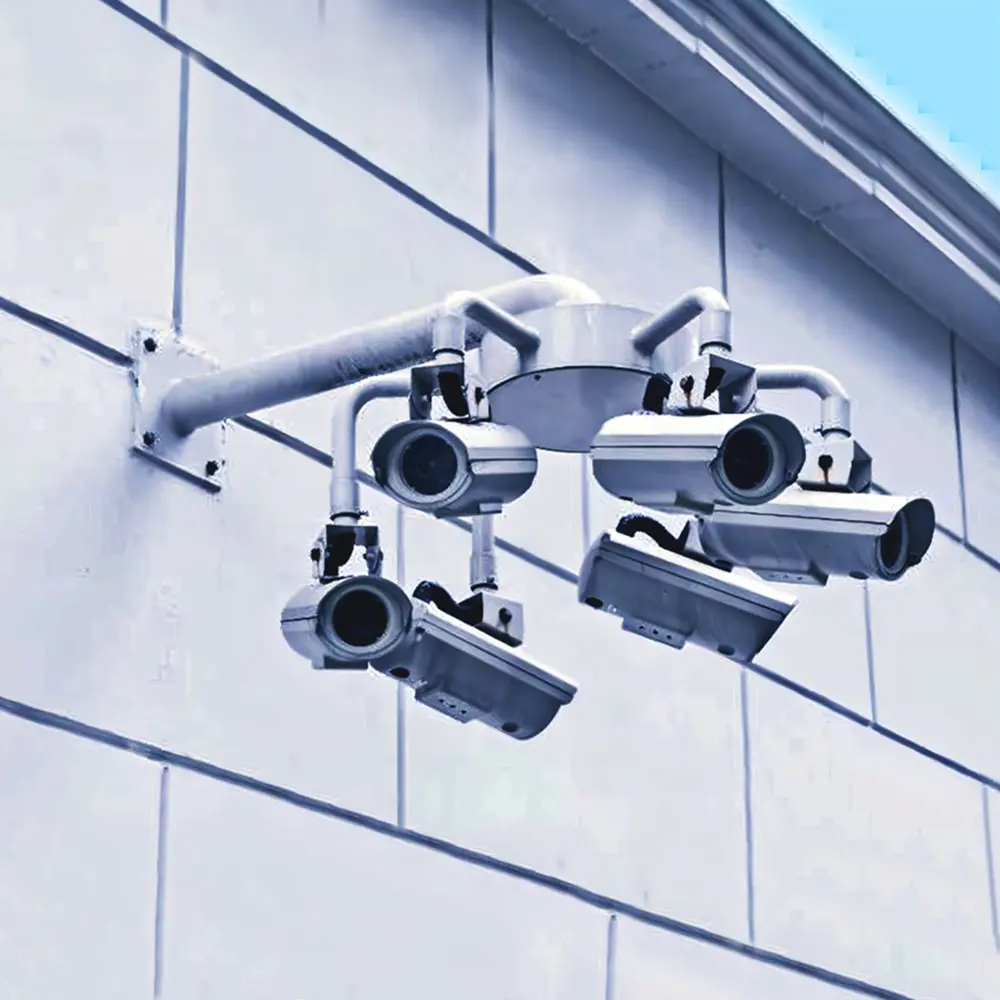

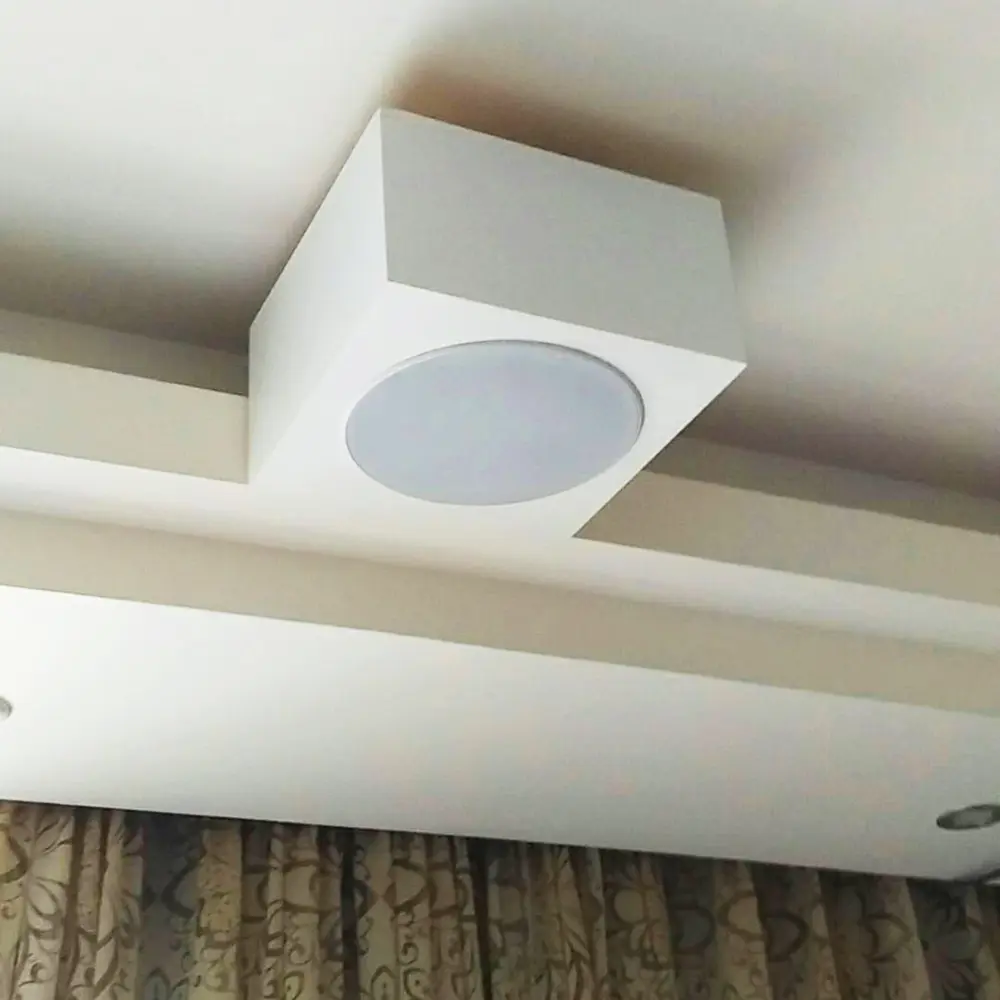

The TSD - V209 module can provide PoE power supply support for IP network devices such as wireless bridges, network cameras, IP speakers, and wireless access points (APs). By using the TSD - V209, devices can be powered safely and reliably, freeing them from the limitations of power sockets and enabling flexible deployment at any location with an Ethernet interface. This effectively simplifies the complexity of wiring and enhances the user experience.

Note: The TSD - V209 does not have an isolation transformer installed, so the module does not have isolation functionality. When installing and using this module, users should avoid connecting it to the same ground as other terminal devices. Otherwise, it may cause device operation failures and affect the normal operation of the devices.

Package list
Items	Quantity
V209 PoE module	500 PCS
Operation Manual	/
