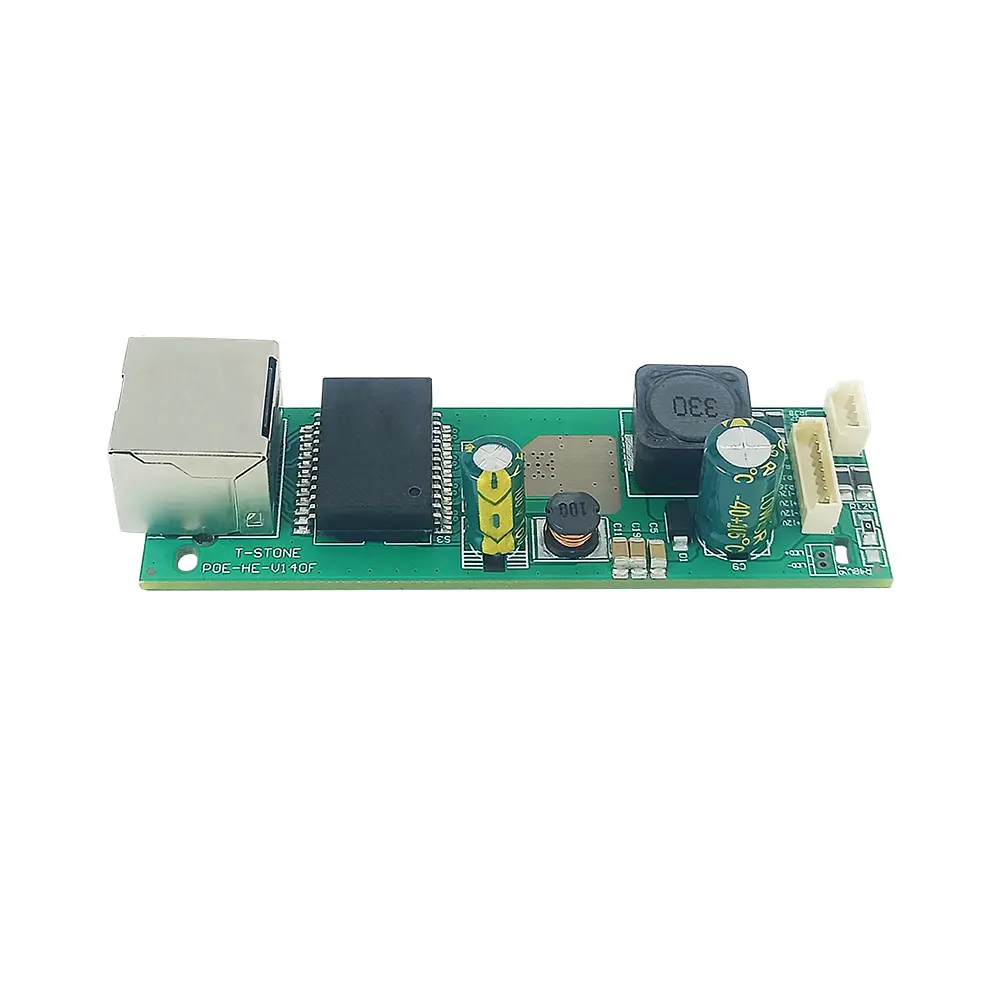

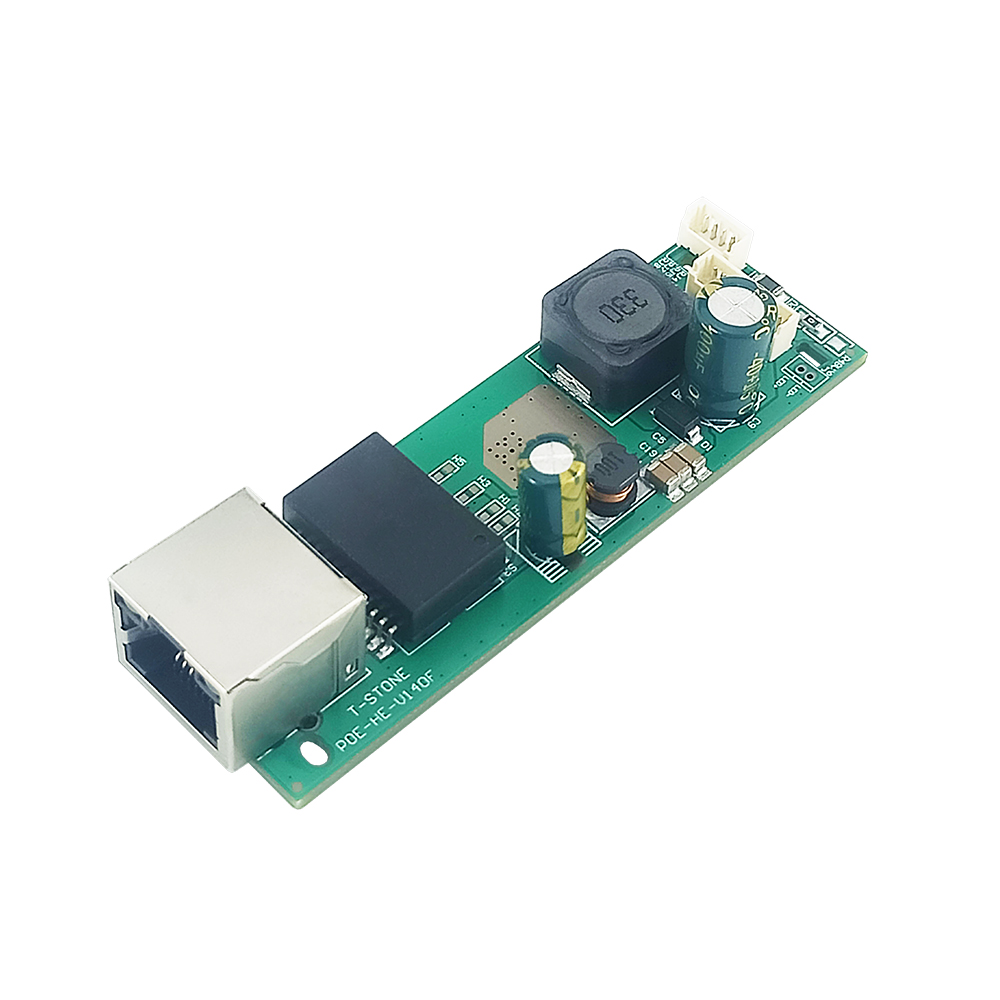

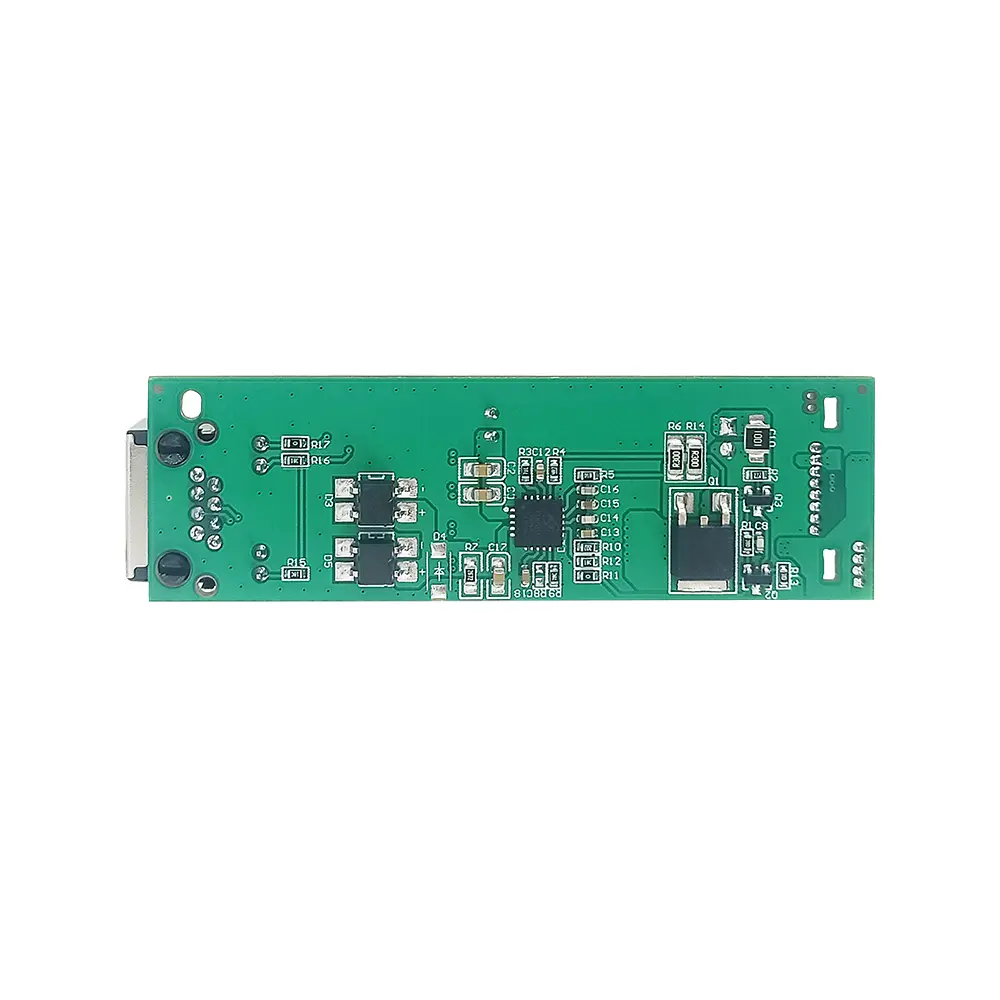

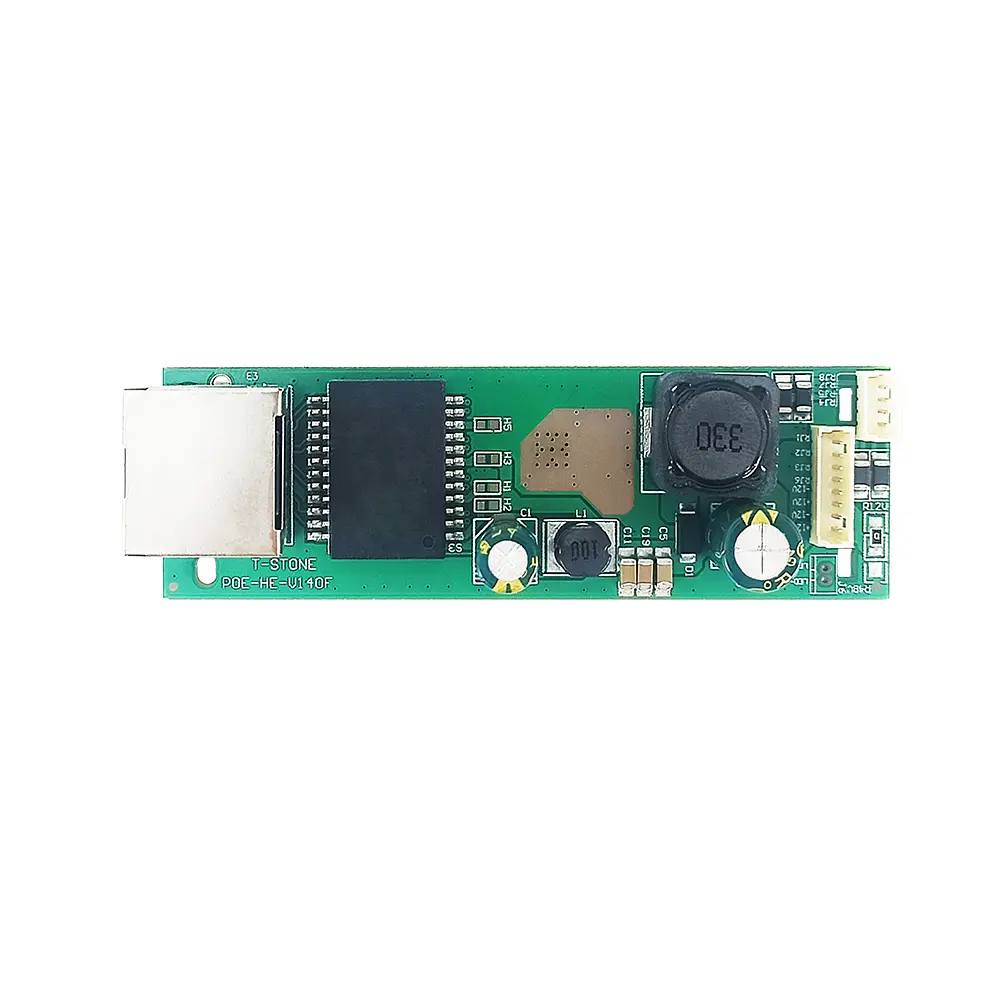

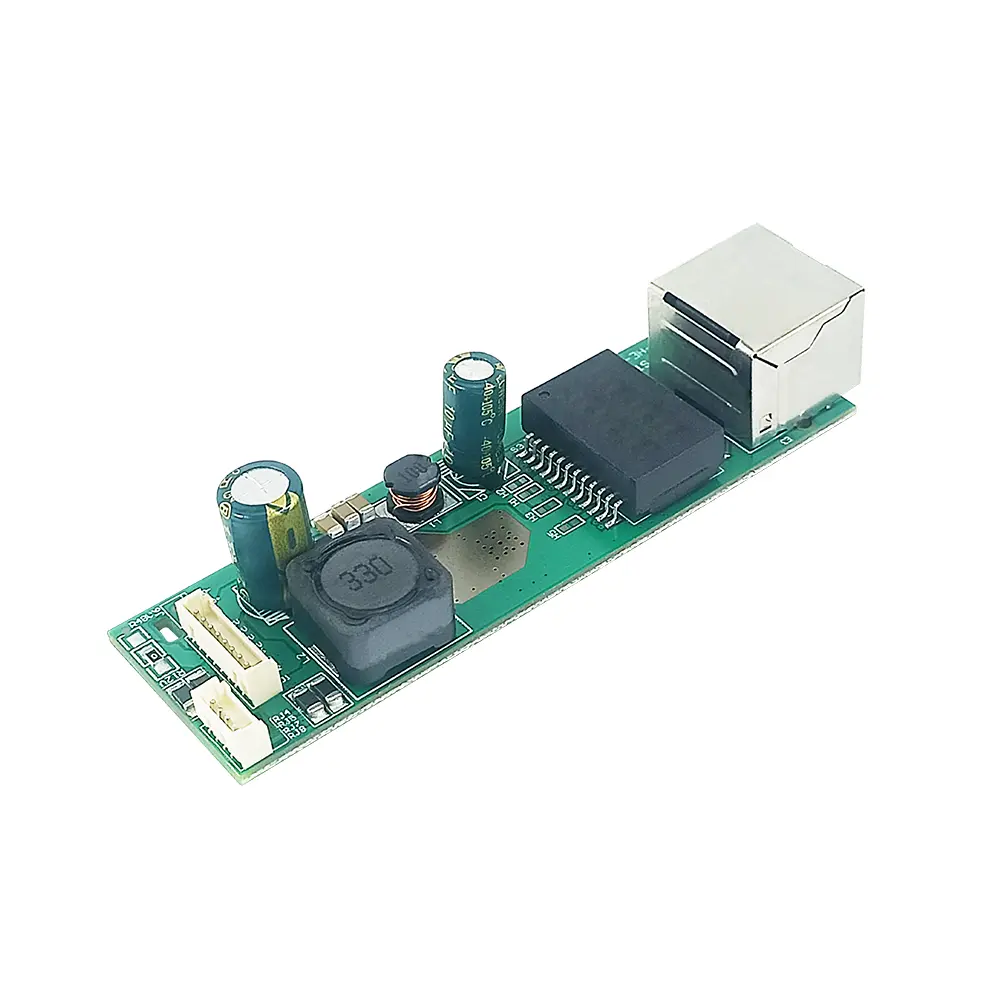

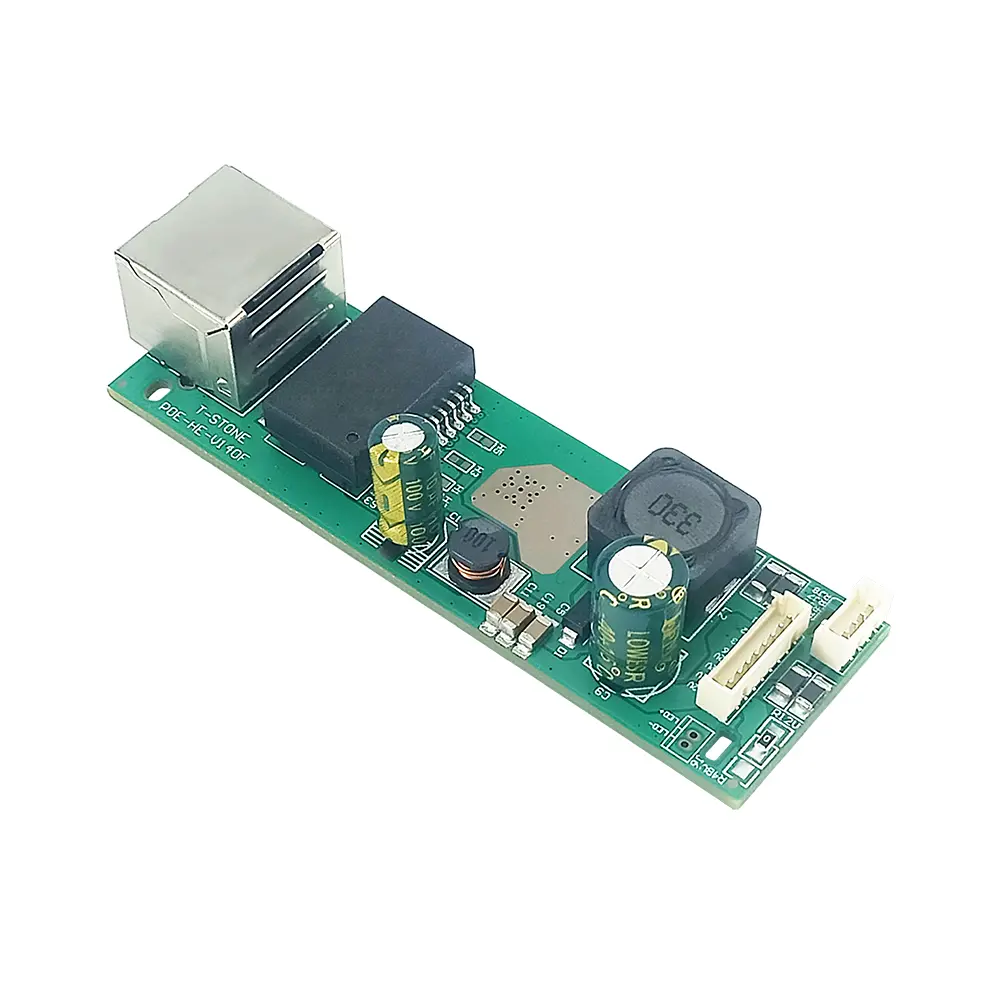

The TSD-V140F module has a maximum output power of 30W and features 10/100/1000M adaptive transmission rate. The TSD-V140F supports a wide voltage input of DC38-56V, with a default output voltage of DC 12V; other voltages can be customized.
● Input: PoE wide - voltage DC 38 - 56V
● Output: Data + voltage, DC 12V, maximum 2.5A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Compliance: Meets the requirements of IEC 61000 - 4 - 2/3/4/5/6 standards

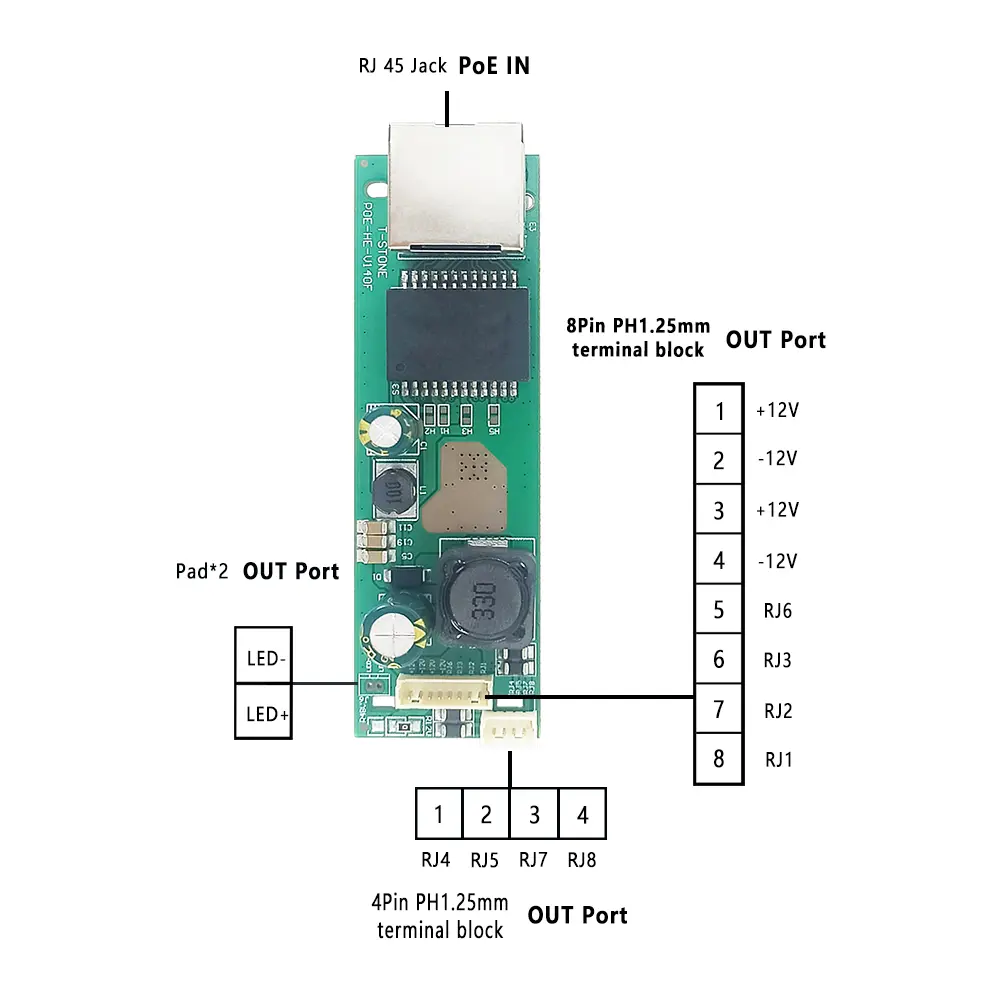

● PoE Compatibility: Fully compatible with RJ12 + RJ36 - / RJ45 + RJ78 - pin configurations
● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance
● Material and Interface: Beige, high - temperature - resistant, flame - retardant material; vertical interface socket
● Electronic Components: Original high - precision electronic components from well - known brands, ensuring stable performance
● Gigabit High - frequency PoE Filter: Ensures efficient data transmission
● High - frequency low - impedance electrolytic capacitors effectively reduce high - frequency losses and heat generation in the circuit
● Electrolytic Capacitors: High - frequency, low - resistance electrolytic capacitors to effectively reduce high - frequency losses and heat generation in the circuit
● High - temperature - resistant PCB made of environmentally friendly materials
● Connection Wire: 80mm connection wire for convenient connection
