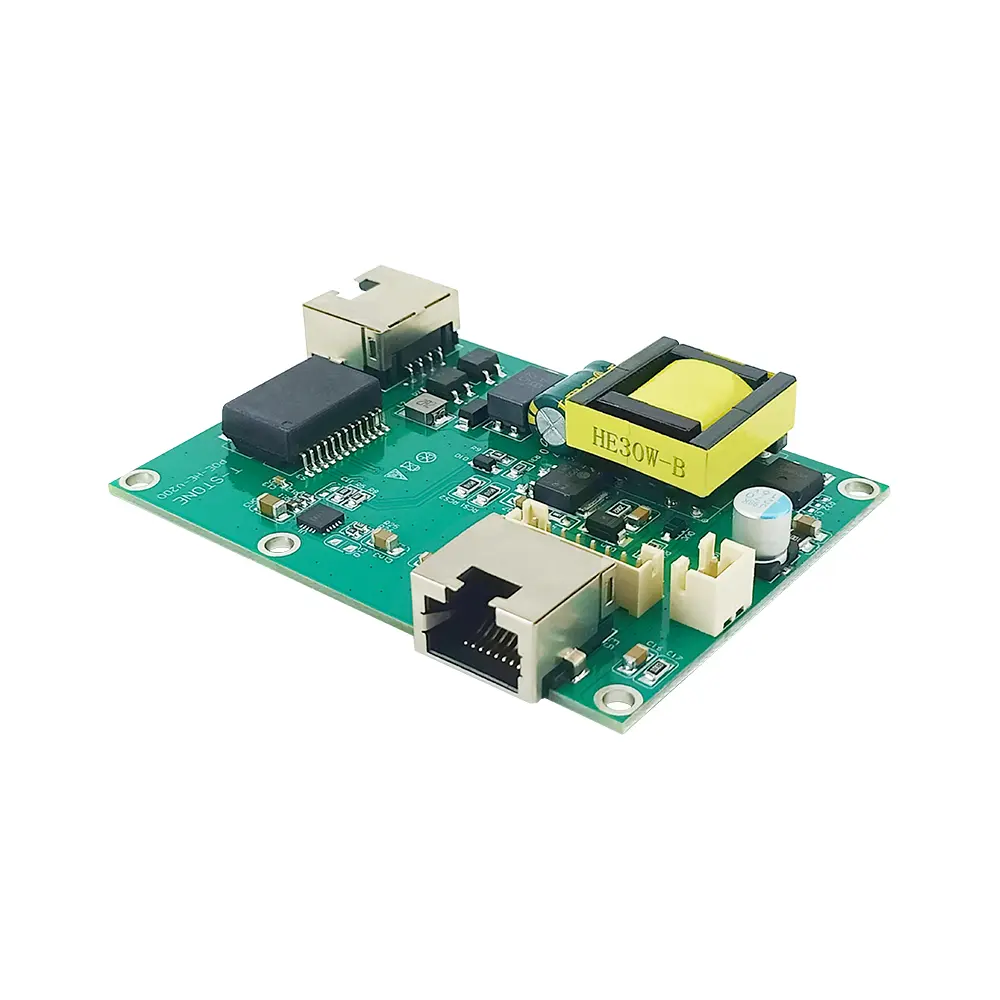

30W EMC Low-Radiation PoE Module

Model: TSD-V200

Input: PoE DC power supply (38V–56V)
Output: DC 12V MAX2.5A 30W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100/1000 Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: RJ45 port/terminal block
Size: 77*56*17 mm (L*W*H)
Weight: N.W=36 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is available and need to pay

Description

Features

Specifications

Dimensions

Interface

Application

Package

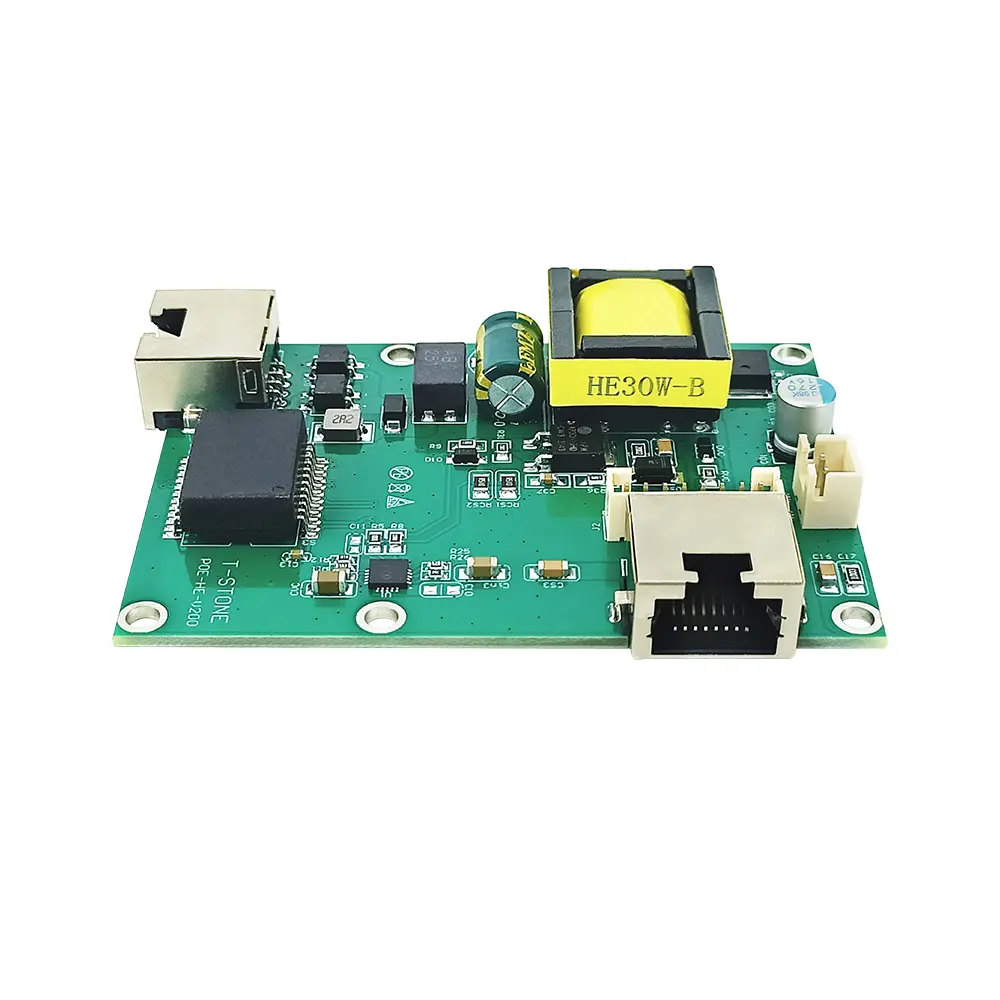

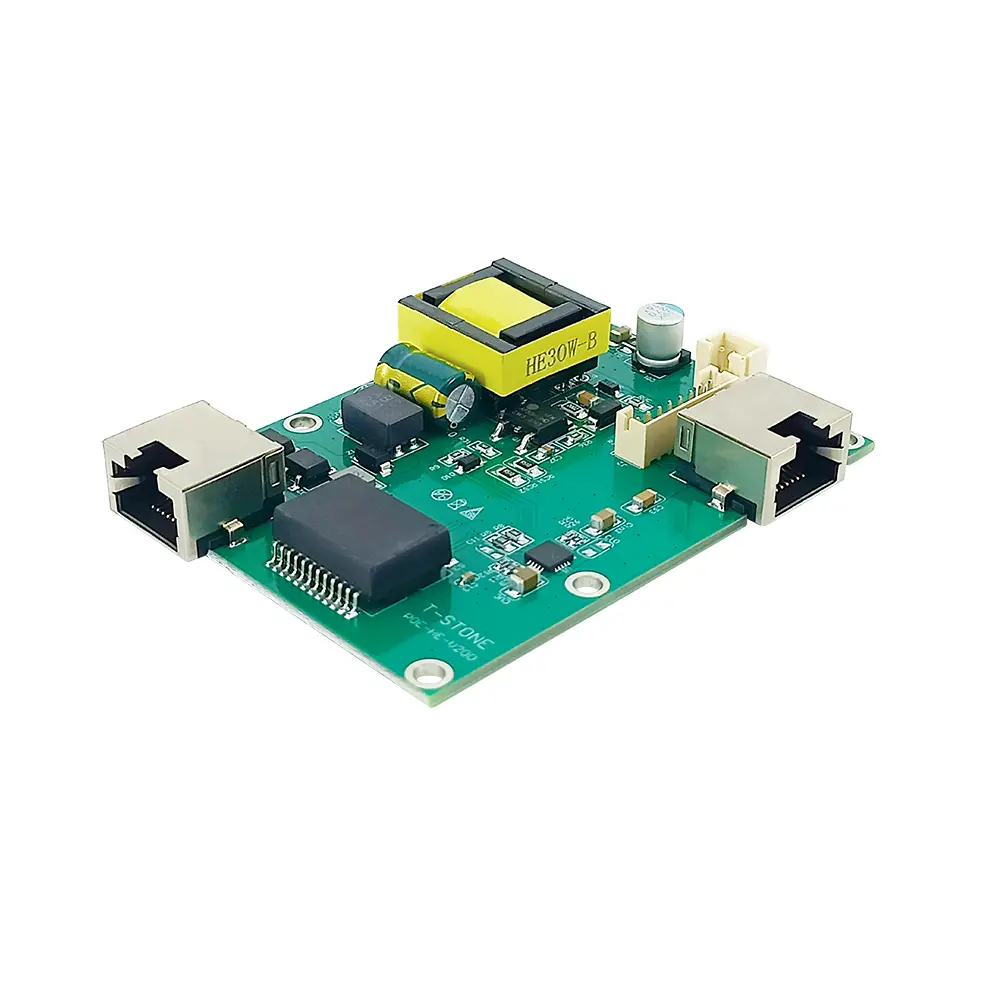

The TSD-V200 is a PoE module with a gigabit transmission rate that complies with the international IEEE802.3af/at PoE standards. It can receive the PoE signal provided by the PSE and continuously output a stable 12V 2.5A DC power supply.

The TSD-V200 module has the advantage of low EMC radiation. When used in scenarios such as audio equipment, commercial displays, and security monitoring, it can effectively reduce system failures and signal disturbances caused by electromagnetic interference, and ensure the stable operation of surrounding equipment.

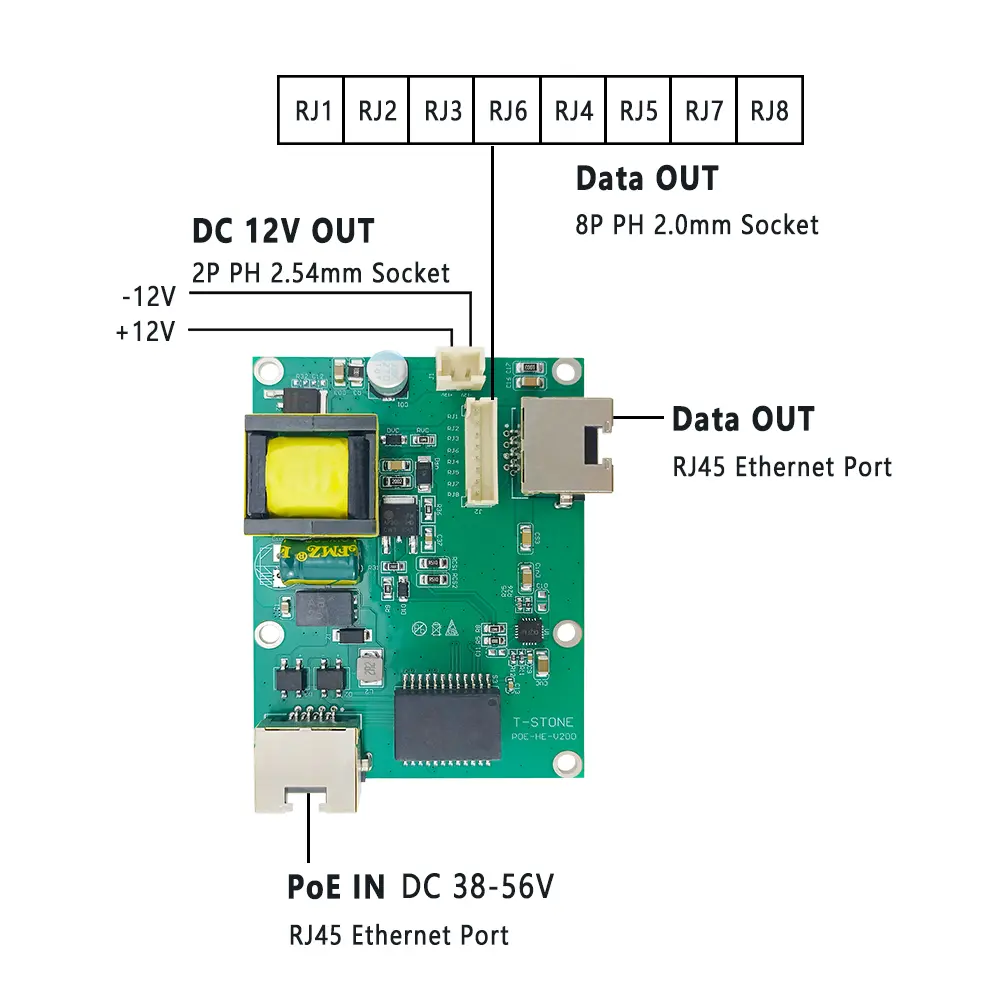

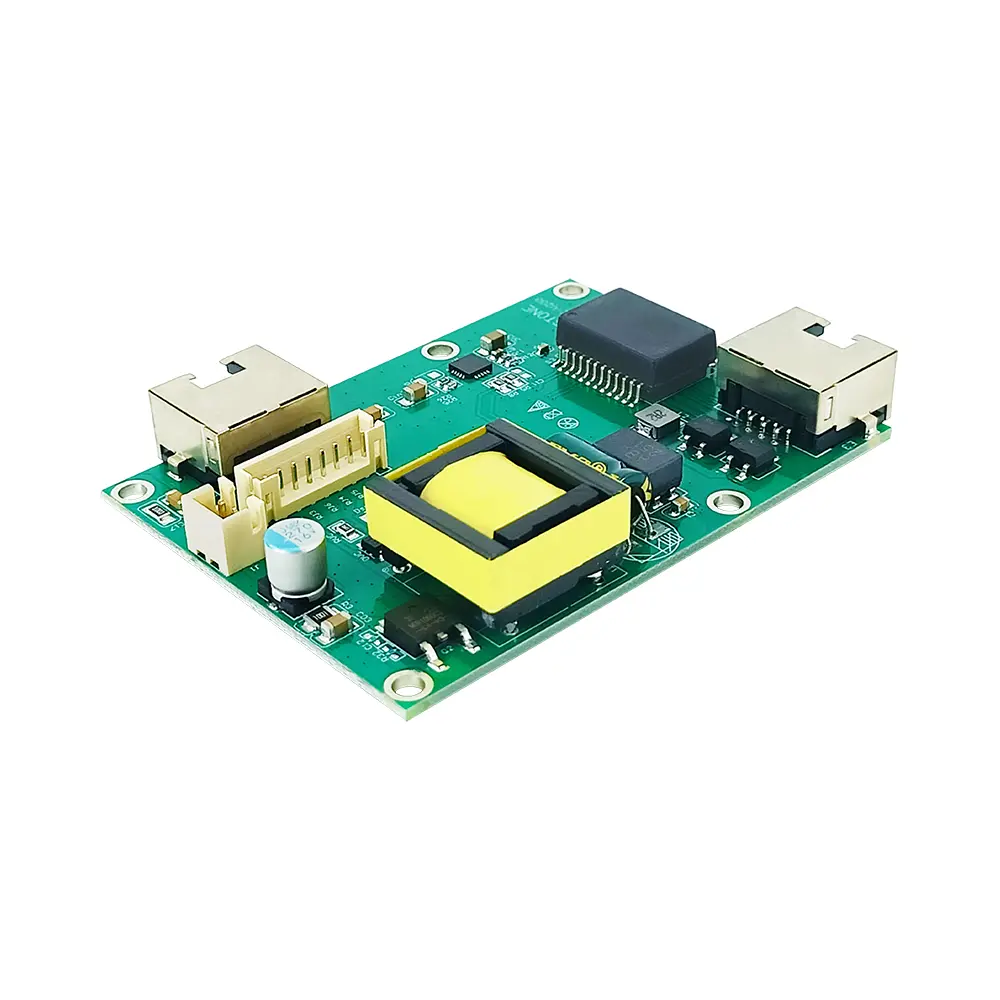

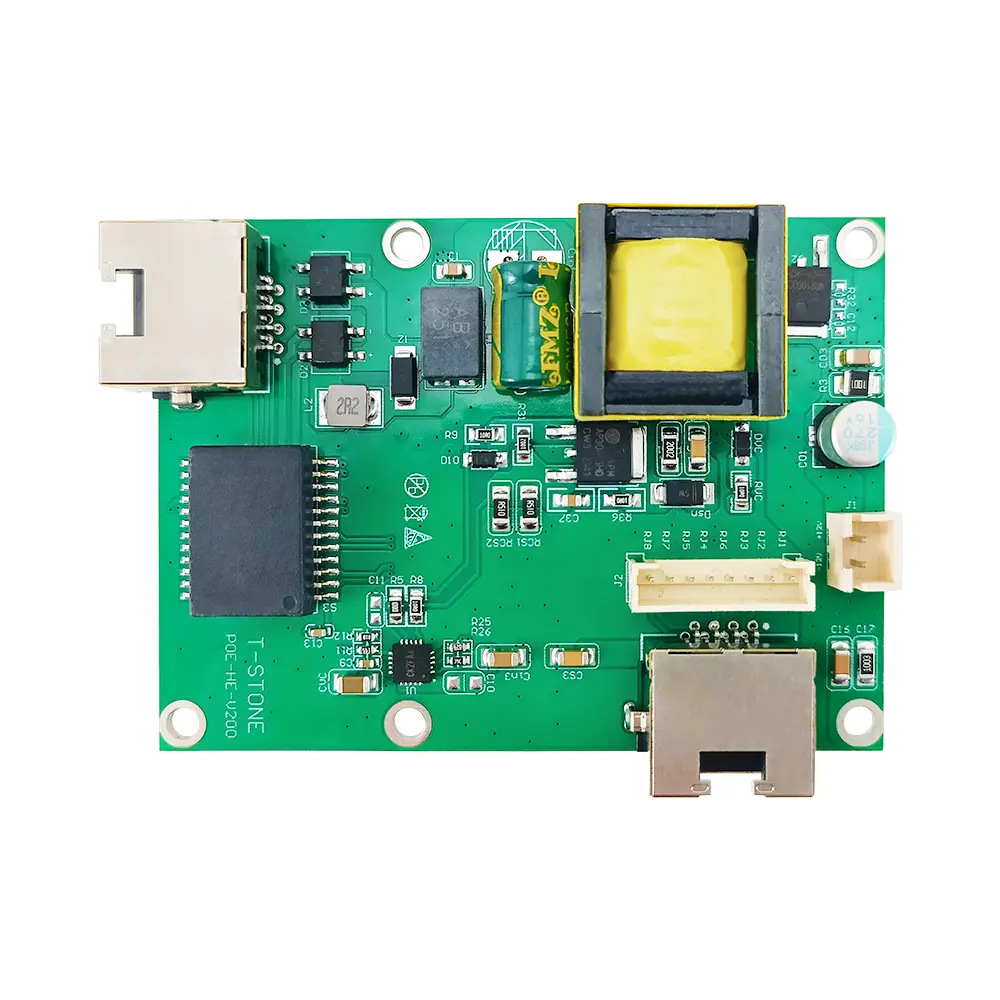

Interface Configuration of the TSD - V200 Module, RJ45 Ethernet Port: DC 38 - 56V PoE signal IN; RJ45 Ethernet Port: Data OUT; 2 - Pin PH2.54mm Socket: DC 12V 2.5A OUT; 8 - Pin PH2.0mm Socket: Data OUT.

The TSD - V200 complies with the international IEEE802.3af/at PoE standard protocol. It has obtained authoritative certifications such as CE, FCC, and RoHS. The EMC parameters of the product meet the requirements of IEC 61000 - 4 - 2/3/4/5/6 standards. The TSD - V200 has the special EMC low - radiation feature and can pass the standard ESD (Electrostatic Discharge) test, meeting the international or domestic industry norms for electrostatic protection.

The TSD - V200 is equipped with an isolation transformer, endowing the module with electrical isolation and personal safety protection functions. Additionally, the circuit incorporates multiple protection mechanisms, including over - heat protection, over-voltage protection, over-current protection, and short-circuit protection. The TSD - V200 has a 10/100/1000M adaptive transmission rate, with a maximum output power of 30W. It can accept a wide input voltage range of DC 38-56V and output a DC 12V 2.5A direct-current signal.

● Input: Wide-range PoE DC power supply (38V–56V)

● Output: DC 12V MAX2.5A + data
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- , RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100/1000 Mbps Auto-Negotiation
● Protection Features: Overheat protection, overload protection, overvoltage protection, short-circuit protection
● Surge Protection: 4KV lightning surge resistance

● Isolation protection
● Designed with low - radiation EMC characteristics

● Beige, high - temperature - resistant, flame - retardant material, vertical interface socket

● Equipped with high - precision electronic components from well - known brands, ensuring stable performance

● Features a sunk - board ultra - thin dual - Ethernet - port design

● High - power, high - conductivity, low - impedance transistors with stable performance and low heat generation

● High - temperature - resistant PCB made of environmentally friendly materials

● An 80mm connecting Wire is provided for convenient connection

Product parameter table
Product Name	30W EMC Low-Radiation PoE Module
Product Model	TSD-V200
PoE Standard	IEEE802.3af/at
Input Voltage	PoE: DC 38-56V
Output	voltage 12V DC MAX2.5A (Other Voltage can be customized)
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100/1000 Mbps Auto-Negotiation
Transmission Distance	100 meters (Category 5e network cable)
Surge Protection	4KV
Circuit Protection	Overheating Protection Overcurrent Protection Overvoltage Protection Short - circuit Protection
LED Indicator	/
Interface	Input Port (RJ45 Ethernet-port) : PoE IN Output Port (RJ45 Ethernet-port) :Data OUT Output Port (8 - Pin PH2.0mm Socket) :Data OUT Output Port (2 - Pin PH2.54mm Socket) :DC 12V OUT
Function	/
Material	FR-4
Color	Glossy green
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～65℃ For Operating -40～85℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 36 g
Dimension	77 56 13 mm (LWH)
Package	Anti-static pearl cotton

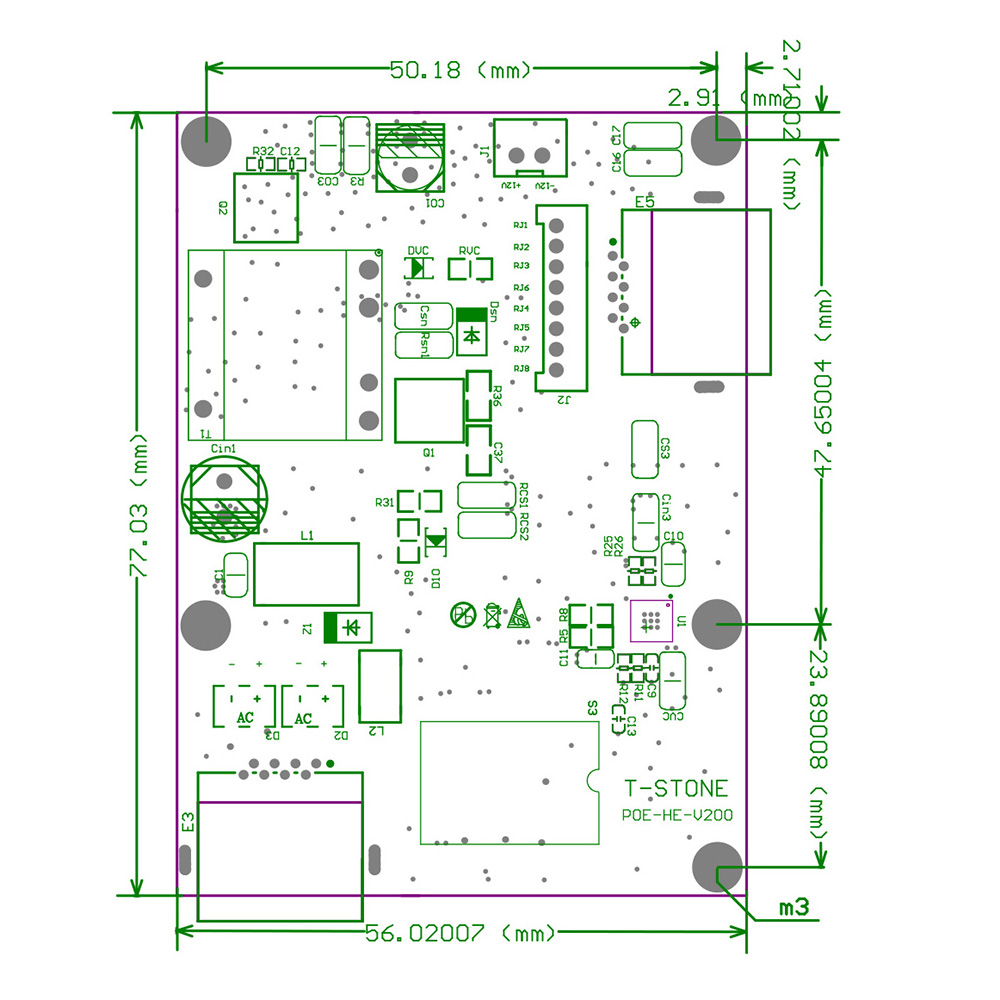

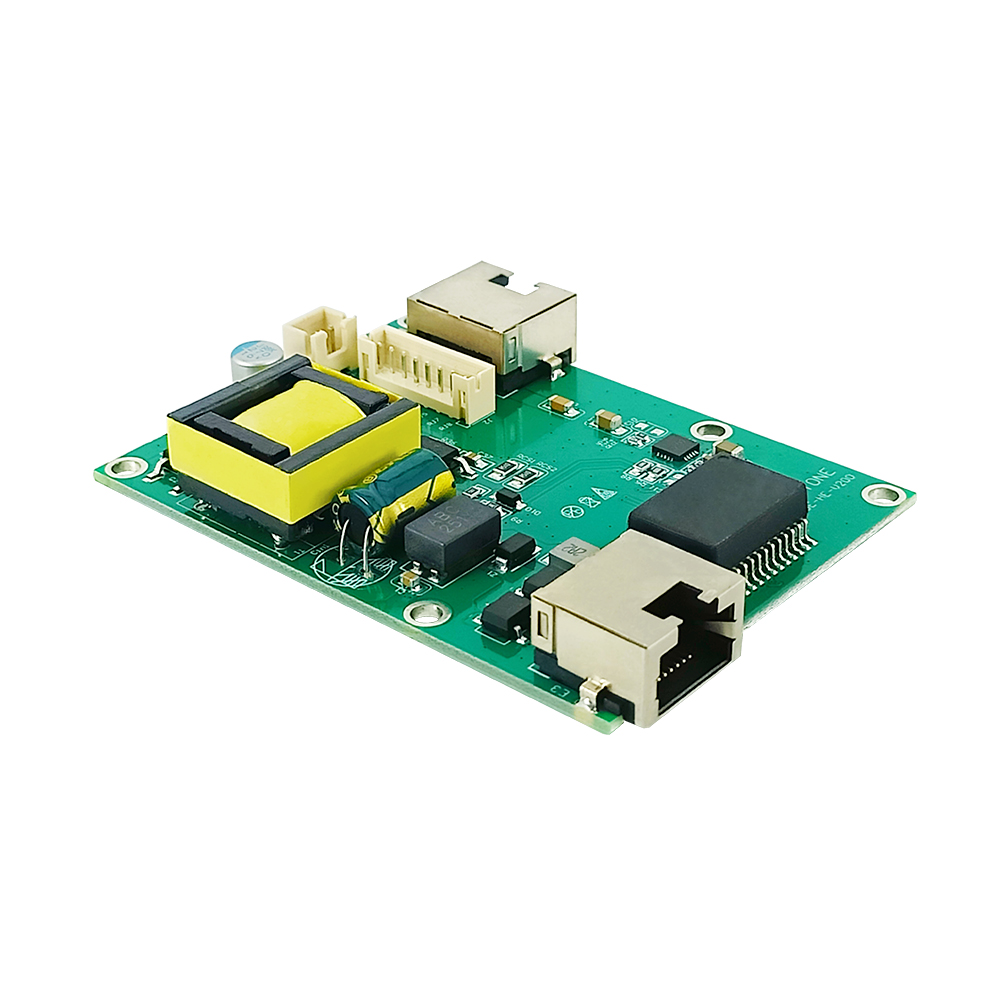

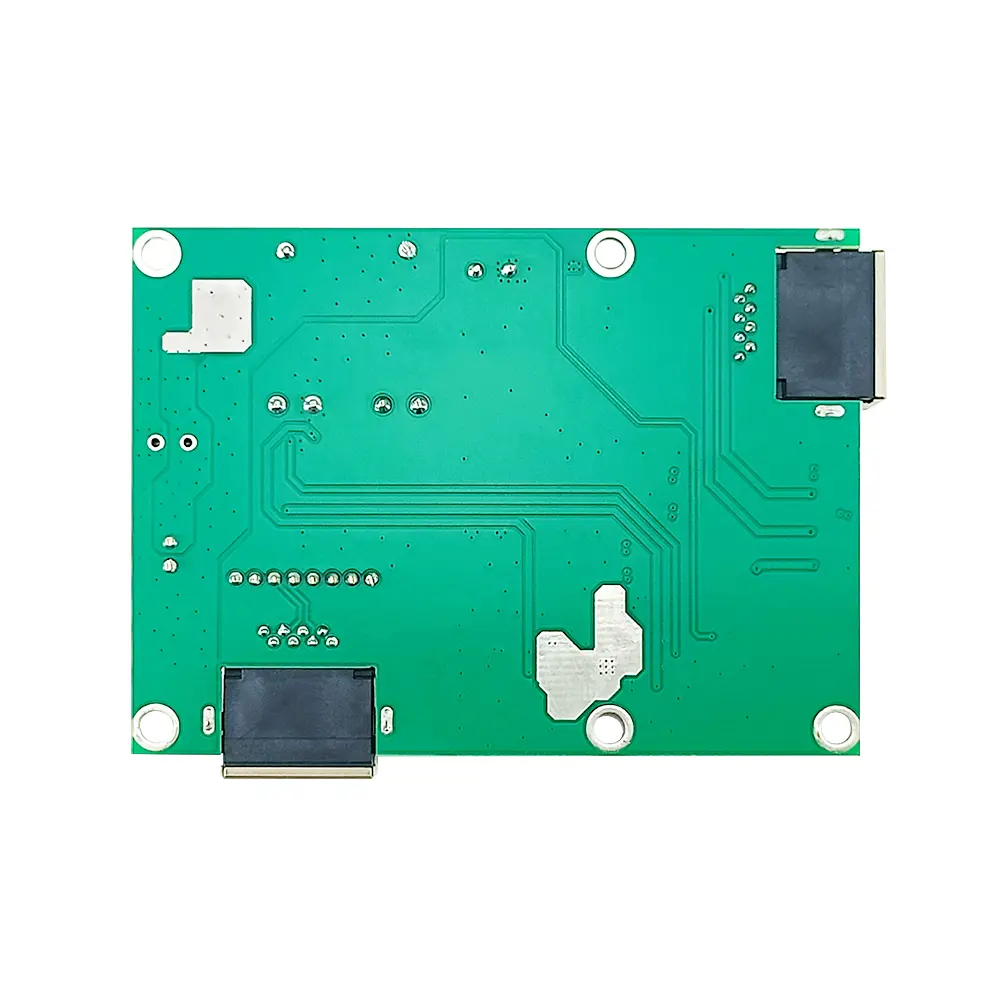

The overall dimensions are 77 * 56 * 13 mm, with the maximum thickness reaching 13 mm. It has a square structure. The PCB has a thickness of 1.65 mm, and its surface is coated with bright - green solder mask. The diameter of the screw holes is Φ = 3.25 mm, and there are 6 such holes. Module Design: It features a four - layer single - sided board design with a sunk - board ultra - thin Ethernet port. The TSD - V200 offers two connection methods via Ethernet ports and sockets, allowing users to select the appropriate connection method accordin9g to their needs. The net weight of a single module is 36 g.

The overall design of the TSD - V200 module mainly utilizes ultra - thin components, resulting in a product height of less than 15mm, which saves users' installation space.

Thanks to its advantage of low EMC radiation, the TSD - V200 generates relatively little electromagnetic interference on its own. When integrated into users' terminal devices, it can effectively reduce interference with surrounding equipment. Moreover, the low - radiation characteristic can enhance the reliability and stability of the entire system, reduce the frequency of equipment failures, and prolong the service life of the equipment.

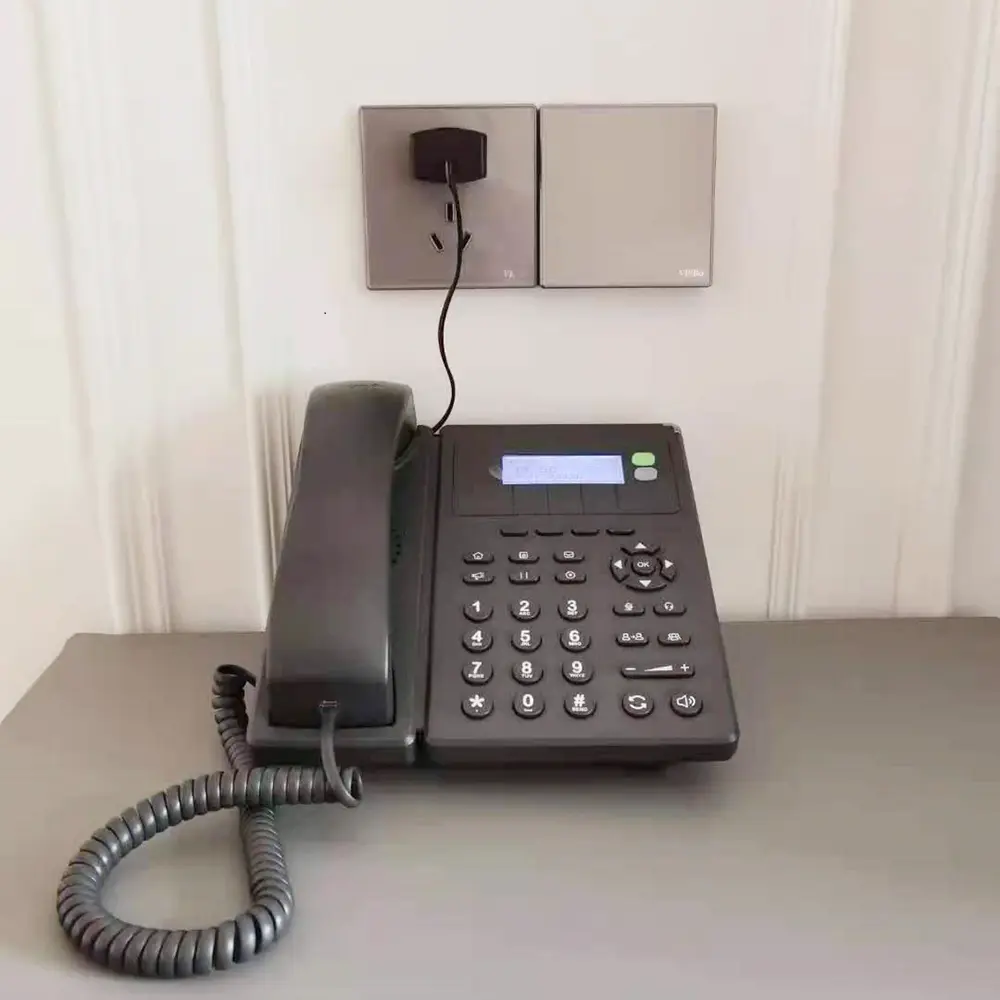

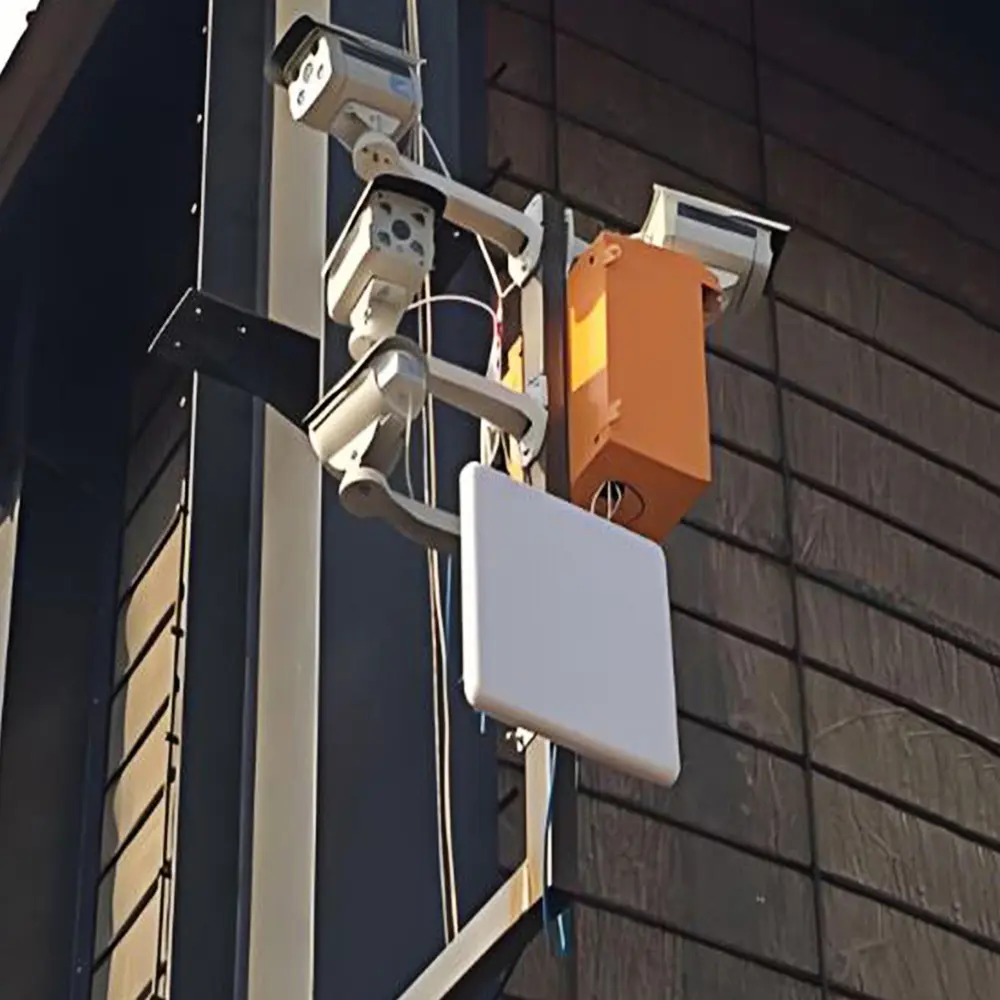

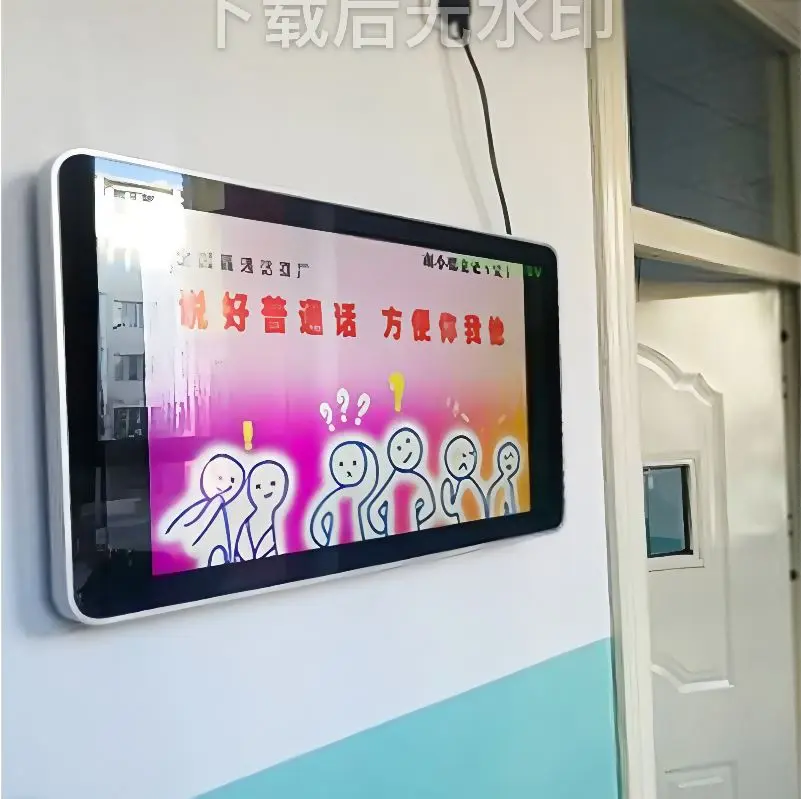

The TSD - V200 has delivered excellent performance in terminal devices such as surveillance systems, audio systems, advertising machines, and electronic class signs. Its distinctive features and product performance have been highly praised by users both at home and abroad.

Package list
Items	Quantity
V200 PoE module	280 PCS
Operation Manual	/
