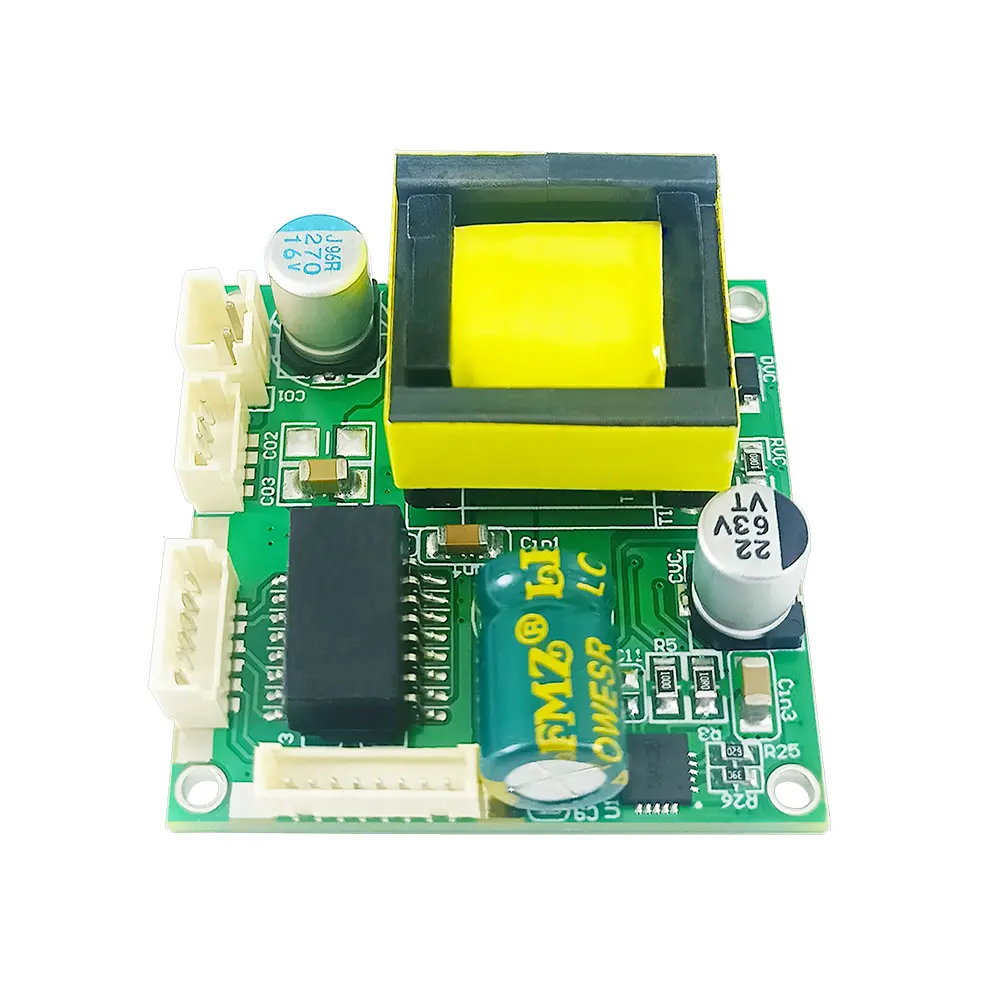

25W Multi-voltage 9/12/15/24V PoE Module

Model: TSD-PD3818

Input: Wide-Range PoE DC 38-56V
Output: DC 12V MAX 2A 25W
PoE protocol: IEEE 802.3af/at
Transmission rate: 10/100Mbps
RJ12+ RJ36- / RJ45+ RJ78-fully compatible
Interface: PH1.25/2.0mm Socket
Size: 38*38*15.2mm (L*W*H)
Weight: N.W=19g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

Description

Features

Specifications

Dimensions

Interface

Application

Package

TSD-PD3818 module, in line with IEEE802.3af/at PoE standard protocol, the maximum output power of the module is 25W, and it can provide stable DC 12V 2A output. It is a 25W high-power active PoE module suitable for security monitoring, audio broadcasting, building intercom and other fields.

The TSD-PD3818 module has a handshake protocol, which can directly receive PoE signals and be integrated into IP-based terminal devices to provide data signal transmission and DC power supply for these terminal devices.

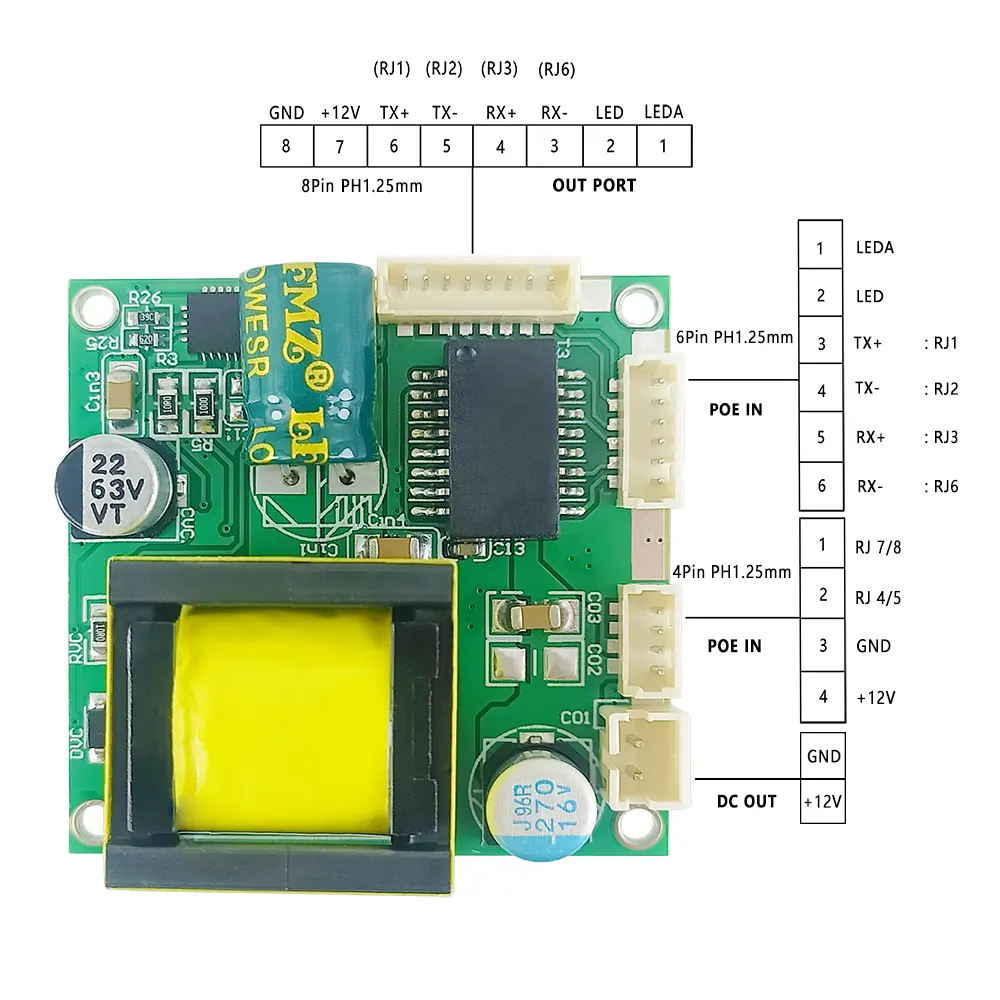

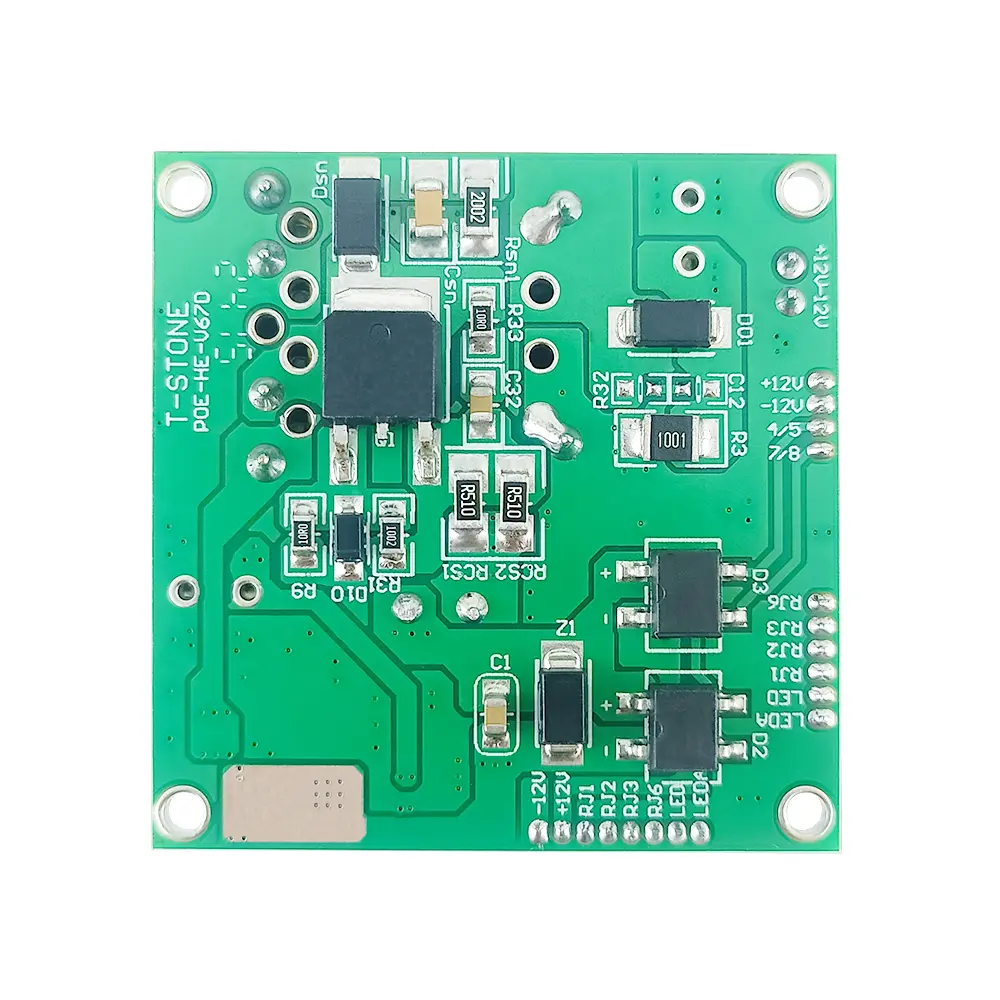

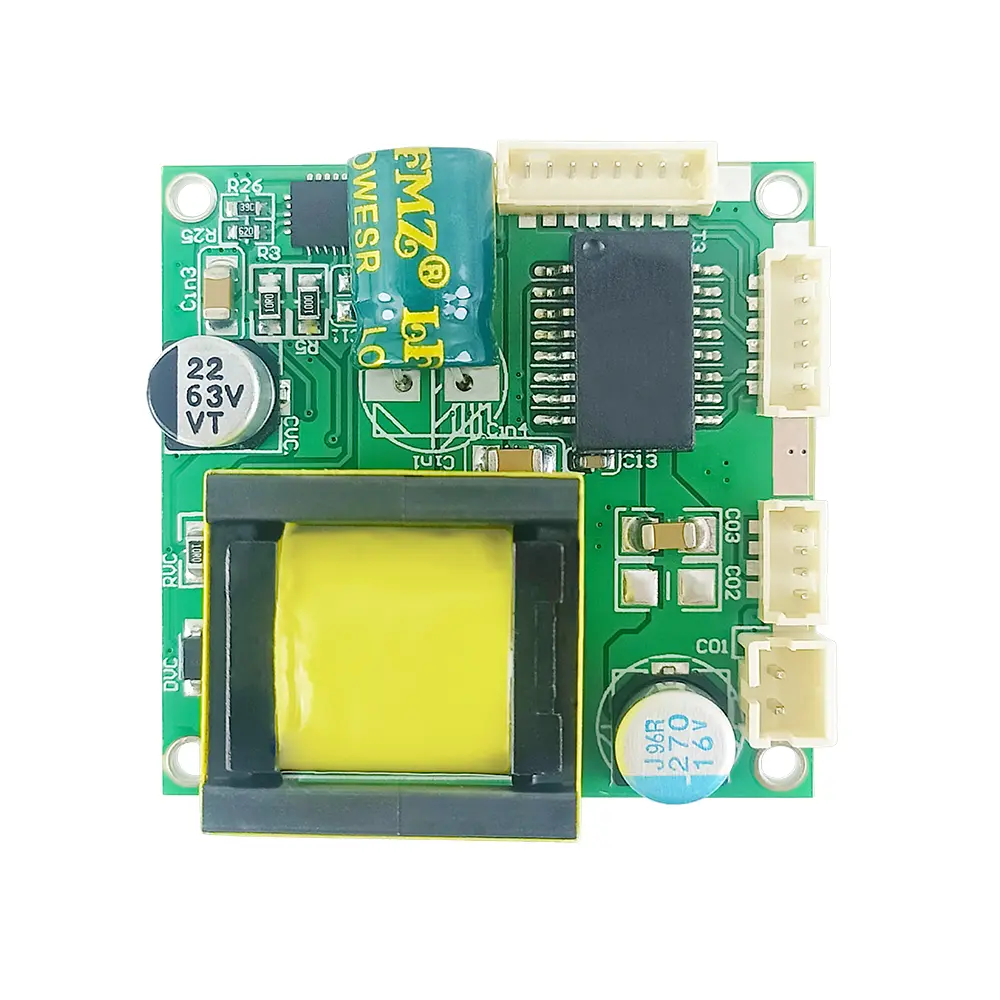

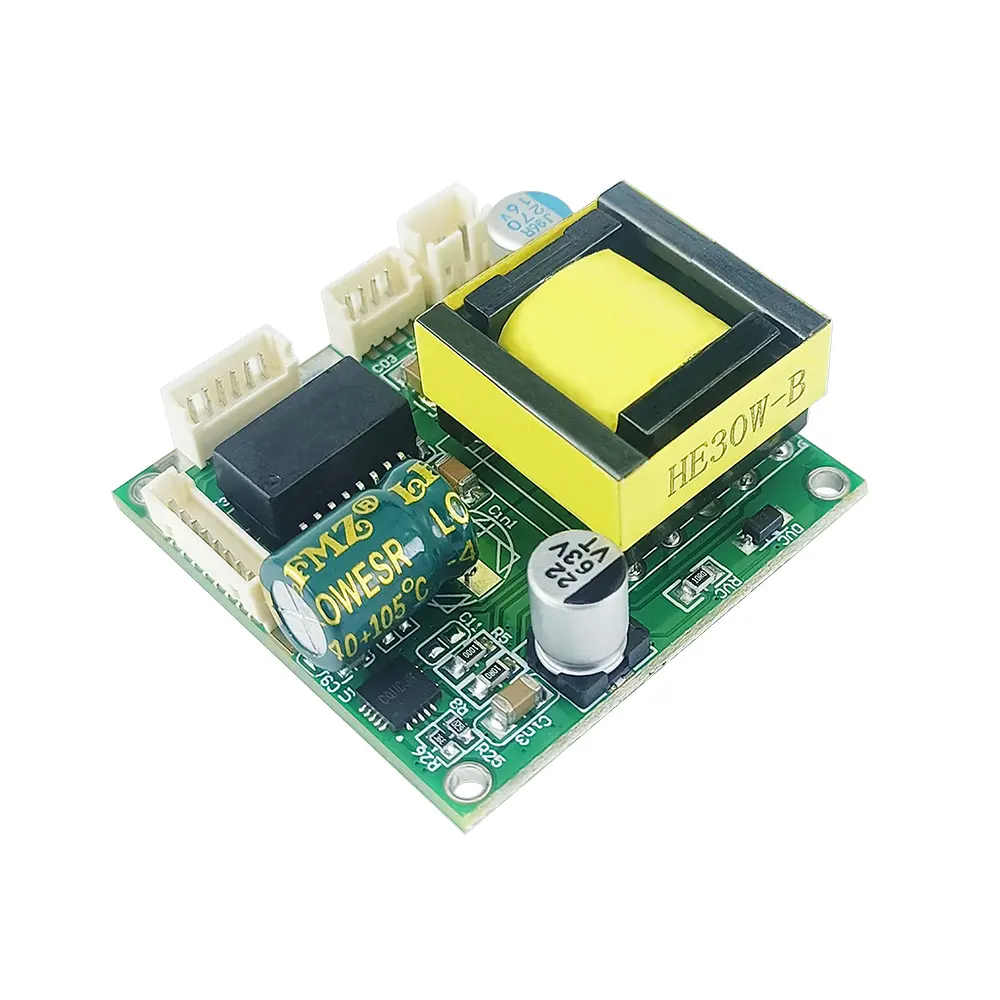

The TSD-PD3818 setup has two input sockets and two output sockets. 6-Pin PH1.25mm female block: input port, support RJ12+, RJ36- power supply. 4-Pin PH1.25mm female block: input port, support RJ45+, RJ78- PoE power supply, while output DC 12V. 8-Pin PH1.25mm female block: output outlet, output DC 12V 2A and network signal. 2-Pin PH2.0mm female block: output outlet, output DC 12V 2A current.

TSD-PD3818 conforms to IEEE802.3af/at PoE standard protocol, and its EMC parameters can meet the requirements of IEC 61000-4-2/3/4/5/6 standard. The products have obtained CE, FCC, RoHS certification, and sell well all over the world.

TSD-PD3818 with isolation transformer is an isolated PD module with electrical isolation and safety protection functions. The circuit has the functions of overheat protection, overvoltage protection, over-current protection, short circuit protection and so on. The maximum output power is 25W. Transmission rate: 10/100Mbps adaptive. Support wide voltage input DC 38-56V, default output voltage DC 12V, 9V, 15V, 24V and other voltages can be customized.

● Input: Wide-range PoE DC 38-56V
● Output: DC 12V MAX 2A
● Compliance: IEEE 802.3af/at PoE International Standard
● Certifications: CE, FCC, RoHS
● EMC Standards: Meets IEC 61000-4-2/3/4/5/6 Requirements
● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
● Transmission Rate: 10/100Mbps Auto-Negotiation
● Protection Features: Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
● Surge Protection: 4KV lightning surge resistance
● Conversion Efficiency: ≧85%
● High-Temperature-Resistant Eco-Friendly PCB
● Lead-free manufacturing process
● Gigabit High-Power Network Filter, Supports High-Power Devices
● High frequency low resistance electrolytic capacitor, reduce circuit high frequency loss and heat

● Patch solid capacitor, high stability, long service life

● International brand original electronic components, excellent precision and high performance

● High power high conduction low impedance transistor, high reliability, high temperature tolerance

● Environmental protection high temperature resistant PCB material, environmental protection lead-free process

● Pure copper pin connector to ensure safety performance

● EE19 frame isolation transformer, high electrical safety

● Equipped with 80mm connecting line for easy customer connection

Product parameter table
Product Name	25W multi-voltage (9/12/15/24V) PoE module
Product Model	TSD-PD3818
PoE Standard	IEEE802.3af/at
Input Voltage	PoE: DC 38-56V
Output	DC 12V MAX 2A
Conversion Efficiency	≧85%
PoE Pin	RJ12+ RJ36- / RJ45+ RJ78- Fully compatible
Conversion Mode	Isolated type
Data Rate	10/100Mbps Auto-Negotiation
Transmission Distance	100 meters(Category 5e Cable (Cat5e) )
Surge Protection	4KV
Circuit Protection	Short - circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection
LED Indicator	/
Interface	PoE Input Port (6-Pin PH1.25mm terminal block): RJ12+ RJ36- PoE Input Port (4-Pin PH1.25mm terminal block): RJ45+ RJ78- Output Port (8-Pin PH1.25mm terminal block): Data + DC Output Port (2-Pin PH2.0mm terminal block): DC 12V
Function	/
Material	FR-4
Color	glossy green solder mask
Accessories	/
EMC	IEC 61000-4-2/3/4/5/6
Temperature	-30～60℃ For Operating -30～80℃ For Storage
Humidity	RH95% MAX (Non-condensation)
Weight	N.W: 19g
Dimension	383815.2mm
Package	Blister packaging tray

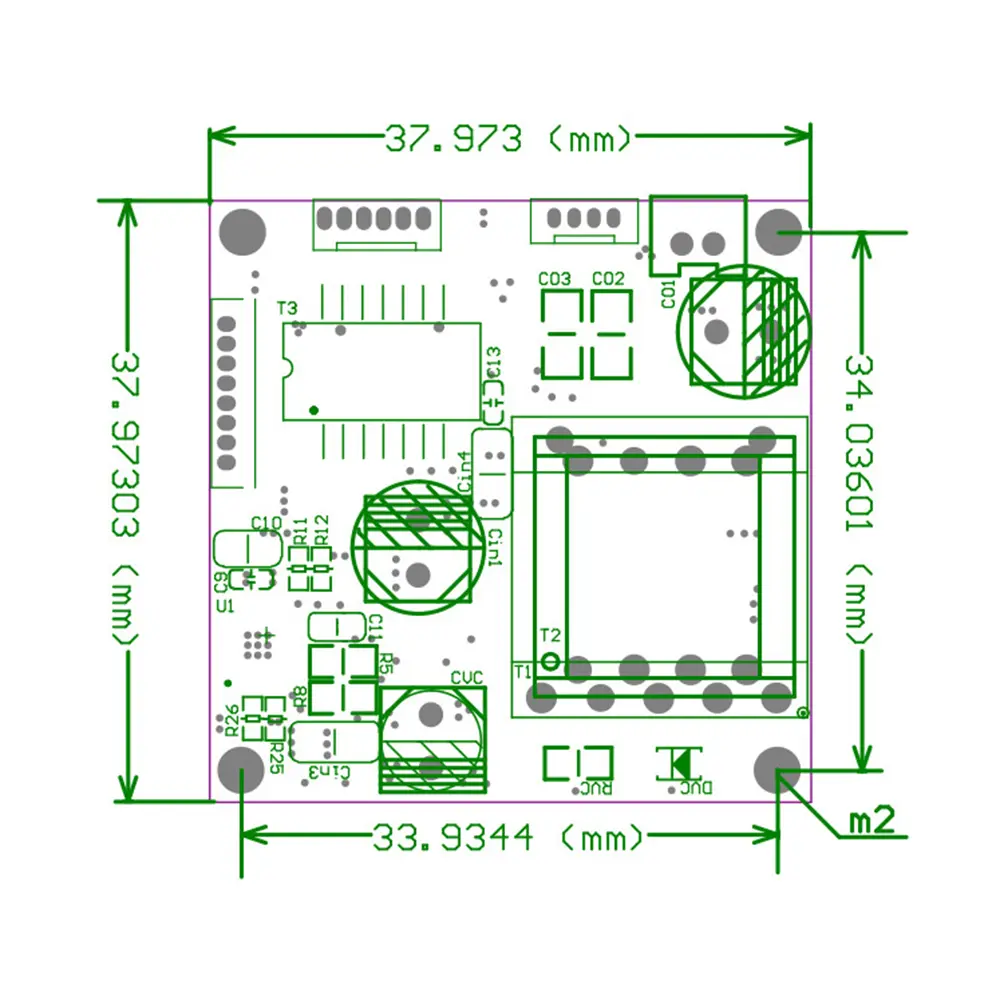

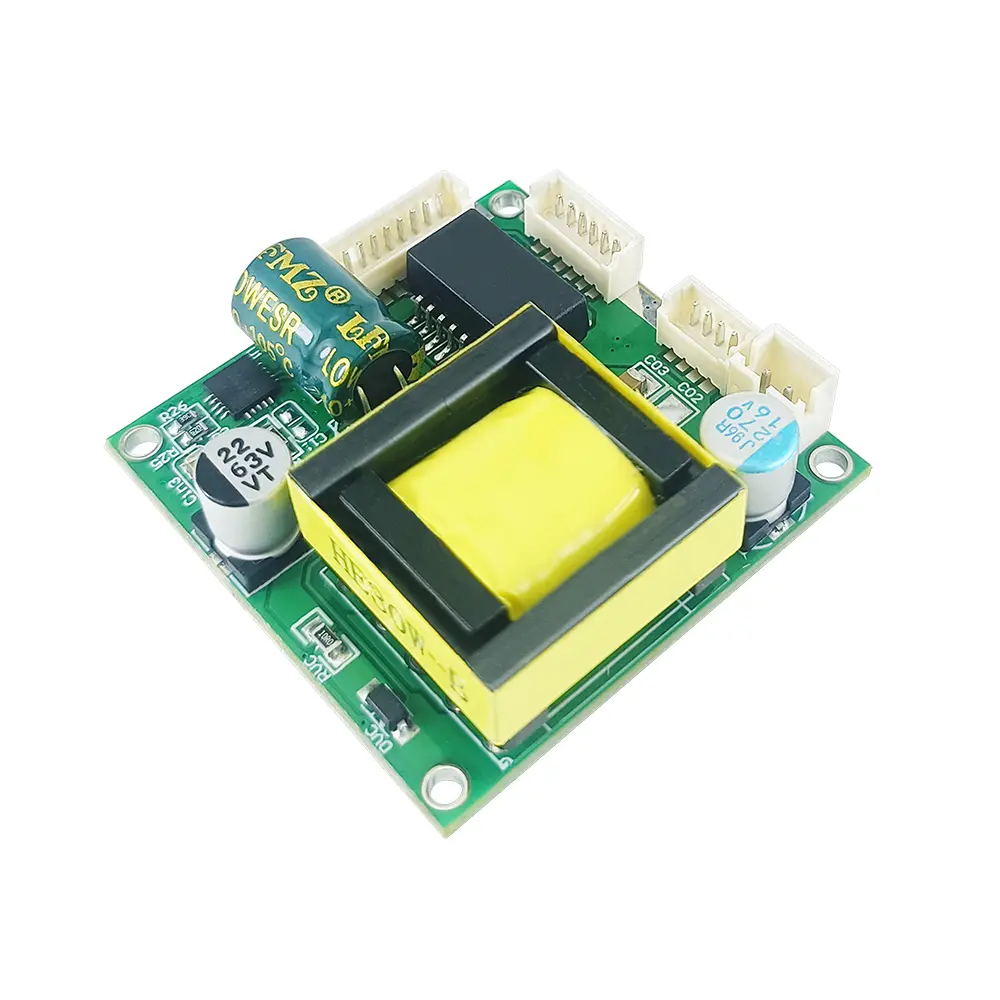

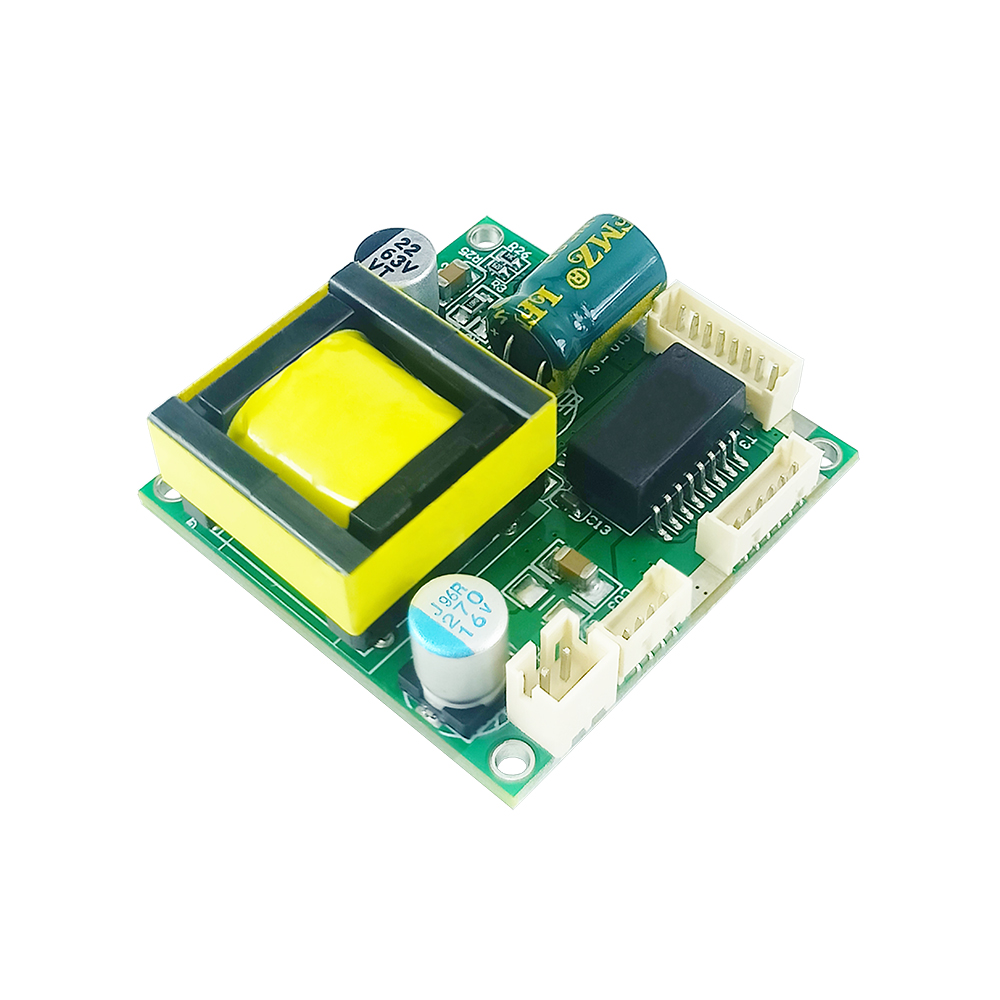

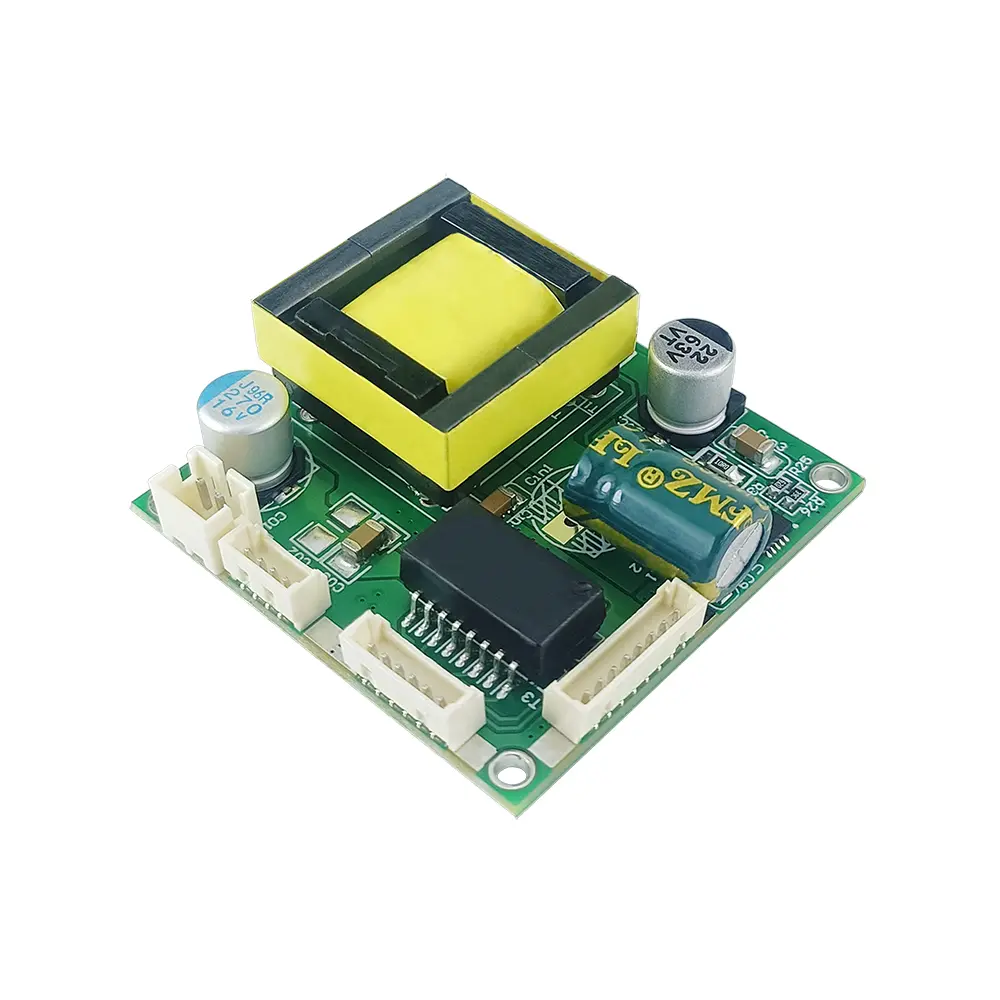

Size structure: 38*38*15.2mm, hole center distance: 34*34mm, screw hole diameter: Φ=2.0mm*4, PCB thickness: 1.6mm. Double plate design, the surface is coated with bright green oil solder mask. Overall layout: square structure. Maximum thickness: 15.2mm. Module double-sided design, improve the quality of signal transmission, large components concentrated in one side, increase the circuit function integration, easy to install.
TSD-PD3818-Dimension

TSD-PD3818 is a high-power active PoE module with a maximum output power of 25W. The module is mainly used in security monitoring, network audio, wireless coverage, building intercom and other equipment.

The TSD-PD3818 module has been widely used in the field of PoE equipment because of its stable work and excellent property, and its outstanding performance has been continuously recognized by equipment manufacturers and end users.

Package list
Items	Quantity
PoE PD Module	500
Operation Manual	/
