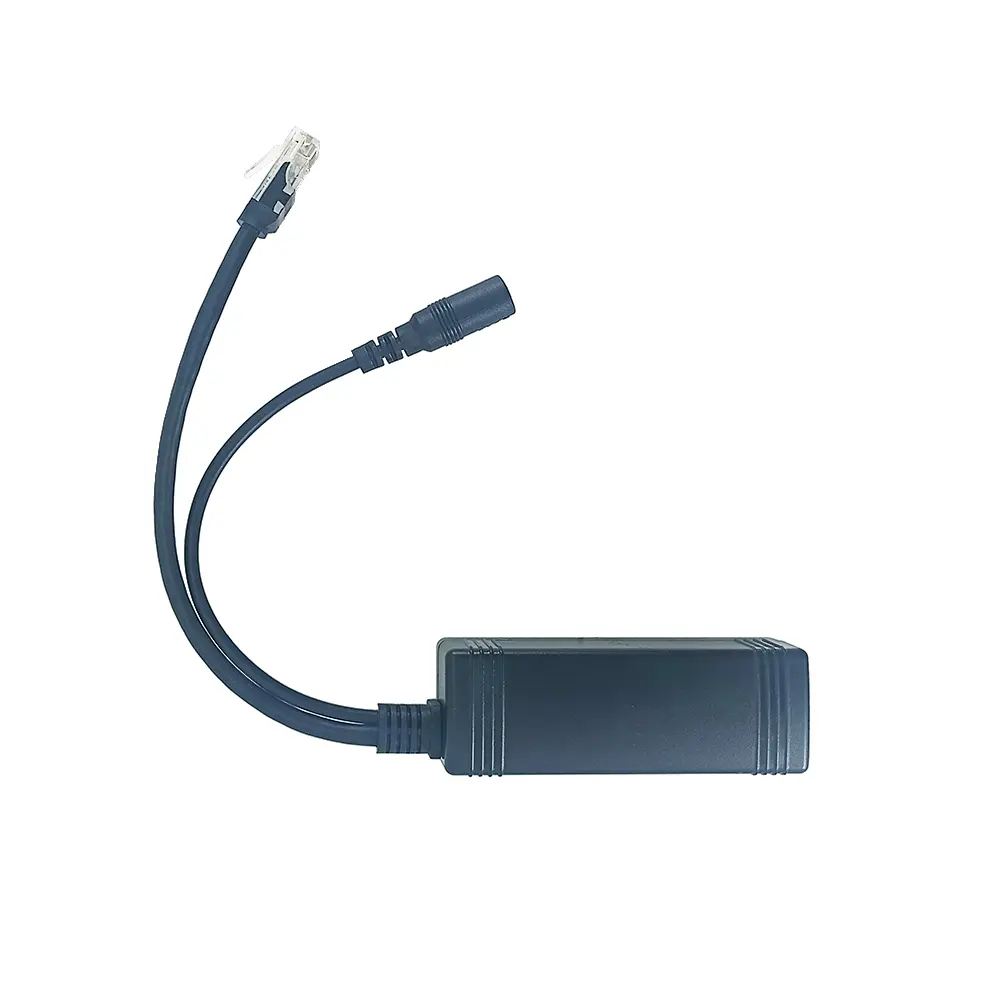

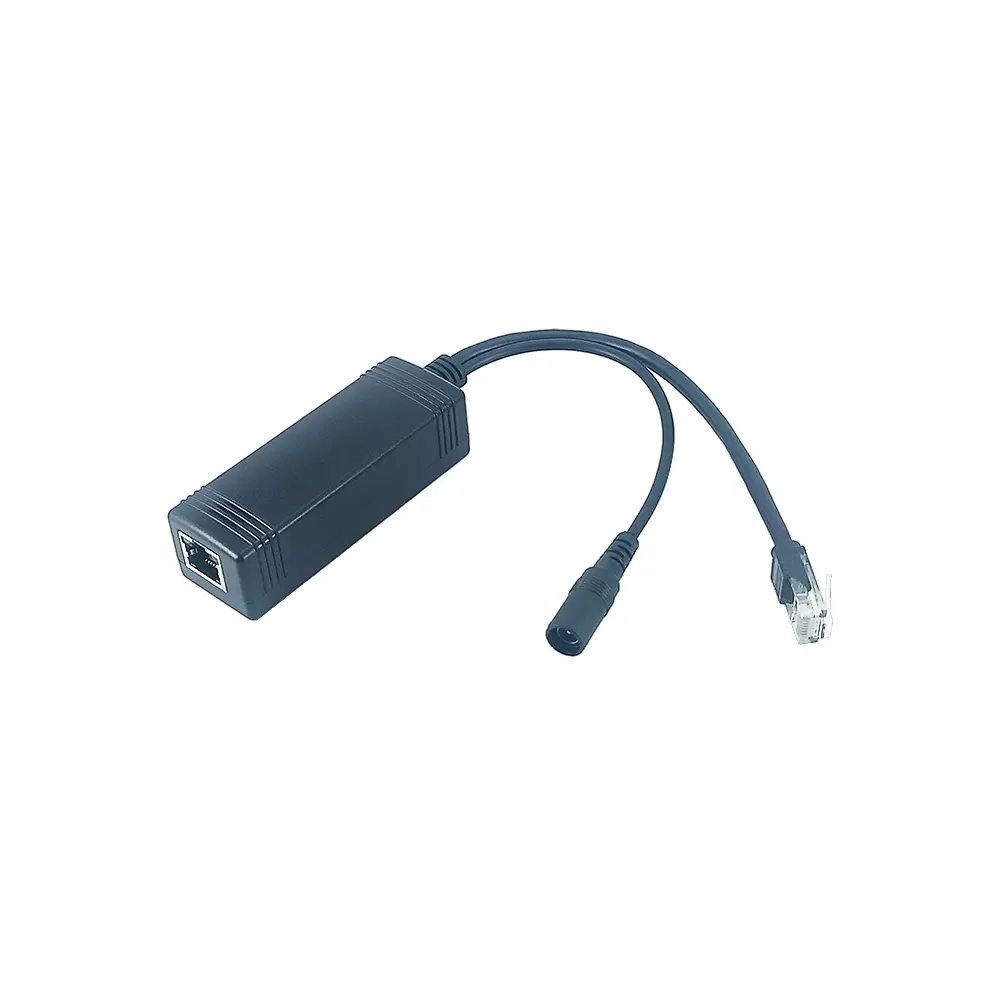

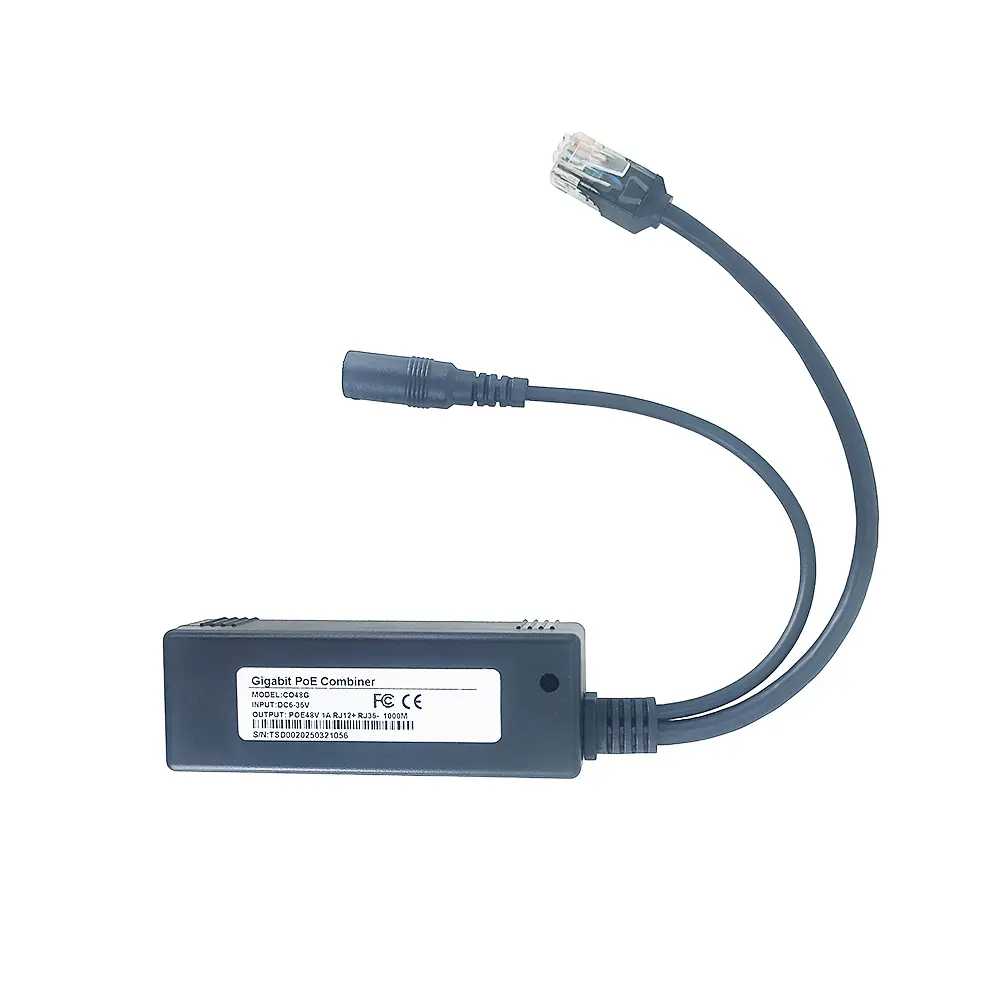

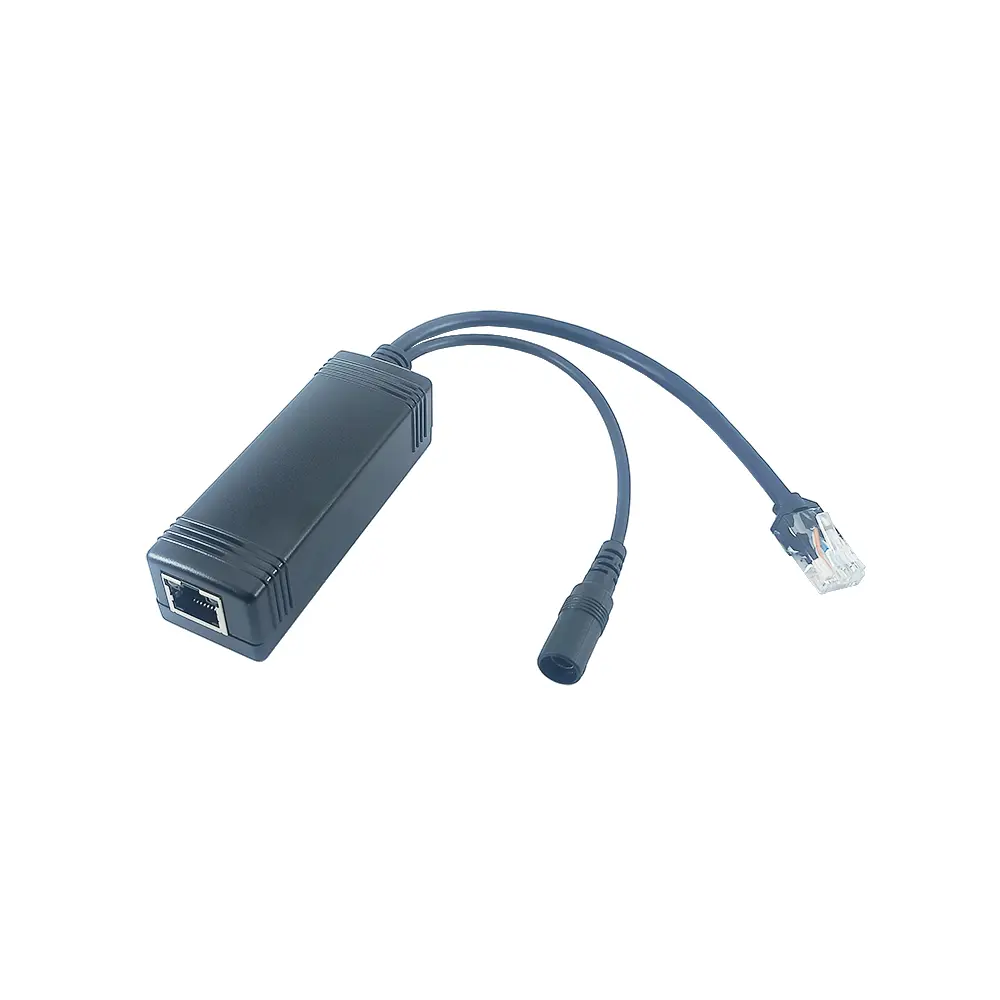

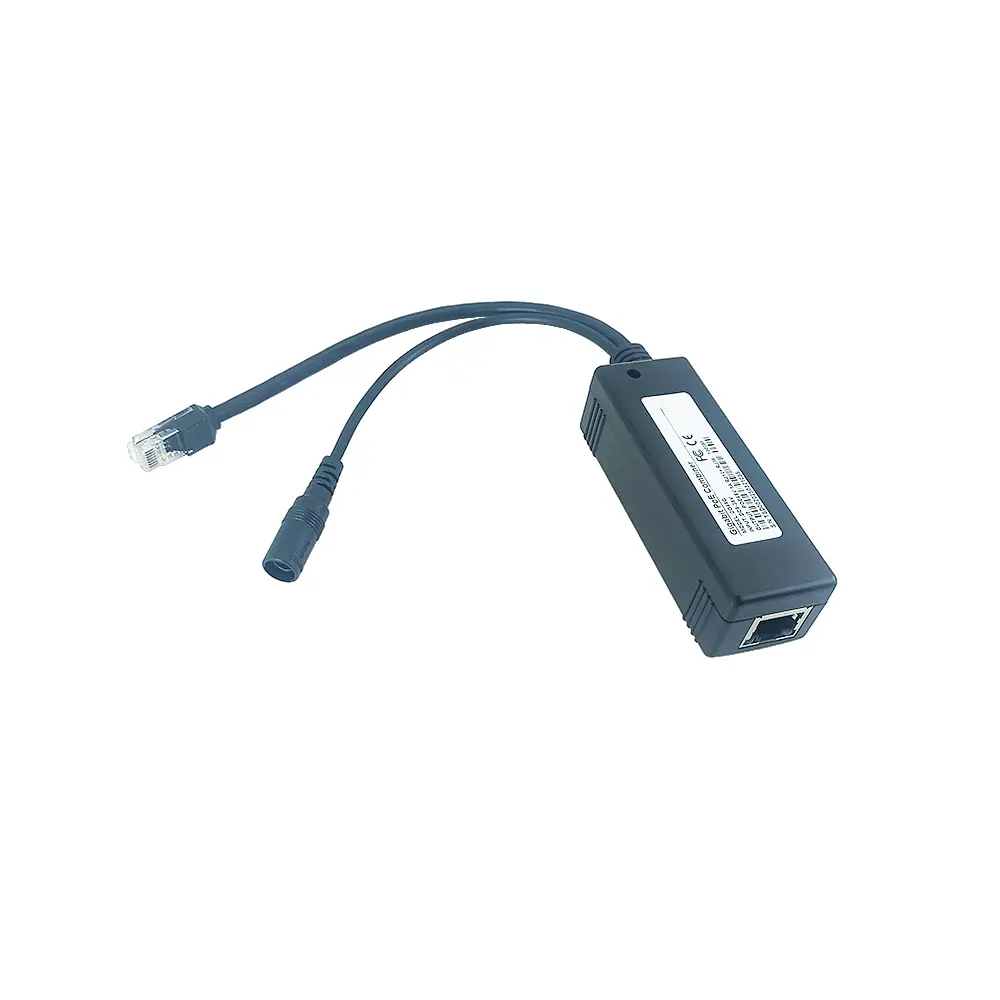

25W Gigabit Passive POE Combiner

Model: TSD-CO48G

  • Input: DC 6-36V
  • Output: passive PoE 48V 0.5A 25W
  • Transmission rate: 10/100/1000Mbps
  • Conversion efficiency is over 85%
  • RJ12+ RJ36- / RJ45+ RJ78-
  • Interface: RJ45 port/DC socket
  • Size: 285*28*23 mm (L*W*H)
  • Weight: N.W=45 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package
    TSD-CO48G-4
    01

    The TSD - CO48G is a gigabit passive PoE combiner with an adaptive transmission rate of 10M/100M/1000M. It does not support the IEEE802.3af/at PoE standard protocols. It inputs direct current of 6-36V and data signals, and outputs a PoE signal of 48V 0.5A with a maximum output power of 25W.


    The TSD-CO48G has two input ports and one output port. Input ports: RJ45 connector: for inputting data signals; DC female socket: for inputting 6 - 36V DC signals. Output port: RJ45 Jack: for outputting PoE power supply signals.

    ​

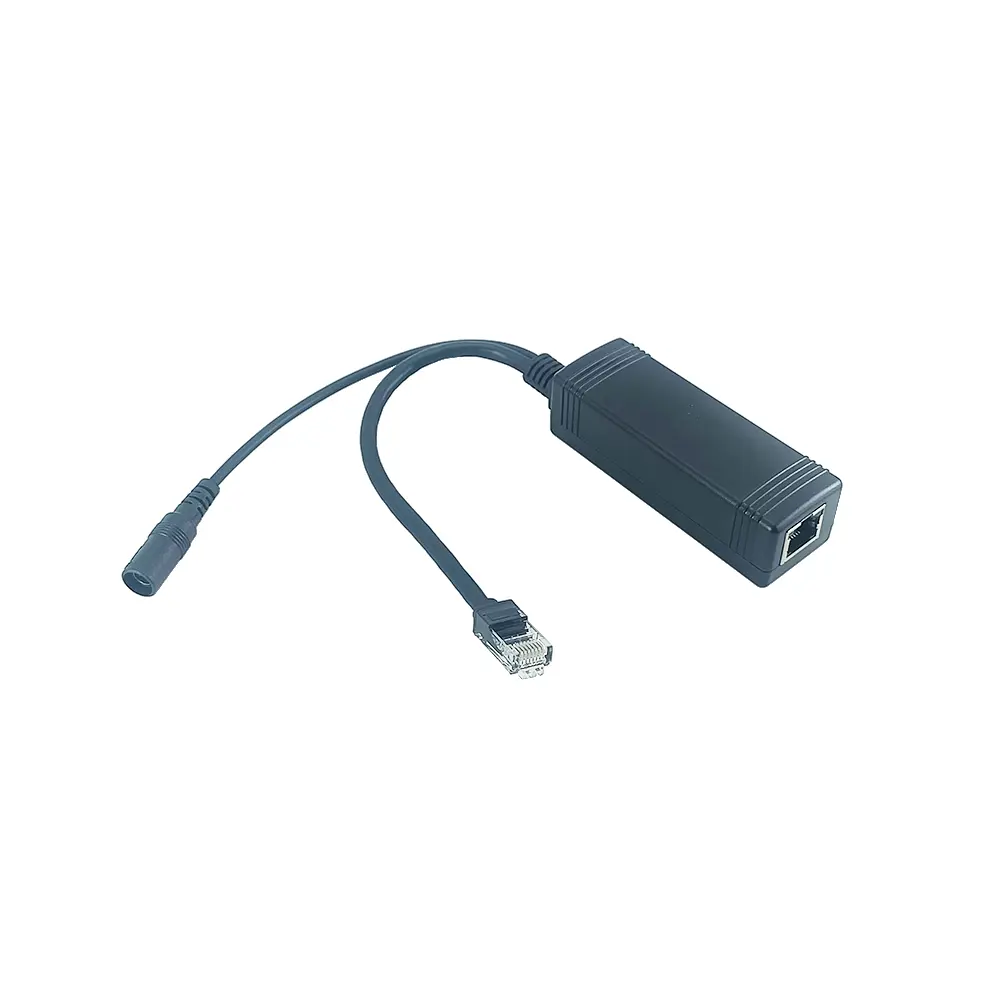

    TSD-CO48G-6
    01


    The TSD - CO48G combiner integrates the functions of signal and power transmission. It can supply power to devices such as PoE IPCs, PoE wireless APs, and IP phones and transmit network data. It is mainly used in scenarios such as solar power supply systems and network infrastructure.


    The circuit of the TSD - CO48G is equipped with protection functions against lightning strikes, short - circuits, overloads, and high temperatures. The product has obtained certifications such as CE, FCC, and RoHS. Its EMC parameters meet the requirements of the IEC 61000 - 4 - 2/3/4/5/6 standards and it is a best - seller in many countries and regions around the world.

    The TSD - CO48G has an input voltage of 6 - 36V and an output voltage of 48V 0.5A. There are two power supply modes to choose from: power supply through the RJ12+ RJ36- or RJ45+ RJ78- pin positions. The maximum output power is 25W, and it features adaptive transmission at a rate of 10/100/1000Mbps.



    ● Input:​​ DC 6-36V
    ● Output:​​ PoE 48V 0.5A 25W
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Power supply pins: RJ12+ RJ36-/RJ45+ RJ78-
    ● Transmission Rate:​​ 10/100/1000Mbps Auto-Negotiation
    ● Protection Features:​​ overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● 5.5*2.1mm DC female socket

    ● 100Mbps high frequency POE filter to ensure stable data transmission

    ● International brand original high-precision electronic components, stable performance

    ● High temperature resistant PCB environmental protection material, lead-free environmental protection process

    ● Adopt pure copper pin connector to avoid bad contact

    ● High-temperature-resistant and environmentally friendly ABS plastic shell

    Product parameter table

    Product Name

    25W gigabit passive PoE combiner

    Product Model

    TSD-CO48G

    PoE Standard

    /

    Input Voltage

    DC 6-36V

    Output

    PoE 48V 0.5A 25W

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ12+ RJ36-/RJ45+ RJ78-

    Conversion Mode

    Isolated type

    Data Rate

    10/100/1000Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    /

    Interface

    RJ45 connector: data in

    DC female socket: DC 6-36V in

    RJ45 jack: 48V 0.5A PoE out

    Function

    /

    Material

    ABS plastic

    Color

    Matte black

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 45 g

    Dimension

    Product Dimension: 285*28*23mm

    Package

    Transparent LDPE Packaging Bag
    Size structure: 288 * 31 * 26 mm, with a cable length of 200 mm. Specifications of DC female socket: 5.5*2.1 mm. Overall material: high-temperature-resistant and environmentally friendly ABS plastic shell, color: matte black.

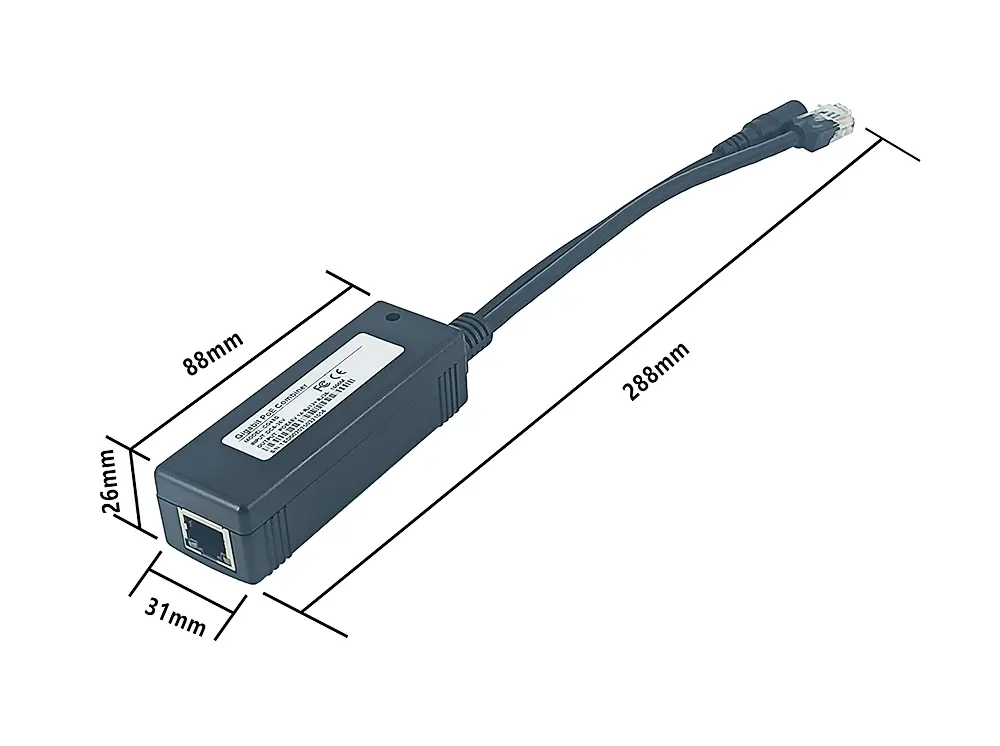

    TSD-CO48G-Dimension

    The TSD - CO48G has a maximum output power of 25W. It can support the operation of PoE terminal devices such as network cameras, wireless access points (APs), and IP phones. Its flexible deployment characteristics bring a great deal of convenience to both equipment manufacturers and end - users.

    The TSD - CO48G does not support the IEEE802.3af/at standard protocols. It directly supplies power to terminal devices in a forced manner during operation. Users should note that the power requirements of terminal devices should match those of the TSD - CO48G. Otherwise, it may cause damage to the devices.

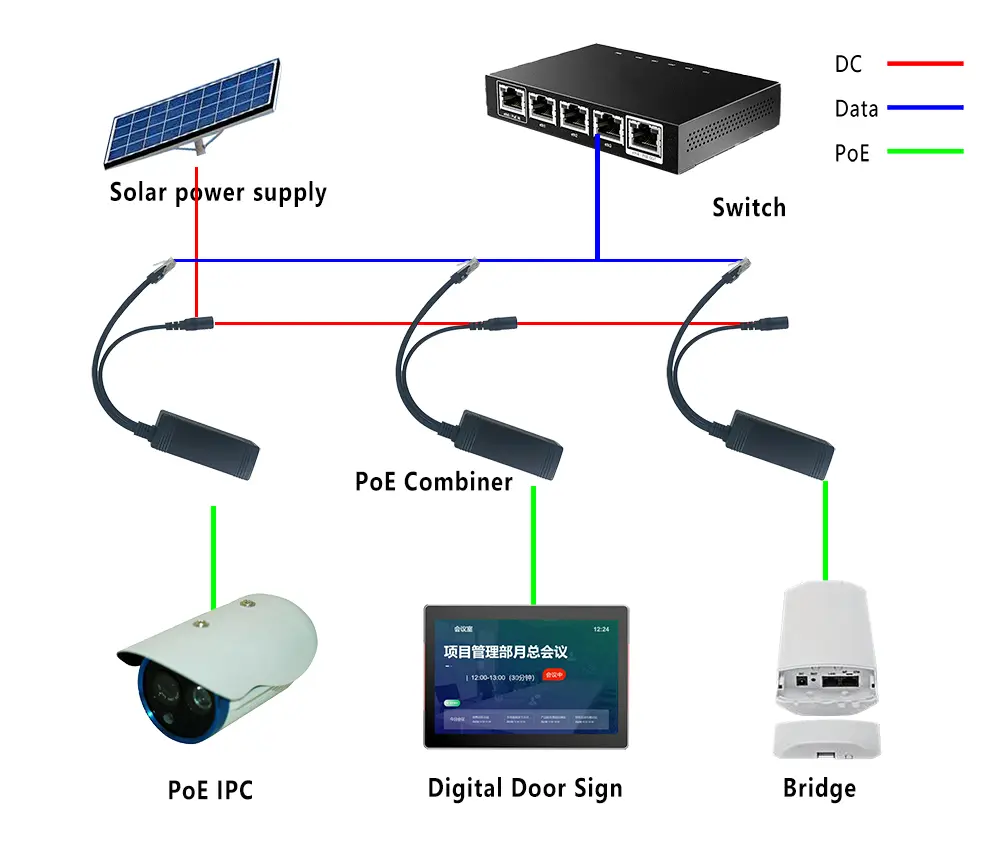

    Topography

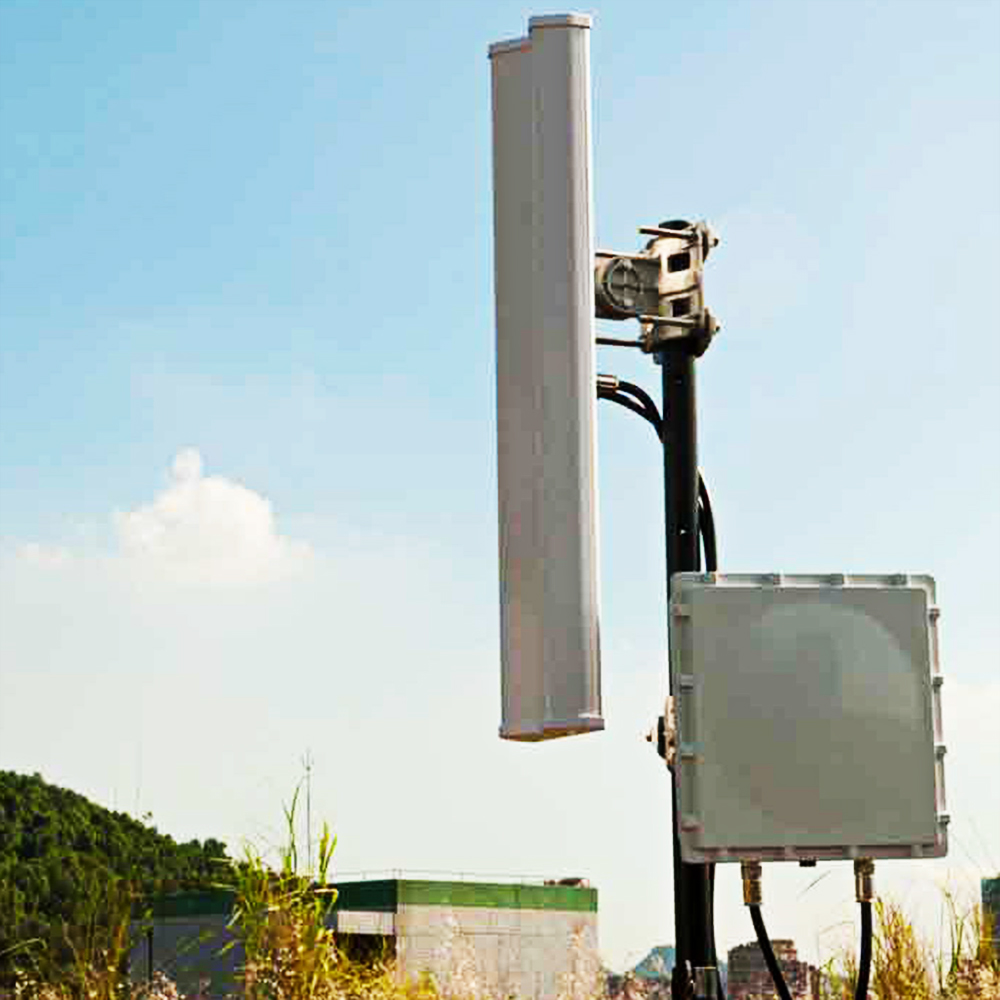

    TSD-CO48G-Application1

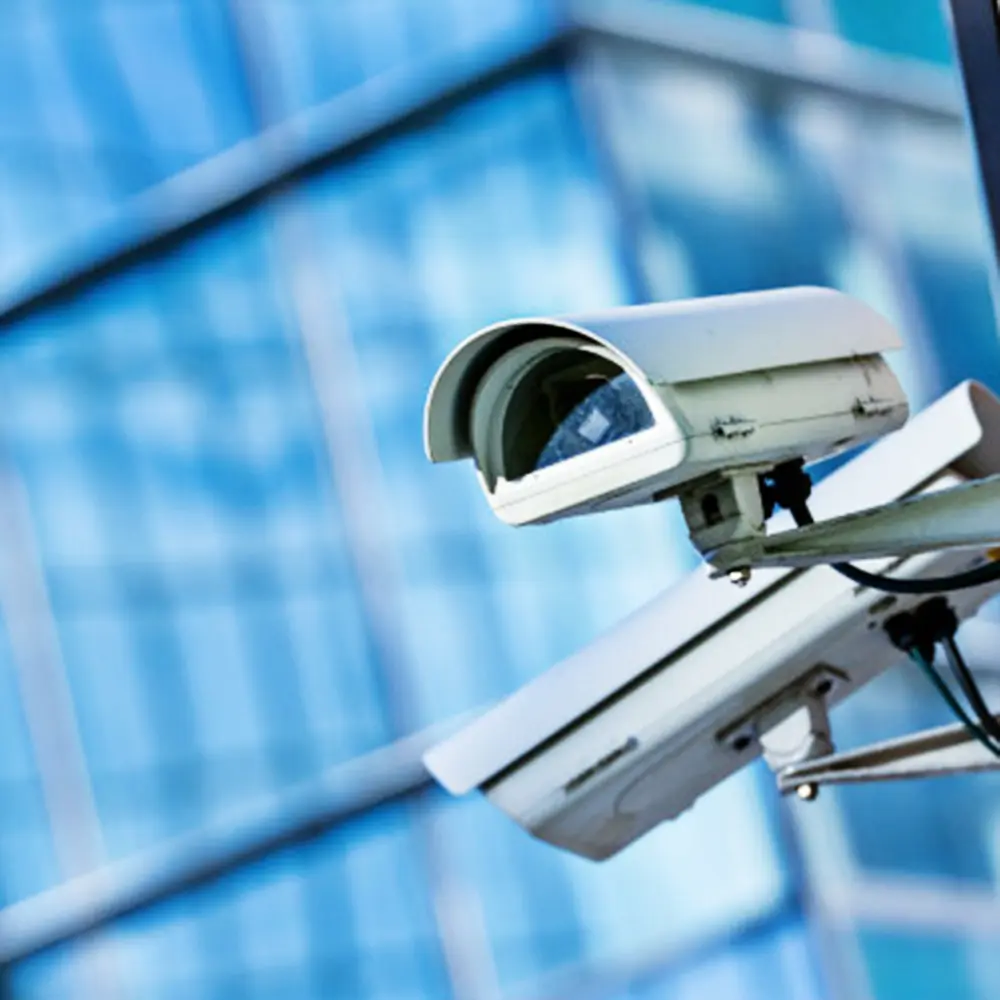

    TSD-CO48G-Application2

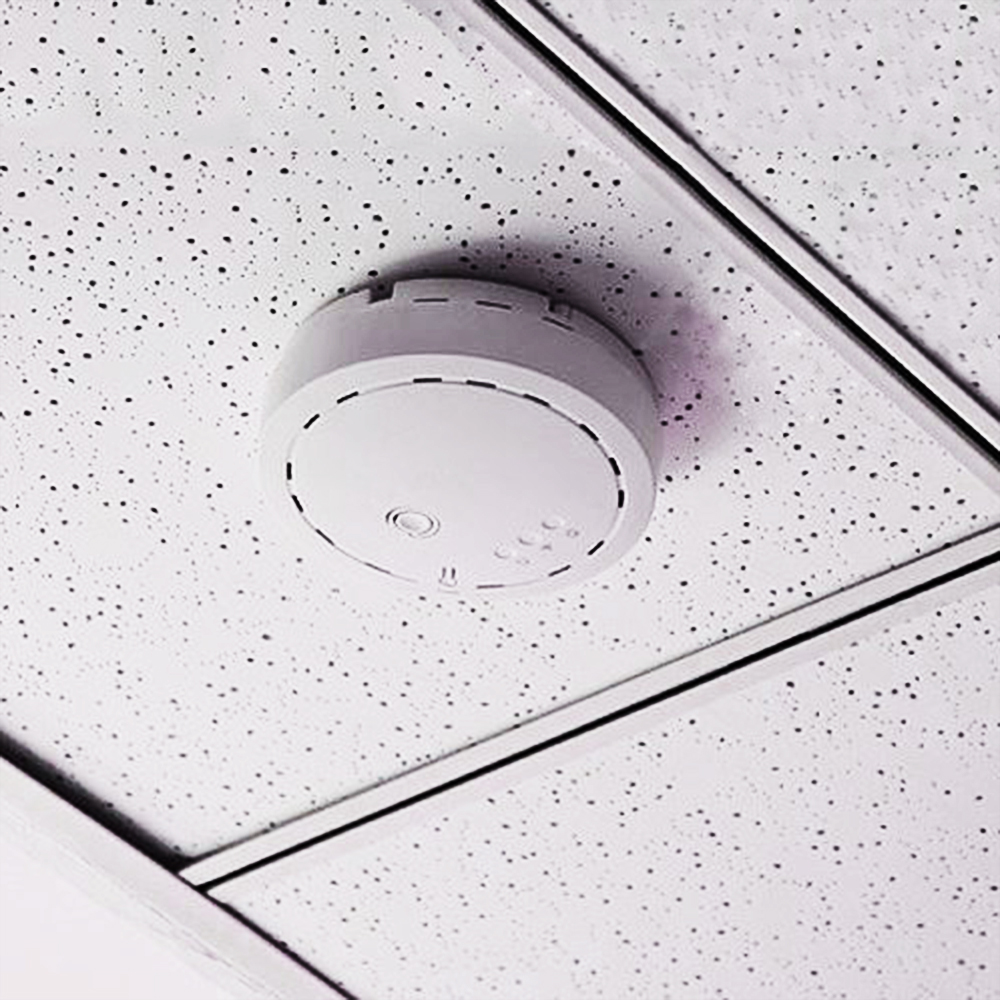

    TSD-CO48G-Application3

    Package list
    Items Quantity
    TSD-CO48G combiner 1 PCS
    Operation Manual /

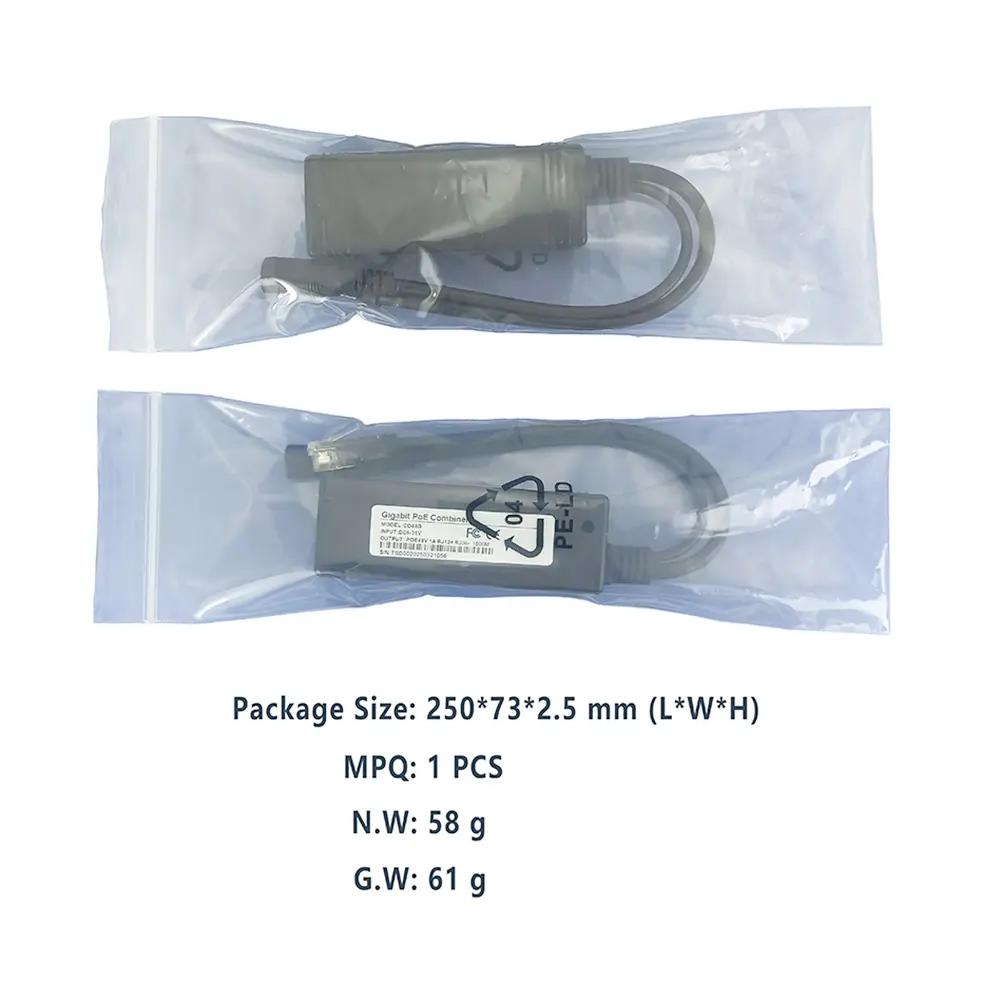

    TSD-CO48G-Package

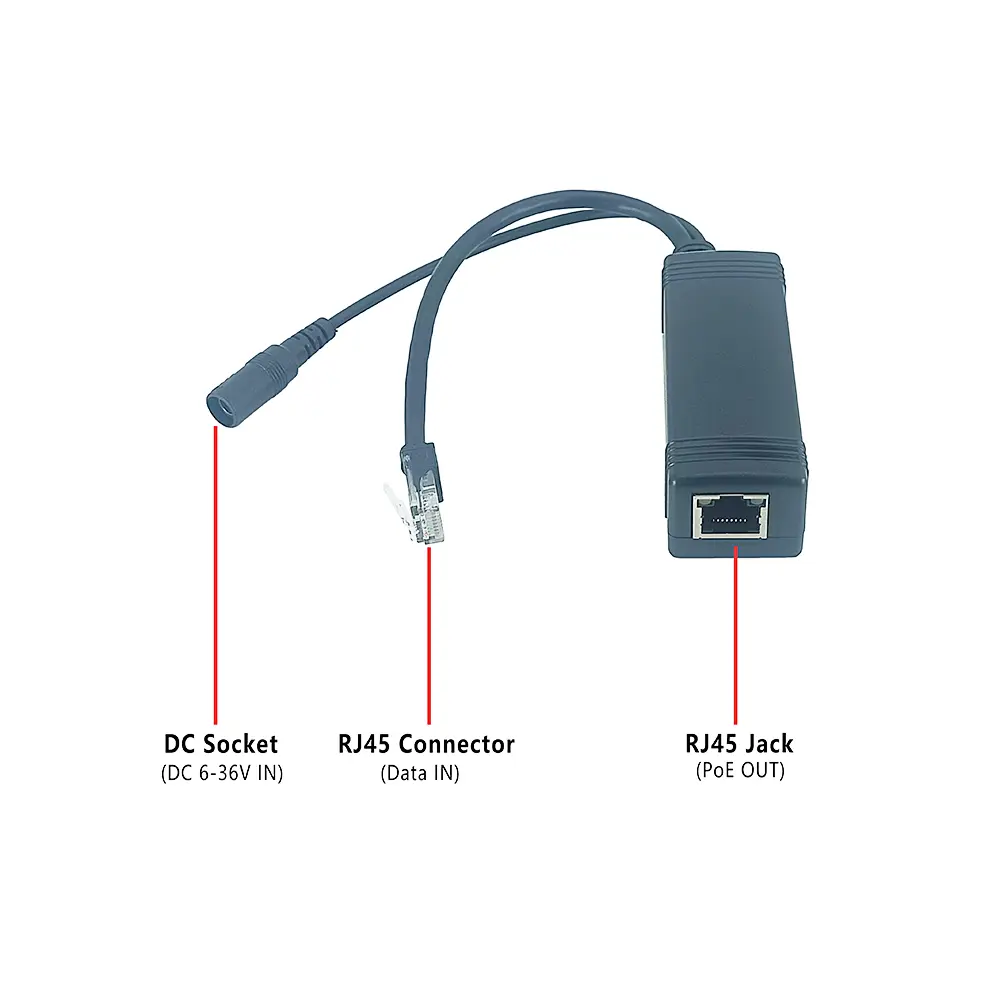

    TSD-CO48G-Interface
